Combining Observables in Rx

Introduction and graphical description to common ReactiveX operators to combine multiple sources of data.

Transcript

1. COMBINING OBSERVABLES IN RX Santiago Vanegas, Android Developer at STRV
2. INTRODUCTION 2 • Handle more than one source of data • Process and perform calculations • Let’s dig into some ReactiveX operators
3. WHAT IS AN OBSERVABLE? 3 • An Observable emits items • An observer subscribes to an Observable. • That observer reacts to whatever item or sequence of items the Observable emits. • It does not block while waiting for the Observable to emit items.

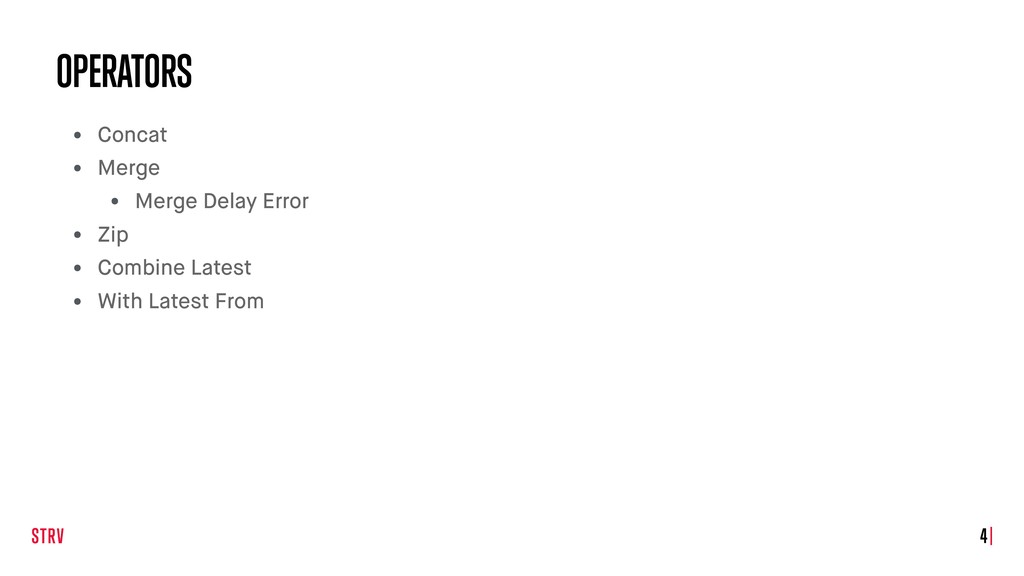

4. OPERATORS 4 • Concat • Merge • Merge Delay Error • Zip • Combine Latest • With Latest From
5. OPERATORS 5 • Concat • Merge • Merge Delay Error • Zip • Combine Latest • With Latest From

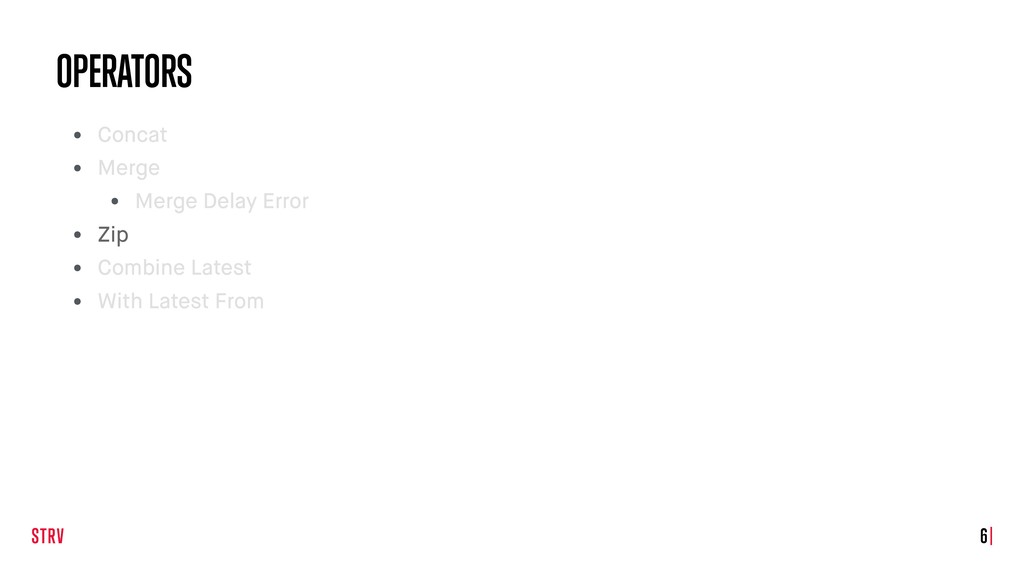

6. OPERATORS 6 • Concat • Merge • Merge Delay Error • Zip • Combine Latest • With Latest From
7. OPERATORS 7 • Concat • Merge • Merge Delay Error • Zip • Combine Latest • With Latest From

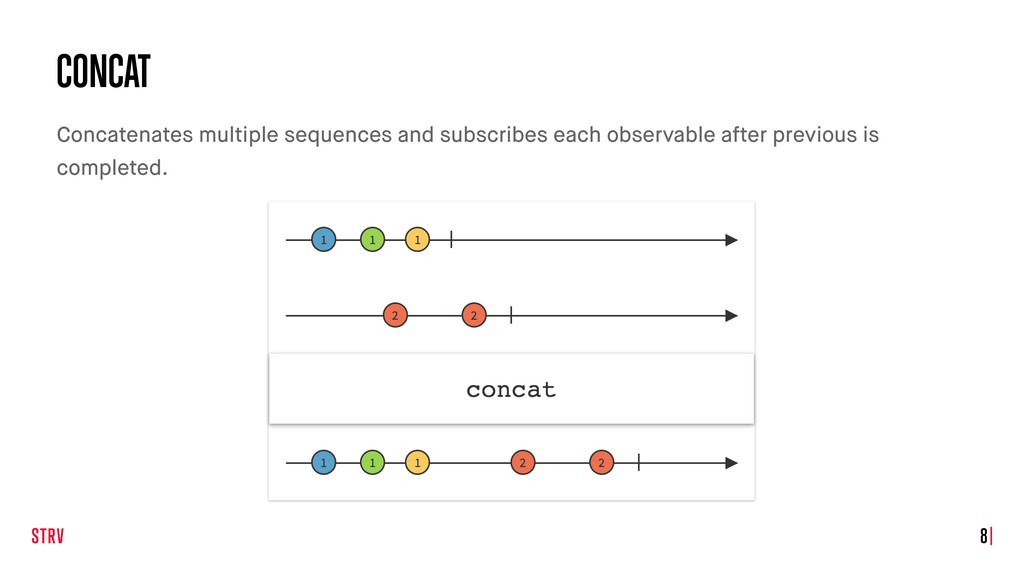

8. CONCAT Concatenates multiple sequences and subscribes each observable after previous is completed. 8
9. CONCAT • Once first sequence completes, second one is subscribed • Infinite Observable means that will avoid subsequent Observables to be called • Two or more Observables emitting same type 9 1 x 1

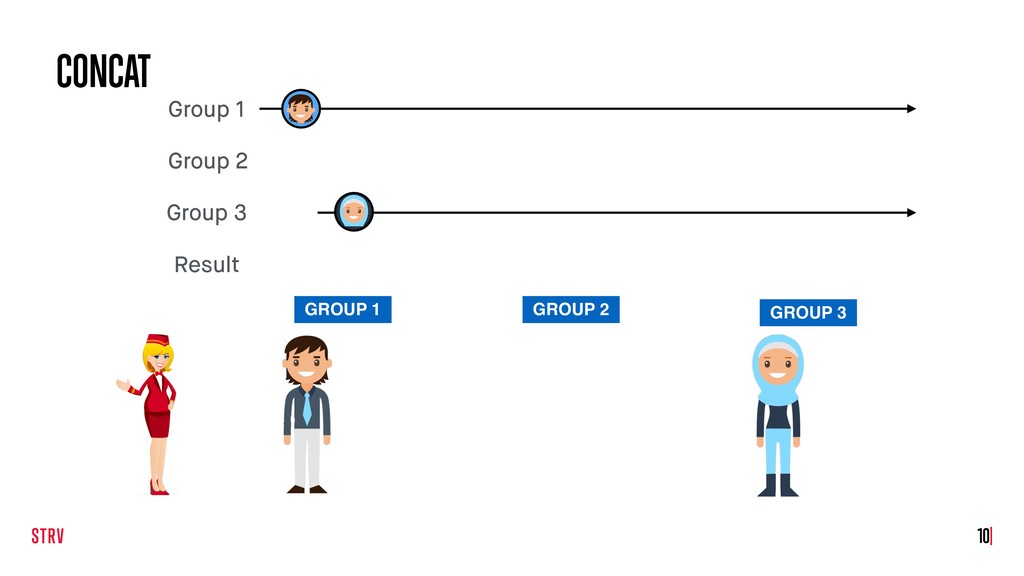

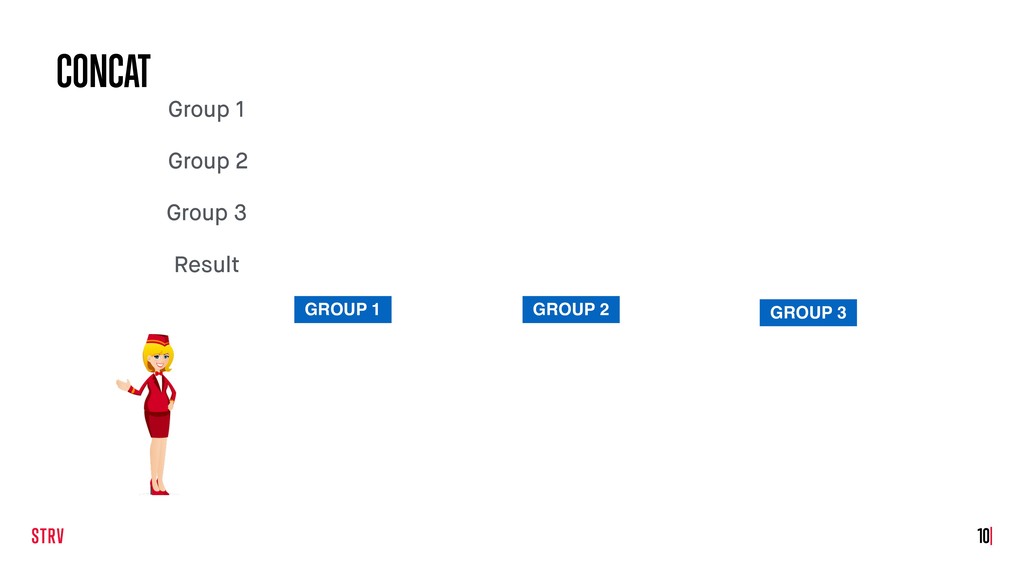

10. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3
11. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3

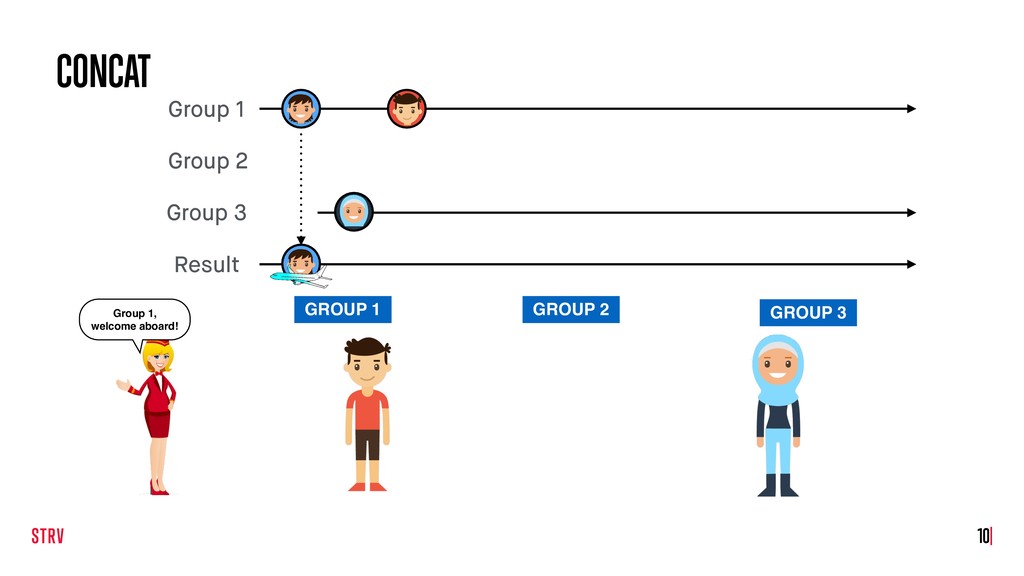

12. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 1, welcome aboard!
13. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 1, welcome aboard!
14. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 1, welcome aboard!
15. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 1, welcome aboard!
16. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 1, welcome aboard!
17. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 2, welcome aboard! onComplete()
18. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 2, welcome aboard! onComplete()

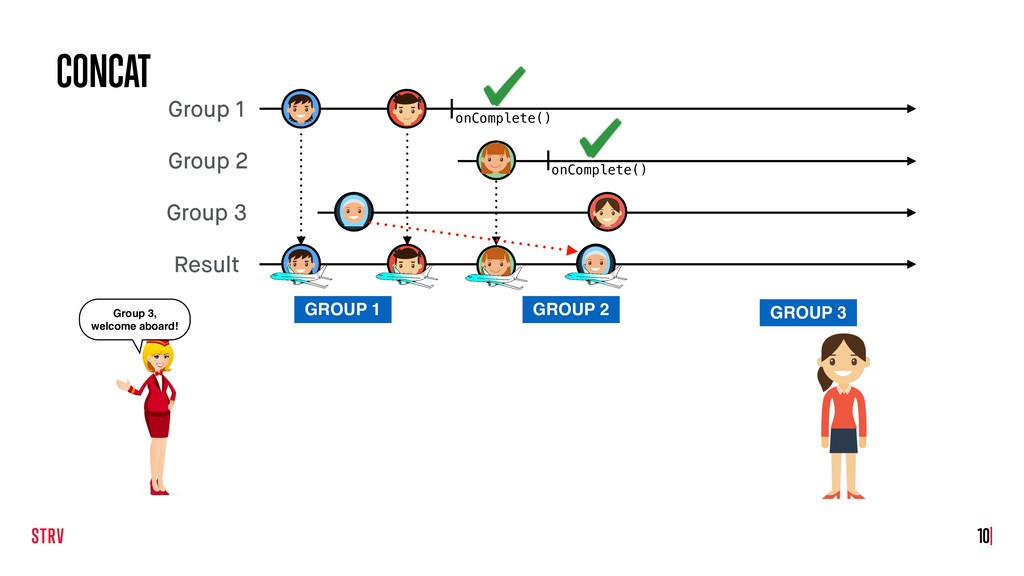

19. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 3, welcome aboard! onComplete() onComplete()
20. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 3, welcome aboard! onComplete() onComplete()
21. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 Group 3, welcome aboard! onComplete() onComplete()

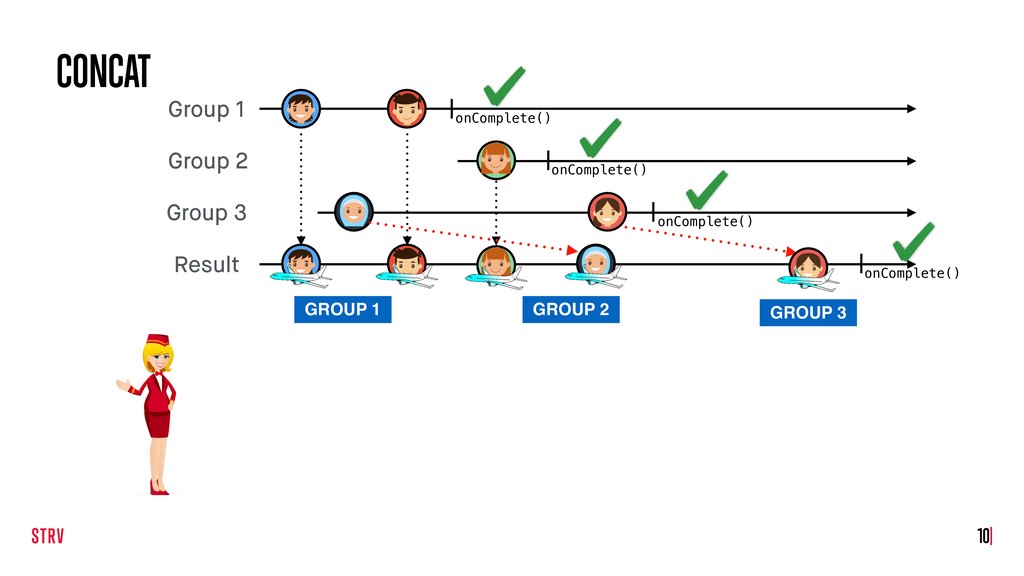

22. CONCAT 10 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 onComplete() onComplete() onComplete() onComplete()
23. 11 CONCAT Typical way to fetch data from cache first, otherwise from network.
24. 11 CONCAT Typical way to fetch data from cache first, otherwise from network. val cacheRequest = contactsRepository.getLocalContacts() val networkRequest = contactsRepository.getRemoteContacts() Observable .concat(cacheRequest, networkRequest) .filter { contacts -> contacts.isNotEmpty() } .firstElement() .subscribeBy { contacts -> populateContacts(contacts) }}
25. 12 CONCAT Typical way to fetch data from cache first, otherwise from network. val cacheRequest = contactsRepository.getLocalContacts() val networkRequest = contactsRepository.getRemoteContacts() Observable .concat(cacheRequest, networkRequest) .filter { contacts -> contacts.isNotEmpty() } .firstElement() .subscribeBy { contacts -> populateContacts(contacts) }}
26. 13 CONCAT Typical way to fetch data from cache first, otherwise from network. val cacheRequest = contactsRepository.getLocalContacts() val networkRequest = contactsRepository.getRemoteContacts() Observable .concat(cacheRequest, networkRequest) .filter { contacts -> contacts.isNotEmpty() } .firstElement() .subscribeBy { contacts -> populateContacts(contacts) }}
27. 14 CONCAT Typical way to fetch data from cache first, otherwise from network. val cacheRequest = contactsRepository.getLocalContacts() val networkRequest = contactsRepository.getRemoteContacts() Observable .concat(cacheRequest, networkRequest) .filter { contacts -> contacts.isNotEmpty() } .firstElement() .subscribeBy { contacts -> populateContacts(contacts) }}

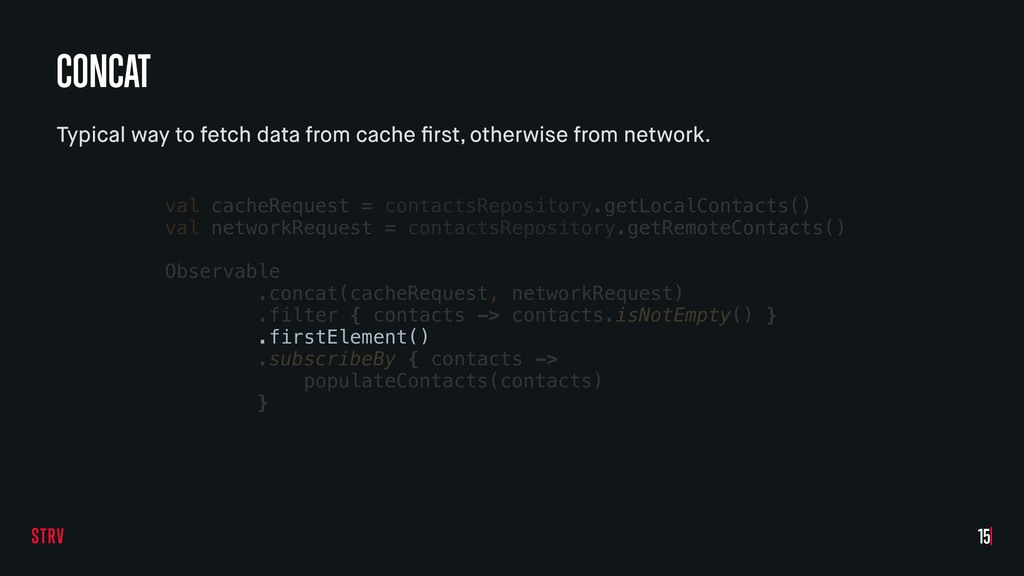

28. 15 CONCAT Typical way to fetch data from cache first, otherwise from network. val cacheRequest = contactsRepository.getLocalContacts() val networkRequest = contactsRepository.getRemoteContacts() Observable .concat(cacheRequest, networkRequest) .filter { contacts -> contacts.isNotEmpty() } .firstElement() .subscribeBy { contacts -> populateContacts(contacts) }}

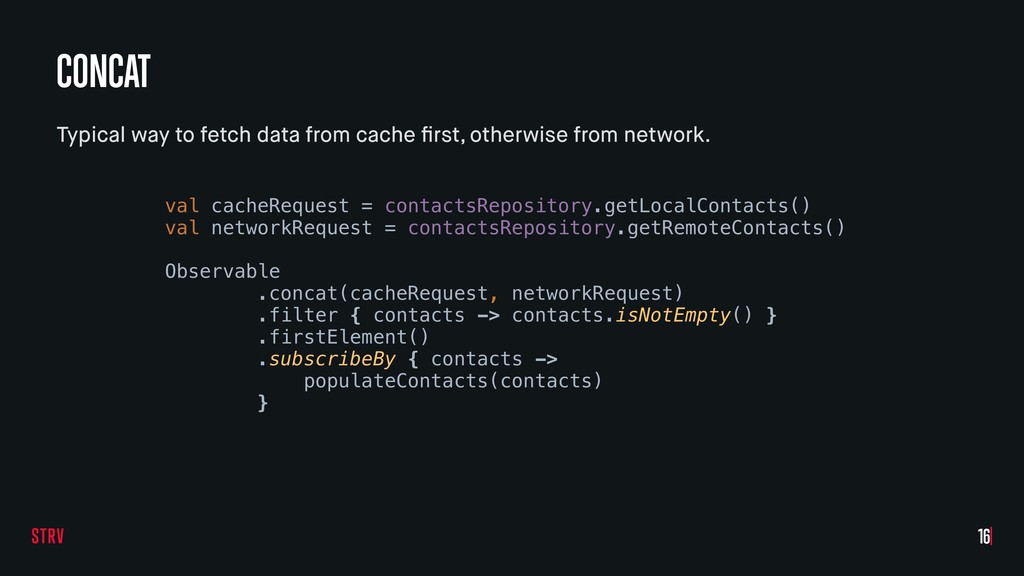

29. 16 CONCAT Typical way to fetch data from cache first, otherwise from network. val cacheRequest = contactsRepository.getLocalContacts() val networkRequest = contactsRepository.getRemoteContacts() Observable .concat(cacheRequest, networkRequest) .filter { contacts -> contacts.isNotEmpty() } .firstElement() .subscribeBy { contacts -> populateContacts(contacts) }}
30. MERGE Similar to concat, but will combine emissions of two or more Observables, and may interleave them. 17
31. MERGE • All emissions are merged together • Doesn’t take into account order or completion • Items emitted may interleave • Error breaks the sequence 18 1 x 1

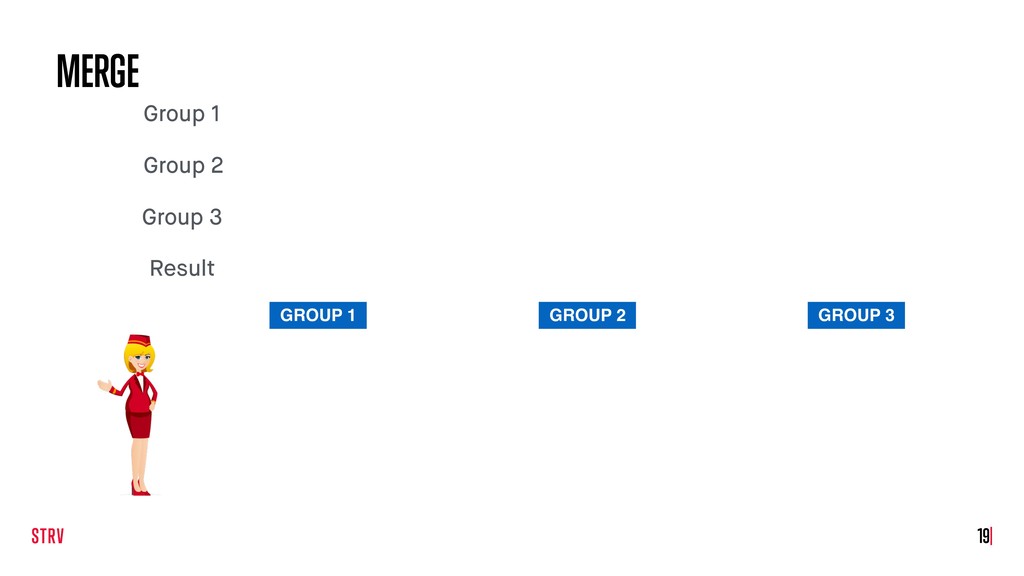

32. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3

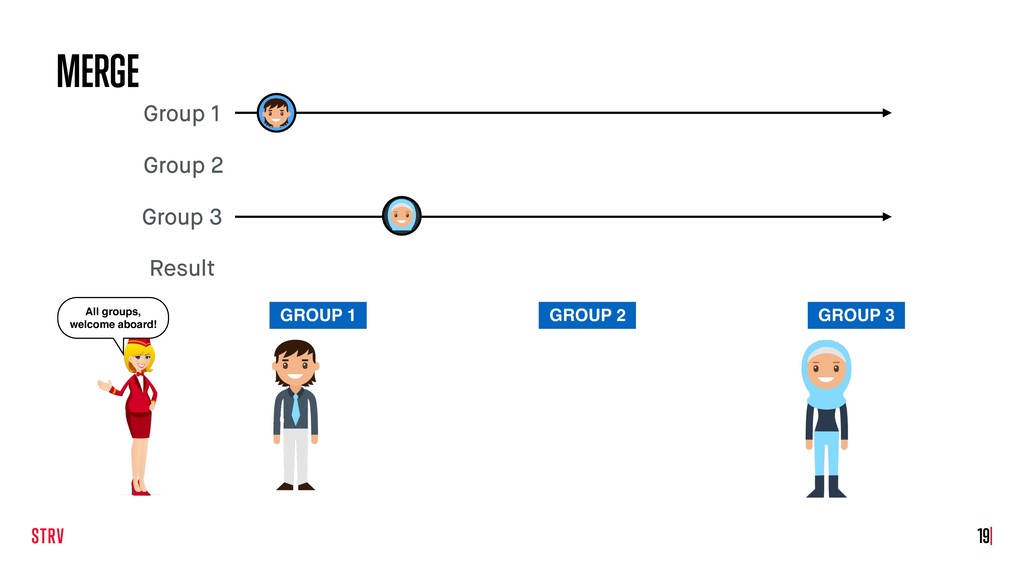

33. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3
34. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard!
35. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard!
36. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard!
37. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard!
38. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard! onComplete()

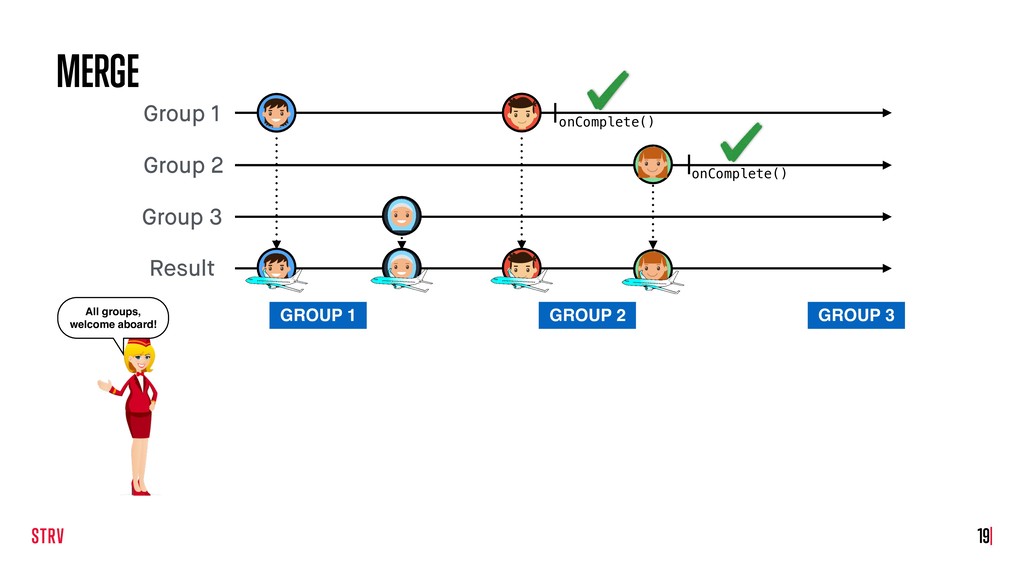

39. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard! onComplete()

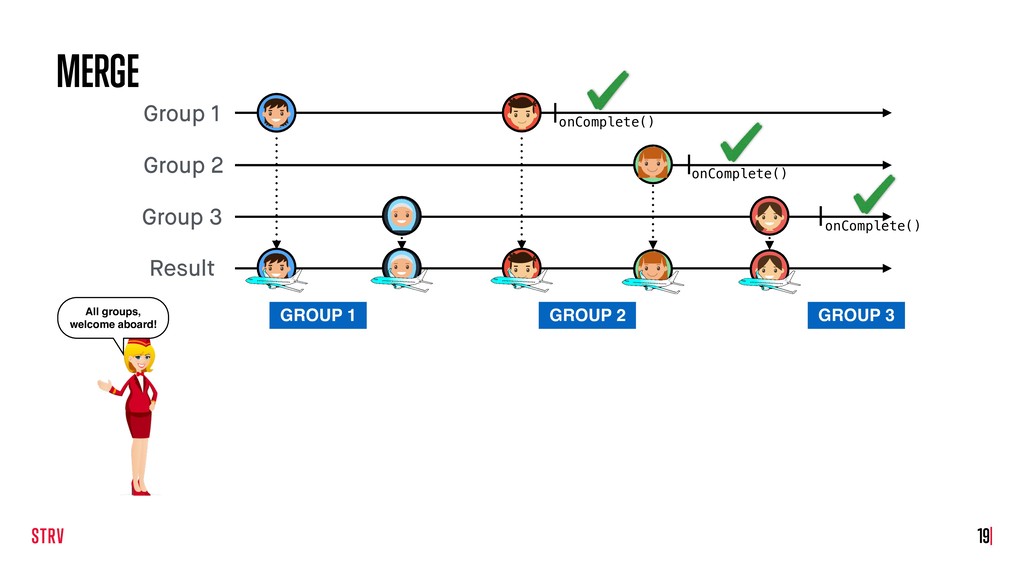

40. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard! onComplete() onComplete()

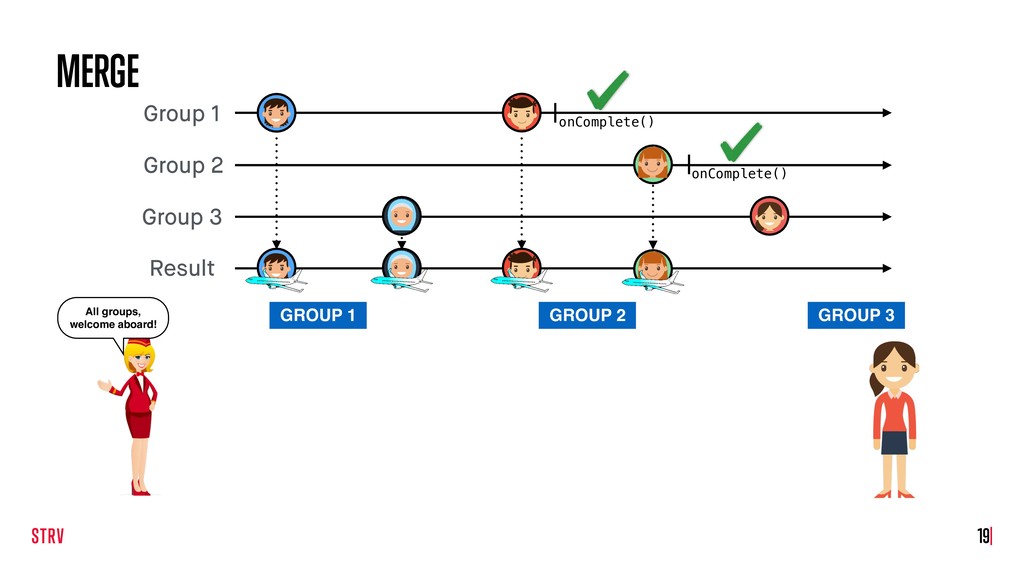

41. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard! onComplete() onComplete()
42. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard! onComplete() onComplete() onComplete()
43. MERGE 19 GROUP 1 GROUP 2 GROUP 3 Result Group 1 Group 2 Group 3 All groups, welcome aboard! onComplete() onComplete() onComplete() onComplete()
44. MERGE DELAY ERROR Changes the behaviour of the original merge operator, reserving onError notifications until all of the merged observables complete. 20
45. MERGE DELAY ERROR • Doesn’t terminate immediately when there is an error • Holds off on reporting the error and keep processing all source Observables • More than one Observable can emit an error 21

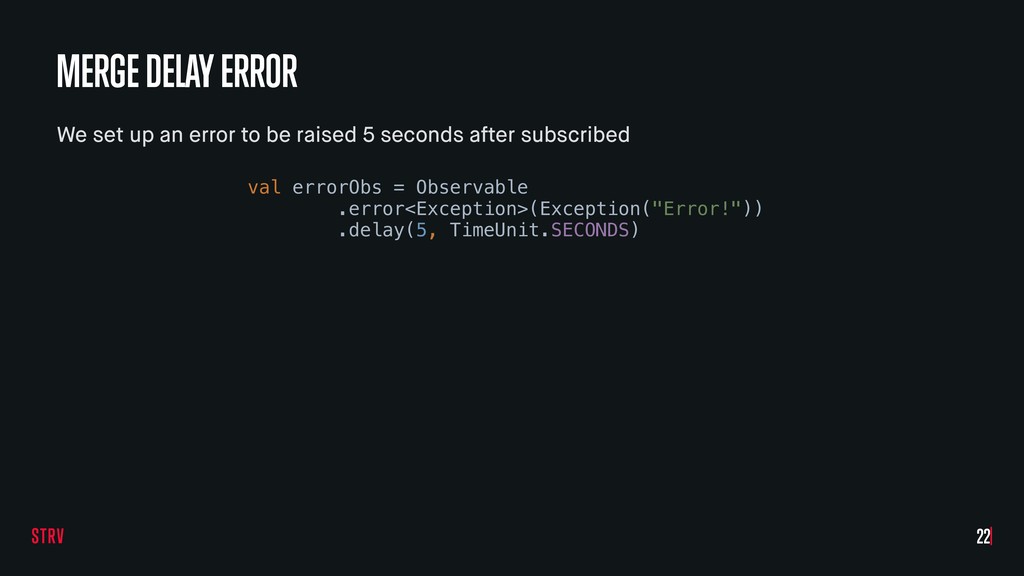

46. 22 MERGE DELAY ERROR We set up an error to be raised 5 seconds after subscribed val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)}
47. 22 MERGE DELAY ERROR We set up an error to be raised 5 seconds after subscribed val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} And let’s create a couple of Observables that emit every 1 and 2 seconds val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)}

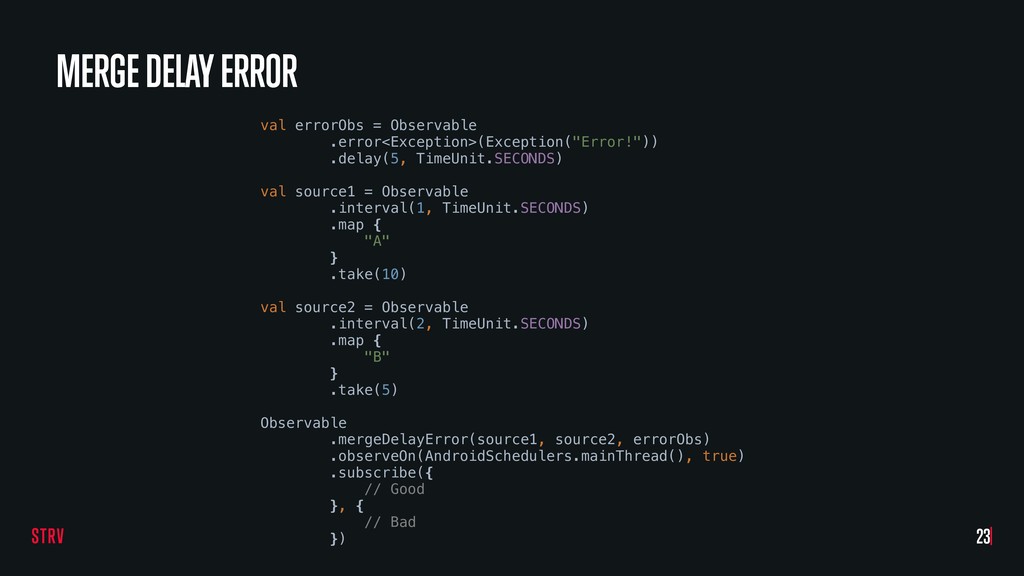

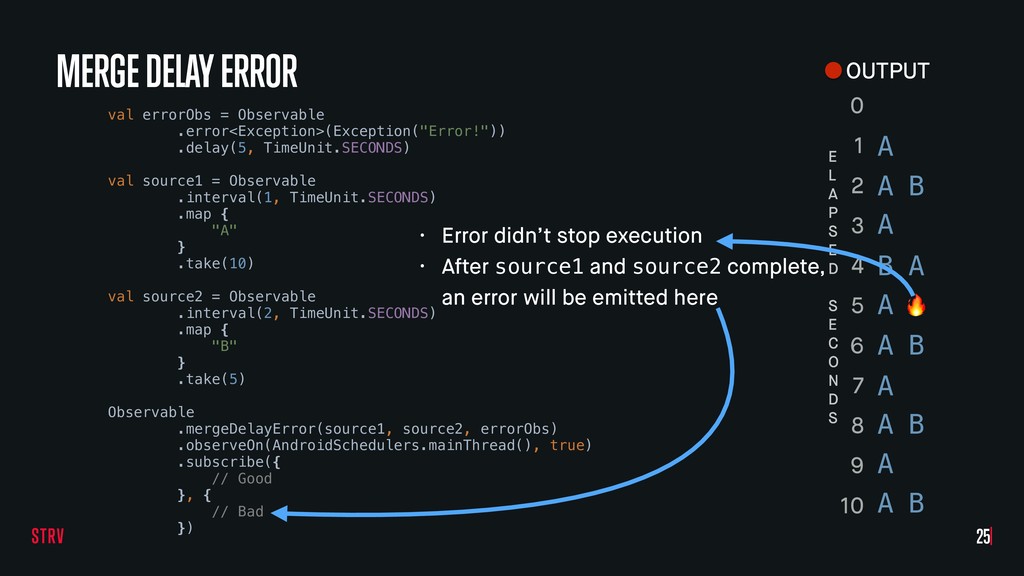

48. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 23 MERGE DELAY ERROR

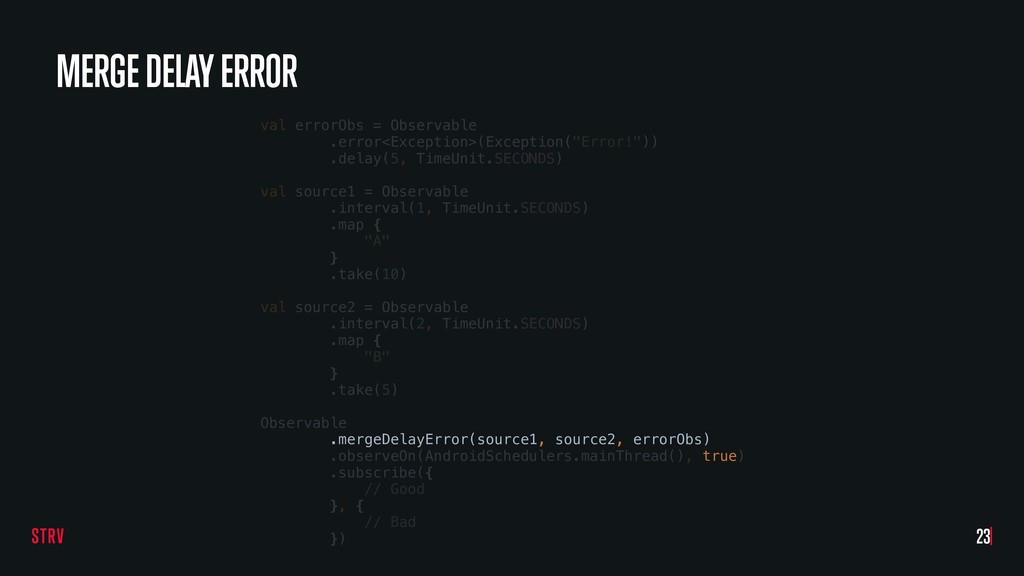

49. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 23 MERGE DELAY ERROR
50. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 24 MERGE DELAY ERROR OUTPUT 0 1 2 3 4 5 6 7 8 9 10 E L A P S E D S E C O N D S
51. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 24 MERGE DELAY ERROR OUTPUT A B A A B A A 0 1 2 3 4 5 6 7 8 9 10 E L A P S E D S E C O N D S A B A B A A A B
52. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 25 MERGE DELAY ERROR OUTPUT A B A A B A A 0 1 2 3 4 5 6 7 8 9 10 E L A P S E D S E C O N D S A B A B A A A B

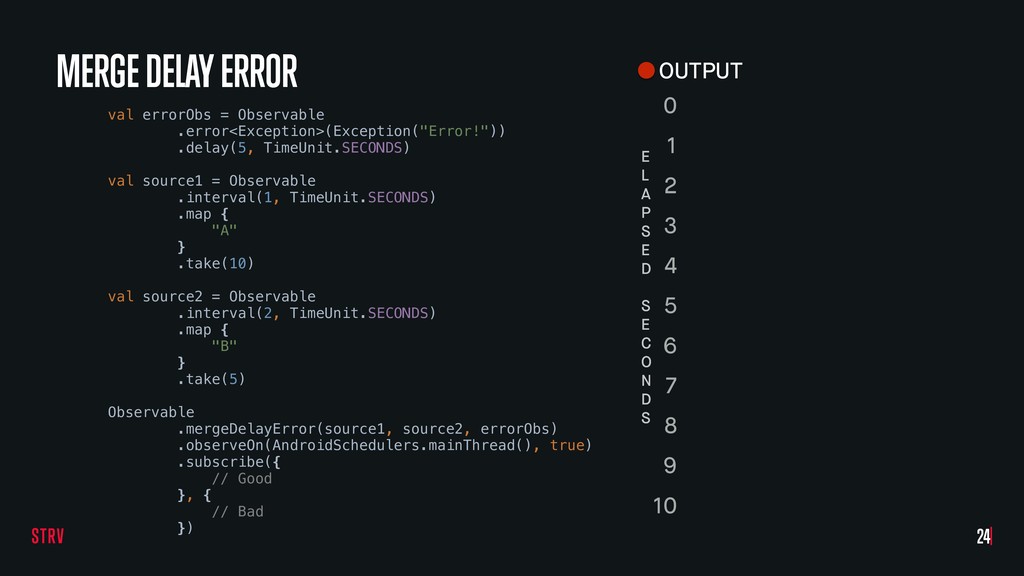

53. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 25 MERGE DELAY ERROR OUTPUT A B A A B A A 0 1 2 3 4 5 6 7 8 9 10 E L A P S E D S E C O N D S A B A B A A A B • Error didn’t stop execution
54. val errorObs = Observable }.error<Exception>(Exception("Error!")) }.delay(5,}TimeUnit.SECONDS)} val source1 = Observable }.interval(1,}TimeUnit.SECONDS)} }.map}{} }"A"} }}} }.take(10)} val source2}=}Observable }.interval(2,}TimeUnit.SECONDS)} }.map {} }"B"} }}} }.take(5)} Observable }.mergeDelayError(source1,}source2,}errorObs)} }.observeOn(AndroidSchedulers.mainThread(), true)} }.subscribe({} }//}Good} }},}{ }//}Bad} }})} 25 MERGE DELAY ERROR OUTPUT A B A A B A A 0 1 2 3 4 5 6 7 8 9 10 E L A P S E D S E C O N D S A B A B A A A B • Error didn’t stop execution • After source1 and source2 complete,
 an error will be emitted here

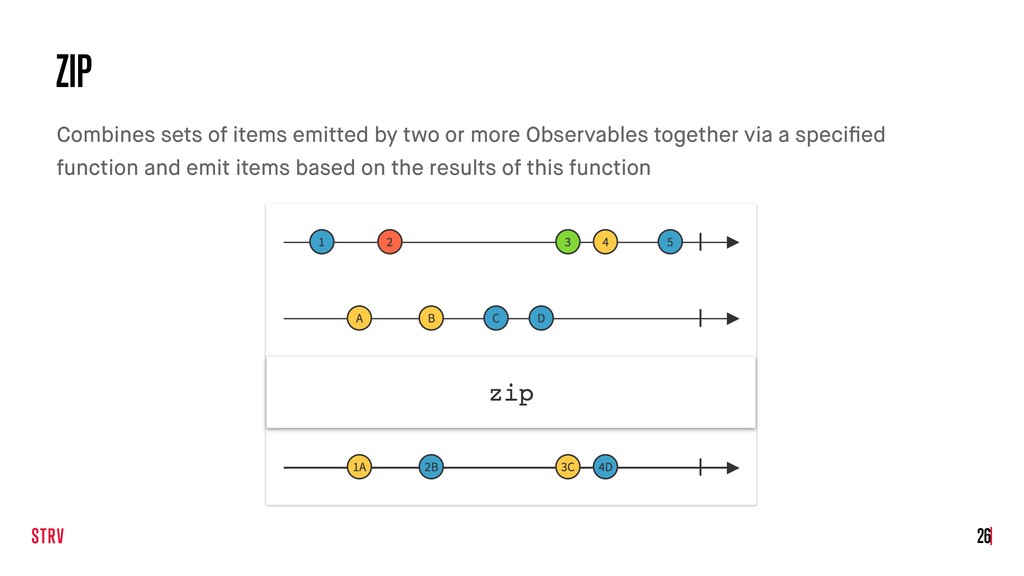

55. ZIP Combines sets of items emitted by two or more Observables together via a specified function and emit items based on the results of this function 26
56. ZIP • Emits as many items as the fewest items emitted • Combines emissions of each observable • It “gives up” when will know for sure that can’t zip further emissions 27 1 x 1

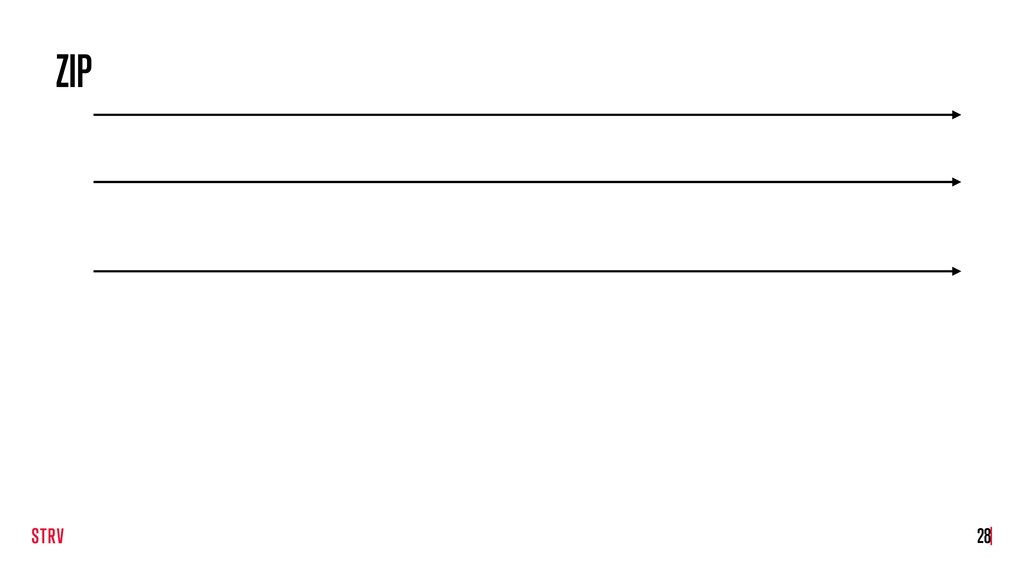

57. ZIP 28
58. ZIP 28

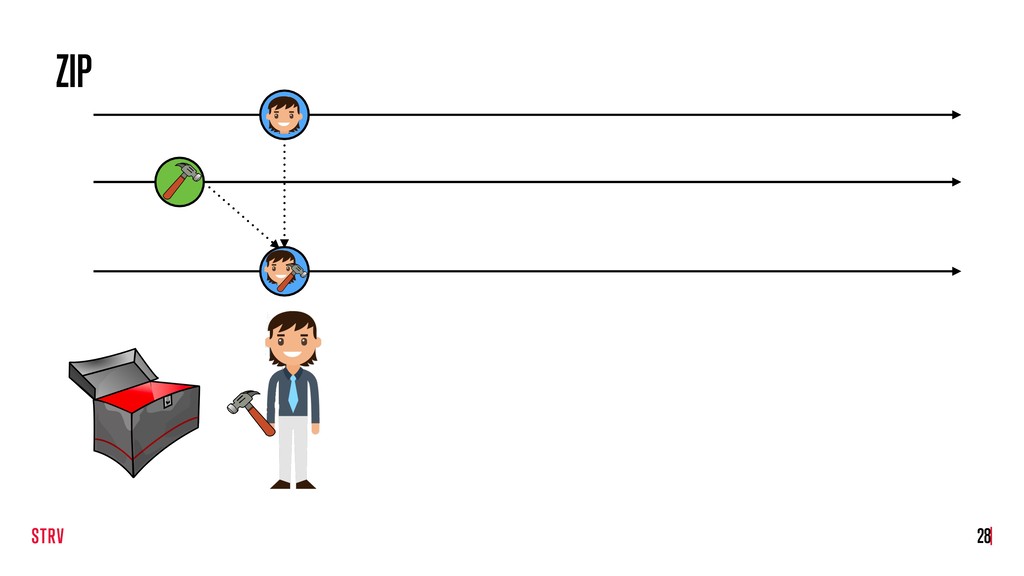

59. ZIP 28
60. ZIP 28

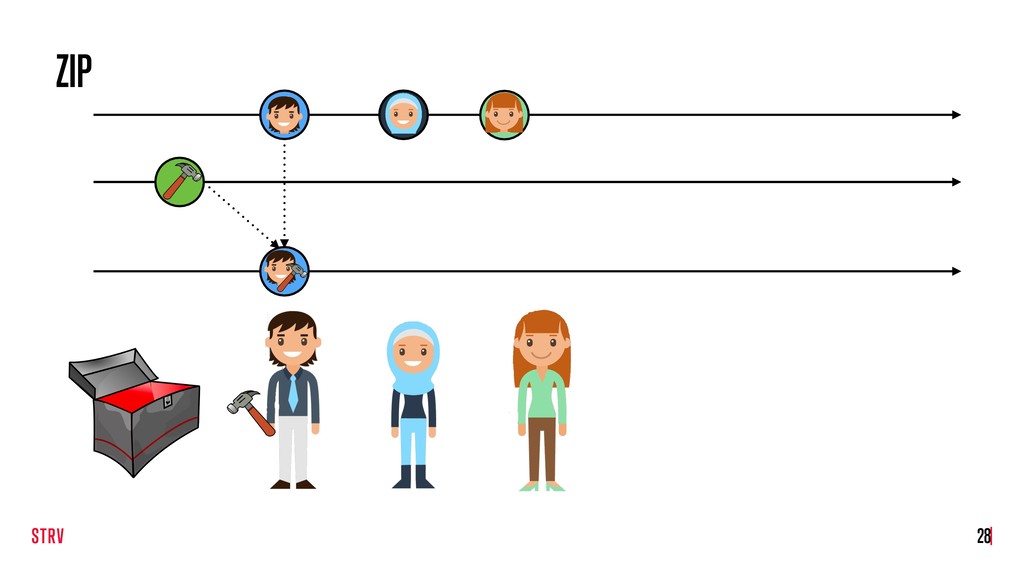

61. ZIP 28
62. ZIP 28
63. ZIP 28
64. ZIP 28

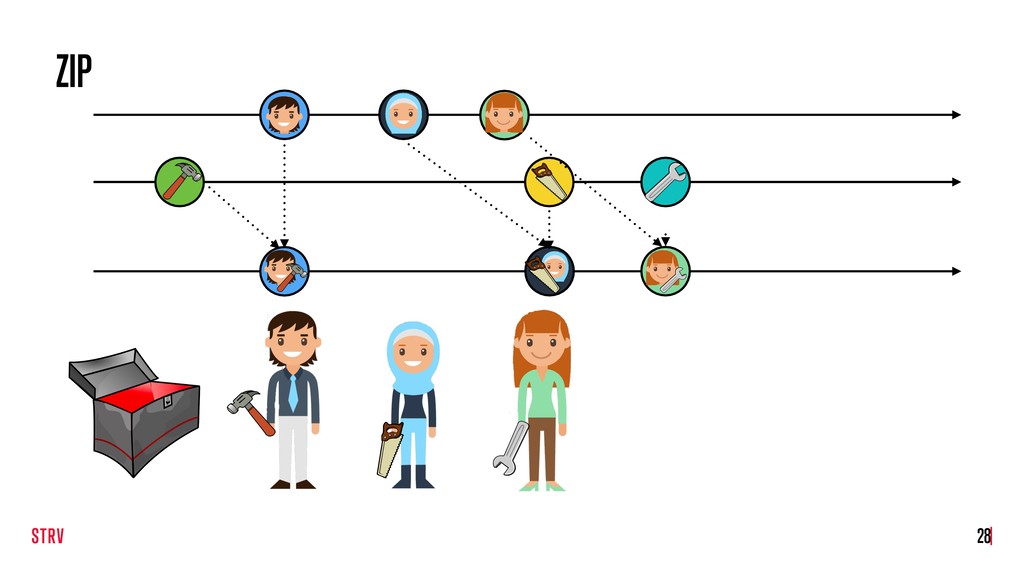

65. ZIP 28
66. ZIP 28
67. ZIP 28 onComplete()
68. ZIP 28 onComplete() onComplete()
69. ZIP 28 onComplete() onComplete()
70. ZIP 28 onComplete() onComplete() onComplete()
71. ZIP 28 onComplete() onComplete() onComplete()

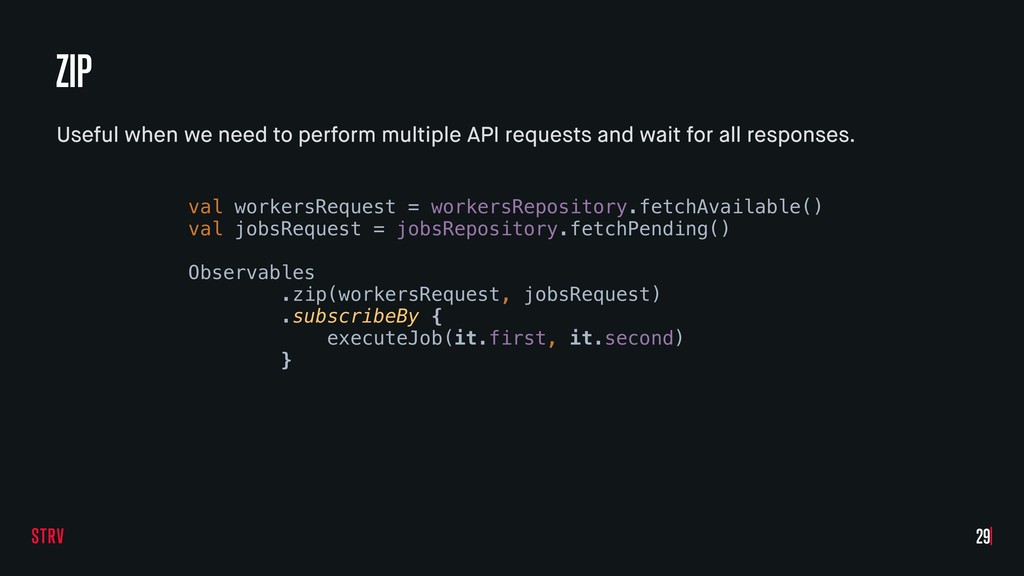

72. 29 ZIP Useful when we need to perform multiple API requests and wait for all responses.. val workersRequest = workersRepository fetchAvailable() val jobsRequest = jobsRepository fetchPending() Observables ..zip workersRequest,,jobsRequest)} ..subscribeBy {} executeJob it first,}it second)} }} . . . . ( (
73. 30 ZIP Useful when we need to perform multiple API requests and wait for all responses.. val workersRequest = workersRepository fetchAvailable() val jobsRequest = jobsRepository fetchPending() Observables ..zip workersRequest,,jobsRequest)} ..subscribeBy {} executeJob it first,}it second)} }} . . . . ( (

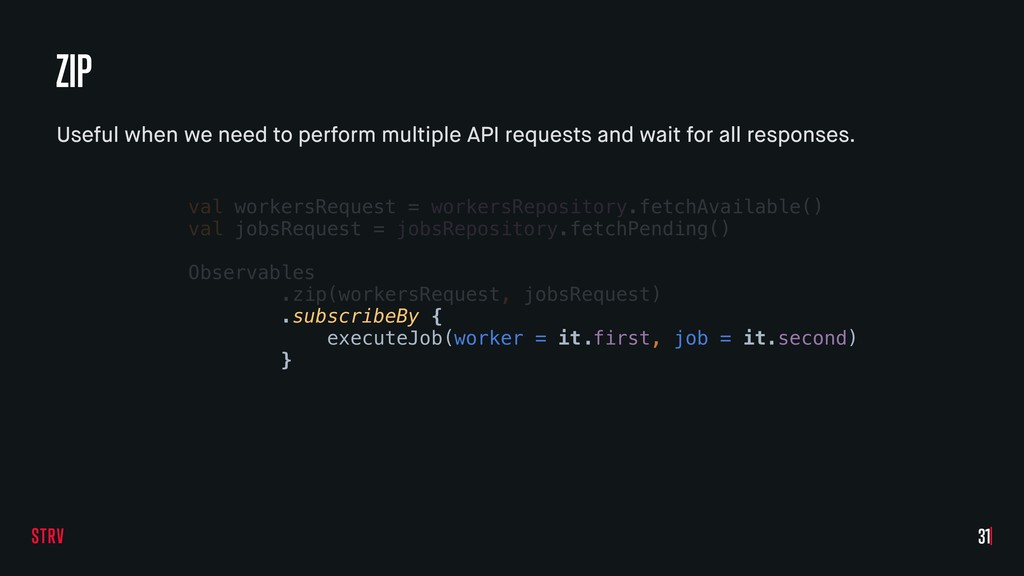

74. 31 ZIP Useful when we need to perform multiple API requests and wait for all responses.. val workersRequest = workersRepository fetchAvailable() val jobsRequest = jobsRepository fetchPending() Observables ..zip workersRequest,,jobsRequest)} ..subscribeBy {} executeJob worker = it first,}job = it second)} }} . . . . ( (
75. 32 ZIP Useful when we need to perform multiple API requests and wait for all responses.. val workersRequest = workersRepository fetchAvailable() val jobsRequest = jobsRepository fetchPending() Observables ..zip workersRequest,,jobsRequest)} ..subscribeBy {} executeJob worker = it first,}job = it second)} }} . . . . ( (
76. COMBINE LATEST When an item is emitted by either of the Observables, combines the latest item emitted by each Observable via a specified function 33

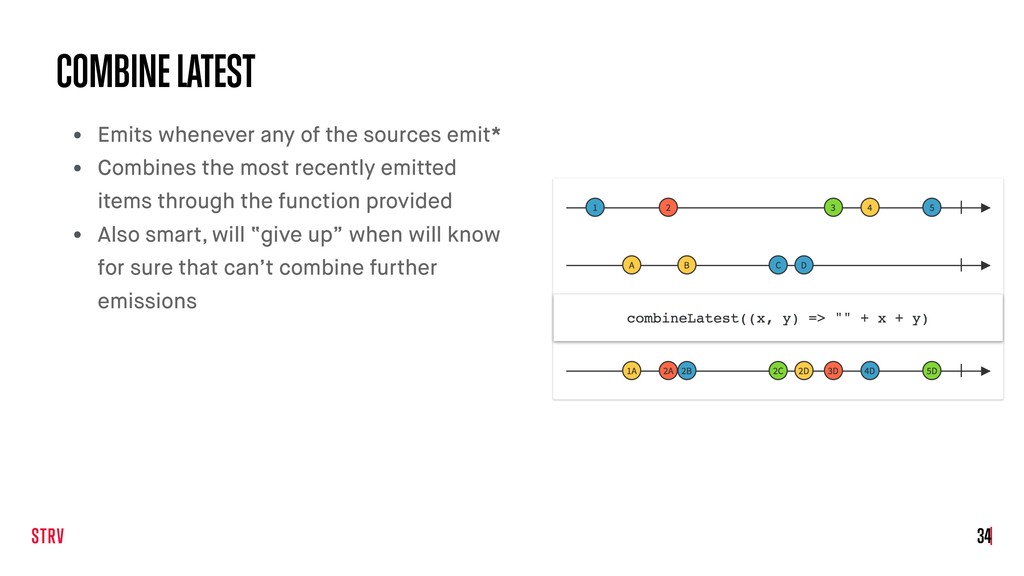

77. COMBINE LATEST • Emits whenever any of the sources emit* • Combines the most recently emitted items through the function provided • Also smart, will “give up” when will know for sure that can’t combine further emissions 34 1 x 1
78. 35 COMBINE LATEST Let’s see this simple form example…} val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} Observables }.combineLatest emailValid,}passwordValid)} }.map}{}it first}&&}it second}}} }.subscribeBy}{}submitButton isEnabled}=}it}}} ( ( ( . . . . .
79. . val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} Observables }.combineLatest emailValid,}passwordValid)} }.map}{}it first}&&}it second}}} }.subscribeBy}{}submitButton isEnabled}=}it}}} ( ( ( . . . . . 36 COMBINE LATEST Let’s see this simple form example…}
80. 37 COMBINE LATEST Let’s see this simple form example…} val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} Observables }.combineLatest emailValid,}passwordValid)} }.map}{}it first}&&}it second}}} }.subscribeBy}{}shouldEnable}->}submitButton isEnabled}=}shouldEnable}}} ( ( ( . . . . .

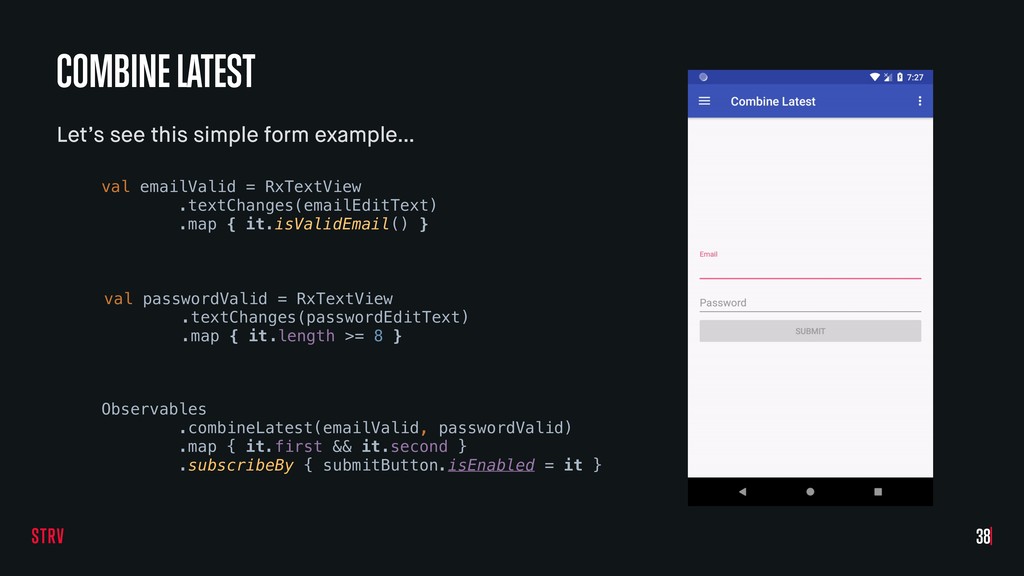

81. 38 COMBINE LATEST Let’s see this simple form example…} val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} ( . val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} ( . Observables }.combineLatest emailValid,}passwordValid) }.map}{}it first}&&}it second}}} }.subscribeBy}{}submitButton isEnabled}=}it}}} ( . . .
82. 38 COMBINE LATEST Let’s see this simple form example…} val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} ( . val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} ( . Observables }.combineLatest emailValid,}passwordValid) }.map}{}it first}&&}it second}}} }.subscribeBy}{}submitButton isEnabled}=}it}}} ( . . .
83. 39 COMBINE LATEST Let’s see this simple form example…} val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} ( . val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} ( . Observables }.combineLatest emailValid,}passwordValid) { }. it first}&&}it second} }} }.subscribeBy}{}submitButton isEnabled}=}it}}} ( . . .
84. 39 COMBINE LATEST Let’s see this simple form example…} val emailValid = RxTextView }.textChanges emailEditText)} }.map}{}it isValidEmail()}}} ( . val passwordValid = RxTextView }.textChanges passwordEditText)} }.map}{}it length}>=}8}}} ( . Observables }.combineLatest emailValid,}passwordValid) { }. it first}&&}it second} }} }.subscribeBy}{}submitButton isEnabled}=}it}}} ( . . .
85. WITH LATEST FROM Similar to combineLatest operator but only emits items when the single source Observable emits an item. (Not when any of the Observables do) 40
86. WITH LATEST FROM 41
87. WITH LATEST FROM 41

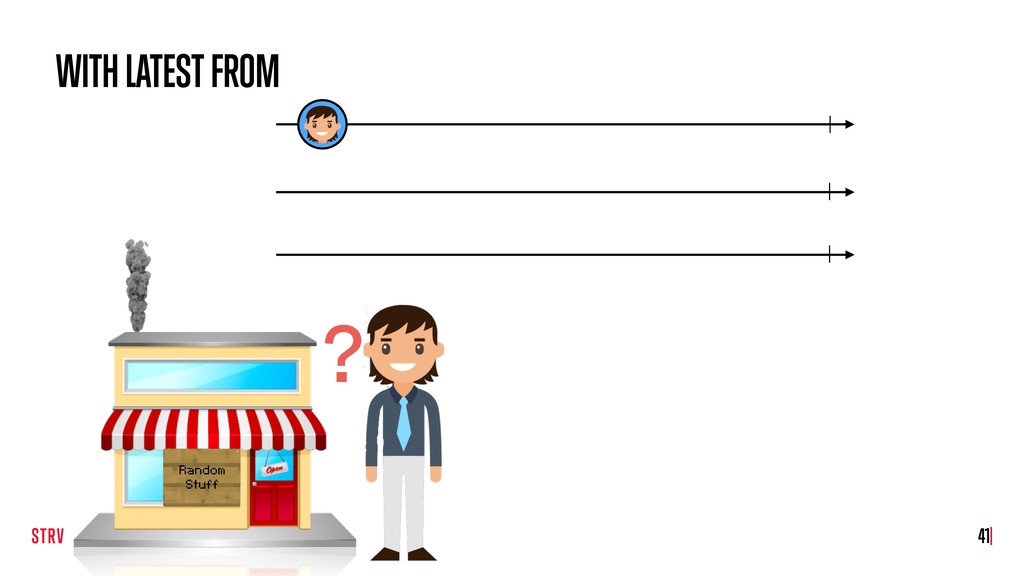

88. WITH LATEST FROM 41
89. WITH LATEST FROM 41 ?
90. WITH LATEST FROM 41 ?
91. WITH LATEST FROM 42

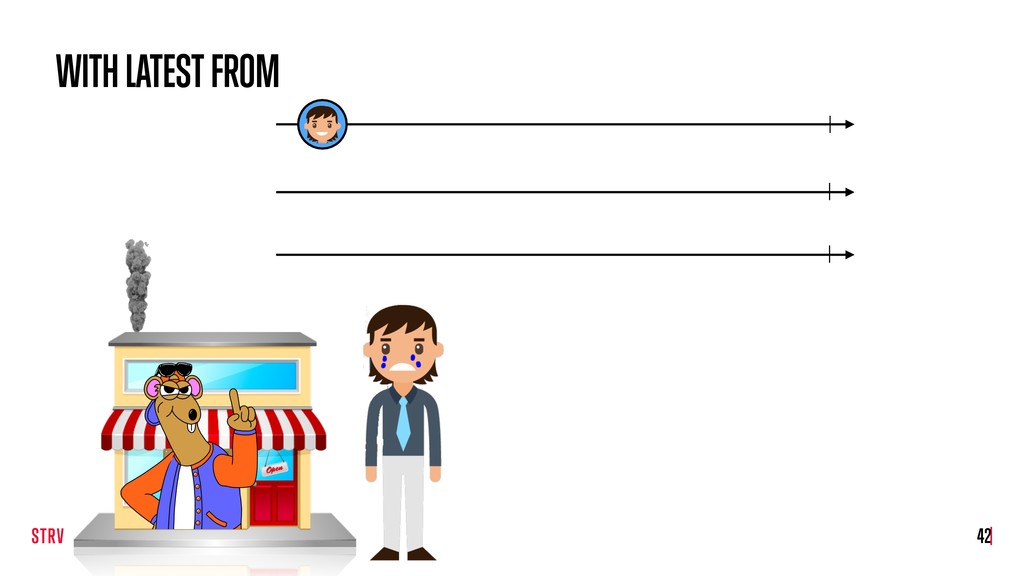

92. WITH LATEST FROM 42
93. WITH LATEST FROM 42

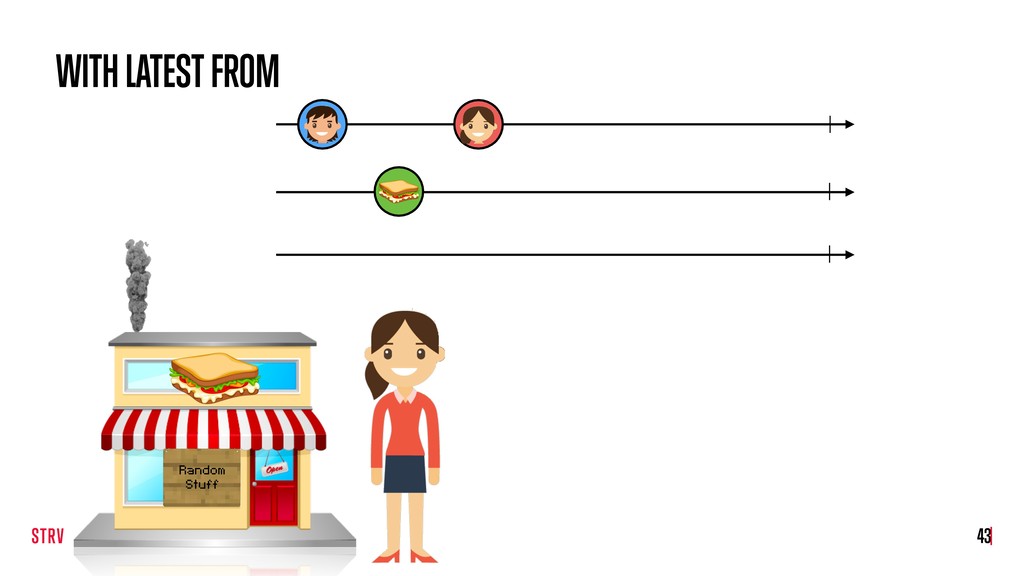

94. WITH LATEST FROM 43
95. WITH LATEST FROM 43
96. WITH LATEST FROM 43
97. WITH LATEST FROM 43
98. WITH LATEST FROM 43
99. WITH LATEST FROM 43
100. WITH LATEST FROM 44
101. WITH LATEST FROM 44
102. WITH LATEST FROM 45
103. WITH LATEST FROM 45

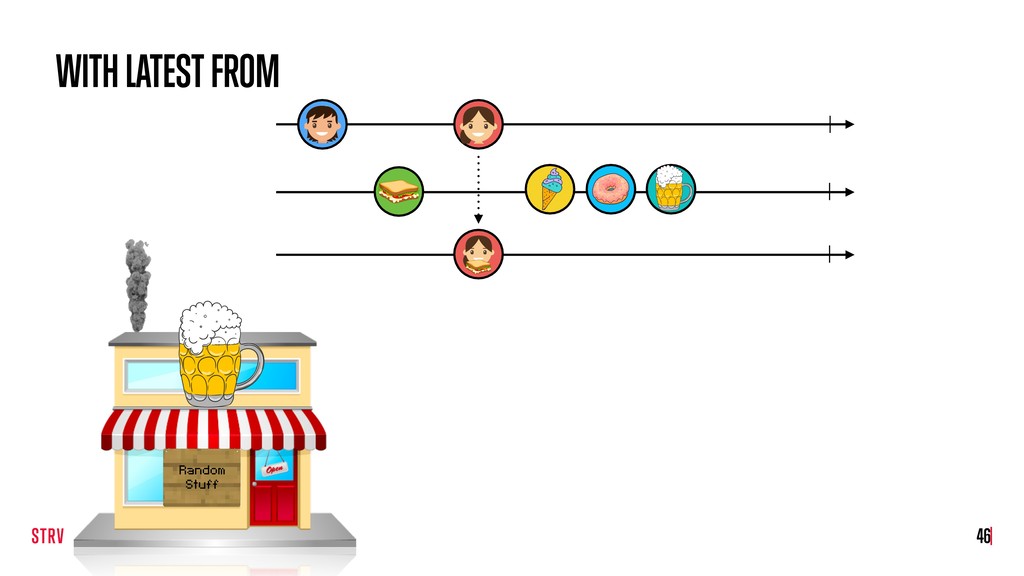

104. WITH LATEST FROM 46
105. WITH LATEST FROM 46

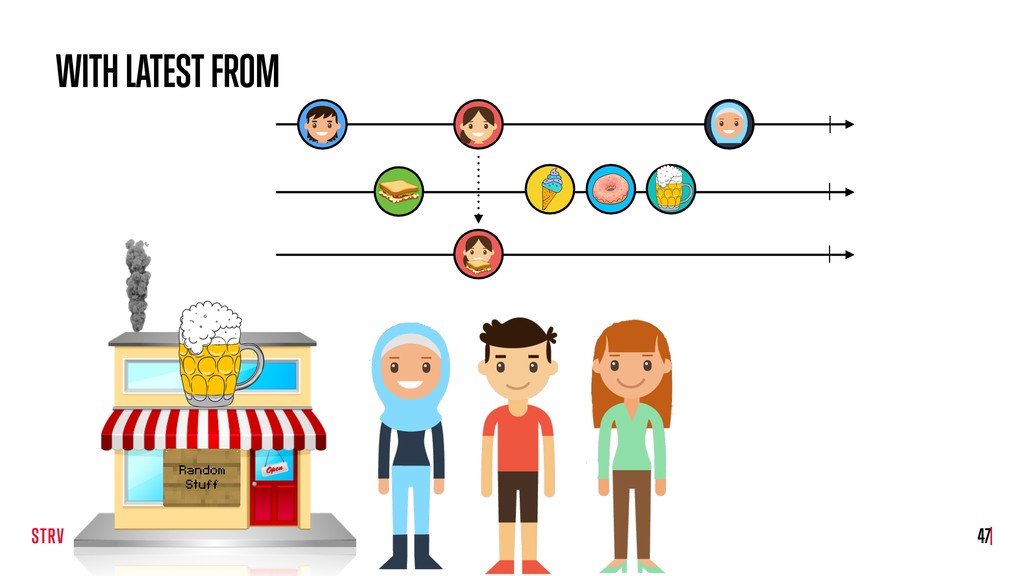

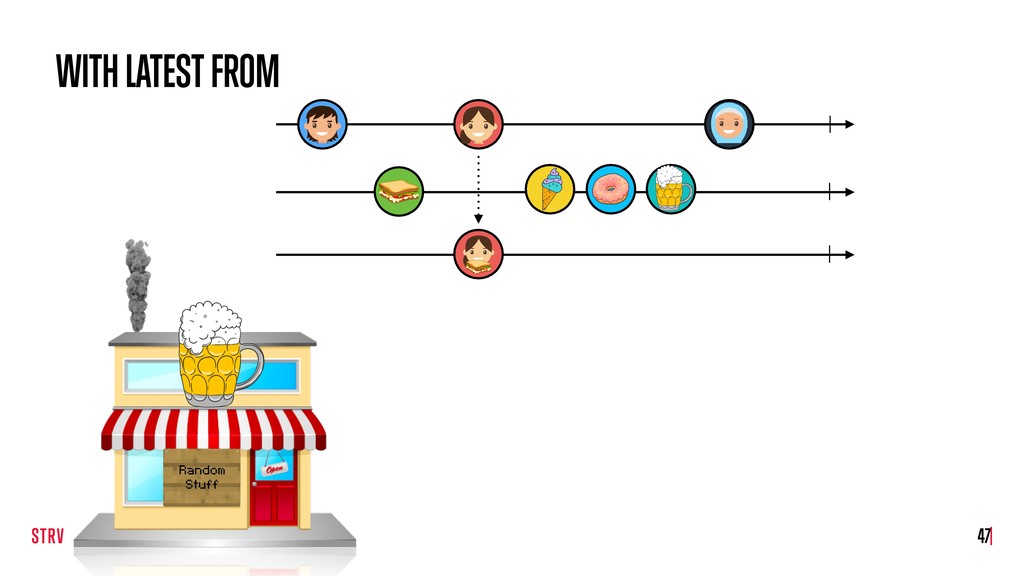

106. WITH LATEST FROM 47
107. WITH LATEST FROM 47
108. WITH LATEST FROM 47

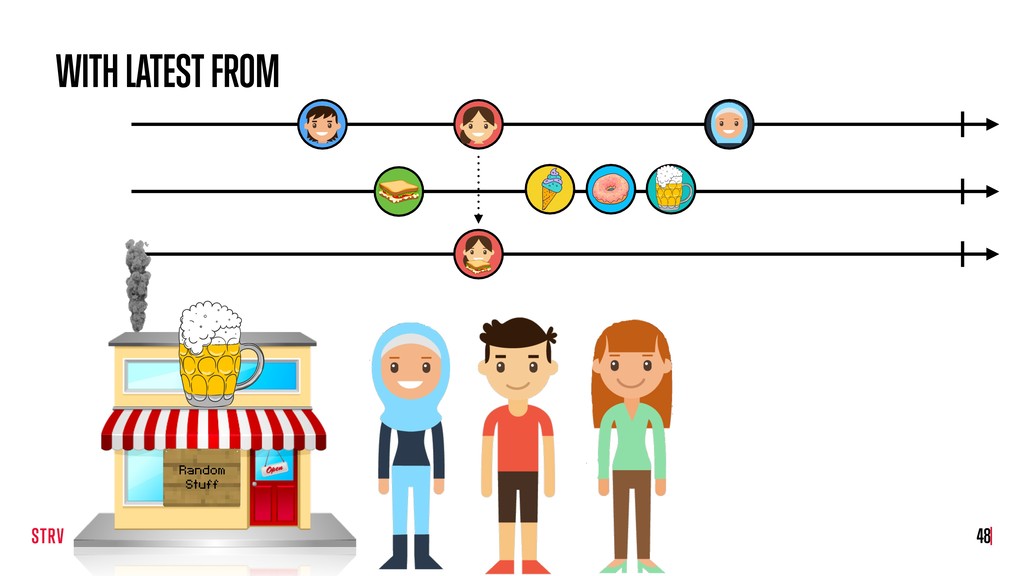

109. WITH LATEST FROM 48
110. WITH LATEST FROM 48

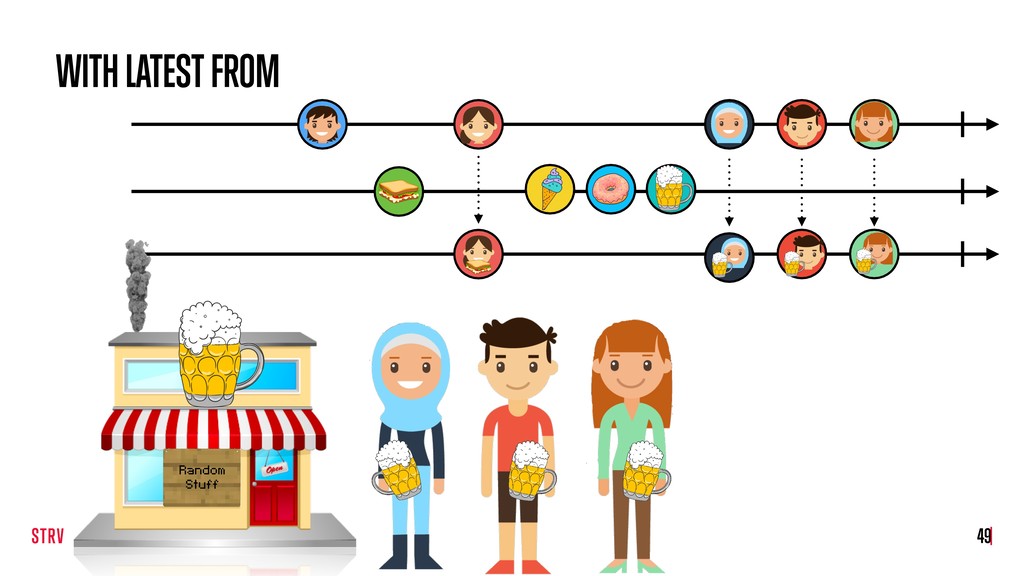

111. WITH LATEST FROM 48 ¡Salud! Cheers! Na zdraví!

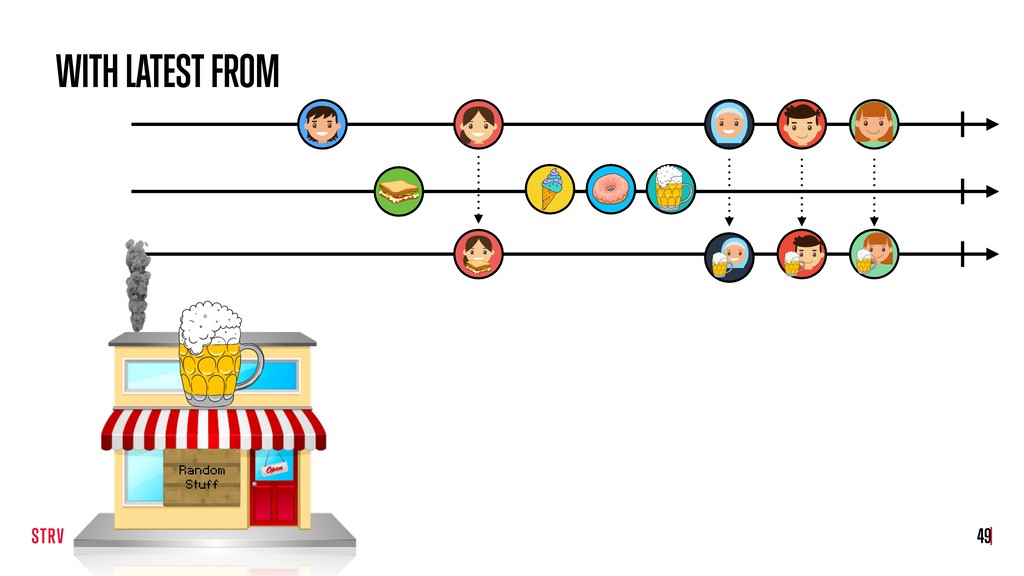

112. WITH LATEST FROM 49
113. WITH LATEST FROM 49

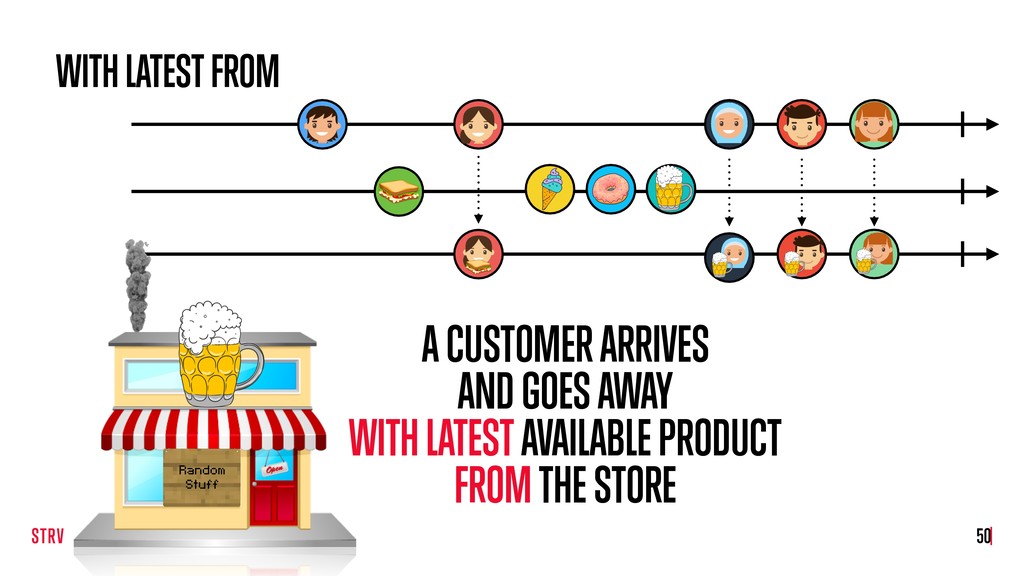

114. WITH LATEST FROM 50 A CUSTOMER ARRIVES AND GOES AWAY WITH LATEST AVAILABLE PRODUCT FROM THE STORE
115. WITH LATEST FROM 50 A CUSTOMER ARRIVES AND GOES AWAY WITH LATEST AVAILABLE PRODUCT FROM THE STORE
116. SUMMARY 51
117. SUMMARY 51

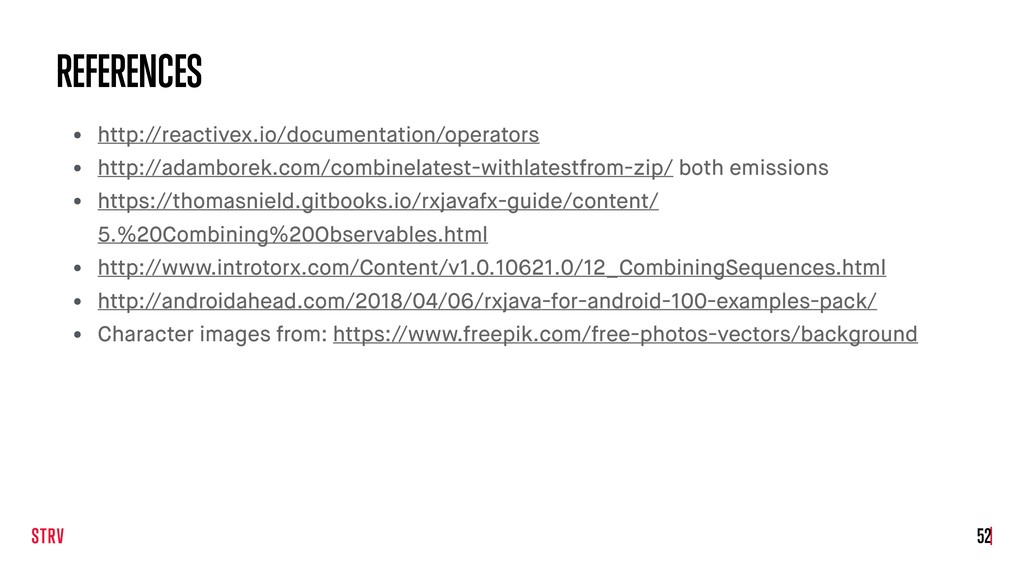

118. REFERENCES 52 • http://reactivex.io/documentation/operators • http://adamborek.com/combinelatest-withlatestfrom-zip/ both emissions • https://thomasnield.gitbooks.io/rxjavafx-guide/content/ 5.%20Combining%20Observables.html • http://www.introtorx.com/Content/v1.0.10621.0/12_CombiningSequences.html • http://androidahead.com/2018/04/06/rxjava-for-android-100-examples-pack/ • Character images from: https://www.freepik.com/free-photos-vectors/background
119. THAT’S IT Santiago Vanegas santiago.vanegas@strv.com
120. QUESTIONS
