Denver.rb - Database Migrations at Scale

This talk will outline the tools and processes we use to update our databases at Ibotta. This includes a deep dive into rails migrations, keeping our schema files in sync across teams, deploying code and, most excitingly, using a tool called gh-ost to migrate otherwise untenable tables without taking them off line.

Transcript

1. & Denver.rb Meetup 11-14-17 Database Migrations
2. 2 2 - Who Am I? - Rails Generators Deep Dive - Tips for keeping things *nsync - Using gh-ost!
3. Lucas Moore @thelucasmoore 3 Flatiron School Graduate Engineer #22 at Ibotta “Recovering Educator” Ethereum Enthusiast
4. Rails Generators ActiveRecord ftw! 4 - $ rails generator [args] [options] - Follow with a rake task to migrate the database - Example [args] - $ rails g model - $ rails g migration - $ rails g scaffold
5. $ rails g scaffold 5
6. $ rails g scaffold 6
7. $ rails g model 7 - Use case: a brand new model - Creates the model, migration & tests if done right - $ rails g model Pet name:string breed:string
8. $ rails g migration 8 - Live in /db/migrate folder - ActiveRecord Migrations Lesson - Ruby on Rails Guides: Migrations - Use case: specific database changes - Creating and dropping tables - Adding, removing, renaming columns
9. Standalone Migrations 9

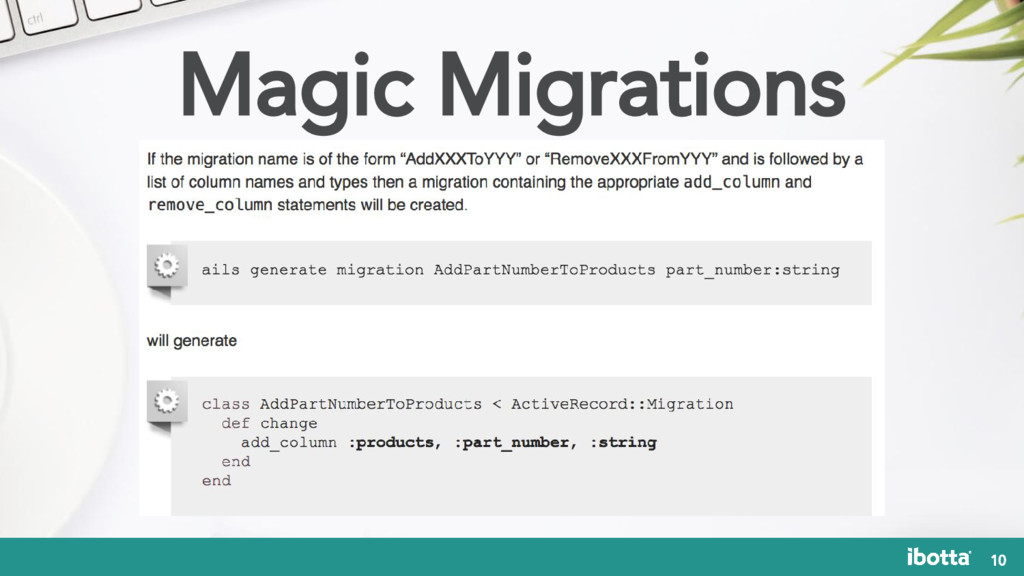

10. Magic Migrations 10
11. - $ rails g migration AddColumn - $ rails g migration AddNameToCustomers name:string - Just a nicely packaged DSL for executing SQL btw - These give us a #change method in our migrations Migrations 11
12. Change 12
13. Chaaaanges 13
14. Chaaaanges 14
15. Create Table Migrations 15
16. Renaming Migrations 16
17. Source Rails 3 & Rails 4 17
18. Better Migrations 18 - $ rake db:migrate:up VERSION=1234567890 - $ rake db:migrate:down VERSION=1234567890
19. - $ rake db:migrate:up VERSION=1234567890 - $ rake db:migrate:down VERSION=1234567890 Better Migrations 19
20. Better Migrations 20
21. Better Migrations 21
22. 22 22 Questions?
23. 23 Tips & Tricks
24. Schema Files 24 - From the docs: “Schema dumps are the authoritative source for your database schema.” - At Ibotta, we have a local, staging and production environments - In production, we have master and read-only replicas too - Ugh, how to keep it all in sync - Source control and db/schema.rb with spacing, version, etc
25. Git It Together 25 - $ git checkout develop db/schema.rb - $ rake db:migrate db:test:prepare - $ git add db/schema.rb --patch - $ git commit -m “yaknow” - $ git push - $ git stash
26. $ git add --patch 26
27. $ git add --patch 27 - Blog Post - Each change is a hunk - y - Yes, add this hunk - n - No, don’t add this hunk - d - No, don’t add this hunk and all other remaining hunks. - s - Split the hunk into smaller hunks. - e - Manually edit the hunk. - Shoutout to Ben Limmer!
28. Git It Together 28 - $ git checkout develop db/schema.rb - $ rake db:migrate db:test:prepare - $ git add db/schema.rb --patch - $ git commit -m “yaknow” - $ git push - $ git stash
29. $ git stash 29 - $ git stash - $ git stash apply - $ git stash list - $ git stash apply stash@{1}
30. Timing Migrations 30 - When adding a new column - First run the migration, then deploy the code - ActiveRecord needs to register that attribute from the database! - When dropping a column - First deploy the code, then run the drop migration - Ensure the code no longer relies on that column, then drop
31. 31 Gh-ost!
32. What is gh-ost? - Gh-ost is a tool developed by Github to change the schema of large MySQL tables without needing to take the table offline. - https://github.com/github/gh-ost (shoutout to Maciek!) - Install & Use - $ wget https://github.com/github/gh-ost/releases/latest - $ tar xzf gh-ost-binary-linux-20170914095800.tar.gz - $ ./gh-ost [flags] 32
33. The Problem 33 - How long would a typical Rails migration take? - When can we take this table offline for the migration? - What happens to the data lost in the middle of that migration?
34. How it works 34
35. Operation Modes 35
36. How it works 36 - Example table: customers - Gh-ost makes a table customers_gho - Data is slowly copied over from customers - The binary log stream captures changes *asynchronously* - Gh-ost listens to a socket in the /tmp folder - It waits to cut over to the new table, if properly configured
37. Gh-ost is Testable 37 - $ ./gh-ost [flags] - Some example flags: - --user=”XXX” - --password=”XXX” - --database=”database_name” - --alter=”ADD COLUMN first_name VARCHAR(255)” - --verbose - --execute (leave this off to test connection/migration) - --test-on-replica (option c)
38. Gh-ost is Pausable 38 - More flags! ./gh-ost [...] --panic-flag-file=/tmp/ghost.panic.flag --postpone-cut-over-flag-file=/tmp/ghost.postpone.master.flag --throttle-flag-file=/tmp/migration.throttle --throttle-additional-flag-file=/tmp/ghost.throttle - $ touch /tmp/ghost.panic.flag - $ touch /tmp/ghost.postpone.master.flag - $ rm /tmp/ghost.postpone.flag - Two throttle flags to pause for running multiple migrations
39. Gh-ost allows real-time reconfiguration 39 --max-load=Threads_running=50 --critical-load=Threads_running=1000 --chunk-size=1000 (1500 is about max) --max-lag-millis=1500 --default-retries=120
40. --serve-socket-file=X 40
41. Gh-ost is NOT Nice 41
42. Gh-ost is Nice 42 - Nice Ratio! - This ratio is based upon n*x ms units of time sleeping, where n is the set ratio and x is the amount of time it takes to copy one row. - Assuming a single rows chunk copy takes 100ms to complete: - nice-ratio=0.5 will cause gh-ost to sleep for 50ms (0.5 * 100ms) immediately following. - nice-ratio=1 will cause gh-ost to sleep for 100ms (1 * 100ms) effectively doubling runtime
43. Nice 43
44. Caveats 44 - Foreign Keys! - Github Issue #331 - Not a panacea for multi-billion row and 100 gig tables - RBR - Row Based Replication is a requirement Limits
45. Caveats 45 Keeping Rails in Sync
46. Caveats 46 Credentials - Reverse Lookup “password” on your machine - Using cnf file - $ touch /tmp/file.cfn - Remove --username=”XXX” and --password=”XXX” flags - Instead add --conf=/tmp/file.cfn
47. Our Process 47 - Write your code (maybe merge?) - Test the migration without --execute flag - Coordinate all migrations with the Platform Infrastructure Team - Pin a message in #alerts Slack channel - $ ssh into production server - Start a new tmux session and make cutover postpone flag - $ tmux new -s dbmigration - $ touch /tmp/ghost.postpone.flag - Run it! (on the next slide) - Go back and delete *_gho table after a few days
48. A Successful Migration 48 ./gh-ost \ --user="USER" \ --password="XXX" \ --max-load=Threads_running=50 \ --critical-load=Threads_running=1000 \ --chunk-size=1000 \ --max-lag-millis=1500 \ --host="master.db.ibotta.com" \ --allow-on-master \ --assume-master-host="master.db.ibotta.com" \ --database="ibotta" \ --table="rule_items" \ --verbose \ --alter="ADD COLUMN eval_type VARCHAR(255) DEFAULT 'presentation'" \ --allow-master-master \ --assume-rbr \ --cut-over=default \ --exact-rowcount \ --concurrent-rowcount \ --default-retries=120 \ --panic-flag-file=/tmp/ghost.panic.flag \ --postpone-cut-over-flag-file=/tmp/ghost.postpone.master.flag \ --throttle-additional-flag-file=/tmpghost.throttle \ --initially-drop-ghost-table \ --initially-drop-old-table \ (you can leave this off to test, of course) --execute
49. 49 49 - Questions? - @thelucasmoore - thelucasmoore.com
50. 50 50
