Golden Images and How To Create Them

Hashitalks: Vietnam 2022

Transcript

1. Golden Images and How To Create Them
2. Intro What is Golden Image? Why? Then Now Use Cases & Demo Agenda
3. Introduction
4. Liftoff + Vungle (LV) • Liftoff is a leading growth acceleration platform for the mobile industry, helping advertisers, publishers and game developers scale revenue growth with solutions to market and monetize mobile apps. • With a suite of solutions including Vungle, JetFuel, GameRefinery and Tresensa, Liftoff supports over 6,600 mobile businesses across 74 countries, including gaming, social, finance, ecommerce, entertainment and more. • Liftoff is proud to be a long-term partner to leading advertisers and app publishers since 2012. Headquartered in Redwood City, CA, Liftoff has a growing global presence with offices around the world.
5. Tommy Nguyen • https://tuannvm.com • CKA / CKAD / CKS, Kubernetes enthusiast • Make use of Hashicorp tools to make life easier Lead Production Engineer Liftoff + Vungle | Engineering | Singapore
6. Golden Image?
7. A golden image is a template for a virtual machine (VM), virtual desktop, server or hard disk drive. A golden image may also be referred to as a clone image, master image or base image. Reference
8. Why? • Immutability • Time Saving • Scalability
9. An immutable object is an object whose state cannot be modified after it is created.
10. Engineers waste all their time inventing ways to make the most money in the quickest, most efficient way possible. And then when they figure it out, they optimize the process.” Raul Perez
11. Scalability is about building wider roads, not about building faster cars. Steve Swartz
12. Then
13. Manual
14. With Configuration Management
15. Now

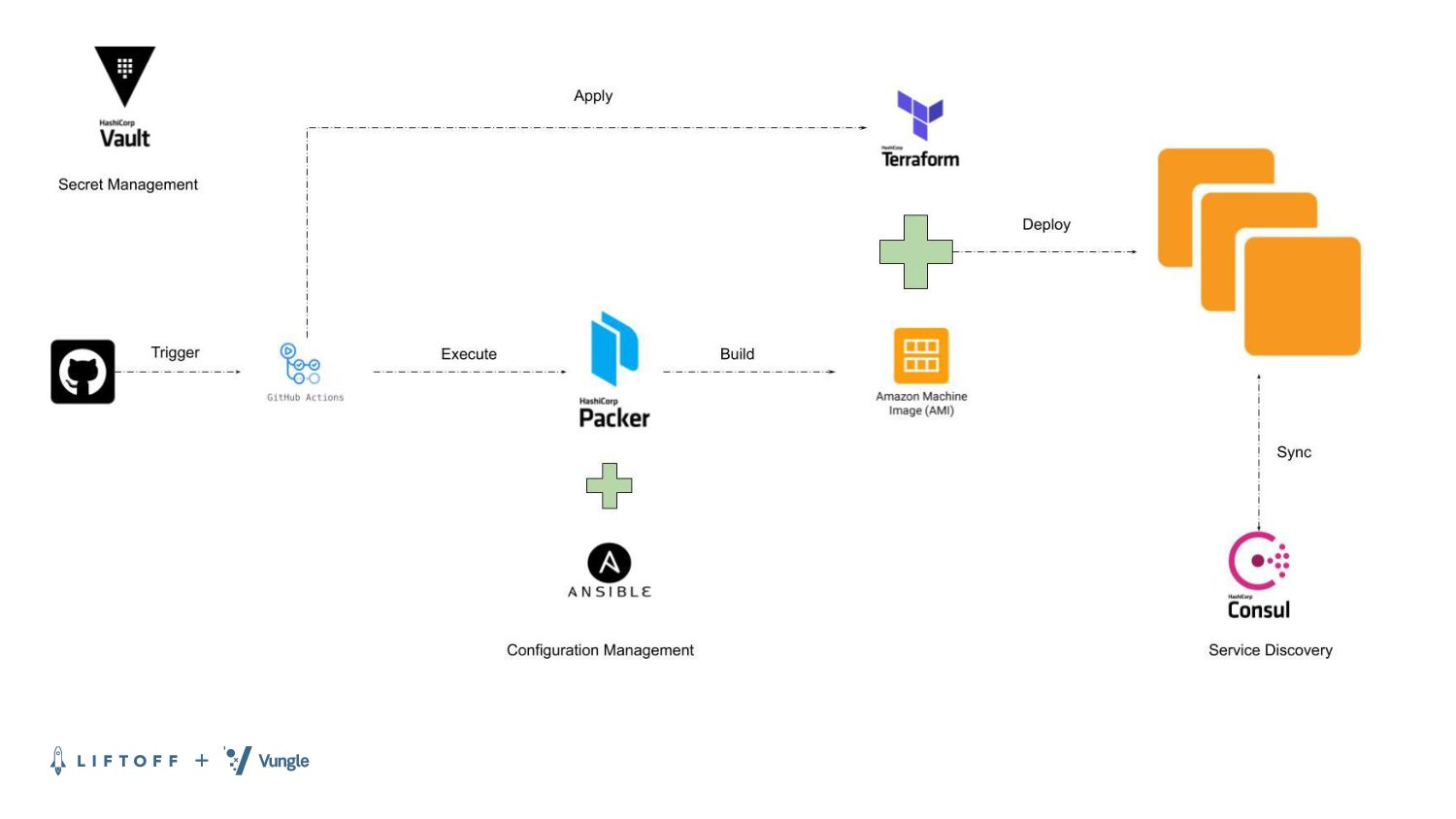

17. With Packer
19. Use Cases & Demo

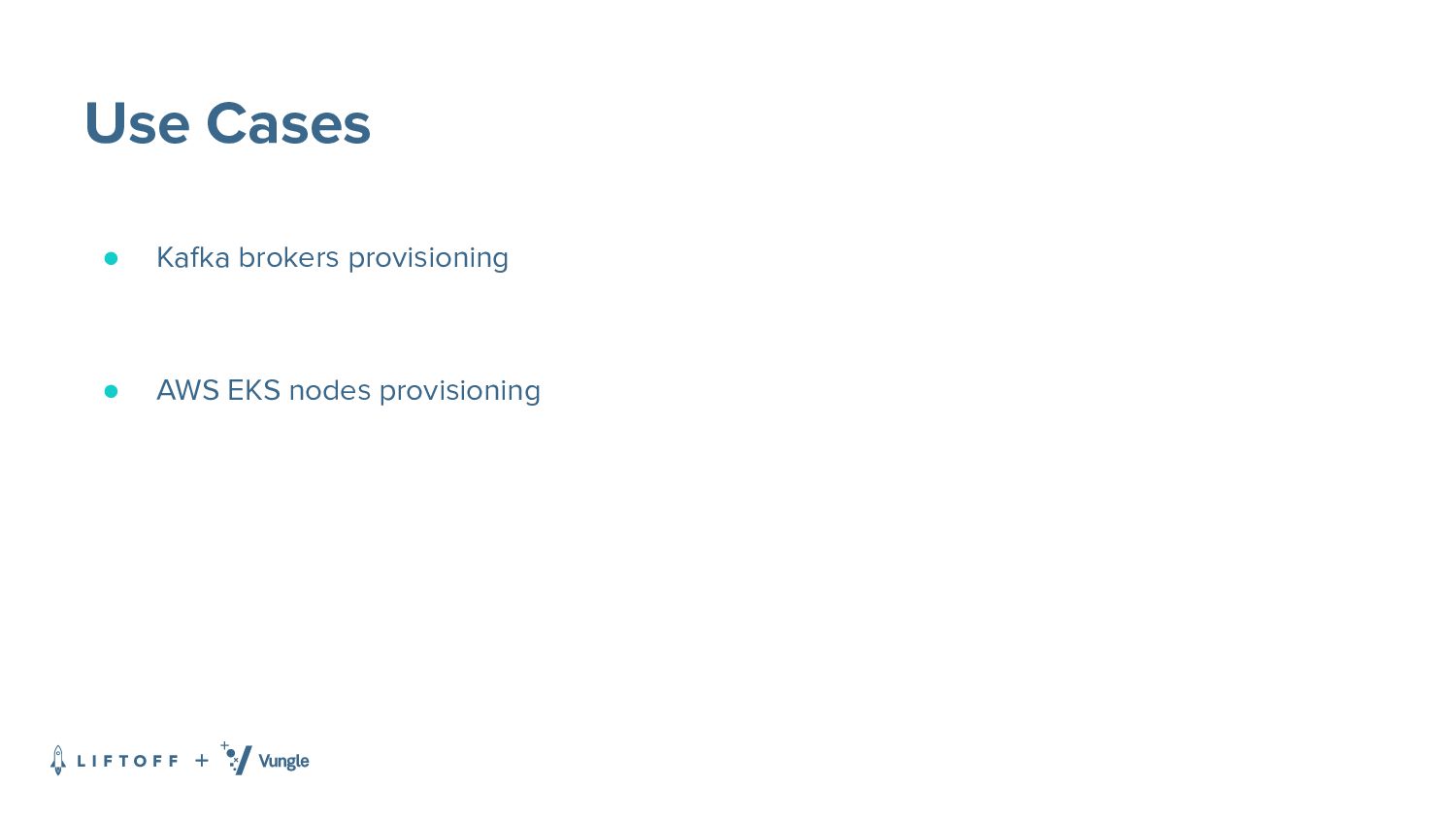

22. Use Cases • Kafka brokers provisioning • AWS EKS nodes provisioning
23. λ packer % tree -L 2 . ├── base.pkr.hcl ## → Base image ├── kafka.pkr.hcl ## → Build Kafka image on top of base image ├── plugins.pkr.hcl ## → Required 3rd plugins ├── terraform.tf ## → Unit testing with terraform └── variables.pkr.hcl ## → Variables required by building process

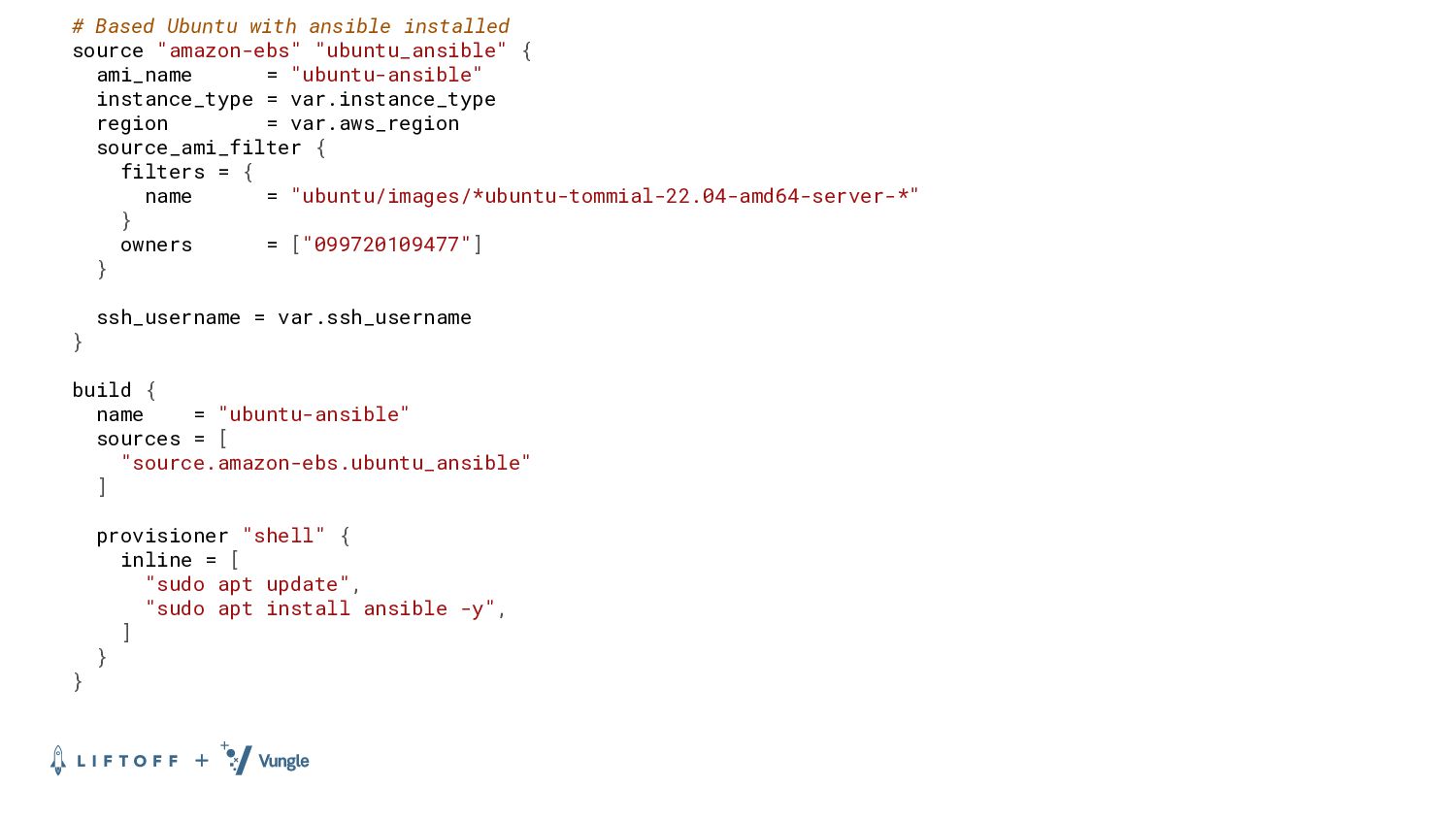

24. # Based Ubuntu with ansible installed source "amazon-ebs" "ubuntu_ansible" { ami_name = "ubuntu-ansible" instance_type = var.instance_type region = var.aws_region source_ami_filter { filters = { name = "ubuntu/images/*ubuntu-tommial-22.04-amd64-server-*" } owners = ["099720109477"] } ssh_username = var.ssh_username } build { name = "ubuntu-ansible" sources = [ "source.amazon-ebs.ubuntu_ansible" ] provisioner "shell" { inline = [ "sudo apt update", "sudo apt install ansible -y", ] } }
25. ## Use Ansible source "amazon-ebs" "kafka" { ami_name = "kafka-${var.environment}" iam_instance_profile = var.iam_instance_profile instance_type = var.instance_type region = var.aws_region ## Additional volumes dynamic "launch_block_device_mappings" { for_each = var.volumes content { delete_on_termination = var.delete_on_termination encrypted = var.encrypted iops = var.iops throughput = var.throughput volume_type = var.volume_type device_name = launch_block_device_mappings.value volume_size = var.volume_size } } source_ami_filter { [REDACTED] } ssh_username = var.ssh_username } build { name = "kafka" sources = [ "source.amazon-ebs.kafka" ] provisioner "shell" { inline = [ [REDACTED] ] } }

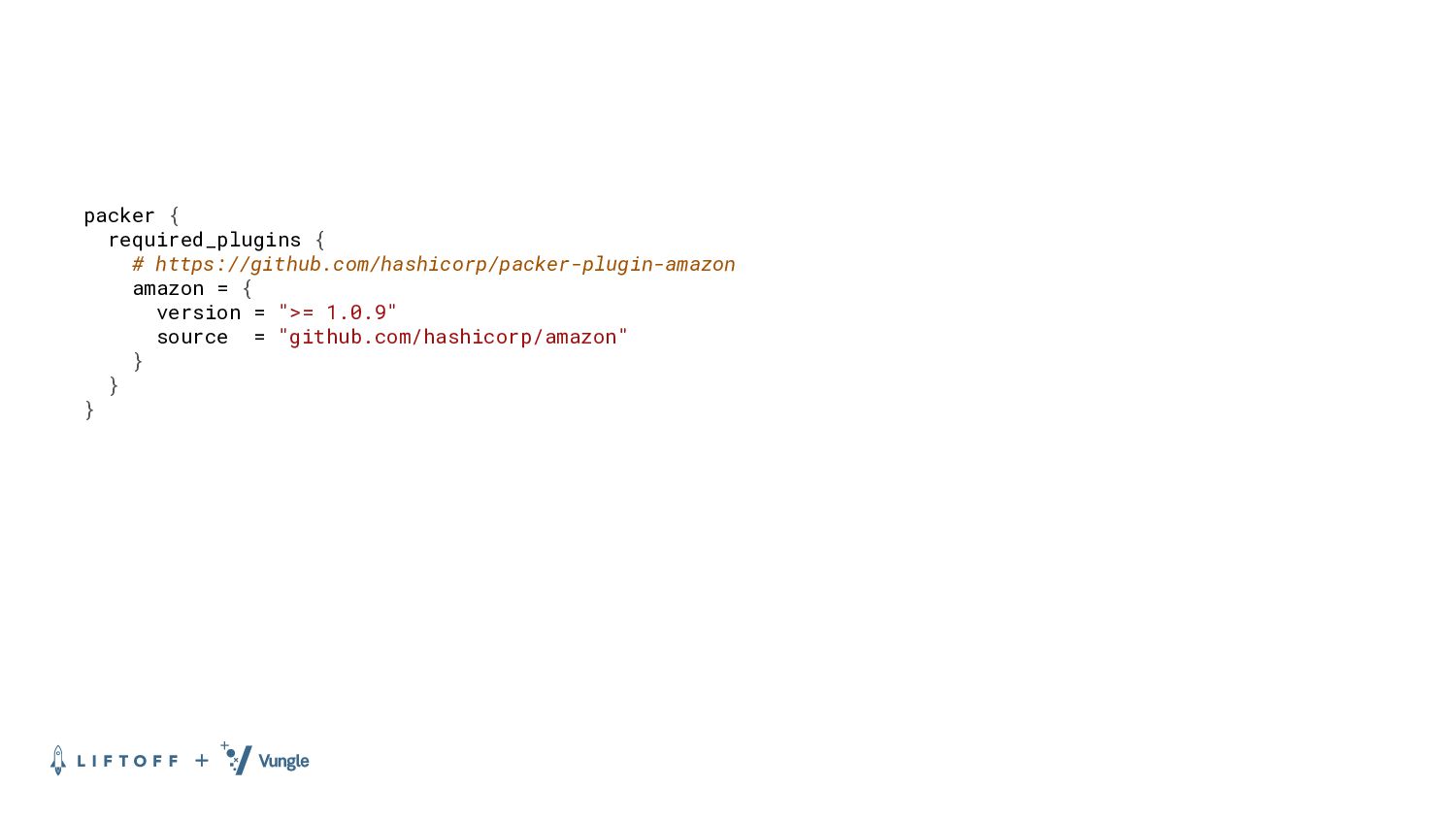

26. packer { required_plugins { # https://github.com/hashicorp/packer-plugin-amazon amazon = { version = ">= 1.0.9" source = "github.com/hashicorp/amazon" } } }

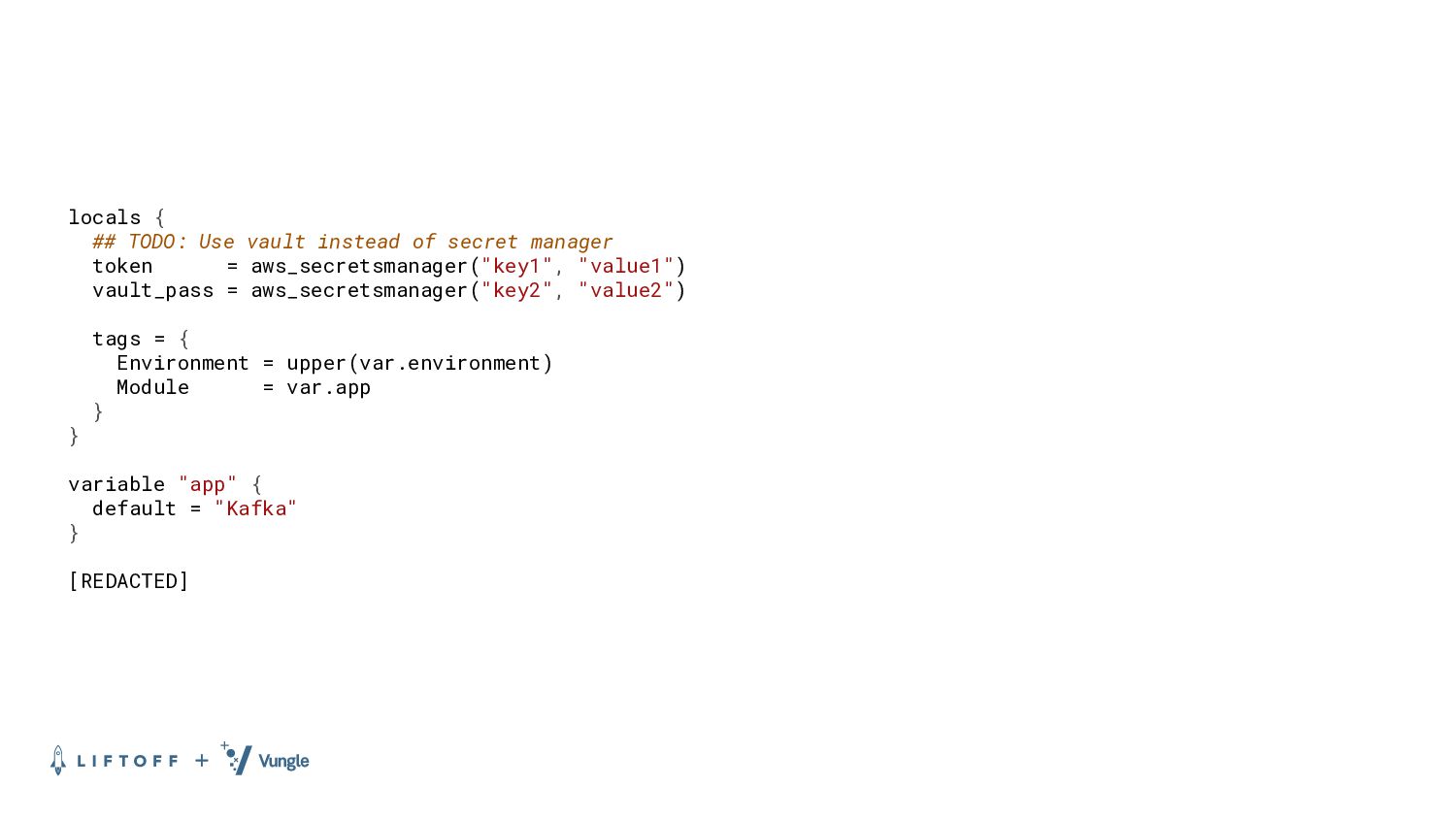

27. locals { ## TODO: Use vault instead of secret manager token = aws_secretsmanager("key1", "value1") vault_pass = aws_secretsmanager("key2", "value2") tags = { Environment = upper(var.environment) Module = var.app } } variable "app" { default = "Kafka" } [REDACTED]

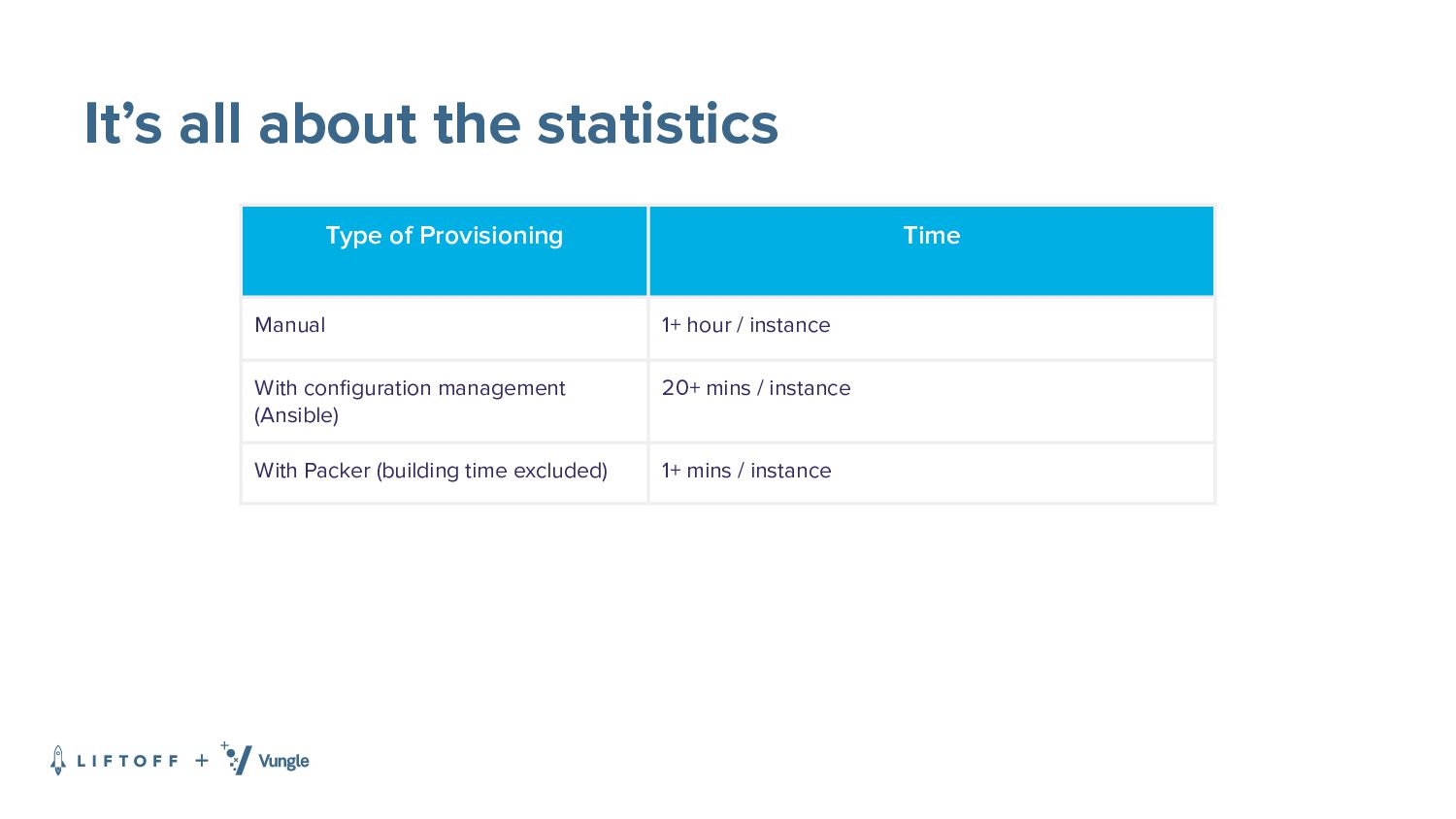

28. It’s all about the statistics Type of Provisioning Time Manual 1+ hour / instance With configuration management (Ansible) 20+ mins / instance With Packer (building time excluded) 1+ mins / instance
30. Questions?
