Vers des applications twelve-factor

La méthodologie "12 factor" (http://12factor.net/) promet des applications SaaS (Software-as-a-Service) plus maintenables et scalables.

Comment ? Pourquoi ? Voyons ensemble quelles sont les préconisations de cette méthodologie développée par des ingénieurs d'Heroku, et comment les appliquer dans des applications basées sur le framework Symfony2, avec l'aide de la technologie la plus prometteuse du moment : Docker.

Transcript

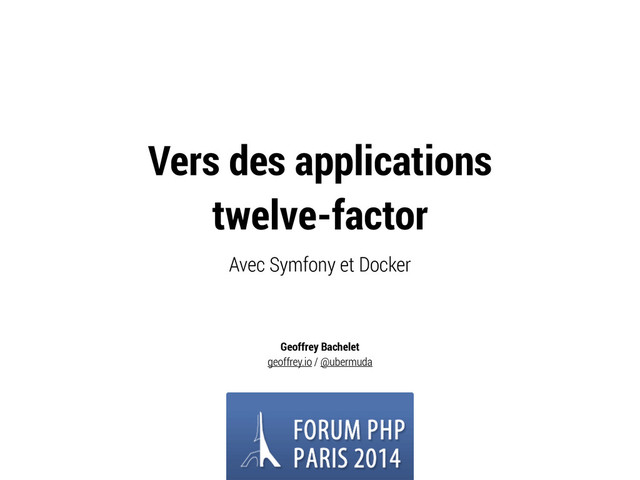

1. Vers des applications
   twelve-factor
   Avec Symfony et Docker
   Geoffrey Bachelet
   geoffrey.io / @ubermuda


   View Slide

2. 12factor.net


   View Slide

3. View Slide

4. Use declarative formats for setup automation
   Clean contract with the underlying operating system
   Suitable for deployment on modern cloud platforms
   Minimize divergence between development and production
   Can scale up without significant changes
   ”


   View Slide

5. Codebase
   Dependencies
   Config
   Backing services
   Build, release, run
   Processes
   Port binding
   Concurrency
   Disposability
   Dev/prod parity
   Logs
   Admin processes


   View Slide

6. Codebase


   View Slide

7. Codebase
   Question de vocabulaire


   View Slide

8. Codebase
   une app = une base de code
   ("codebase")


   View Slide

9. Codebase
   = un repo git/hg/svn


   View Slide

10. Codebase
    2 codebases =! un app


    View Slide

11. Codebase
    = un système distribué
    ("distributed system")


    View Slide

12. Distributed System
    Web WS Worker


    View Slide

13. Codebase
    1 codebase -> plusieurs déploiements
    ("deploy")


    View Slide

14. Codebase
    Prod
    Pré-prod
    Dev
    C.I.


    View Slide

15. Codebase
    one app = one codebase
    multiple codebases = a distributed system
    one codebase -> many deploys


    View Slide

16. Dependencies


    View Slide

17. System-wide
    vs
    Project-wide


    View Slide

18. View Slide

19. Dependencies Declaration
    composer.json
    bower.json
    packages.json
    ...


    View Slide

20. Dependencies Isolation
    bin/
    autoload
    ...


    View Slide

21. Outils système ?
    curl, imagemagick, ...


    View Slide

22. Pas de "shell out" !
    si obligatoire, inclure le binaire dans les dépendances


    View Slide

23. Config


    View Slide

24. Resource handles to the database, Memcached
    Credentials to external services such as Amazon S3 or Twitter
    Per-deploy values such as the canonical hostname for the deploy
    ”


    View Slide

25. Séparation stricte de la config et du code.


    View Slide

26. app/config/parameters.yml


    View Slide

27. Il est possible de créer d'autres fichiers !
    app/config/apis.yml


    View Slide

28. 12 factor recommande
    les variables d'environnement


    View Slide

29. Incenteev/ParameterHandler
    env-map


    View Slide

30. docker run -e FOO=bar -e TOTO
    Docker


    View Slide

31. web:
    image: debian:wheezy
    environnement:
    - FOO=bar
    - TOTO
    Fig


    View Slide

32. Backing services


    View Slide

33. A backing service is any service the app consumes over the
    network as part of its normal operation.
    ”


    View Slide

34. Datastore (MySQL, PgSQL, Redis, ...)
    SMTP (Postfix, Mandril, ...)
    Message Queue (RabbitMQ, ZeroMQ, ...)
    API tierce (Twitter, Facebook, etc)


    View Slide

35. App
    Ambassador
    MySQL
    Redis
    MySQL
    Ambassador
    Ambassador
    Ambassador


    View Slide

36. App
    Ambassador
    Ambassador Facebook
    Twitter
    Health check, Cache, etc.


    View Slide

37. Build, release, run


    View Slide

38. The twelve-factor app uses strict separation between the build,
    release, and run stages.
    ”


    View Slide

39. Téléchargement des dépendances
    Construction des assets
    Build


    View Slide

40. Build
    docker build


    View Slide

41. composer install
    ...et la méchante "GitHub API Rate"


    View Slide

42. FROM debian:wheezy
    Dockerfile


    View Slide

43. - FROM debian:wheezy
    + FROM acme/base
    Dockerfile


    View Slide

44. FROM debian:wheezy
    RUN composer config -g \
    github-oauth.github.com \
    a1b2c3d4e5...
    acme/base
    Attention à la sécurité !


    View Slide

45. Release
    docker push
    Possiblement sur un registry privé


    View Slide

46. RUN
    docker run / fig up


    View Slide

47. Processes


    View Slide

48. Twelve-factor processes are stateless and share-nothing.
    ”


    View Slide

49. App App
    Volumes
    Cache, Sessions, etc.


    View Slide

50. App App
    Volumes
    Cache, Sessions, etc.
    NOPE


    View Slide

51. App
    Volumes
    App
    Volumes
    Redis
    Ambassador


    View Slide

52. App
    Volumes
    App
    Volumes
    Redis
    Ambassador
    Sessions
    Cache


    View Slide

53. Assets ?!
    uploads, avatars, etc.


    View Slide

54. Amazon S3
    ou autre


    View Slide

55. Port binding


    View Slide

56. The twelve-factor app is completely self-contained


    View Slide

57. Self-contained?!


    View Slide

58. That's my fetish.


    View Slide

59. Docker
    docker run -P


    View Slide

60. Chaque application peut devenir un "backing service".


    View Slide

61. Concurrency


    View Slide

62. stateless + share-nothing = scalable


    View Slide

63. Web
    Reverse
    Proxy
    App
    App Ambassador MySQL


    View Slide

64. Reverse
    Proxy
    App
    App
    App Ambassador MySQL
    Let's rock.


    View Slide

65. Background jobs
    AMQP
    App
    Worker
    Worker
    Worker


    View Slide

66. Disposability


    View Slide

67. Web
    Reverse
    Proxy
    App
    App
    App Ambassador MySQL


    View Slide

68. Reverse
    Proxy
    App
    App
    App Ambassador MySQL
    J'ai piscine


    View Slide

69. ChaosMonkey
    https://github.com/Netflix/SimianArmy/wiki/Chaos-Monkey


    View Slide

70. App
    Ambassador
    MySQL
    Redis
    MySQL
    Ambassador
    Ambassador
    Ambassador


    View Slide

71. App
    Ambassador
    MySQL
    Redis
    MySQL
    Ambassador
    Ambassador
    Ambassador
    PG M'A TUER


    View Slide

72. App
    Ambassador
    MySQL
    Redis
    MySQL
    Ambassador
    Ambassador
    Ambassador
    LOL


    View Slide

73. App
    Ambassador
    MySQL
    Redis
    MySQL
    Ambassador
    Ambassador
    Ambassador
    MySQuoi ?


    View Slide

74. Dev/prod parity


    View Slide

75. Objectifs
    Réduire la friction entre le dev et la prod
    Réduire le "time-to-first-deploy"
    Faciliter l'intégration continue


    View Slide

76. Docker
    Permet d'avoir des environnements de dev
    très proches de la production.


    View Slide

77. Fig
    Facilite l'orchestration.


    View Slide

78. web:
    image: mytepee/web
    ports: [80]
    links: [db:db]
    volumes_from: [cache, config, data]
    environment: [...]
    db:
    image: orchardup/mysql
    environment: [...]
    cache:
    image: busybox
    command: /bin/true
    volumes: [/root/.composer/cache, /root/.cache/bower]
    config:
    image: busybox
    command: /bin/true
    volumes: [/app/config]
    data:
    image: busybox
    command: /bin/true
    volumes: [/app/web/uploads, /app/web/media, ..., /app/app/cache, /app/app/logs]
    fig.yml
    Attention à la sécurité !


    View Slide

79. Fig
    Pas (encore) d'orchestration "remote".
    Outils tierce (Flocker, Panamax, etc.)


    View Slide

80. Logs


    View Slide

81. A twelve-factor app never concerns
    itself with routing or storage of its output stream.
    ”


    View Slide

82. ...each running process writes its event stream,
    unbuffered, to stdout
    ”


    View Slide

83. Difficile d'être twelve-factor avec Symfony.


    View Slide

84. ELK
    Elasticsearch + Logstash + Kibana


    View Slide

85. David Pilato
    @dadoonet
    Atelier : Hands on Elasticsearch & Kibana


    View Slide

86. David Pilato
    @dadoonet
    Atelier : Hands on Elasticsearch & Kibana
    HIER


    View Slide

87. Olivier Dolbeau
    @odolbeau
    Talk : Laisse pas trainer ton log !


    View Slide

88. Olivier Dolbeau
    @odolbeau
    Talk : Laisse pas trainer ton log !
    HIER


    View Slide

89. Olivier Dolbeau
    @odolbeau
    http://odolbeau.fr/blog/when-monolog-meet-elk.html
    When Monolog meet ELK


    View Slide

90. Admin processes


    View Slide

91. One-off admin processes should be run in an identical
    environment as the regular long-running processes of the app.
    ”


    View Slide

92. Container spécialisé ?
    docker run acme/cli ...


    View Slide

93. docker exec
    docker exec acme_web ...
    1.3


    View Slide

94. Fig
    fig run


    View Slide

95. Run a one-off command on a service.
    For example:
    $ fig run web python manage.py shell
    By default, linked services will be started,
    unless they are already
    running. If you do not want to start linked
    services, use
    `fig run --no-deps SERVICE COMMAND [ARGS...]`.
    fig.yml


    View Slide

96. Ce qu'il faut retenir.


    View Slide

97. Twelve-factor
    =
    Recommandations


    View Slide

98. stateless / share-nothing


    View Slide

99. ELK
    http://odolbeau.fr/blog/when-monolog-meet-elk.html


    View Slide

100. Fig
     http://www.fig.sh/


     View Slide

101. Ambassador pattern
     https://docs.docker.com/articles/ambassador_pattern_linking/


     View Slide

102. Questions ?
     geoffrey.io / @ubermuda
     geoffrey.io/books/discovering-docker.html
     Merci !


     View Slide
