1. Android Programming for Arduino noobs Or Arduino programming for Android noobs

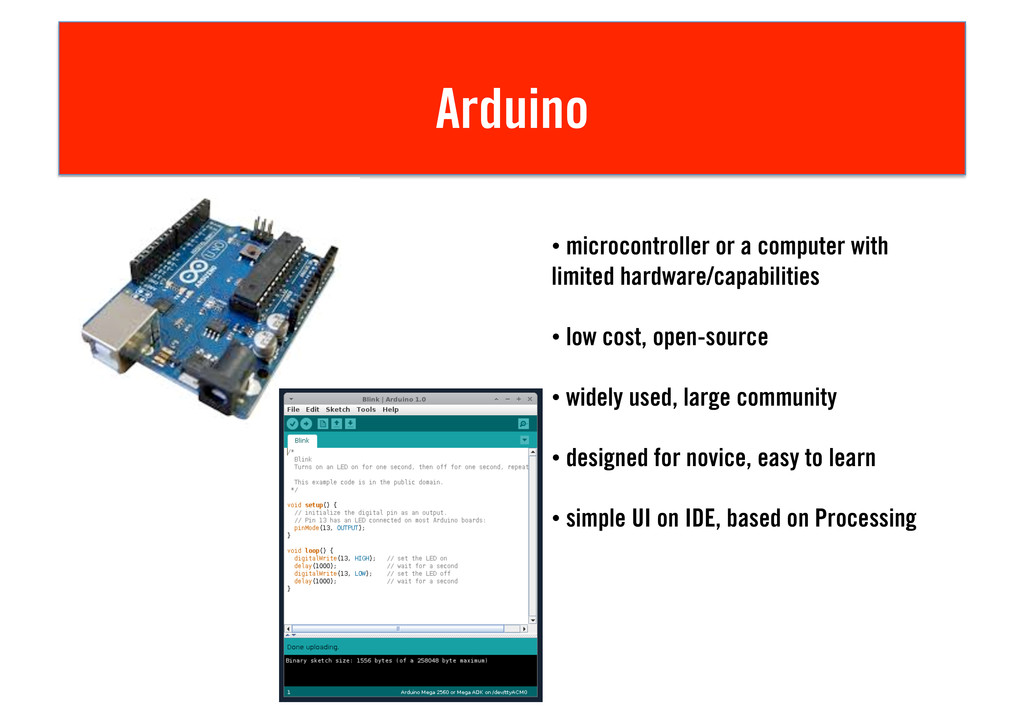

2. Arduino •  microcontroller or a computer with limited hardware/capabilities •  low cost, open-source •  widely used, large community •  designed for novice, easy to learn •  simple UI on IDE, based on Processing

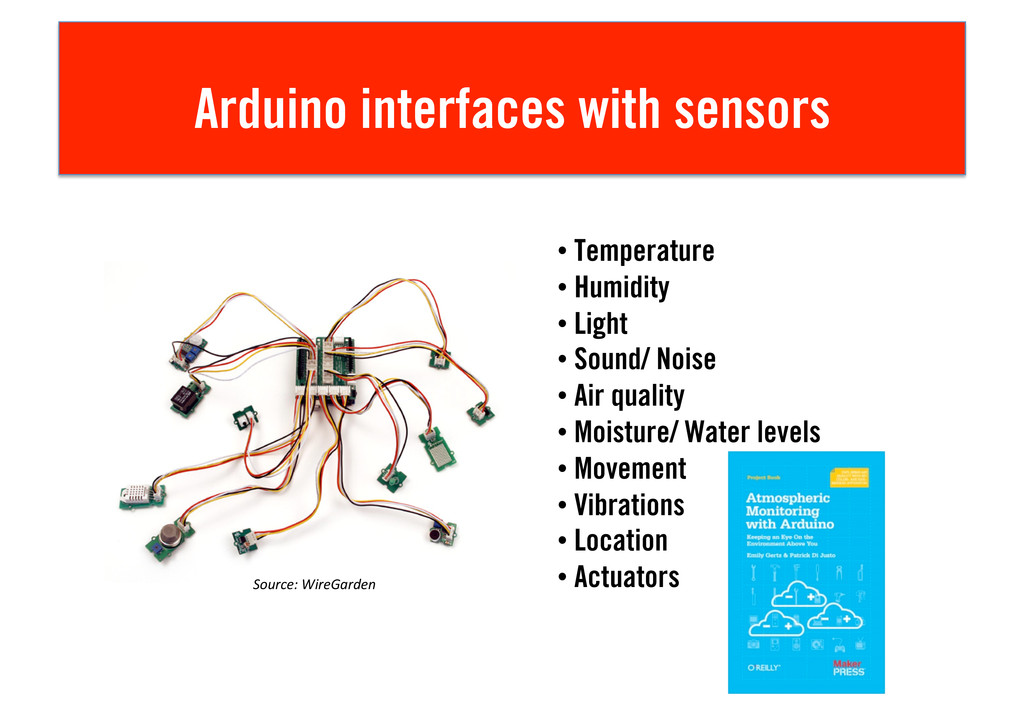

3. Arduino interfaces with sensors Source:  WireGarden   •  Temperature •  Humidity •  Light •  Sound/ Noise •  Air quality •  Moisture/ Water levels •  Movement •  Vibrations •  Location •  Actuators
4. Development of tangible interfaces Backend mobile programming Frontend GUI Interface with physical devices

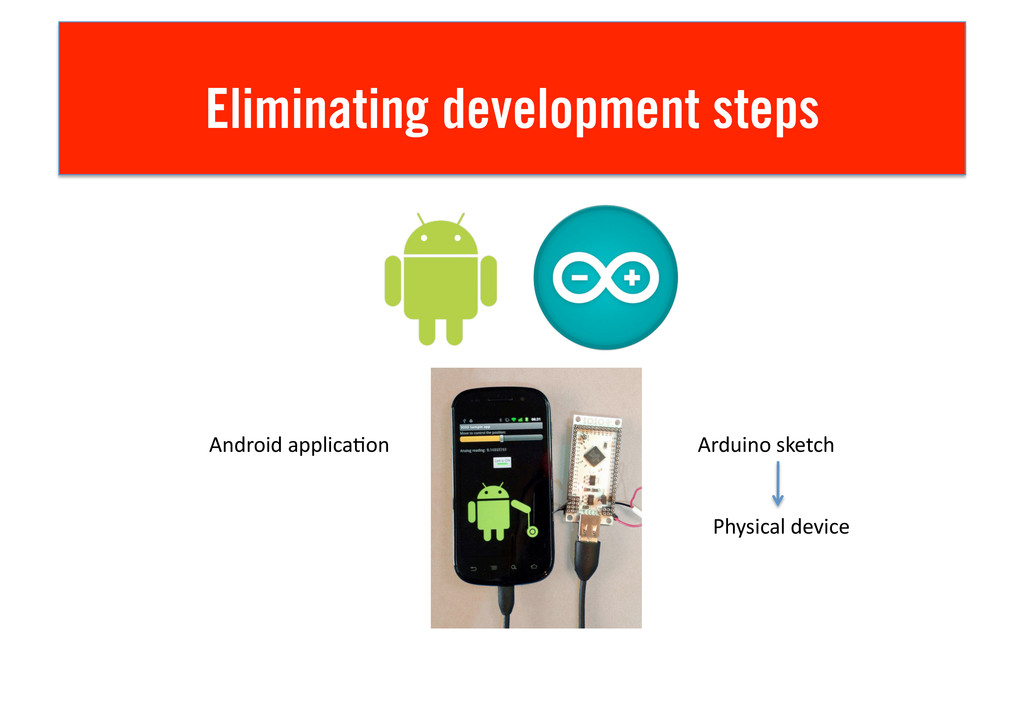

5. Eliminating development steps Android  applica,on   Arduino  sketch     Physical  device

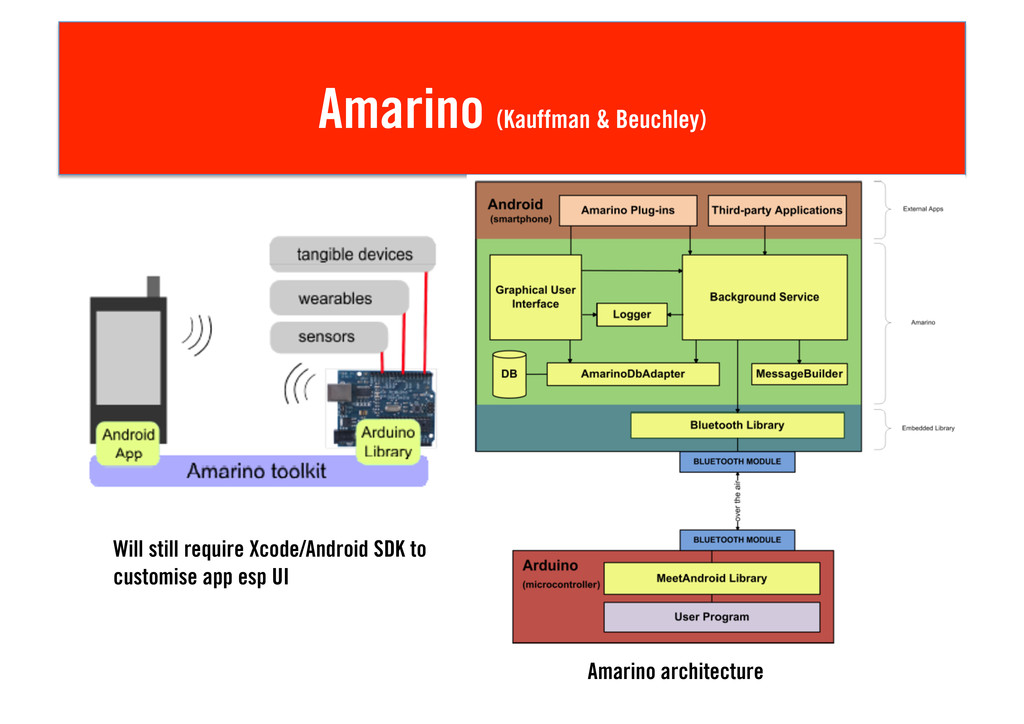

6. Amarino (Kauffman & Beuchley) Amarino architecture Will still require Xcode/Android SDK to customise app esp UI

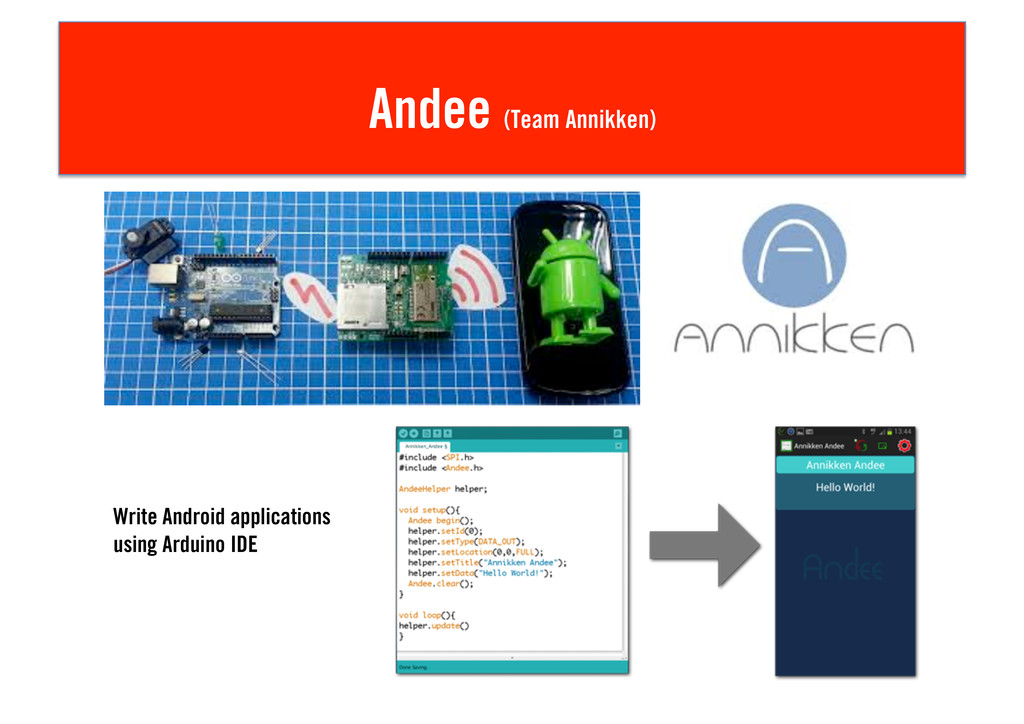

7. Andee (Team Annikken) Write Android applications using Arduino IDE

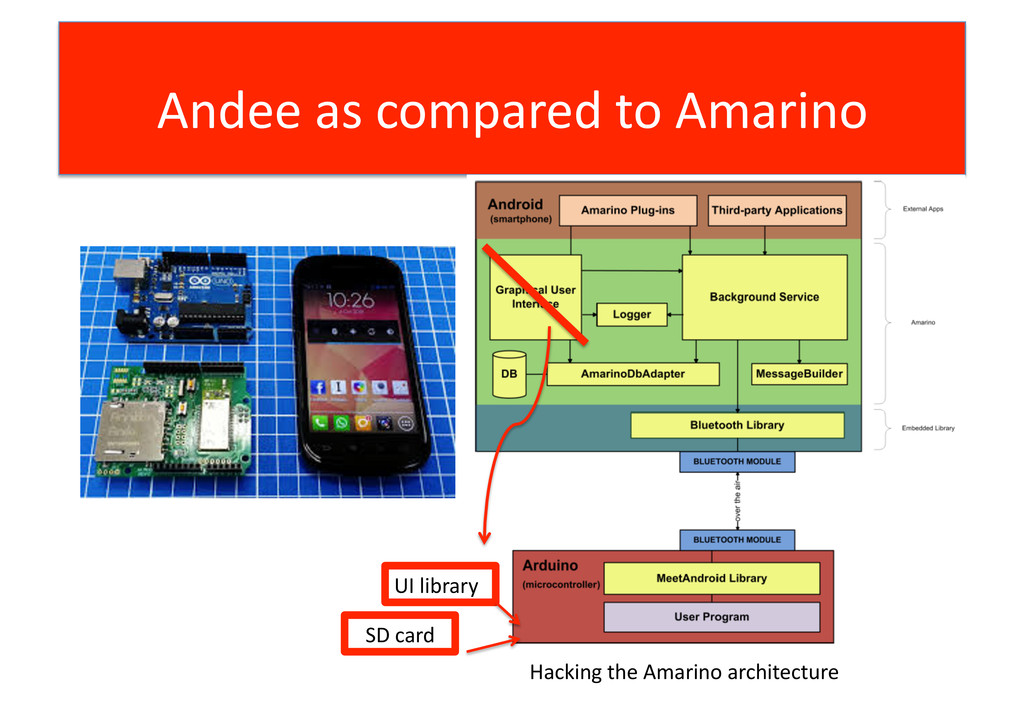

8. Andee  as  compared  to  Amarino   Hacking  the  Amarino  architecture   UI  library   SD  card

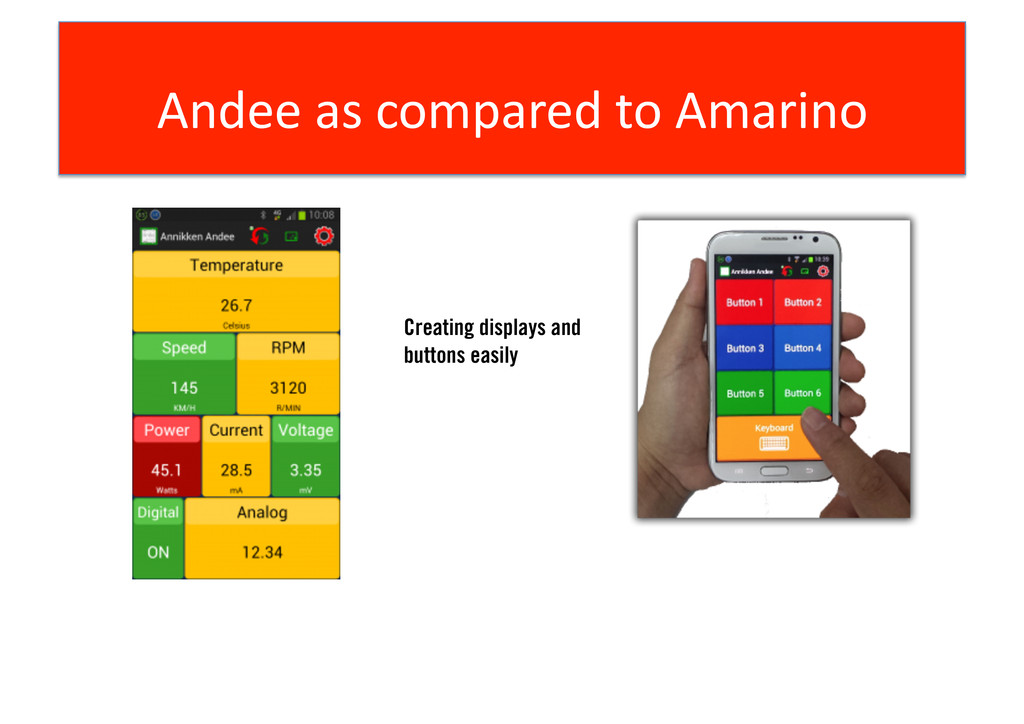

9. Andee  as  compared  to  Amarino   Creating displays and buttons easily
10. Demo William Hooi william@hackidemia.com @willhooi
