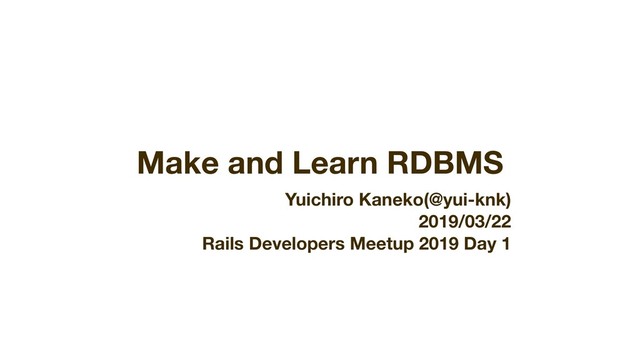

Make and Learn RDBMS

Make and Learn RDBMS
Yuichiro Kaneko(@yui-knk)
2019/03/22
Rails Developers Meetup 2019 Day 1

View Slide

Thank you !!

View Slide

4FMG*OUSPEVDUJPO
• Yuichiro Kaneko

• Arm Treasure Data

• CDP team (Writing Rails application)

• CRuby Committer 2015/12~

• GitHub (yui-knk)

View Slide

https://www.treasuredata.com/company/careers/jobs/?team=Engineering
8FBSFIJSJOH

View Slide

5PEBZTUPQJD
• Implementation of RDBMS, especially PostgreSQL

• How to create DB step by step

• Will not talk about CRuby/Rails!

View Slide

/PUDPWFSFE
• How to use PostgreSQL eﬃciently in your Rails app

• What RDBMS is best for your Rails app

• How to design perfect database/table schema

View Slide

#BDLHSPVOE
• Our customer can store data and execute queries to their data by
Treasure Data

• It can be said we are developing each part of DB

• Knowledge of how DB works may be useful to understand/guess what
other team members do

• Creating a subset of DB helps me understand DB

View Slide

5PCFIPOFTU
+VTUGPS'VO

View Slide

5PEBZT(PBM
• Grasp the whole picture of DB

• Understand which part of DB we can omit when we create DB

View Slide

*NDSFBUJOH
• https://github.com/yui-knk/minidb

• About 3400 lines

• Implemented by Rust

• Use PostgreSQL as reference

• d06fe6ce2c79420fd19ac89ace81b66579f08493 (tag: REL_11_1)

• First commit date is 2018/12/31

View Slide

4VQQPSUFE
• SELECT/INSERT/DELETE/WHERE/COUNT/ORDER BY

• Storage Manager

• Support multiple pages

• Buﬀer Manager

• Has parser

• Signed 4 bytes integer is only supported type

• Use as command line tool

View Slide

/PU4VQQPSUFE
• UPDATE/JOIN

• Projection

• Aggregation

• Transaction/Concurrency control

• Vacuum

• Optimizer

• Multiple segments

• INDEX

• Launch as server

• ...

View Slide

8IBUDBO*EPXJUIlNJOJECz
$ minidb execute 'insert into db1.table1 (id, age)
values (1, 12), (2, 13), (3, 12), (4, 20), (5, 21)'
$ minidb execute 'select * from db1.table1'
"1" "12"
"2" "13"
"3" "12"
"4" "20"
"5" "21"
$ minidb execute 'select count() from db1.table1'
Count: 5

View Slide

8IBUDBO*EPXJUIlNJOJECz
$ minidb execute 'select * from db1.table1 order by age'
"1" "12"
"3" "12"
"2" "13"
"4" "20"
"5" "21"
$ minidb execute 'select count() from db1.table1 where age = 12'
Count: 2
$ minidb execute 'delete from db1.table1 where age = 12'
Deleted records: 2
$ minidb execute 'select count() from db1.table1 where age = 12'
Count: 0

View Slide

+---------------+
| Shared Memory |
+---------------+
+------------+
| Postmaster |
+------------+
+---------+
| Backend |
+---------+
+---------+
| Backend |
+---------+
+---------+
| Backend |
+---------+
+-------------------+
| Background Writer |
+-------------------+
| Checkpointer |
+-------------------+
| WAL Writer |
+-------------------+
| WAL Receiver |
+-------------------+
| Checkpointer |
+-------------------+
+----------------------+
| Autovacuum |
+----------------------+
| WAL Archiver |
+----------------------+
| Statistics Collector |
+----------------------+
| System Logger |
+----------------------+
fork
fork

View Slide

+-------------------+
| Background Writer |
+-------------------+
| Checkpointer |
+-------------------+
| WAL Writer |
+-------------------+
| WAL Receiver |
+-------------------+
| Checkpointer |
+-------------------+
+----------------------+
| Autovacuum |
+----------------------+
| WAL Archiver |
+----------------------+
| Statistics Collector |
+----------------------+
| System Logger |
+----------------------+
+------------------+
| main |
| * log |
| * write to disk |
+------------------+

View Slide

"HFOEB
• Part 1: The system catalogs and init command

• Part 2: Storage Manager and Buﬀer Manager

• Part 3: Query Execution

• Part 4: Conclusion

View Slide

Part 1: The system catalogs and init
command

View Slide

%JSFDUPSZTUSVDUVSFPG
1PTUHSF42-EBUBCBTFEJSFDUPSZ
$ ls -l
total 104
-rw------- 1 yuichirokaneko admin 3 1 17 22:19 PG_VERSION
drwx------ 7 yuichirokaneko admin 224 1 24 21:05 base
drwx------ 61 yuichirokaneko admin 1952 3 10 10:44 global
drwx------ 2 yuichirokaneko admin 64 1 17 22:19 pg_commit_ts
...
drwx------ 4 yuichirokaneko admin 128 1 17 22:19 pg_wal
drwx------ 3 yuichirokaneko admin 96 1 17 22:19 pg_xact
-rw------- 1 yuichirokaneko admin 88 1 17 22:19 postgresql.auto.conf
-rw------- 1 yuichirokaneko admin 23780 1 17 22:19 postgresql.conf
-rw------- 1 yuichirokaneko admin 80 1 17 22:20 postmaster.opts
-rw------- 1 yuichirokaneko admin 90 3 10 10:43 postmaster.pid

View Slide

$ ls -l
total 104
-rw------- 1 yuichirokaneko admin 3 1 17 22:19 PG_VERSION
drwx------ 7 yuichirokaneko admin 224 1 24 21:05 base
drwx------ 61 yuichirokaneko admin 1952 3 10 10:44 global
drwx------ 2 yuichirokaneko admin 64 1 17 22:19 pg_commit_ts
...
drwx------ 4 yuichirokaneko admin 128 1 17 22:19 pg_wal
drwx------ 3 yuichirokaneko admin 96 1 17 22:19 pg_xact
-rw------- 1 yuichirokaneko admin 88 1 17 22:19 postgresql.auto.conf
-rw------- 1 yuichirokaneko admin 23780 1 17 22:19 postgresql.conf
-rw------- 1 yuichirokaneko admin 80 1 17 22:20 postmaster.opts
-rw------- 1 yuichirokaneko admin 90 3 10 10:43 postmaster.pid
I’m talking about PostgreSQL

View Slide

• Go to database directory

• "global": "Subdirectory containing cluster-wide tables, such as
pg_database" [1]

• "base": "Subdirectory containing per-database subdirectories" [1]

• [1]: https://www.postgresql.org/docs/11/storage-ﬁle-layout.html
$ ls -l
drwx------ 7 224 1 24 21:05 base
drwx------ 61 1952 3 10 10:44 global

View Slide

0JE
• Oid means "Object ID”

• `typedef unsigned int Oid;`

View Slide

$ ls -l global
total 1160
-rw------- 1 yuichirokaneko admin 8192 1 17 22:19 1136
-rw------- 1 yuichirokaneko admin 24576 1 17 22:19 1136_fsm
-rw------- 1 yuichirokaneko admin 8192 1 17 22:19 1136_vm
...
-rw------- 1 yuichirokaneko admin 8192 1 24 21:10 1262
-rw------- 1 yuichirokaneko admin 24576 1 17 22:19 1262_fsm
-rw------- 1 yuichirokaneko admin 8192 1 17 22:19 1262_vm
...
-rw------- 1 yuichirokaneko admin 22088 3 10 10:44 pg_internal.init
# select oid, relname from pg_class where oid = 1262 order by oid asc;
oid | relname
------+-------------
1262 | pg_database
(1 row) Oid of table

View Slide

CBTFEJSFDUPSZ
• Contains directories whose name is same with Oid

• Directory 16388 is for lusiadas database
$ ls -l base/
total 0
drwx------ 296 9472 2 10 21:15 1
drwx------ 296 9472 1 17 22:19 13363
drwx------ 296 9472 3 9 22:12 13364
drwx------ 297 9504 2 10 21:15 16384
drwx------ 299 9568 3 10 10:44 16388
# select oid, datname
from pg_database order by oid asc;
oid | datname
-------+------------
1 | template1
13363 | template0
13364 | postgres
16384 | example-db
16388 | lusiadas
(5 rows)

View Slide

CBTFEJSFDUPSZ
• Directories contain data ﬁles

• File 16389 is for ﬁlms table
$ ls -l base/16388
total 15784
-rw------- 1 8192 1 24 21:05 112
-rw------- 1 8192 1 24 21:05 113
-rw------- 1 73728 1 24 21:10 1247
-rw------- 1 24576 1 24 21:05 1247_fsm
-rw------- 1 8192 1 24 21:10 1247_vm
...
-rw------- 1 8192 2 23 22:31 16389
...
# select oid, relname
from pg_class
where oid = 16389
order by oid asc;
oid | relname
-------+---------
16389 | films
(1 row)
Oid of table

View Slide

*NQMFNFOUJOJUDPNNBOE
$ minidb --base_dir /tmp/minidb init
/tmp/minidb
!"" base
#"" global
!"" mini_attribute
$ #"" data
!"" mini_class
$ #"" data
!"" mini_database
$ #"" data
#"" oid
Columns
Tables
Databases

View Slide

*NQMFNFOUJOJUDPNNBOE
• Creating some system catalogs which are the place RDBMS stores
schema metadata

• "mini_database": Database information

• "mini_class": Table information

• "mini_attribute": Column information

• Simply creating directories and ﬁles

View Slide

*NQMFNFOUDSFBUFEBUBCBTF
DPNNBOE
$ minidb --base_dir /tmp/minidb create_db db1
/tmp/minidb
!"" base
$ #"" 10000
#"" global
!"" mini_attribute
$ #"" data
!"" mini_class
$ #"" data
!"" mini_database
$ #"" data
#"" oid
$ cat global/mini_database/data
# Oid,db_name
10000,db1

View Slide

*NQMFNFOUDSFBUFEBUBCBTF
DPNNBOE
• Insert a database record to "mini_database/data" ﬁle

• Do not use binary format for system catalog to easy to implement

• The format of this data ﬁle is “Oid,database_name"

• Create directory of Oid name (10000) under the base directory

View Slide

$ minidb --base_dir /tmp/minidb create_table db1 table1
/tmp/minidb
!"" base
$ #"" 10000
$ #"" 10001
#"" global
!"" mini_attribute
$ #"" data
!"" mini_class
$ #"" data
!"" mini_database
$ #"" data
#"" oid
*NQMFNFOUDSFBUFUBCMFDPNNBOE
$ cat /tmp/minidb/global/mini_class/data
# Oid,table_name,db_Oid
10001,table1,10000
$ cat /tmp/minidb/global/mini_attribute/data
# column_name,db_Oid,table_Oid,type,length
id,10000,10001,1,4
age,10000,10001,1,4
Only support `id integer, age integer` as table schema

View Slide

*NQMFNFOUDSFBUFUBCMFDPNNBOE
• Insert a table record to "mini_class/data" file

• The format of this data file is “Oid,table_name,database_Oid"

• Insert column records to "mini_attribute/data" file

• The format of this data file is
“column_name,database_Oid,table_Oid,type,length"

• Type 1 means Signed 4 bytes integer

• User can not specify schema of the table!

• Only support ìd integer, age integer` as table schema

View Slide

)PXUPJOUFSBDUXJUIpMFT
• Read the catalog file

• Load data from the catalog file into an array

• Add new catalog data to the array

• Write the array to catalog file

View Slide

*NQPSUBOUQPJOUT
• Use simple data format, e.g. JSON, CSV …

• Simply interact with catalog ﬁles

View Slide

Part 2: Storage Manager and
Buﬀer Manager

View Slide

%BUBpMFTUSVDUVSFJOQH
• "fork": Use same oid with different suffix for metadata files

• "main": (0) / "fsm": (1) / "vm": (2) / "init": (3)

• Free Space Map / Visibility Map

• "segment": Divide a fork into multiple files to avoid OS' limit on file
size (see: RELSEG_SIZE)

• "block": Data file is divided into logical blocks, default 8KB (see:
BLCKSZ)
$ ls -hl base/16388/24576*
-rw------- 1.0G 3 10 16:38 base/16388/24576 <- fork: 0, segment: 0
-rw------- 25M 3 10 16:38 base/16388/24576.1 <- fork: 0, segment: 1
-rw------- 280K 3 10 16:38 base/16388/24576_fsm <- fork: 1, segment: 0

View Slide

%BUBpMFTUSVDUVSFJOQH
• Internal structure of "base/16388/24576" ﬁle looks like below

• It has ﬁxed-size blocks
$ ls -hl base/16388/24576*
-rw------- 1.0G 3 10 16:38 base/16388/24576
-rw------- 25M 3 10 16:38 base/16388/24576.1
-rw------- 280K 3 10 16:38 base/16388/24576_fsm
+---------+
| Block 0 | <- 8KB
+---------+
| Block 1 | <- 8KB
+---------+
| Block 2 | <- 8KB
+---------+
| Block 3 | <- 8KB
+---------+
...

View Slide

#MPDLTUSVDUVSFJOQH
/*
* +----------------+---------------------------------+
* | PageHeaderData | linp1 linp2 linp3 ... |
* +-----------+----+---------------------------------+
* | ... linpN | |
* +-----------+--------------------------------------+
* | ^ pd_lower |
* | |
* | v pd_upper |
* +-------------+------------------------------------+
* | | tupleN ... |
* +-------------+------------------+-----------------+
* | ... tuple3 tuple2 tuple1 | "special space" |
* +--------------------------------+-----------------+
* ^ pd_special
*/ 'SPNTSDJODMVEFTUPSBHFCVGQBHFI
Header 32bit
+---------+
| Block 0 | <- 8KB
+---------+
| Block 1 | <- 8KB
+---------+
| Block 2 | <- 8KB
+---------+
| Block 3 | <- 8KB
+---------+
...

View Slide

#MPDLTUSVDUVSFJOQH
• PageHeader is a header

• linp has a ItemIdData type, 32bit. This holds info of each tuple, e.g.
oﬀset to the tuple, length of the tuple

• Maybe linp means “line pointer”

• tuple has a HeapTupleHeaderData type. This holds data of the row

View Slide

*NQMFNFOUJOTFSUDPNNBOE
• We should implement insert before select :)


• `minidb insert_into db_name table_name id age`
$ minidb insert_into db1 table1 1 12

View Slide

• Open data ﬁle

• Load data into memory, this is called 'page'

• Add tuple to page

• Write data into data ﬁle

View Slide

pub fn execute(&self, dbname: &str, table_name: &str, key_values: Vec) -> Result<(),
String> {
let rm: RecordManeger =
RecordManeger::build_from_config("mini_attribute".to_string(), self.config).unwrap();
let attrs = rm.attributes(dbname, table_name);
let mut slot = TupleTableSlot::new(rm.attributes_clone(dbname, table_name));
let path = self.config.data_file_path(dbname, table_name);
let mut page = if path.exists() {
Page::load(&path)
} else {
Page::new(DEFAULT_BLOCK_SIZE)
};
if attrs.len() != key_values.len() {
return Err(format!("Length not match. attrs: {}, key_values: {}", attrs.len(),
key_values.len()));
}
open ﬁle & load data

View Slide

for ((i, kv), attr) in key_values.iter().enumerate().zip(attrs.iter()) {
if kv.key != attr.name {
return Err(format!("Name not match. attrs: {}, key_values: {}", attr.name, kv.key));
}
let t = ty::build_ty(&attr.type_name, &kv.value)?;
slot.set_column(i, t.as_ref());
}
page.add_tuple_slot_entry(&slot).unwrap();
let f = File::create(path).unwrap();
page.write_bytes(f);
Ok(())
}
add tuple to page
write data to ﬁle

View Slide

*NQMFNFOUTFMFDUDPNNBOE
• `minidb select_from db_name table_name`
$ minidb select_from db1 table1
"1" # <- id of 1st record
"12" # <- age of 1st record
"2" # <- id of 2nd record
"13" # <- age of 2nd record
"3" # <- id of 3rd record
"12" # <- age of 3rd record

View Slide

• Open data ﬁle

• Load data into page

• Copy tuple data into tuple slot (TupleTableSlot)

• Print each tuple

• Print each column

View Slide

pub fn execute(&self, dbname: &str, table_name: &str, key: &str, value: &str) -> Result<(),
String> {
let rm: RecordManeger =
RecordManeger::build_from_config("mini_attribute".to_string(), self.config).unwrap();
let attrs = rm.attributes_clone(dbname, table_name);
let attrs_len = attrs.iter().fold(0, |acc, attr| acc + attr.len) as u32;
let mut slot = TupleTableSlot::new(attrs);
let path = self.config.data_file_path(dbname, table_name);
let mut page = if path.exists() {
Page::load(&path)
} else {
Page::new(DEFAULT_BLOCK_SIZE)
};
open ﬁle & load data

View Slide

for i in 0..(page.entry_count()) {
slot.load_data(page.get_entry_pointer(i).unwrap(), attrs_len);
println!("attrs_count: {:?}", slot.attrs_count());
for j in 0..(slot.attrs_count()) {
let ty = slot.get_column(j);
println!("{:?}", ty.as_string());
}
}
Ok(())
}
copy data to tuple
iterate each tuple
print each column
iterate each column

View Slide

*NQPSUBOUQPJOUT
• Need not to clean code of select/insert commands at present

• We will introduce Query Execution logic at a later step

View Slide

#VU
• Each command read/write ﬁles

• Each command allocate memory (page)

• Introduce Buﬀer Manager and Storage Manager to extract these logic

View Slide

#V⒎FS.BOBHFS
• Buffer Manager manages data in memory

• All data in files are read/written via Buffer Manager

• In many case we can not load all data into Buffer Manager (memory
size <<<< data file size)

• “Block" may be called "Page" in Buffer Manager context

• User of Buffer Manager passes info of Relation(database & table) and
BlockNumber to get a page

View Slide

pages:
+------+------+
| 8KB | 8KB |
+------+------+
^ ^
| |
v v
buffer_descriptors:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
| flag | flag |
+------+------+
buffer_hash:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
+------+------+
| |
v v
+------+------+
| 0 | 1 |
+------+------+
Get (db1, tbl2, blk0)
)PXUPVTF#V⒎FS.BOBHFS

View Slide

pages:
+------+------+
| 8KB | 8KB |
+------+------+
^ ^
| |
v v
buffer_descriptors:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
| flag | flag |
+------+------+
buffer_hash:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
+------+------+
| |
v v
+------+------+
| 0 | 1 |
+------+------+
Buﬀer (1)

View Slide

pages:
+------+------+
| 8KB | 8KB |
+------+------+
^ ^
| |
v v
buffer_descriptors:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
| flag | flag |
+------+------+
buffer_hash:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
+------+------+
| |
v v
+------+------+
| 0 | 1 |
+------+------+
Buﬀer (1)
Get page of Buﬀer (1)

View Slide

pages:
+------+------+
| 8KB | 8KB |
+------+------+
^ ^
| |
v v
buffer_descriptors:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
| flag | flag |
+------+------+
buffer_hash:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
+------+------+
| |
v v
+------+------+
| 0 | 1 |
+------+------+
Buﬀer (1)
Get page of Buﬀer (1)
Reference of page (1)

View Slide

pages:
+------+------+
| 8KB | 8KB |
+------+------+
^ ^
| |
v v
buffer_descriptors:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
| flag | flag |
+------+------+
buffer_hash:
+------+------+
| db1 | db1 |
| tbl1 | tbl2 |
| blk0 | blk0 |
+------+------+
| |
v v
+------+------+
| 0 | 1 |
+------+------+

View Slide

pages:
+------+------+------+
| 8KB | 8KB | 8KB |
+------+------+------+
^ ^ ^
| | |
v v v
buffer_descriptors:
+------+------+------+
| db1 | db1 | db1 |
| tbl1 | tbl2 | tbl1 |
| blk0 | blk0 | blk1 |
| flag | flag | flag |
+------+------+------+
buffer_hash:
+------+------+------+
| db1 | db1 | db1 |
+------+------+------+
| | |
v v v
+------+------+------+
| 0 | 1 | 2 |
+------+------+------+

View Slide

pages:
+------+------+------+
| 8KB | 8KB | 8KB |
+------+------+------+
^ ^ ^
| | |
v v v
buffer_descriptors:
+------+------+------+
| db1 | db1 | db1 |
| flag | flag | flag |
+------+------+------+
buffer_hash:
+------+------+------+
| db1 | db1 | db1 |
+------+------+------+
| | |
v v v
+------+------+------+
| 0 | 1 | 2 |
+------+------+------+
Buﬀer (2)

View Slide

*NQMFNFOU#V⒎FS.BOBHFS
• Page: Malloced block_size memory

• BuﬀerTag: Relation(database & table) and BlockNumber
// We malloc c memory for header, lines and tuples.
pub struct Page {
header: *mut PageHeaderData,
}
struct BufferTag {
rnode: RelFileNode,
block_num: BlockNumber,
}
8 KB

View Slide

*NQMFNFOU#V⒎FS.BOBHFS
• pages: Array of Page

• buffer_descriptors: Array of info of Page (BufferTag, dirty flag etc.)

• buffer_hash: Map from BufferTag to buffer identifier (usize)
pub struct BufferManager {
config: Rc,
smgr: StorageManager,
buffer_descriptors: Vec,
pages: Vec,
// Hash from BufferTag to index of descriptor and page
// See LocalBufHash in pg.
buffer_hash: HashMap,
}

View Slide

-JNJUBUJPOTPG#V⒎FS.BOBHFS
• No eviction logic

• Can not load ﬁle into memory if all slots are used

• It’s acceptable if we implement DB as command

• It’s may not acceptable if we implement DB as server

• No lock mechanism

View Slide

*NQPSUBOUQPJOUT
• Dump data to ﬁles by "destructor" (drop trait)

• Be careful to return cached page if the page is cached

• I embedded a bug because I forgot this…

View Slide

4UPSBHF.BOBHFSJOQH
• Manages ﬁle descriptors

• "src/backend/storage/smgr/smgr.c"

• "src/backend/storage/smgr/md.c"

• Take care of segments

View Slide

typedef enum ForkNumber
{
InvalidForkNumber = -1,
MAIN_FORKNUM = 0,
FSM_FORKNUM,
VISIBILITYMAP_FORKNUM,
INIT_FORKNUM
} ForkNumber;
#define MAX_FORKNUM INIT_FORKNUM
typedef struct _MdfdVec
{
File mdfd_vfd; /* fd number in fd.c's pool */
BlockNumber mdfd_segno; /* segment number, from 0 */
} MdfdVec;
typedef struct SMgrRelationData
{
RelFileNodeBackend smgr_rnode; /* relation physical identifier */
struct SMgrRelationData **smgr_owner;
BlockNumber smgr_targblock; /* current insertion target block */
BlockNumber smgr_fsm_nblocks; /* last known size of fsm fork */
BlockNumber smgr_vm_nblocks; /* last known size of vm fork */
int smgr_which; /* storage manager selector */
int md_num_open_segs[MAX_FORKNUM + 1];
struct _MdfdVec *md_seg_fds[MAX_FORKNUM + 1];
struct SMgrRelationData *next_unowned_reln;
} SMgrRelationData;
• md_seg_fds is an
array of
`_MdfdVec *`

• see:
`_mdfd_getseg`
function

View Slide

md_seg_fds:
main fsm vm init
+------------+--------------+--------------+--------------+
| | | | |
+------------+--------------+--------------+--------------+
| | | |
v v v v
+------------+--------------+
| fd 24576 | fd 24576_fsm |
| seg 0 | seg 0 |
+------------+--------------+
| fd 24576.1 |
| seg 1 |
+------------+
base/16388/24576 <- fork: 0, segment: 0
base/16388/24576.1 <- fork: 0, segment: 1
base/16388/24576_fsm <- fork: 1, segment: 0
Forks
Segments

View Slide

*NQMFNFOU4UPSBHF.BOBHFS
• cache: Map from RelFileNode to SMgrRelationData

• SMgrRelationData: This has fd
pub struct SMgrRelationData {
config: Rc,
pub smgr_rnode: RelFileNode,
file: Option,
// current insertion target block
pub smgr_targblock: BlockNumber,
}
pub struct StorageManager {
config: Rc,
cache: HashMap>
}

View Slide

-JNJUBUJPOTPG4UPSBHF.BOBHFS
• Fork is not supported

• Segment is not supported
$ ls -hl base/16388/24576*
-rw------- 1.0G 3 10 16:38 base/16388/24576 <- fork: 0, segment: 0
-rw------- 25M 3 10 16:38 base/16388/24576.1 <- fork: 0, segment: 1
-rw------- 280K 3 10 16:38 base/16388/24576_fsm <- fork: 1, segment: 0

View Slide

3FXSJUFJOTFSUDPNNBOE
• Problems were

• Each command read/write ﬁles

• Each command allocate memory (page)

• Insert command does not open ﬁle directly

• Insert command does not allocate memory directly

View Slide

pub struct InsertState<'a> {
slot: &'a TupleTableSlot,
ss_currentRelation: &'a RelFileNode,
}
impl<'a> InsertState<'a> {
pub fn new(rnode: &'a RelFileNode, slot: &'a TupleTableSlot) -> InsertState<'a> {
InsertState {
ss_currentRelation: rnode,
slot: slot,
}
}
pub fn exec_insert(&mut self, bufmrg: &mut BufferManager) {
let buf = bufmrg.read_buffer(self.ss_currentRelation.clone(), 0);
let page = bufmrg.get_page_mut(buf);
page.add_tuple_slot_entry(self.slot).unwrap();
}
}
get page from buﬀer manager
write tuple to page

View Slide

Part 3: Query Execution

View Slide

+-----------------------+
| Query string (char *) |
+-----------------------+
parse (pg_parse_query)
|
v
+---------------------------------+
| Raw parse tree (struct RawStmt) |
+---------------------------------+
analyze/rewrite (pg_analyze_and_rewrite)
|
v
+---------------------------+
| Query Tree (struct Query) |
+---------------------------+
optimize/generate tree of plan node
(pg_plan_queries)
|
v
+-------------------------+
| Plan tree (struct Plan) |
+-------------------------+
setup query execution (ExecInitNode)
|
v
+-----------------------------------+
| PlanState tree (struct PlanState) |
+-----------------------------------+
execute query (ExecutorRun)

View Slide

1BSTF
• Generate AST from input text

• Each node represents user input

View Slide

1BSTF
select * from films where did = 1;
ParseState:
parsetree_list
RawStmt:
stmt
SelectStmt:
targetList
ResTarget: name: , indirection:
val ColumnRef: fields: *
fromClause
RangeVar:
catalogname: , schemaname: , relname: films
whereClause
A_Expr: kind: OP, name: =
lexpr
ColumnRef: fields: did
rexpr
A_Const: val: 1

View Slide

"OBMZ[F3FXSJUF
• Generate Query Tree

• Replace user input attributes to internal representations

• Semantic analysis

View Slide

"OBMZ[F3FXSJUF
Query: SELECT(id: 0)
rtable (# 1)
RangeTblEntry: rtekind: RELATION, relid: 16389
jointree
FromExpr:
quals
OpExpr: opno: 96, opfuncid: 65
Var: varno: 1, varattno: 3
Const: consttype: 23, constlen: 4,
constvalue: 1
target_list (# 6)
TargetEntry: resno: 1, resname: code
TargetEntry: resno: 2, resname: title
TargetEntry: resno: 3, resname: did
…
ParseState:
parsetree_list
RawStmt:
stmt
SelectStmt:
targetList
fromClause
RangeVar:
relname: films
whereClause
lexpr
rexpr
A_Const: val: 1
Expanded

View Slide

"OBMZ[F3FXSJUF
rtable (# 1)
jointree
FromExpr:
quals
constvalue: 1
target_list (# 6)
…
ParseState:
parsetree_list
RawStmt:
stmt
SelectStmt:
targetList
fromClause
RangeVar:
relname: films
whereClause
lexpr
rexpr
A_Const: val: 1
Internal representations
where did = 1

View Slide

"OBMZ[F3FXSJUF
rtable (# 1)
jointree
FromExpr:
quals
constvalue: 1
target_list (# 6)
…
# select oid, relname
from pg_class
where oid = 16389
order by oid asc;
oid | relname
-------+---------
16389 | films
(1 row)
ﬁlms

View Slide

"OBMZ[F3FXSJUF
rtable (# 1)
jointree
FromExpr:
quals
constvalue: 1
target_list (# 6)
…
where did = 1
/* catalog/pg_operator.dat */
{ oid => ’96',
oid_symbol => ‘Int4EqualOperator'
oprname => ‘=', oprleft => ‘int4',
oprright => ‘int4',
oprresult => 'bool' },
/* catalog/pg_type.dat */
{ oid => ’23',
descr => '-2 billion to 2 billion
integer, 4-byte storage',
typname => ‘int4',
typlen => '4' },

View Slide

0QUJNJ[F(FOFSBUFUSFFPGQMBO
OPEF
• We would have many way to calculate result tuples

• How to get tuples from disk

• Read ﬁles in order (SeqScan) / Use index (IndexScan) / Use only
index (IndexOnlyScan)

• How to aggregate tuples

• Use internal hash table / sort tuples before aggregation

• How to join tables

• Nested Loops Join / (Sort-)Merge Join / Hash Join

View Slide

0QUJNJ[F(FOFSBUFUSFFPGQMBO
OPEF
rtable (# 1)
RangeTblEntry: relid: 16389
jointree
FromExpr:
quals
Const: consttype: 23,
constlen: 4,
constvalue: 1
target_list (# 6)
…
PlannedStmt: command_type: SELECT
SeqScan:
targetlist
...
qual
Const: consttype: 23,
constlen: 4,
constvalue: 1

View Slide

• Sort gets tuple from
lefttree, SeqScan in
this case
select *
from films
where did = 1
order by code;
PlannedStmt: command_type: SELECT
Sort: num_cols: 1, sort_col_idx: [1], sort_operators: [1058]
targetlist
...
qual
lefttree
SeqScan:
targetlist
TargetEntry: resno: 1, resname:
TargetEntry: resno: 2, resname:
...
qual
Const: consttype: 23, constlen: 4, constvalue: 1

View Slide

*NQMFNFOUDPVOUDPNNBOE
• In pg this is implemented as aggregation

• But aggregation is diﬃcult…
$ minidb select_from_count db1 table1
Count: 5

View Slide

+-----------------------+
+-----------------------+
|
v
+---------------------------------+
+---------------------------------+
|
v
+---------------------------+
+---------------------------+
(pg_plan_queries)
|
v
+-------------------------+
+-------------------------+
|
v
+-----------------------------------+
+-----------------------------------+
• Directly create Plan tree

View Slide

impl<'a> CountState<'a> {
pub fn new(lefttree: ScanState<'a>) -> CountState<'a> {
CountState {
lefttree: lefttree,
result: 0,
}
}
// `ExecAgg` in pg.
pub fn exec_agg(&mut self, bufmrg: &mut BufferManager) {
loop {
let opt = self.lefttree.exec_scan(bufmrg);
match opt {
Some(_slot) => {
self.result = self.result + 1;
},
None => break
}
}
}
}
get tuple
count up
counter
scanner

View Slide

impl CountCommnad {
...
pub fn execute(&self, dbname: &str, table_name: &str) -> Result<(), String> {
...
let mut rmgr = RelationManager::new(self.config.clone());
let relation = rmgr.get_relation(db_oid, table_oid);
let mut bm = BufferManager::new(1, self.config.clone());
let scan = ScanState::new(relation, &rm, &mut bm);
let mut count = CountState::new(scan);
count.exec_agg(&mut bm);
println!("Count: {}", count.result);
Ok(())
}
}
pass scan to count
execute
get result of the count

View Slide

-JNJUBUJPOPGDPVOU
• Count logic is not generalized to aggregation

View Slide

*NQMFNFOUQBSTFS
• Use lalrpop, LR(1) parser generator

• Rewrite select_from / select_from_count / insert_into commands to
execute command

• Before: "minidb select_from db1 table1”

• After: "minidb execute 'select * from db1.table1’"

• I wanted some progress when I changed to use parser :)

• Writing parser by parser generator is fun!!!

View Slide

+-----------------------+
+-----------------------+
|
v
+---------------------------------+
+---------------------------------+
|
v
+---------------------------+
+---------------------------+
(pg_plan_queries)
|
v
+-------------------------+
+-------------------------+
|
v
+-----------------------------------+
+-----------------------------------+
• Do not analyze

• Do not optimize

View Slide

-JNJUBUJPOPGRVFSZFYFDVUPS
• Do not implement analyzer

• Should do semantic analysis when the query is executed

• Do not implement optimizer

• Can not use index even if index is implemented

View Slide

*NQMFNFOUEFMFUF
$ minidb /tmp/minidb execute 'select count() from db1.table1'
Count: 5
$ minidb execute 'delete from db1.table1'
Deleted records: 5
Count: 0

View Slide

*NQMFNFOUEFMFUF
• Add deleted flag to tuple

• Should recreate data files or write migration command

• delete command sets the flag

• SeqScan checks the flag

• Count need not to take care of the flag

View Slide

*NQMFNFOUEFMFUF
/*
* +----------------+---------------------------------+
* | PageHeaderData | linp1 linp2 linp3 ... |
* +-----------+----+---------------------------------+
* | ... linpN | |
* +-----------+--------------------------------------+
* | ^ pd_lower |
* | |
* | v pd_upper |
* +-------------+------------------------------------+
* | | tupleN ... |
* +-------------+------------------+-----------------+
* | ... tuple3 tuple2 tuple1 | "special space" |
* +--------------------------------+-----------------+
* ^ pd_special
*/
+---------+
| |
| Data |
| |
+---------+
+---------+
| flag(s) |
+---------+
| |
| Data |
| |
+---------+
Before
After
• Add deleted ﬂag to tuple

View Slide

diff --git a/src/node_seqscan.rs b/src/node_seqscan.rs
index 80f7cff..2edeb2b 100644
--- a/src/node_seqscan.rs
+++ b/src/node_seqscan.rs
@@ -135,8 +135,19 @@ impl<'a> ScanState<'a> {
let dp = bufmrg.get_page(scan_desc.rs_cbuf);
let mut t_self = ItemPointerData::new();
::tuple::item_pointer_set(&mut t_self, scan_desc.rs_cblock, lineoff);
+ debug!("lp_len {}", dp.get_item_ref(lineoff).lp_len());
scan_desc.rs_ctup.load_without_len(dp.get_entry_pointer(lineoff).unwrap(),
t_self);
- return
+
+ // Skip deleted record
+ if scan_desc.rs_ctup.t_data.heap_keys_updated_p() {
+ debug!("Skip deleted tuple {}", lineoff);
+ lineoff = lineoff + 1;
+ linesleft = linesleft - 1;
+ // next
+ } else {
+ debug!("Return tuple {}", lineoff);
+ return
+ }
}
Check delete ﬂag in scan

View Slide

impl<'a> CountState<'a> {
pub fn new(lefttree: ScanState<'a>) -> CountState<'a> {
CountState {
lefttree: lefttree,
result: 0,
}
}
// `ExecAgg` in pg.
pub fn exec_agg(&mut self, bufmrg: &mut BufferManager) {
loop {
let opt = self.lefttree.exec_scan(bufmrg);
match opt {
Some(_slot) => {
self.result = self.result + 1;
},
None => break
}
}
}
}
get tuple
count up
• Count need not to take
care of the ﬂag

• lefttree omit deleted
tuples

View Slide

-JNJUBUJPOTPGEFMFUFDPNNBOE
• delete command deletes all records because we can not pass where
clause

• vacuum is not implemented

View Slide

&WBMVBUJOHFYQSFTTJPOT XIFSF
DMBVTF

QueryDesc (SELECT):
planstate
SeqScanState:
qual
ExprSate: SCAN_FETCHSOME, SCAN_VAR, FUNCEXPR_STRICT, QUAL, DONE
ss_ScanTupleSlot
TupleTableSlot: tts_isempty: true, tts_fixedTupleDescriptor: true
tts_tupleDescriptor
TupleDesc: natts: 6
attrs
PgAttribute: attname: code
...

View Slide

DMBVTF

QueryDesc (SELECT):
planstate
SeqScanState:
qual
ExprSate: SCAN_FETCHSOME, SCAN_VAR, FUNCEXPR_STRICT, QUAL, DONE
ss_ScanTupleSlot
TupleTableSlot: tts_isempty: true, tts_fixedTupleDescriptor: true
tts_tupleDescriptor
TupleDesc: natts: 6
attrs
PgAttribute: attname: code
...
Byte codes …

View Slide

DMBVTF

• Expression like "where did = 1" needed to be evaluated to implement
where clause

• "direct threaded" or "switch threaded" or “llvmjit" in pg

• https://magazine.rubyist.net/articles/0008/0008-YarvManiacs.html

• It's overspec, so implement it by tree traverse

View Slide

*NQMFNFOUXIFSFDMBVTF
Count: 5
$ minidb /tmp/minidb execute 'select count() from db1.table1 where true'
Count: 5
$ minidb /tmp/minidb execute 'select count() from db1.table1 where false'
Count: 0
$ minidb /tmp/minidb execute 'select count() from db1.table1 where true = false'
Count: 0
$ minidb /tmp/minidb execute 'select * from db1.table1'
"1" "12"
"2" "13"
"3" "12"
"4" "20"
"5" "21"
$ minidb /tmp/minidb execute 'select count() from db1.table1 where age = 12'
Count: 2

View Slide

*NQMFNFOUXIFSFDMBVTF
pub enum Expr {
Bool(bool),
Number(i32),
OpEq(Box, Box), // "="
ColumnRef(String), // column name
}
struct ExprEvaluator<'a> {
currentTuple: &'a TupleTableSlot,
expr: &'a Expr,
}
where did = 1
+------+
| OpEq |
+------+
|
| +------------------+
+-| ColumnRef("did") |
| +------------------+
|
| +-----------+
+-| Number(1) |
+-----------+
has current tuple

View Slide

impl<'a> ScanState<'a> {
fn exec(&mut self) -> Option<&TupleTableSlot> {
loop {
self.seq_next();
if self.ss_currentScanDesc.rs_finished {
return None;
}
if self.exec_qual() {
return Some(self.ss_ScanTupleSlot.as_ref());
}
// next tuple
}
}
fn exec_qual(&self) -> bool {
if self.qual.is_none() {
// Always condition is met
return true;
}
let evaluator = ExprEvaluator::new(self.ss_ScanTupleSlot.as_ref(),
self.qual.as_ref().unwrap().as_ref());
evaluator.eval()
}
fetch next tuple from page
check where clause
set current tuple to evaluator then call eval

View Slide

impl<'a> ExprEvaluator<'a> {
fn eval_rec(&self, expr: &Expr) -> Box {
match expr {
Expr::Bool(b) => {
Box::new(Value::Bool(b.clone()))
},
Expr::Number(n) => {
Box::new(Value::String(n.to_string()))
},
Expr::OpEq(e1, e2) => {
let v1 = self.eval_rec(e1);
let v2 = self.eval_rec(e2);
Box::new(Value::Bool(self.op_eq(v1.as_ref(), v2.as_ref())))
},
Expr::ColumnRef(col_name) => {
let i = self.currentTuple.get_index_from_name(col_name);
let c = self.currentTuple.get_column(i);
Box::new(Value::String(c.as_string()))
},
}
}
simple case
eval operands then compare
get value from current tuple

View Slide

"EEXIFSFUPEFMFUFDPNNBOE
diff --git a/src/ast.rs b/src/ast.rs
@@ -4,8 +4,8 @@ pub enum Stmt {
SelectStmt(Box, String, String, Option>),
// dbname, tablename, keys, values
InsertStmt(String, String, Vec, Vec>),
- // dbname, tablename
- DeleteStmt(String, String),
+ // dbname, tablename, where_clause
+ DeleteStmt(String, String, Option>),
}
diff --git a/src/parser.lalrpop b/src/parser.lalrpop
@@ -12,8 +12,8 @@ pub Statement: Stmt = {
Stmt::InsertStmt(fi.0, fi.1, li1, li2)
},
// DELETE FROM dbname "." tablename
- Delete_T From_T => {
- Stmt::DeleteStmt(fi.0, fi.1)
+ Delete_T From_T => {
+ Stmt::DeleteStmt(fi.0, fi.1, ow)
},
}
Add where member to Node
Change syntax to accept where

View Slide

"EEXIFSFUPEFMFUFDPNNBOE
diff --git a/src/dml.rs b/src/dml.rs
@@ -122,7 +122,7 @@ impl DeleteCommnad {
}
}
- pub fn execute(&self, dbname: &str, table_name: &str, cmgr: &CatalogManager) -> Result<(), String> {
+ pub fn execute(&self, dbname: &str, table_name: &str, cmgr: &CatalogManager, qual: &Option>) ->
Result<(), String> {
let db_oid = cmgr.database_rm.find_mini_database_oid(dbname)
.expect(&format!("{} database should be defined.", dbname));
let table_oid = cmgr.class_rm.find_mini_class_oid(db_oid, table_name)
@@ -131,7 +131,7 @@ impl DeleteCommnad {
let mut rmgr = RelationManager::new(self.config.clone());
let relation = rmgr.get_relation(db_oid, table_oid);
let mut bm = BufferManager::new(1, self.config.clone());
- let scan = ScanState::new(relation, &rm, &mut bm, &None);
+ let scan = ScanState::new(relation, &rm, &mut bm, qual);
let mut delete = DeleteState::new(relation, scan);
delete.exec_delete(&mut bm);
Pass where expressions to scan

View Slide

-JNJUBUJPOTPGXIFSFDMBVTF
• Support only few basic operations

View Slide

Part 4: Conclusion

View Slide

4UFQTUPDSFBUJOHEC
1. Implement init command

2. Implement create database / create table command

3. Implement insert command / select command

4. Implement buﬀer manager / storage manager

• Rewrite insert command to use these managers

5. Implement count command

6. Implement parser

7. Implement delete

8. Implement where clause

• Add where to delete

View Slide

-JNJUBUJPOTPGFBDIDPNQPOFOU
• The system catalogs

• Use simple data format, e.g. JSON, CSV, not binary format

• Create table

• Signed 4 bytes integer is only supported type


• Buﬀer Manager

• No eviction logic

• No lock mechanism

View Slide

• Storage Manager

• Fork is not supported

• Segment is not supported

• Count command

• Count logic is not generalized to aggregation

• Delete command

• Vacuum is not implemented

• Where clause

• Support only few basic operations

View Slide

• Query Execution

• Do not implement analyzer

• Should do semantic analysis when the query is executed

• Do not implement optimizer

• Can not use index even if index is implemented

View Slide

3FGFSFODFT
• Raghu Ramakrishnan, Johannes Gehrke: "Database Management
Systems”

• Hector Garcia-Molina, Jeﬀrey D. Ullman, Jennifer Widom: “Database
Systems: Pearson New International Edition: The Complete Book”

• উມஐ੒, ࠤഢণथ, ݪాొࢤ: “ʦվగ৽൛ʧ಺෦ߏ଄͔ΒֶͿ
PostgreSQL ઃܭɾӡ༻ܭըͷమଇ”

• “The Internals of PostgreSQL” http://www.interdb.jp/pg/index.html

• “PostgreSQL ͷ֮͑ॻ͖ͷΠϯσοΫε” http://www.nminoru.jp/
~nminoru/postgresql/

View Slide

"DLOPXMFEHNFOUT
• @takeshinoda and @hkdnet

• Reviewing the slide

• Oracle Corporation Japan

• Giving me the chance to talk about DB in Oracle!!!

View Slide

Thank you !!

View Slide

Make and Learn RDBMS

Make and Learn RDBMS

yui-knk

More Decks by yui-knk

Other Decks in Programming

Featured

Transcript
