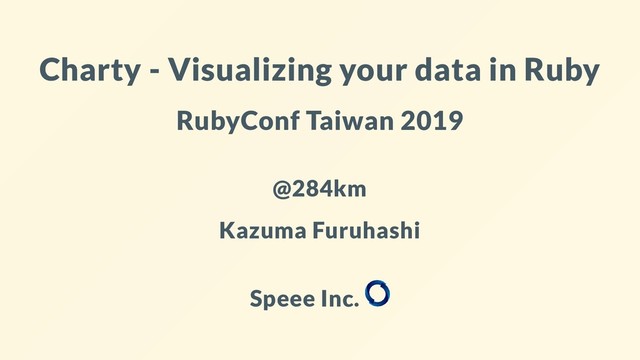

  1. Charty - Visualizing your data in Ruby
    RubyConf Taiwan 2019
    @284km
    Kazuma Furuhashi
    Speee Inc.

    View Slide

  2. I came to Taiwan and spent 3 days
    Taiwan is a excellent place. Everything I ate was delicious
    I love taiwan

    View Slide

  3. I ate Gyoza, xiaolongbao, delicious soups,
    noodles(forgot the name...) and loved them.

    View Slide

  4. I went to
    ⿓⼭寺
    There are many other places I would like to go, but I will not calm
    down until the presentation is over :)
    I'm looking forward to it.
    九份
    象⼭
    猫空
    etc ...

    View Slide

  5. By the way I came from Japan Tokyo

    View Slide

  6. View Slide

  7. I came from asakusa.rb
    I'm a member of Asakusa.rb
    If you ever come to Japan, come to Asakusa.rb

    View Slide

  8. Bubble tea
    Recently very popular in Japan.
    But I drank bubble tea for the first time in Taiwan
    Thank you Stan(@_st0012). He is very kind. He guided me to
    bubble tea
    I drink different taste every day
    It's taste terrific. I love it. I love this tea.

    View Slide

  9. Tea
    I'm interested in teas other than "Bubble" tea.
    I wanna go to
    猫空. and I wanna get delicious tea.
    By the way, tea is pronounce in Chinese and Japanese.
    茶(cha)

    View Slide


  10. (cha)

    View Slide

  11. is

    (cha)

    View Slide


  12. is ?

    View Slide


  13. is :tea: ?

    View Slide


  14. and :tea: ?

    View Slide

  15. ......!!!

    View Slide

  16. "Charty"
    red-data-tools/charty

    View Slide

  17. So today I wanna introduce abount Charty.

    View Slide

  18. About Charty
    Charty is a open-source Ruby library for visualizing your data in a
    simple way.
    For example such a graph, such a graph, or such a graph or
    something like this, etc.
    We can easily plot with Charty

    View Slide

  19. Characteristics of Charty
    Charty has 2 abstract layer
    Data Abstraction Layer
    Plotting Abstraction Layer
    (I will explain later)

    View Slide

  20. Basic usage of Charty
    (demo)
    /examples/iris_dataset.ipynb

    View Slide

  21. This is basic usage
    Next, focus on the code we need to write.

    View Slide

  22. Pyplot
    require 'charty'
    charty = Charty::Plotter.new(:pyplot)
    scatter = charty.scatter do
    iris.group_by(:label).groups.each do |label, index|
    records = iris.row[*index]
    series records[:petal_length].to_a, records[:petal_width].to_a, label: label[0]
    end
    xlabel "Petal Length"
    ylabel "Petal Width"
    end
    scatter.render('pyplot.png')

    View Slide

  23. Gruff
    require 'charty'
    charty = Charty::Plotter.new(:gruff)
    scatter = charty.scatter do
    iris.group_by(:label).groups.each do |label, index|
    records = iris.row[*index]
    series records[:petal_length].to_a, records[:petal_width].to_a, label: label[0]
    end
    xlabel "Petal Length"
    ylabel "Petal Width"
    end
    scatter.render('gruff.png')

    View Slide

  24. Plotting Abstraction Layer
    The difference is one line.
    Here is one of the features of Charty
    We can easily switch back-end libraries with almost the same code
    e.g.) left: Pyplot, right: Gruff

    View Slide

  25. More about Plotting Abstraction Layer
    Currently supported backends
    pyplot
    gruff
    Rubyplot
    google-chart
    bokeh
    plotly
    plotly.js
    chart.js

    View Slide

  26. About each backend
    I feel that Pyplot has the largest number of graph types that can be
    output.
    When we want to add a graph to support, we often implement
    Pyplot first as a reference implementation.
    After that, we will implement other libraries.

    View Slide

  27. Other cases about backend
    For example, google-charts, bokeh, plotly
    These were implemented by a pull request that "I'd like to use if
    this library is supported by the back end of Charty"
    If there is a real User and Real-world use case exists, it depends on
    the priority with other work, but consider support for a new
    backend. At the moment we are developing that way

    View Slide

  28. (Next, but If time seems to be ...)
    Do you know ...?

    View Slide

  29. Ruby Association Grant
    Charty is a project of Ruby Association Grant 2018
    this is my proposal at the time
    If you are interested, You may wish to apply for the Ruby Association
    Grant 2019 :) (Application for 2019 has not started yet)

    View Slide

  30. Data Abstraction Layer
    daru
    numo/narray
    nmatrix
    ActiveRecord
    (demo)
    Thus, it can respond to various data structures.
    That's because Charty::Table is abstracted.

    View Slide

  31. Feature summary of Charty
    Charty has two abstraction layers.
    Data Abstraction Layer
    Plotting Abstraction Layer.
    So we can use the data structures we need
    We can use output libraries we want to use.

    View Slide

  32. Introduction of various use cases
    The examples so far have mainly introduced back-ends that output
    graph images.
    Recently, we introduced Charty in our production environment of
    Web Application, which is our job.
    This Web Application is a common Rails Application.
    At that time, we were asking for Charty to output json, not the
    image.
    Here is an example using plotly.js (demo)

    View Slide

  33. Code
    # controller
    plotlyjs = Charty::Plotter.new(:plotlyjs)
    plotlyjs.table = DataModel.new(params[:foo])
    json_data = plotlyjs.to_json
    layout_data = plotlyjs.layout
    # view

    # javascript
    import * as Plotly from 'plotly.js-dist';
    Plotly.newPlot("sample", json_data, layout_data);

    View Slide

  34. Another sample Chart.js
    this is another sample application using Chart.js as a Charty backend.
    this case, Charty returns HTML includes javascript code to need.
    This is an experimental implementation, but I would like to have
    features abstracted according to the use case.

    View Slide

  35. https://github.com/284km/benchmark_driver-
    output-charty
    There is another thing that I tried to use differently.

    View Slide

  36. benchmark-driver
    ruby/csv benchmark-driver
    $ gem install
    $ benchmark-driver examples/parse.yaml
    Calculating -------------------------------------
    csv 3.1.1 csv 3.0.1
    unquoted 61.332 38.149 i/s - 100.000 times in 1.630461s 2.621311s
    quoted 30.558 17.023 i/s - 100.000 times in 3.272469s 5.874313s
    mixed 40.932 23.047 i/s - 100.000 times in 2.443082s 4.339030s
    include_col_sep 11.167 10.657 i/s - 100.000 times in 8.955275s 9.383878s
    include_row_sep 11.180 4.339 i/s - 100.000 times in 8.944608s 23.044523s
    encode_utf-8 39.129 31.525 i/s - 100.000 times in 2.555671s 3.172112s
    encode_sjis 49.982 31.289 i/s - 100.000 times in 2.000736s 3.196026s
    Comparison:
    unquoted
    csv 3.1.1: 61.3 i/s
    csv 3.0.1: 38.1 i/s - 1.61x slower
    quoted
    csv 3.1.1: 30.6 i/s
    csv 3.0.1: 17.0 i/s - 1.80x slower
    mixed
    csv 3.1.1: 40.9 i/s
    csv 3.0.1: 23.0 i/s - 1.78x slower
    include_col_sep
    csv 3.1.1: 11.2 i/s
    csv 3.0.1: 10.7 i/s - 1.05x slower
    include_row_sep
    csv 3.1.1: 11.2 i/s
    csv 3.0.1: 4.3 i/s - 2.58x slower

    View Slide

  37. csv
    https://slide.rabbit-shocker.org/authors/kou/rubykaigi-2019/

    View Slide

  38. Data Abstraction Layer (currently supports)
    Array
    Hash
    daru
    numo-narray
    nmatrix
    ActiveRecord
    benchmark_driver (Charty Adapter)
    It can Output: image, HTML, JSON

    View Slide

  39. Last thing

    View Slide

  40. Future plan
    Interface
    Release stable version
    Support red-arrow
    Improve iruby
    more faster csv
    Add supported dataset (red-datasets) (e.g. titanic)

    View Slide

  41. Join us! && Have fun!
    Thanks alot! and see you at the After Hack event
