Intro to OAuth - IETF 110

Intro to OAuth - IETF 110

My presentation at the SAAG meeting at IETF 110

Aaron Parecki

March 11, 2021
Tweet

More Decks by Aaron Parecki

Other Decks in Technology

Transcript

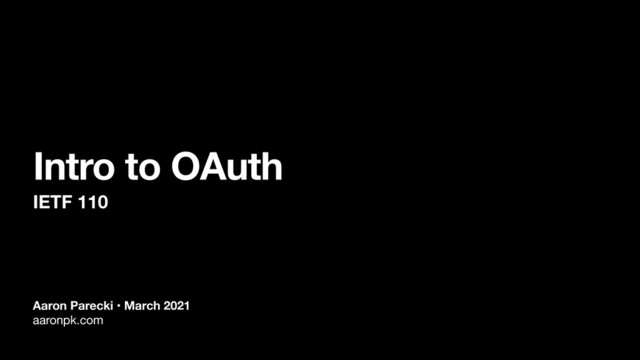

  1. Aaron Parecki • March 2021
    aaronpk.com
    Intro to OAuth
    IETF 110

    View Slide

  2. Specs are not good tutorials!

    View Slide

  3. RFC6749
    RFC6750
    CLIENT TYPE
    AUTH METHOD
    GRANT TYPE
    RFC6819
    RFC7009
    RFC7592
    RFC7662
    RFC7636
    RFC7591
    RFC7519
    RFC8252
    OIDC
    RFC8414
    STATE PARAM
    TLS
    CSRF
    UMA 2
    FAPI
    RFC7515
    RFC7516
    RFC7517
    RFC7518
    TOKEN BINDING
    POP
    SECURITY BCP
    CIBA
    HTTP SIGNING
    MUTUAL TLS SPA BCP
    JARM
    JAR
    TOKEN EXCHANGE
    DPOP

    View Slide

  4. The Password Anti-Pattern

    View Slide

  5. The Password Anti-Pattern
    facebook.com ~2010

    View Slide

  6. The Password Anti-Pattern
    • How do you revoke this app’s access?

    • Do you trust the app to not store your password?

    • Do you trust the app to access only the things it says
    it needs?

    • Do you trust the app to not do things like change
    your password or delete your account?

    View Slide

  7. View Slide

  8. how can I let an app

    access my data
    without giving it my password?

    View Slide

  9. password
    password
    password

    View Slide

  10. Authorization Server Access Token Resource (API)

    View Slide

  11. OAuth doesn't tell the app

    who
    logged in

    View Slide

  12. Identification
    authentication
    Accessing APIs
    authorization

    View Slide

  13. How OAuth Works

    View Slide

  14. Goal of the Client:
    Get an access token
    Use the access token

    to make API requests

    View Slide

  15. Authorization Code
    OAuth Flows
    Device Flow Client Credentials
    Implicit Password
    web mobile SPA browserless devices server-to-server
    CLI
    CLI
    >_
    >_

    View Slide

  16. POST /resource/1/update HTTP/1.1


    Authorization: Bearer RsT5OjbzRn430zqMLgV3Ia


    Host: api.authorization-server.com


    description=Hello+World
    USING AN ACCESS TOKEN

    View Slide

  17. ROLES IN OAUTH
    OAuth Server


    (Authorization Server)


    aka the token factory
    API


    (Resource Server)
    The Application


    (Client)
    The User


    (Resource Owner)
    Device


    (User Agent)

    View Slide

  18. ROLES IN OAUTH
    OAuth Server


    (Authorization Server)


    aka the token factory
    API


    (Resource Server)
    The Application


    (Client)
    The User


    (Resource Owner)
    Device


    (User Agent)
    Travis-CI.org GitHub

    View Slide

  19. ROLES IN OAUTH
    OAuth Server


    (Authorization Server)


    aka the token factory
    API


    (Resource Server)
    The Application


    (Client)
    The User


    (Resource Owner)
    Device


    (User Agent)
    iPhone App Okta Your API

    View Slide

  20. Authorization Code + PKCE

    View Slide

  21. Front Channel
    Back Channel
    https://accounts.google.com/?...
    Passing data via the browser's address bar


    The user, or malicious software,


    can modify the requests and responses


    Sent from client to server


    HTTPS request from client to server,


    so requests cannot be tampered with

    View Slide

  22. Passing Data via the Back Channel

    View Slide

  23. Passing Data via the Front Channel

    View Slide

  24. User: I’d like to use this great app
    App: Please go to the authorization server to grant me access, take this hash with you
    User: I’d like to log in to this app, here's the hash it gave me
    AS: Here is a temporary code the app can use
    App: Here's the code, and the temporary secret, please give me a token
    User: Here is the temporary code, please use this to get a token
    AS: Let me verify the hash of that secret... ok here is an access token!
    App: Please let me access this user’s data with this access token!
    App: Hang on while I generate a temporary secret and hash it
    User

    Agent
    App OAuth Server
    API
    ?

    View Slide

  25. PKCE
    Ensures the app that receives the access token

    is the same one that started the exchange

    View Slide

  26. Refresh tokens

    View Slide

  27. Refresh tokens

    keep the user logged in

    View Slide

  28. Application
    Refresh
    Token
    API


    (Resource Server)
    Access Token
    Authorization Server
    A
    ccess Token

    View Slide

  29. Exchange the Refresh Token for an Access Token
    POST https://authorization-server.com/token


    grant_type=refresh_token&


    refresh_token=REFRESH_TOKEN&


    client_id=CLIENT_ID&


    client_secret=CLIENT_SECRET

    View Slide

  30. New Access Token in the Response
    {


    "access_token": "RsT5OjbzRn430zqMLgV3Ia",


    "expires_in": 3600,


    "refresh_token": "64d049f8b21191e12522d5d96d5641af5e8"


    }

    View Slide

  31. SIGN IN
    user authenticates
    access token


    & refresh token
    authorization


    request
    store refresh token


    in secure storage

    View Slide

  32. SIGN IN
    biometrics unlock


    refresh token
    new access token


    & refresh token
    already has


    refresh token
    use refresh token


    to get new access token

    View Slide

  33. Scope

    View Slide

  34. Scope lets an application request
    limited access to data

    View Slide

  35. View Slide

  36. View Slide

  37. The app requests certain scopes,
    and is confirmed by the user

    and the authorization server

    View Slide

  38. Access tokens

    View Slide

  39. Access tokens are what the
    application uses to request data
    from the API

    View Slide

  40. Types of Access Tokens
    MTQ0NjJkZmQ5OTM2NDE1ZTZjNGZmZjI3


    eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOjEwMDAsI


    mlzcyI6Imh0dHBzOi8vYXV0aG9yaXphdGlvbi1zZXJ2ZXIuY29tIiw


    iY2lkIjoiaHR0cHM6Ly9leGFtcGxlLWFwcC5jb20iLCJpYXQiOjE0N


    zAwMDI3MDMsImV4cCI6MTUyOTE3NDg1MSwic2NvcGUiOiJyZWFkIHd


    yaXRlIn0.QiIrnmaC4VrbAYAsu0YPeuJ992p20fSxrXWPLw-gkFA


    Reference
    Self-Encoded (e.g. JWT)

    View Slide

  41. Reference Tokens
    MTQ0NjJkZmQ5OTM2NDE1ZTZjNGZmZjI3


    * user_id


    * expiration


    * permissions


    * ...

    View Slide

  42. Self-Encoded Tokens
    eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOjEwMDAsI


    mlzcyI6Imh0dHBzOi8vYXV0aG9yaXphdGlvbi1zZXJ2ZXIuY29tIiw


    iY2lkIjoiaHR0cHM6Ly9leGFtcGxlLWFwcC5jb20iLCJpYXQiOjE0N


    zAwMDI3MDMsImV4cCI6MTUyOTE3NDg1MSwic2NvcGUiOiJyZWFkIHd


    yaXRlIn0.QiIrnmaC4VrbAYAsu0YPeuJ992p20fSxrXWPLw-gkFA
    {


    "sub": "{USER_ID}",


    "aud": "{CLIENT_ID}",


    "exp": 1524240821,


    "scope": "create"


    }

    View Slide

  43. Access Token Validation
    The Fast Way The Strong Way
    Local Validation Remote Introspection
    eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZS
    I6IkpvaG4gRG9lIiwiYWRtaW4iOnRydWUsImp0aSI6ImI5ZDRhNzViLTA2MDMtNDgxYy1hM
    jgyLTY3YTk0NDJiNGRkNiIsImlhdCI6MTUzMjQwMDkyMiwiZXhwIjoxNTMyNDA0NTIyfQ.S
    jYROEt8lZpEOq1eKh3OxRmRk3xttOXZeD5yW8aW2k8
    {


    "sub": "1234567890",


    "name": "John Doe",


    "admin": true,


    "jti": "b9d4a75b-0603-481c-a282-67a9442b4dd6",


    "iat": 1532400922,


    "exp": 1532404522


    }
    POST https://authorization-server.com/introspect


    token=eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOiIxMjM0NTY3OD


    &client_id={CLIENT_ID}


    &client_secret={CLIENT_SECRET}


    View Slide

  44. Rejecting Revoked Tokens
    1:00 2:00 3:00 4:00 5:00 6:00 7:00 expired
    0:00
    Local


    Validation
    Remote


    Introspection
    User revokes application

    View Slide

  45. Current Work

    View Slide

  46. OAuth 2.1
    Consolidate the OAuth 2.0 specs,

    adding best practices,

    removing deprecated features

    Capture current best practices in OAuth
    2.0 under a single name

    View Slide

  47. OAuth 2.0
    RFC6749 OAuth Core
    Authorization Code
    Implicit
    Password
    Client Credentials
    RFC6750 Bearer Tokens
    Tokens in HTTP Header
    Tokens in POST Form Body
    Tokens in GET Query String
    RFC7636
    +PKCE
    RFC8252
    PKCE for mobile
    Browser App BCP
    PKCE for SPAs
    PKCE for
    con
    fi
    dential
    clients
    Security BCP

    View Slide

  48. OAuth 2.1
    Authorization Code
    Client Credentials
    +PKCE
    Tokens in HTTP Header
    Tokens in POST Form Body

    View Slide

  49. OAuth 2.1
    oauth.net/2.1
    tools.ietf.org/html/draft-ietf-oauth-v2-1

    View Slide

  50. JWT Pro
    fi
    le for Access Tokens
    Describes a standard set of JWT claims to
    use in a JWT access token.

    This enables resource servers to be built
    with standard libraries to validate tokens.

    View Slide

  51. Rich Authorization Requests (RAR)
    oauth.net/2/rich-authorization-requests

    View Slide

  52. Pushed Authorization Requests (PAR)
    • Currently, the authorization request is sent in the front-channel

    • Front-channel is susceptible to inspection and modi
    fi
    cation

    • PAR initiates the OAuth
    fl
    ow from the back-channel
    oauth.net/2/pushed-authorization-requests

    View Slide

  53. Specs Built on OAuth
    • OpenID Connect (openid.net)

    • FAPI (Financial-Grade API)

    • UMA (User-Managed Access)

    • IndieAuth (indieauth.net)

    View Slide

  54. aaronpk.com

    oauth2simpli
    fi
    ed.com

    View Slide
