Speed Up Your Database

Are your queries slow? Learn how to speed them up through better SQL crafting and use meaningful indices. You will understand what works well and what doesn’t, and will walk away with a checklist for faster databases.

Transcript

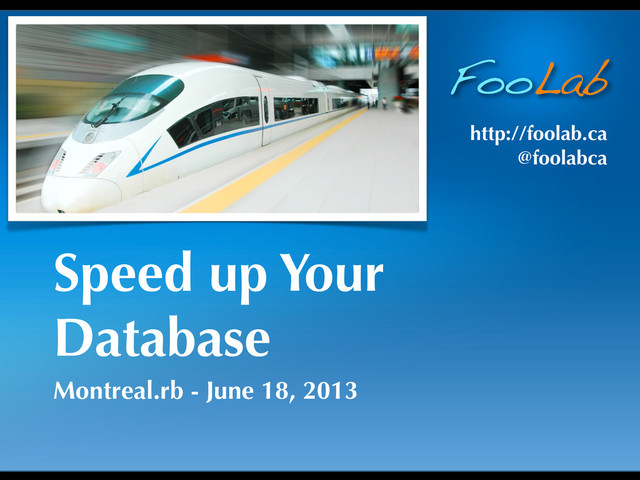

1. FooLab
   http://foolab.ca
   @foolabca
   Speed up Your
   Database
   Montreal.rb - June 18, 2013


   View Slide

2. FooLab
   Speed matters
   • What is slow?
   • Indexes.
   • Better queries.
   • Checklist.
   2


   View Slide

3. FooLab
   Anna Filina
   3
   User group
   Multi-technology
   conference
   Project rescue


   View Slide

4. FooLab
   What is slow?


   View Slide

5. FooLab
   Multitude of queries
   • Loops:
   • Reduce number of queries.
   • Check for lazy loading in your ORM.
   5
   picture_ids.each do |id|
   query_pic_details(id)
   end


   View Slide

6. FooLab
   Lazy loading
   • Data loaded on demand.
   • Use LEFT JOIN to get all related data in one go.
   6
   puts picture.album.user.name


   View Slide

7. FooLab
   Multitude of queries
   • Deeply nested code.
   • Try get_first_thumb instead.
   7


   View Slide

8. FooLab
   Count queries
   • Manual: add custom code before queries.
   • Auto: ORMs (like ActiveRecord) have listeners.
   8


   View Slide

9. FooLab
   Slow query log
   • Open my.cnf
   • Queries taking 0.5s or longer will be logged.
   • Open the log file and analyze the queries.
   9
   slow_query_log=ON
   long_query_time=0.5
   slow_query_log_file=/path/to/file


   View Slide

10. FooLab
    Example schema
    10
    200
    users
    100
    albums each
    100
    pictures each
    2,000,000 total pics


    View Slide

11. FooLab
    Simple query
    • Get all pictures from user #1
    • 38 seconds.
    11
    SELECT picture.id, picture.title
    FROM picture
    LEFT JOIN album ON picture.album.id = album.id
    WHERE album.user_id = 1;


    View Slide

12. FooLab
    Why is it so slow?


    View Slide

13. FooLab
    Explain
    13
    • Prefix with EXPLAIN:
    • Each row = table scanned:
    EXPLAIN SELECT picture.id, picture.title
    FROM picture
    LEFT JOIN album ON picture.album.id = album.id
    WHERE album.user_id = 1;
    +----+-------------+---------+------+---------------+------+---------+------+---------+--------------------------------+
    | id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
    +----+-------------+---------+------+---------------+------+---------+------+---------+--------------------------------+
    | 1 | SIMPLE | album | ALL | NULL | NULL | NULL | NULL | 20000 | Using where |
    | 1 | SIMPLE | picture | ALL | NULL | NULL | NULL | NULL | 2000000 | Using where; Using join buffer |
    +----+-------------+---------+------+---------------+------+---------+------+---------+--------------------------------+


    View Slide

14. FooLab
    Explain
    14
    • Details:
    • Because of the join,
    we’re scanning all albums for each picture.
    • Total 40 billion rows scanned.
    table : album
    key : NULL
    rows : 20,000
    table : picture
    key : NULL
    rows : 2,000,000


    View Slide

15. FooLab
    Indexes


    View Slide

16. FooLab
    Metaphor
    16
    Flip through all pages of a address book...
    ... or pull on the letter tab.


    View Slide

17. FooLab
    Add an index
    17
    • album.id
    • Same query down to 2.38 sec.
    • We just saved 36 sec on every request!
    ALTER TABLE album ADD PRIMARY KEY(id);


    View Slide

18. FooLab
    Under the hood
    18
    • Details:
    • With the index,
    we find our album right away.
    • Total 2,000,000 rows scanned.
    table : album
    key : PRIMARY
    rows : 1
    table : picture
    key : NULL
    rows : 2,000,000


    View Slide

19. FooLab
    Add a better index
    19
    • picture.album_id
    • Now down to 0.12 sec.
    • 317 times faster than original.
    ALTER TABLE picture ADD INDEX(album_id);


    View Slide

20. FooLab
    Under the hood
    20
    • Details:
    • Total 200,000 rows scanned.
    table : album
    key : NULL
    rows : 20,000
    table : picture
    key : album_id
    rows : 100


    View Slide

21. FooLab
    Add a better index
    21
    • album.user_id
    • Now down to 0.10 sec.
    • Gained another 17% in speed.
    ALTER TABLE album ADD INDEX(user_id);


    View Slide

22. FooLab
    Under the hood
    22
    • Details:
    • With the second index,
    we’re scanning 100 pics.
    • Total 10,000 rows scanned.
    table : album
    key : user_id
    rows : 100
    table : picture
    key : album_id
    rows : 100


    View Slide

23. FooLab
    Indexes used
    23
    • Primary and foreign keys make for great indexes.
    • Also whatever you use in JOINs and WHEREs.


    View Slide

24. FooLab
    Index criteria
    24
    • Change frequency
    • Selectivity: how many different values?
    • Good examples:
    • Bad examples:
    user.gender
    picture.views
    user.id
    picture.date


    View Slide

25. FooLab
    Shall we optimize
    further?
    We’re quite fast already.


    View Slide

26. FooLab
    Airport customs
    26
    • 5 customs officers, 1 min to process a traveler.
    • 5 travelers / min = fluid.
    • 20 travelers / min = queue slowly builds.
    • 1000 travellers / min = 3h wait if you arrive on 2nd
    minute.


    View Slide

27. FooLab
    Smaller indexes
    27
    • BIGINT as index is slower than TINYINT.
    • Use UNSIGNED to double the maximum value.


    View Slide

28. FooLab
    Tips for better queries.


    View Slide

29. FooLab
    Functions
    29
    • Avoid functions on an indexed column:
    • The index will be ignored here.
    SELECT id, title FROM picture
    WHERE YEAR(create_date) >= 2011;


    View Slide

30. FooLab
    Limit
    30
    • Now down to 0.0009 sec.
    • 100 times faster than the last query.
    SELECT picture.id, picture.title
    FROM picture
    LEFT JOIN album ON picture.album.id = album.id
    WHERE album.user_id = 1
    LIMIT 25;


    View Slide

31. FooLab
    Other constraints
    31
    • Range:
    • Only makes sense if that column is indexed:
    SELECT picture.id, picture.title
    FROM picture
    LEFT JOIN album ON picture.album.id = album.id
    WHERE album.user_id = 1
    AND picture.id BETWEEN 26 AND 50; # 0.023 sec
    ALTER TABLE picture ADD INDEX(id);


    View Slide

32. FooLab
    Other constraints
    32
    • IN clause:
    SELECT picture.id, picture.title
    FROM picture
    LEFT JOIN album ON picture.album.id = album.id
    WHERE album.user_id = 1
    AND picture.id IN (15,26,29,32,45); # 0.048 sec


    View Slide

33. FooLab
    Split tables
    33
    • MySQL can partition your tables transparently.
    • Creates multiple files on disk.
    • Shows data as a single table.


    View Slide

34. FooLab
    Archives
    34
    • MySQL ARCHIVE storage engine:
    • Doesn’t support UPDATE or DELETE
    • Very fast for SELECT
    • You can archive old transactions, news, etc.


    View Slide

35. FooLab
    Split databases
    35
    • Horizontal partitionning, sharding.
    • Users 1-1000 and their data in database #1
    • Users 1001-2000 and their data in database #2


    View Slide

36. FooLab
    Checklist
    36
    ✓Count queries.
    ✓Log the slow ones.
    ✓Use EXPLAIN and check
    number of rows scanned.
    ✓Try different indexes,
    remove unused ones.
    ✓Use small indexes,
    preferably numeric.
    ✓Don’t use functions on
    indexed columns.
    ✓Limit number of results.
    ✓Split tables and
    databases.


    View Slide

37. FooLab
    Further reading
    • Storage engines: http://www.linux.org/article/view/an-
    introduction-to-mysql-storage-engines
    • Sharding: http://www.jurriaanpersyn.com/archives/
    2009/02/12/database-sharding-at-netlog-with-mysql-
    and-php/
    37


    View Slide

38. FooLab
    Next Steps
    • I will post and tweet slides:
    @afilina
    • Send feedback:
    anna@foolab.ca
    38


    View Slide
