Effects of indirect facilitation through grazing on dryland ecosystems

Effects of indirect facilitation through grazing on dryland ecosystems

In this slideshow, I present some preliminary results of a vegetation dynamic model.

This model is an extension of two precedent models (Kéfi et al., 2007; Schneider & Kéfi, 2016, full citation in the slides).

I notably show that indirect facilitation through grazing can (i) maintain stable coexistence between two species in competition and that (ii) it may shift the transition type of the beneficiary species from catastrophic to linear.

5f9e7ca9de2acb2feab6e1436e6a5581?s=128

alaindanet

June 01, 2018
Tweet

Transcript

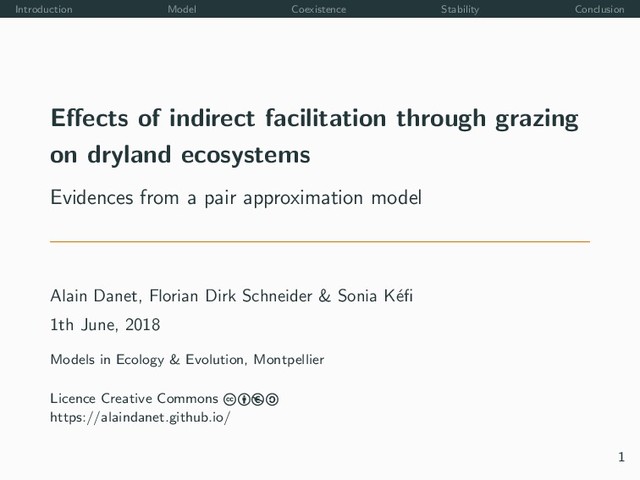

  1. Introduction Model Coexistence Stability Conclusion Effects of indirect facilitation through

    grazing on dryland ecosystems Evidences from a pair approximation model Alain Danet, Florian Dirk Schneider & Sonia K´ efi 1th June, 2018 Models in Ecology & Evolution, Montpellier Licence Creative Commons cbea https://alaindanet.github.io/ 1
  2. Introduction

  3. Introduction Model Coexistence Stability Conclusion 40% of the terrestrial surface

    1/3 of the world population 2

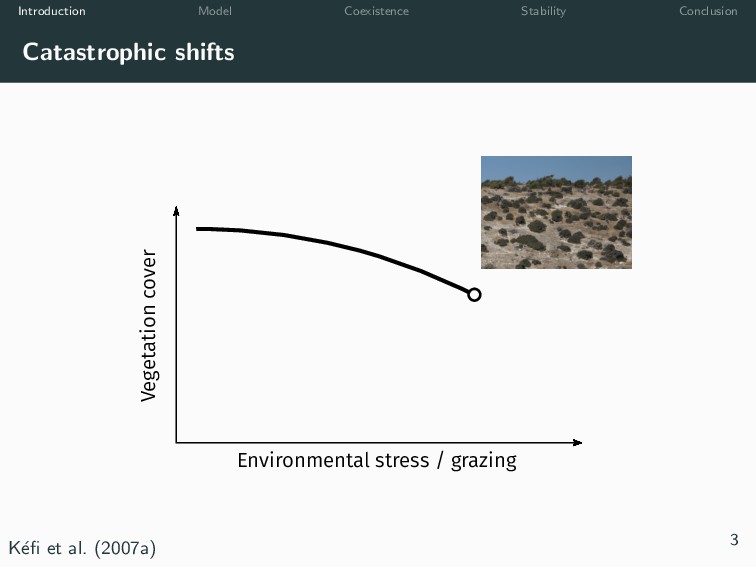

  4. Introduction Model Coexistence Stability Conclusion Catastrophic shifts Vegetation cover Environmental

    stress / grazing K´ efi et al. (2007a) 3
  5. Introduction Model Coexistence Stability Conclusion Catastrophic shifts Vegetation cover Environmental

    stress / grazing K´ efi et al. (2007a) 3
  6. Introduction Model Coexistence Stability Conclusion Catastrophic shifts Vegetation cover Environmental

    stress / grazing K´ efi et al. (2007a) 3
  7. Introduction Model Coexistence Stability Conclusion Catastrophic shifts Vegetation cover Environmental

    stress / grazing Bistability K´ efi et al. (2007a) 3
  8. Introduction Model Coexistence Stability Conclusion Direct facilitation Improving local conditions

    Resources Erosion Evapotranspiration Rietkerk et al. (2004); K´ efi et al. (2007b); Callaway (2007) 4 Feedback loop Vegetation Water + +
  9. Introduction Model Coexistence Stability Conclusion Indirect facilitation through grazing Protegee

    Callaway (2007); Brooker et al. (2008); Smit et al. (2009); Lortie et al. (2016) 5
  10. Introduction Model Coexistence Stability Conclusion Indirect facilitation through grazing -

    Protegee Callaway (2007); Brooker et al. (2008); Smit et al. (2009); Lortie et al. (2016) 5
  11. Introduction Model Coexistence Stability Conclusion Indirect facilitation through grazing -

    - Nurse Protegee Callaway (2007); Brooker et al. (2008); Smit et al. (2009); Lortie et al. (2016) 5
  12. Introduction Model Coexistence Stability Conclusion Indirect facilitation through grazing -

    - + Nurse Protegee Callaway (2007); Brooker et al. (2008); Smit et al. (2009); Lortie et al. (2016) 5
  13. Introduction Model Coexistence Stability Conclusion Research question What are the

    effects of indirect facilitation on dryland ecosystems ? Verwijmeren et al. (2013); Schneider and K´ efi (2016) 6
  14. Model

  15. Introduction Model Coexistence Stability Conclusion A dryland ecosystem into a

    lattice Cellular automata K´ efi et al. (2007b); Schneider and K´ efi (2016) 7

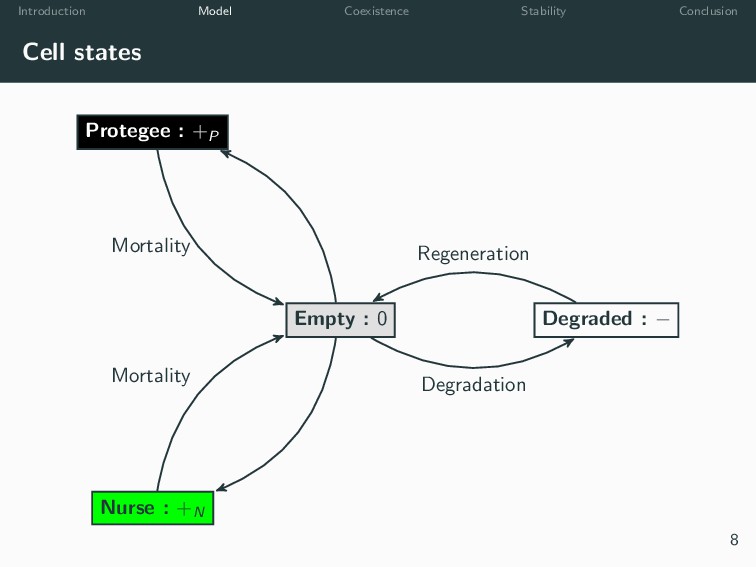

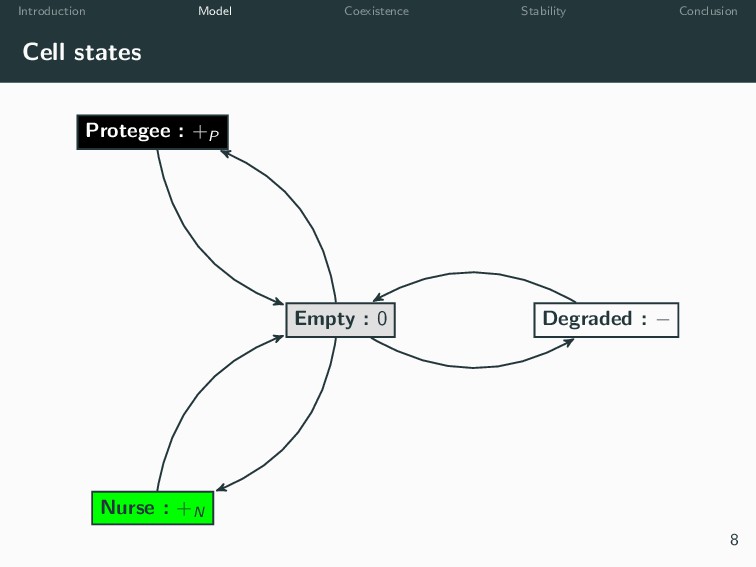

  16. Introduction Model Coexistence Stability Conclusion Cell states Empty : 0

    Nurse : +N Degraded : − Protegee : +P 8
  17. Introduction Model Coexistence Stability Conclusion Cell states Empty : 0

    Nurse : +N Degraded : − Protegee : +P Degradation Regeneration 8
  18. Introduction Model Coexistence Stability Conclusion Cell states Empty : 0

    Nurse : +N Degraded : − Protegee : +P Degradation Mortality Regeneration Mortality 8
  19. Introduction Model Coexistence Stability Conclusion Cell states Empty : 0

    Nurse : +N Degraded : − Protegee : +P Colonization Colonization Degradation Mortality Regeneration Mortality 8
  20. Introduction Model Coexistence Stability Conclusion Transition equations • Mortality :

    • Degradation : • Regeneration : 9

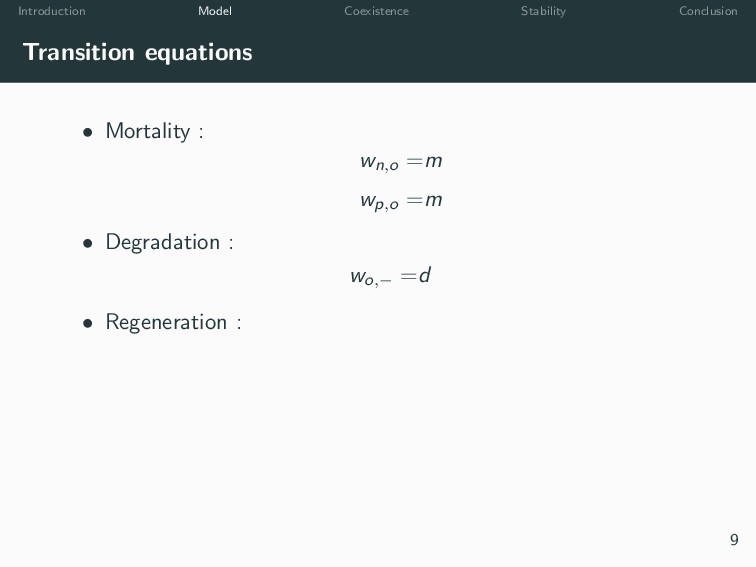

  21. Introduction Model Coexistence Stability Conclusion Transition equations • Mortality :

    wn,o =m wp,o =m • Degradation : • Regeneration : 9
  22. Introduction Model Coexistence Stability Conclusion Transition equations • Mortality :

    wn,o =m wp,o =m • Degradation : wo,− =d • Regeneration : 9
  23. Introduction Model Coexistence Stability Conclusion Transition equations • Mortality :

    wn,o =m wp,o =m • Degradation : wo,− =d • Regeneration : w−,o =r + fq+|− qi|j : proportion of i cells around j cells (local neighborhood) 9

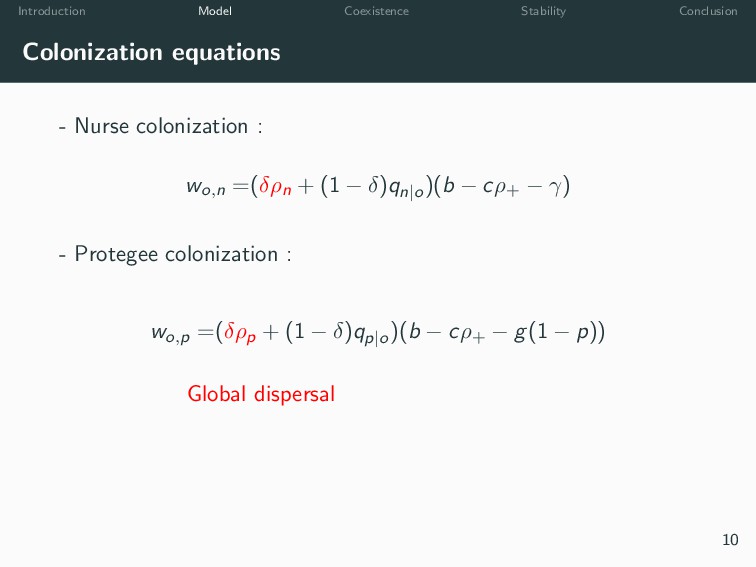

  24. Introduction Model Coexistence Stability Conclusion Colonization equations - Nurse colonization

    : wo,n =(δρn + (1 − δ)qn|o )(b − cρ+ − γ) - Protegee colonization : wo,p =(δρp + (1 − δ)qp|o )(b − cρ+ − g(1 − p)) Global dispersal 10
  25. Introduction Model Coexistence Stability Conclusion Colonization equations - Nurse colonization

    : wo,n =(δρn + (1 − δ)qn|o )(b − cρ+ − γ) - Protegee colonization : wo,p =(δρp + (1 − δ)qp|o )(b − cρ+ − g(1 − p)) Local dispersal 10
  26. Introduction Model Coexistence Stability Conclusion Colonization equations - Nurse colonization

    : wo,n =(δρn + (1 − δ)qn|o )(b − cρ+ − γ) - Protegee colonization : wo,p =(δρp + (1 − δ)qp|o )(b − cρ+ − g(1 − p)) Maximum survival & germination 10
  27. Introduction Model Coexistence Stability Conclusion Colonization equations - Nurse colonization

    : wo,n =(δρn + (1 − δ)qn|o )(b − cρ+ − γ) - Protegee colonization : wo,p =(δρp + (1 − δ)qp|o )(b − cρ+ − g(1 − p)) Global competition for resources 10
  28. Introduction Model Coexistence Stability Conclusion Colonization equations - Nurse colonization

    : wo,n =(δρn + (1 − δ)qn|o )(b − cρ+ − γ) - Protegee colonization : wo,p =(δρp + (1 − δ)qp|o )(b − cρ+ − g(1 − p)) Cost of defense against grazing 10
  29. Introduction Model Coexistence Stability Conclusion Colonization equations - Nurse colonization

    : wo,n =(δρn + (1 − δ)qn|o )(b − cρ+ − γ) - Protegee colonization : wo,p =(δρp + (1 − δ)qp|o )(b − cρ+ − g(1 − p)) Grazing and indirect facilitation p(γ, qn|o ) 10

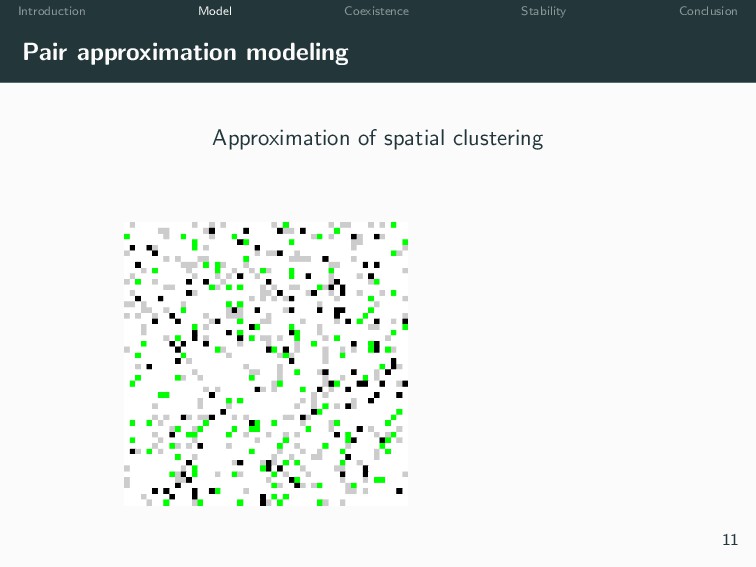

  30. Introduction Model Coexistence Stability Conclusion Pair approximation modeling Approximation of

    spatial clustering 11
  31. Introduction Model Coexistence Stability Conclusion Pair approximation modeling Approximation of

    spatial clustering ... Densities of cell pairs 11
  32. Coexistence

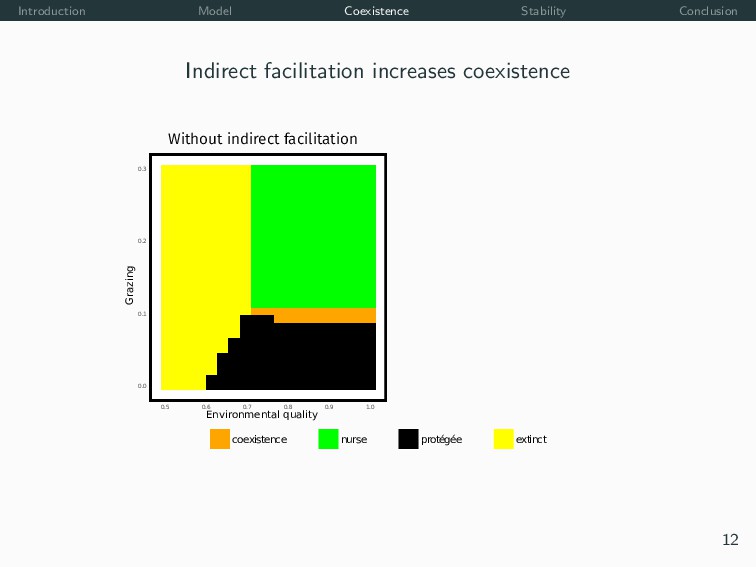

  33. Introduction Model Coexistence Stability Conclusion Indirect facilitation increases coexistence coexistence

    nurse protégée extinct Without indirect facilitation 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 12
  34. Introduction Model Coexistence Stability Conclusion Indirect facilitation increases coexistence coexistence

    nurse protégée extinct 0.5 0.6 0.7 0.8 0.9 1.0 Environmental quality With indirect facilitation Without indirect facilitation 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 12
  35. Introduction Model Coexistence Stability Conclusion Indirect facilitation increases coexistence coexistence

    nurse protégée extinct 0.5 0.6 0.7 0.8 0.9 1.0 Environmental quality With indirect facilitation Without indirect facilitation 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality But it is costly for the nurse 12
  36. Stability

  37. Introduction Model Coexistence Stability Conclusion Environmental quality 0.00 0.25 0.50

    0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 13

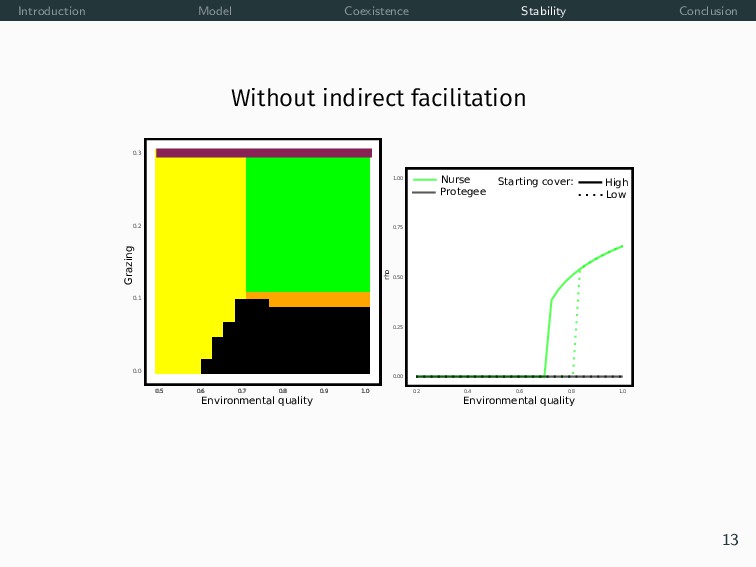

  38. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 13
  39. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13
  40. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13
  41. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13

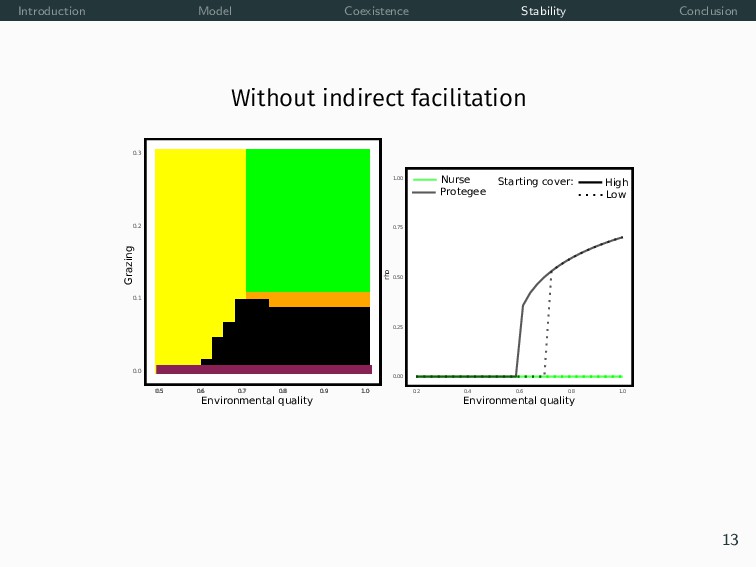

  42. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13
  43. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13
  44. Introduction Model Coexistence Stability Conclusion Without indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13

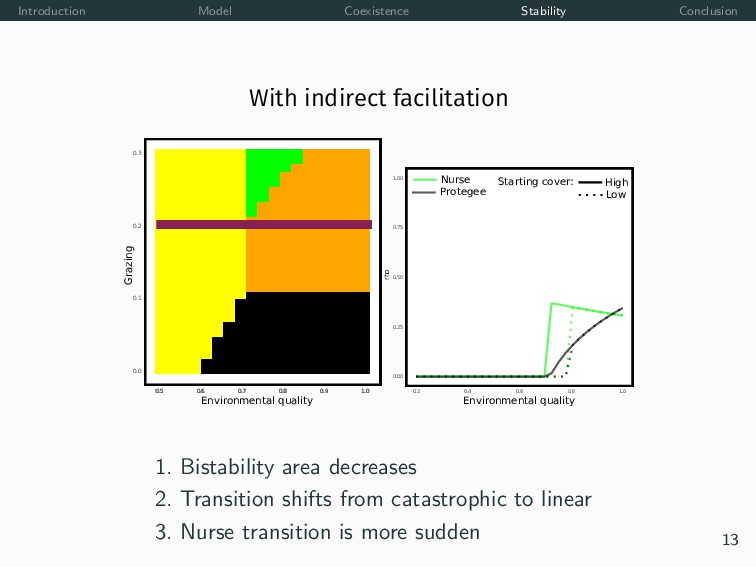

  45. Introduction Model Coexistence Stability Conclusion With indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 13
  46. Introduction Model Coexistence Stability Conclusion With indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13
  47. Introduction Model Coexistence Stability Conclusion With indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 13
  48. Introduction Model Coexistence Stability Conclusion With indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 1. Bistability area decreases 13
  49. Introduction Model Coexistence Stability Conclusion With indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 1. Bistability area decreases 2. Transition shifts from catastrophic to linear 3. Nurse transition is more sudden 13
  50. Introduction Model Coexistence Stability Conclusion With indirect facilitation Environmental quality

    0.00 0.25 0.50 0.75 1.00 0.2 0.4 0.6 0.8 1.0 rho 0.0 0.1 0.2 0.3 0.5 0.6 0.7 0.8 0.9 1.0 Grazing Environmental quality 0.5 0.6 0.7 0.8 0.9 1.0 Nurse Protegee Starting cover: Low High 1. Bistability area decreases 2. Transition shifts from catastrophic to linear 3. Nurse transition is more sudden 13
  51. Conclusion

  52. Introduction Model Coexistence Stability Conclusion Take home message Indirect facilitation

    . . . 14
  53. Introduction Model Coexistence Stability Conclusion Take home message Indirect facilitation

    . . . 1. increases coexistence area between two species in competition 14
  54. Introduction Model Coexistence Stability Conclusion Take home message Indirect facilitation

    . . . 1. increases coexistence area between two species in competition • smooth the transition between the two species • is costly for the nurse 14
  55. Introduction Model Coexistence Stability Conclusion Take home message Indirect facilitation

    . . . 1. increases coexistence area between two species in competition • smooth the transition between the two species • is costly for the nurse 2. alters stability of a dryland ecosystem 14
  56. Introduction Model Coexistence Stability Conclusion Take home message Indirect facilitation

    . . . 1. increases coexistence area between two species in competition • smooth the transition between the two species • is costly for the nurse 2. alters stability of a dryland ecosystem • may modify the transition type of the beneficiary • may induce a more sudden shift for the nurse 14
  57. Introduction Model Coexistence Stability Conclusion Perspectives Effects of species interactions

    on ecosystem properties 15
  58. Introduction Model Coexistence Stability Conclusion Thank you for listening! Coauthors

    The Florian D. Schneider Sonia Kéfi & 16
  59. R´ ef´ erences Brooker, R. W., Maestre, F. T., Callaway,

    R. M., Lortie, C. L., Cavieres, L. A., Kunstler, G., Liancourt, P., Tielb¨ orger, K., Travis, J. M. J., Anthelme, F., Armas, C., Coll, L., Corcket, E., Delzon, S., Forey, E., Kikvidze, Z., Olofsson, J., Pugnaire, F., Quiroz, C. L., Saccone, P., Schiffers, K., Seifan, M., Touzard, B., and Michalet, R. (2008). Facilitation in plant communities : the past, the present, and the future. Journal of Ecology, 96(1) :18–34. Callaway, R. M. (2007). Positive interactions and interdependence in plant communities. Springer, Dordrecht. K´ efi, S., Rietkerk, M., Alados, C. L., Pueyo, Y., Papanastasis, V. P., ElAich, A., and de Ruiter, P. C. (2007a). Spatial vegetation patterns and imminent desertification in Mediterranean arid ecosystems. Nature, 449(7159) :213–217. K´ efi, S., Rietkerk, M., van Baalen, M., and Loreau, M. (2007b). Local facilitation, bistability and transitions in arid ecosystems. Theoretical Population Biology, 71(3) :367–379. Lortie, C. J., Filazzola, A., and Sotomayor, D. A. (2016). Functional assessment of animal interactions with shrub-facilitation complexes : a formal synthesis and conceptual framework. Functional Ecology, 30(1) :41–51. Rietkerk, M., Dekker, S. C., Ruiter, P. C. d., and Koppel, J. v. d. (2004). Self-Organized Patchiness and Catastrophic Shifts in Ecosystems. Science, 305(5692) :1926–1929. Schneider, F. D. and K´ efi, S. (2016). Spatially heterogeneous pressure raises risk of catastrophic shifts. Theoretical Ecology, 9(2) :207–217. Smit, C., Rietkerk, M., and Wassen, M. J. (2009). Inclusion of biotic stress (consumer pressure) alters predictions from the stress gradient hypothesis. Journal of Ecology, 97(6) :1215–1219. Verwijmeren, M., Rietkerk, M., Wassen, M. J., and Smit, C. (2013). Interspecific facilitation and critical transitions in arid ecosystems. Oikos, 122(3) :341–347.

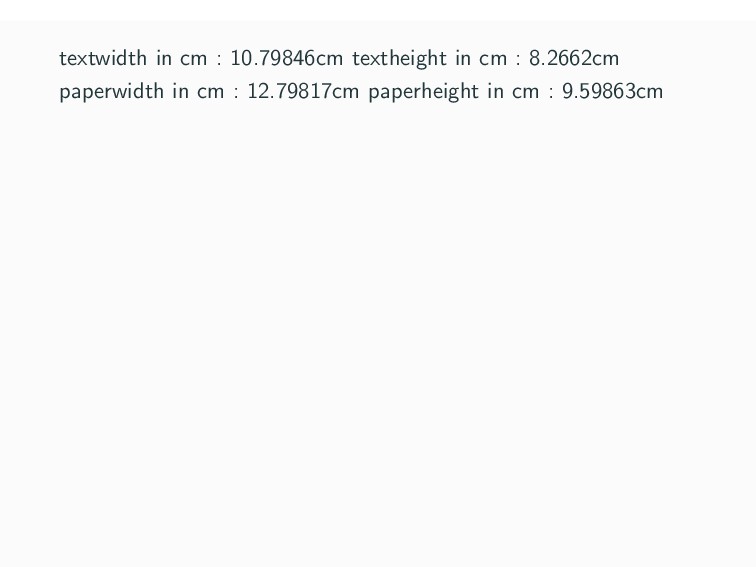

  60. textwidth in cm : 10.79846cm textheight in cm : 8.2662cm

    paperwidth in cm : 12.79817cm paperheight in cm : 9.59863cm
  61. Les annexes

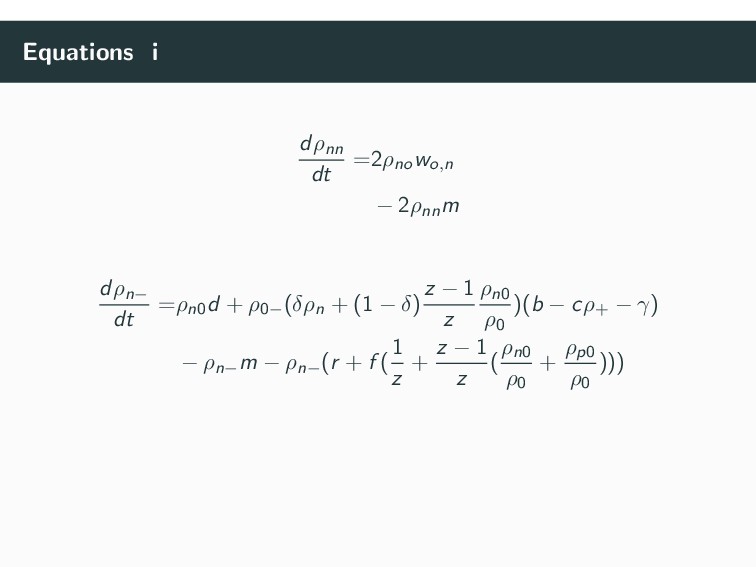

  62. Equations i dρnn dt =2ρnowo,n − 2ρnnm dρn− dt =ρn0d

    + ρ0−(δρn + (1 − δ) z − 1 z ρn0 ρ0 )(b − cρ+ − γ) − ρn−m − ρn−(r + f ( 1 z + z − 1 z ( ρn0 ρ0 + ρp0 ρ0 )))
  63. Equations ii dρnp dt =ρn0(δρp + (1 − δ) z

    − 1 z ρp0 ρ0 )(b − cρ+ − g(1 − p)) + ρp0(δρn + (1 − δ) z − 1 z ρn0 ρ0 )(b − cρ+ − γ) − 2ρnpm dρpp dt =ρp0(δρp + 1 − δ z + (1 − δ) z − 1 z ρp0 ρ0 )(b − cρ+ − g(1 − p)) − 2ρppm

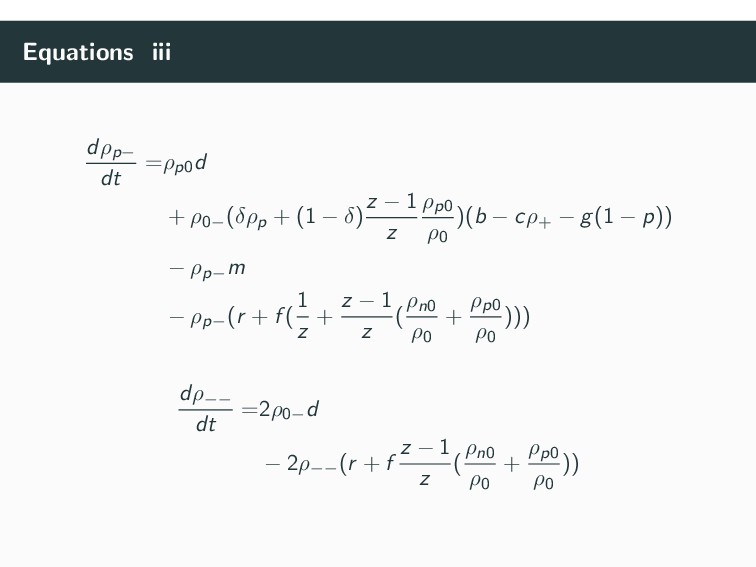

  64. Equations iii dρp− dt =ρp0d + ρ0−(δρp + (1 −
