[Deprecated] Gaia Audio Stream Proposal for Fx OS

An initial version of multi-channel audio proposal for FirefoxOS in gaia side.

Transcript

1. Audio Stream Settings (Proposal in Gaia) tchien@mozilla.com akuo@mozilla.com rlin@mozilla.com mchen@mozilla.com
2. l  Story l  A new entry in manifest l  System app change l  Examples l  UI change l  Audio stream types l  Summary Outline

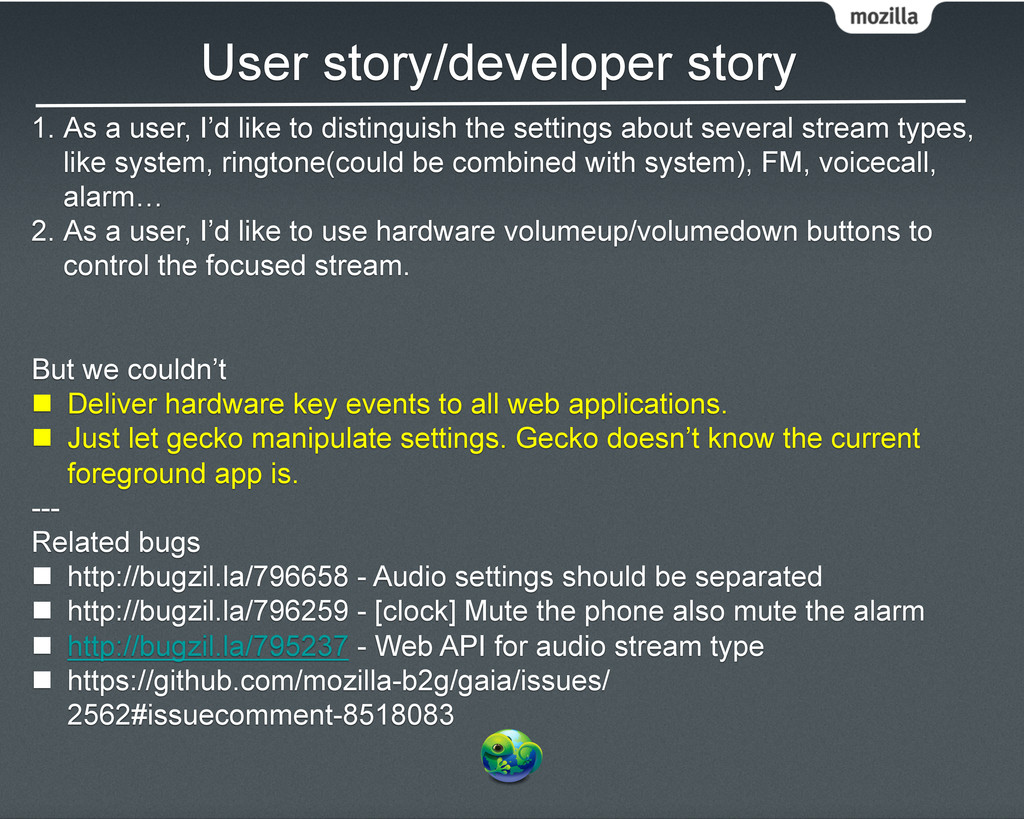

3. User story/developer story 1.  As a user, I’d like to distinguish the settings about several stream types, like system, ringtone(could be combined with system), FM, voicecall, alarm… 2.  As a user, I’d like to use hardware volumeup/volumedown buttons to control the focused stream. But we couldn’t n  Deliver hardware key events to all web applications. n  Just let gecko manipulate settings. Gecko doesn’t know the current foreground app is. --- Related bugs n  http://bugzil.la/796658 - Audio settings should be separated n  http://bugzil.la/796259 - [clock] Mute the phone also mute the alarm n  http://bugzil.la/795237 - Web API for audio stream type n  https://github.com/mozilla-b2g/gaia/issues/ 2562#issuecomment-8518083
4. Proposal

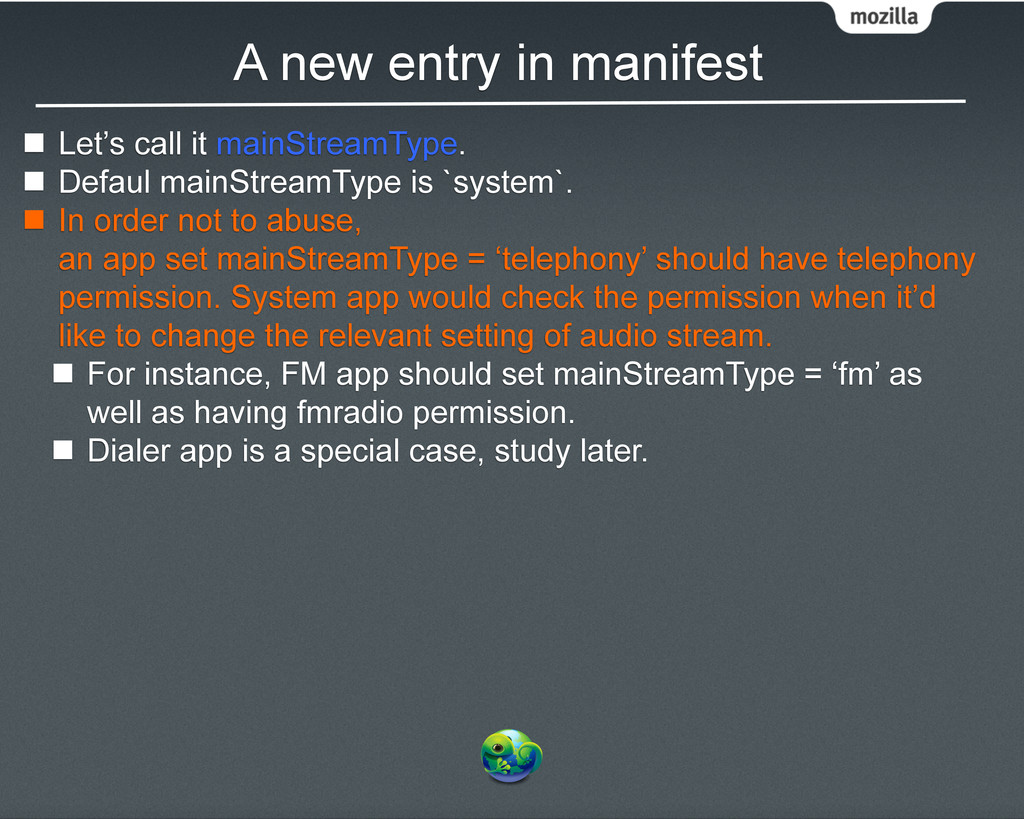

5. A new entry in manifest n  Let’s call it mainStreamType. n  Defaul mainStreamType is `system`. n  In order not to abuse, an app set mainStreamType = ‘telephony’ should have telephony permission. System app would check the permission when it’d like to change the relevant setting of audio stream. n  For instance, FM app should set mainStreamType = ‘fm’ as well as having fmradio permission. n  Dialer app is a special case, study later.

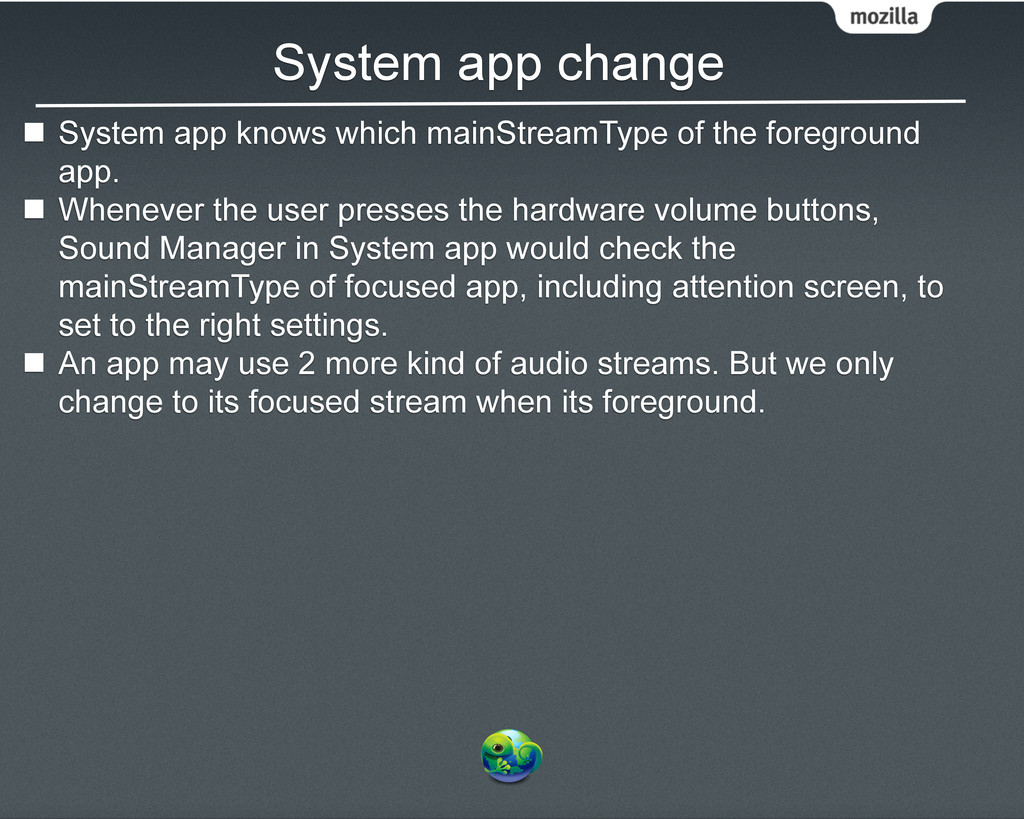

6. System app change n  System app knows which mainStreamType of the foreground app. n  Whenever the user presses the hardware volume buttons, Sound Manager in System app would check the mainStreamType of focused app, including attention screen, to set to the right settings. n  An app may use 2 more kind of audio streams. But we only change to its focused stream when its foreground.

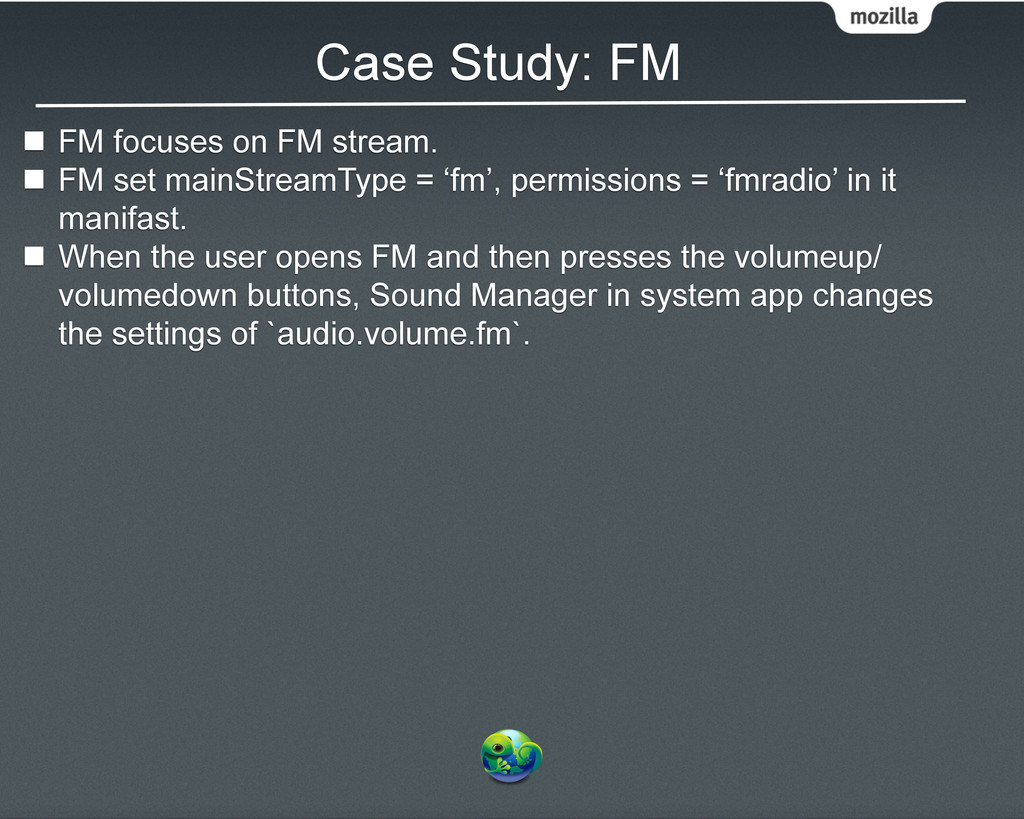

7. Case Study: FM n  FM focuses on FM stream. n  FM set mainStreamType = ‘fm’, permissions = ‘fmradio’ in it manifast. n  When the user opens FM and then presses the volumeup/ volumedown buttons, Sound Manager in system app changes the settings of `audio.volume.fm`.

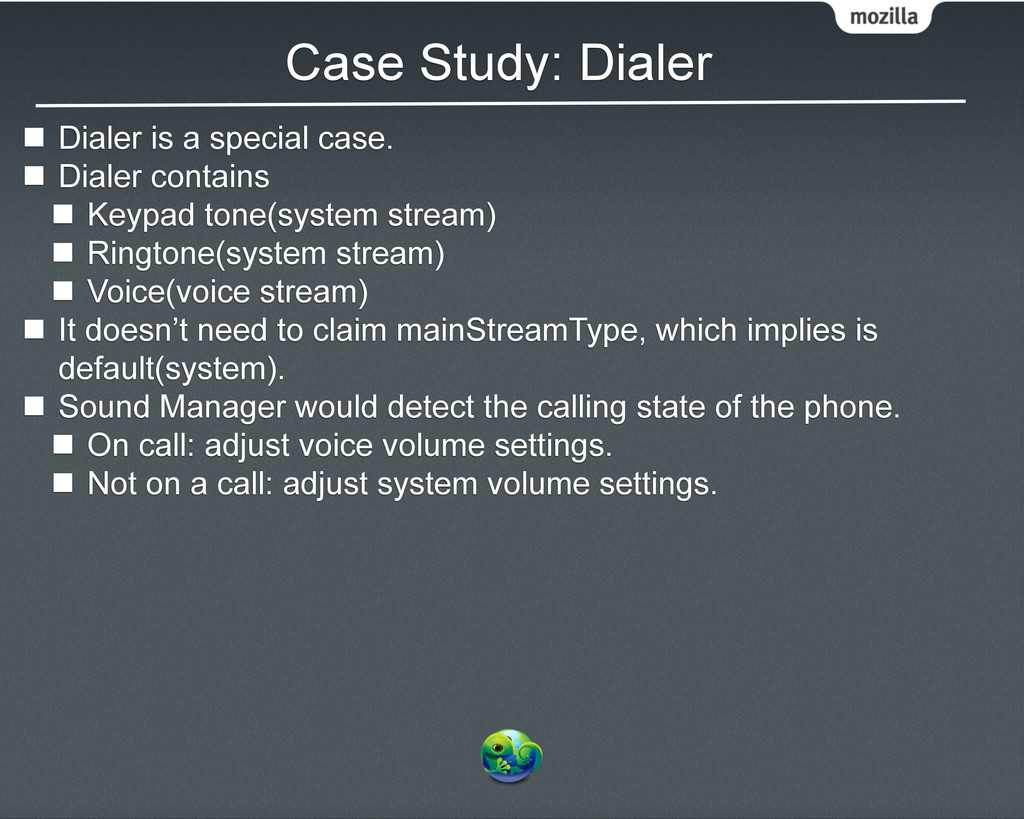

8. Case Study: Dialer n  Dialer is a special case. n  Dialer contains n  Keypad tone(system stream) n  Ringtone(system stream) n  Voice(voice stream) n  It doesn’t need to claim mainStreamType, which implies is default(system). n  Sound Manager would detect the calling state of the phone. n  On call: adjust voice volume settings. n  Not on a call: adjust system volume settings.
9. Case Study: Music n  Music should claims mainStreamType=“system” or don’t claim because its default. n  Hardware volume buttons does change system volume as usual when music app is in foreground. n  For those who doesn’t set mainStreamType in their manifest, the Sound Manager works as usual, just change the volume of system stream.

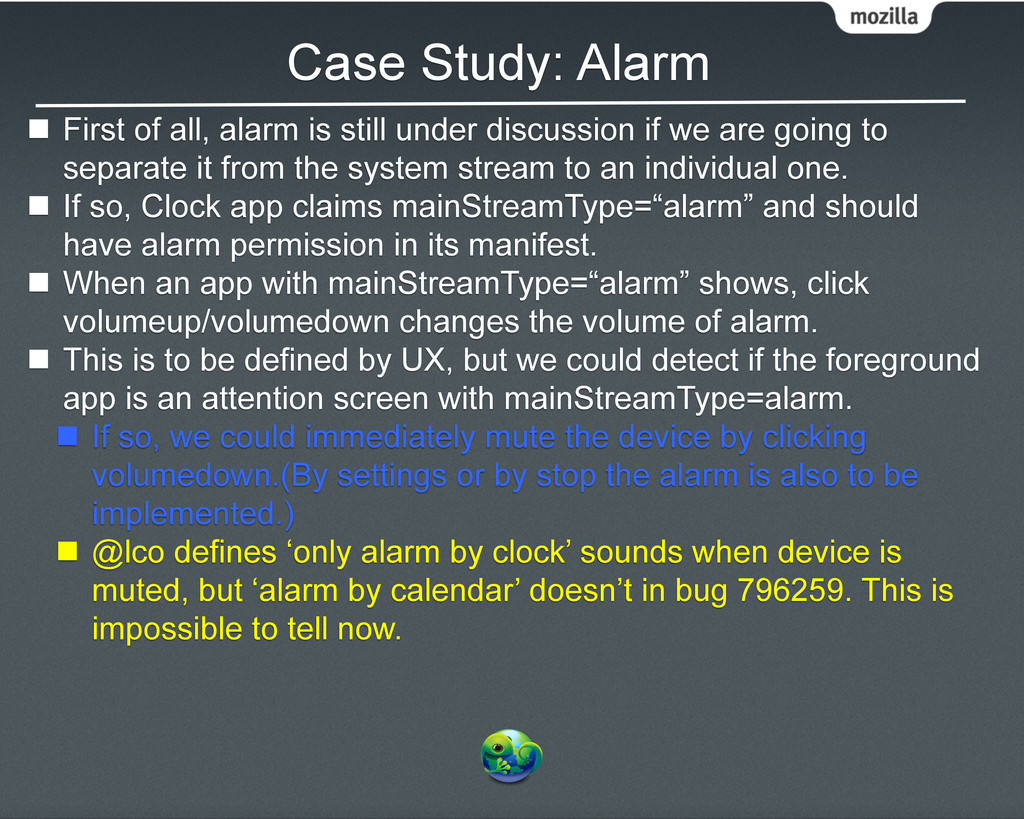

10. Case Study: Alarm n  First of all, alarm is still under discussion if we are going to separate it from the system stream to an individual one. n  If so, Clock app claims mainStreamType=“alarm” and should have alarm permission in its manifest. n  When an app with mainStreamType=“alarm” shows, click volumeup/volumedown changes the volume of alarm. n  This is to be defined by UX, but we could detect if the foreground app is an attention screen with mainStreamType=alarm. n  If so, we could immediately mute the device by clicking volumedown.(By settings or by stop the alarm is also to be implemented.) n  @lco defines ‘only alarm by clock’ sounds when device is muted, but ‘alarm by calendar’ doesn’t in bug 796259. This is impossible to tell now.

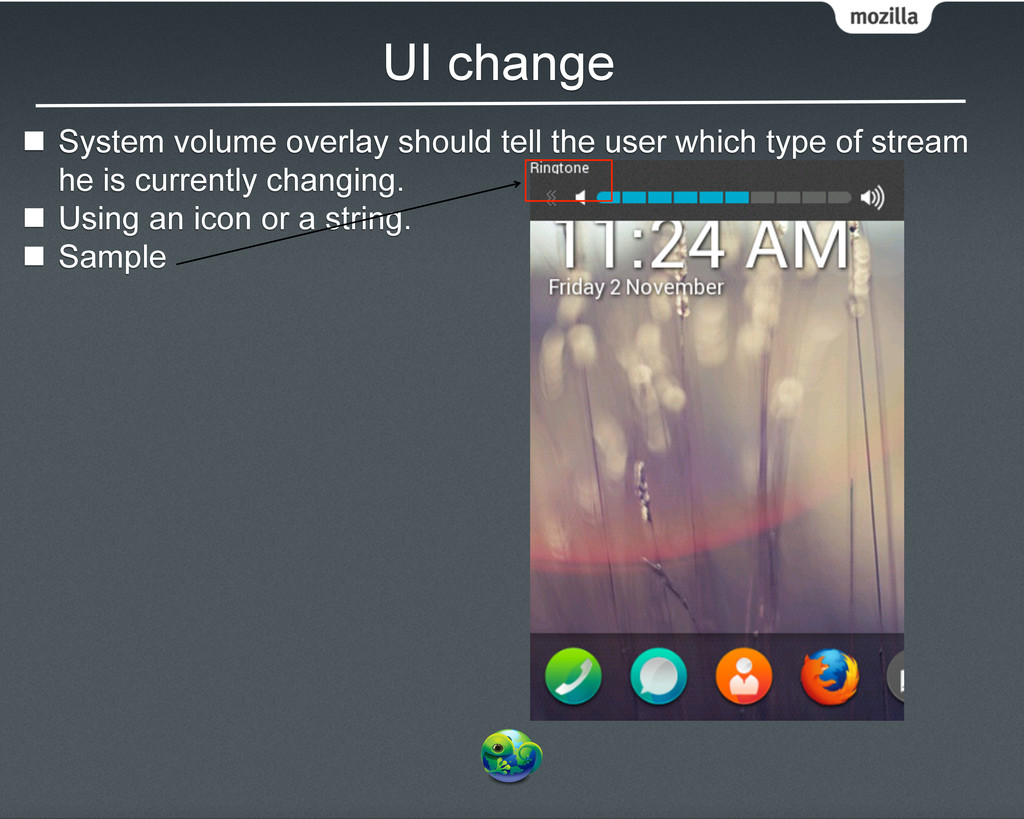

11. UI change n  System volume overlay should tell the user which type of stream he is currently changing. n  Using an icon or a string. n  Sample
12. Audio stream type proposal n  Current types n  System(/Music?) n  FM n  Ring n  Alarm n  Bug 705237 is introducing a new attribute for audio tag/object. n  Audio.mozAudioStreamType n  These two concepts could be merged. Using the same set of strings in mainStreamType of mainfest and audio’s audioStreamType.
13. Ｔo be defined/discussed n  Merge music stream type into system stream type n  PROS: Less types leads to less bugs IMO. n  CONS: n  Music stream couldn’t survive when system stream is muted. (But any harmful?) n  GONK/Android defines different maximum values for different stream types. It may be UX problem if we combines two streams with different upper bound. n  If FM supports API for state of fmradio, we could treat it as Dialer case; it is, listening to the state of fmradio and then adjust the volume of fm. n  PROS: FM doesn’t use <audio>, give a mainStreamType=fm but no <audio mozAudioStreamType=fm> may confuse. n  CONS: This matches GONK settings because android does have fm stream settings.

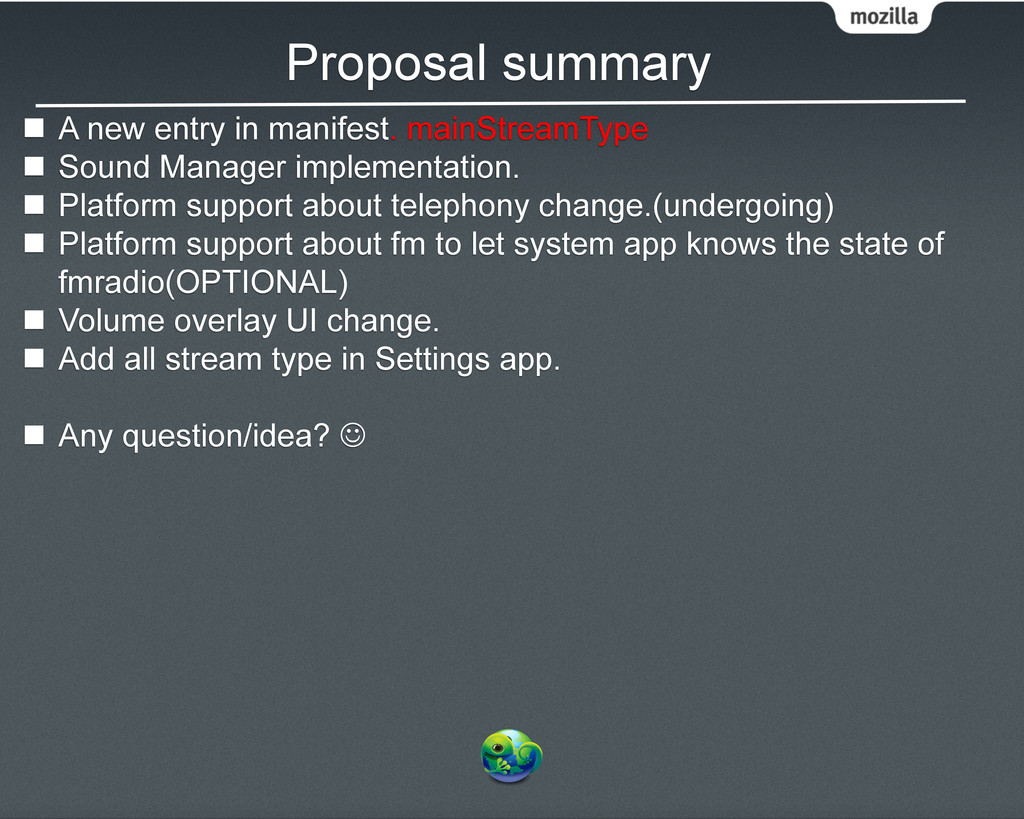

14. Proposal summary n  A new entry in manifest. mainStreamType n  Sound Manager implementation. n  Platform support about telephony change.(undergoing) n  Platform support about fm to let system app knows the state of fmradio(OPTIONAL) n  Volume overlay UI change. n  Add all stream type in Settings app. n  Any question/idea? J
