Auto-scaling PHP applications using Chef and AWS

Andy Gale
February 12, 2014

Auto-scaling PHP applications using Chef and AWS

Given at PHPSW in Bristol on 12th February 2014.

Andy Gale

February 12, 2014
Tweet

More Decks by Andy Gale

Other Decks in Technology

Transcript

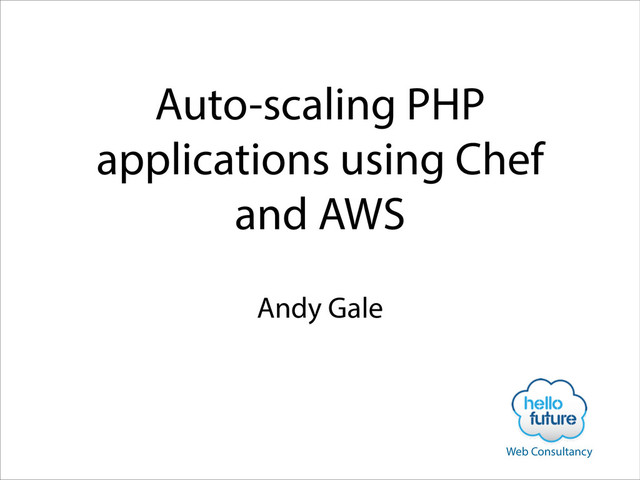

  1. Auto-scaling PHP
    applications using Chef
    and AWS
    Andy Gale
    Web Consultancy

    View Slide

  2. About me
    Andy Gale
    Web Consultant
    Hello Future
    http://hellofutu.re
    !
    @andygale
    @hellofutur3
    Web Consultancy

    View Slide

  3. Hosting
    Web Consultancy
    Virtual machine or cloud instance

    View Slide

  4. Traffic
    Web Consultancy
    0
    1000000
    2000000
    3000000
    4000000
    00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
    Visitors

    View Slide

  5. Crash!

    View Slide

  6. Hosting
    Web Consultancy
    Dedicated machine

    View Slide

  7. Crash!

    View Slide

  8. Separate Database and Web
    Web Consultancy

    View Slide

  9. Crash!

    View Slide

  10. Horizontal scaling
    Web Consultancy

    View Slide

  11. Great success!

    View Slide

  12. Traffic
    Web Consultancy
    0
    1000000
    2000000
    3000000
    4000000
    00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00
    Visitors

    View Slide

  13. Web Consultancy

    View Slide

  14. Auto-scaling
    Web Consultancy
    • Only pay for capacity we use
    • Handle huge traffic peaks
    • Automatically recover from failure

    View Slide

  15. Web Consultancy
    When your traffic increases, our robot will
    automatically create a new web server for
    you.

    View Slide

  16. • Cloud hosting provider
    • Various services
    • We’ll be using Elastic Load
    Balancers, EC2 (Elastic Compute
    Cloud) and RDS (Relational
    Database Service)
    What is AWS?
    Web Consultancy

    View Slide

  17. Auto-scaling
    Web Consultancy
    • Create new web servers
    • Use ELB load balancer
    • Use Amazon RDS database which
    will in this example will need to be
    large enough to handle our traffic
    peaks

    View Slide

  18. Auto-scaling
    Web Consultancy
    • We’ll need a way of setting up web
    servers
    • And we’ll need a way of installing
    our code on to them

    View Slide

  19. • Configuration management tool
    • Install packages
    • Ensure services like Apache are running
    • Write out configuration files from
    templates
    • Restart services when templates
    change
    What is Chef?
    Web Consultancy

    View Slide

  20. Web Consultancy
    Collections of recipes, templates and other
    configuration attributes to get stuff done.
    Chunks of Ruby code that describe what stuff we
    need to do to get that stuff done.
    Cookbooks
    Recipes

    View Slide

  21. Web Consultancy
    A virtual machine, cloud server or dedicate
    server
    Resource
    Creates a user, expands a template, installs a
    package, starts a service etc
    Node

    View Slide

  22. Web Consultancy
    Port number, database name, file location etc
    Template
    A template which you create a file from inserting
    variables
    Attribute

    View Slide

  23. Web Consultancy
    package "ntp" do
    action :install
    end
    !
    template "/etc/ntp.conf" do
    source "ntp.conf.erb"
    owner "root"
    group "root"
    mode 0644
    notifies :restart, resources(:service => "ntp")
    end
    !
    service "ntp" do
    action :start
    end
    Install package
    Create config file
    from template
    Define service and
    start NTP
    Restart service
    when config file
    changes

    View Slide

  24. Web Consultancy
    Let’s make a cookbook to
    install our PHP application

    View Slide

  25. Web Consultancy

    View Slide

  26. Web Consultancy
    Our template

    ServerName <%= @params[:server_name] %>
    DocumentRoot <%= @params[:docroot] %>
    !
    >
    Options FollowSymLinks
    AllowOverride FileInfo Options
    AllowOverride All
    Order allow,deny
    Allow from all

    !

    Options FollowSymLinks
    AllowOverride None

    !

    View Slide

  27. Web Consultancy
    include_recipe "apache2"
    include_recipe "php"
    include_recipe "php::module_mysql"
    include_recipe "apache2::mod_php5"
    Our recipe

    View Slide

  28. Web Consultancy
    web_app node['phpapp']['host'] do
    template "phpapp.conf.erb"
    docroot node['phpapp']['dir']
    server_name node['phpapp']['host']
    end
    Our recipe

    View Slide

  29. Web Consultancy
    gettingstartedwithchef.com

    View Slide

  30. Web Consultancy
    $ knife ec2 server create --run-list "role[phpapp]" -I
    ami-3d160149 --region eu-west-1 -G www,default -x ubuntu --
    node-name server01 --identity-file ~/.ssh/sshkey.pem
    Create EC2 instance

    View Slide

  31. Auto-scaling
    Web Consultancy
    • We want to auto-scale quickly
    • Our previous Chef and knife example takes
    10 minutes to bootstrap our server

    View Slide

  32. Auto-scaling
    Web Consultancy
    https://github.com/hellofuture-cookbooks/hf-lamp
    hf-lamp
    • Different recipes for installing
    dependencies and setting up you
    application configuration

    View Slide

  33. Web Consultancy

    View Slide

  34. Web Consultancy
    include_recipe "apache2"
    include_recipe "php"
    include_recipe "php::module_mysql"
    include_recipe "apache2::mod_php5"
    Auto-scaling

    View Slide

  35. Auto-scaling
    Web Consultancy
    • chef-solo to create an instance with
    dependencies installed
    • Create an AMI image from that instance
    • Use that instance in you auto-scaling
    launch configuration

    View Slide

  36. Web Consultancy

    View Slide

  37. Web Consultancy

    View Slide

  38. Web Consultancy

    View Slide

  39. Web Consultancy

    View Slide

  40. Web Consultancy

    View Slide

  41. Web Consultancy

    View Slide

  42. Web Consultancy

    View Slide

  43. Web Consultancy

    View Slide

  44. Web Consultancy

    View Slide

  45. When to auto-scale
    Web Consultancy
    !
    • Create CloudWatch alarms on key metrics
    such as CPU load
    • Scale up when a high percentage of total of
    the metric is being used
    • Scale down when low percentage of the
    metric is being used

    View Slide

  46. When to auto-scale
    Web Consultancy
    !
    • Test things out with CloudWatch alarms to
    begin with
    • Scale up quickly and scale down slowly

    View Slide

  47. Amazon OpsWorks
    Web Consultancy
    !
    • Chef based
    • Lots of scaling configuration options
    including scaling up on a schedule

    View Slide

  48. Questions?
    Web Consultancy

    View Slide
