Extending CRuby with native Graph data type

Reading of the CRuby (MRI) source code provides unparalleled insight into the Ruby language. During the talk we will add new native Graph data type to CRuby. The new Graph data structure will be simple but on par with other native types such as Array or Hash. This talk will demonstrate that it is easy to experiment with CRuby and extend it in C. We will experience the speed advantage of using C to boost Ruby performance. We will implement a few of the greatest hits of graph algorithms: Breath First Search, Dijkstra, and Minimum Spanning Tree.

Transcript

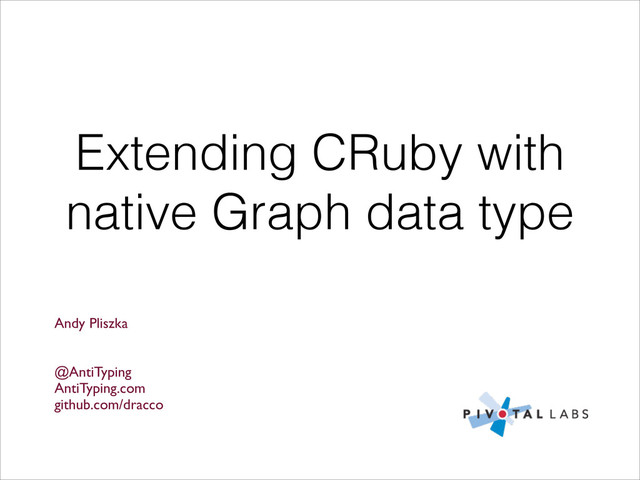

1. Extending CRuby with native Graph data type Andy Pliszka ! ! @AntiTyping AntiTyping.com github.com/dracco
2. Agenda • Problems • Build Ruby • Setup Debugger • CRuby Source Code • Simple CRuby Extensions • Graphs in CRuby
3. Problems
4. Big Graphs • Memory • Speed • Algorithms
5. Ruby is Slow
6. ! Objects are Slow
7. Object Overhead • Objects require extra memory • Indirection • Fragmented memory
8. Arrays of Objects • More overhead • More indirection • Memory fragmentation • Inefficient use of CPU caches
9. Same problems • Smalltalk • Java • Python • C++
10. Solution
11. Ruby + C • Ruby productivity and ecosystem • C efficiency, speed, and algorithms
12. High Level Abstractions in Ruby • High level modeling • Algorithm coordination • Analysis • Scripting
13. Low Level Operations in C • Algorithm implementation • Manipulation of large in-memory data structures • Integration with libraries LAPACK, CUDA
14. Level 1
    Build Ruby
15. Get the source ! $ mkdir ~/rubyconf-ruby $ chmod go-w ~/rubyconf-ruby $ cd ~/rubyconf-ruby $ git clone git@github.com:ruby/ruby.git $ cd ruby $ git checkout v2_0_0_247 fix for make check
16. Configure (Mac) $ brew install openssl $ autoconf $ ./configure --prefix=$HOME/myruby --with- opt-dir=/usr/local/Cellar/openssl/1.0.1e optflags="-O0" debugflags="-g" --disable- install-doc
17. ./configure output
18. Configure (Linux) $ sudo apt install libssl-dev $ autoconf $ ./configure --prefix=$HOME/myruby optflags="-O0" debugflags="-g3 -ggdb" -- disable-install-doc
19. Compile and Build $ make
20. Check build $ make check
21. Install $ make install
22. Setup PATHs $ export PATH=$HOME/myruby/bin:$PATH $ export GEM_HOME=$HOME/myruby/lib/ ruby/gems/2.0.0 $ export GEM_PATH=$HOME/myruby/lib/ruby/ gems/2.0.0
23. Verify $ which irb /Users/apliszka/myruby/bin/irb $ irb irb(main):001:0> raise "hi" RuntimeError: hi from (irb):1 from /Users/apliszka/myruby/bin/irb:12:in `<main>' $ which ruby /Users/apliszka/myruby/bin/ruby
24. gem env $ gem env ! RubyGems Environment: - RUBYGEMS VERSION: 2.0.3 - RUBY VERSION: 2.0.0 (2013-06-27 patchlevel 247) [x86_64-darwin12.5.0] - INSTALLATION DIRECTORY: /Users/apliszka/myruby/lib/ruby/gems/2.0.0 - RUBY EXECUTABLE: /Users/apliszka/myruby/bin/ruby - EXECUTABLE DIRECTORY: /Users/apliszka/myruby/bin - RUBYGEMS PLATFORMS: - ruby - x86_64-darwin-12 - GEM PATHS: - /Users/apliszka/myruby/lib/ruby/gems/2.0.0 - GEM CONFIGURATION: - :update_sources => true - :verbose => true - :backtrace => false - :bulk_threshold => 1000 - REMOTE SOURCES: - https://rubygems.org/
25. Gems $ gem list ! *** LOCAL GEMS *** ! bigdecimal (1.2.0) io-console (0.4.2) json (1.7.7) minitest (4.3.2) psych (2.0.0) rake (0.9.6) rdoc (4.0.0) test-unit (2.0.0.0) $ ls ~/myruby/lib/ruby/gems/2.0.0/gems/! rake-0.9.6! rdoc-4.0.0! test-unit-2.0.0.0
26. Install Rails $ ls ~/myruby/lib/ruby/gems/2.0.0/gems/! ! actionmailer-4.0.0! actionpack-4.0.0! activemodel-4.0.0! activerecord-4.0.0! activerecord-deprecated_finders-1.0.3! activesupport-4.0.0! arel-4.0.1! atomic-1.1.14! builder-3.1.4! ... $ gem install rails --no-doc
27. Rails app $ rails new HelloRuby! create! create README.rdoc! create Rakefile! ...! ! $ cd HelloRuby! ! $ rails s! ! => Booting WEBrick! => Rails 4.0.0 application starting in development on http:// 0.0.0.0:3000! => Run `rails server -h` for more startup options! => Ctrl-C to shutdown server! [2013-10-29 15:54:21] INFO WEBrick 1.3.1! ...
28. RubyMine Setup
29. Level 1 Complete • Build our own version of Ruby • Installed it • Rails app is using our Ruby (~/myruby) • ~30min 13
30. Level 2
    Setup Debugger
31. Debugger Options • lldb • gdb • Xcode lldb • Vim • Emacs • cgdb
32. lldb $ lldb ~/myruby/bin/ruby upstring.rb $ breakpoint set -l 4779 -f string.c $ run puts "Hello".upcase
33. lldb output
34. XCode lldb
35. Level 2 Complete • Debug our CRuby code using lldb 12
36. Level 3
    CRuby Source Code
37. Folder structure
38. Fixnum
39. String
40. Array
41. Class definition
42. Method definition rb_define_method(rb_cArray, "length", rb_ary_length, 0); static VALUE rb_ary_length(VALUE ary) { long len = RARRAY_LEN(ary); return LONG2NUM(len); }
43. Two Worlds • C • Working directly with memory • malloc/free • Ruby • Working with heap and objects • GC
44. Data types T_NIL :: nil T_OBJECT :: ordinary object T_CLASS :: class T_MODULE :: module T_FLOAT :: floating point number T_STRING :: string T_REGEXP :: regular expression T_ARRAY :: array T_HASH :: associative array T_STRUCT :: (Ruby) structure T_BIGNUM :: multi precision integer T_FIXNUM :: Fixnum(31bit or 63bit integer) T_COMPLEX :: complex number T_RATIONAL :: rational number T_FILE :: IO T_TRUE :: true T_FALSE :: false T_DATA :: data T_SYMBOL :: symbol
45. Type conversion Ruby Fixnum -> C long long c_num = NUM2LONG(ruby_num); C long -> Ruby Fixnum VALUE ruby_num = LONG2NUM(c_num);
46. Level 3 Complete • CRuby folder structure • Class definition • Method definition • Convert data C <-> Ruby 26
47. Level 4
    Simple CRuby Extensions
48. Fixnum#fib long fibonacci(long n) { long u = 0; long v = 1; long i, t; for(i = 2; i <= n; i++) { t = u + v; u = v; v = t; } return v; } class Fixnum def fib u = 0 v = 1 t = 1 2.upto(self) do t = u + v u = v v = t end t end end Ruby C
49. Fixnum#fib long fibonacci(long n) { long u = 0; long v = 1; long i, t; for(i = 2; i <= n; i++) { t = u + v; u = v; v = t; } return v; } static VALUE fix_cfib(VALUE num) { long u = 0; long v = 1; long i, t; for(i = 2; i <= NUM2LONG(num); i++) { t = u + v; u = v; v = t; } return LONG2NUM(v); } C CRuby rb_define_method(rb_cFixnum, "cfib", fix_cfib, 0);
50. #fib performance it "1M benchmark" do puts "fib(80)" puts Benchmark.measure() { 1000000.times { 80.fib } } end ! it "C 1M benchmark" do puts "cfib(80)" puts Benchmark.measure() { 1000000.times { 80.cfib } } end fib(80) 26.440000 0.050000 26.490000 ( 26.704735) cfib(80) 0.870000 0.000000 0.870000 ( 0.879011) CRuby is ~30x faster than Ruby (Macbook Pro)
51. Fixnum#prime? static VALUE fix_cprime(VALUE num) { long number = NUM2LONG(num); long i; for (i = 2; i < number; i++) { if (number % i == 0 && i != number) return Qfalse; } return Qtrue; } class Fixnum def prime? 2.upto(self) do |i| if self % i == 0 && i != self return false; end end true end end Ruby CRuby rb_define_method(rb_cFixnum, "cprime?", fix_cprime, 0)
52. #cprime? performance prime? 30.510000 0.060000 30.570000 ( 31.414153) cprime? 1.590000 0.000000 1.590000 ( 1.774056) CRuby is ~17x faster than Ruby (Macbook Pro) it "prime? benchmark" do puts "prime?" puts Benchmark.measure { 94418953.prime? } #Markov end ! it "cprime? benchmark" do puts "cprime?" puts Benchmark.measure { 94418953.cprime? } #Markov end
53. CLongArray class void Init_CLongArray(void) { cCLongArray = rb_define_class("CLongArray", rb_cObject); ! rb_define_alloc_func(cCLongArray, array_alloc); ! rb_define_method(cCLongArray, "initialize", array_initialize, 1); rb_define_method(cCLongArray, "qsort", array_quick_sort, 0); rb_define_method(cCLongArray, "[]", array_aref, 1); rb_define_method(cCLongArray, "[]=", array_aset, 2); }
54. CLongArray alloc static VALUE array_alloc(VALUE klass) { VALUE self; array_t *array; self = Data_Make_Struct(klass, array_t, array_mark, array_free, array); return self; } typedef struct { long *array; long size; } array_t;
55. CLongArray init static VALUE array_initialize(VALUE self, long size) { array_t *array; Data_Get_Struct(self, array_t, array); array->array = malloc(size * sizeof(long)); array->size = size; return self; } typedef struct { long *array; long size; } array_t; CLongArray.new(10)
56. CLongArray [] static VALUE array_aref(VALUE self, VALUE index) { array_t *array; Data_Get_Struct(self, array_t, array); long idx = NUM2LONG(index); return LONG2NUM(array->array[idx]); } c_long_array = CLongArray.new(10) puts c_long_array[1] rb_define_method(cCLongArray, "[]", array_aref, 1);
57. CLongArray []= static VALUE array_aset(VALUE self, VALUE index, VALUE val) { array_t *array; Data_Get_Struct(self, array_t, array); long idx = NUM2LONG(index); array->array[idx] = NUM2LONG(val); return val; } c_long_array = CLongArray.new(10) c_long_array[1] = 99 rb_define_method(cCLongArray, "[]=", array_aset, 2);
58. CLongArray qsort static VALUE array_quick_sort(VALUE self) { array_t *array; Data_Get_Struct(self, array_t, array); quick_sort(array->array, array->size); return self; } c_long_array.qsort rb_define_method(cCLongArray, "qsort", array_quick_sort, 0);
59. Plain C QuickSort void quick_sort (long *a, long n) { if (n < 2) return; long p = a[n / 2]; long *l = a; long *r = a + n - 1; while (l <= r) { if (*l < p) { l++; continue; } if (*r > p) { r--; continue; } long t = *l; *l++ = *r; *r-- = t; } quick_sort(a, r - a + 1); quick_sort(l, a + n - l); }
60. QuickSort Performance CRuby is ~10x faster than Ruby (Macbook Air) it "1_000_000 numbers benchmark" do puts "CLongArray#qsort" puts Benchmark.measure() { @c_long_array.qsort } end ! it "C 1_000_000 numbers benchmark" do puts "Array#sort!" puts Benchmark.measure() { @ruby_array.sort! } end CLongArray#qsort 0.270000 0.000000 0.270000 ( 0.173161) Array#sort! 1.910000 0.010000 1.920000 ( 1.786345)
61. Level 4 Complete • Fixnum#cfib 30x faster • Fixnum#cprime? 17x faster • CLongArray@qsort 10x faster 40
62. Level 5
    Graphs in CRuby
63. Graph Representation Adjacency-List Representation typedef struct _node_t { long node; struct _node_t *next; } node_t; typedef struct _graph_t { long side; node_t **graph; } graph_t;
64. CGraph class void Init_cgraph(void) { cGraph = rb_define_class("CGraph", rb_cObject); ! rb_define_alloc_func(cGraph, cgraph_alloc); ! rb_define_method(cGraph, "initialize", cgraph_initialize, 1); rb_define_method(cGraph, "bfs", cgraph_bfs, 1); rb_define_method(cGraph, "dfs", cgraph_dfs, 1); rb_define_method(cGraph, "prim", cgraph_prim, 1); }
65. CGraph alloc static VALUE cgraph_alloc(VALUE klass) { VALUE self; graph_t *graph; self = Data_Make_Struct(klass, graph_t, cgraph_mark, cgraph_free, graph); ! return self; }
66. CGraph init static VALUE cgraph_initialize(VALUE self, VALUE side) { graph_t *graph; Data_Get_Struct(self, graph_t, graph); graph->side = NUM2LONG(side); graph->graph = make_grid_graph(graph->side); ! return self; }
67. CGraph BFS static VALUE cgraph_bfs(VALUE self, VALUE source) { graph_t *graph; Data_Get_Struct(self, graph_t, graph); long side = graph->side; long *path; ! path = bfs(side, graph->graph, NUM2LONG(source)); ! VALUE trace = rb_ary_new(); ! rb_gc_register_address(&trace); int i; for (i = 0; i < side*side; i++) { rb_ary_push(trace, LONG2NUM(path[i])); }; rb_gc_unregister_address(&trace); ! xfree(path); return trace; }
68. Plain C BFS long *bfs(long side, node_t **graph, long source) { long *path = calloc(side*side, sizeof(long)); long path_tail = 0; long *q = calloc(side*side, sizeof(long)); queue_t queue = {0, 0, q}; long *visited = calloc(side*side, sizeof(long)); ! enqueue(&queue, source); visited[source] = 1; while(any(&queue)) { long node = dequeue(&queue); path[path_tail++] = node; node_t *p = graph[node]; while (p) { long i = p->node; if (visited[i] == 0) { enqueue(&queue, i); visited[i] = 1; } p = p->next; } } return path; }
69. Grid Graph Creation C -> 535.926 milliseconds Ruby -> 27,901.748 milliseconds CRuby is ~52x faster than Ruby (Macbook Air) 2048*2048 grid = 4,194,304 nodes
70. Grid Graph BFS C -> 228.536 milliseconds Ruby -> 4,426.137 milliseconds CRuby is ~19x faster than Ruby (Macbook pro) 1024* 1024 grid = 1,048,576 nodes
71. Level 5 Complete • CGraph • BFS in C • CRuby ~19x faster than Ruby 47
72. Conclusion • Use C to speed up your Ruby algorithms • Rewrites in C are usually very easy • Original C algorithm code can be used without modifications • Trivial CRuby rewrites are between 10x to 50x faster • Better performance possible with specialized algorithms
