Lightning Talk: Building Composable Caches on Android

droidcon London 2017
https://skillsmatter.com/skillscasts/11062-lightning-talk-building-composable-caches-on-android

Transcript

1. Caching made simple Matt Dolan info@mattdolan.com
2. COMPOSABLE CACHING IN SWIFT By Brandon Kase / @bkase_ / Slides
3. Offline-first architecture

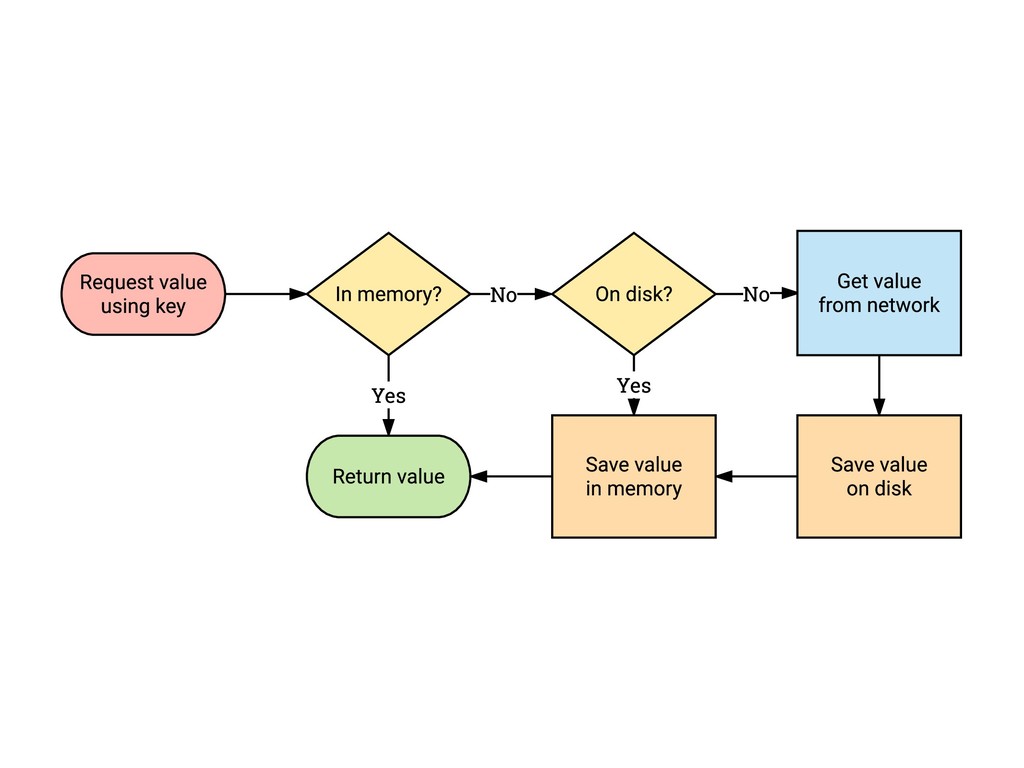

4. Request value using key In memory? On disk? Return value Yes No Save value in memory Yes No Save value on disk Get value from network

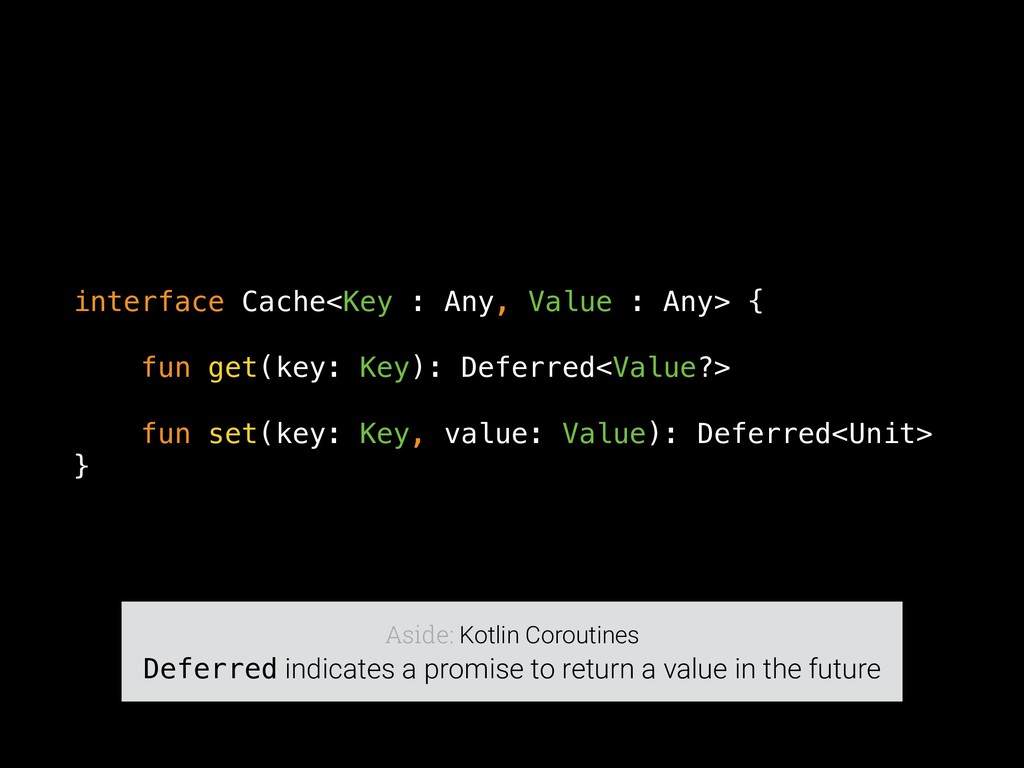

5. interface Cache<Key : Any, Value : Any> { fun get(key: Key): Deferred<Value?> fun set(key: Key, value: Value): Deferred<Unit> } Aside: Kotlin Coroutines Deferred indicates a promise to return a value in the future

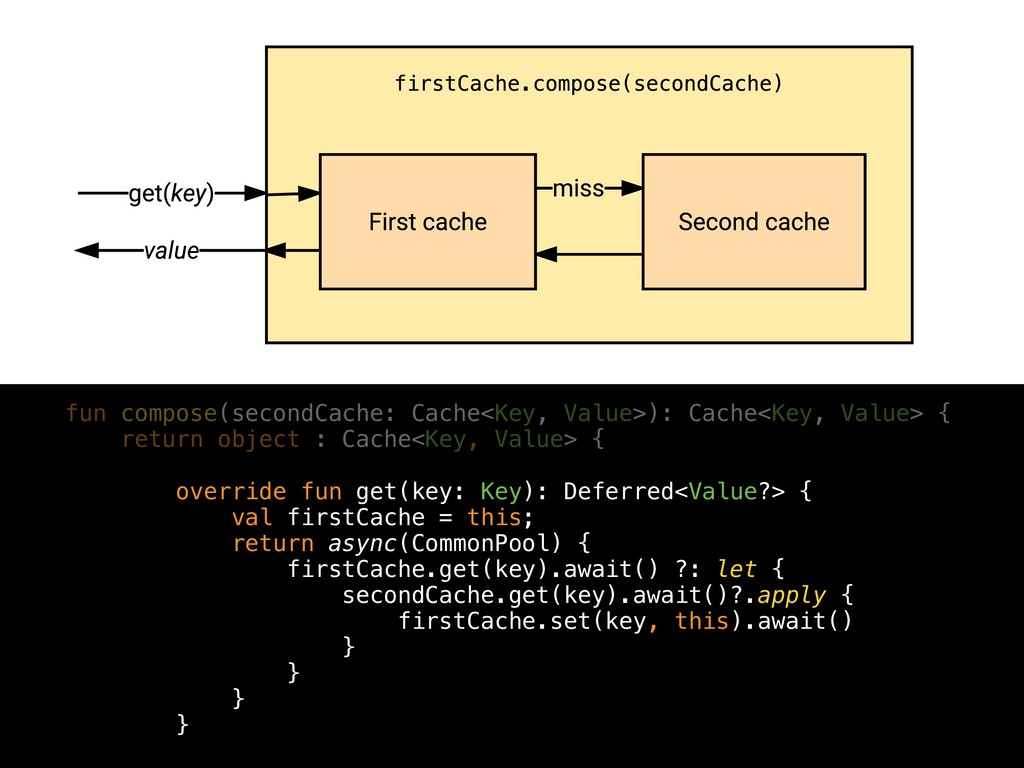

6. fun compose(secondCache: Cache<Key, Value>): Cache<Key, Value> { return object : Cache<Key, Value> { override fun get(key: Key): Deferred<Value?> { val firstCache = this; return async(CommonPool) { firstCache.get(key).await() ?: let { secondCache.get(key).await()?.apply { firstCache.set(key, this).await() } } } } cache. val ueTr ansf or m er ( t r ansf or m , i nver seTr ansf or m ) f i r st Cache. com pose( secondCache) First cache Second cache miss get(key) value get(key) mappedValue value transform

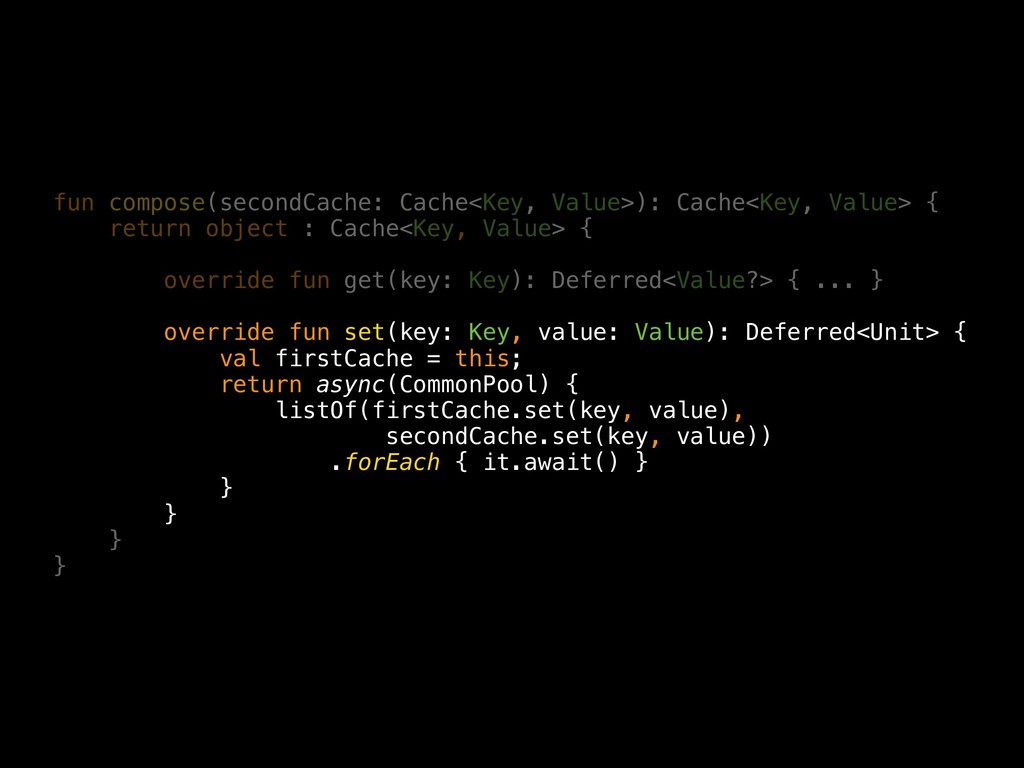

7. fun compose(secondCache: Cache<Key, Value>): Cache<Key, Value> { return object : Cache<Key, Value> { override fun get(key: Key): Deferred<Value?> { ... } override fun set(key: Key, value: Value): Deferred<Unit> { val firstCache = this; return async(CommonPool) { listOf(firstCache.set(key, value), secondCache.set(key, value)) .forEach { it.await() } } } } }

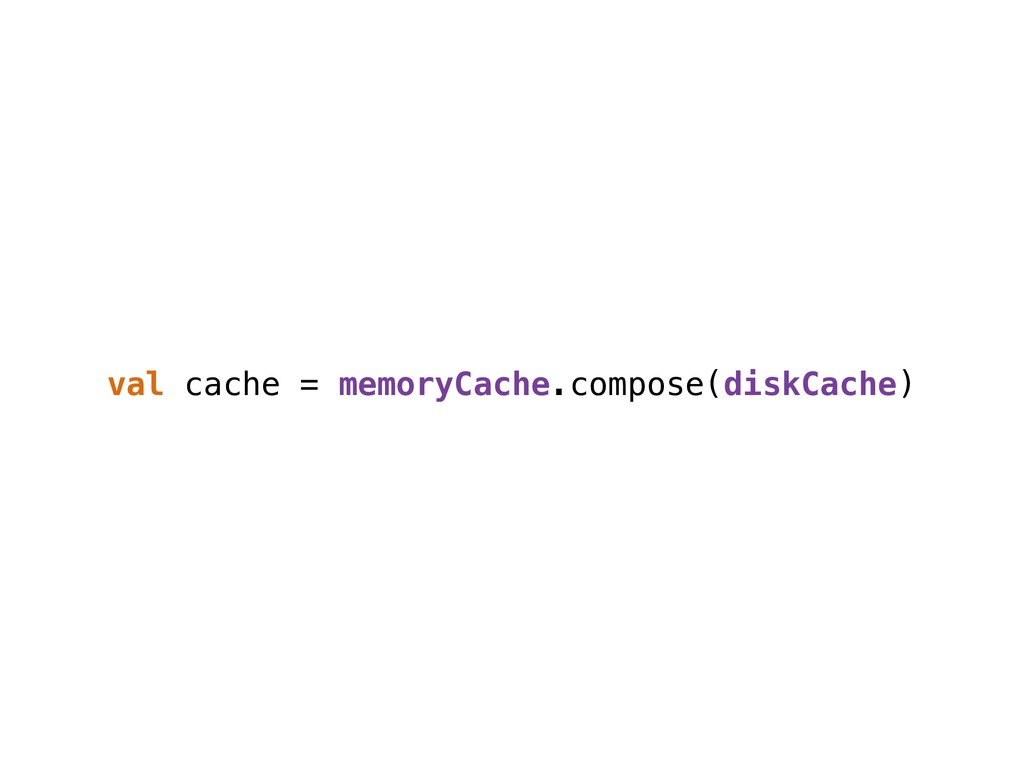

8. val cache = memoryCache.compose(diskCache)

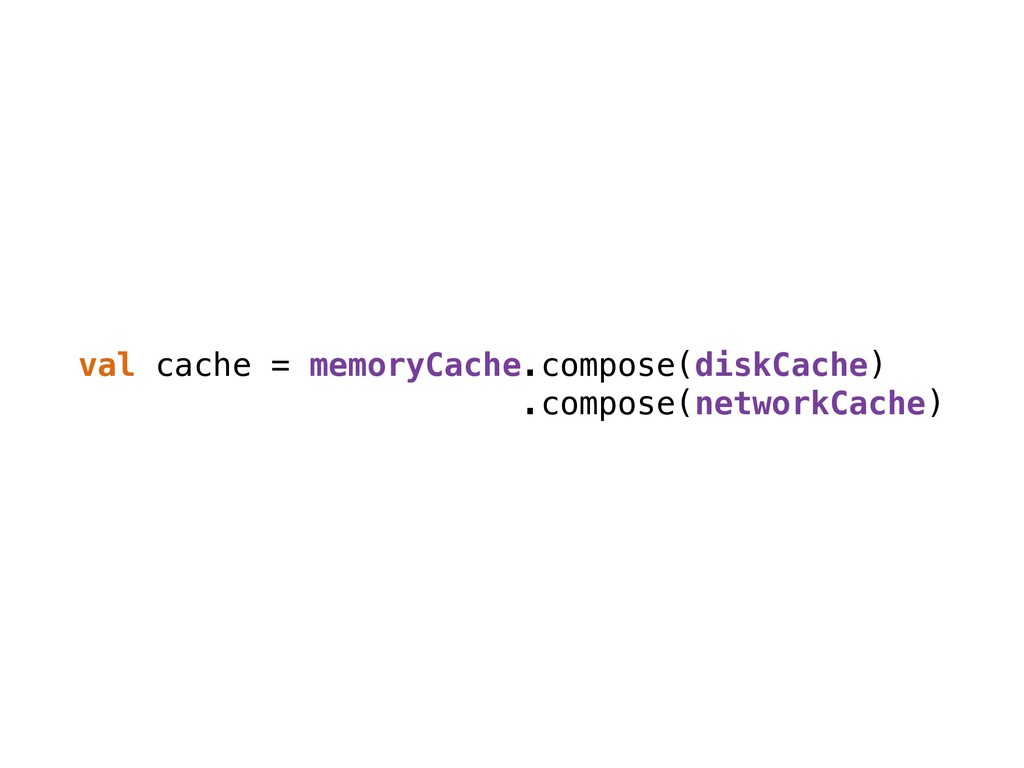

9. val cache = memoryCache.compose(diskCache) .compose(networkCache)
10. Camera RAW cache JPEG cache Thumbnail cache get get

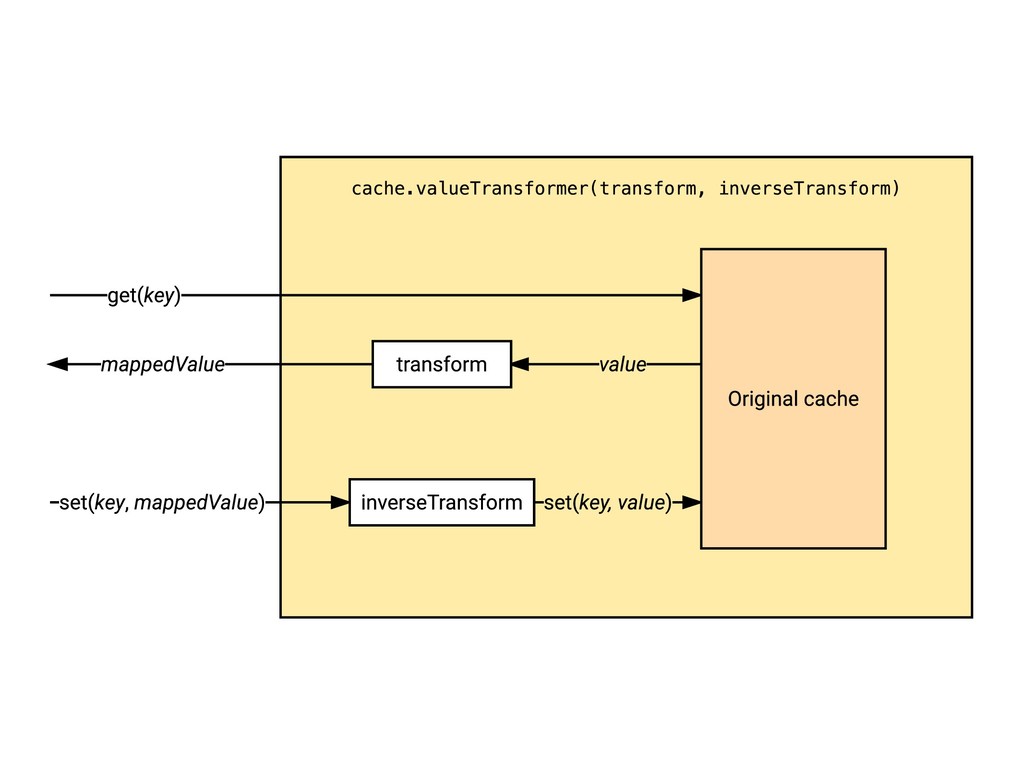

11. cache. keyTr ansf or m er ( t r ansf or m ) cache. val ueTr ansf or m er ( t r ansf or m , i nver seTr ansf or m ) Original cache get(key) mappedValue value transform set(key, mappedValue) inverseTransform set(key, value)

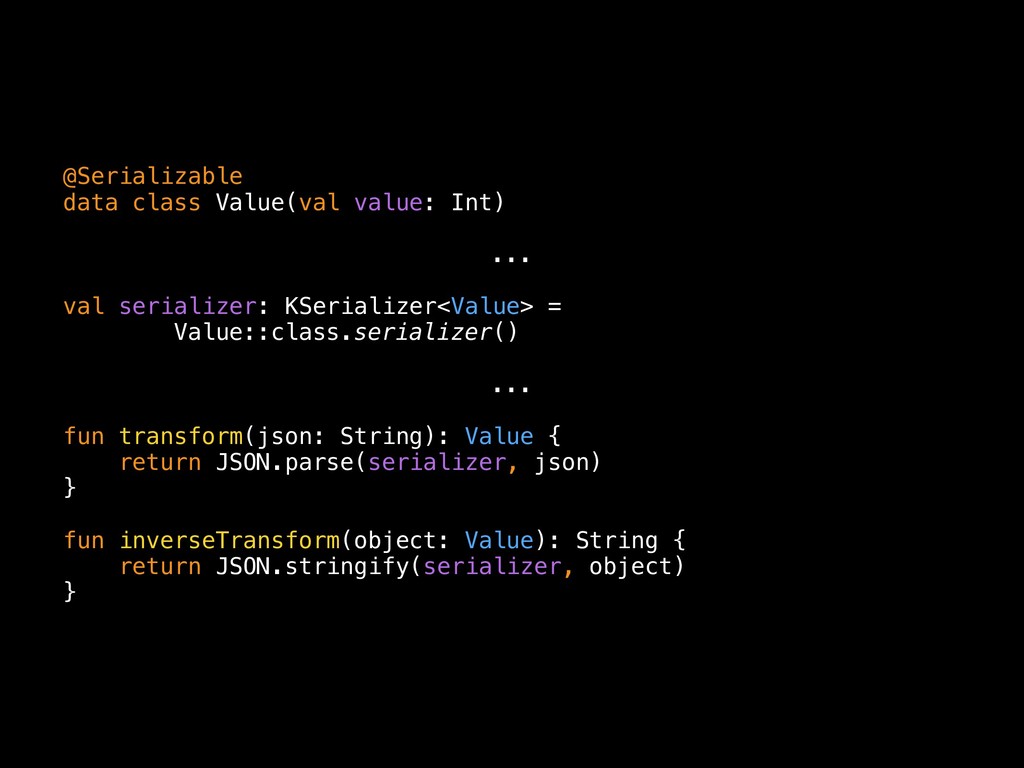

12. @Serializable data class Value(val value: Int) ... val serializer: KSerializer<Value> = Value::class.serializer() ... fun transform(json: String): Value { return JSON.parse(serializer, json) } fun inverseTransform(object: Value): String { return JSON.stringify(serializer, object) }

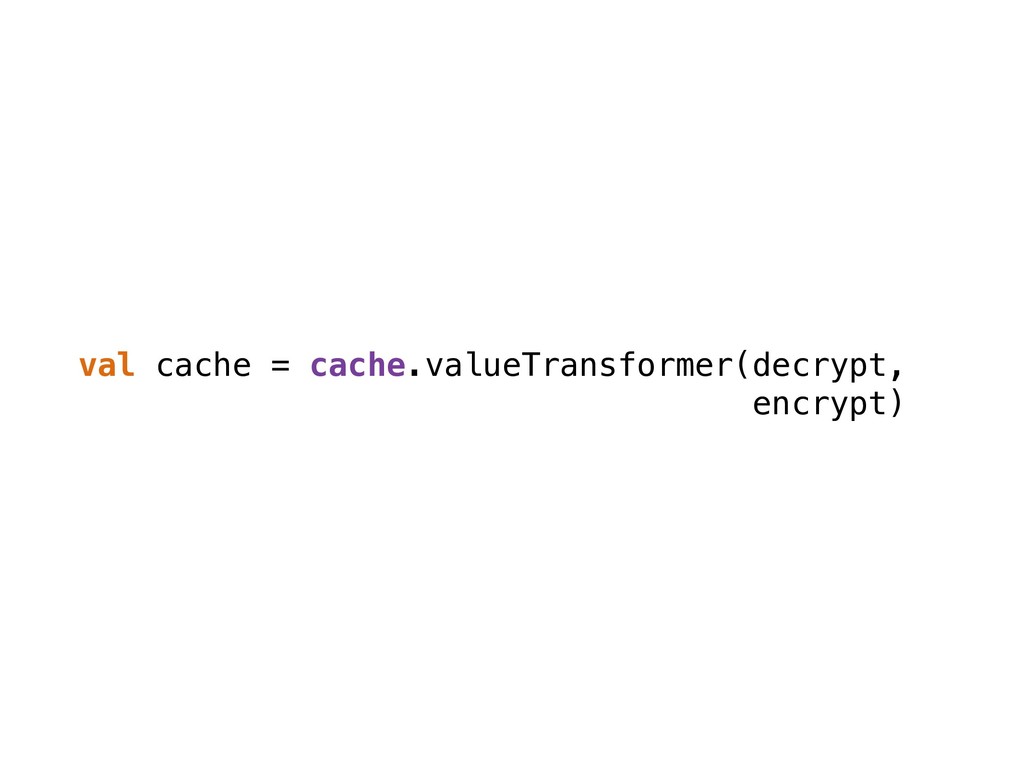

13. val cache = cache.valueTransformer(decrypt, encrypt)

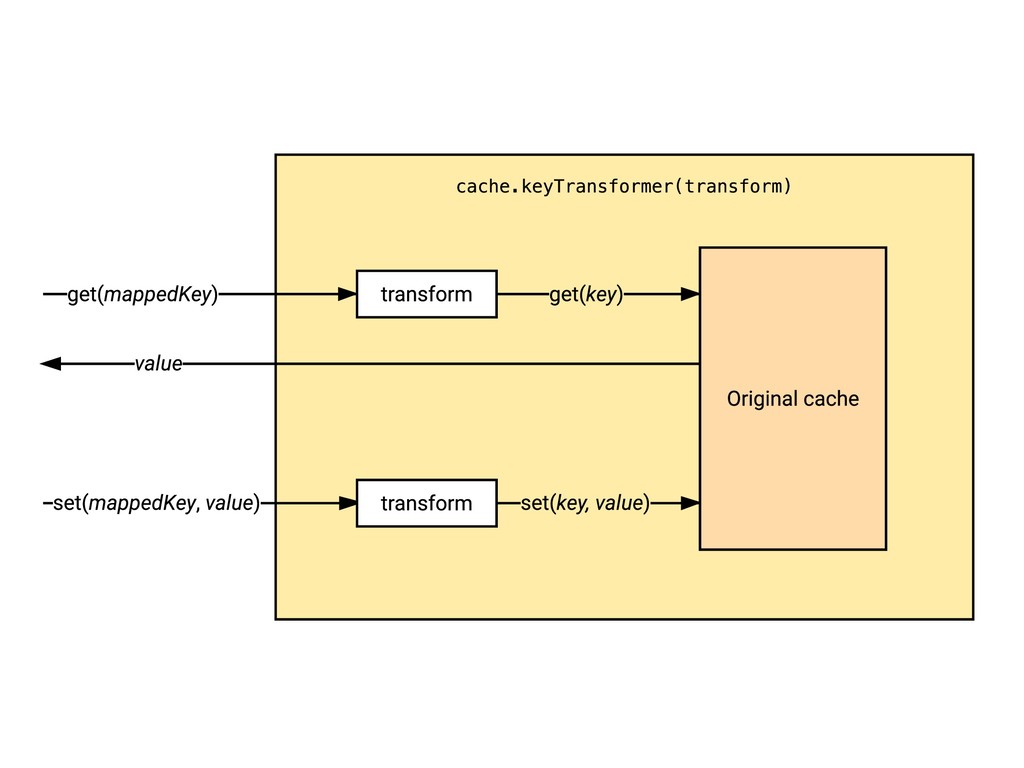

14. cache. keyTr ansf or m er ( t r ansf or m ) Original cache get(mappedKey) value transform set(mappedKey, value) set(key, value) get(key) transform
15. Loading… This could take a while

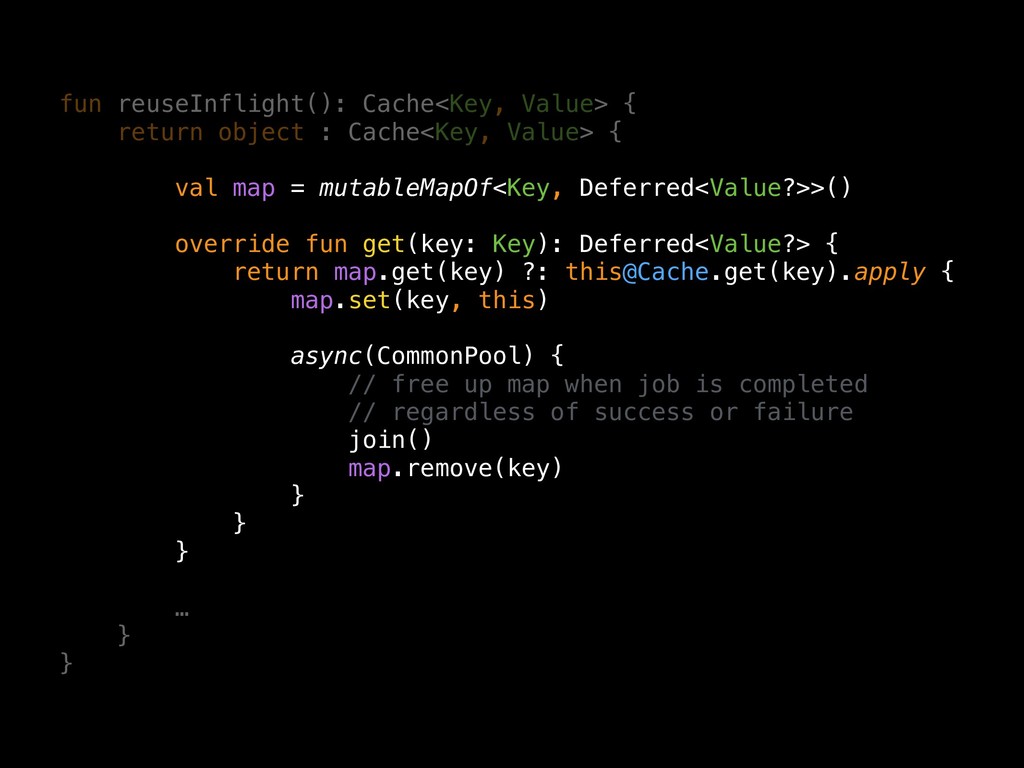

16. fun reuseInflight(): Cache<Key, Value> { return object : Cache<Key, Value> { val map = mutableMapOf<Key, Deferred<Value?>>() override fun get(key: Key): Deferred<Value?> { return map.get(key) ?: this@Cache.get(key).apply { map.set(key, this) async(CommonPool) { // free up map when job is completed // regardless of success or failure join() map.remove(key) } } } … } }

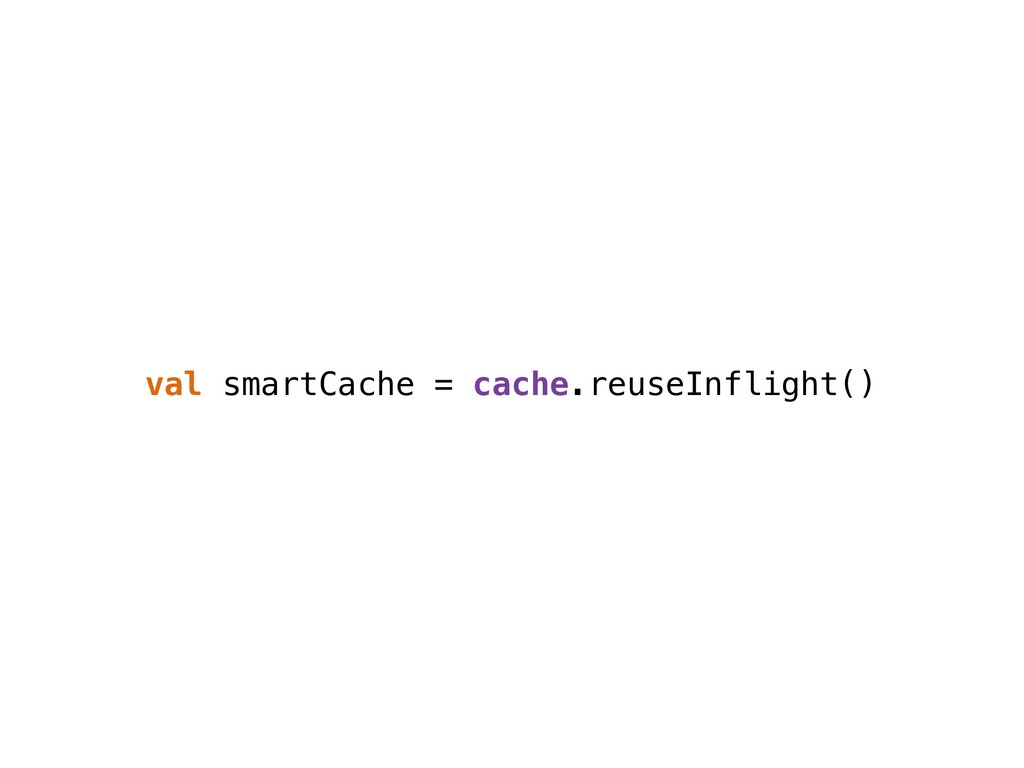

17. val smartCache = cache.reuseInflight()

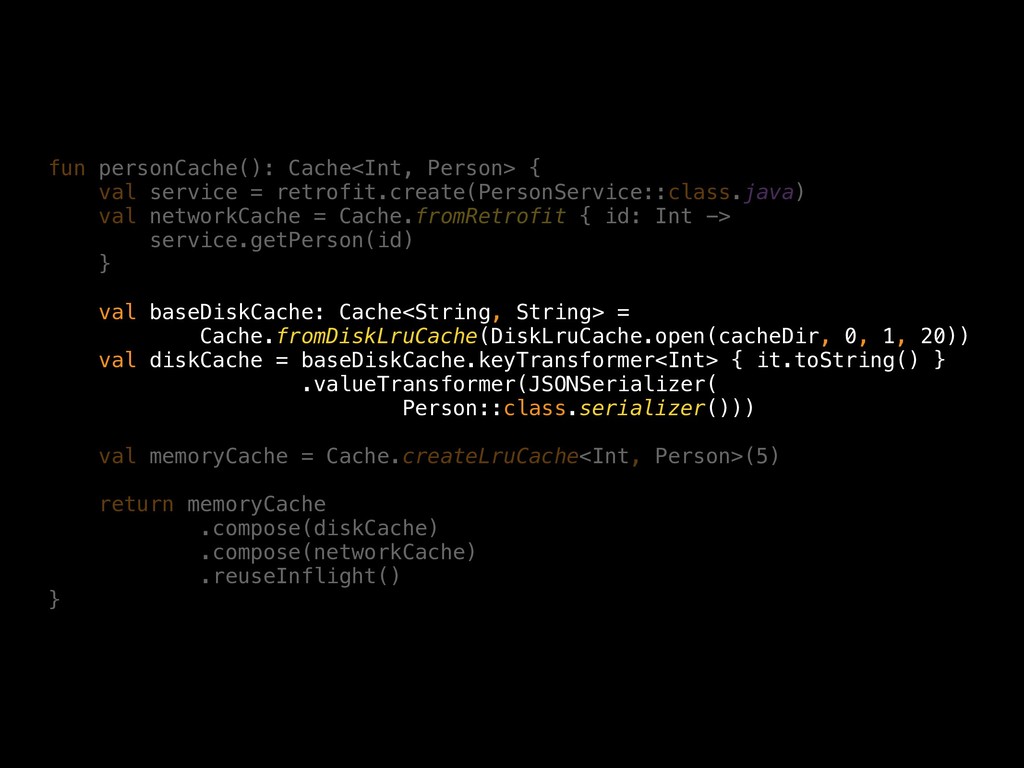

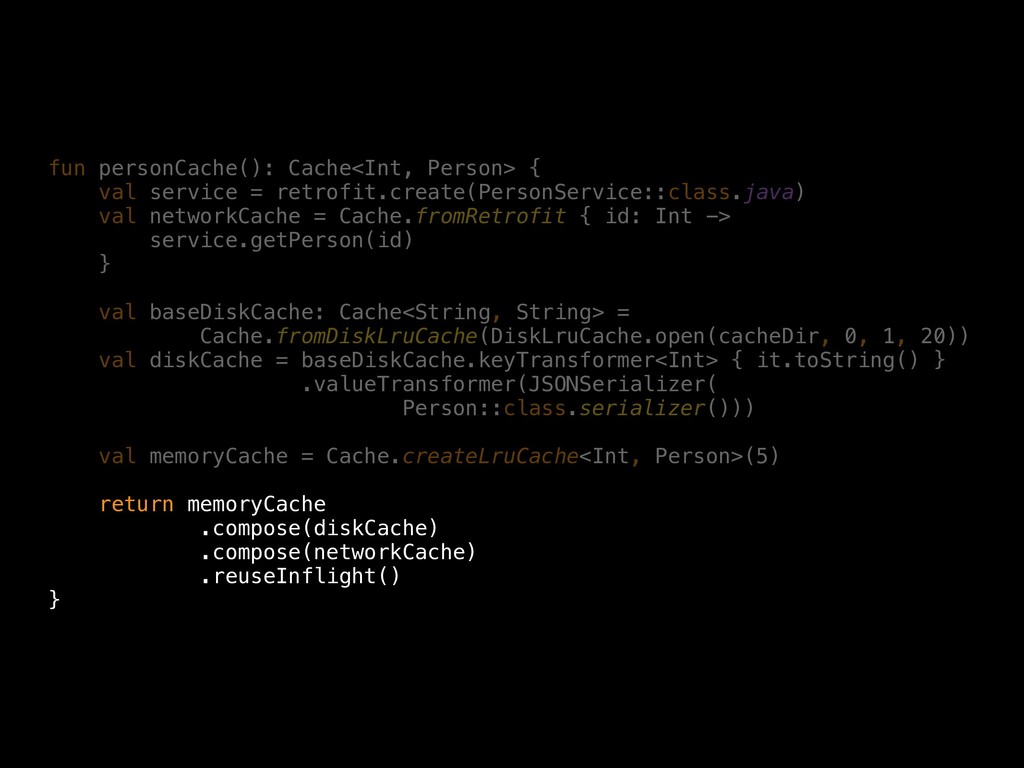

18. fun personCache(): Cache<Int, Person> { val service = retrofit.create(PersonService::class.java) val networkCache = Cache.fromRetrofit { id: Int -> service.getPerson(id) } val baseDiskCache: Cache<String, String> = Cache.fromDiskLruCache(DiskLruCache.open(cacheDir, 0, 1, 20)) val diskCache = baseDiskCache.keyTransformer<Int> { it.toString() } .valueTransformer(JSONSerializer( Person::class.serializer())) val memoryCache = Cache.createLruCache<Int, Person>(5) return memoryCache .compose(diskCache) .compose(networkCache) .reuseInflight() }

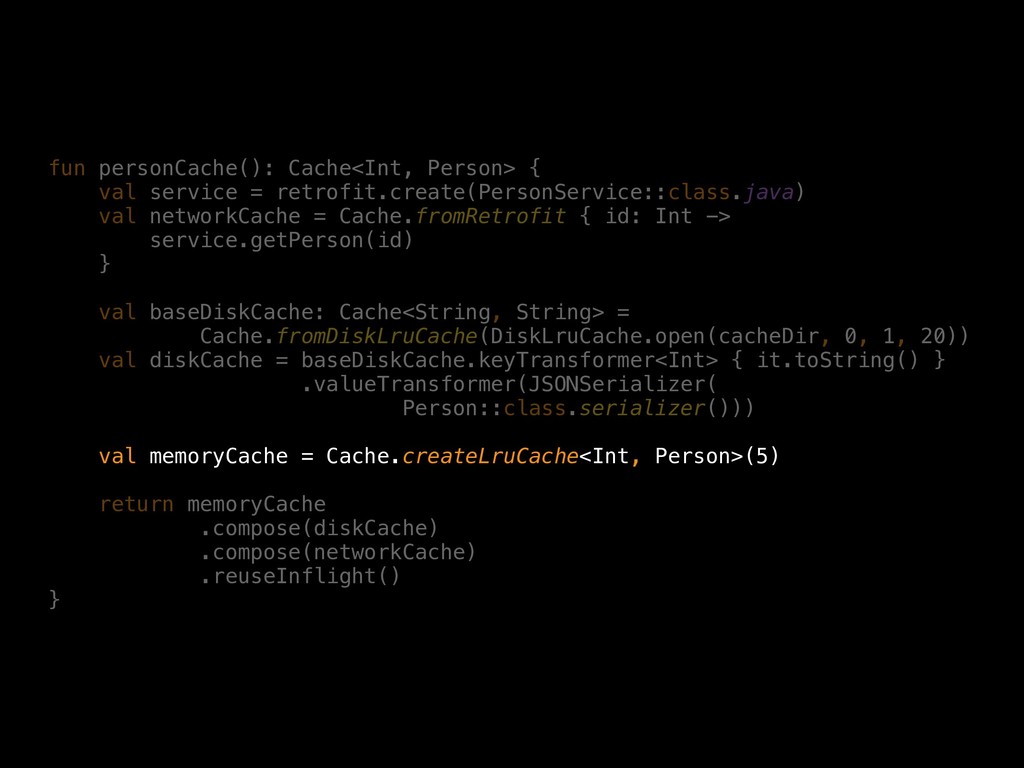

19. fun personCache(): Cache<Int, Person> { val service = retrofit.create(PersonService::class.java) val networkCache = Cache.fromRetrofit { id: Int -> service.getPerson(id) } val baseDiskCache: Cache<String, String> = Cache.fromDiskLruCache(DiskLruCache.open(cacheDir, 0, 1, 20)) val diskCache = baseDiskCache.keyTransformer<Int> { it.toString() } .valueTransformer(JSONSerializer( Person::class.serializer())) val memoryCache = Cache.createLruCache<Int, Person>(5) return memoryCache .compose(diskCache) .compose(networkCache) .reuseInflight() }
20. fun personCache(): Cache<Int, Person> { val service = retrofit.create(PersonService::class.java) val networkCache = Cache.fromRetrofit { id: Int -> service.getPerson(id) } val baseDiskCache: Cache<String, String> = Cache.fromDiskLruCache(DiskLruCache.open(cacheDir, 0, 1, 20)) val diskCache = baseDiskCache.keyTransformer<Int> { it.toString() } .valueTransformer(JSONSerializer( Person::class.serializer())) val memoryCache = Cache.createLruCache<Int, Person>(5) return memoryCache .compose(diskCache) .compose(networkCache) .reuseInflight() }

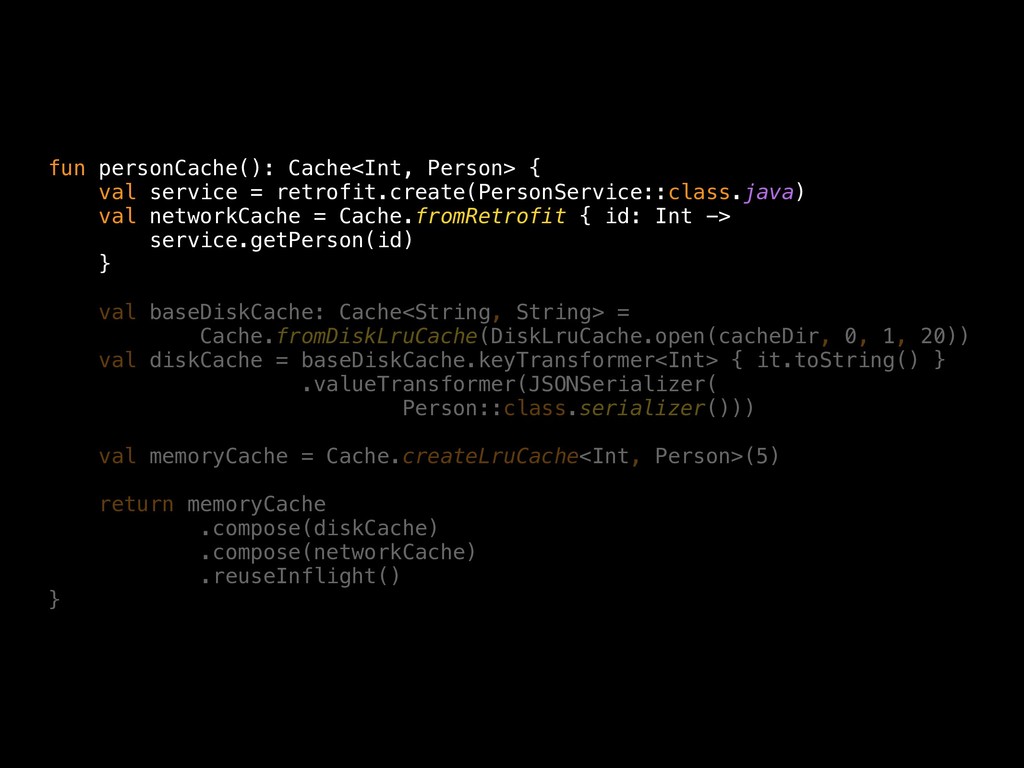

21. fun personCache(): Cache<Int, Person> { val service = retrofit.create(PersonService::class.java) val networkCache = Cache.fromRetrofit { id: Int -> service.getPerson(id) } val baseDiskCache: Cache<String, String> = Cache.fromDiskLruCache(DiskLruCache.open(cacheDir, 0, 1, 20)) val diskCache = baseDiskCache.keyTransformer<Int> { it.toString() } .valueTransformer(JSONSerializer( Person::class.serializer())) val memoryCache = Cache.createLruCache<Int, Person>(5) return memoryCache .compose(diskCache) .compose(networkCache) .reuseInflight() }
22. Caching made simple Use with LruCache, DiskLruCache & ehcache Also, integrates with Retrofit & LiveData Plus built-in one line data encryption for android https://github.com/appmattus/layercache
23. Caching made simple https://github.com/appmattus/layercache
