[COSCUP2018] Language Server Protocol explained

- at COSCUP 2018 (future presentation, subect to change)

Transcript

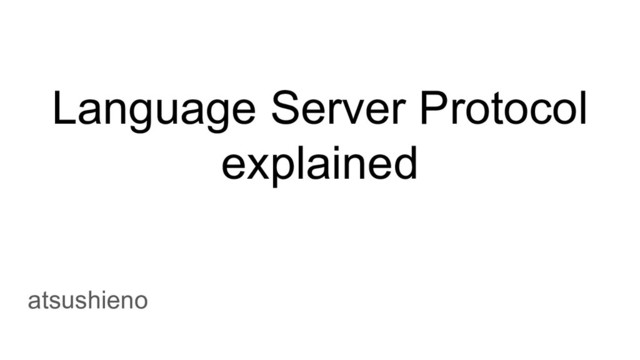

1. Language Server Protocol
   explained
   atsushieno


   View Slide

2. What is LSP = Language Server Protocol?
   ● Microsoft's private specification
   ● It is to enhance text editors to become like IDEs for programmers
   ● Protocol between editors and (programming) language toolchains


   View Slide

3. Who benefits from LSP?
   ● Text editor developers
   ○ They don't have to write code to "support for XYZ language" anymore
   ● Programming language toolchain developers
   ○ They don't have to write "XYZ editor plugin" anymore
   ● YOU!
   ● Microsoft


   View Slide

4. [Language Server] Protocol
   ● Traditional languages: compile souces to libraries or executables
   ● Modern languages (in certain culture):
   also provide libraries/tools/features to let developers programmatically
   compile and query states about the sources and referenced libraries.
   = works as a language service
   ● existing language servers (or alike): clang, Roslyn, typescript server


   View Slide

5. What to query Language Servers?
   ● "Which members of this `Foo` are available?"
   - Completion
   ● "Where is this `Bar` defined?"
   - Go To Definition
   ● "From which source lines is this `Baz` referenced/used?"
   - Find Usages
   etc.


   View Slide

6. Language Server [Protocol]
   ● communication between editors and language toolchains
   ● Why "protocol" ?
   ○ should not be exclusive to specific programming languages
   ○ If it is a C library then web-based editors won't support it (wasm? / text encoding?)
   ● uses JSON-RPC
   ○ gnome-code-assistance: depends on DBus = GNOME specific
   ● common subset from many languages


   View Slide

7. Language Server and Language Client
   ● Server: a (service-based) compiler
   ● Client: basically a text editor
   ● Available Clients
   ○ vscode, eclipse, emacs,
   vim, atom, VS
   ● Available Servers
   ○ "some" languages, but
   already too many to list.


   View Slide

8. LSP messages
   ● Two kinds of roles:
   ○ source management
   ■ notify editor buffer changes to
   language server
   ○ language features
   ■ interesting part


   View Slide

9. Message showcase
   disclaimer: those screenshots are not always from LSP-backed editors


   View Slide

10. Code completion
    textDocument/completion to query candidates, and
    completionItem/resolve to reflect completion onto the source code.
    textDocument/signatureHelp to get help for method arguments etc.
    completion triggers are fixed to dot '.' may be specified by server at `initialize`
    (may also be triggered by CTRL+SPACE etc.)
    signature help triggers are fixed
    to comma ',' also customizible.


    View Slide

11. Document structure
    textDocument/documentSymbol to list
    all the available "symbols" in a source
    document.


    View Slide

12. Global search
    workspace/symbol could be used to
    implement "global search" feature.
    "find anything that matches in the project"


    View Slide

13. Coding hints
    ● textDocument/definition - get locations
    for the symbol (typically) at cursor.
    ○ typically for "Go To Definition"
    ○ It can point to multiple source locations
    ● textDocument/typeDefinition - similar to
    `definition`, but for the "type" of the
    symbol at cursor.
    ○ for `val` (Kotlin), `var` (C#), `let` (TypeScript)
    etc.
    ● textDocument/hover - can be API
    definitions etc. but not limited to them.


    View Slide

14. Too many features to show here (in 30 min.)
    ● completion, /resolve
    ● hover
    ● signatureHelp
    ● definition
    ● typeDefinition
    ● implementation
    ● references
    ● documentHighlight
    ● documentSymbol
    ● codeAction
    ● codeLens, /resolve
    ● documentLink,
    /resolve
    ● documentColor
    ● colorPresentation
    ● formatting
    ● rangeFormatting
    ● onTypeFormatting
    ● rename
    ● foldingRange
    ● symbol
    ● publishDiagnostics


    View Slide

15. And there are messages for editing too
    They are not interesting, but text editors need to send them to language servers.
    ● textDocument/didOpen
    ● textDocument/didChange
    ● textDocument/willSave
    ● textDocument/didSave
    ● textDocument/willClose
    ● textDocument/didClose
    ● workspace/applyEdit


    View Slide

16. Implementing
    Language Servers


    View Slide

17. It is time to implement your own LS!
    because it's cool!


    View Slide

18. ... is it really time to implement my own LS?
    language server protocol fits with...
    ● simple-to-mid-level language
    ○ for too simple languages you wouldn't even need any editor support.
    ○ If you only need syntax highlighting, just use tmLanguage.
    ● it should be noted that LSP is a common subset of various languages.
    ○ "language servers and IDEs" - critical post on LSP (rust rls/KDevelop)


    View Slide

19. Dive into VSCode sources
    This time we only track vscode (because it is kind of normative reference).
    Microsoft/vscode on github.
    Language support is usually packaged as a "language extension".


    View Slide

20. Language extension types
    ● Extensions without language service (ignorable)
    ○ e.g. extension/css (has `css.tmLanguage.json` which works without LS)
    ● Extensions with language service
    ○ Direct implementation - uses only vscode API
    ○ LSP implementation - uses LS (`vscode-languageserver ` package)
    ■ e.g. extension/css-language-features
    Language Extension Guidelines - very nice documentation about them.


    View Slide

21. How vscode LS extensions are organized
    editor (host), language client, and language server. Server can be out-of-process.
    VSCode
    Language Feature Extension
    "client"
    entrypoint (JS)
    activate() {
    ...
    }
    package.json
    "main":
    "src/out/entrypoint"
    "server"
    implementation
    listen and
    notify on
    stdio/ipc


    View Slide

22. node packages to implement LS
    ● take a look at `src/extension/css-language-features` (as an example)
    ○ `client` // extension entrypoint (`activate()`), launches server
    ○ `server` // actual LS, typically standalone executable
    ■ import "vscode-languageserver" // LSP for node.js
    [repo] Microsoft/vscode-languageserver-node
    ■ import "vscode-css-languageservice" // actual CSS parser/compiler
    [repo] Microsoft/vscode-css-languageservice
    Server can be implemented in any language. You can use stdio.
    Useful example: [repo] Microsoft/vscode-languageserver-node-example


    View Slide

23. Implementing language services
    ● You are going to either implement a compiler, or make changes to existing
    one
    ● Compilation phases
    ○ parsing: build token trees
    ■ folding parser (#if etc.)
    ■ tokenizer/lexer and parser (syntax errors)
    ○ semantic analysis: build semantic trees
    ■ symbol resolution (check unknown identifiers)
    ■ validation (inheritance, type checking)
    ○ code generation - most unlikely relevant to language services


    View Slide

24. TIPs on implementing language server
    ● Implement your parser to always get precise location, and they have to be for
    both start and end of the tokens.
    ● Don't try too hard, start implementing from whichever you can.
    ○ e.g. compile everything whenever language feature is requested.
    ○ e.g. compile and update symbol locations only when sources are saved.


    View Slide

25. TIPs on implementing language server
    ● EASY:
    ○ `publishDiagnostics`: just compile and get errors, then report them
    ○ `documentSymbols`: get source code tree (AST) and return the locations.
    ● HARD:
    ○ `definition`: need to get AST, then find where "current token" is, resolve
    semantic tree, search symbol by identifier from semantic tree.
    ○ `completion`: similarly get semantic node from "current token", then
    return list of available members depending on context (e.g. static or
    instance).


    View Slide

26. Summary
    ● LSP is good for editor developers and language developers and their users.
    ● LSP provides various features e.g. completion, definition, references...
    ○ Yet the feature set is limited to common usages.
    ● You can implement LS in any language, adapt it in a language extension
    ○ You can use stdio.


    View Slide

27. Thanks


    View Slide
