Primer- A distributed and persistent Message Queue System for Erlang Applications

Many message queues systems and platforms exists around providing API that you can bind in you Erlang Applications. You have rabbitmq built in Erlang. But we have no scalable systems that you can completely embed in your Erlang applications. Primer is a new system primarily distributed as an Erlang OTP application. Like MNESIA but a message oriented system. Primer is an AP system written in Erlang that distribute messages between Erlang nodes allowing different scenarios from many producers and consumers with many queue to producers and consumers focusing on a single queue that may be distributed between Erlang nodes. PUSH and PULL consuming scenarios are also handled. Primer has no broker, each nodes can accept and send messages. Primer queues can also be consumed by external applications over different protocols thanks to the primer apps.

Transcript

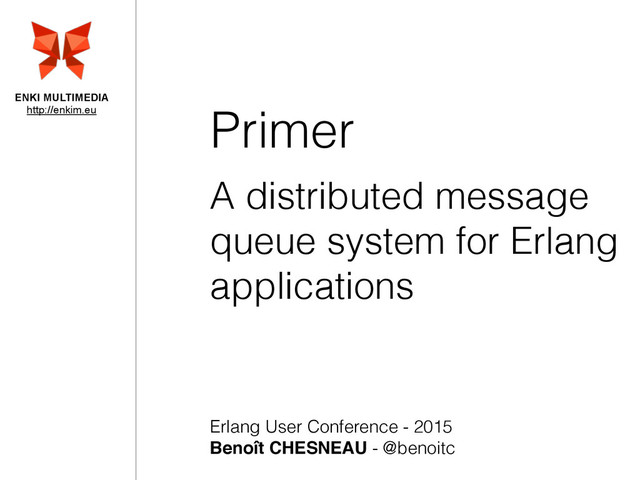

1. Primer A distributed message queue system for Erlang applications ENKI MULTIMEDIA http://enkim.eu Erlang User Conference - 2015
 Benoît CHESNEAU - @benoitc
2. • RCOUCH usages in mind • needed something simple • that I can embed in my Erlang app • without external overhead WHY http://rcouch.org
3. • execution of jobs (sync or not) • realtime pub/sub • Chat • IOT USES
4. FEATURES
5. • embeddable • master-master • versatile • resistant to net-splits • optional persistence FEATURES
6. • can be added to my application • do not rely on external API • no C binding • not related to a specific protocol EMBEDDABLE
7. • each nodes have the same role • distributed & decentralised • easy to scale MASTER
 MASTER
8. • Fast queuing: best effort to order • But also replicated log • one or many consumers • at least/most once semantic • message mapping versatile
9. DESIGN
10. • Full mesh • use gossip to broadcast messages • replicated message queue • synchronous or chained replication distributed
11. • Epidemic broadcast protocol • extracted from riak_core • standalone membership protocol
 (riak_dt + ORSWOT) • metadata • broadcast handlers plumtree http://github.com/helium/plumtree
12. • get W nodes to replicate • shuffle nodes • replication is synchronous • queue are created dynamically • read queue is local • read from any node • group to fan-out add message best effort to order
13. QUEUE ADD MESSAGE update 1 QUEUE QUEUE replicate 2 Wn W1 got message 3 updated 4 replicate QUEUE MANAGER notify add a message cluster metadata notify best effort to order
14. QUEUE ACK 3 QUEUE QUEUE update message state 3 Wn W1 broadcast ACK 4 fetch 2 read a message cluster metadata ask best effort to order GET MESSAGE METADATA GET NODES 1
15. • log queues should be created first • Period of retention • dynamic creation of ranges • a chain of replicated nodes • group of consumers for concurrency add message replicated log
16. QUEUE ADD MESSAGE update 1 QUEUE QUEUE replicate 2 Wn W1 got message 3 updated 4 replicate QUEUE MANAGER notify about new range add a message cluster metadata notify replicated log QUEUE RANGE
17. ACK 3 send 3 read a message cluster metadata ask GET MESSAGE METADATA GET NODES 1 CONSUMER GROUP QUEUE RANGE fetch 2 checkpoint 3 replicated log QUEUE QUEUE Wn W1
18. • by default is off • Append-Only file • high watermark support • possible to dump data persistence
19. • like a consumer group • to handle custom routing • based on a dsl • dsl can be extended • possibility to re-enqueue a message in another queue mapping
20. mapping [ {map_id, Pattern, ok}, {map, fun(Msg) -> ok end} ]
21. Miscellaneous
22. • metrics • dashboard to watch the activity • a queue can be browsed Other features
23. • support of multiple zones • support of multiple networks todo
24. • opensourced in June 2015 • http://primer.mq when?
25. ? ENKI MULTIMEDIA http://enkim.eu @benoitc euc2015+contact@enkim.eu
