1. Session 7 ICS 211 Recursion II

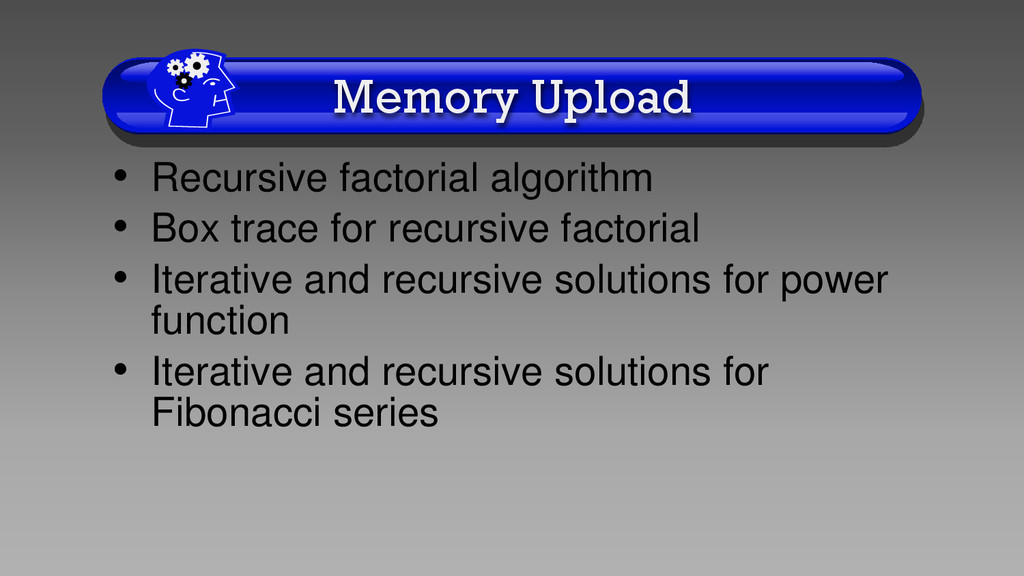

2. Memory Upload • Recursive factorial algorithm • Box trace for recursive factorial • Iterative and recursive solutions for power function • Iterative and recursive solutions for Fibonacci series

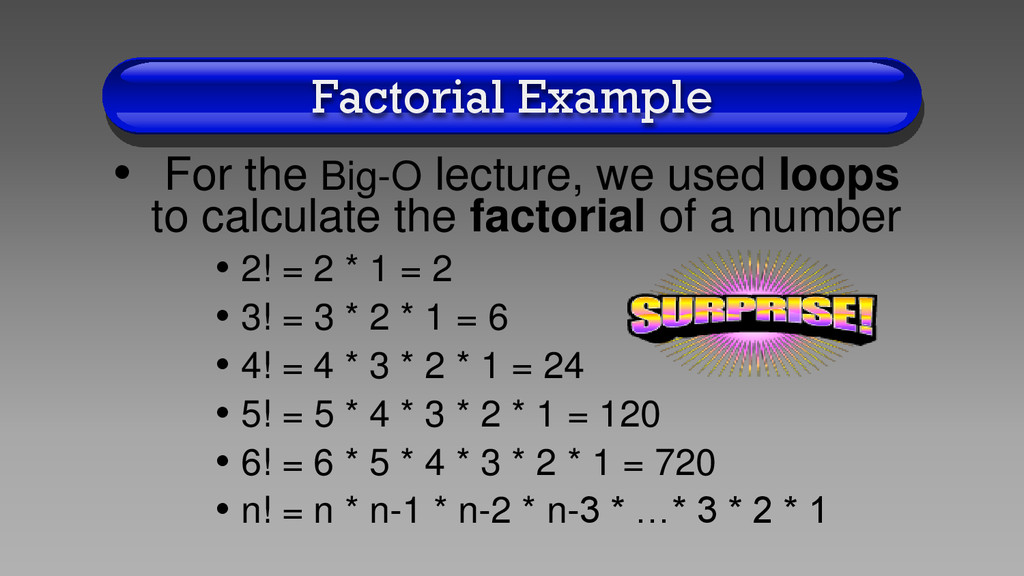

3. Factorial Example • For the Big-O lecture, we used loops to calculate the factorial of a number • 2! = 2 * 1 = 2 • 3! = 3 * 2 * 1 = 6 • 4! = 4 * 3 * 2 * 1 = 24 • 5! = 5 * 4 * 3 * 2 * 1 = 120 • 6! = 6 * 5 * 4 * 3 * 2 * 1 = 720 • n! = n * n-1 * n-2 * n-3 * …* 3 * 2 * 1
4. Factorial Algorithm • Here is a recursive algorithm for calculating a factorial  Base case #1: if n is negative, return -1, because factorial is undefined  Base case #2: if n is 0 or 1, return 1  Recursive case: return n * (method call for n-1)

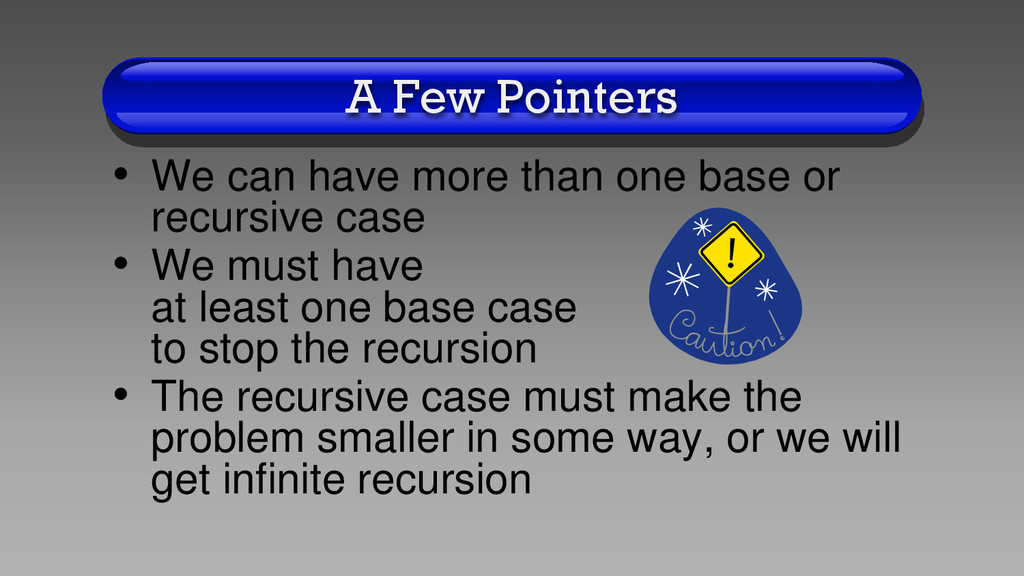

5. A Few Pointers • We can have more than one base or recursive case • We must have at least one base case to stop the recursion • The recursive case must make the problem smaller in some way, or we will get infinite recursion

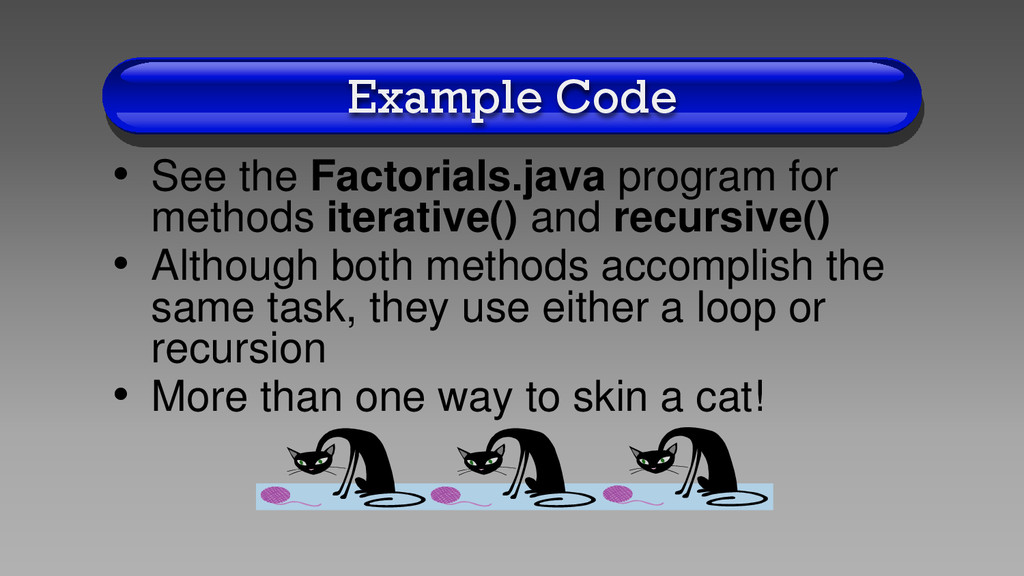

6. Example Code • See the Factorials.java program for methods iterative() and recursive() • Although both methods accomplish the same task, they use either a loop or recursion • More than one way to skin a cat!

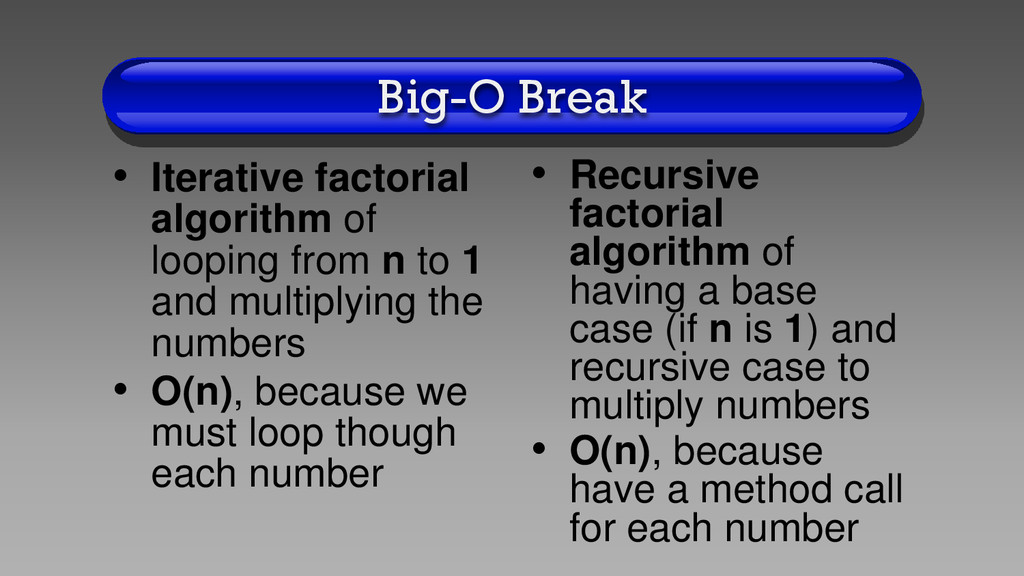

7. Big-O Break • Iterative factorial algorithm of looping from n to 1 and multiplying the numbers • O(n), because we must loop though each number • Recursive factorial algorithm of having a base case (if n is 1) and recursive case to multiply numbers • O(n), because have a method call for each number

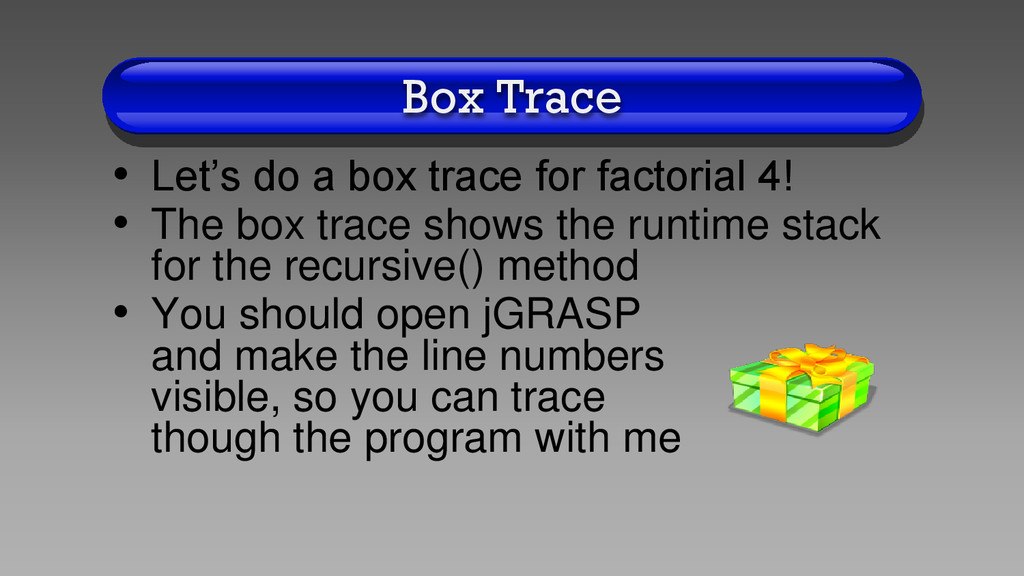

8. Box Trace • Let’s do a box trace for factorial 4! • The box trace shows the runtime stack for the recursive() method • You should open jGRASP and make the line numbers visible, so you can trace though the program with me

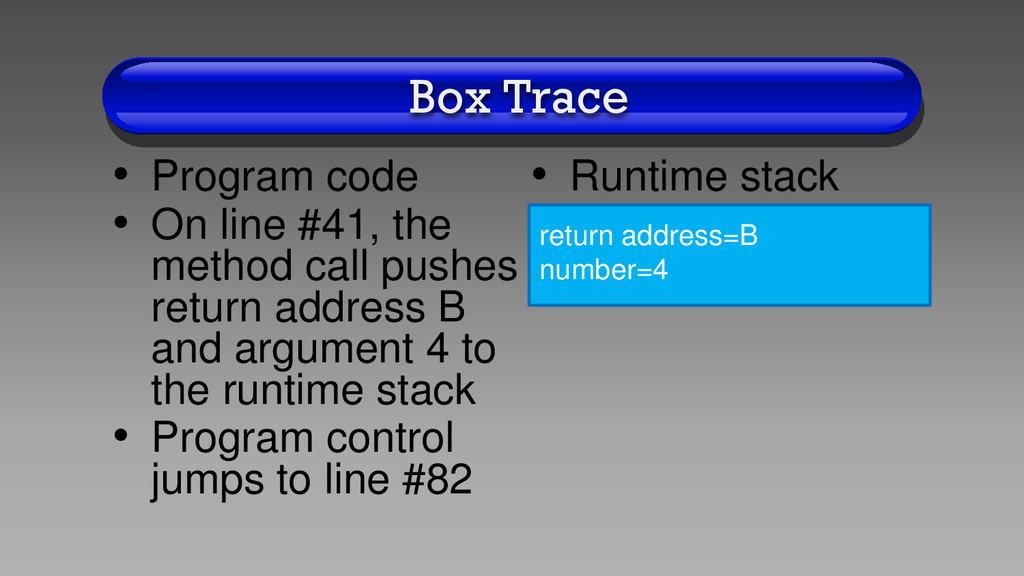

9. Box Trace • Program code • On line #41, the method call pushes return address B and argument 4 to the runtime stack • Program control jumps to line #82 • Runtime stack return address=B number=4

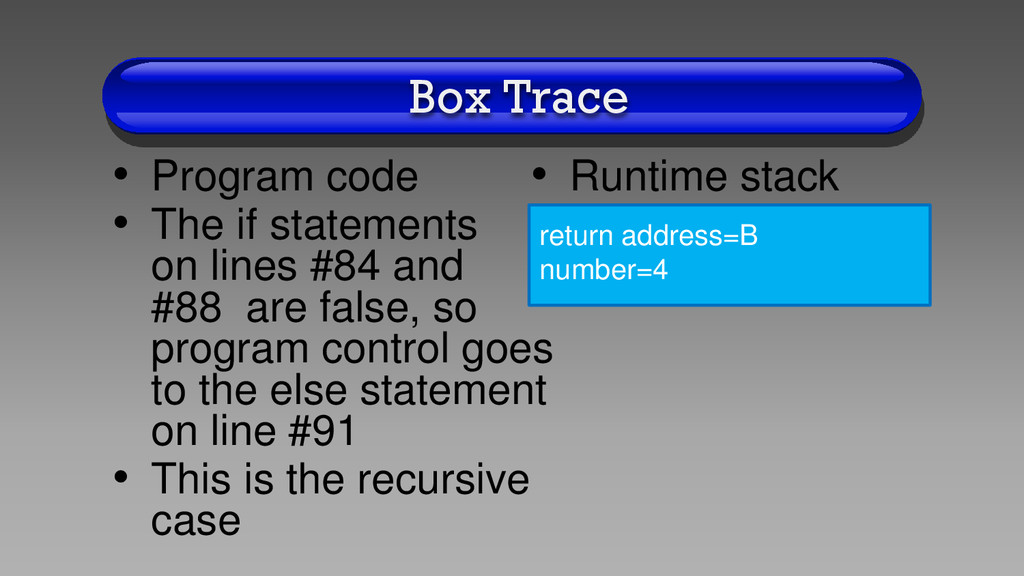

10. Box Trace • Program code • The if statements on lines #84 and #88 are false, so program control goes to the else statement on line #91 • This is the recursive case • Runtime stack return address=B number=4

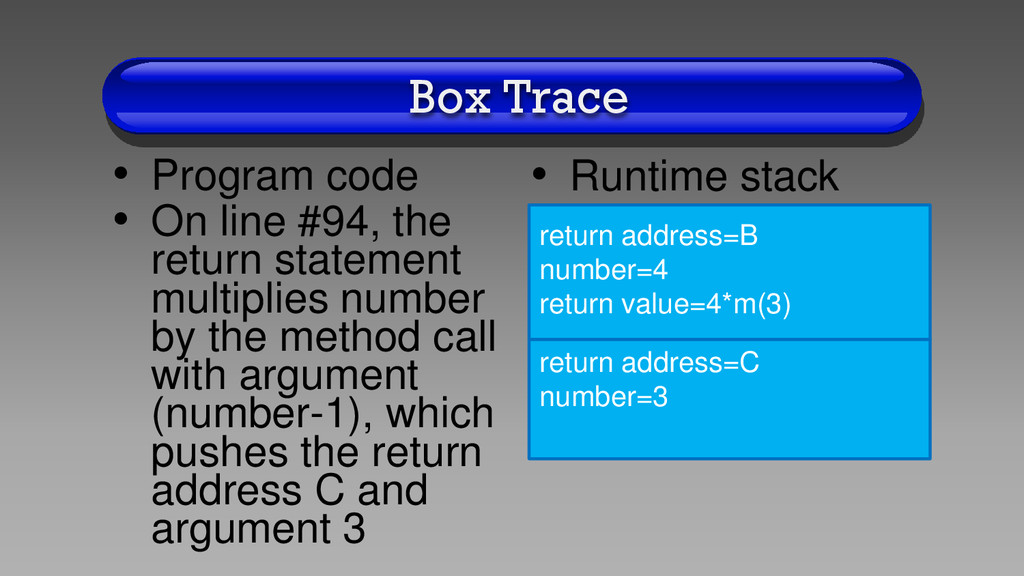

11. • Program code • On line #94, the return statement multiplies number by the method call with argument (number-1), which pushes the return address C and argument 3 • Runtime stack return address=C number=3 Box Trace return address=B number=4 return value=4*m(3)

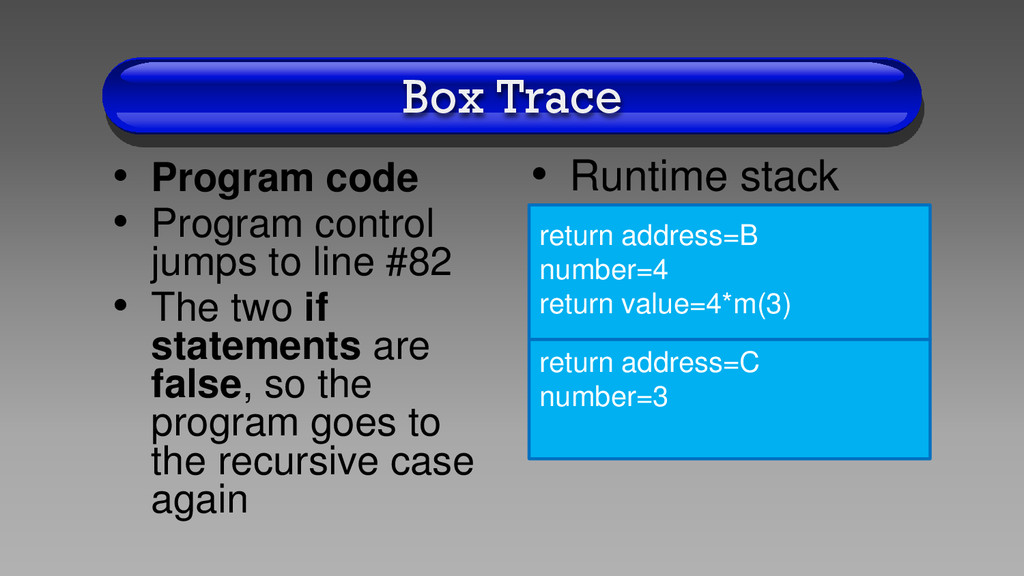

12. Box Trace • Program code • Program control jumps to line #82 • The two if statements are false, so the program goes to the recursive case again • Runtime stack return address=C number=3 return address=B number=4 return value=4*m(3)

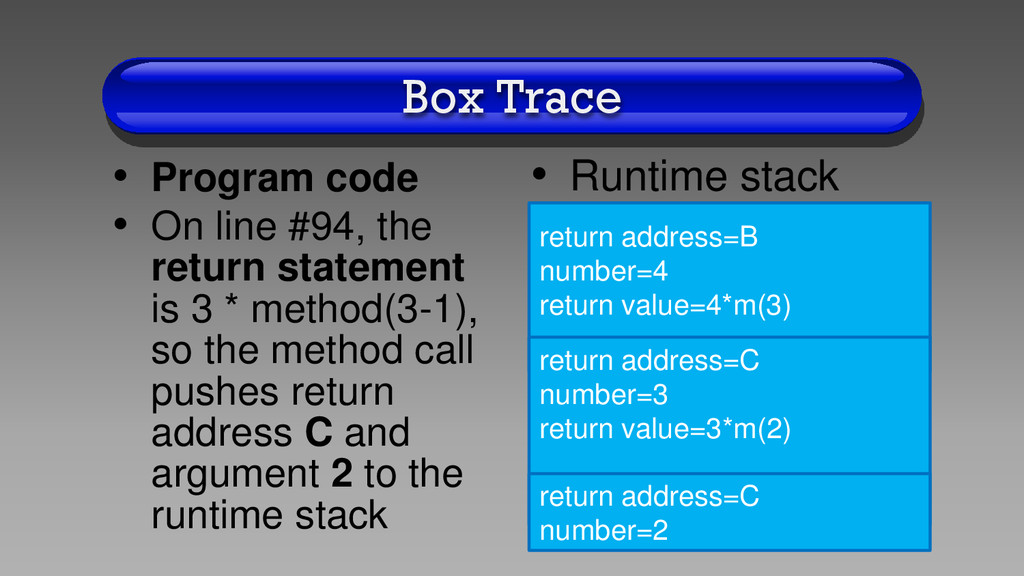

13. Box Trace • Program code • On line #94, the return statement is 3 * method(3-1), so the method call pushes return address C and argument 2 to the runtime stack • Runtime stack return address=B number=4 return value=4*m(3) return address=C number=3 return value=3*m(2) return address=C number=2

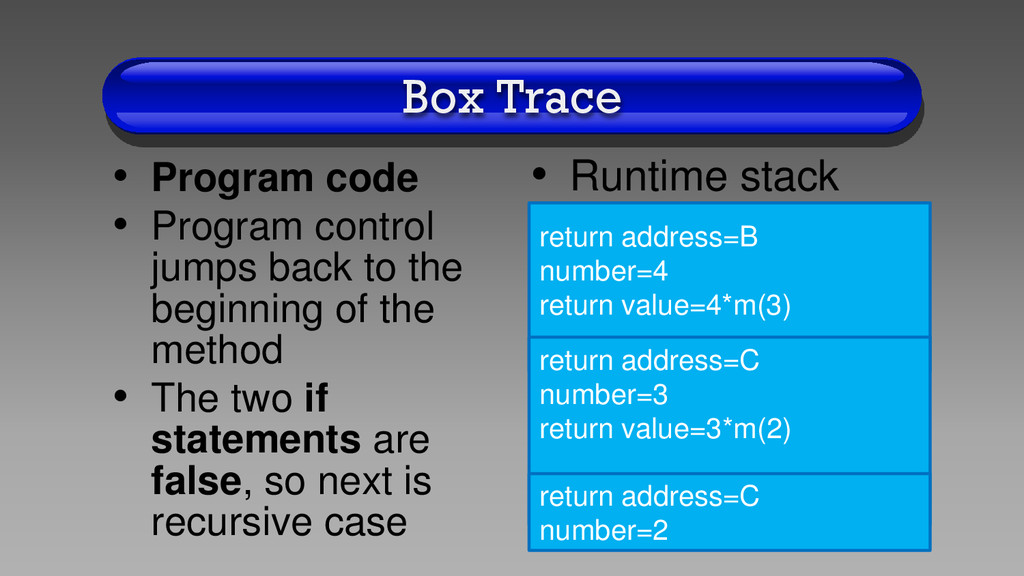

14. Box Trace • Program code • Program control jumps back to the beginning of the method • The two if statements are false, so next is recursive case • Runtime stack return address=B number=4 return value=4*m(3) return address=C number=3 return value=3*m(2) return address=C number=2

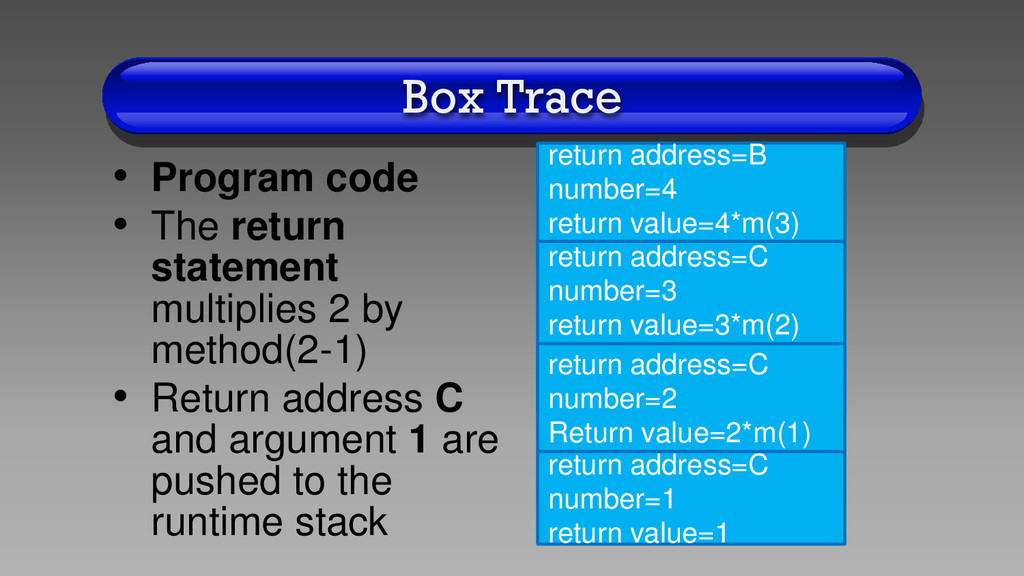

15. Box Trace • Program code • The return statement multiplies 2 by method(2-1) • Return address C and argument 1 are pushed to the runtime stack return address=C number=1 return value=1 return address=B number=4 return value=4*m(3) return address=C number=3 return value=3*m(2) return address=C number=2 Return value=2*m(1)

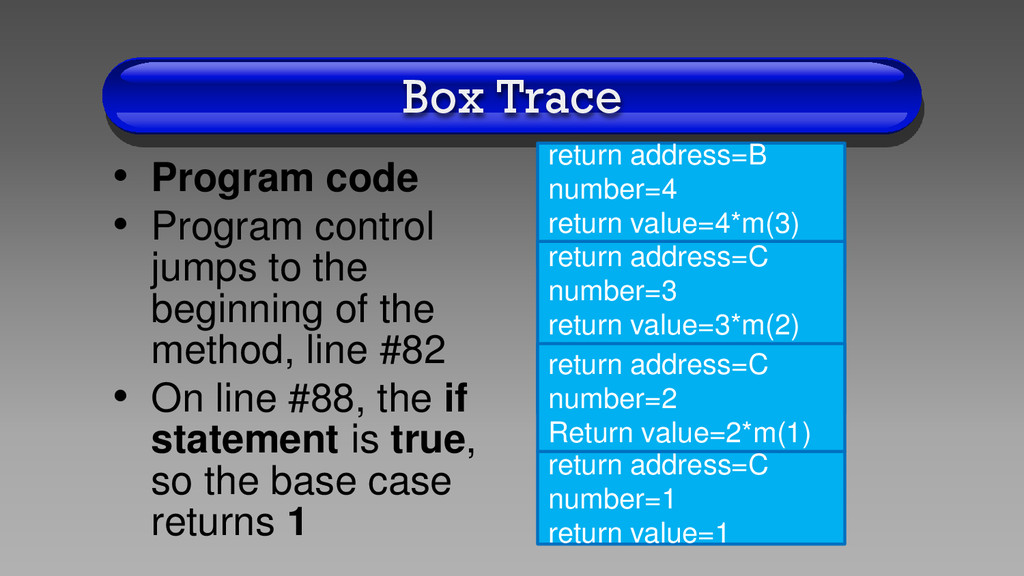

16. Box Trace • Program code • Program control jumps to the beginning of the method, line #82 • On line #88, the if statement is true, so the base case returns 1 return address=C number=1 return value=1 return address=B number=4 return value=4*m(3) return address=C number=3 return value=3*m(2) return address=C number=2 Return value=2*m(1)

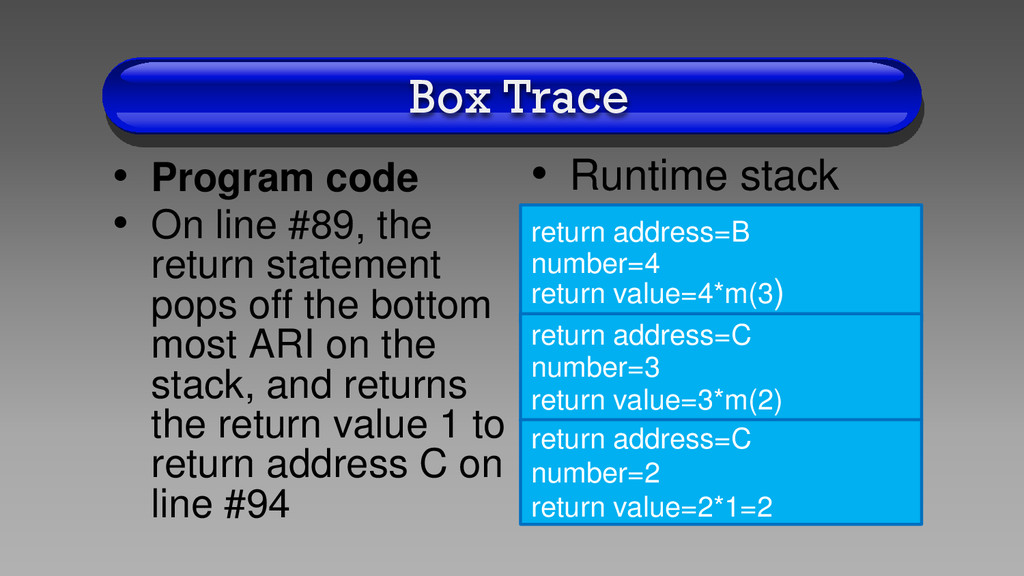

17. • Program code • On line #89, the return statement pops off the bottom most ARI on the stack, and returns the return value 1 to return address C on line #94 return address=B number=4 return value=4*m(3) return address=C number=3 return value=3*m(2) return address=C number=2 return value=2*1=2 • Runtime stack Box Trace

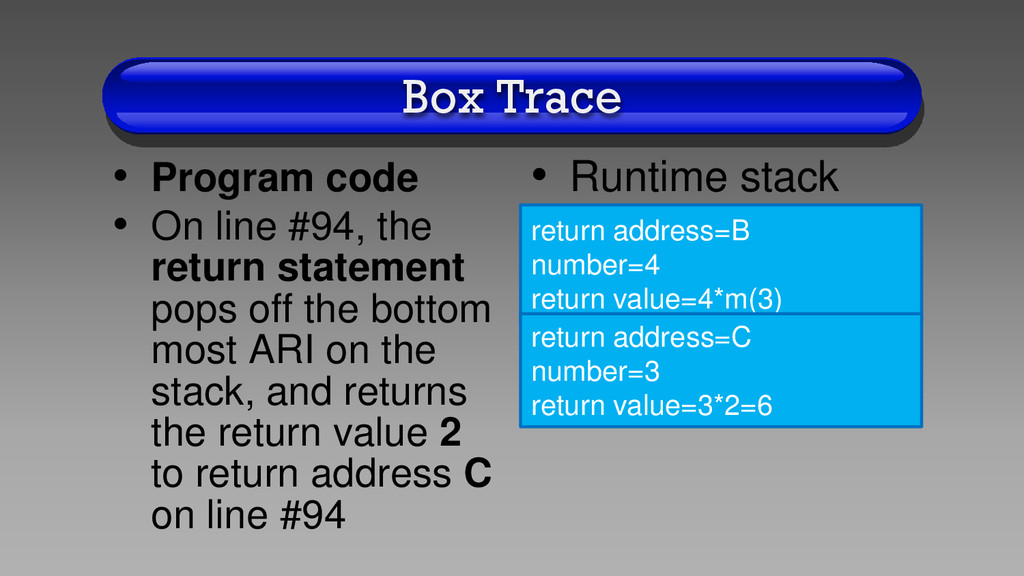

18. Box Trace • Program code • On line #94, the return statement pops off the bottom most ARI on the stack, and returns the return value 2 to return address C on line #94 return address=B number=4 return value=4*m(3) return address=C number=3 return value=3*2=6 • Runtime stack

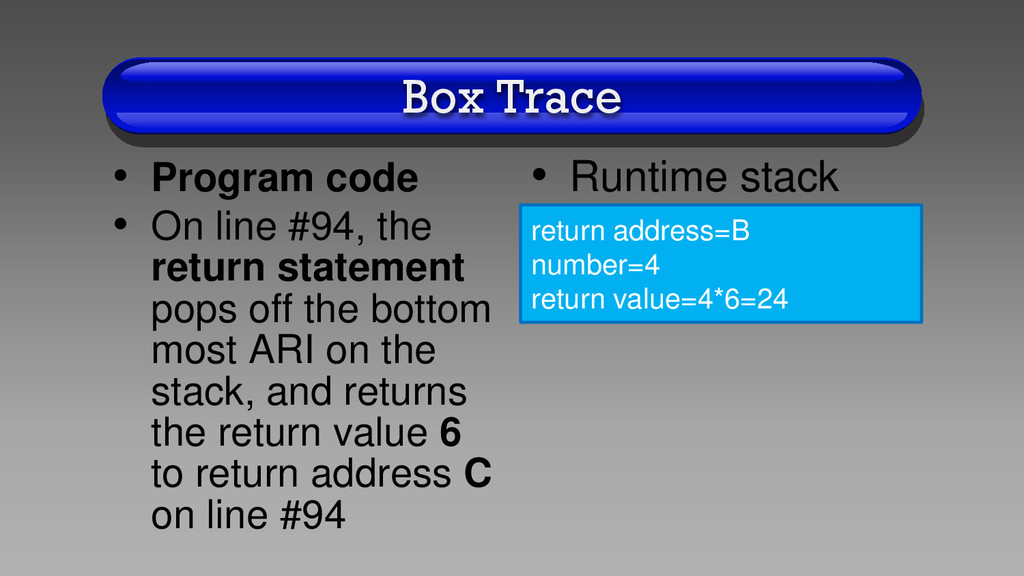

19. Box Trace • Program code • On line #94, the return statement pops off the bottom most ARI on the stack, and returns the return value 6 to return address C on line #94 return address=B number=4 return value=4*6=24 • Runtime stack

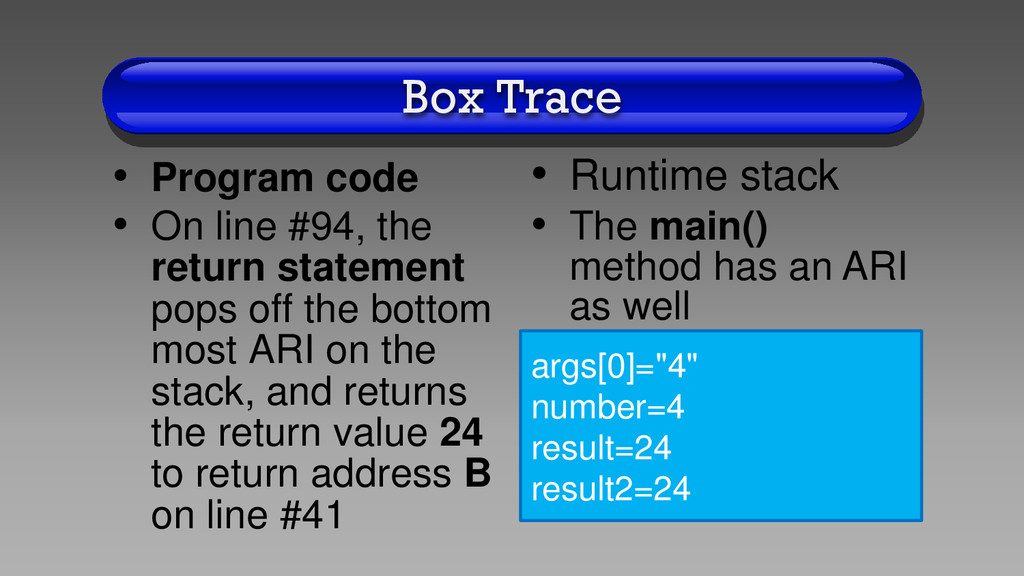

20. Box Trace • Program code • On line #94, the return statement pops off the bottom most ARI on the stack, and returns the return value 24 to return address B on line #41 • Runtime stack • The main() method has an ARI as well args[0]="4" number=4 result=24 result2=24

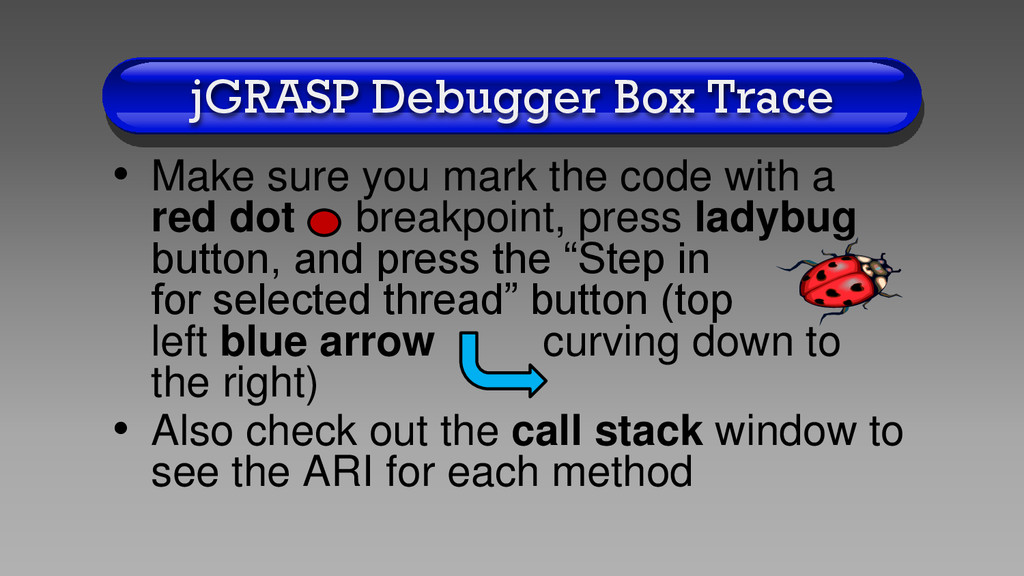

21. jGRASP Debugger Box Trace • Make sure you mark the code with a red dot breakpoint, press ladybug button, and press the “Step in for selected thread” button (top left blue arrow curving down to the right) • Also check out the call stack window to see the ARI for each method

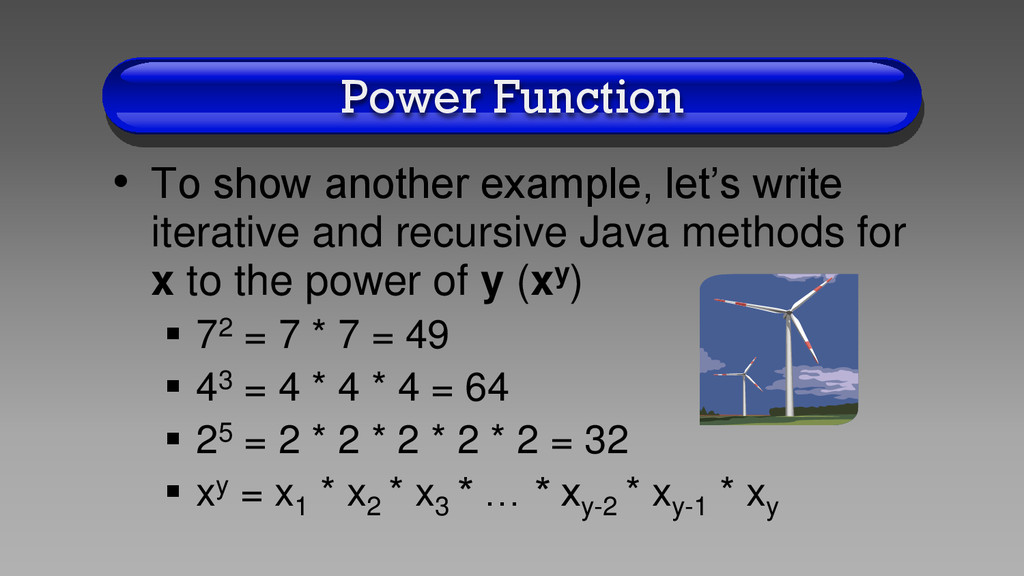

22. Power Function • To show another example, let’s write iterative and recursive Java methods for x to the power of y (xy)  72 = 7 * 7 = 49  43 = 4 * 4 * 4 = 64  25 = 2 * 2 * 2 * 2 * 2 = 32  xy = x1 * x2 * x3 * … * xy-2 * xy-1 * xy

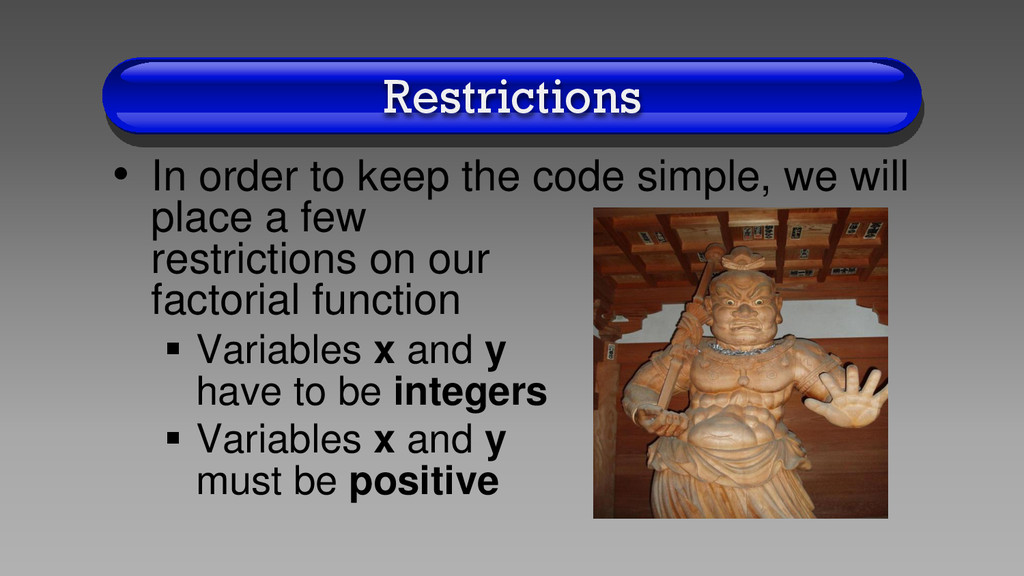

23. Restrictions • In order to keep the code simple, we will place a few restrictions on our factorial function  Variables x and y have to be integers  Variables x and y must be positive

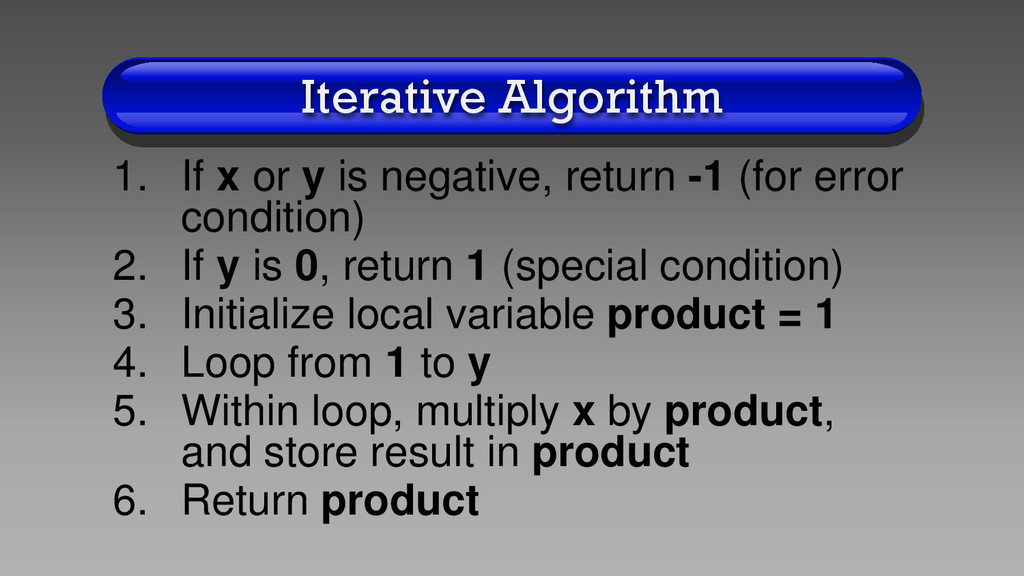

24. Iterative Algorithm 1. If x or y is negative, return -1 (for error condition) 2. If y is 0, return 1 (special condition) 3. Initialize local variable product = 1 4. Loop from 1 to y 5. Within loop, multiply x by product, and store result in product 6. Return product

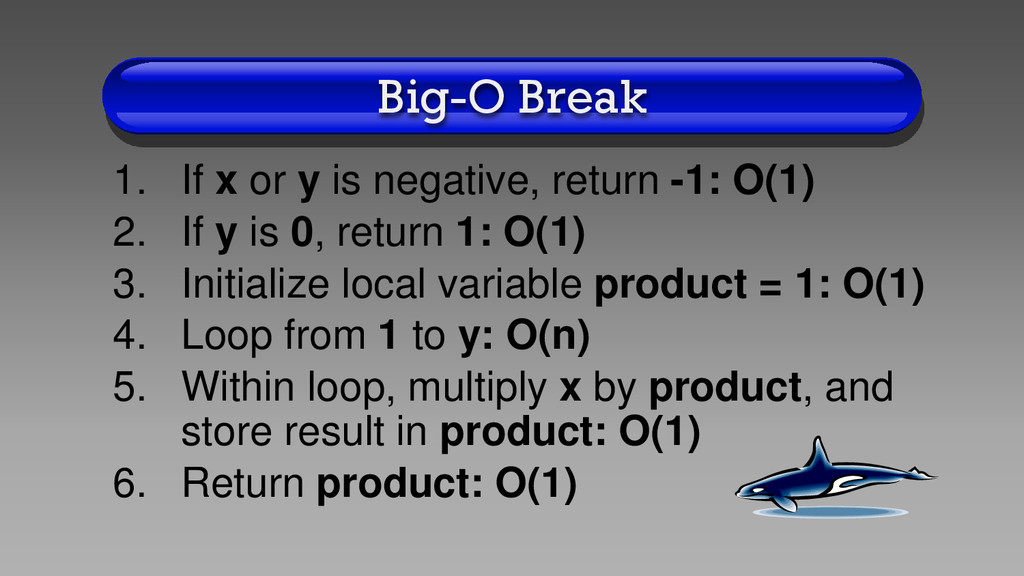

25. Big-O Break 1. If x or y is negative, return -1: O(1) 2. If y is 0, return 1: O(1) 3. Initialize local variable product = 1: O(1) 4. Loop from 1 to y: O(n) 5. Within loop, multiply x by product, and store result in product: O(1) 6. Return product: O(1)

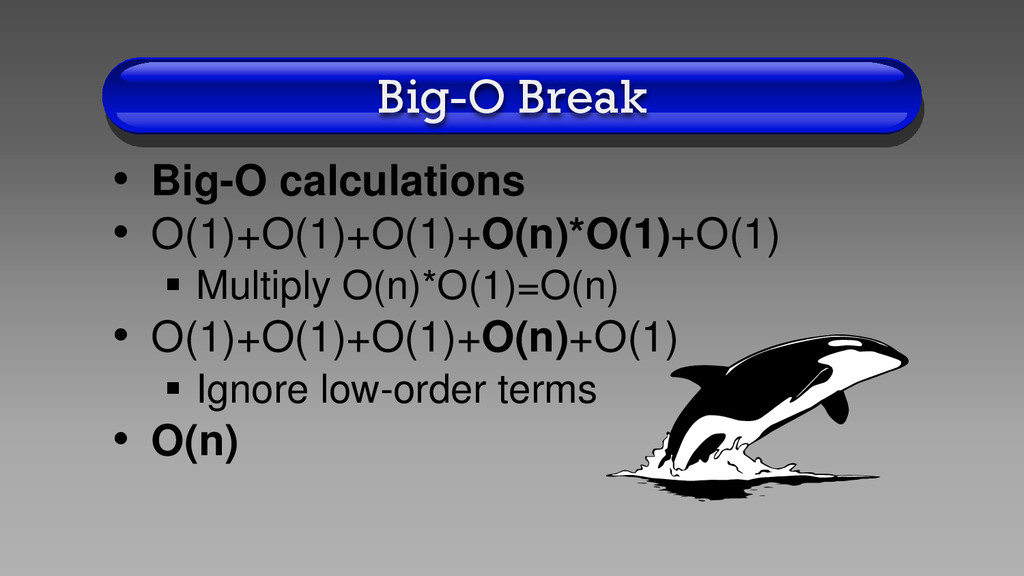

26. Big-O Break • Big-O calculations • O(1)+O(1)+O(1)+O(n)*O(1)+O(1)  Multiply O(n)*O(1)=O(n) • O(1)+O(1)+O(1)+O(n)+O(1)  Ignore low-order terms • O(n)
27. Example Code • See method iterative() in the Powers.java program  Don’t forget that we need two integers in the commandline input

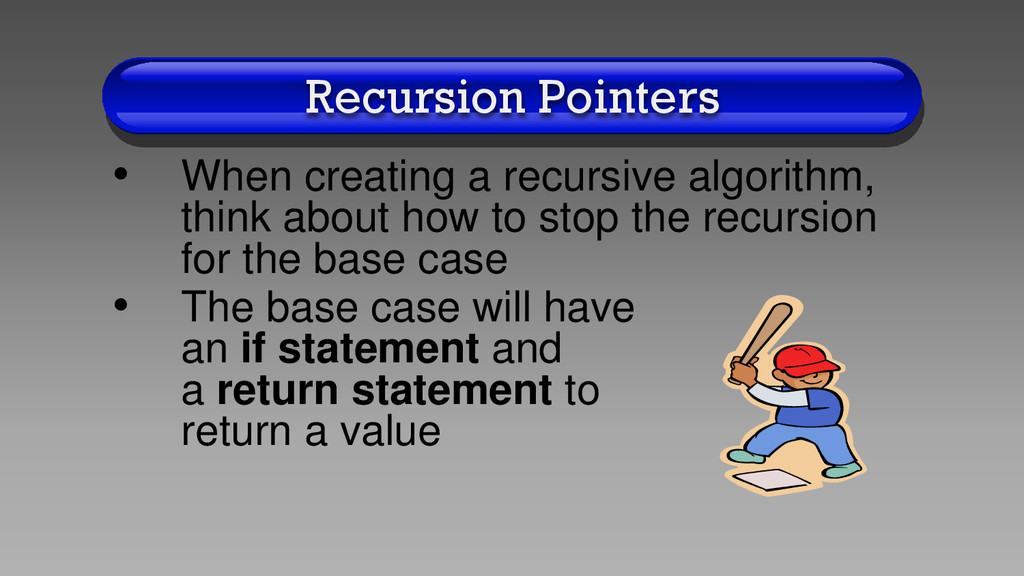

28. Recursion Pointers • When creating a recursive algorithm, think about how to stop the recursion for the base case • The base case will have an if statement and a return statement to return a value
29. Recursion Pointers • For the recursive case, you need to make the problem smaller • This usually involves subtracting a number or letter from a variable • The return statement has the method call for the same method, but the argument in the method call should be a smaller value

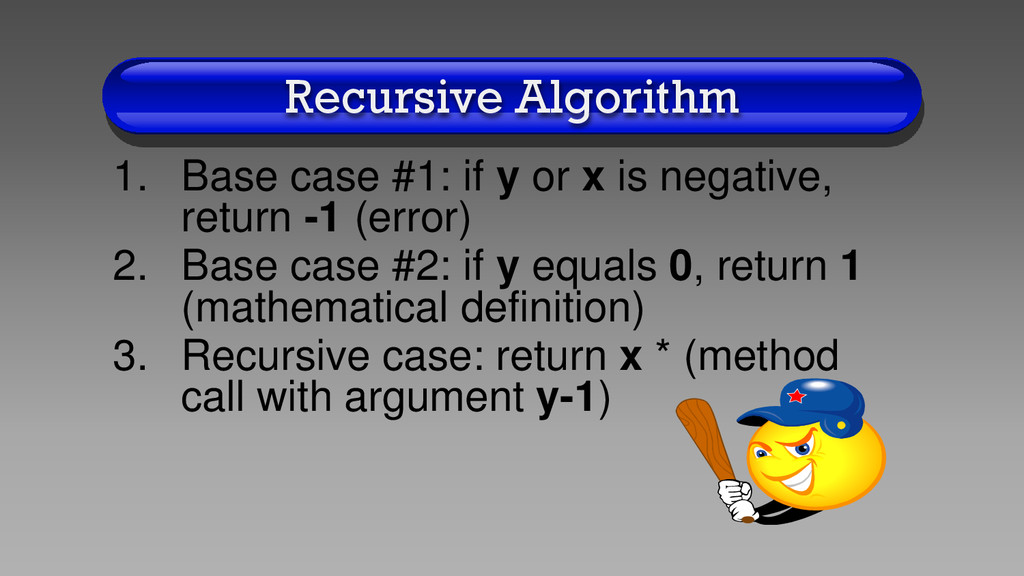

30. Recursive Algorithm 1. Base case #1: if y or x is negative, return -1 (error) 2. Base case #2: if y equals 0, return 1 (mathematical definition) 3. Recursive case: return x * (method call with argument y-1)

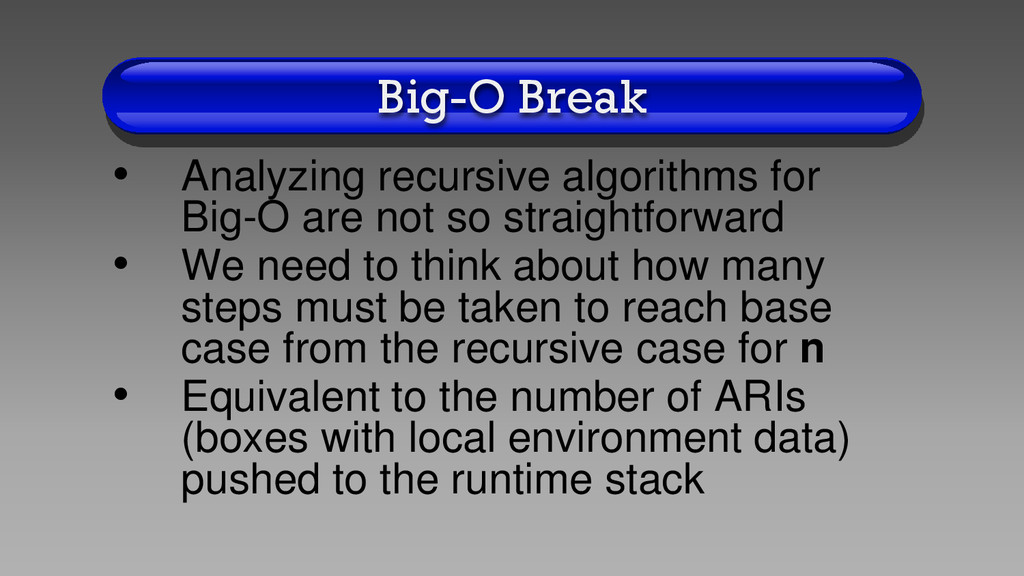

31. Big-O Break • Analyzing recursive algorithms for Big-O are not so straightforward • We need to think about how many steps must be taken to reach base case from the recursive case for n • Equivalent to the number of ARIs (boxes with local environment data) pushed to the runtime stack

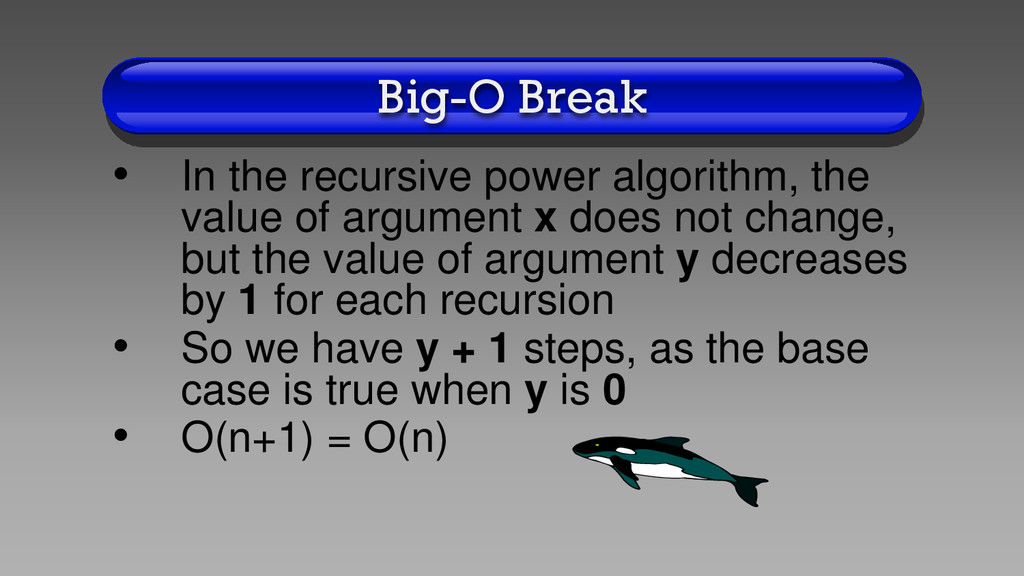

32. Big-O Break • In the recursive power algorithm, the value of argument x does not change, but the value of argument y decreases by 1 for each recursion • So we have y + 1 steps, as the base case is true when y is 0 • O(n+1) = O(n)
33. Example Code • See method recursive() in the Powers.java program  Don’t forget that we need two integers for the commandline input

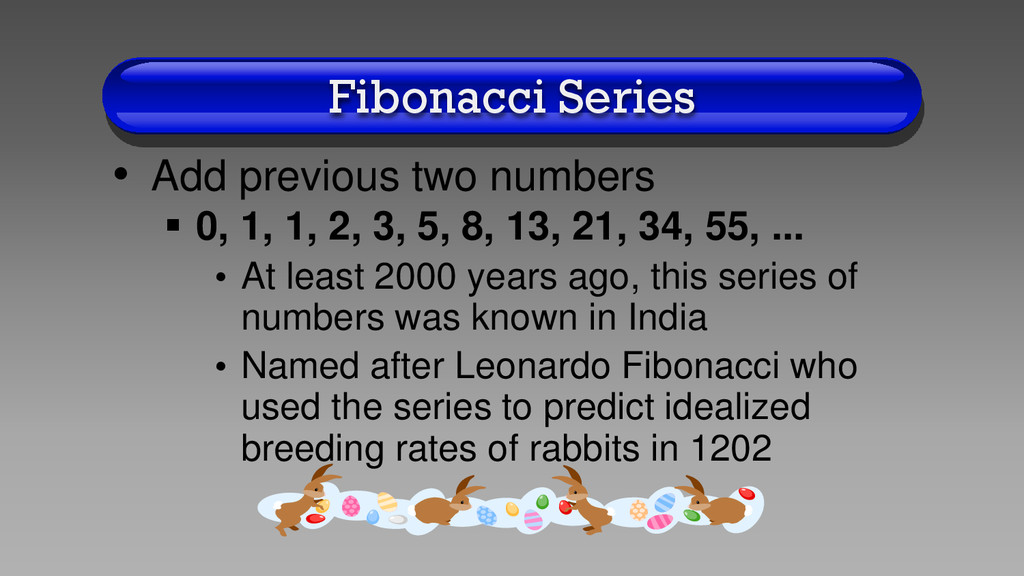

34. Fibonacci Series • Add previous two numbers  0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, ... • At least 2000 years ago, this series of numbers was known in India • Named after Leonardo Fibonacci who used the series to predict idealized breeding rates of rabbits in 1202

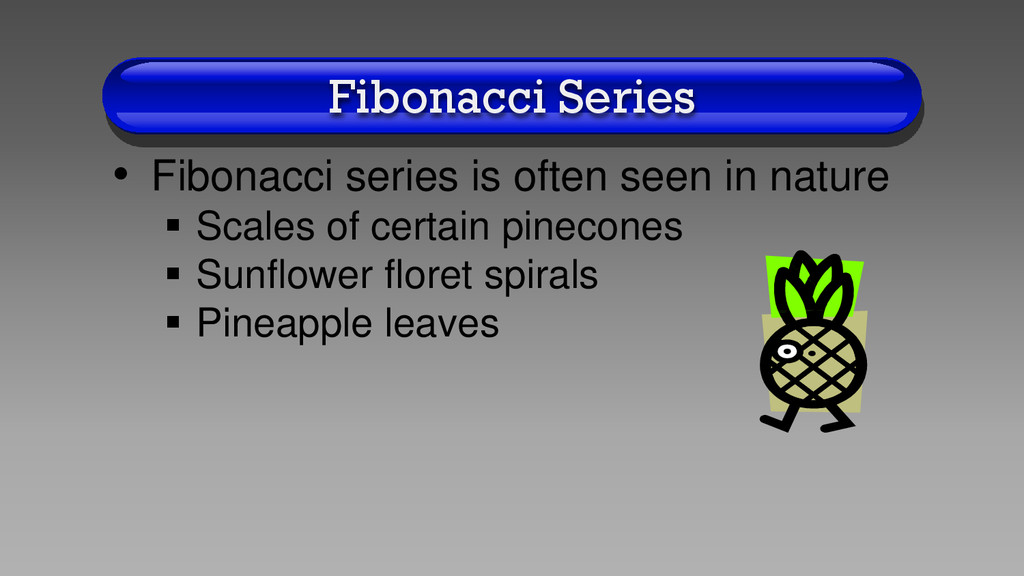

35. Fibonacci Series • Fibonacci series is often seen in nature  Scales of certain pinecones  Sunflower floret spirals  Pineapple leaves
36. Fibonacci Examples • Sunflower florets • Pinecone scales
37. Fibonacci Examples • Pineapple leaves • Silversword leaves

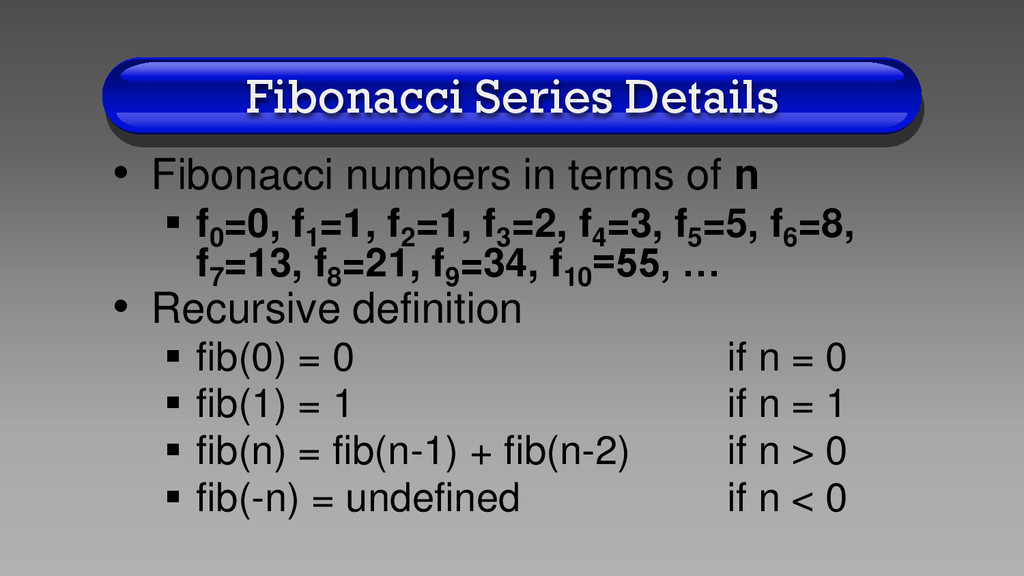

38. Fibonacci Series Details • Fibonacci numbers in terms of n  f0 =0, f1 =1, f2 =1, f3 =2, f4 =3, f5 =5, f6 =8, f7 =13, f8 =21, f9 =34, f10 =55, … • Recursive definition  fib(0) = 0 if n = 0  fib(1) = 1 if n = 1  fib(n) = fib(n-1) + fib(n-2) if n > 0  fib(-n) = undefined if n < 0

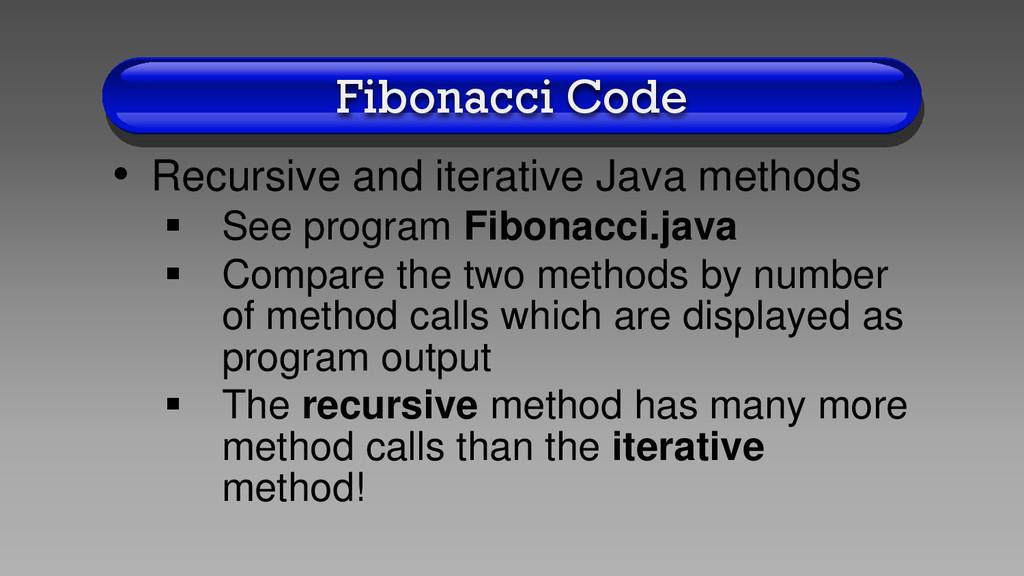

39. Fibonacci Code • Recursive and iterative Java methods  See program Fibonacci.java  Compare the two methods by number of method calls which are displayed as program output  The recursive method has many more method calls than the iterative method!

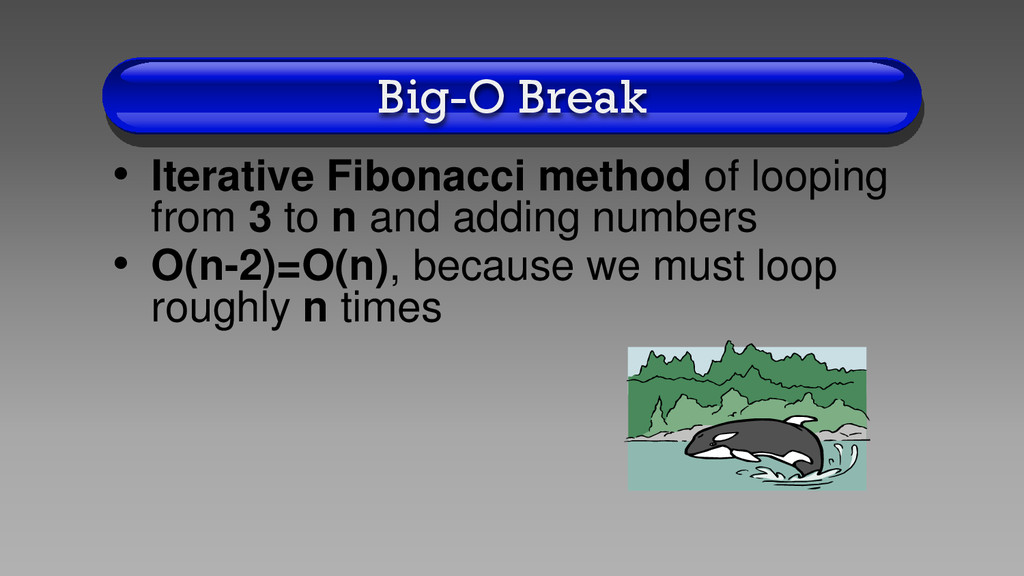

40. Big-O Break • Iterative Fibonacci method of looping from 3 to n and adding numbers • O(n-2)=O(n), because we must loop roughly n times
41. Big-O Break • Recursive Fibonacci method of calling two methods for each recursion • O(2n), because we have to double the number of method calls each time n increases by 1 (one) • This is an example of exponential Big- O, which has a very long runtime

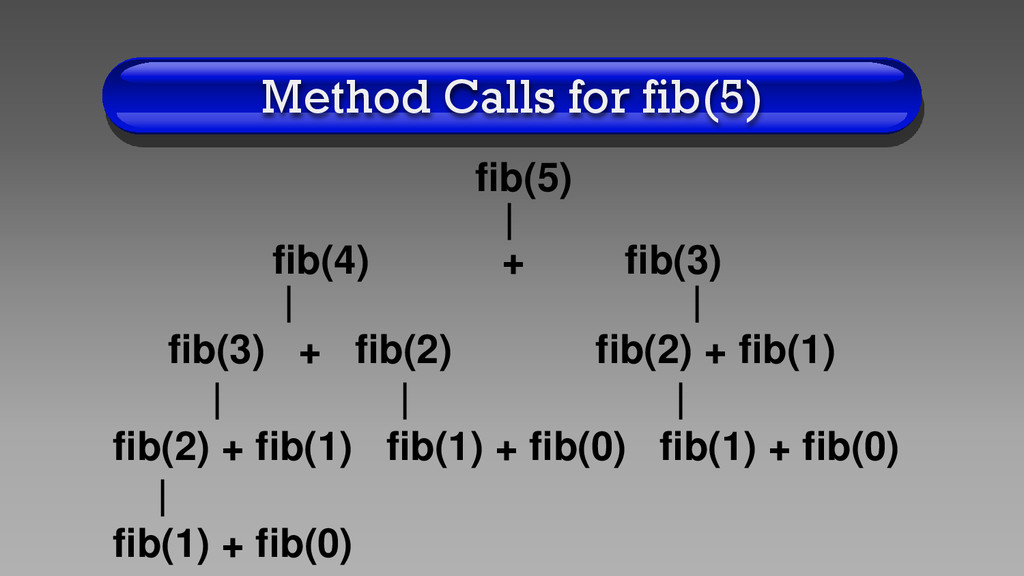

42. Method Calls for fib(5) fib(5) | fib(4) + fib(3) | | fib(3) + fib(2) fib(2) + fib(1) | | | fib(2) + fib(1) fib(1) + fib(0) fib(1) + fib(0) | fib(1) + fib(0)

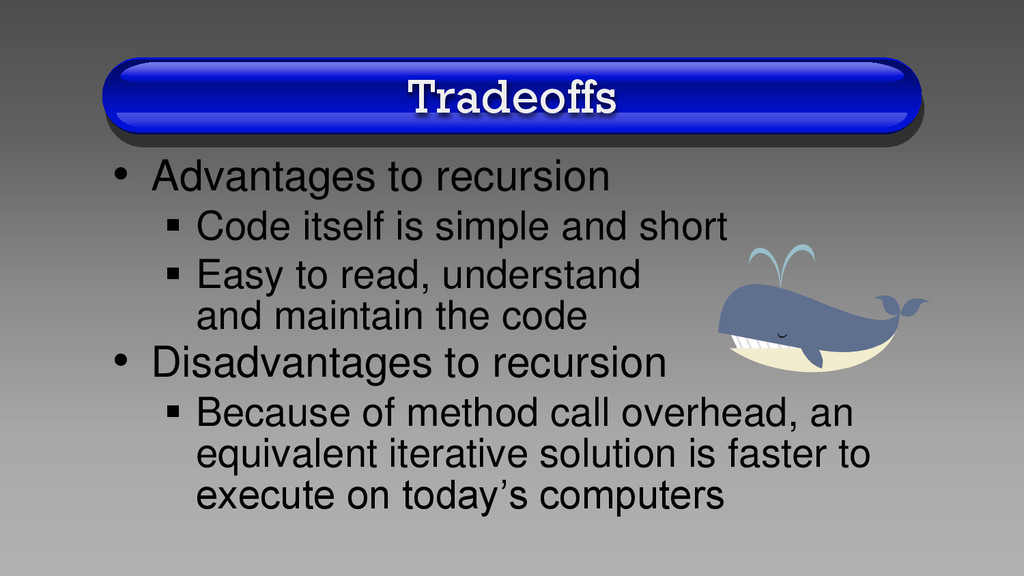

43. Tradeoffs • Advantages to recursion  Code itself is simple and short  Easy to read, understand and maintain the code • Disadvantages to recursion  Because of method call overhead, an equivalent iterative solution is faster to execute on today’s computers

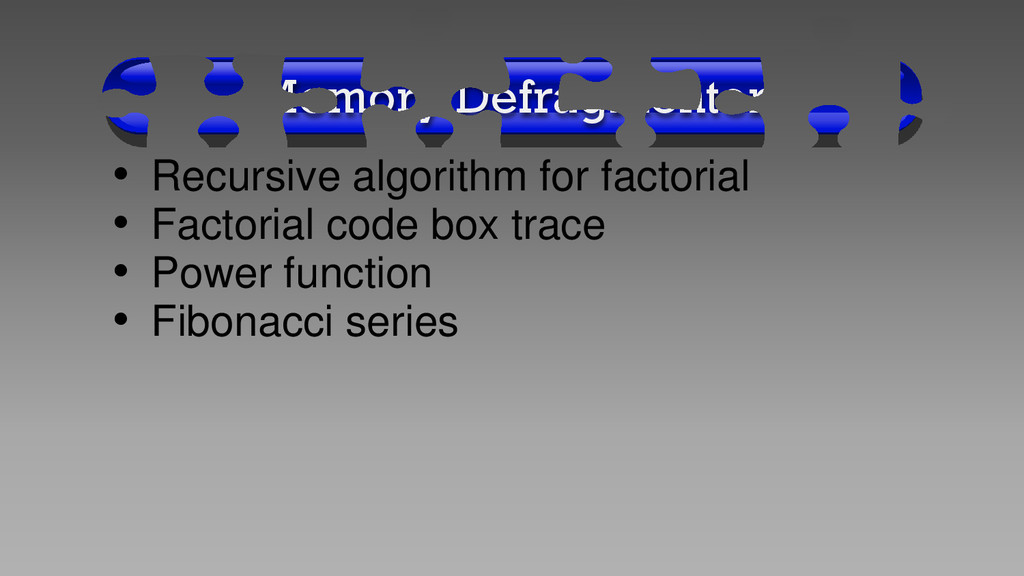

44. Memory Defragmenter • Recursive algorithm for factorial • Factorial code box trace • Power function • Fibonacci series

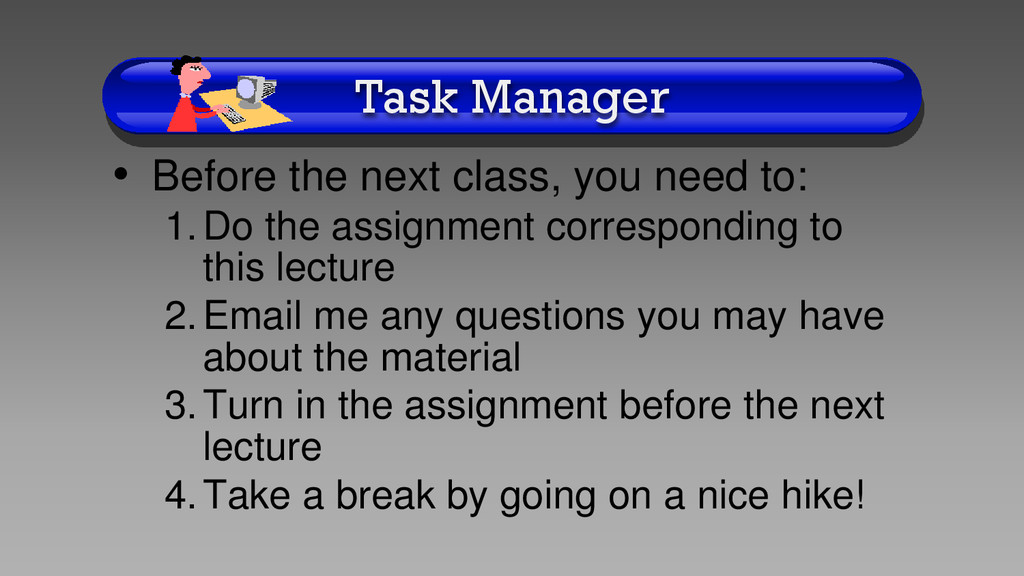

45. Task Manager • Before the next class, you need to: 1.Do the assignment corresponding to this lecture 2.Email me any questions you may have about the material 3.Turn in the assignment before the next lecture 4.Take a break by going on a nice hike!
