1. Unified Payment Service Bumjune (Robert) Kim
2. Contents 1. Service stack 2. The purpose of the service 3. Service layer 4. Service flow 5. Function
3. Service stack Backend - Spring framework(MVC), maven, Mybatis Frontend - Javascript, jQuery Database - RDBMS(Oracle) Deployment & WebServer - AWS or IDC, Ubuntu - nginx, tomcat - Hudson IDE - Eclipse Helios
4. The purpose of the service To integrate payment systems and provide various payment methods <BEFORE> books video music books video music <AFTER> store server payment system store server Unified Payment
5. Service layer Samsung Apps(Books, Music etc..) Store Application Unified Payment APK. Chrome Web View Unified Payment is a hybrid application on ChromeWebView
6. Service flow 1. contents buy button click 2. move to Unified Payment service and select payment method.
7. Service flow 3. select payment method you want 4. Also you can use available giftcards or vouchers
8. Service flow 5. click confirm check box and then buy button click 6. move to PG vender page and pay.

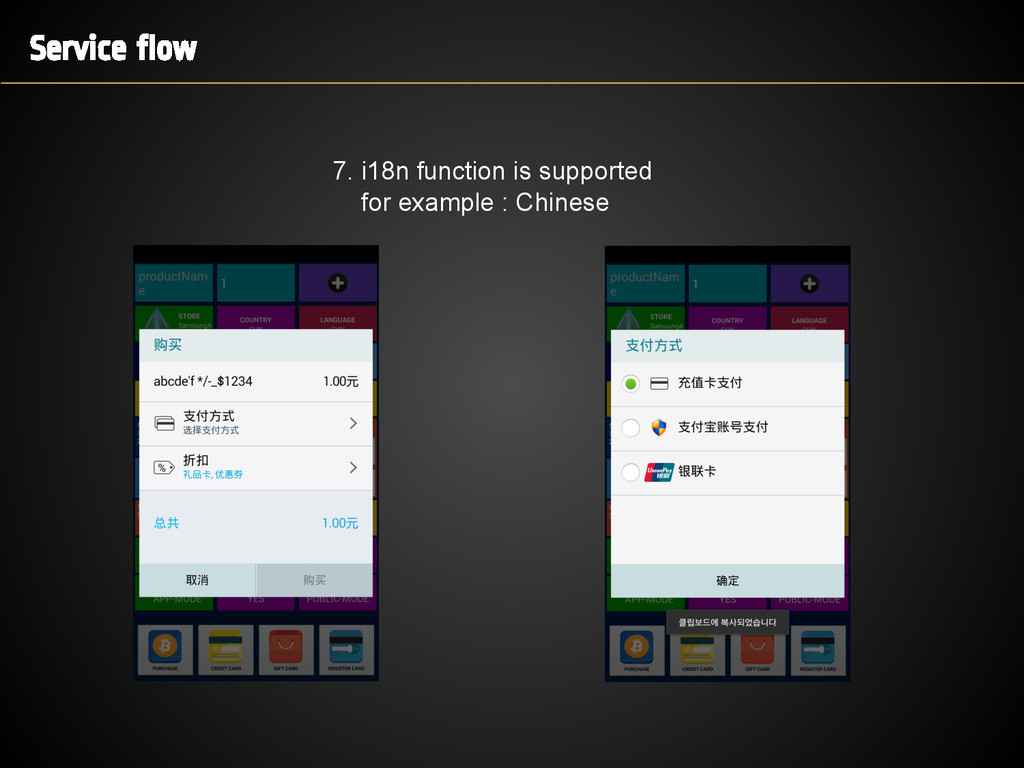

9. Service flow 7. i18n function is supported for example : Chinese
10. Function 1. Basically, this is a paying module to buy contents on samsung apps 2. Multi Language 3. Currency part( currency sign, decimal point etc.) 4. Giftcard & Voucher register and use. 5. Supports various payment methods in the countries for example - China : Alipay, SINA, Prepaid Card - Switzerland : Swisscom - Japan : WebMoney, Docomo - Russia : QIWI, mCommerce - etc other countries
