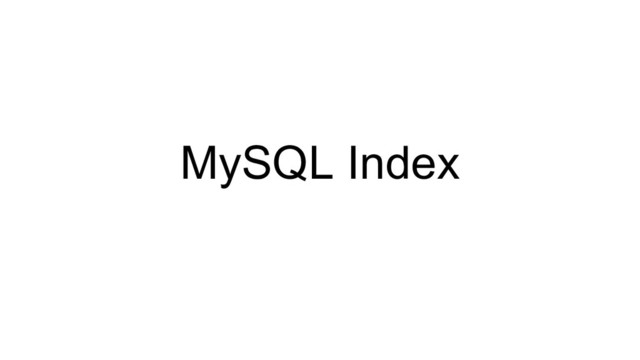

1. MySQL Index
2. MySQL Server Overview Clients Connection/Thread Handler Query Cache Parser Optimizer Storage Engine (InnoDB)
3. What is a Database Index? • a data structure that improves the speed of data retrieval operations on a database table at the cost of additional writes and storage space to maintain the index data structure (Wikipedia)
4. How Table Data Is Stored 19 17 15 13 0C 06 Field Start Offsets /* First Row */ 00 00 78 0D 02 BF Extra Bytes 00 00 00 00 04 21 System Column #1 00 00 00 00 09 2A System Column #2 80 00 00 00 2D 00 84 System Column #3 50 50 Field1 'PP' 50 50 Field2 'PP' 50 50 Field3 'PP' 16 15 14 13 0C 06 Field Start Offsets /* Second Row */ 00 00 80 0D 02 E1 Extra Bytes 00 00 00 00 04 22 System Column #1 00 00 00 00 09 2B 80 System Column #2 00 00 00 2D 00 84 System Column #3 51 Field1 'Q' 51 Field2 'Q' 51 Field3 'Q' 94 94 14 13 0C 06 Field Start Offsets /* Third Row */ 00 00 88 0D 00 74 Extra Bytes 00 00 00 00 04 23 System Column #1 00 00 00 00 09 2C System Column #2 80 00 00 00 2D 00 84 System Column #3 52 Field1 'R' CREATE TABLE T (FIELD1 VARCHAR(3), FIELD2 VARCHAR(3), FIELD3 VARCHAR(3)) Type=InnoDB; INSERT INTO T VALUES ('PP', 'PP', 'PP'); INSERT INTO T VALUES ('Q', 'Q', 'Q'); INSERT INTO T VALUES ('R', NULL, NULL);
5. B+tree Node • N-1 keys • N references to child node • All keys are sorted Leaf node • points to data in the disk • same distance from the root B+ Tree with N = 100 with tree depth 5 can support 10,000,000,000 records
6. B+tree (Read) • Read 10 • Read 5 • Read 10 ~ 15
7. B+tree (Insert) • Insert 6 • Insert 30 6 30 30
8. Benefits of Indexes • Reduce the amount of scan on the disk • Avoid sorting • Random IO -> Sequential IO
9. Why Not Index Every Column(Index shotgun!) • Some are never used • Takes space on the disk and memory buffer • Overhead during insert/update/delete • Overhead from query optimizer
10. Types of Indexes • Clustered (primary key) ◦ Leaf node holds physical page of the row • Secondary ◦ Leaf node holds primary key value and selected column • Composite (multicolumn) ◦ index(a,b) • Covering ◦ all data selected in query are ‘covered’ by indexes • Fulltext Index (CHAR, VARCHAR, TEXT) ◦ Inverted index (not b+tree)
11. Composite Index CREATE TABLE test ( id INT NOT NULL, last_name CHAR(30) NOT NULL, first_name CHAR(30) NOT NULL, PRIMARY KEY (id), INDEX name (last_name,first_name) ); Good SELECT * FROM test WHERE last_name='Widenius' AND first_name='Michael'; SELECT * FROM test WHERE last_name='Widenius' AND (first_name='Michael' OR first_name='Monty'); Bad SELECT * FROM test WHERE first_name='Michael'; SELECT * FROM test WHERE last_name='Widenius' OR first_name='Michael';
12. Covering Index • all data selected in query are ‘covered’ by indexes CREATE TABLE test2 ( id INT NOT NULL, Continent CHAR(30) NOT NULL, Population CHAR(30) NOT NULL, Name CHAR(30) NOT NULL, PRIMARY KEY (id), INDEX name (Contient ,Population, Name) ); Good SELECT Name FROM test2 WHERE Continent=’Asia’' AND Population > 100000; Bad SELECT * FROM test2 WHERE Continent='Asia';
13. Fulltext Index (Inverted Index)
14. Selecting Primary Key • Best Choice (in my opinion): unsigned int with auto_increment • “Natural” keys such as social security number • UUID/GUID/MD5 • No PK
15. Index Design • Design index around queries • Profile slow queries • Dive deep with analysis tool
16. Questions?
17. Cost of Sparse Column • A column that mostly holds NULL and rarely holds real data
