DNS Security

Different types of attacks concerning DNS and their mitigation

Transcript

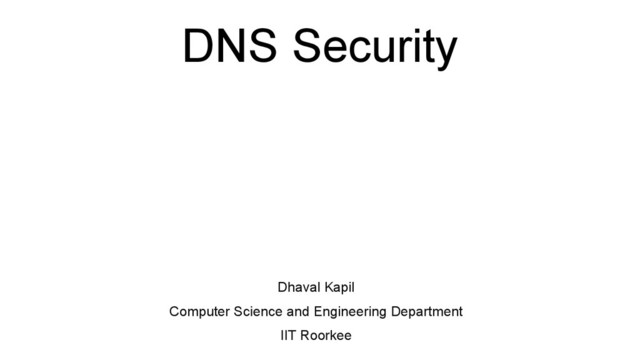

1. DNS Security
   Dhaval Kapil
   Computer Science and Engineering Department
   IIT Roorkee


   View Slide

2. Flow of the presentation
   ● About DNS
   ● Working of DNS
   ● Flaws in design of DNS
   ● Threats involving DNS
   ● Mitigation of these threats


   View Slide

3. Domain Name Service
   http://www.codeguru.com/cpp/sample_chapter/article.
   php/c12013/Sample-Chapter-Domain-Name-System.htm


   View Slide

4. About DNS
   ● Hierarchical distributed naming system for computers
   ● Mapping of 'domain name' and 'IP address'
   ● Internet’s primary directory service


   View Slide

5. Working of DNS
   DNS Server:
   ■ Information about domain names stored in text files called zones
   ■ Listens on UDP port 53 for name resolution queries
   ■ Listens on TCP port 53 for zone transfer queries
   DNS Client:
   ■ Runs a service - resolver
   ■ Handles interaction with DNS Server for resolving domain names and IP
   addresses through records


   View Slide

6. Flaws in the design of DNS
   ● Designed without any security considerations
   ● Was initially designed for small networks with trusted hosts
   ● No check for authenticity and integrity added
   ● Unfortunately with growth of network DNS remained
   unchanged
   ● Resulted in lots of threats because of the above issues


   View Slide

7. Threats involving DNS
   1. Zone File Compromise
   2. Zone Information Leakage/DNS Footprinting
   3. DNS Amplification Attack
   4. DNS Client flooding
   5. DNS Cache poisoning
   6. DNS Vulnerabilities in Shared Host Environments
   7. DNS Man in the Middle Attacks - DNS Hijacking
   8. Typosquatting


   View Slide

8. Zone File Compromise
   ● Administrator can directly interact with DNS Server
   ● Command line or GUI interface provided for configuration of
   DNS records
   ● In this attack, the attacker first gains direct access to the
   server
   Security measure: Restrict access to DNS server


   View Slide

9. Zone Information Leakage/DNS Footprinting
   ● Zone Transfer: DNS Server passing a copy of its database
   (called “zone”) to another DNS Server.
   ● Slave DNS Servers ask for zone transfer from Master DNS
   Server
   ● Attacker pretends to be a Slave DNS Server
   ● DNS records reveal about the topology of the network
   Security measure: Restrict zone transfers to particular IP
   addresses or use any other kind of authentication


   View Slide

10. DNS Amplification Attack
    ● Genuine DNS servers used to perform DOS attack on victim
    host
    ● Attacker sends DNS request packets to a genuine DNS
    Server with source IP spoofed as victim’s IP.
    ● Amplified responses go to victim.


    View Slide

11. DNS Client Flooding
    ● Attacker sends a flood of DNS packets to the DNS server
    ● Preferably request for invalid domains
    ● The DNS server tries to spend all of its resources on finding
    the IP
    ● Resources exhausted for legitimate requests


    View Slide

12. DNS Cache Poisoning
    https://jfdm.host.cs.st-andrews.ac.uk/notes/netsec/


    View Slide

13. DNS Vulnerabilities in Shared Host
    Environments
    http://www.net-security.org/dl/articles/Attacking_the_DNS_Protocol.pdf


    View Slide

14. DNS Man in the Middle Attacks - DNS Hijacking
    http://www.net-security.org/dl/articles/Attacking_the_DNS_Protocol.pdf


    View Slide

15. Typosquatting
    ● The practice of registering a domain name that is confusingly
    similar to an existing popular brand
    ● The attacker registers similar sounding domain names.
    ● This threat does not target a particular victim.


    View Slide

16. DNSSEC (Domain Name System Security
    Extensions)
    ● Around 1994, the IETF started a discussion to make DNS
    secure by adding a set of extensions to it.
    ● Backward compatibility ensured
    ● Performance issues kept in mind
    ● Provides authentication and integrity to DNS
    ● Unfortunately still not widely adopted


    View Slide

17. ● Widespread need of DNS in internet
    ● Original implementation didn’t consider security issues
    ● No check for authenticity and integrity
    ● To add security, IETF added security extensions DNSSEC
    Conclusion


    View Slide
