  1. Security Beyond the Libraries
    Eoin Woods


    [email protected] / @eoinwoodz

    View Slide

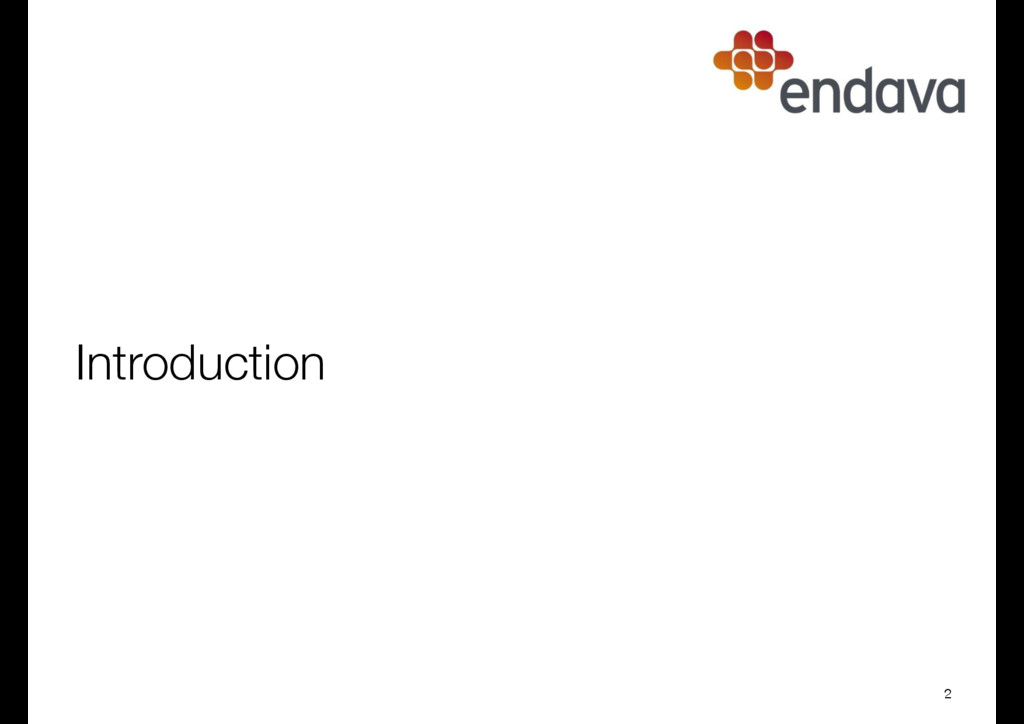

  2. Introduction

    View Slide

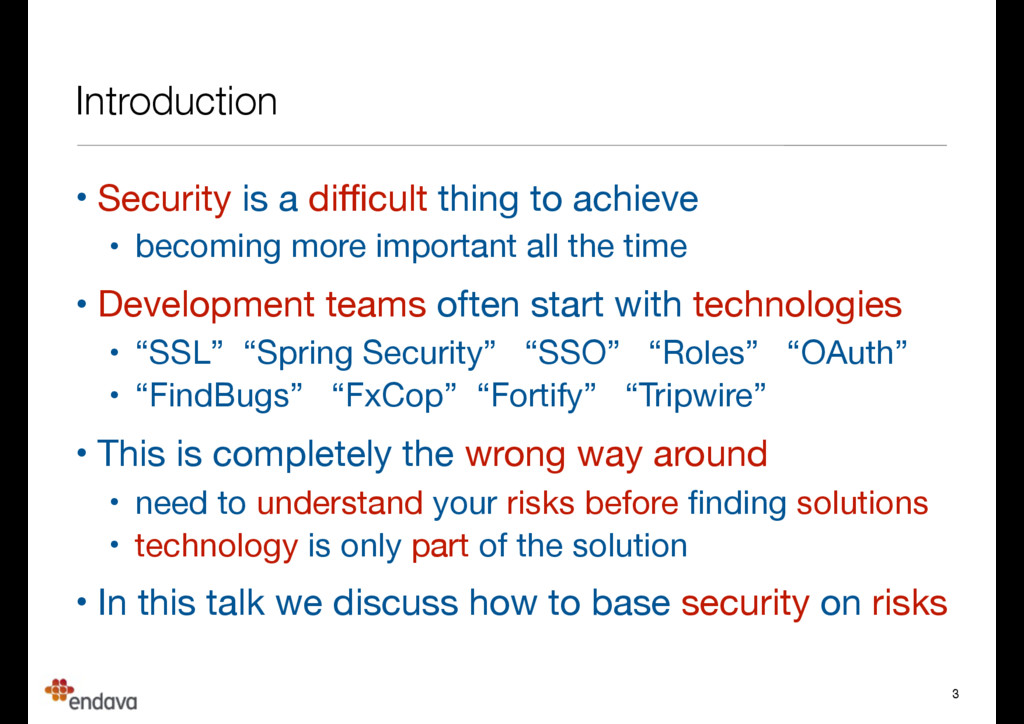

  3. Introduction
    • Security is a difficult thing to achieve

    • becoming more important all the time

    • Development teams often start with technologies

    • “SSL” “Spring Security” “SSO” “Roles” “OAuth”

    • “FindBugs” “FxCop” “Fortify” “Tripwire”

    • This is completely the wrong way around

    • need to understand your risks before finding solutions

    • technology is only part of the solution

    • In this talk we discuss how to base security on risks

    View Slide

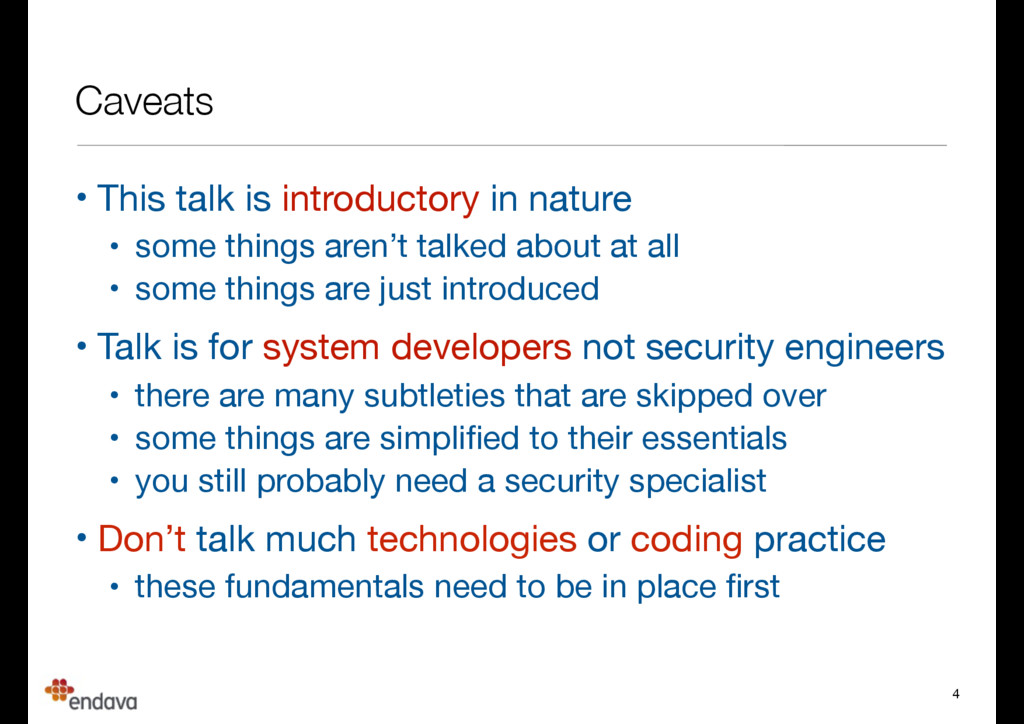

  4. Caveats
    • This talk is introductory in nature

    • some things aren’t talked about at all

    • some things are just introduced

    • Talk is for system developers not security engineers

    • there are many subtleties that are skipped over

    • some things are simplified to their essentials

    • you still probably need a security specialist

    • Don’t talk much technologies or coding practice

    • these fundamentals need to be in place first

    View Slide

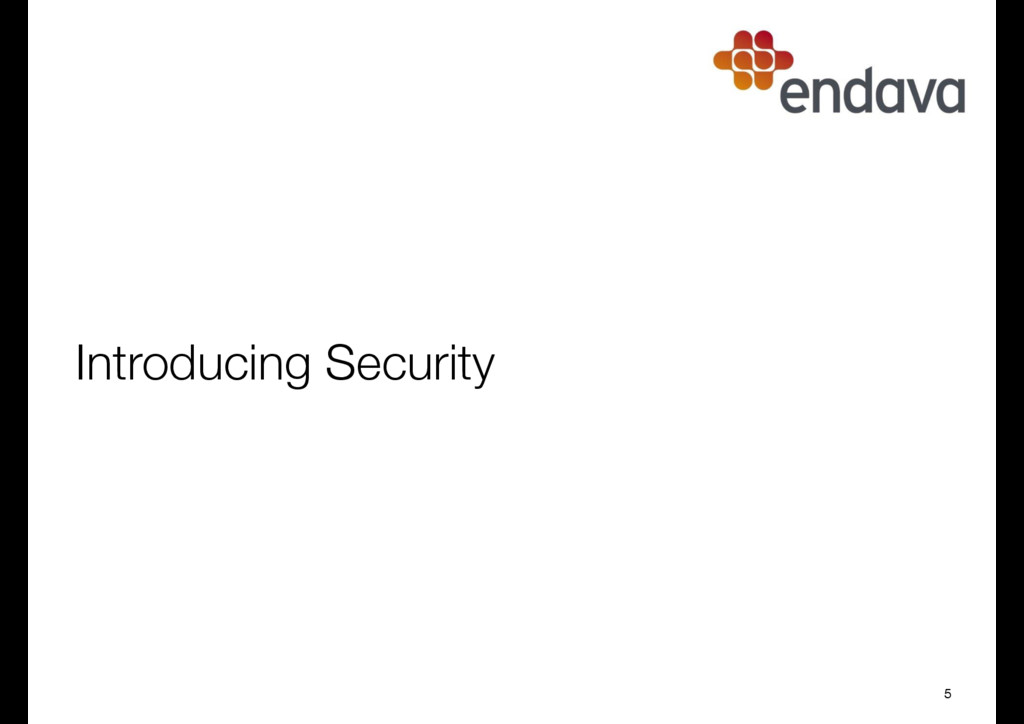

  5. Introducing Security

    View Slide

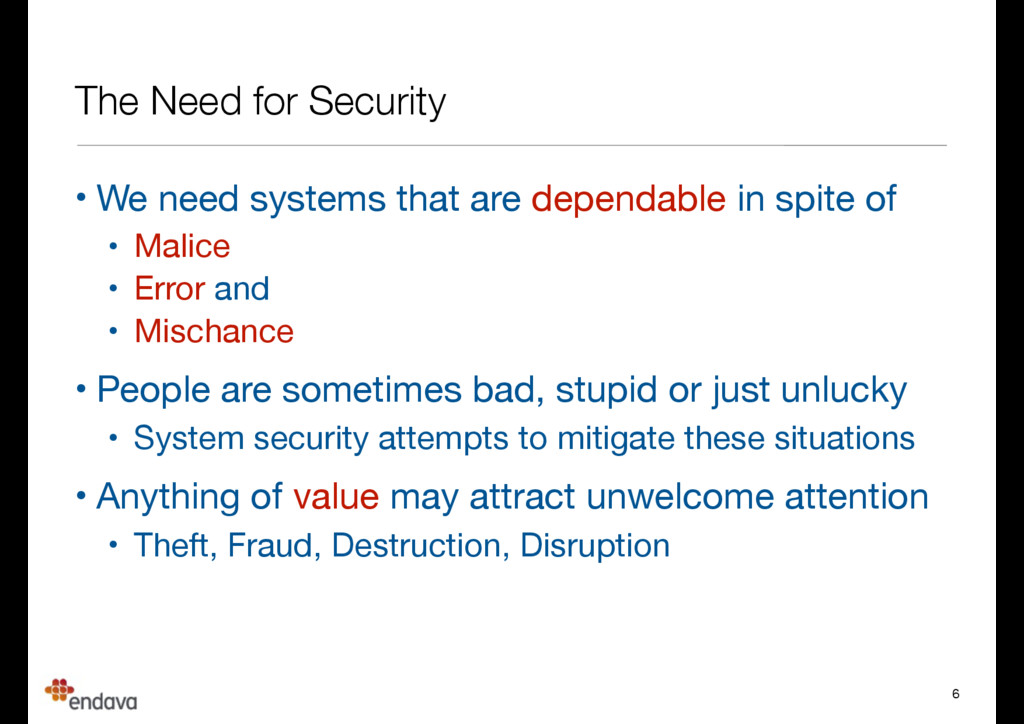

  6. The Need for Security
    • We need systems that are dependable in spite of

    • Malice

    • Error and

    • Mischance

    • People are sometimes bad, stupid or just unlucky

    • System security attempts to mitigate these situations

    • Anything of value may attract unwelcome attention

    • Theft, Fraud, Destruction, Disruption

    View Slide

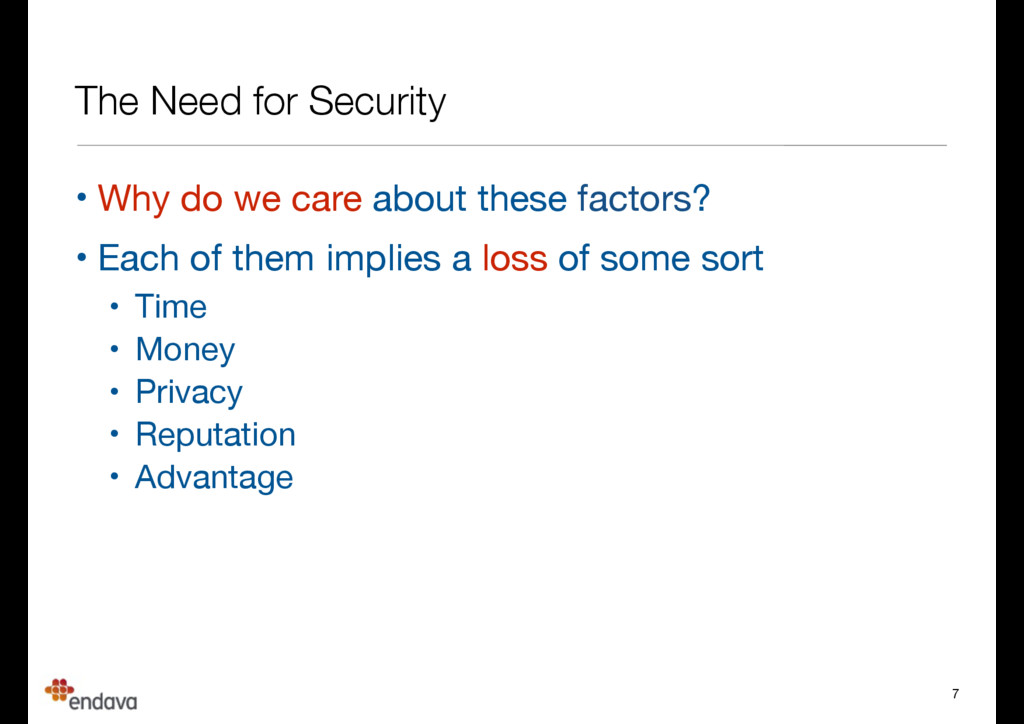

  7. The Need for Security
    • Why do we care about these factors?

    • Each of them implies a loss of some sort

    • Time

    • Money

    • Privacy

    • Reputation

    • Advantage

    View Slide

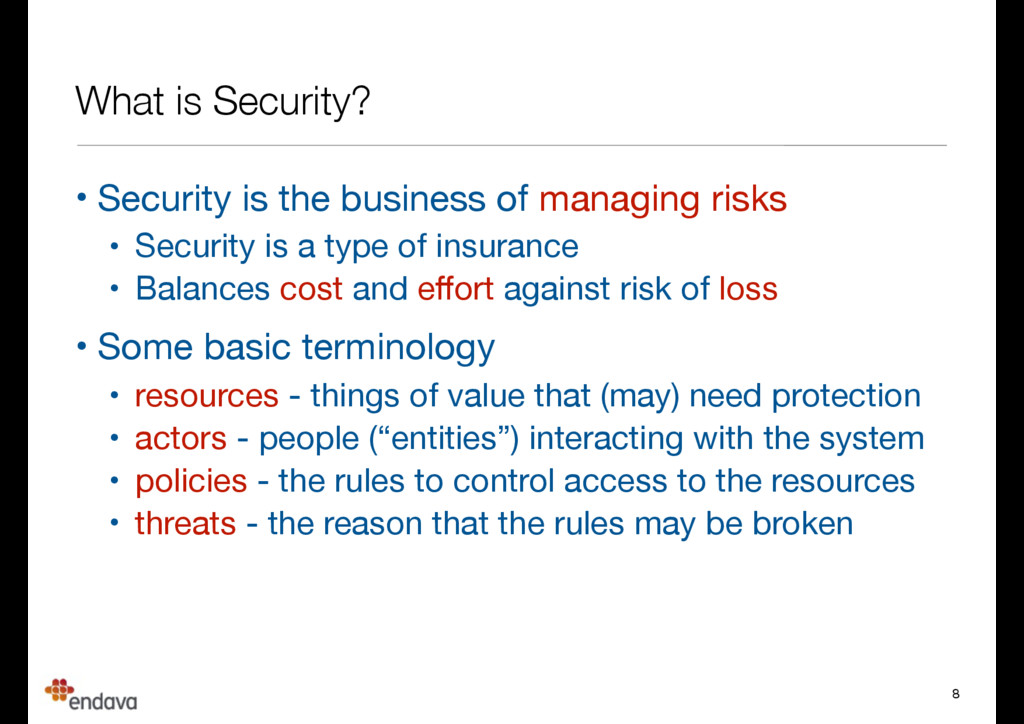

  8. What is Security?
    • Security is the business of managing risks

    • Security is a type of insurance

    • Balances cost and effort against risk of loss

    • Some basic terminology

    • resources - things of value that (may) need protection

    • actors - people (“entities”) interacting with the system

    • policies - the rules to control access to the resources

    • threats - the reason that the rules may be broken

    View Slide

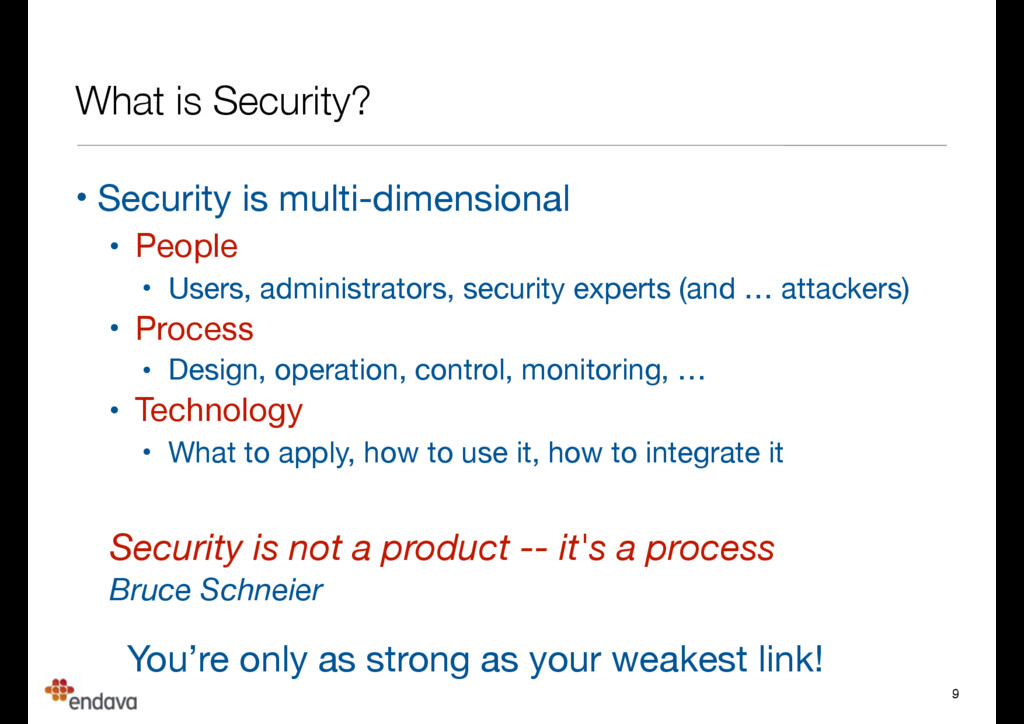

  9. What is Security?
    • Security is multi-dimensional

    • People

    • Users, administrators, security experts (and … attackers)

    • Process

    • Design, operation, control, monitoring, …

    • Technology

    • What to apply, how to use it, how to integrate it

    Security is not a product -- it's a process
    Bruce Schneier
    You’re only as strong as your weakest link!

    View Slide

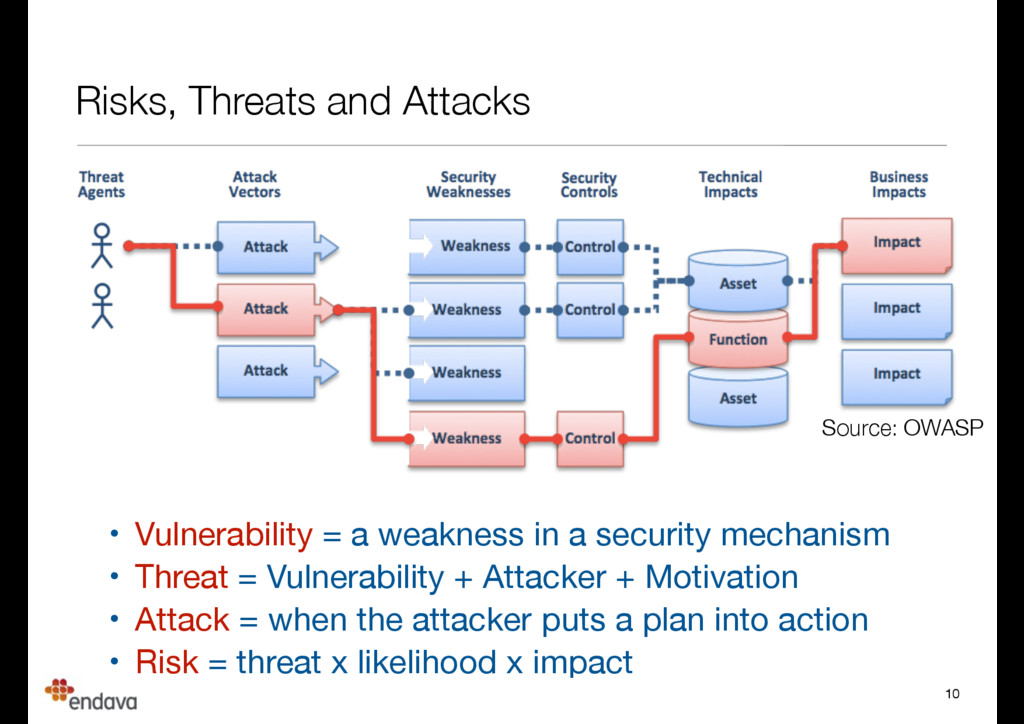

  10. Risks, Threats and Attacks
    • Vulnerability = a weakness in a security mechanism

    • Threat = Vulnerability + Attacker + Motivation

    • Attack = when the attacker puts a plan into action

    • Risk = threat x likelihood x impact
    Source: OWASP

    View Slide

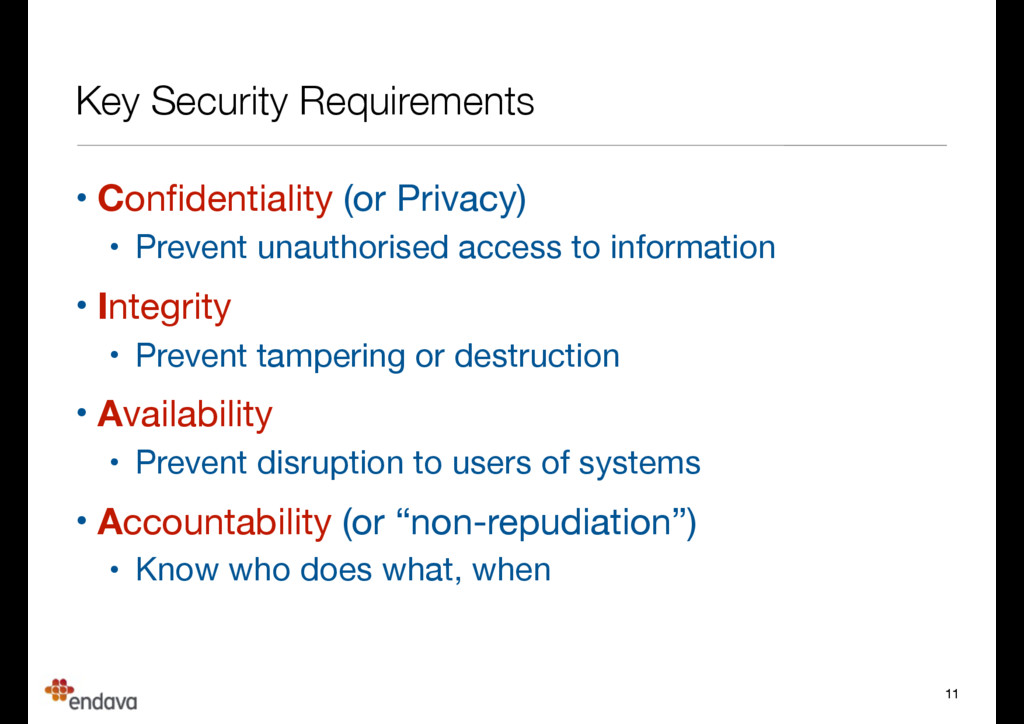

  11. Key Security Requirements
    • Confidentiality (or Privacy)

    • Prevent unauthorised access to information

    • Integrity

    • Prevent tampering or destruction

    • Availability

    • Prevent disruption to users of systems

    • Accountability (or “non-repudiation”)

    • Know who does what, when


    View Slide

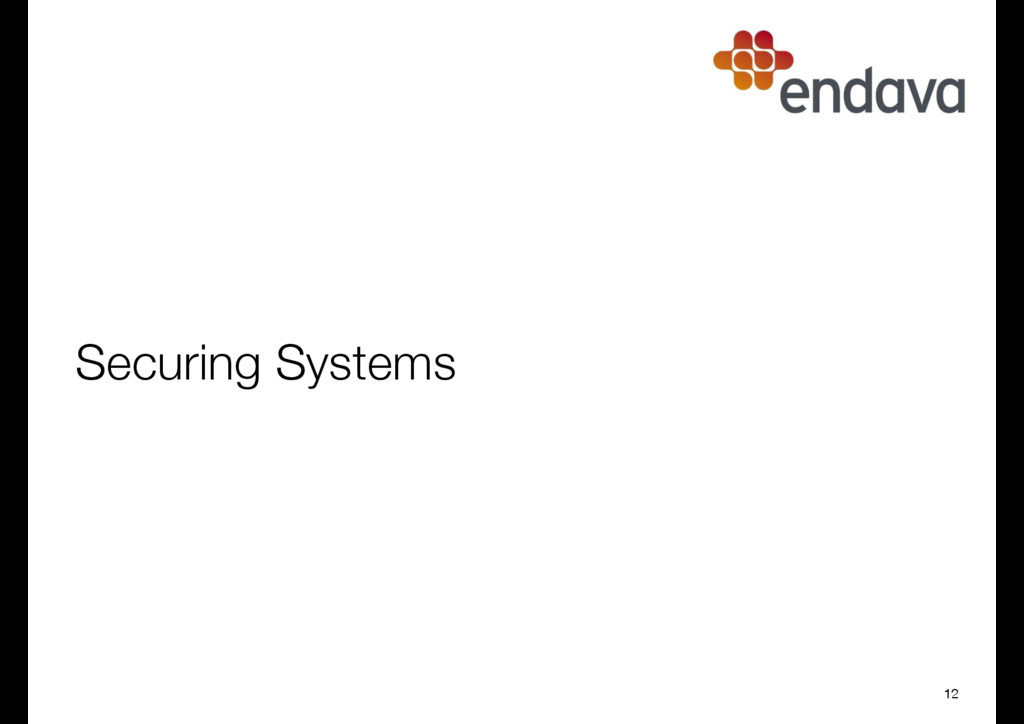

  12. Securing Systems

    View Slide

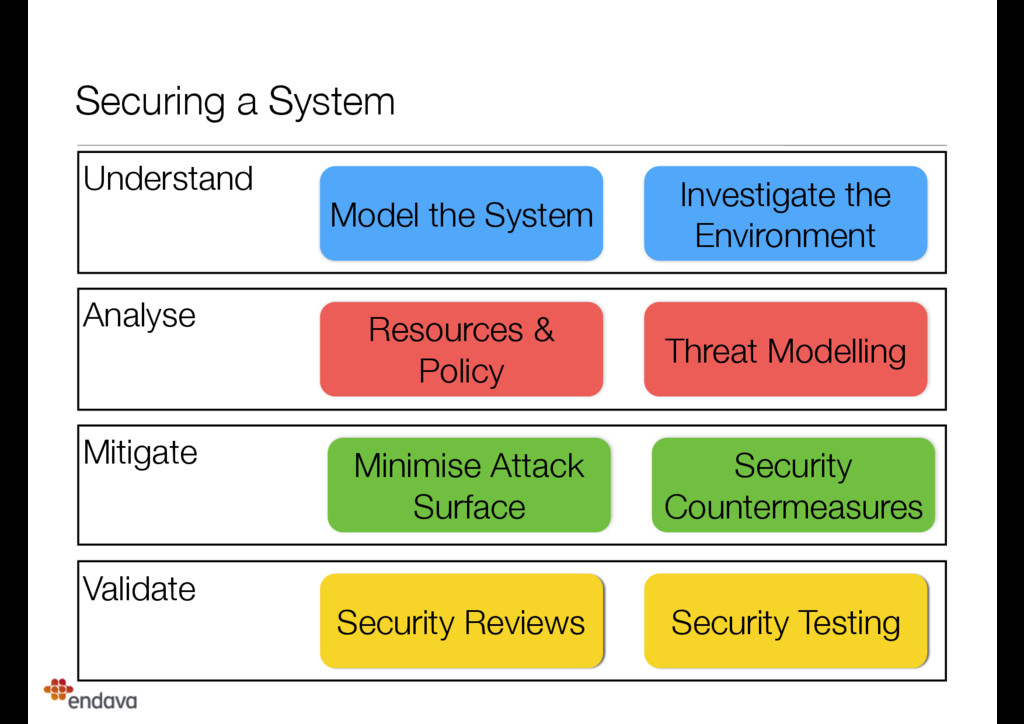

  13. Validate
    Securing a System
    Model the System
    Investigate the
    Resources &
    Threat Modelling
    Minimise Attack
    Security Reviews Security Testing

    View Slide

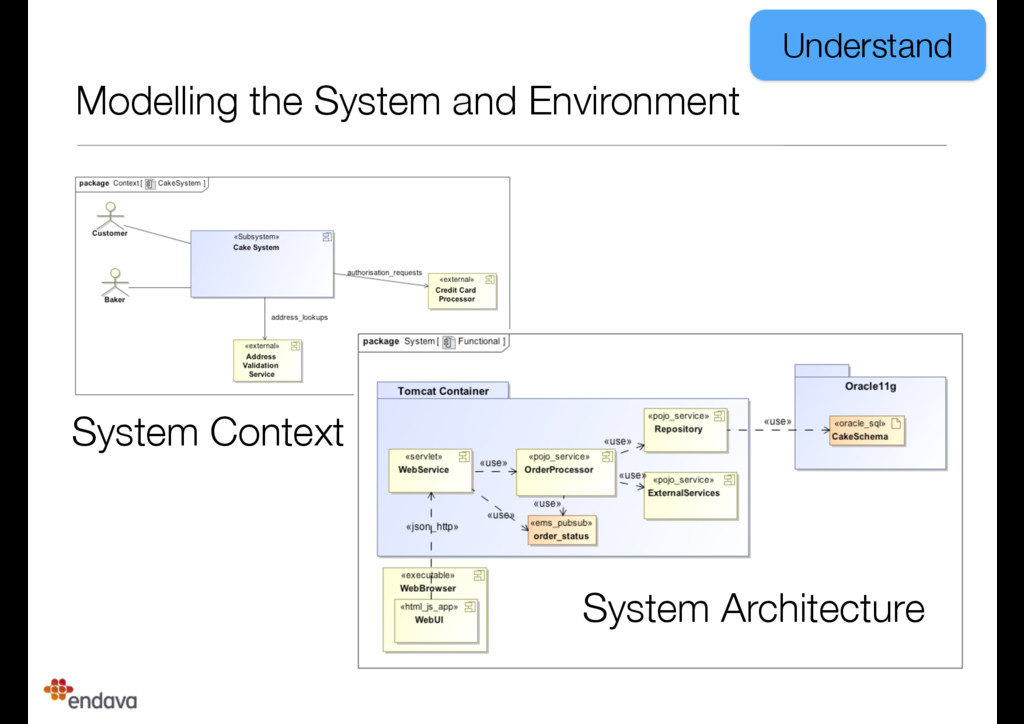

  14. Modelling the System and Environment
    System Context
    System Architecture

    View Slide

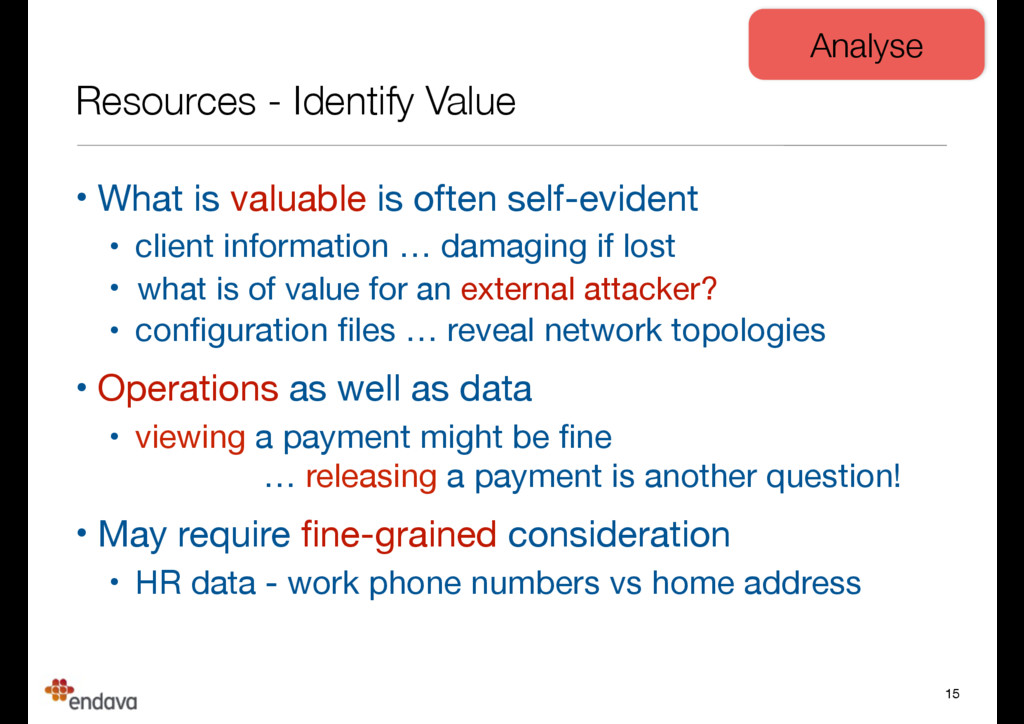

  15. Resources - Identify Value
    • What is valuable is often self-evident

    • client information … damaging if lost

    • what is of value for an external attacker?

    • configuration files … reveal network topologies

    • Operations as well as data

    • viewing a payment might be fine

    … releasing a payment is another question!

    • May require fine-grained consideration

    • HR data - work phone numbers vs home address

    View Slide

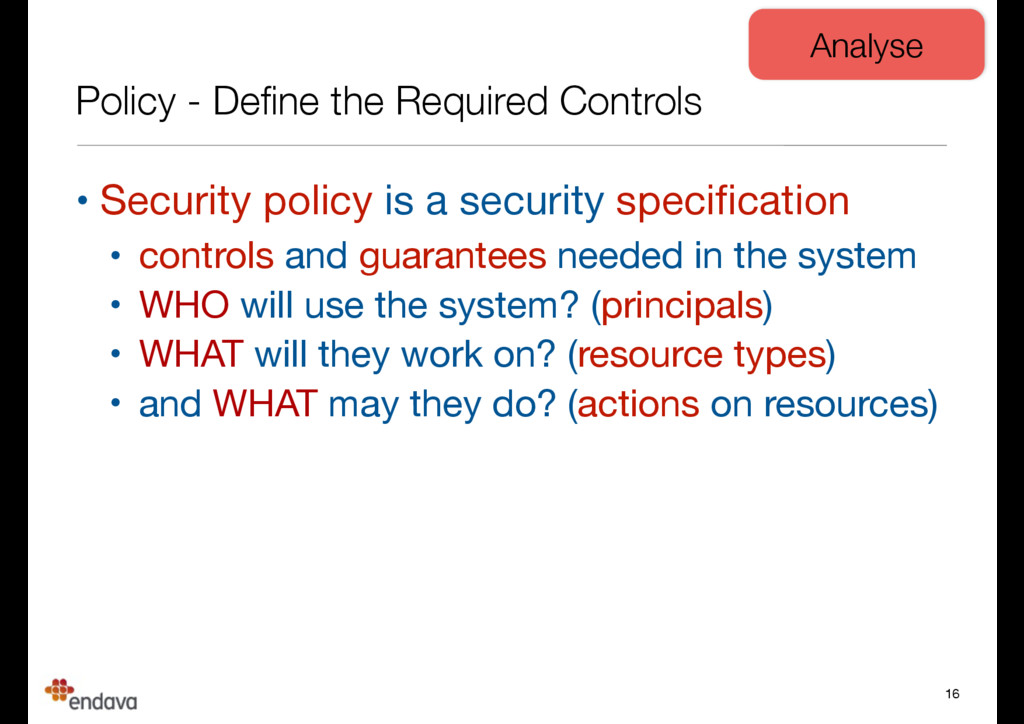

  16. Policy - Define the Required Controls
    • Security policy is a security specification

    • controls and guarantees needed in the system

    • WHO will use the system? (principals)

    • WHAT will they work on? (resource types)

    • and WHAT may they do? (actions on resources)

    View Slide

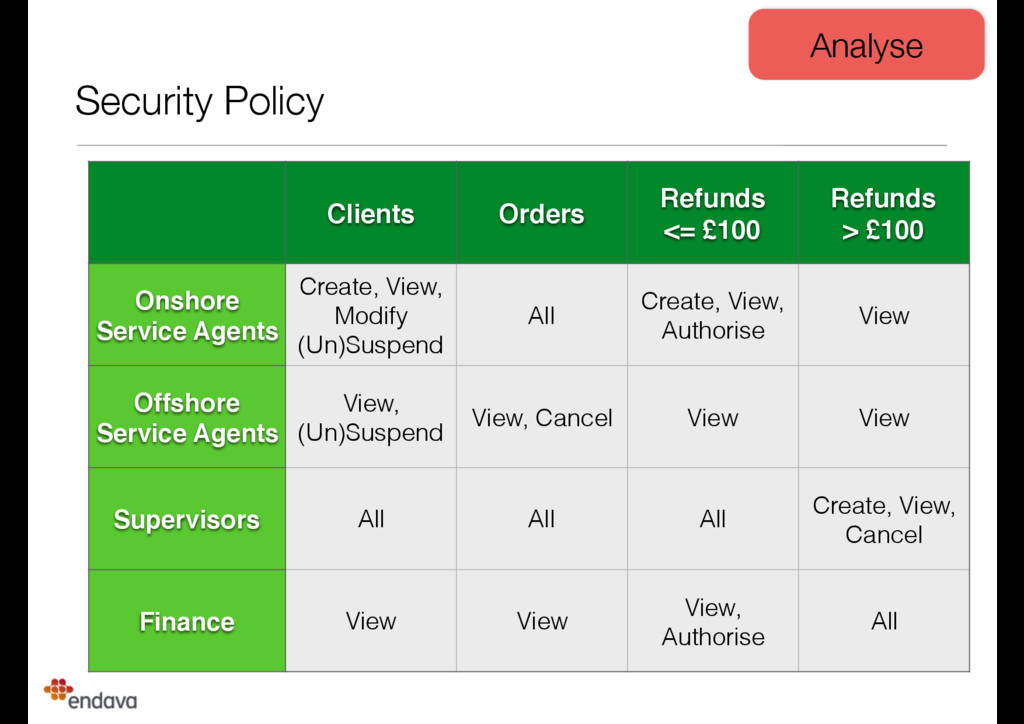

  17. Security Policy
    Clients Orders

    <= £100

    > £100
    Service Agents
    Create, View,


    Create, View,
    Service Agents
    View, Cancel View View
    Supervisors All All All
    Create, View,
    Finance View View

    View Slide

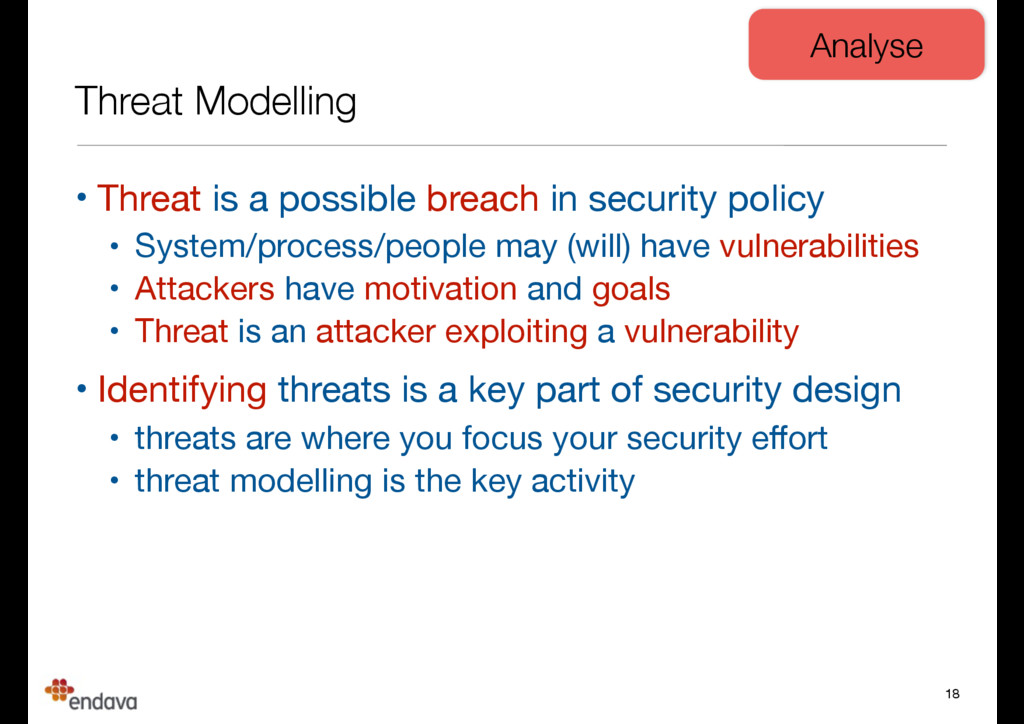

  18. Threat Modelling
    • Threat is a possible breach in security policy

    • System/process/people may (will) have vulnerabilities

    • Attackers have motivation and goals

    • Threat is an attacker exploiting a vulnerability

    • Identifying threats is a key part of security design

    • threats are where you focus your security effort

    • threat modelling is the key activity

    View Slide

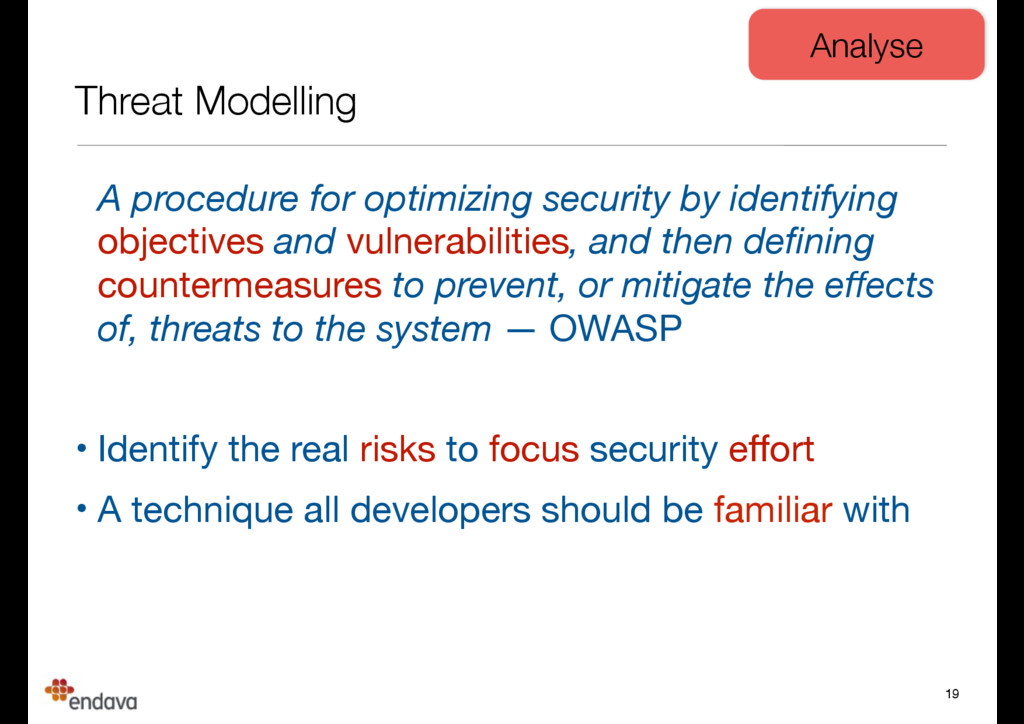

  19. Threat Modelling
    A procedure for optimizing security by identifying
    objectives and vulnerabilities, and then defining
    countermeasures to prevent, or mitigate the effects
    of, threats to the system — OWASP

    • Identify the real risks to focus security effort

    • A technique all developers should be familiar with

    View Slide

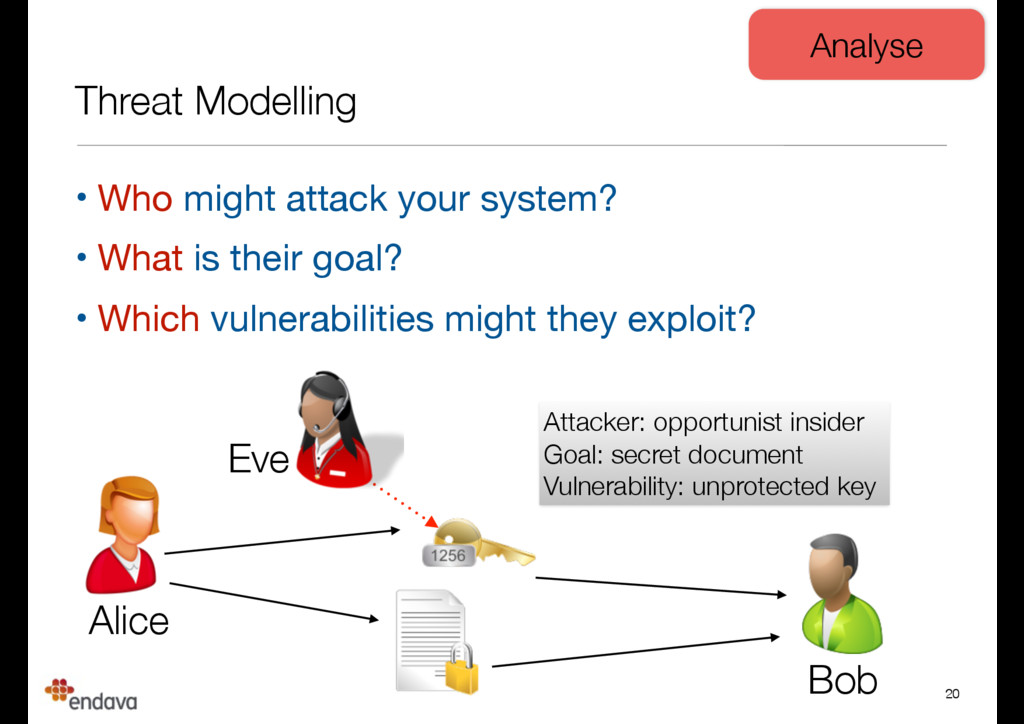

  20. Threat Modelling
    • Who might attack your system?

    • What is their goal?

    • Which vulnerabilities might they exploit?
    Attacker: opportunist insider

    Goal: secret document

    Vulnerability: unprotected key

    View Slide

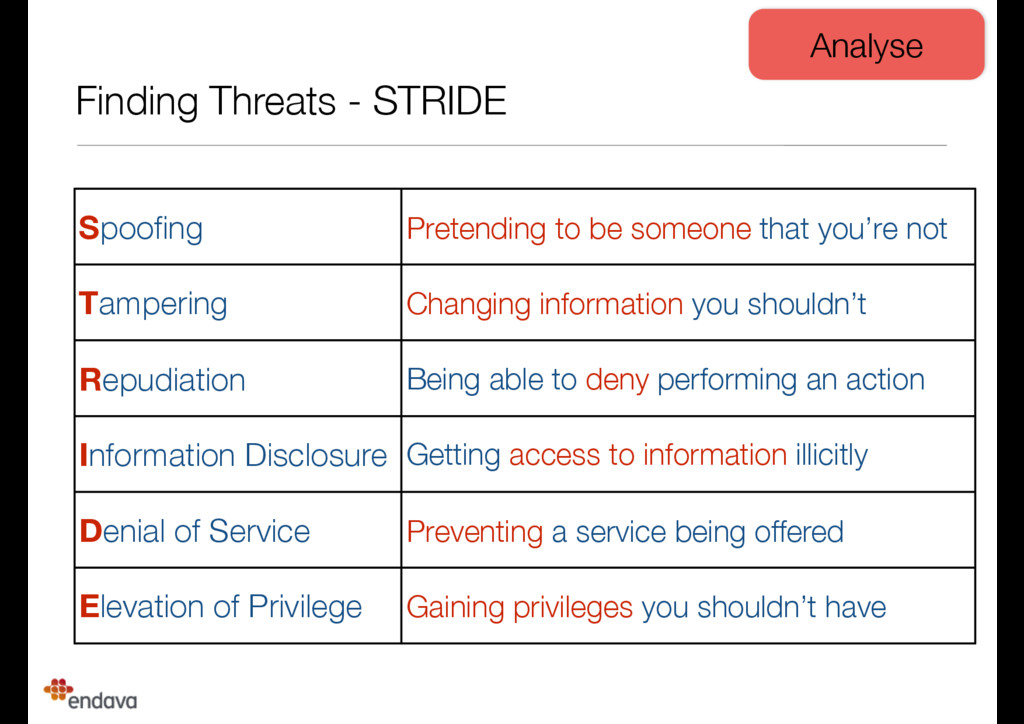

  21. Finding Threats - STRIDE
    Spoofing Pretending to be someone that you’re not
    Tampering Changing information you shouldn’t
    Repudiation Being able to deny performing an action
    Information Disclosure Getting access to information illicitly
    Denial of Service Preventing a service being offered
    Elevation of Privilege Gaining privileges you shouldn’t have

    View Slide

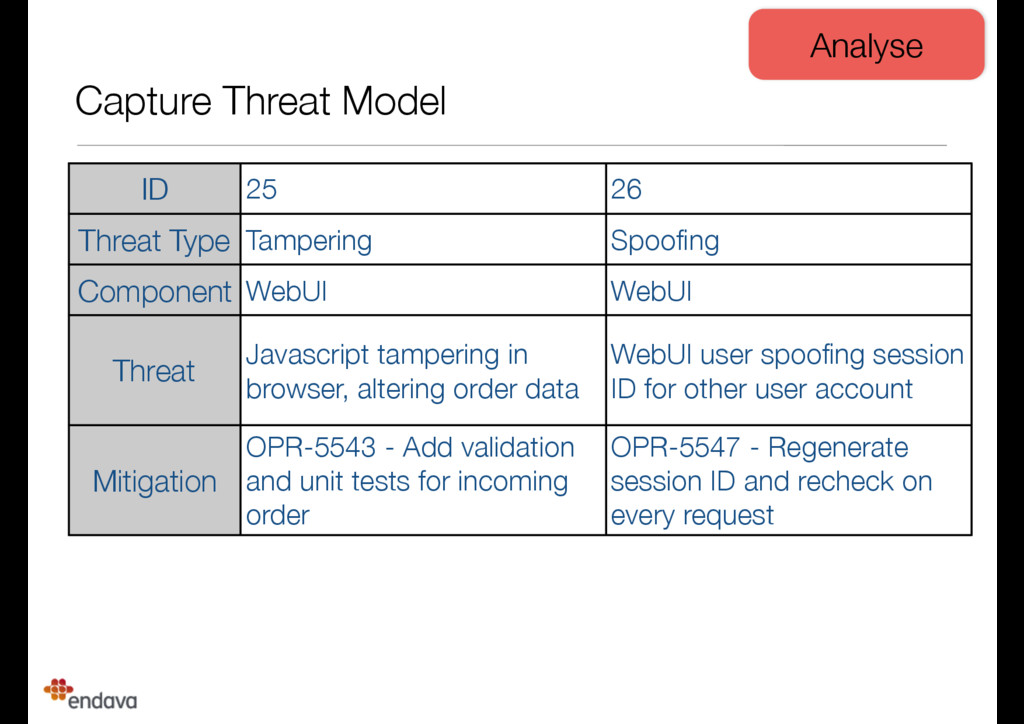

  22. Capture Threat Model
    ID 25 26
    Threat Type Tampering Spoofing
    Component WebUI WebUI
    Javascript tampering in
    browser, altering order data
    WebUI user spoofing session
    ID for other user account
    OPR-5543 - Add validation
    and unit tests for incoming
    OPR-5547 - Regenerate
    session ID and recheck on
    every request

    View Slide

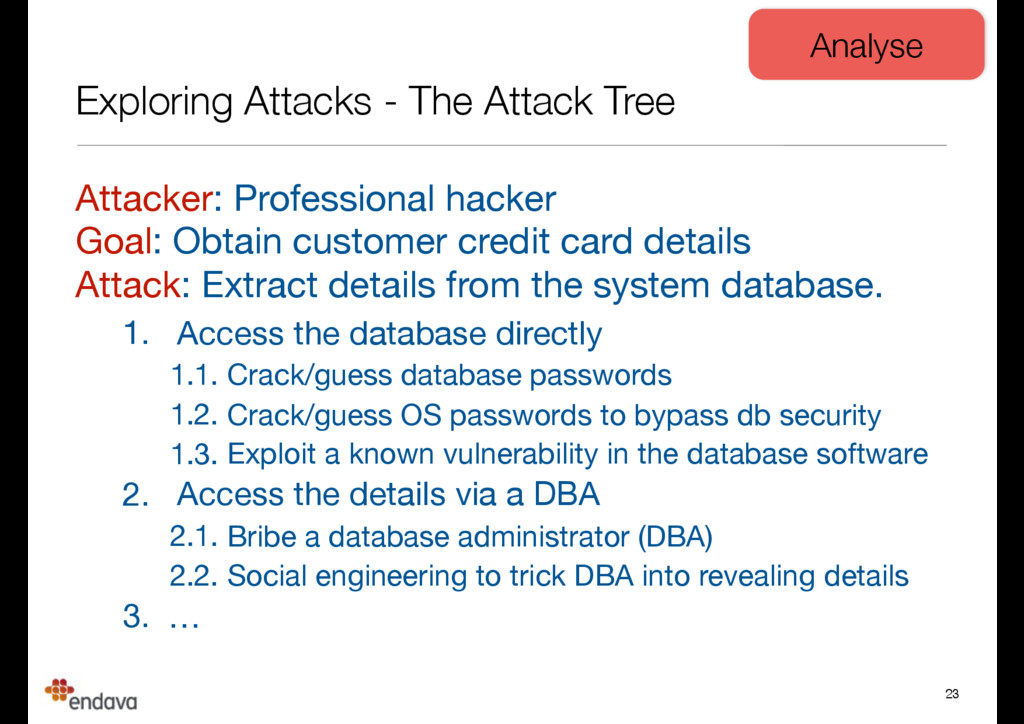

  23. Exploring Attacks - The Attack Tree
    Attacker: Professional hacker

    Goal: Obtain customer credit card details

    Attack: Extract details from the system database.

    1. Access the database directly

    1.1. Crack/guess database passwords

    1.2. Crack/guess OS passwords to bypass db security

    1.3. Exploit a known vulnerability in the database software

    2. Access the details via a DBA

    2.1. Bribe a database administrator (DBA)

    2.2. Social engineering to trick DBA into revealing details

    3. …

    View Slide

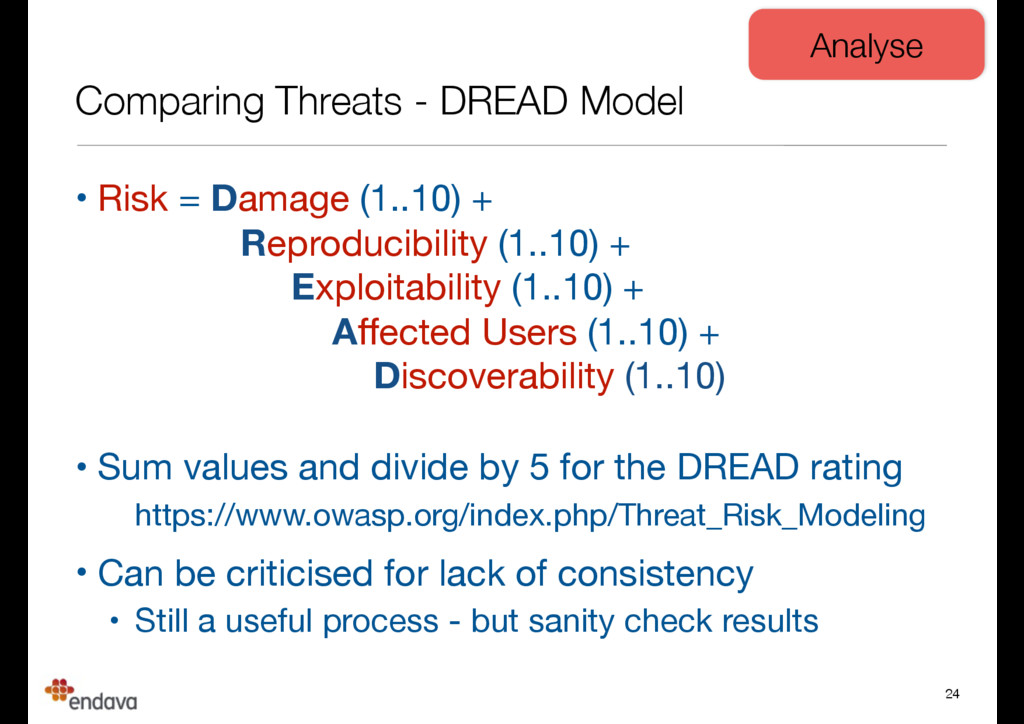

  24. Comparing Threats - DREAD Model
    • Risk = Damage (1..10) +

    Reproducibility (1..10) +

    Exploitability (1..10) +

    Affected Users (1..10) +

    Discoverability (1..10)

    • Sum values and divide by 5 for the DREAD rating


    • Can be criticised for lack of consistency

    • Still a useful process - but sanity check results

    View Slide

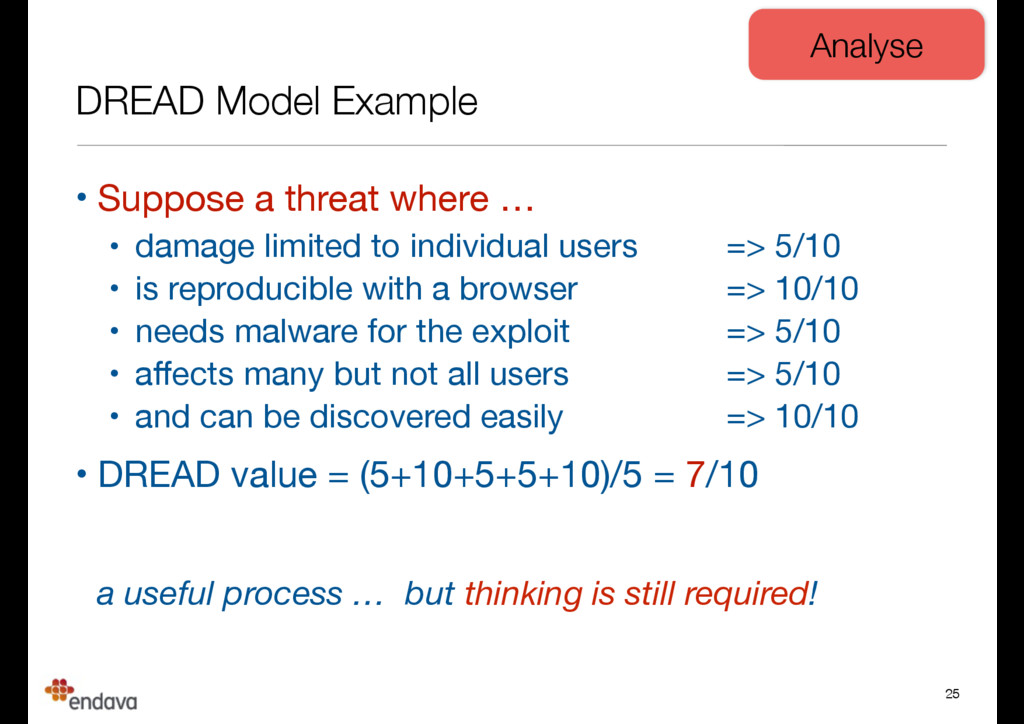

  25. DREAD Model Example
    • Suppose a threat where …

    • damage limited to individual users => 5/10

    • is reproducible with a browser => 10/10

    • needs malware for the exploit => 5/10

    • affects many but not all users => 5/10

    • and can be discovered easily => 10/10

    • DREAD value = (5+10+5+5+10)/5 = 7/10

    a useful process … but thinking is still required!

    View Slide

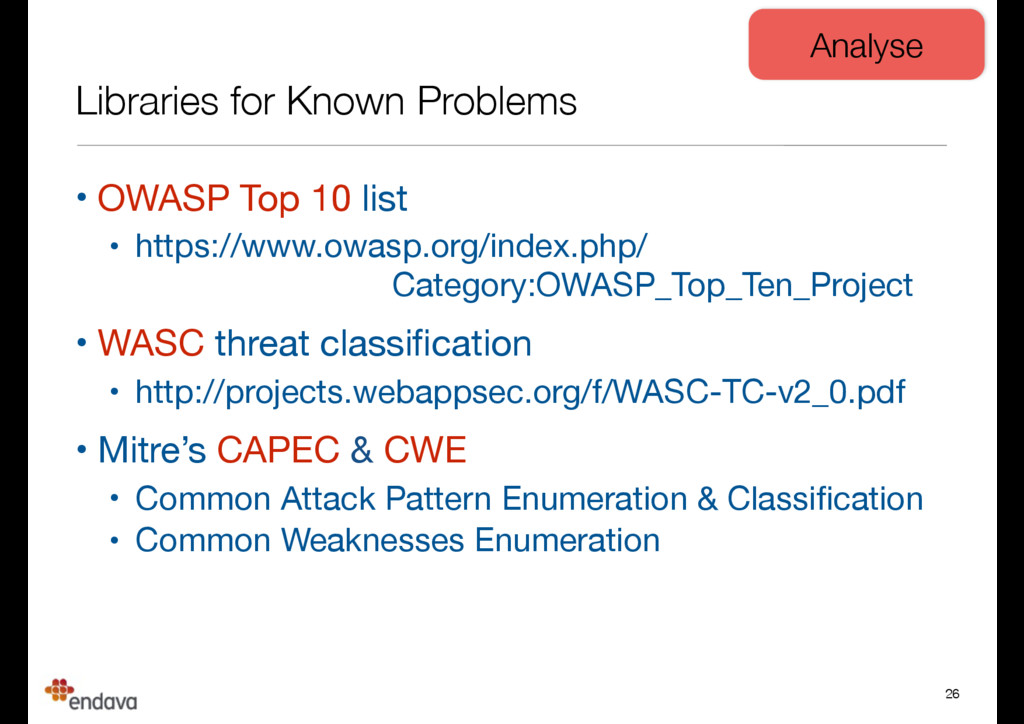

  26. Libraries for Known Problems
    • OWASP Top 10 list

    • https://www.owasp.org/index.php/


    • WASC threat classification

    • http://projects.webappsec.org/f/WASC-TC-v2_0.pdf

    • Mitre’s CAPEC & CWE

    • Common Attack Pattern Enumeration & Classification

    • Common Weaknesses Enumeration

    View Slide

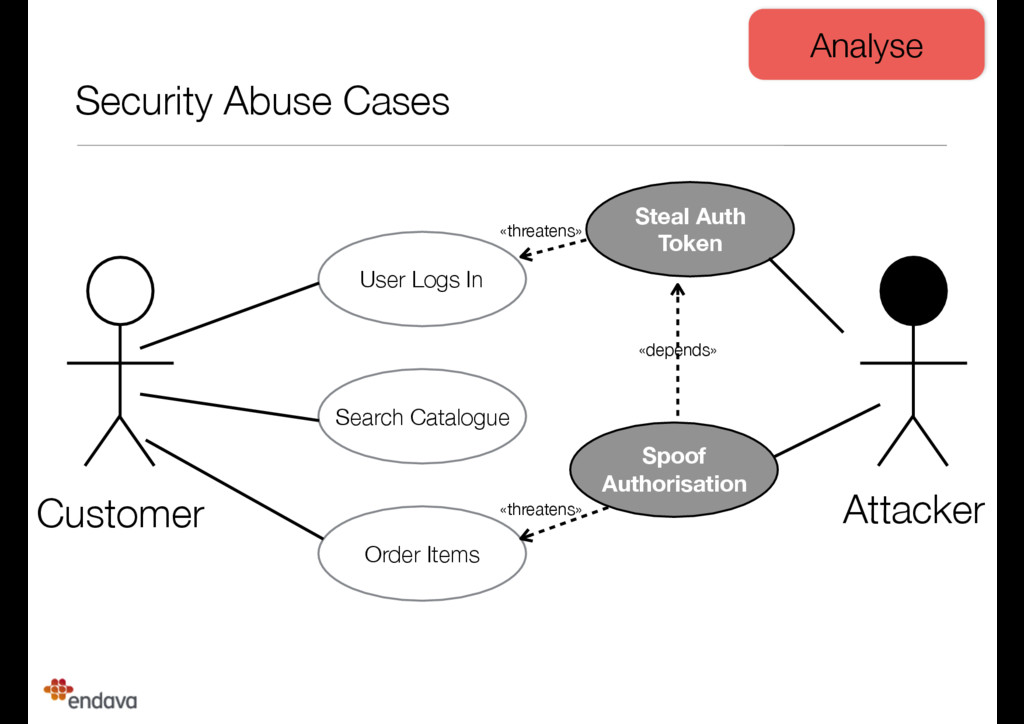

  27. Security Abuse Cases
    User Logs In
    Search Catalogue
    Order Items
    Customer Attacker
    Steal Auth

    View Slide

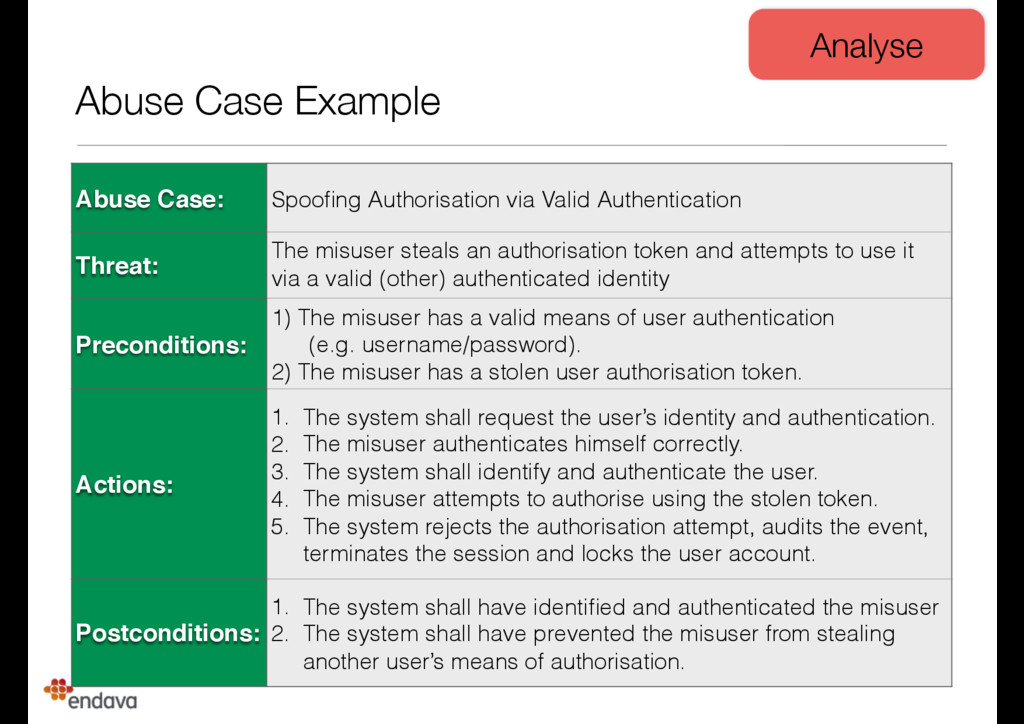

  28. Abuse Case Example
    Abuse Case: Spoofing Authorisation via Valid Authentication
    The misuser steals an authorisation token and attempts to use it
    via a valid (other) authenticated identity
    1) The misuser has a valid means of user authentication

    (e.g. username/password).
    2) The misuser has a stolen user authorisation token.
    1. The system shall request the user’s identity and authentication.
    2. The misuser authenticates himself correctly.
    3. The system shall identify and authenticate the user.
    4. The misuser attempts to authorise using the stolen token.
    5. The system rejects the authorisation attempt, audits the event,
    terminates the session and locks the user account.
    1. The system shall have identified and authenticated the misuser
    2. The system shall have prevented the misuser from stealing
    another user’s means of authorisation.

    View Slide

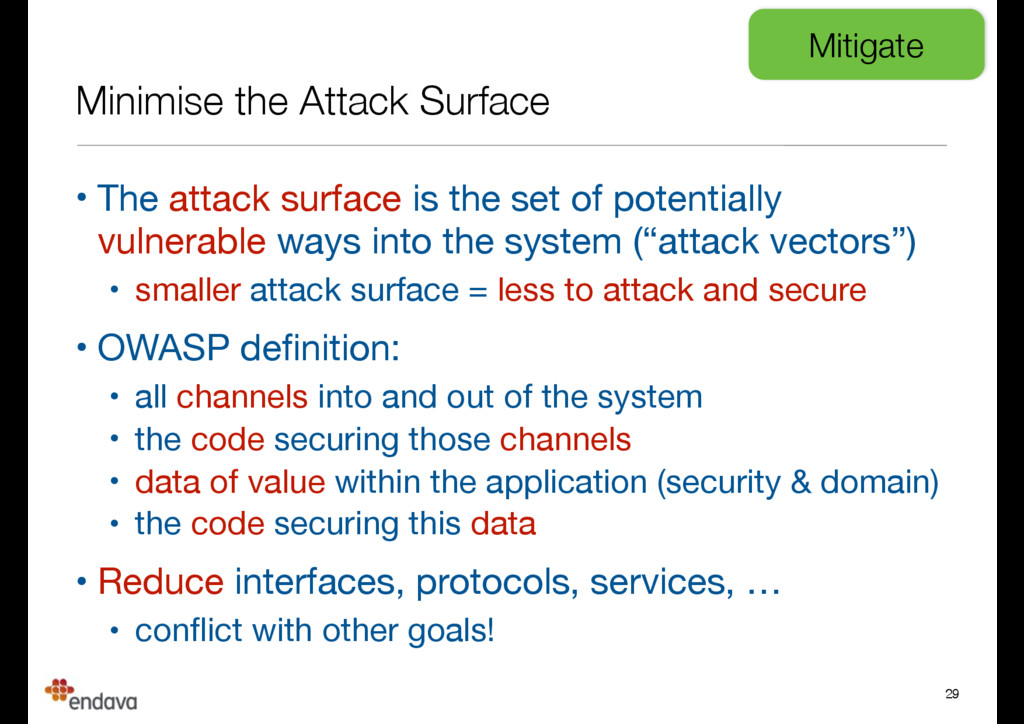

  29. Minimise the Attack Surface
    • The attack surface is the set of potentially
    vulnerable ways into the system (“attack vectors”)

    • smaller attack surface = less to attack and secure

    • OWASP definition:

    • all channels into and out of the system

    • the code securing those channels

    • data of value within the application (security & domain)

    • the code securing this data

    • Reduce interfaces, protocols, services, …

    • conflict with other goals!

    View Slide

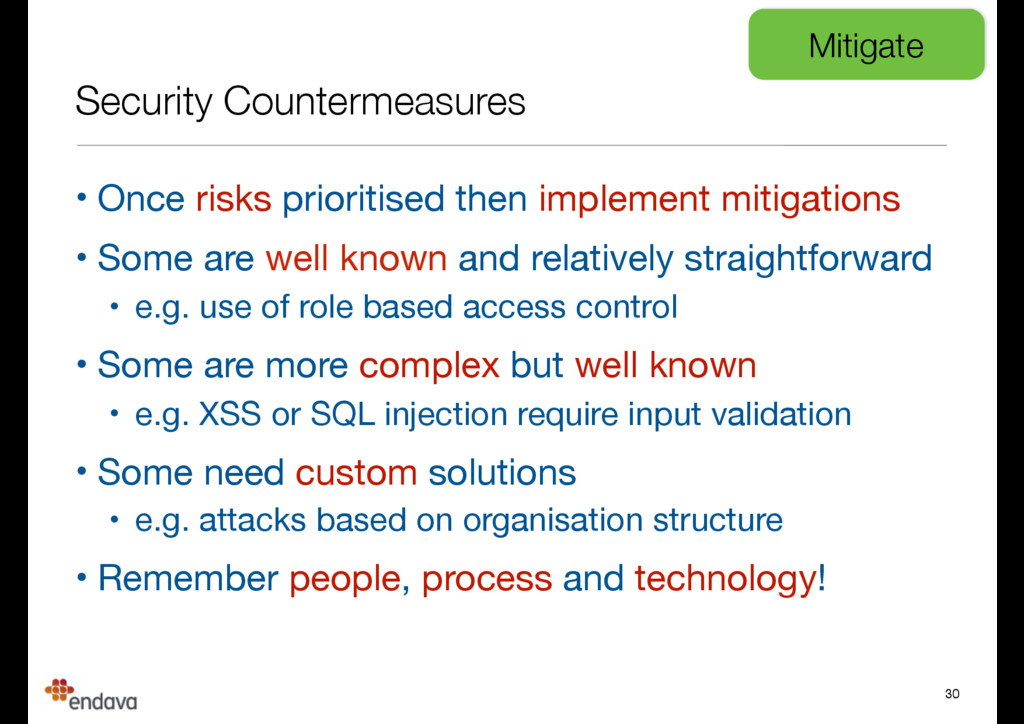

  30. Security Countermeasures
    • Once risks prioritised then implement mitigations

    • Some are well known and relatively straightforward

    • e.g. use of role based access control

    • Some are more complex but well known

    • e.g. XSS or SQL injection require input validation

    • Some need custom solutions

    • e.g. attacks based on organisation structure

    • Remember people, process and technology!

    View Slide

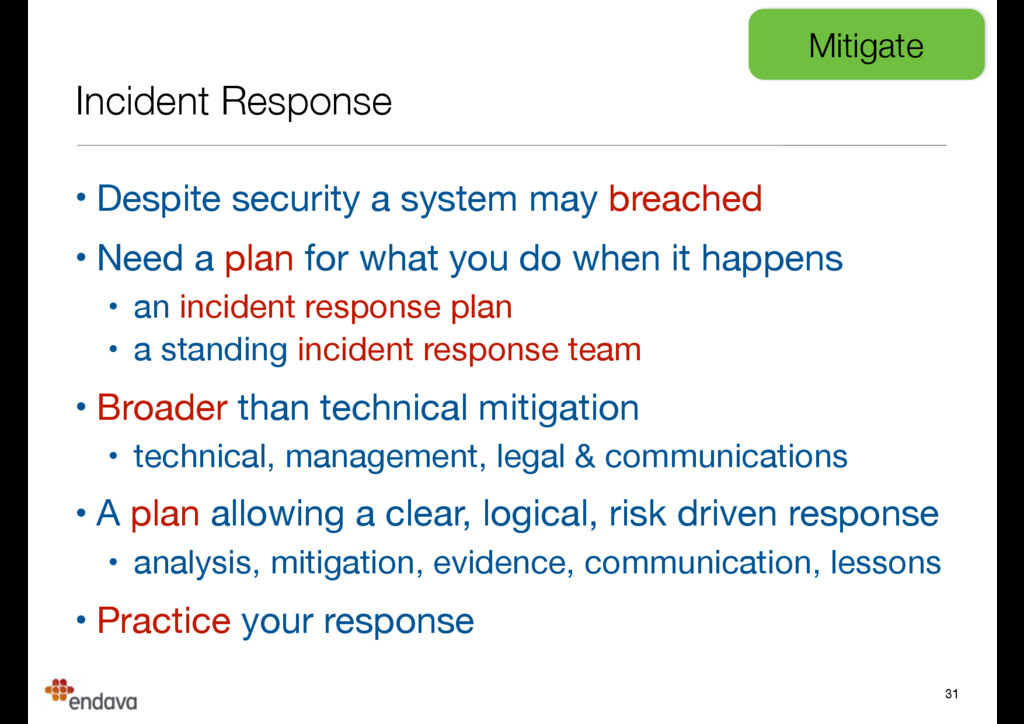

  31. Incident Response
    • Despite security a system may breached

    • Need a plan for what you do when it happens

    • an incident response plan

    • a standing incident response team

    • Broader than technical mitigation

    • technical, management, legal & communications

    • A plan allowing a clear, logical, risk driven response

    • analysis, mitigation, evidence, communication, lessons

    • Practice your response

    View Slide

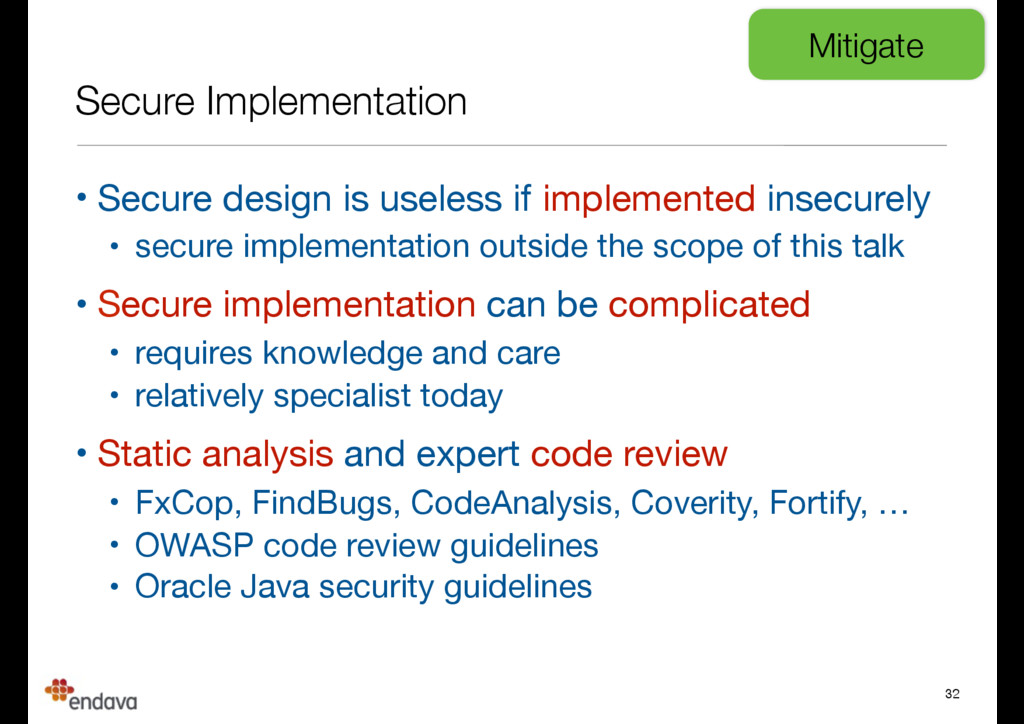

  32. Secure Implementation
    • Secure design is useless if implemented insecurely

    • secure implementation outside the scope of this talk

    • Secure implementation can be complicated

    • requires knowledge and care

    • relatively specialist today

    • Static analysis and expert code review

    • FxCop, FindBugs, CodeAnalysis, Coverity, Fortify, …

    • OWASP code review guidelines

    • Oracle Java security guidelines

    View Slide

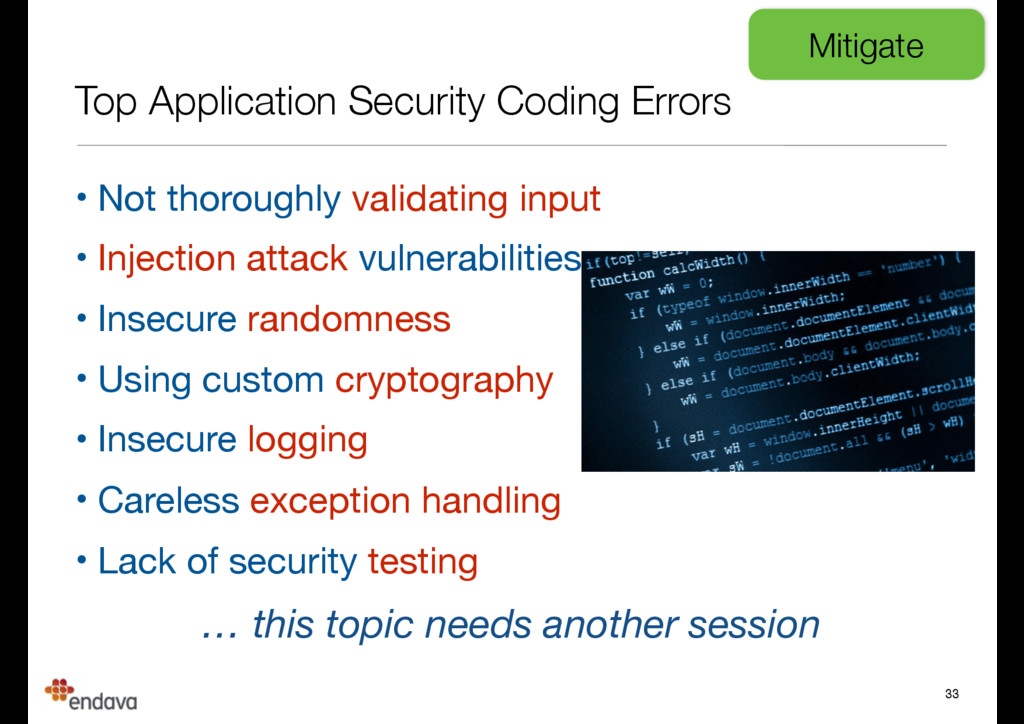

  33. Top Application Security Coding Errors
    • Not thoroughly validating input

    • Injection attack vulnerabilities

    • Insecure randomness

    • Using custom cryptography

    • Insecure logging

    • Careless exception handling

    • Lack of security testing
    … this topic needs another session

    View Slide

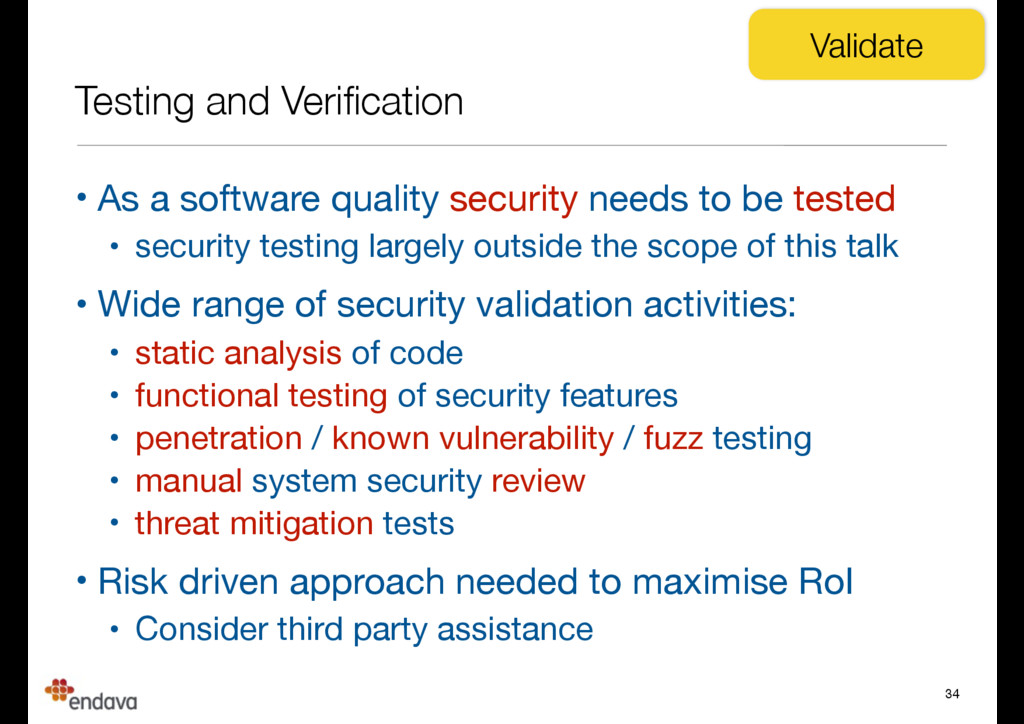

  34. Testing and Verification
    • As a software quality security needs to be tested

    • security testing largely outside the scope of this talk

    • Wide range of security validation activities:

    • static analysis of code

    • functional testing of security features

    • penetration / known vulnerability / fuzz testing

    • manual system security review

    • threat mitigation tests

    • Risk driven approach needed to maximise RoI

    • Consider third party assistance

    View Slide

  35. Design Principles for Secure Systems

    View Slide

  36. Principle: Least Privilege
    • Common problem is broad privileges

    • Always limit to the essentials

    • what do people need to do their jobs

    • anything else is an exception

    • Mitigate malice, error and mischance

    • But allow people to get their jobs done

    • Example: don’t run services as “root” or “Administrator”

    View Slide

  37. Principle: Separate Responsibilities
    • Separate and compartmentalise

    responsibilities and privileges

    • better control and accountability

    • Limits the impacts of successful attacks

    • and makes attacks less attractive

    • Separate by subsystem, separate by functional role

    • Example: Payments admin has no control over orders

    View Slide

  38. Principle: Simplest Solution Possible
    • Security => understanding the design

    • Allows analysis

    • Complex design unlikely to be understood

    • Avoid

    • complex failure modes

    • implicit behaviour

    • unnecessary features

    The price of reliability is the pursuit of the utmost simplicity -
    C.A.R. Hoare

    View Slide

  39. Principle: Audit Sensitive Events
    • Record all significant security events

    • An audit log acts as:

    • a record of activity

    • a deterrent to wrong doing

    • a log to reconstruct the past

    • a monitoring point

    • Remember security for the audit log in the policy and

    • don’t allow “super users” to alter the audit log

    View Slide

  40. Principle: Use Secure Defaults and Fail Securely
    • Default settings usually not changed!

    • disabling security must be a decision

    • Example:

    • default network connections on a secure transport

    • Make sure that failure modes end up in a secure state

    • Example: don’t suspend auditing if the log fills up

    (Conflicts with properties like scalability and availability)

    View Slide

  41. Principle: Be Careful Who You Trust
    • Assume that unknown entities are


    • have a clear process to establish trust

    • don’t assume who is connecting

    • Be careful of intermediate entities

    • man-in-the-middle attacks

    • ensure end-to-end security

    • Don’t blindly trust 3rd party components

    • check signatures on code, use trusted sources

    View Slide

  42. Principle: Never Rely Upon Obscurity
    • Hiding secrets is difficult

    • someone is going to find them

    • accidentally it not on purpose

    • susceptible to “fuzz” attacks

    • People do figure things out

    • many attackers have a lot of time

    • they have to be lucky once

    • Assume attacker with perfect knowledge

    • this forces secure system design

    View Slide

  43. Principle: Defence in Depth
    • Don’t rely on one level of security

    • secure every level in your application

    • failures at one level stopped at the next

    • Example: secure your services and your database
    Level 1: service Level 2: database Level 3: table
    Level 4: encrypt

    View Slide

  44. Summary - Design Principles for Secure Systems
    • Principles to guide system design:

    • Assign the least privilege possible

    • Separate responsibilities

    • Use the simplest solution possible

    • Audit sensitive events

    • Fail securely & use secure defaults

    • Be careful who you trust

    • Never rely upon obscurity

    • Implement defence in depth

    • Find the weakest link

    View Slide

  45. Summary

    View Slide

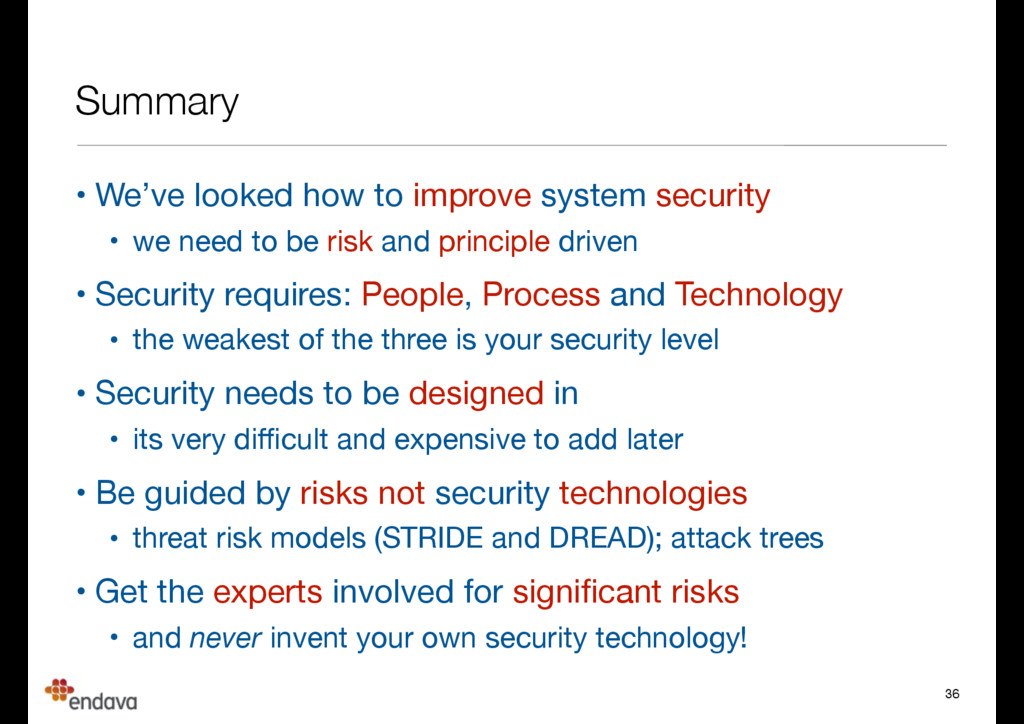

  46. Summary
    • We’ve looked how to improve system security

    • we need to be risk and principle driven

    • Security requires: People, Process and Technology

    • the weakest of the three is your security level

    • Security needs to be designed in

    • its very difficult and expensive to add later

    • Be guided by risks not security technologies

    • threat risk models (STRIDE and DREAD); attack trees

    • Get the experts involved for significant risks

    • and never invent your own security technology!

    View Slide

  47. Summary (ii)
    Never stop asking “why?” and “what if?”

    critically important info sec questions!

    View Slide

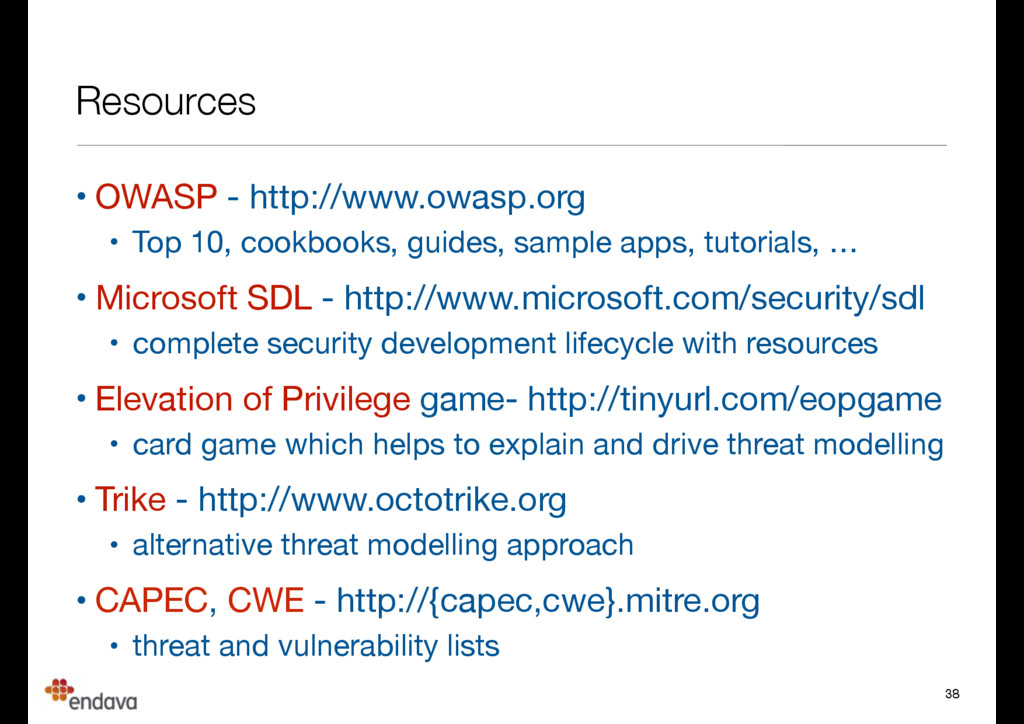

  48. Resources
    • OWASP - http://www.owasp.org

    • Top 10, cookbooks, guides, sample apps, tutorials, …

    • Microsoft SDL - http://www.microsoft.com/security/sdl

    • complete security development lifecycle with resources

    • Elevation of Privilege game- http://tinyurl.com/eopgame

    • card game which helps to explain and drive threat modelling

    • Trike - http://www.octotrike.org

    • alternative threat modelling approach

    • CAPEC, CWE - http://{capec,cwe}.mitre.org

    • threat and vulnerability lists

    View Slide

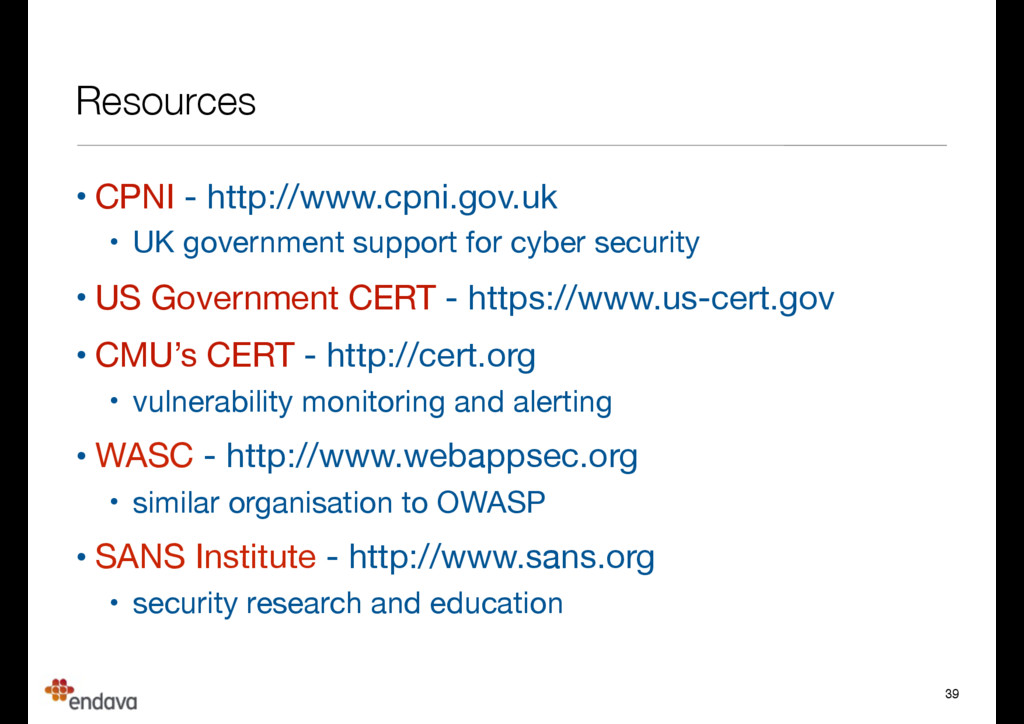

  49. Resources
    • CPNI - http://www.cpni.gov.uk

    • UK government support for cyber security

    • US Government CERT - https://www.us-cert.gov

    • CMU’s CERT - http://cert.org

    • vulnerability monitoring and alerting

    • WASC - http://www.webappsec.org

    • similar organisation to OWASP

    • SANS Institute - http://www.sans.org

    • security research and education

    View Slide

  50. Books

    View Slide

  51. Eoin Woods

    [email protected]


    View Slide

  52. Appendix: Overview of Security

    View Slide

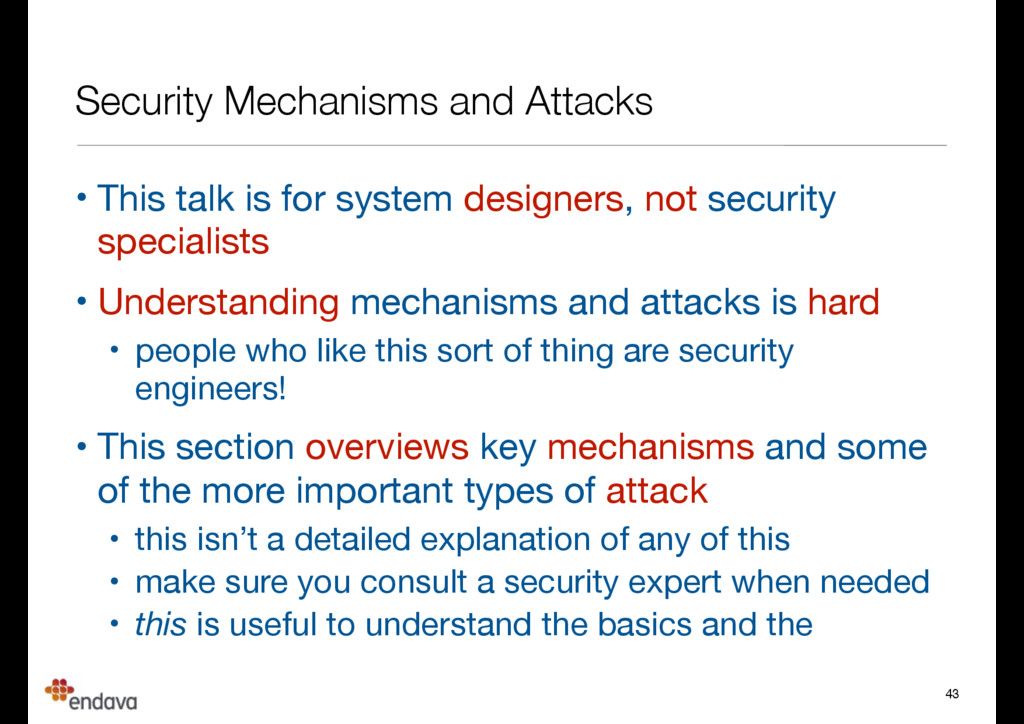

  53. Security Mechanisms and Attacks
    • This talk is for system designers, not security

    • Understanding mechanisms and attacks is hard

    • people who like this sort of thing are security

    • This section overviews key mechanisms and some
    of the more important types of attack

    • this isn’t a detailed explanation of any of this

    • make sure you consult a security expert when needed

    • this is useful to understand the basics and the

    View Slide

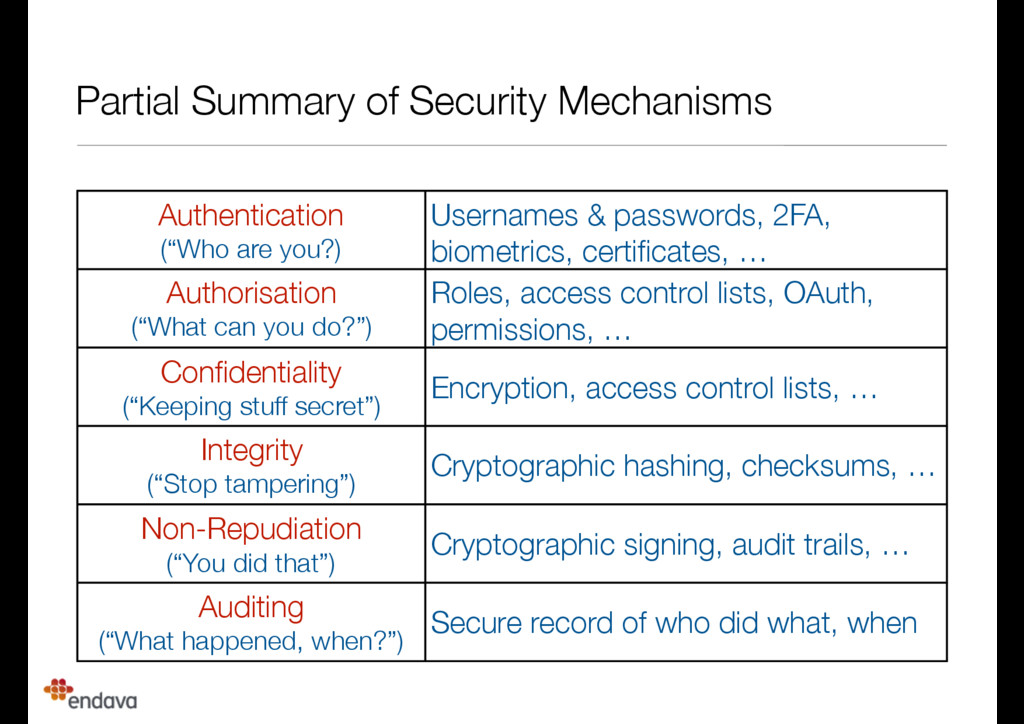

  54. Partial Summary of Security Mechanisms

    (“Who are you?)
    Usernames & passwords, 2FA,
    biometrics, certificates, …
    (“What can you do?”)
    Roles, access control lists, OAuth,
    permissions, …

    (“Keeping stuff secret”)
    Encryption, access control lists, …

    (“Stop tampering”)
    Cryptographic hashing, checksums, …

    (“You did that”)
    Cryptographic signing, audit trails, …

    (“What happened, when?”)
    Secure record of who did what, when

    View Slide

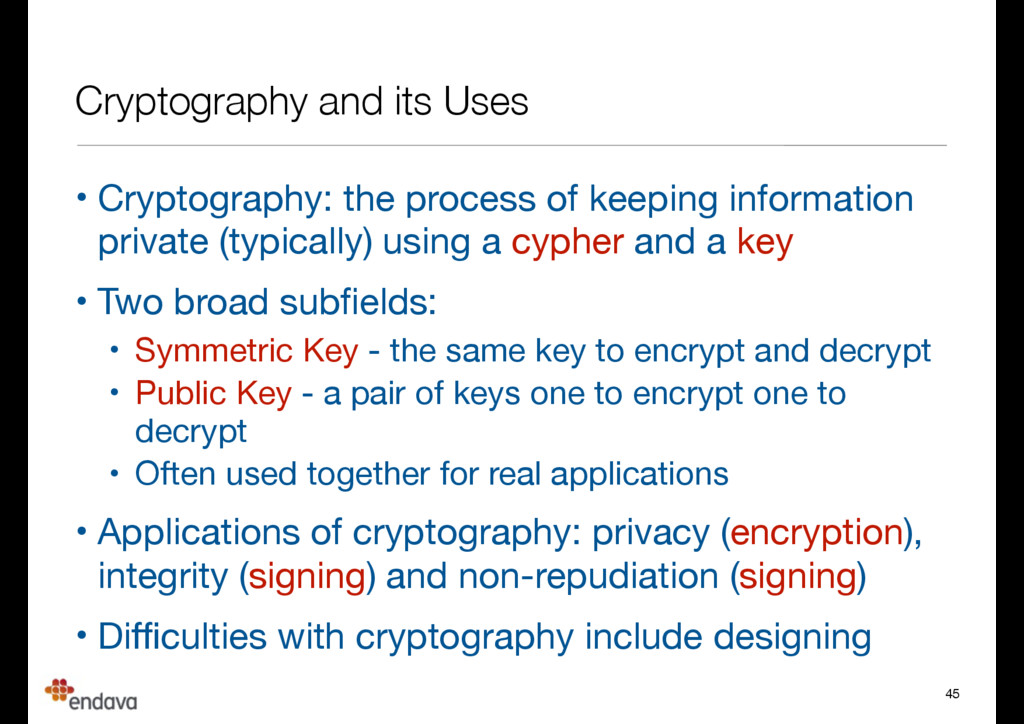

  55. Cryptography and its Uses
    • Cryptography: the process of keeping information
    private (typically) using a cypher and a key

    • Two broad subfields:

    • Symmetric Key - the same key to encrypt and decrypt

    • Public Key - a pair of keys one to encrypt one to

    • Often used together for real applications

    • Applications of cryptography: privacy (encryption),
    integrity (signing) and non-repudiation (signing)

    • Difficulties with cryptography include designing

    View Slide

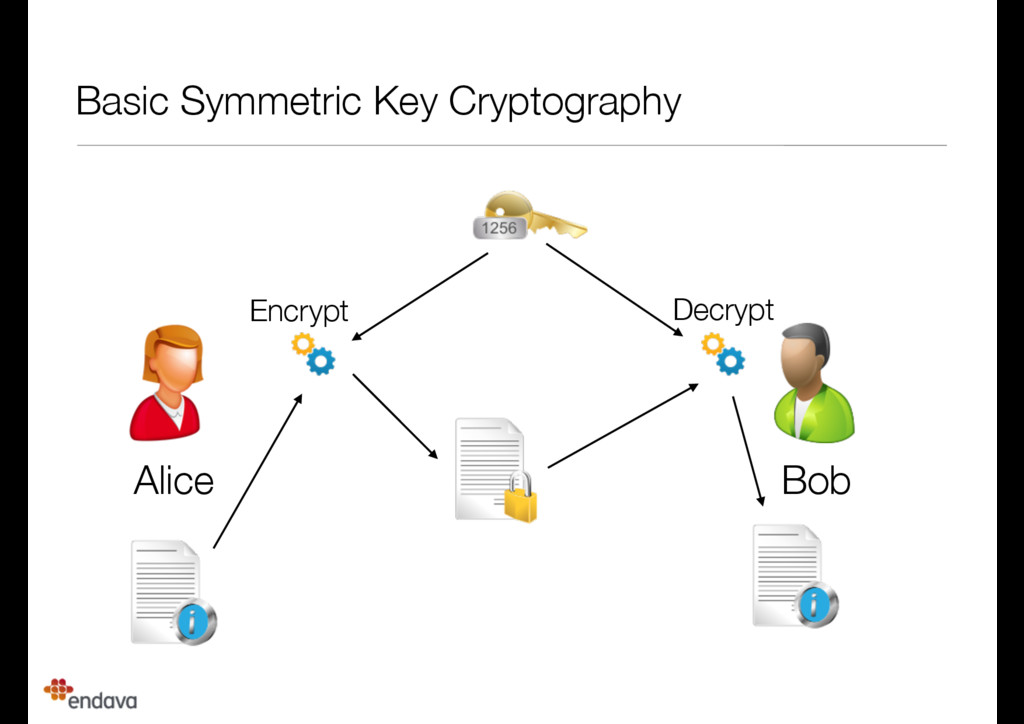

  56. Basic Symmetric Key Cryptography
    Alice Bob
    Encrypt Decrypt

    View Slide

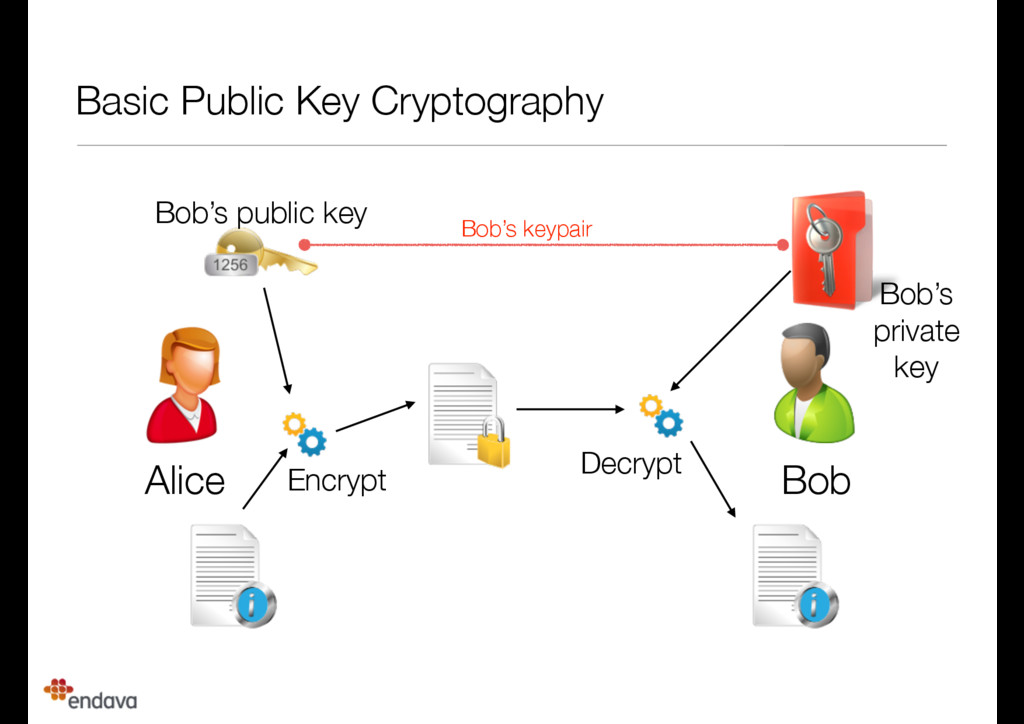

  57. Basic Public Key Cryptography
    Alice Bob
    Bob’s public key


    Bob’s keypair

    View Slide

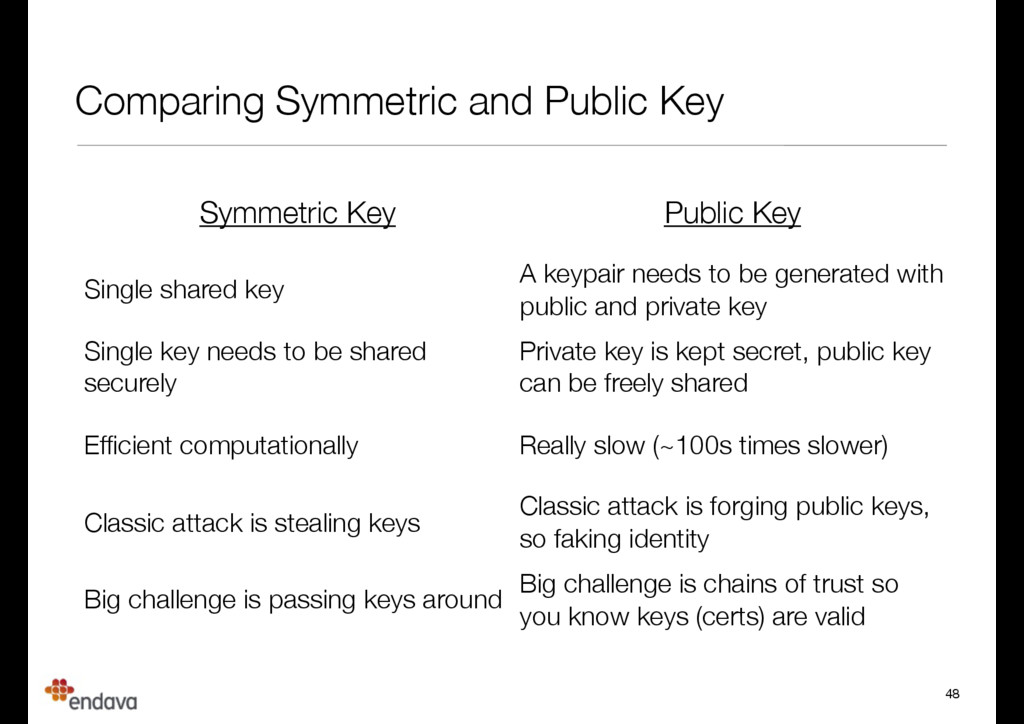

  58. Comparing Symmetric and Public Key
    Symmetric Key Public Key
    Single shared key
    A keypair needs to be generated with
    public and private key
    Single key needs to be shared
    Private key is kept secret, public key
    can be freely shared
    Efficient computationally Really slow (~100s times slower)
    Classic attack is stealing keys
    Classic attack is forging public keys,
    so faking identity
    Big challenge is passing keys around
    Big challenge is chains of trust so
    you know keys (certs) are valid

    View Slide

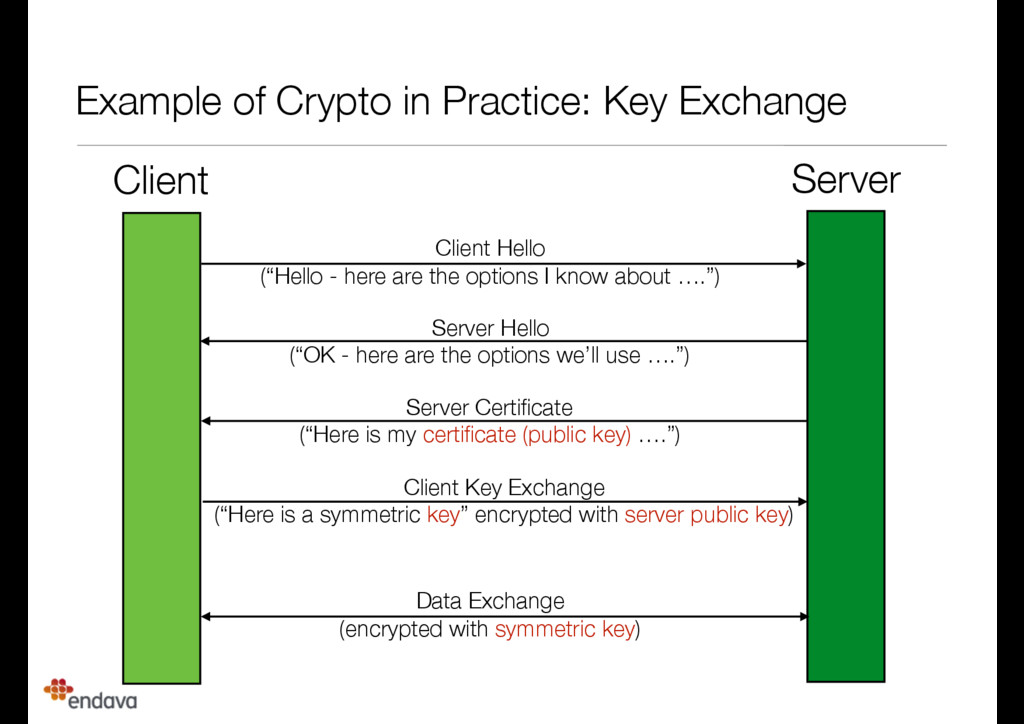

  59. Example of Crypto in Practice: Key Exchange
    Client Server
    Client Hello

    (“Hello - here are the options I know about ….”)
    Server Hello

    (“OK - here are the options we’ll use ….”)
    Server Certificate

    (“Here is my certificate (public key) ….”)
    Client Key Exchange

    (“Here is a symmetric key” encrypted with server public key)
    Data Exchange

    (encrypted with symmetric key)

    View Slide

  60. Hashing and Signing
    private key
    public key

    View Slide

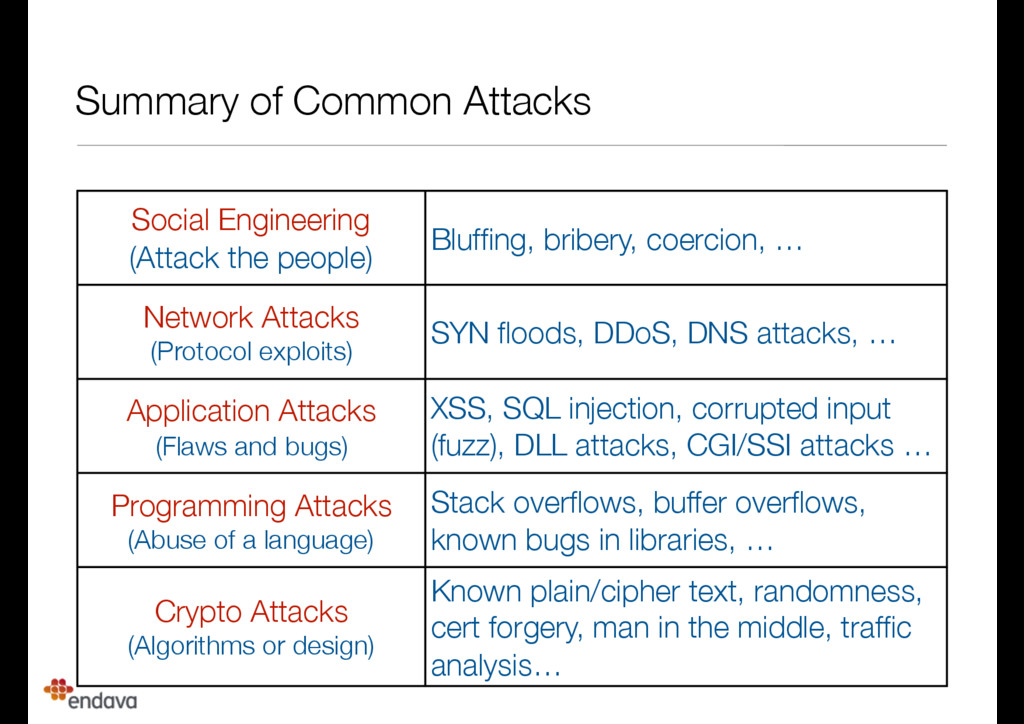

  61. Summary of Common Attacks
    Social Engineering

    (Attack the people)
    Bluffing, bribery, coercion, …
    Network Attacks
    (Protocol exploits)
    SYN floods, DDoS, DNS attacks, …
    Application Attacks

    (Flaws and bugs)
    XSS, SQL injection, corrupted input
    (fuzz), DLL attacks, CGI/SSI attacks …
    Programming Attacks

    (Abuse of a language)
    Stack overflows, buffer overflows,
    known bugs in libraries, …
    Crypto Attacks

    (Algorithms or design)
    Known plain/cipher text, randomness,
    cert forgery, man in the middle, traffic

    View Slide
