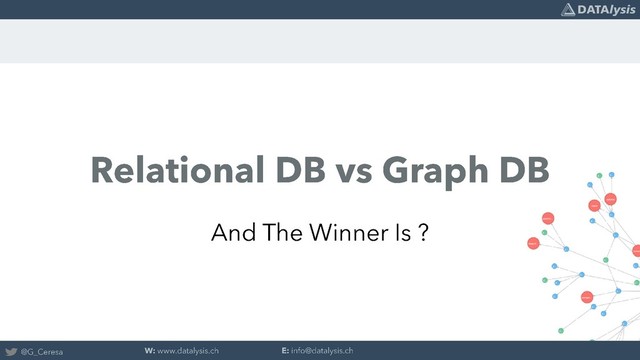

Relational DB Versus Graph DB: And The Winner Is?

No need to introduce Relational Databases anymore, and even less the power of SQL. But better to not ignore Graph Databases: they are powerful and have some obvious benefits compared to a relational database. Let's compare the two and the power of their query languages with some practical examples and see which wins!

Transcript

1. View Slide

2. View Slide

3. Copyright © 2017, Oracle and/or its affiliates. All rights reserved. |
   bit.ly/OracleACEProgram
   450+ Technical Experts
   Helping Peers Globally
   Nominate yourself or someone you know: acenomination.oracle.com


   View Slide

4. View Slide

5. •
   •
   There is a “bit” more than that, but let’s keep it simple…


   View Slide

6. View Slide

7. Vertex
   edge
   A Property Graph
   (also called node)


   View Slide

8. edge
   edge label
   edge properties
   edge ID
   directed edge
   vertex (node)
   vertex
   properties
   vertex ID
   a vertex can
   have a label


   View Slide

9. PGX
   Scalable and Persistent Storage
   Graph Data Access Layer API
   Graph Analytics
   In-memory Analytic Engine
   Blueprints & SolrCloud / Lucene
   Property Graph Support on
   Files, Apache HBase, Oracle NoSQL or Oracle DB 12.2+
   REST Web Service
   Python, Perl, PHP, Ruby,
   Javascript, …
   Java APIs
   Java APIs/JDBC/SQL/PLSQL
   Cytoscape Plug-in
   R Integration (OAAgraph)
   Spark integration
   SQL*Plus, …


   View Slide

10. View Slide

11. From 45,700 nodes
    with 105,406 edges,
    to 85 nodes with
    218 edges in
    seconds
    Catalog
    RPD


    View Slide

12. Spain
    Italy
    John Doe
    Company A
    Company B
    Company C
    Company D
    Located in
    Located in
    Located in
    Located in
    Buys from
    Buys from
    Buys from
    Buys from
    Money laundering
    and VAT frauds
    Owns


    View Slide

13. View Slide

14. View Slide

15. Every row of a table has a fixed, identical structure
    Connections at a table level (not row)
    Nodes and edges can have any number of properties
    Connections at a node level (can be seen as row level)


    View Slide

16. View Slide

17. •
    •
    •
    •


    View Slide

18. SEGMENT
    CUSTOMER
    ACCOUNT TRANSACTION


    View Slide

19. •
    •
    •
    •


    View Slide

20. SELECT othercustomer.name, SUM(transaction.amount) as total_transaction
    FROM customer
    INNER JOIN account
    ON customer.id = account.owner
    INNER JOIN transaction
    ON account.id = transaction.src_account OR account.id = transaction.dst_account
    INNER JOIN account otheraccount
    ON (transaction.src_account = otheraccount.id
    OR transaction.dst_account = otheraccount.id)
    AND account.id <> otheraccount.id
    INNER JOIN customer othercustomer
    ON otheraccount.owner = othercustomer.id
    INNER JOIN segment othersegment
    ON othercustomer.segment = othersegment.id
    WHERE customer.name = 'Nikita’
    AND othersegment.name IN ('Person', 'Company')
    GROUP BY othercustomer.name


    View Slide

21. View Slide

22. SELECT owner.name, SUM(t.amount) AS total_transaction
    FROM financial_transactions
    MATCH (p:Person) -[:ownerOf]-> (:Account) -[t:transaction]- (:Account) <-
    [:ownerOf]- (owner:Person|Company)
    WHERE p.name = 'Nikita'
    GROUP BY owner


    View Slide

23. •
    •
    •
    •
    •
    •
    •


    View Slide

24. •
    •
    •
    •
    •
    •
    •
    The power of marketing…


    View Slide

25. •
    •
    •
    •
    •
    •
    •


    View Slide

26. SELECT owner.name, SUM(t.amount) AS total_transaction
    FROM financial_transactions
    MATCH (p:Person) -[:ownerOf]-> (:Account) -[t:transaction]- (:Account)
    <-[:ownerOf]- (owner:Person|Company)
    WHERE p.name = 'Nikita'
    GROUP BY owner


    View Slide

27. SELECT othercustomer.name, SUM(transaction.amount) as total_transaction
    FROM customer
    INNER JOIN account
    ON customer.id = account.owner
    INNER JOIN transaction
    ON account.id = transaction.src_account OR account.id = transaction.dst_account
    INNER JOIN account otheraccount
    ON (transaction.src_account = otheraccount.id
    OR transaction.dst_account = otheraccount.id)
    AND account.id <> otheraccount.id
    INNER JOIN customer othercustomer
    ON otheraccount.owner = othercustomer.id
    INNER JOIN segment othersegment
    ON othercustomer.segment = othersegment.id
    WHERE customer.name = 'Nikita’
    AND othersegment.name IN ('Person', 'Company')
    GROUP BY othercustomer.name
    SELECT owner.name, SUM(t.amount) AS total_transaction
    FROM financial_transactions
    MATCH (p:Person) -[:ownerOf]-> (:Account) -[t:transaction]- (:Account) <-[:ownerOf]- (owner:Person|Company)
    WHERE p.name = 'Nikita'
    GROUP BY owner


    View Slide

28. View Slide

29. └
    └
    ID MANAGER
    100
    100
    120
    120
    185
    Steven
    Diana
    Tom
    SELECT id, name, LEVEL
    FROM employees
    CONNECT BY PRIOR id = manager
    Name


    View Slide

30. (a vertex) –[connected by an edge to]-> (another vertex)
    Steven
    Diana
    Tom
    managedBy
    managedBy
    MATCH (v1)->(v2)
    MATCH (v1)–[e]->(v2)
    MATCH (v1)-(v2)
    MATCH (v1)–[e]-(v2)
    MATCH (v1)<-(v2)
    MATCH (v1)<-[e]-(v2)
    MATCH (v1)-/:label?/->(v2)
    MATCH (v1)-/:label*/->(v2)
    MATCH (v1)-/:label+/->(v2)
    MATCH (v1)-/:label{1,2}/->(v2)


    View Slide

31. SELECT id, name, LEVEL
    FROM employees
    CONNECT BY PRIOR id = manager
    SELECT emp.name, mgr.name AS manager
    MATCH (emp:Employee) -/:managedBy*/-> (mgr:Employee)


    View Slide

32. •
    •


    View Slide

33. Shortest way
    from A to G ?
    A
    B
    C
    D
    E
    F
    G
    2 min
    2 min
    10 min
    5 min
    4 min
    3 min
    4 min
    8 min
    8 min
    3 min
    2 min
    6 min


    View Slide

34. SELECT start.name, SUM(e.time) AS distance, dst.name
    MATCH SHORTEST( (start) -[e]->* (dst) )
    WHERE start.name = 'A' AND dst.name = ‘G'
    A
    B
    C
    D
    E
    F
    G
    2 min
    2 min
    10 min
    5 min
    4 min
    3 min
    4 min
    8 min
    8 min
    3 min
    2 min
    6 min


    View Slide

35. CREATE OR REPLACE
    FUNCTION evaluate_string ( p_string IN VARCHAR2 ) RETURN NUMBER
    IS
    l_result NUMBER;
    BEGIN
    EXECUTE IMMEDIATE
    'select '||p_string||' from dual'
    INTO l_result;
    RETURN l_result;
    END evaluate_string;
    /
    WITH t AS (
    SELECT LEVEL number_of_hops, SYS_CONNECT_BY_PATH(distance,'+') route_cost, CONNECT_BY_ROOT src
    || SYS_CONNECT_BY_PATH(dst,'-') route, dst
    FROM connections pc
    CONNECT BY NOCYCLE PRIOR dst = src
    START WITH src = 'A'
    )
    SELECT number_of_hops, route_cost, evaluate_string(route_cost) total_cost, route
    FROM t
    WHERE dst = 'G'
    ORDER BY 3 ASC;


    View Slide

36. View Slide

37. •
    •
    SELECT ID(page), COUNT(e) as num_hops, ARRAY_AGG( ID(cat) ) as path
    MATCH SHORTEST ( (page) (-[e]-> (cat))* (topcat) )
    WHERE ID(page) = 'Max_Arthur'
    ORDER BY num_hops DESC
    The graph has 11’265’294 nodes, 68’163’762 edges.
    The query takes less than a second on a laptop.


    View Slide

38. category:British_male_writers, category:British_writers, category:Writers_by_nationality,
    category:Writers, category:People_associated_with_books, category:Books, category:Printing,
    category:Chinese_inventions, category:Chinese_culture, category:China, category:Chinese-
    speaking_countries_and_territories, category:Chinese_language, category:Languages_of_Taiwan,
    category:Taiwanese_culture, category:Taiwan, category:Major_non-NATO_ally, category:NATO,
    category:Military_alliances_involving_Estonia, category:Military_history_of_Estonia,
    category:History_of_Estonia_by_topic, category:History_of_Estonia, category:Estonia,
    category:Post–Russian_Empire_states, category:Russian_Civil_War, category:Russian_Revolution,
    category:Leninism, category:Ideology_of_the_Communist_Party_of_the_Soviet_Union,
    category:Communist_Party_of_the_Soviet_Union, category:Stalinist_parties, category:Stalinism,
    category:Marxism–Leninism, category:Ideology_of_the_Communist_Party_of_China,
    category:Communist_Party_of_China, category:Maoist_parties, category:Maoist_organizations,
    category:Maoism, category:Mao_Zedong, category:20th-century_Chinese_poets,
    category:Chinese_poets_by_century, category:Chinese_poets, category:Chinese_poetry,
    category:Chinese_literature_by_medium, category:Chinese_media_by_medium,
    category:Media_in_China, category:Communications_in_China,
    category:Communications_in_Asia_by_country, category:Communications_in_Asia,
    category:Information_and_communication_technologies_in_Asia, category:Development_in_Asia,
    category:Development_by_continent
    It’s a MariaDB database, didn’t even try to write a SQL query…


    View Slide

39. View Slide

40. pgx> var betweenness = analyst.approximateVertexBetweennessCentrality(graph, 2000)
    betweenness ==> VertexProperty[name=approx_betweenness,type=double,graph=wikipedia]
    pgx> var resultSet = graph.queryPgql("SELECT ID(v), v.approx_betweenness MATCH (v) ORDER BY
    v.approx_betweenness DESC LIMIT 10")
    resultSet ==> PgqlResultSetImpl[graph=wikipedia,numResults=10]
    pgx> resultSet.print(10)
    +-------------------------------------------------------------------+
    | ID(v) | v.approx_betweenness |
    +-------------------------------------------------------------------+
    | category:NATO | 3335099.4280233113 |
    | category:French_language | 2528594.2608384034 |
    | category:Major_non-NATO_ally | 2439938.8292453424 |
    | category:Francophonie | 2302727.8457136396 |
    | category:Languages_written_in_Latin_script | 2195355.50705401 |
    | category:Latin_script | 2189237.6630984987 |
    | category:Postâ??Russian_Empire_states | 2046648.4079036822 |
    | category:Russian_Civil_War | 2037548.3718300906 |
    | category:Years | 2031954.4741504523 |
    | category:United_States | 1985616.4889351444 |
    +-------------------------------------------------------------------+
    $4 ==> PgqlResultSetImpl[graph=wikipedia,numResults=10]


    View Slide

41. View Slide

42. •
    •
    •
    •
    •
    •
    •


    View Slide

43. Graph DB
    Relational DB


    View Slide
