The Antarctic Wind Atlas - Reducing Barriers for Sustainability in Antarctica

Brandon VAN SCHAIK, EPFL - Switzerland

Transcript

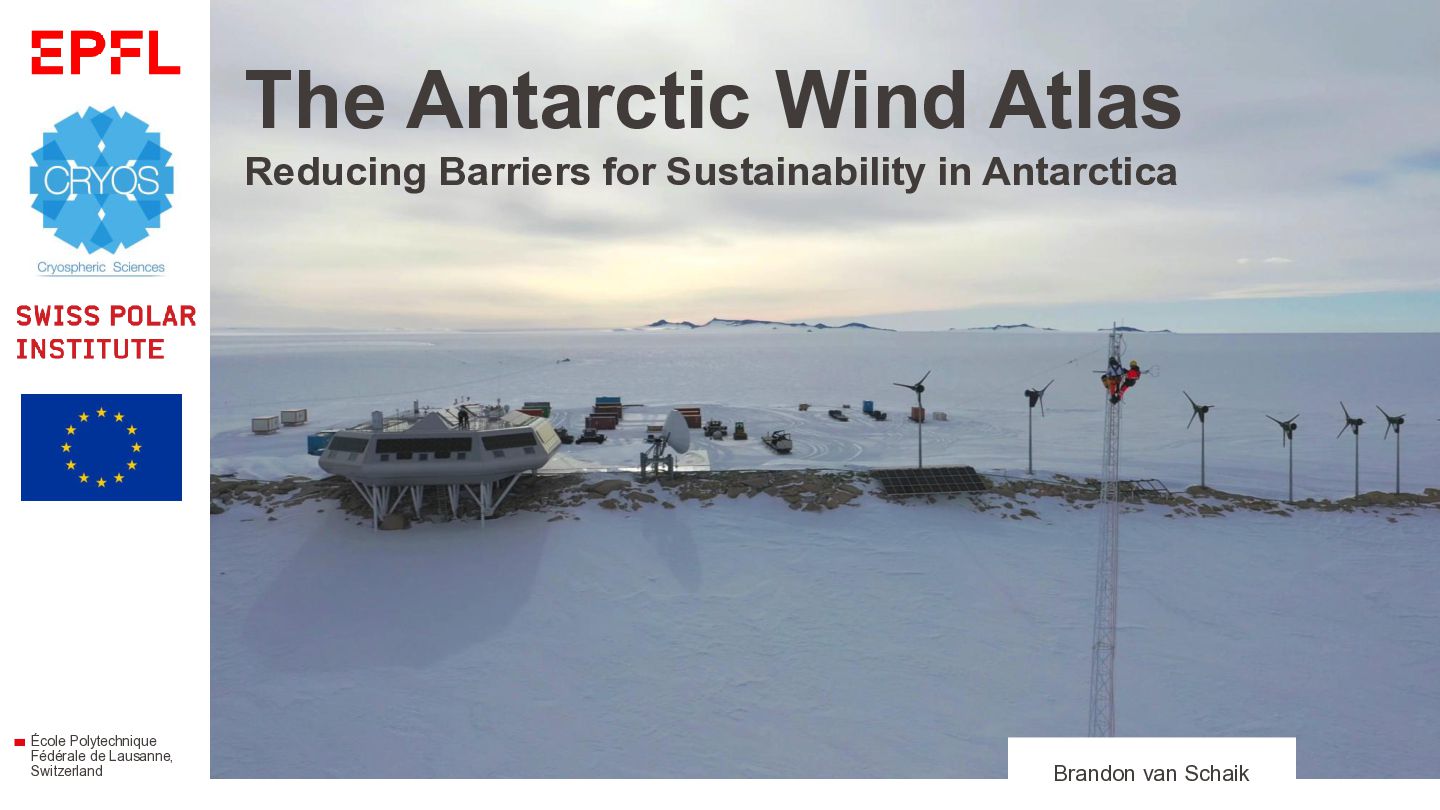

1. Brandon van Schaik École Polytechnique Fédérale de Lausanne, Switzerland The Antarctic Wind Atlas Reducing Barriers for Sustainability in Antarctica

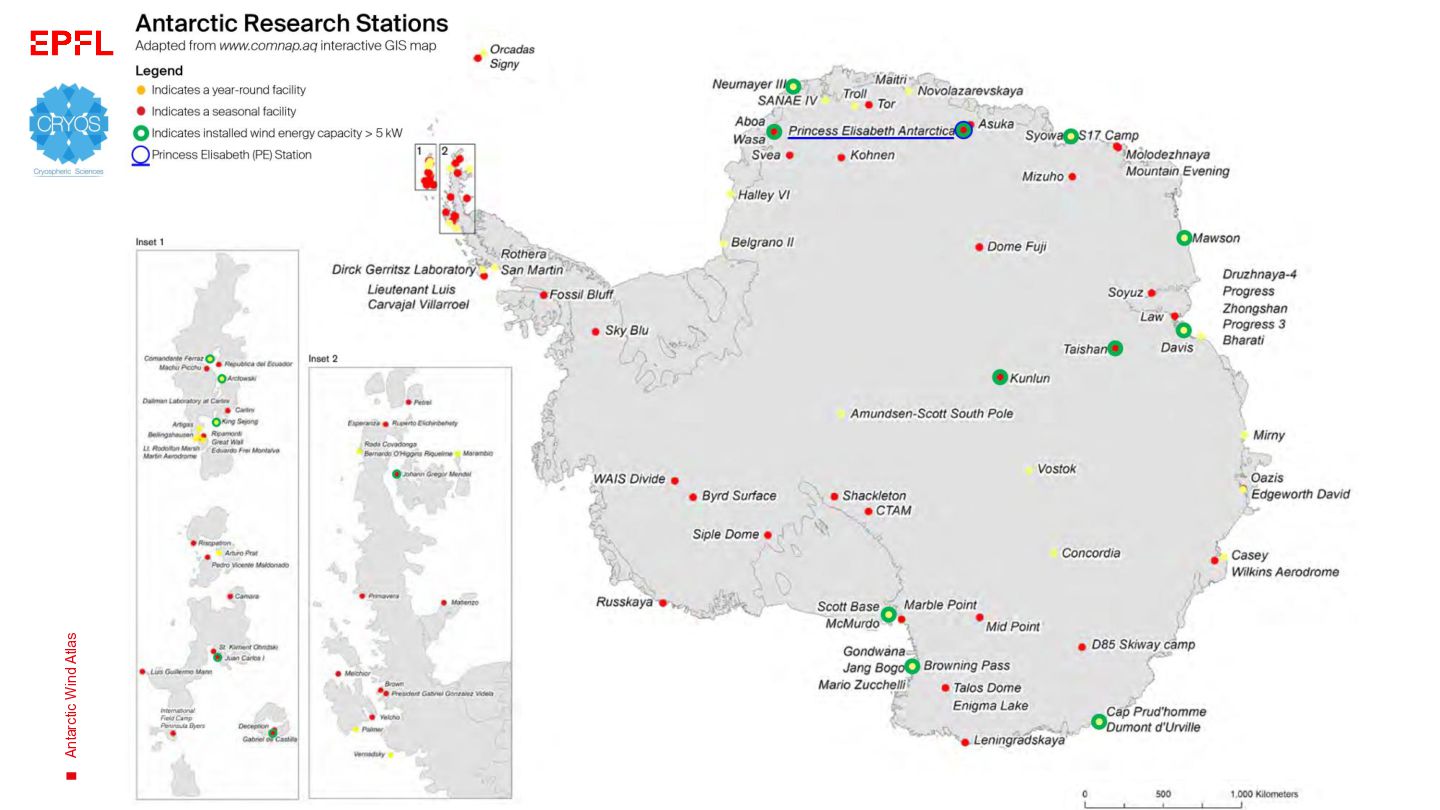

2. Antarctic Wind Atlas

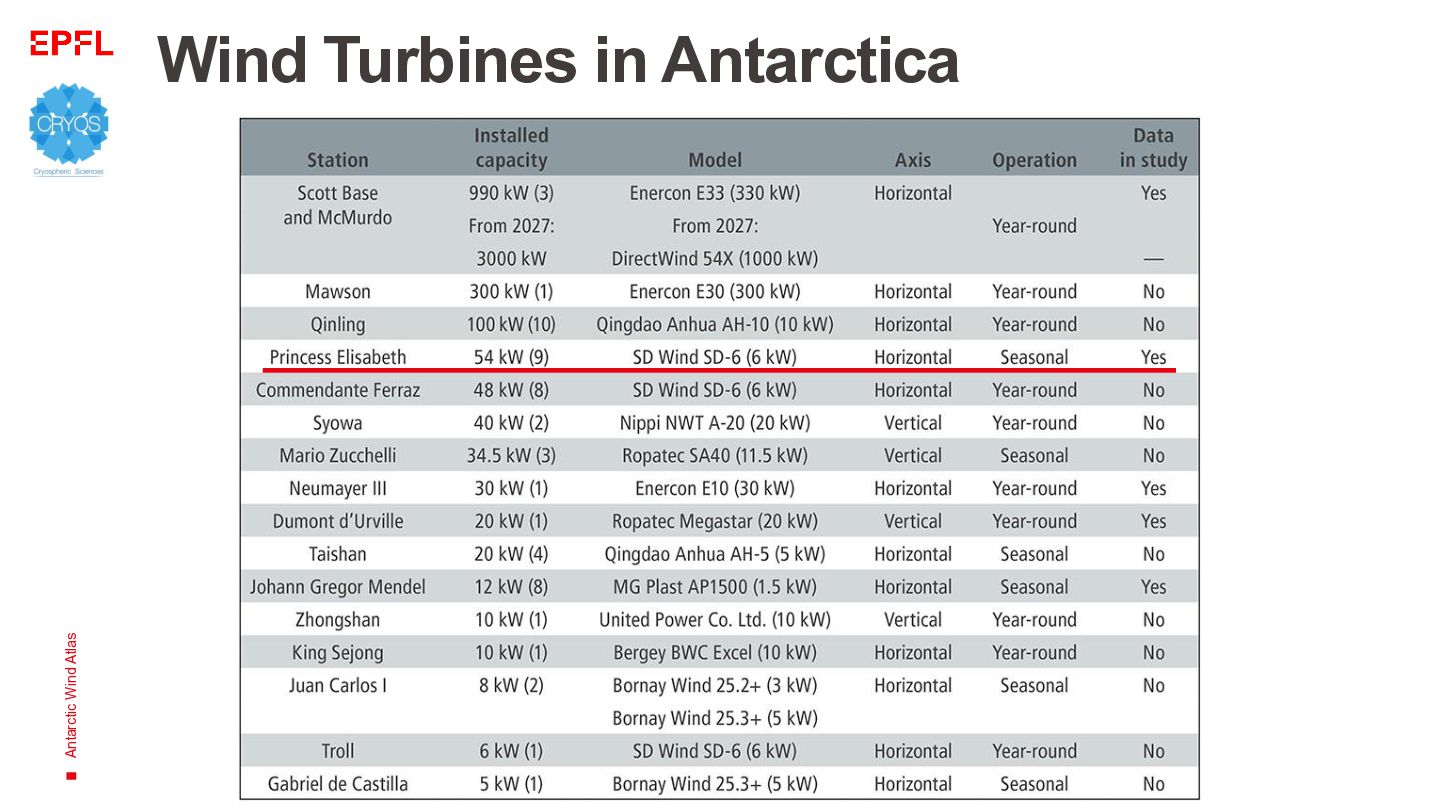

3. Antarctic Wind Atlas Wind Turbines in Antarctica

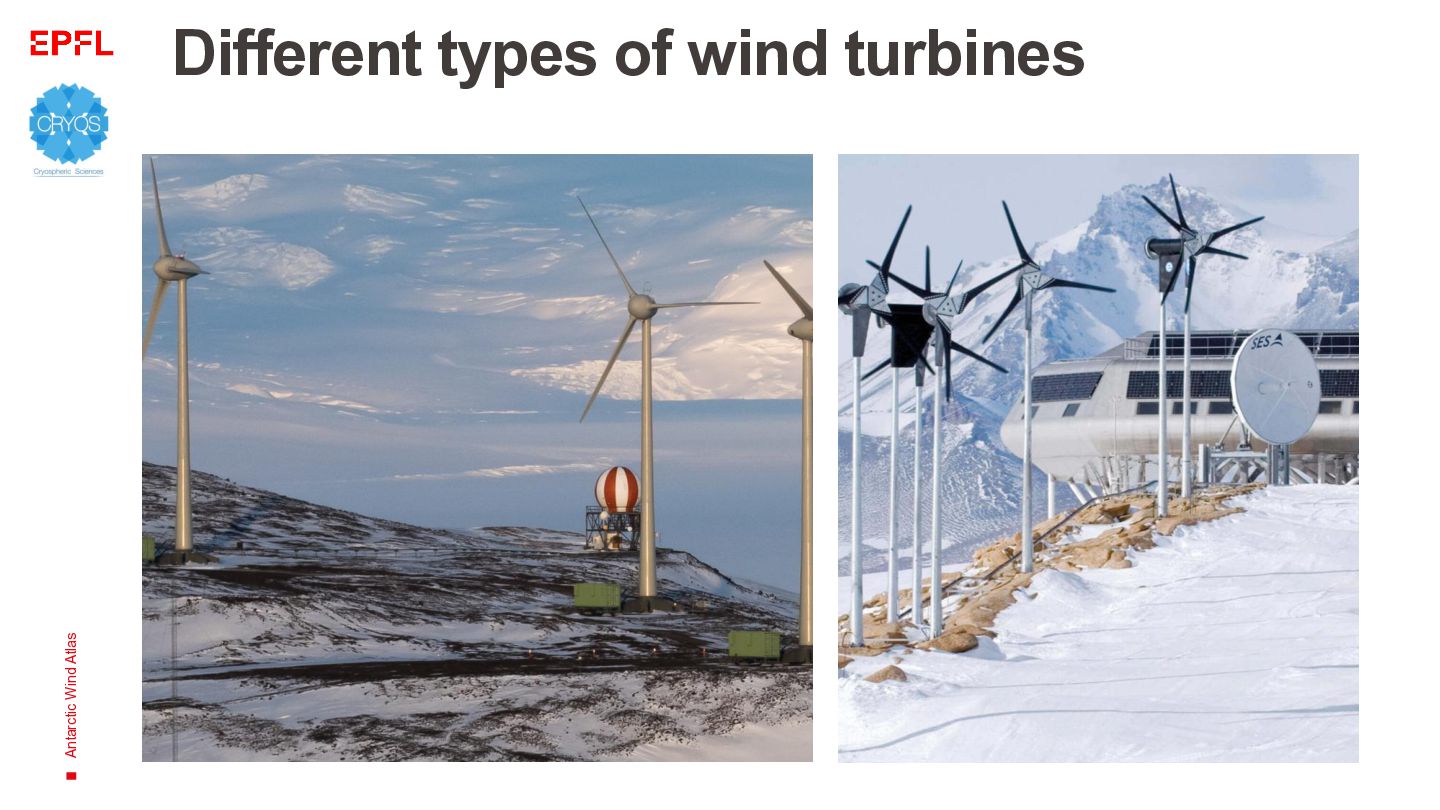

4. Different types of wind turbines Antarctic Wind Atlas

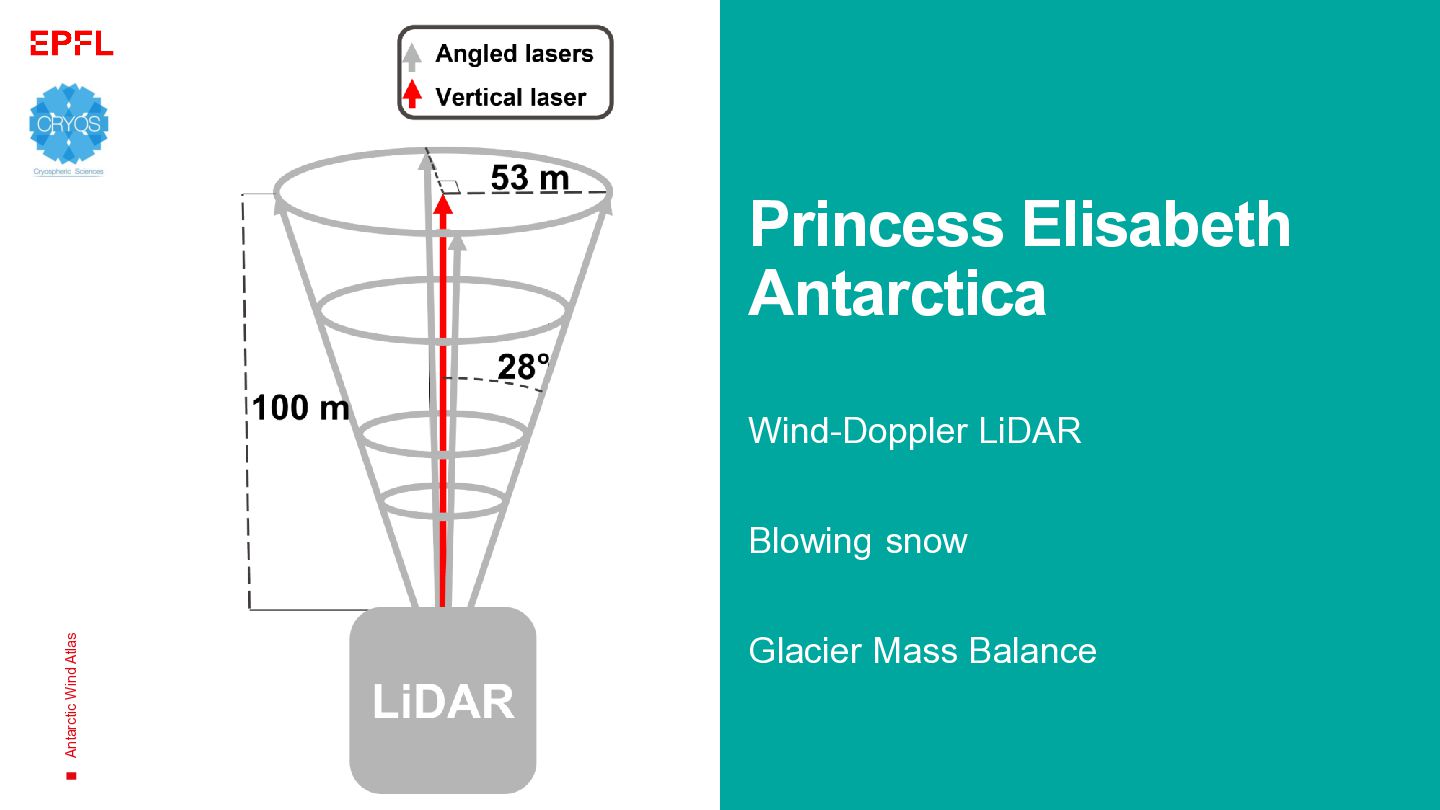

5. Princess Elisabeth Antarctica Wind-Doppler LiDAR Blowing snow Glacier Mass Balance Antarctic Wind Atlas

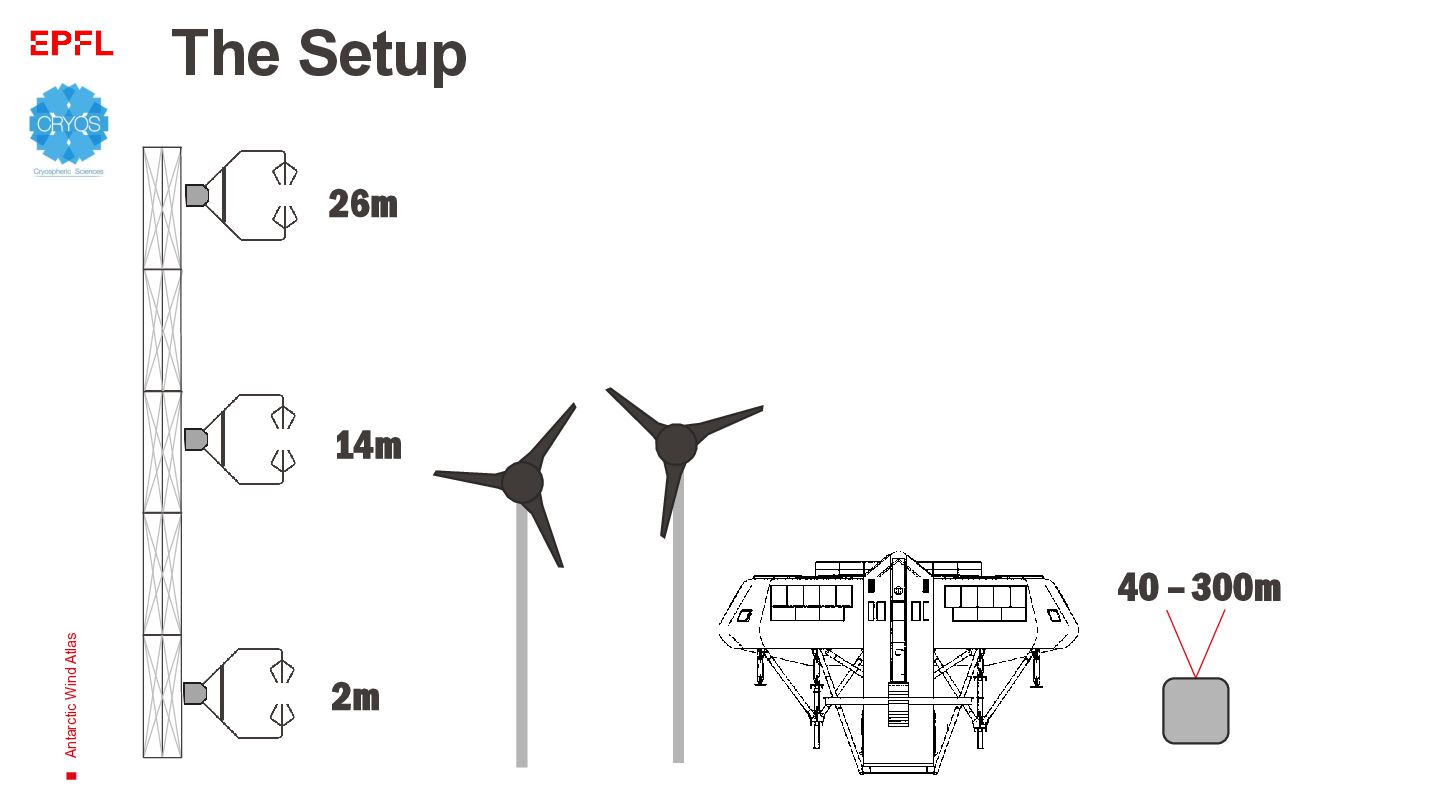

6. The Setup Antarctic Wind Atlas 2m 14m 26m 40 – 300m

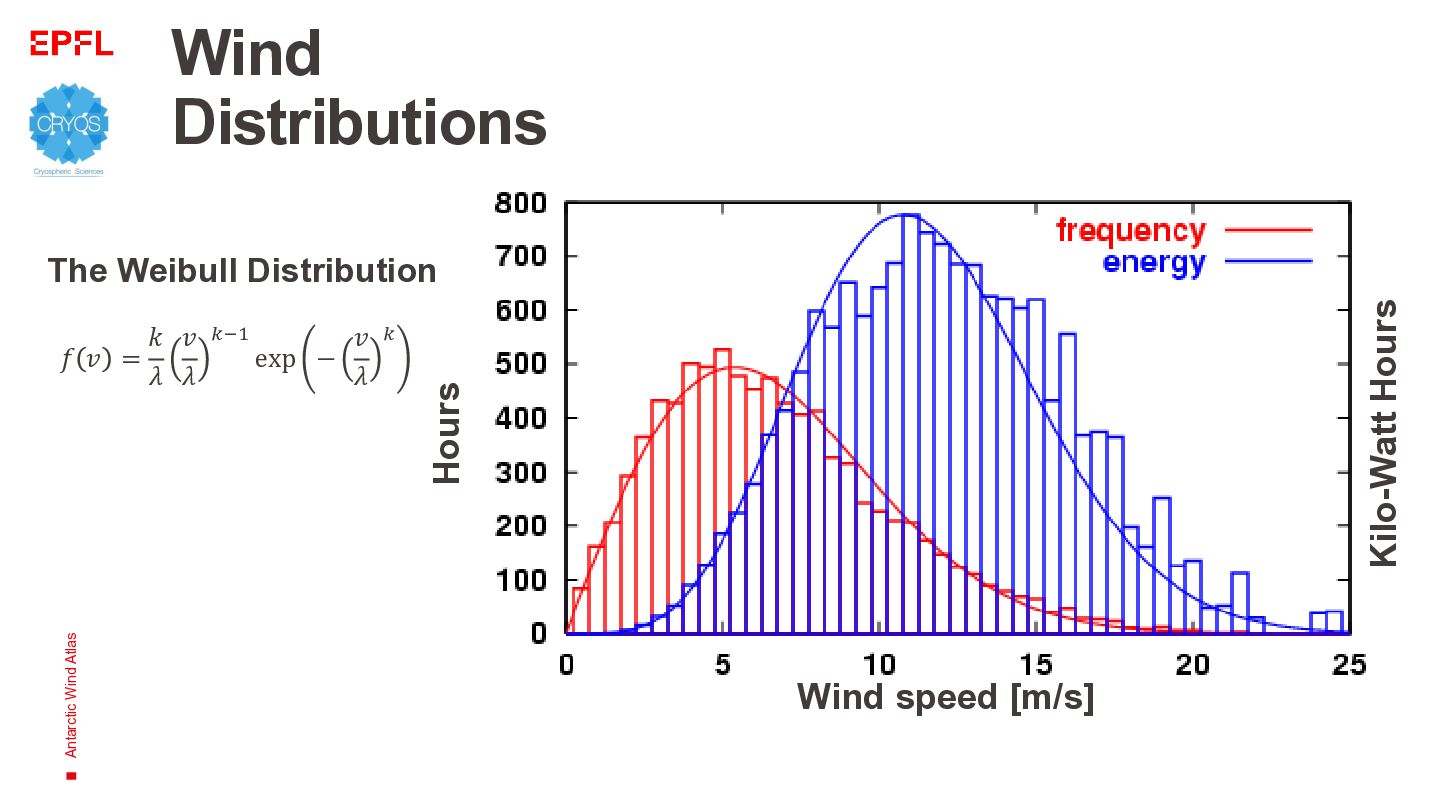

7. Wind Distributions Antarctic Wind Atlas Wind speed [m/s] Kilo-Watt Hours Hours 𝑓 𝑣 = 𝑘 𝜆 𝑣 𝜆 𝑘−1 exp − 𝑣 𝜆 𝑘 The Weibull Distribution

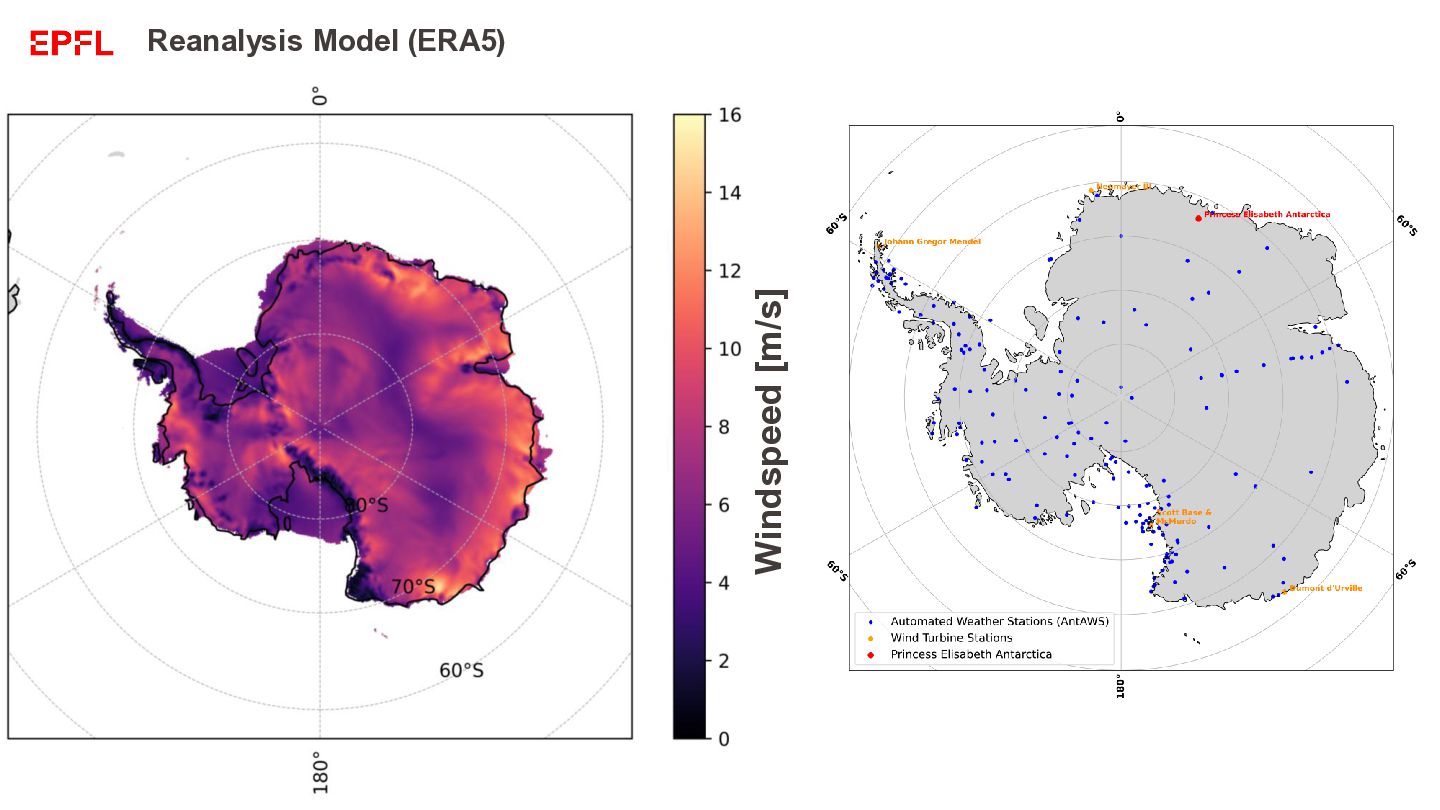

8. Antarctic Wind Atlas Windspeed [m/s] Reanalysis Model (ERA5)

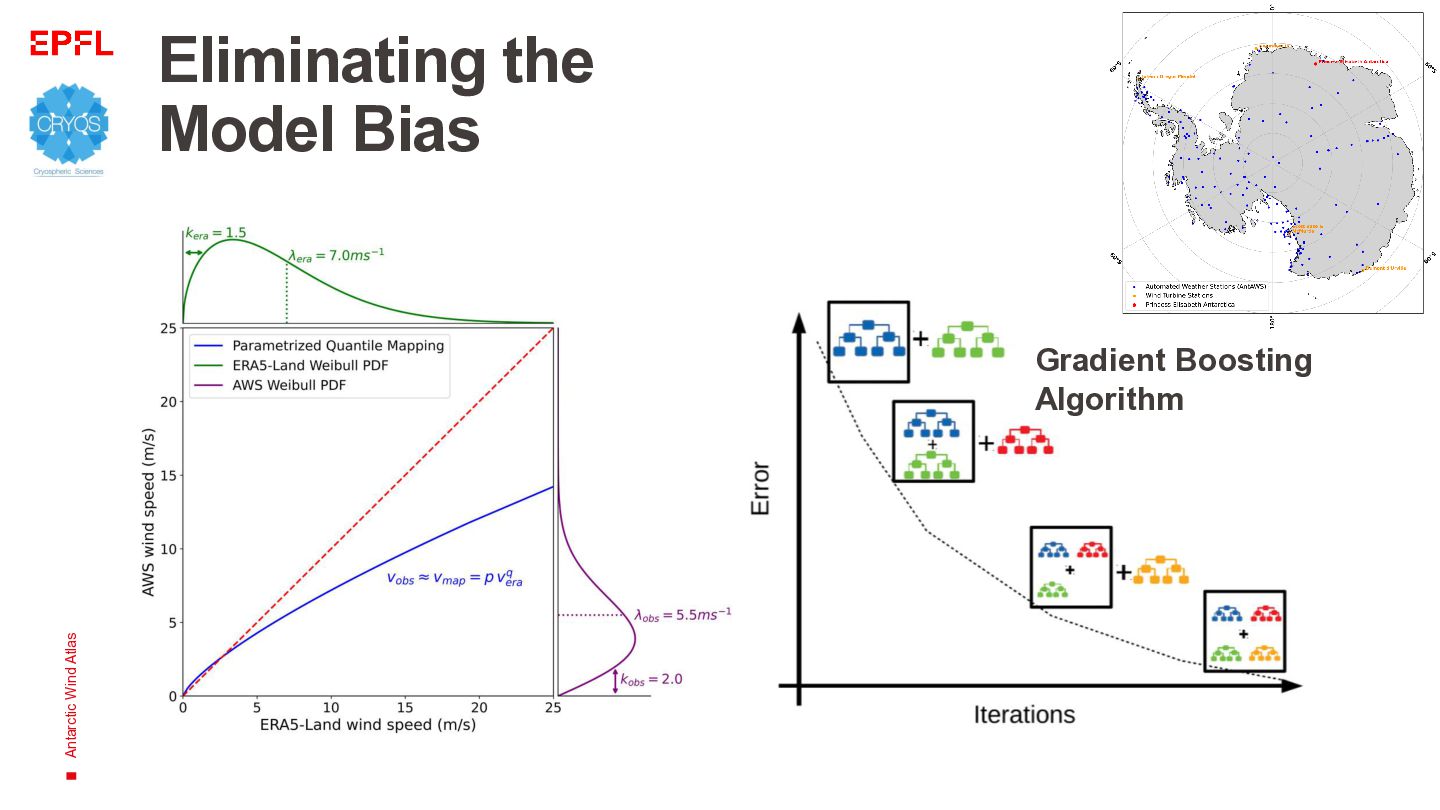

9. Antarctic Wind Atlas Eliminating the Model Bias Gradient Boosting Algorithm

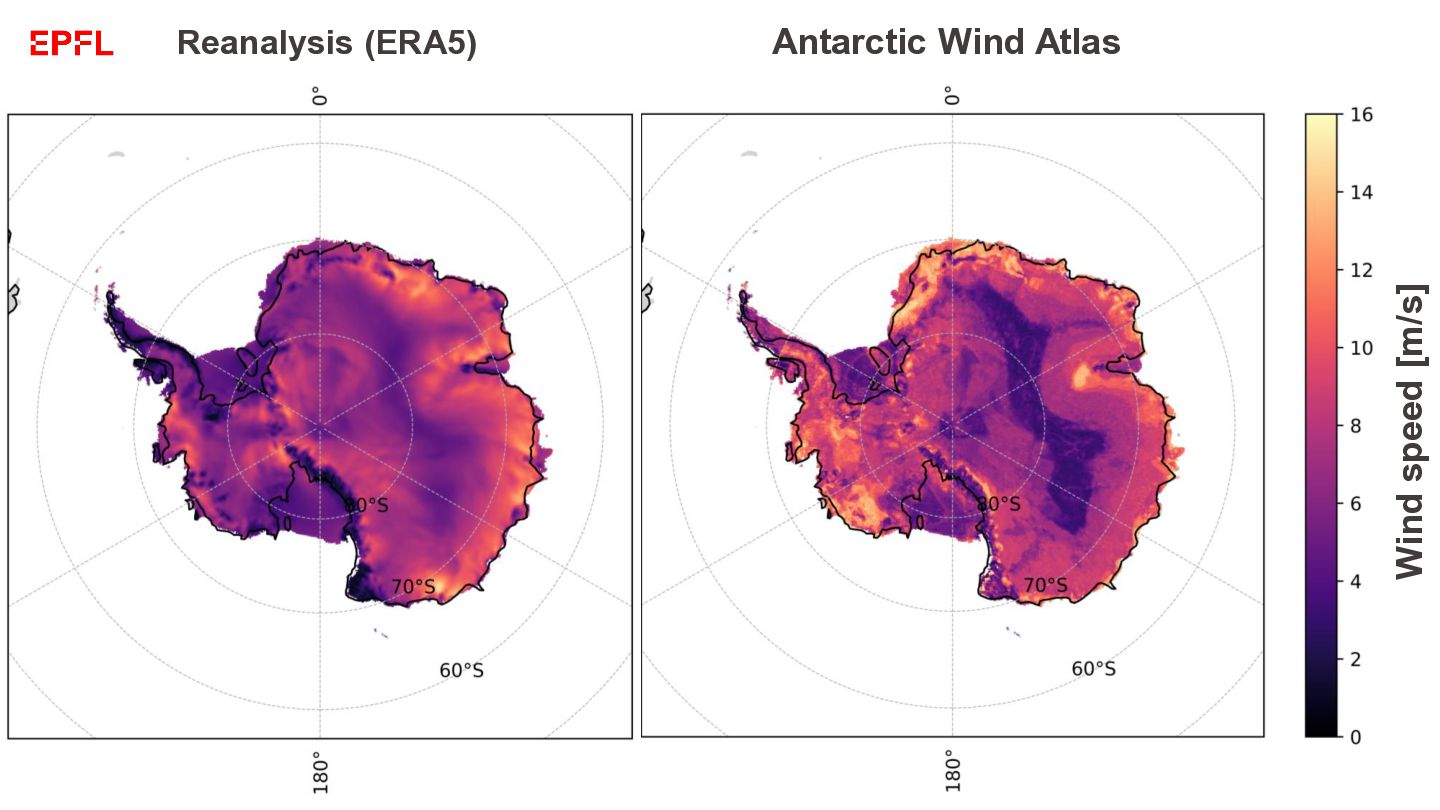

10. Antarctic Wind Atlas Wind speed [m/s] Reanalysis (ERA5) Antarctic Wind Atlas

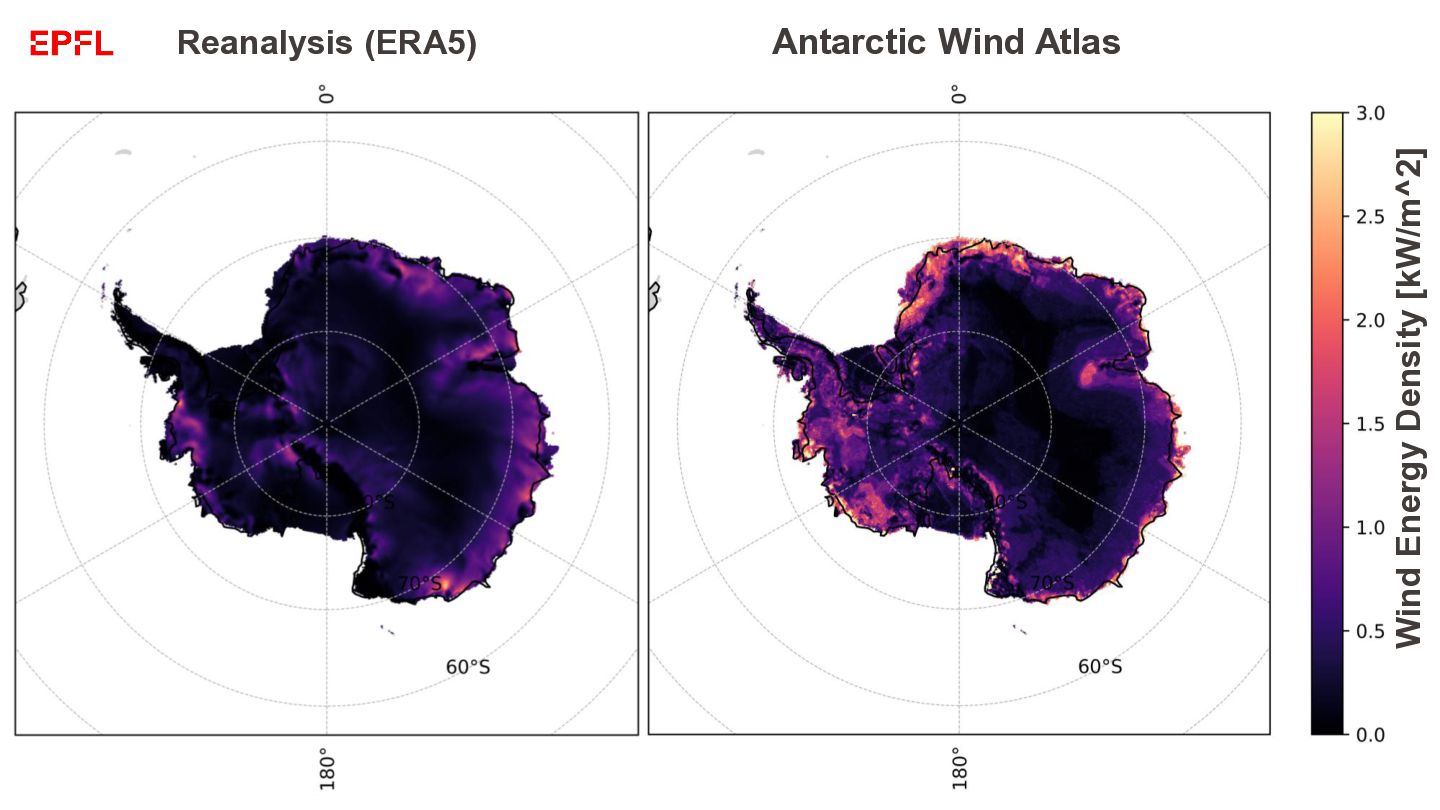

11. Antarctic Wind Atlas Wind Energy Density [kW/m^2] Reanalysis (ERA5) Antarctic Wind Atlas

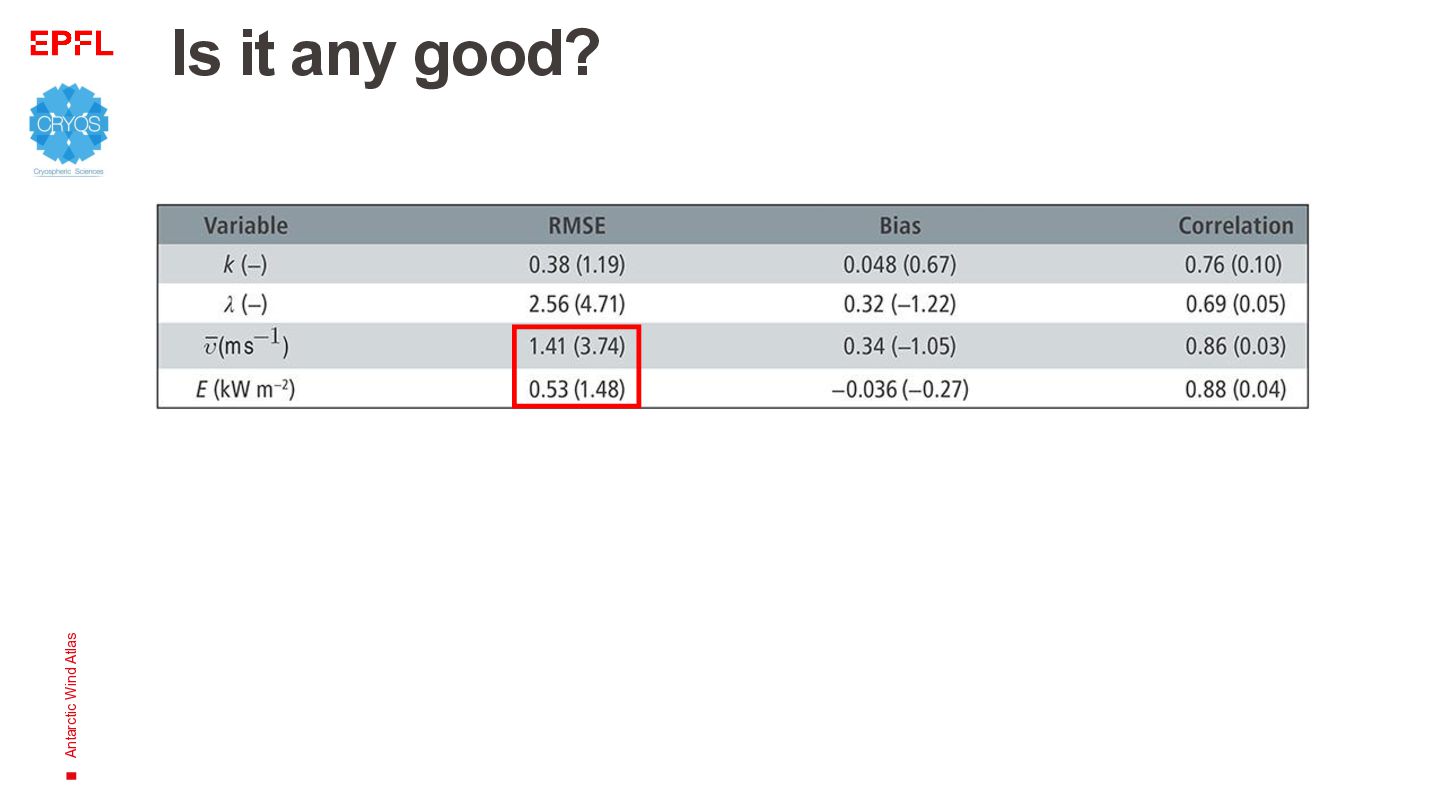

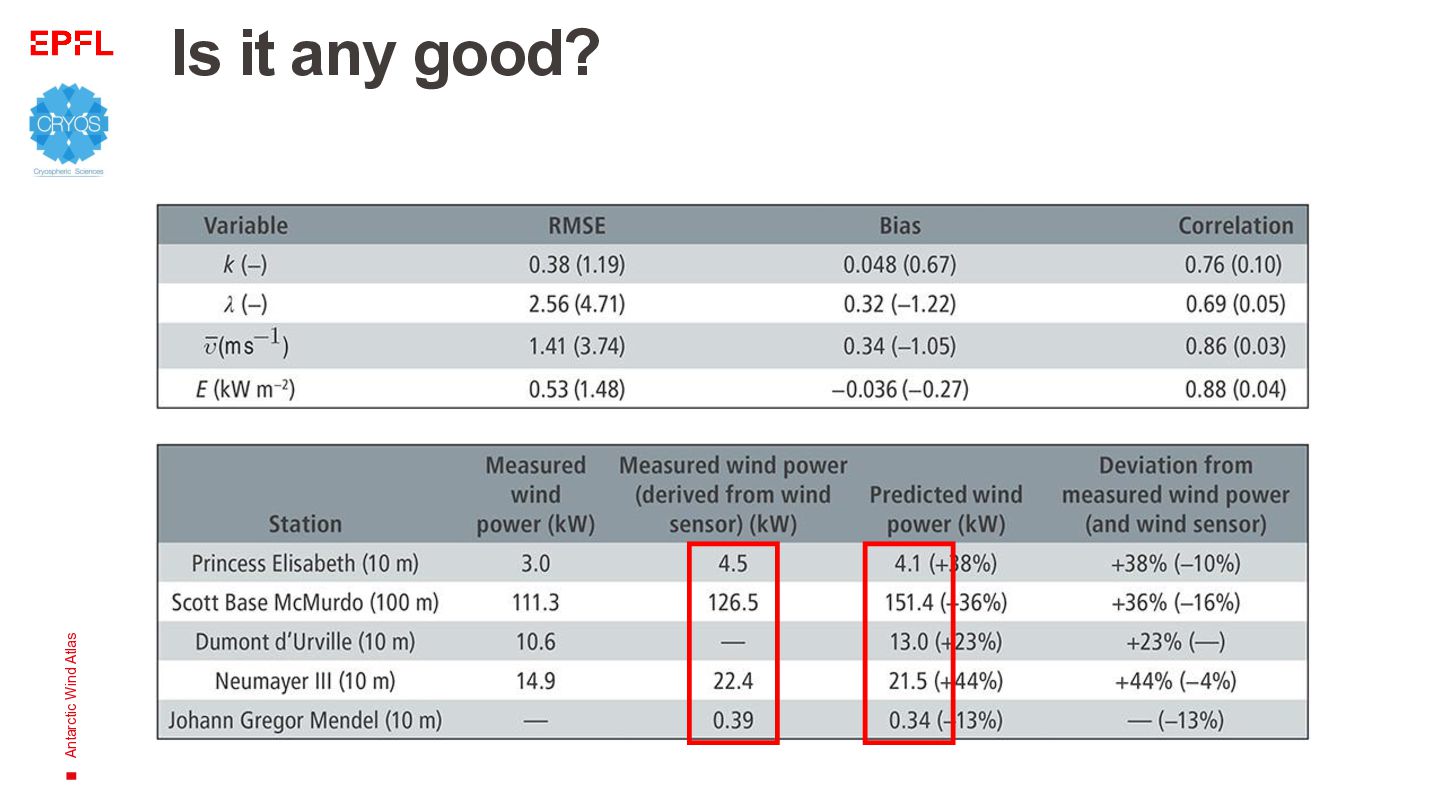

12. Is it any good? Antarctic Wind Atlas

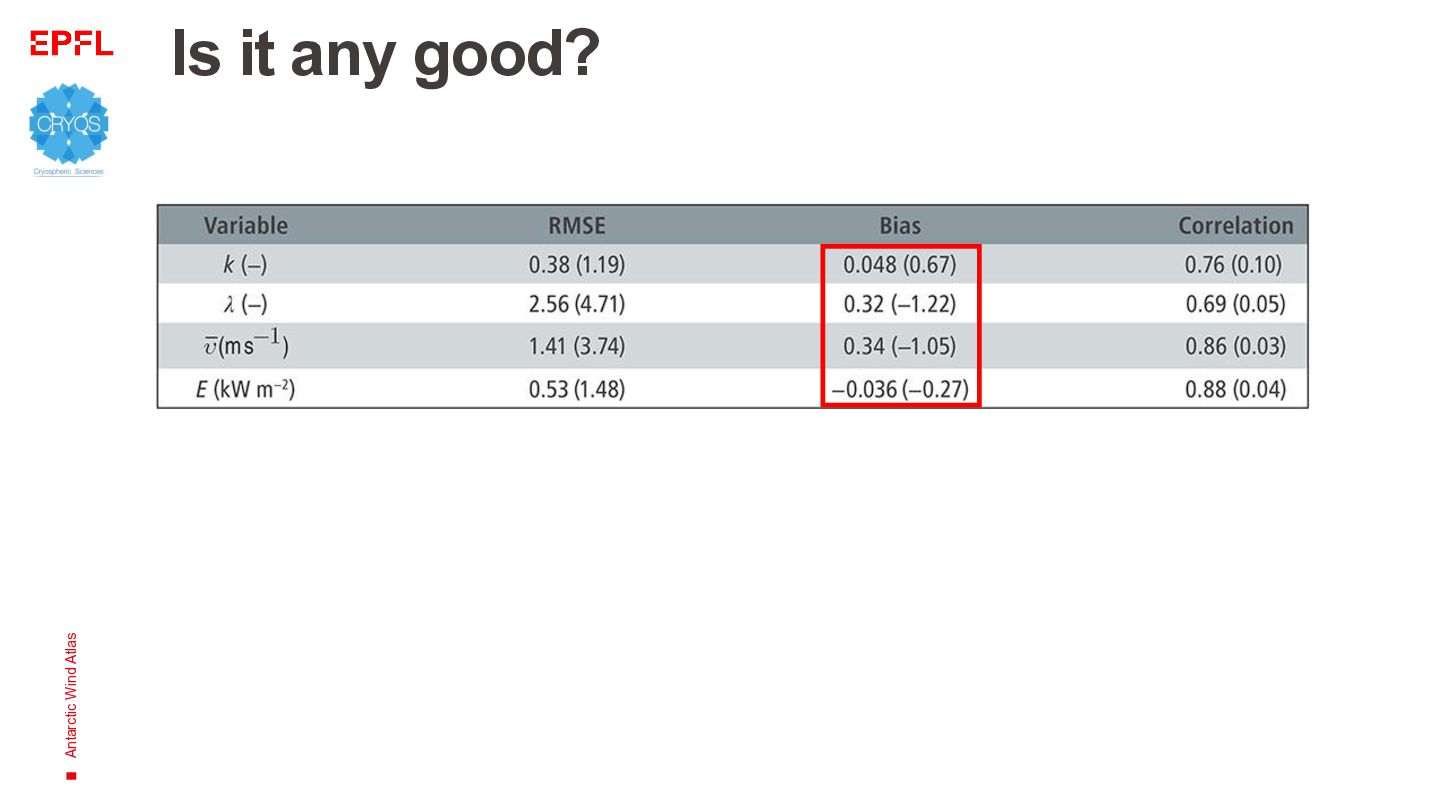

13. Is it any good? Antarctic Wind Atlas

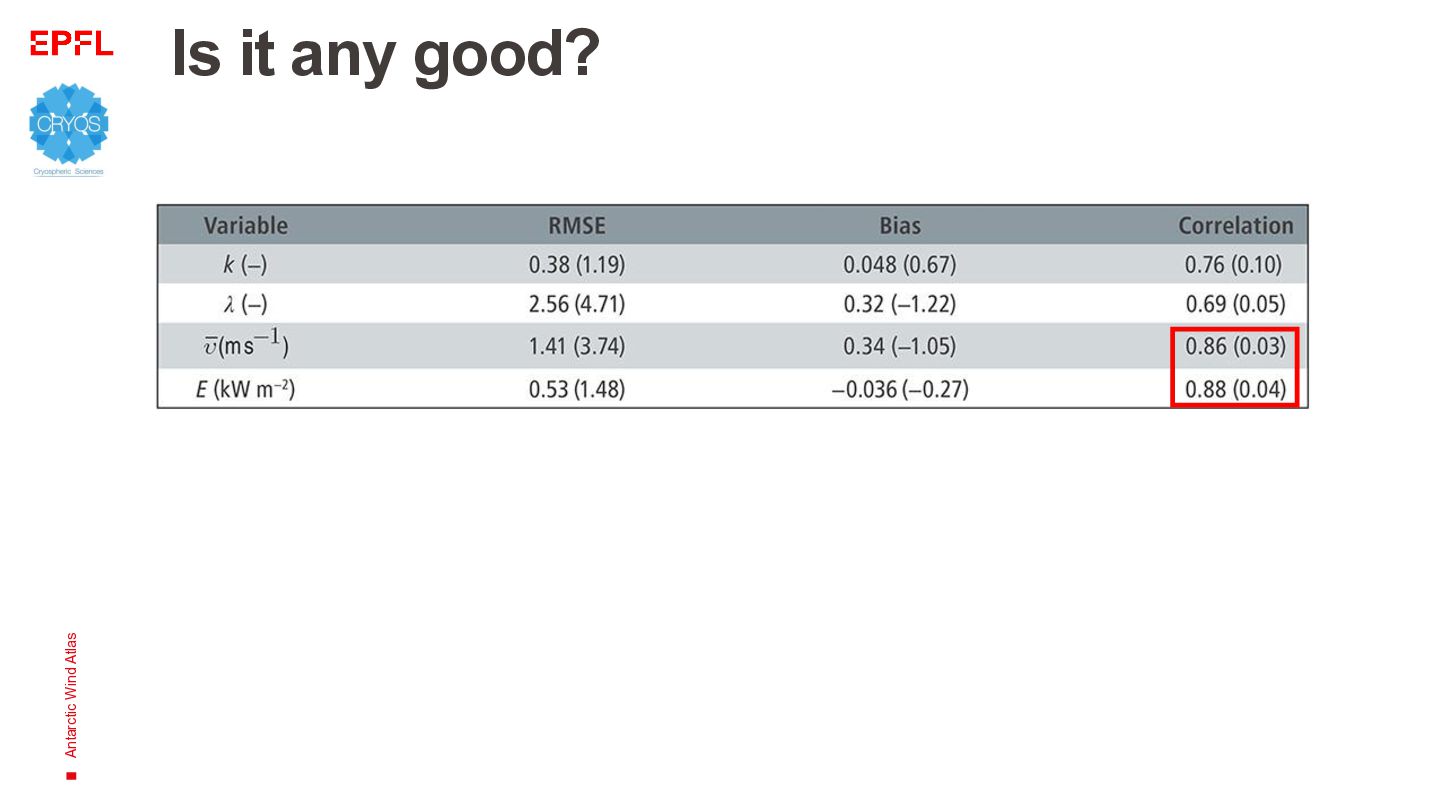

14. Is it any good? Antarctic Wind Atlas
15. Is it any good? Antarctic Wind Atlas

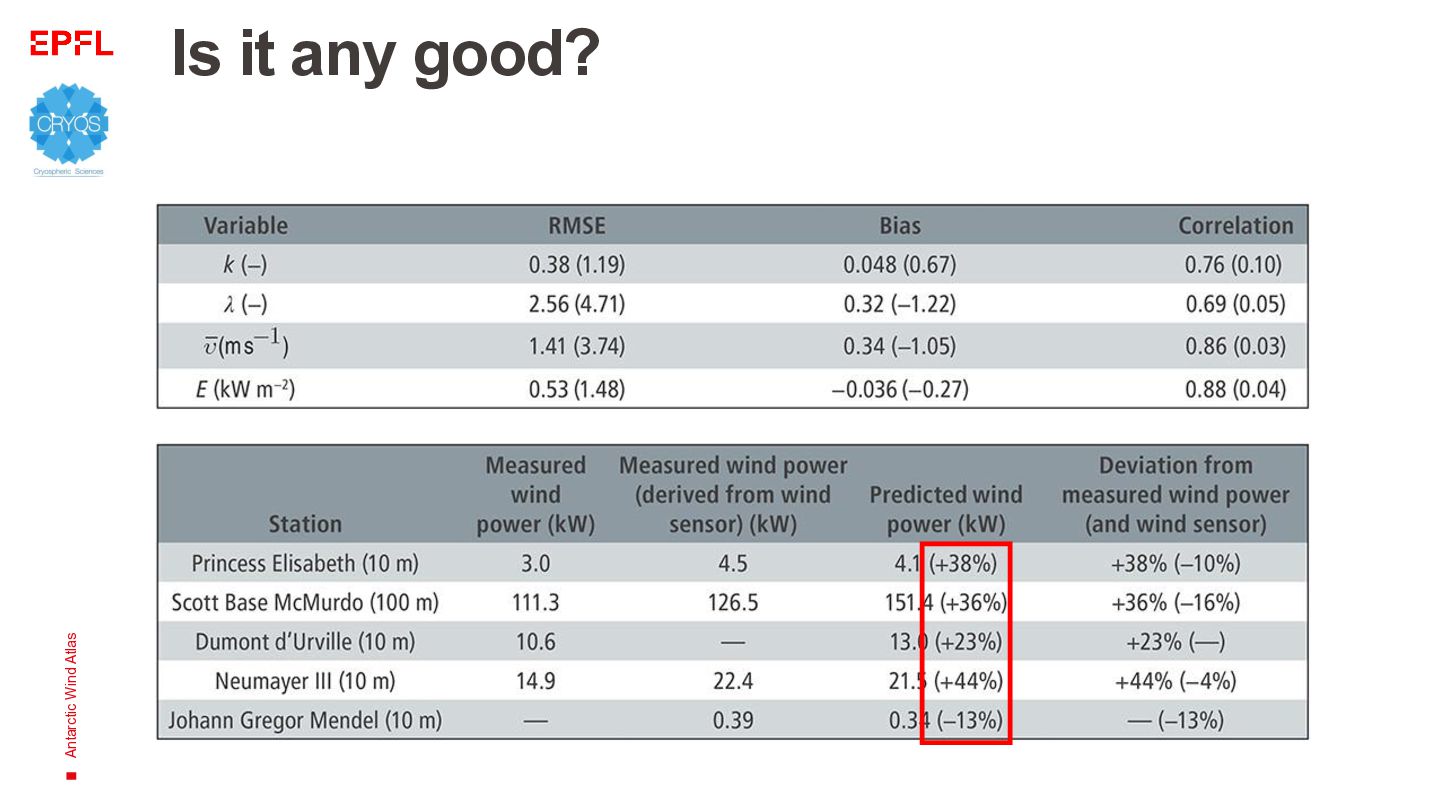

16. Is it any good? Antarctic Wind Atlas

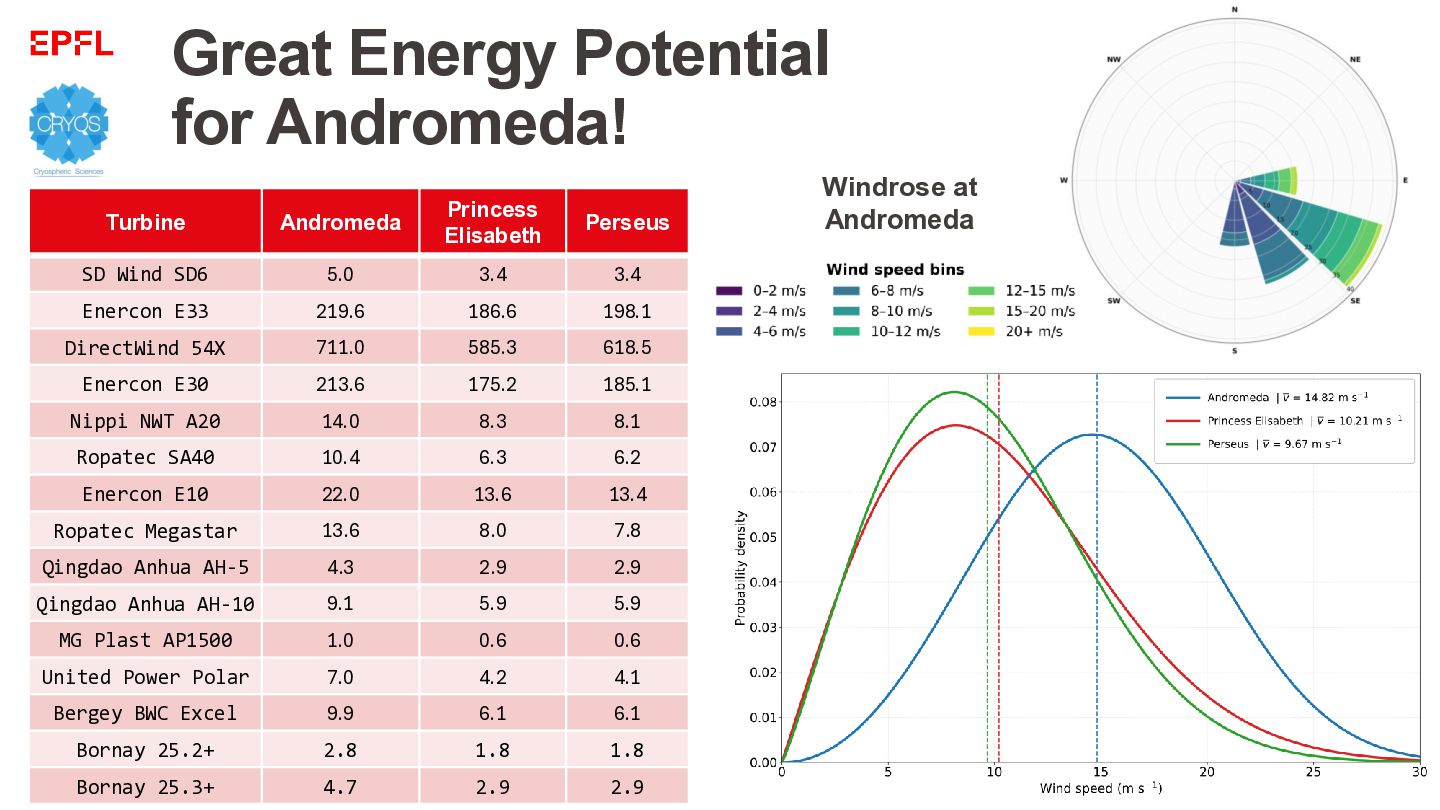

17. Great Energy Potential for Andromeda! Antarctic Wind Atlas Turbine Andromeda Princess Elisabeth Perseus SD Wind SD6 5.0 3.4 3.4 Enercon E33 219.6 186.6 198.1 DirectWind 54X 711.0 585.3 618.5 Enercon E30 213.6 175.2 185.1 Nippi NWT A20 14.0 8.3 8.1 Ropatec SA40 10.4 6.3 6.2 Enercon E10 22.0 13.6 13.4 Ropatec Megastar 13.6 8.0 7.8 Qingdao Anhua AH-5 4.3 2.9 2.9 Qingdao Anhua AH-10 9.1 5.9 5.9 MG Plast AP1500 1.0 0.6 0.6 United Power Polar 7.0 4.2 4.1 Bergey BWC Excel 9.9 6.1 6.1 Bornay 25.2+ 2.8 1.8 1.8 Bornay 25.3+ 4.7 2.9 2.9 Windrose at Andromeda

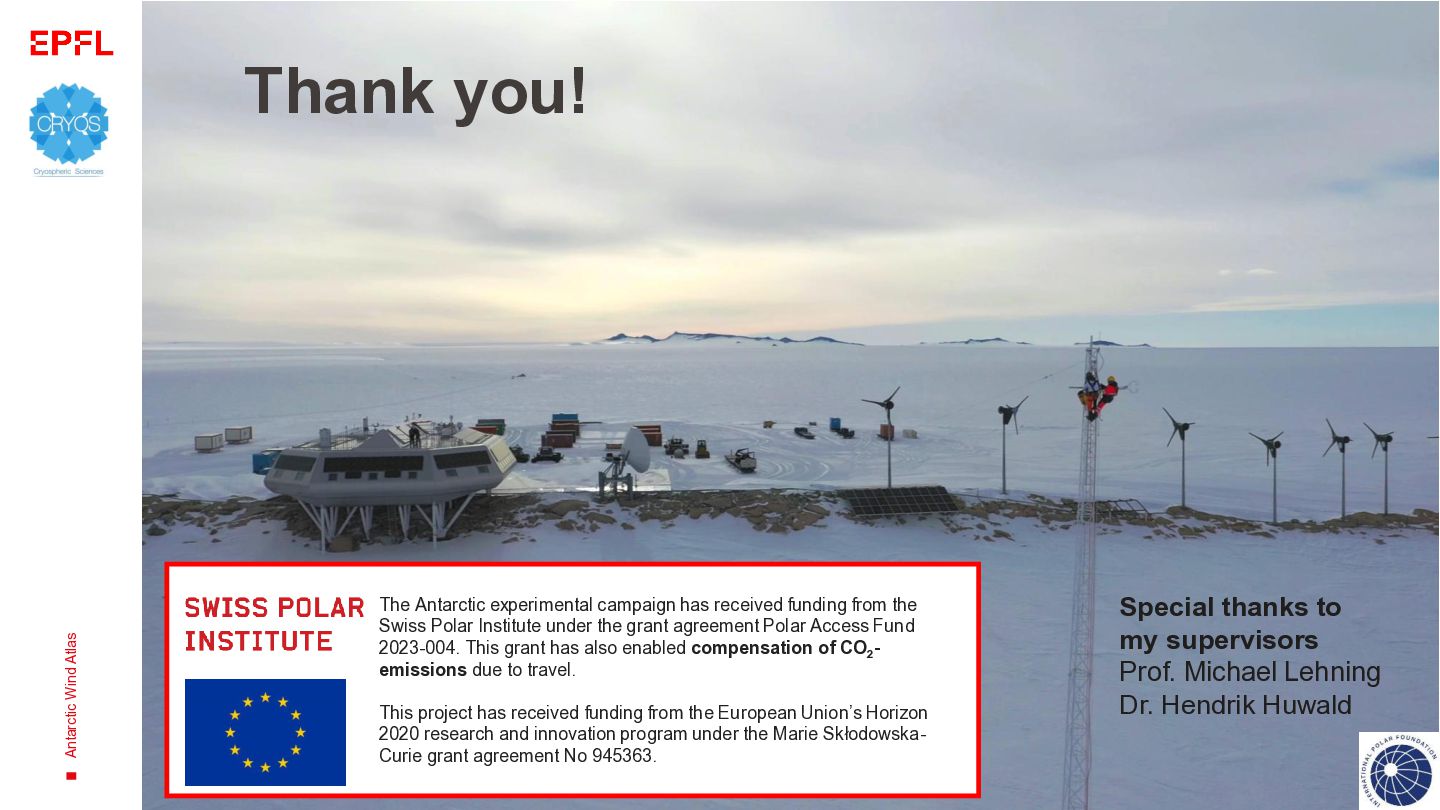

18. Antarctic Wind Atlas The Antarctic experimental campaign has received funding from the Swiss Polar Institute under the grant agreement Polar Access Fund 2023-004. This grant has also enabled compensation of CO2 - emissions due to travel. This project has received funding from the European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska- Curie grant agreement No 945363. Thank you! Special thanks to my supervisors Prof. Michael Lehning Dr. Hendrik Huwald
