A full-stack programming model for Ruby and Event Sourcing

Exploring a full stack programming model for Ruby and Event Sourcing, including a time-based approach to domain modelling, durable workflows, time-travelling and reactive server-rendered UIs.

Transcript

1. A full-stack programming model for Ruby and Event Sourcing. Ismael Celis ismaelcelis.com

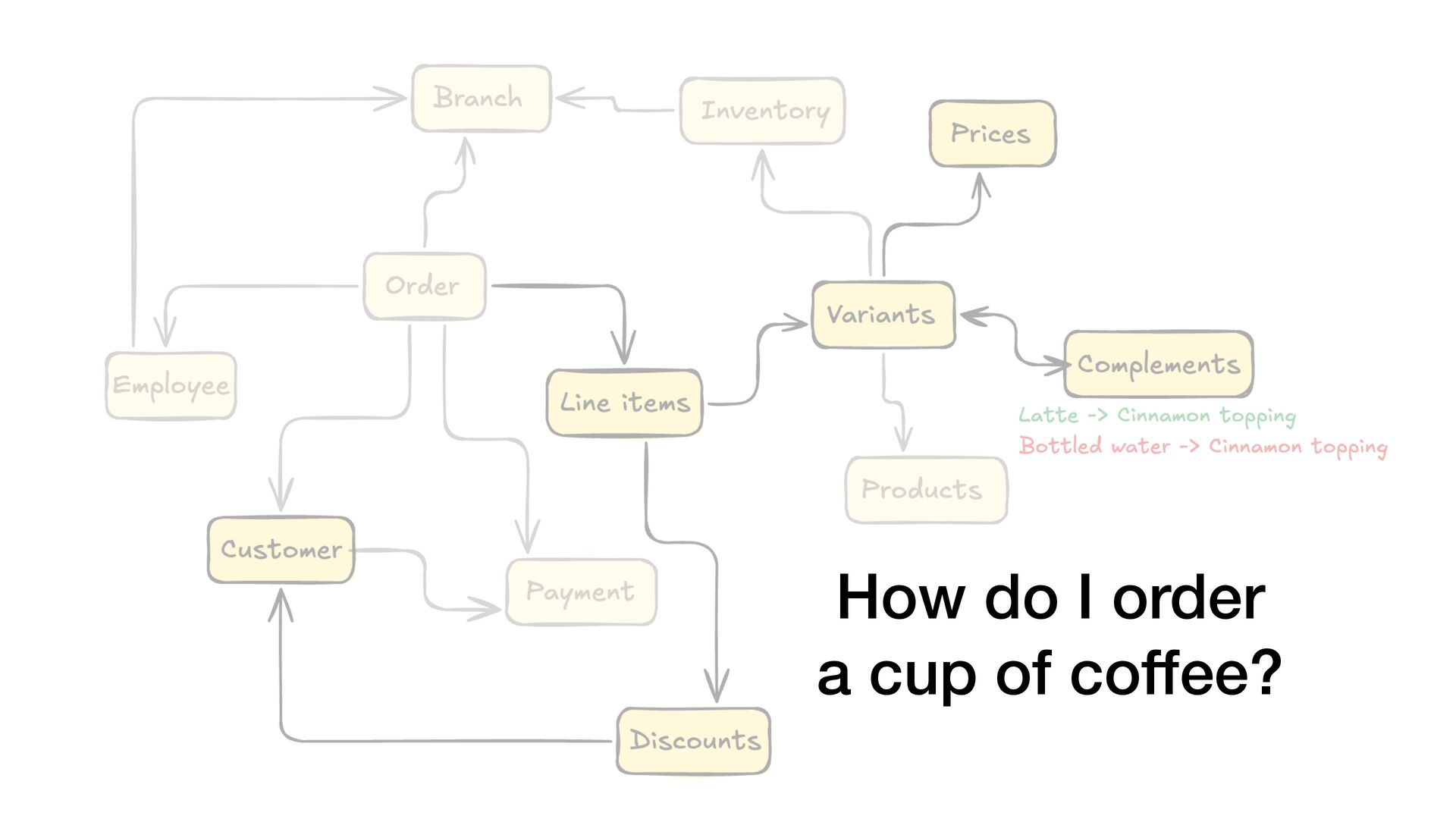

5. How do I order a cup of coffee?

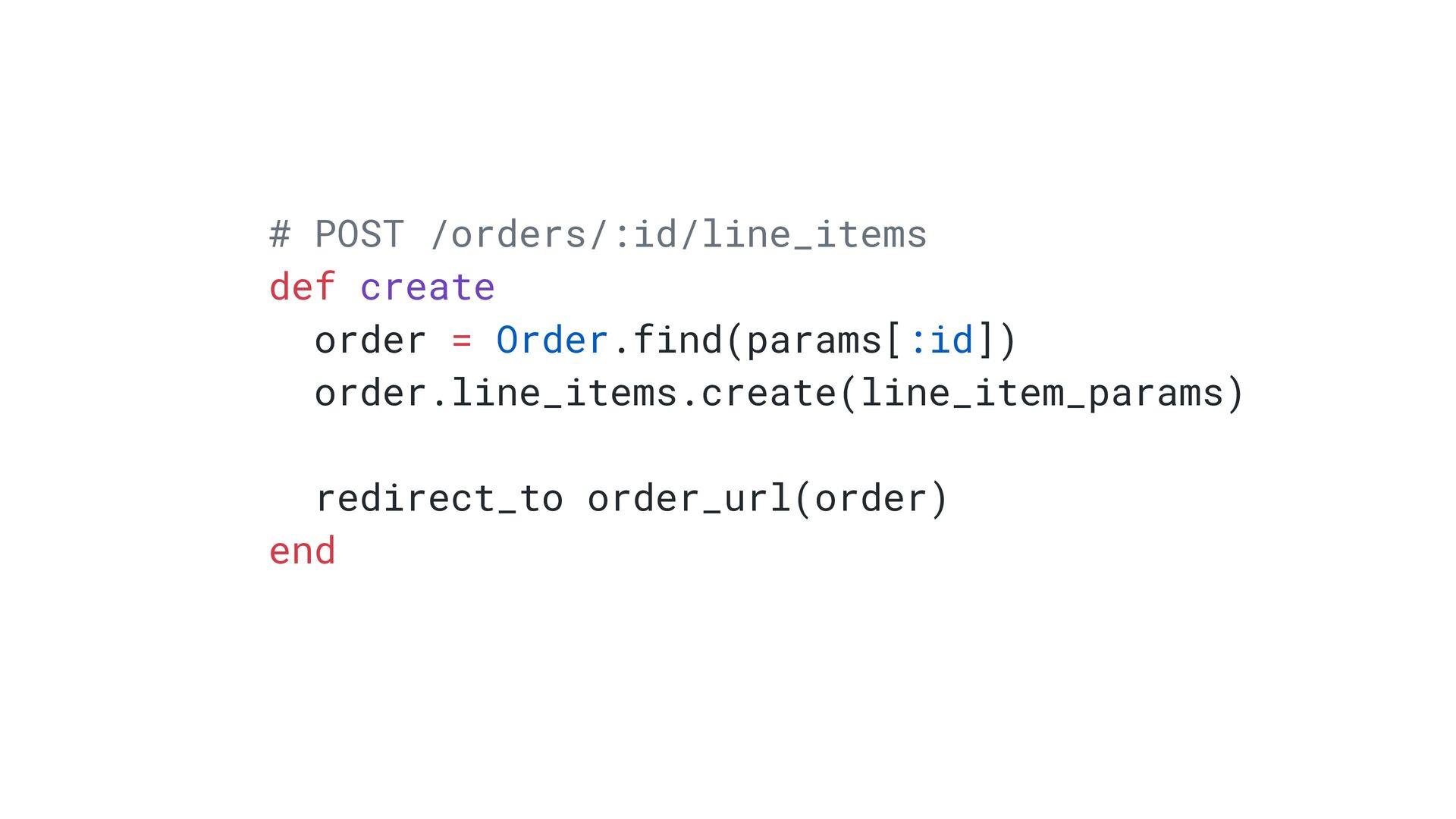

6. # POST /orders/:id/line_items def create order = Order.find(params[:id]) order.line_items.create(line_item_params) redirect_to order_url(order) end

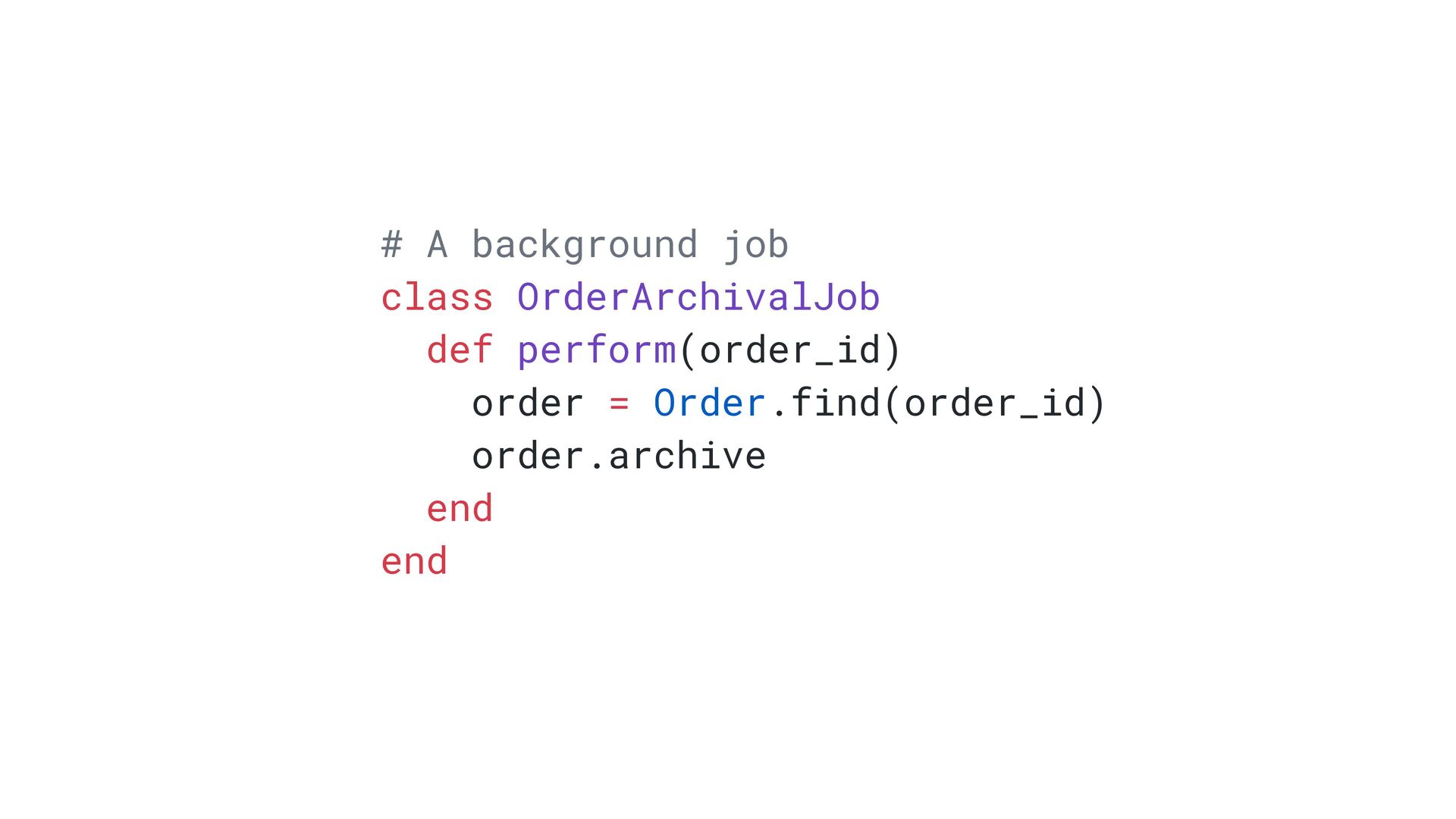

7. # A background job class OrderArchivalJob def perform(order_id) order = Order.find(order_id) order.archive end end

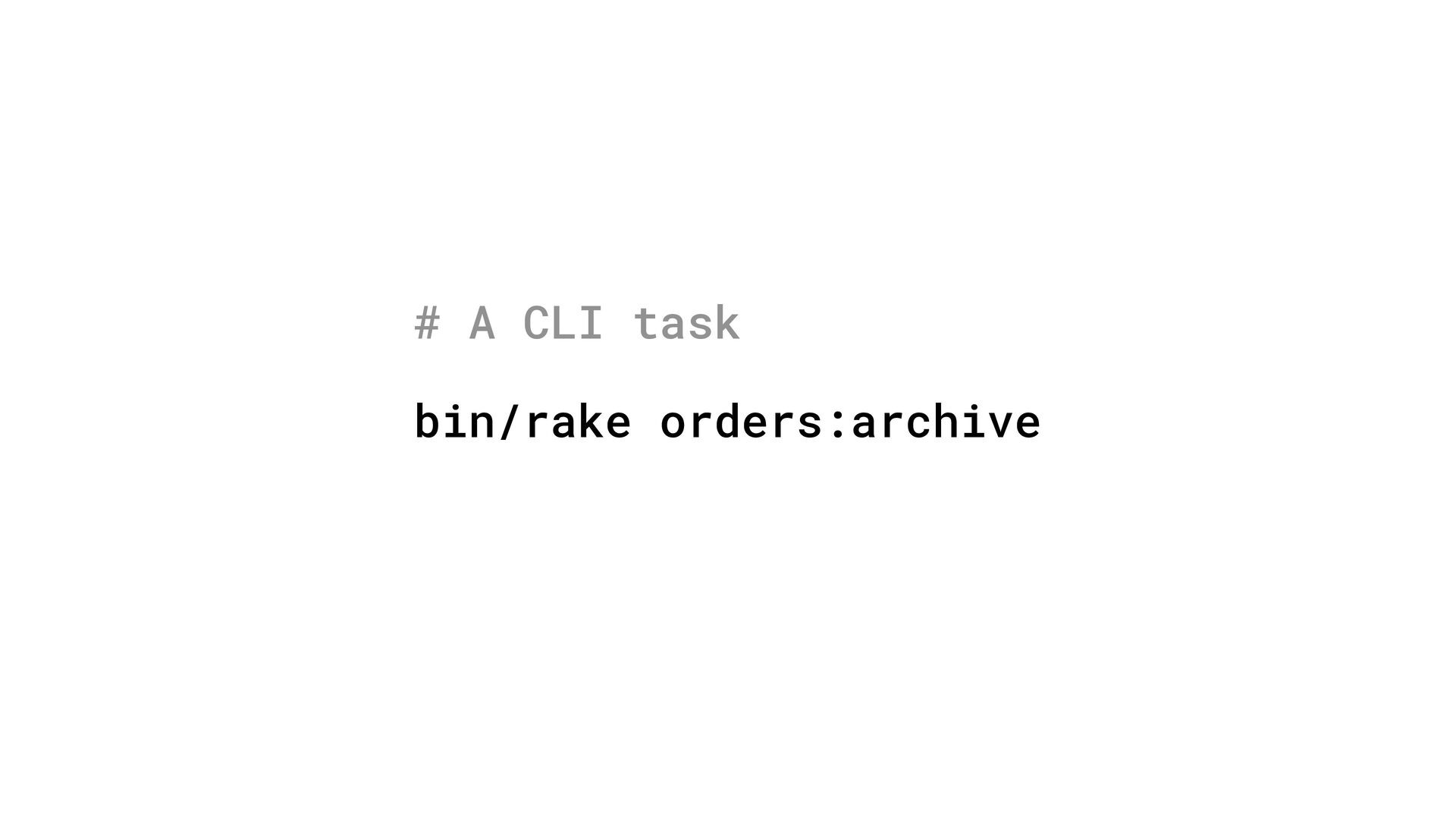

8. # A CLI task bin/rake orders:archive
9. Timelines

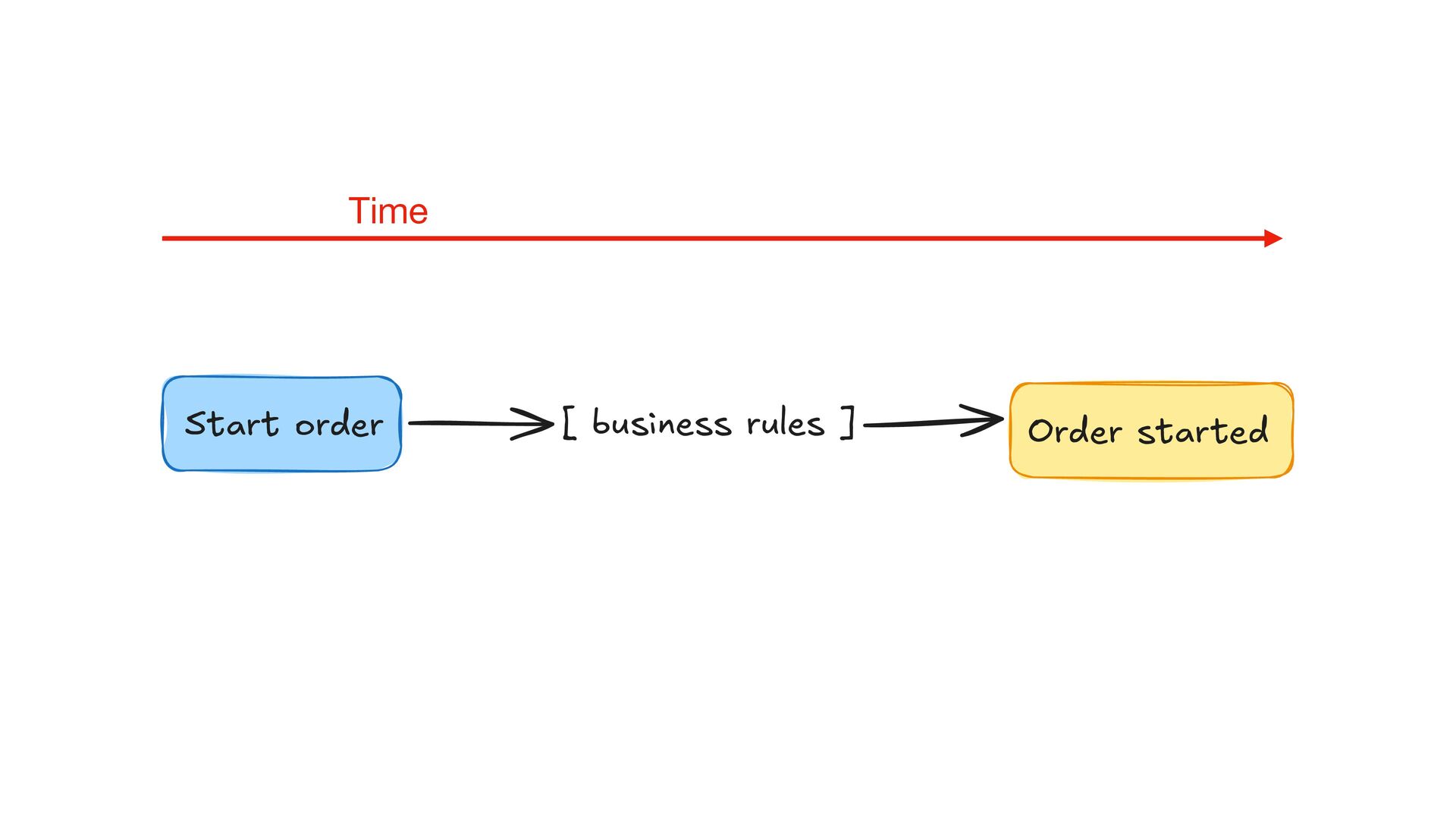

10. Start order [ business rules ] Order started Time

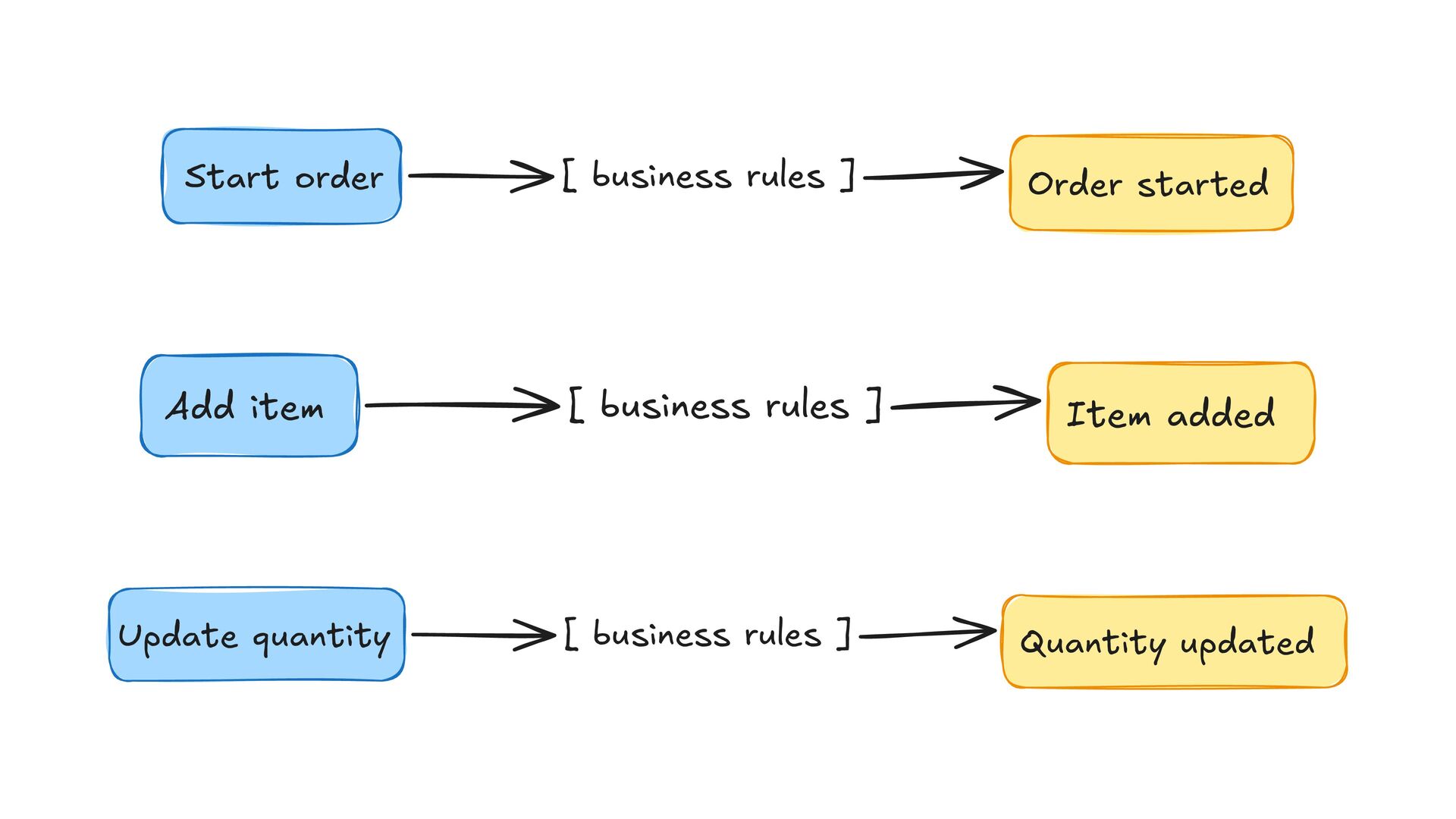

11. Add item [ business rules ] Item added Start order [ business rules ] Order started Update quantity [ business rules ] Quantity updated

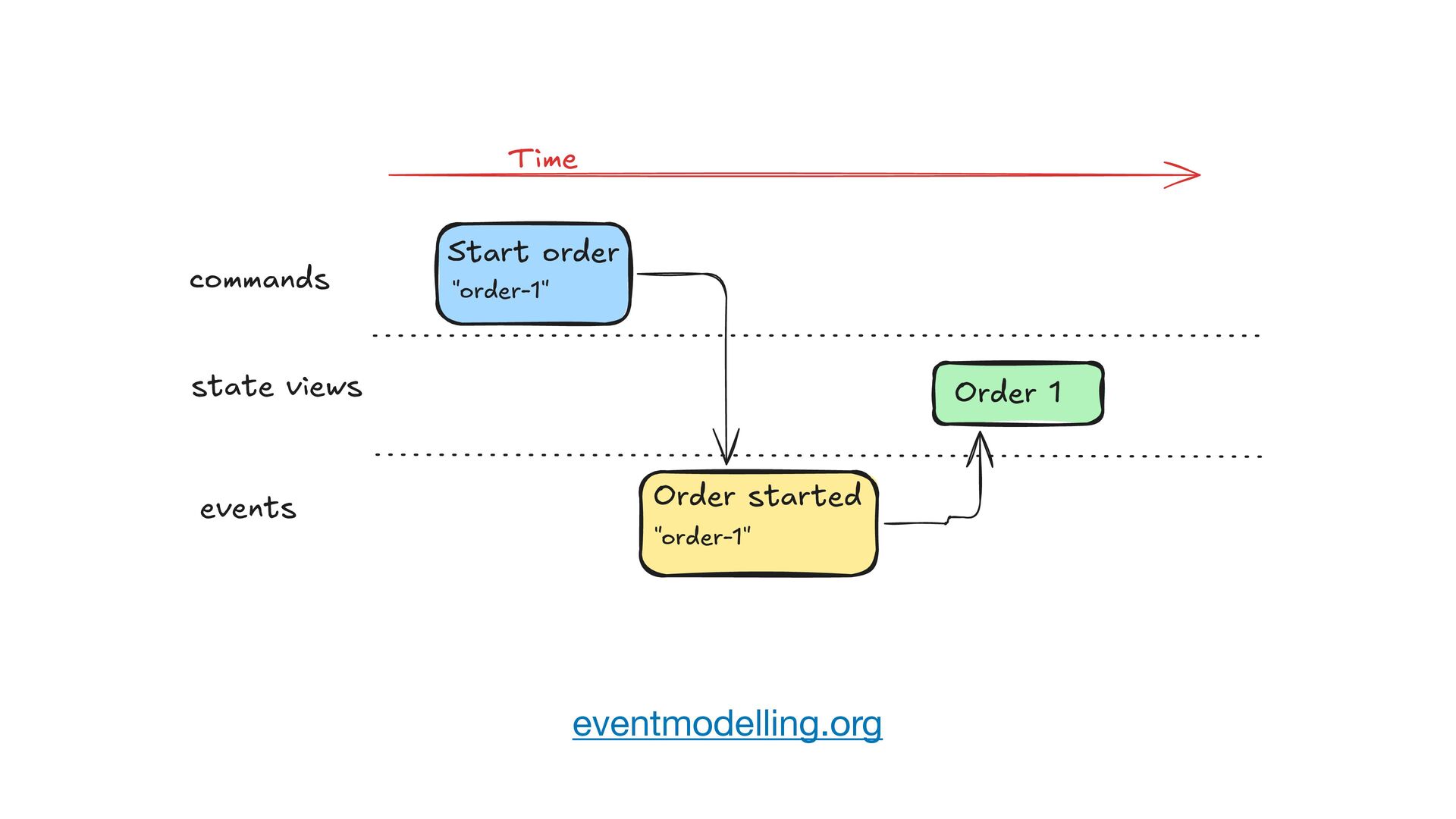

12. eventmodelling.org Start order Order started commands state views events Time Order 1 "order-1" "order-1"

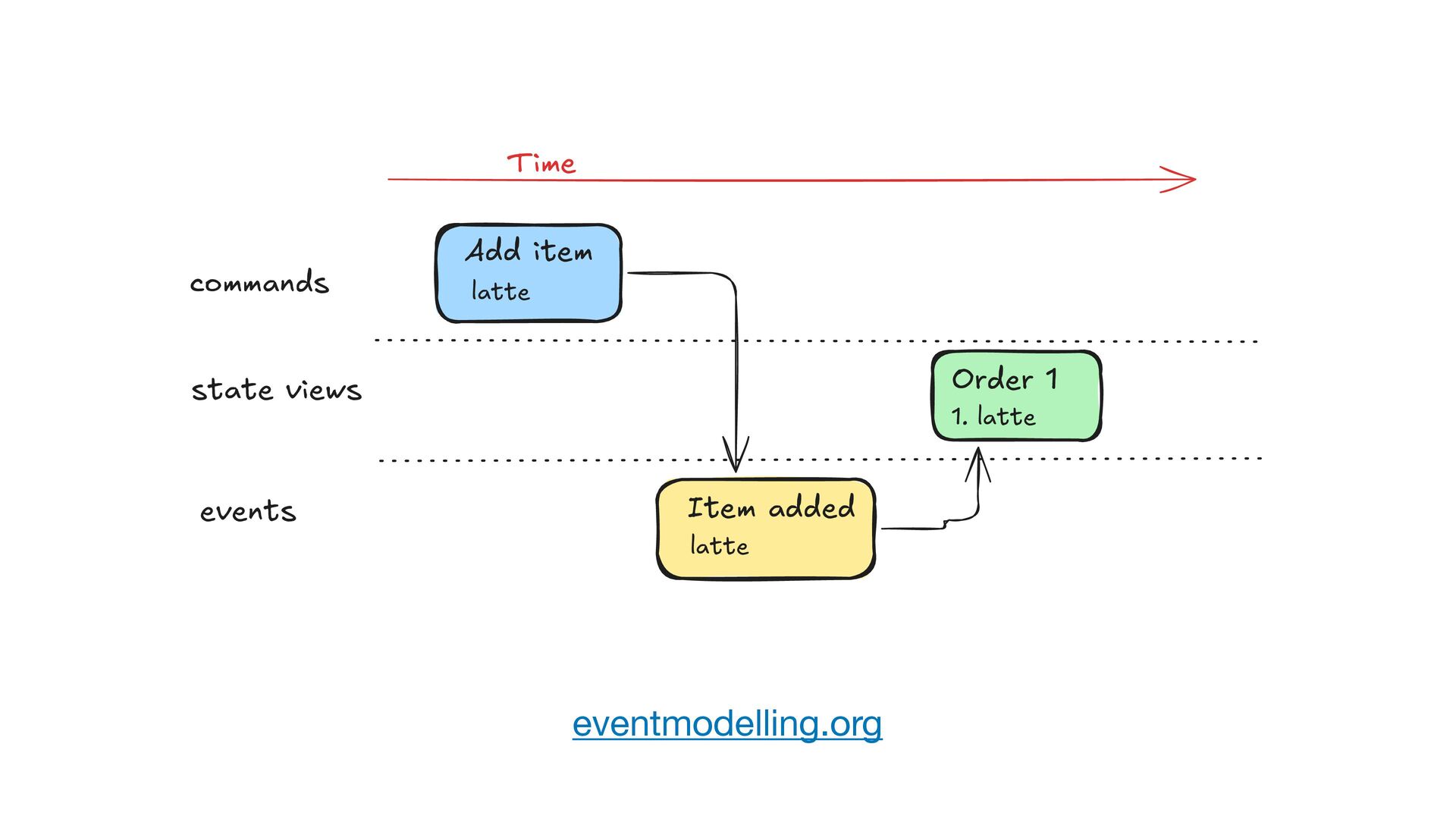

13. eventmodelling.org Add item Item added commands state views events Time Order 1 1. latte latte latte
14. Event Sourcing 101

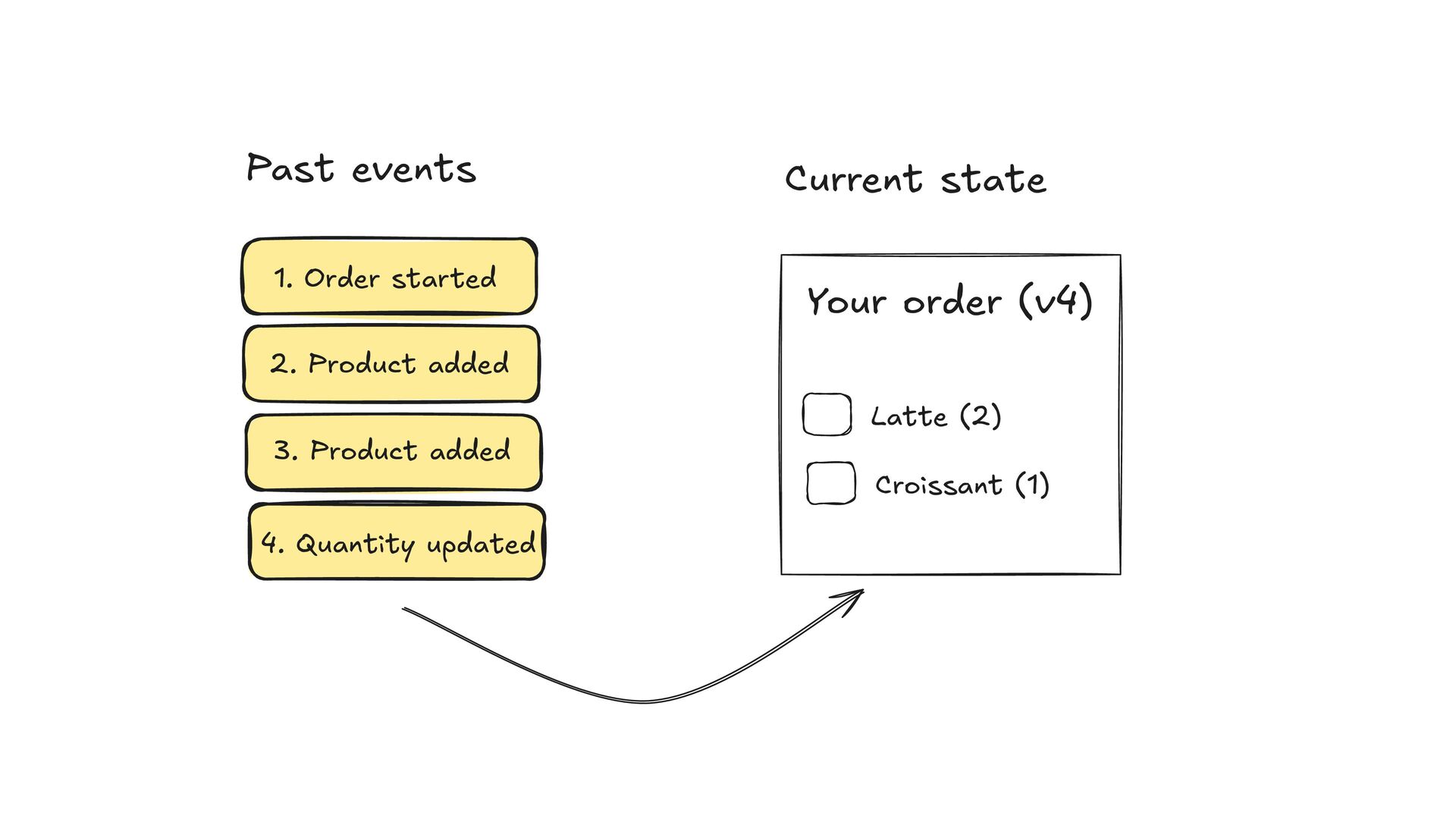

15. 1. Order started 2. Product added 3. Product added 4. Quantity updated Past events Your order (v4) Latte (2) Croissant (1) Current state

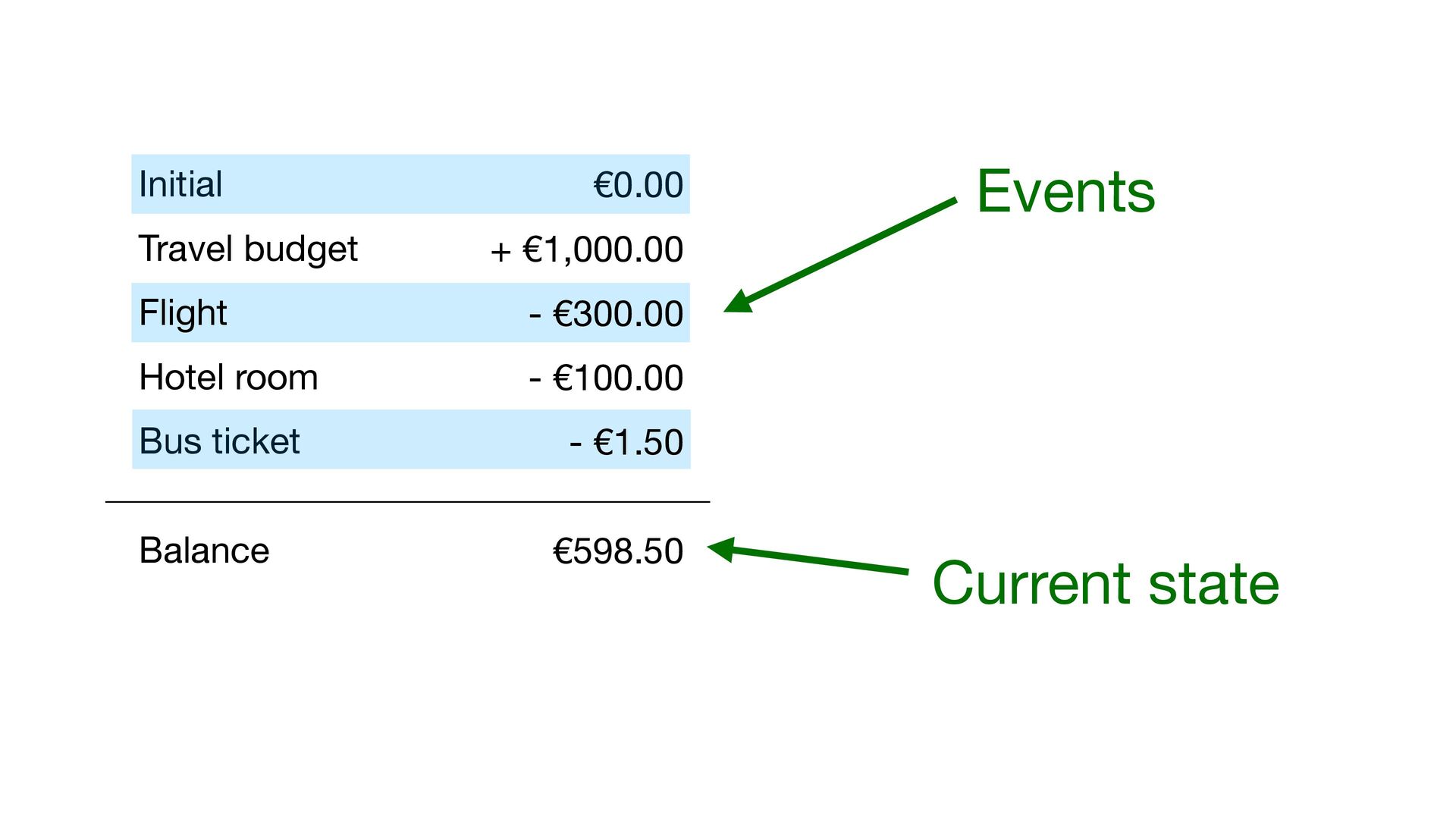

16. Initial
 Travel budget
 Flight
 Hotel room
 Bus ticket Balance
 Events Current state €0.00
 + €1,000.00
 - €300.00
 - €100.00
 - €1.50 €598.50

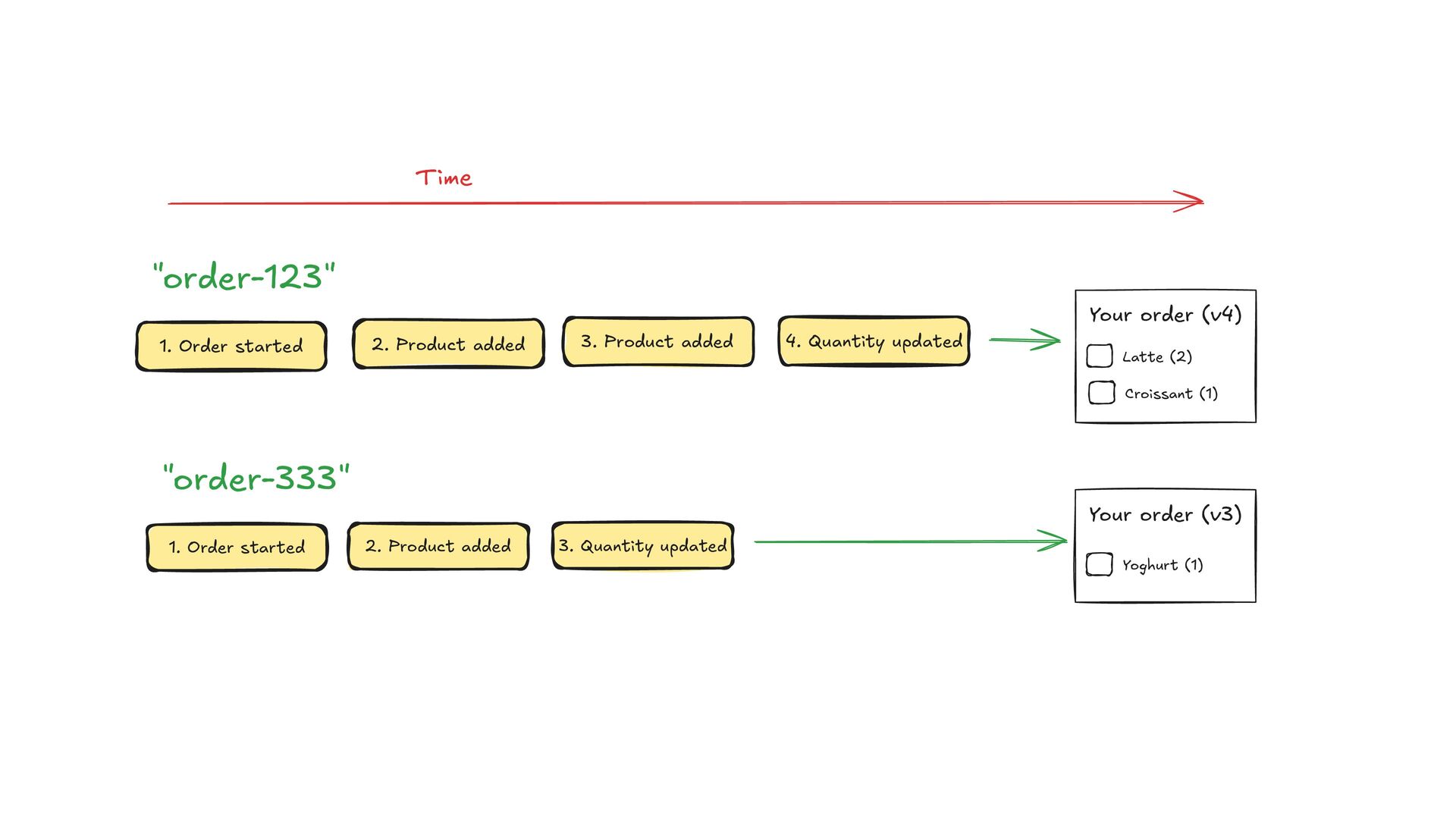

17. 1. Order started 2. Product added 3. Product added 4. Quantity updated Time "order-123" 1. Order started 2. Product added 3. Quantity updated "order-333" Your order (v4) Latte (2) Croissant (1) Your order (v3) Yoghurt (1)

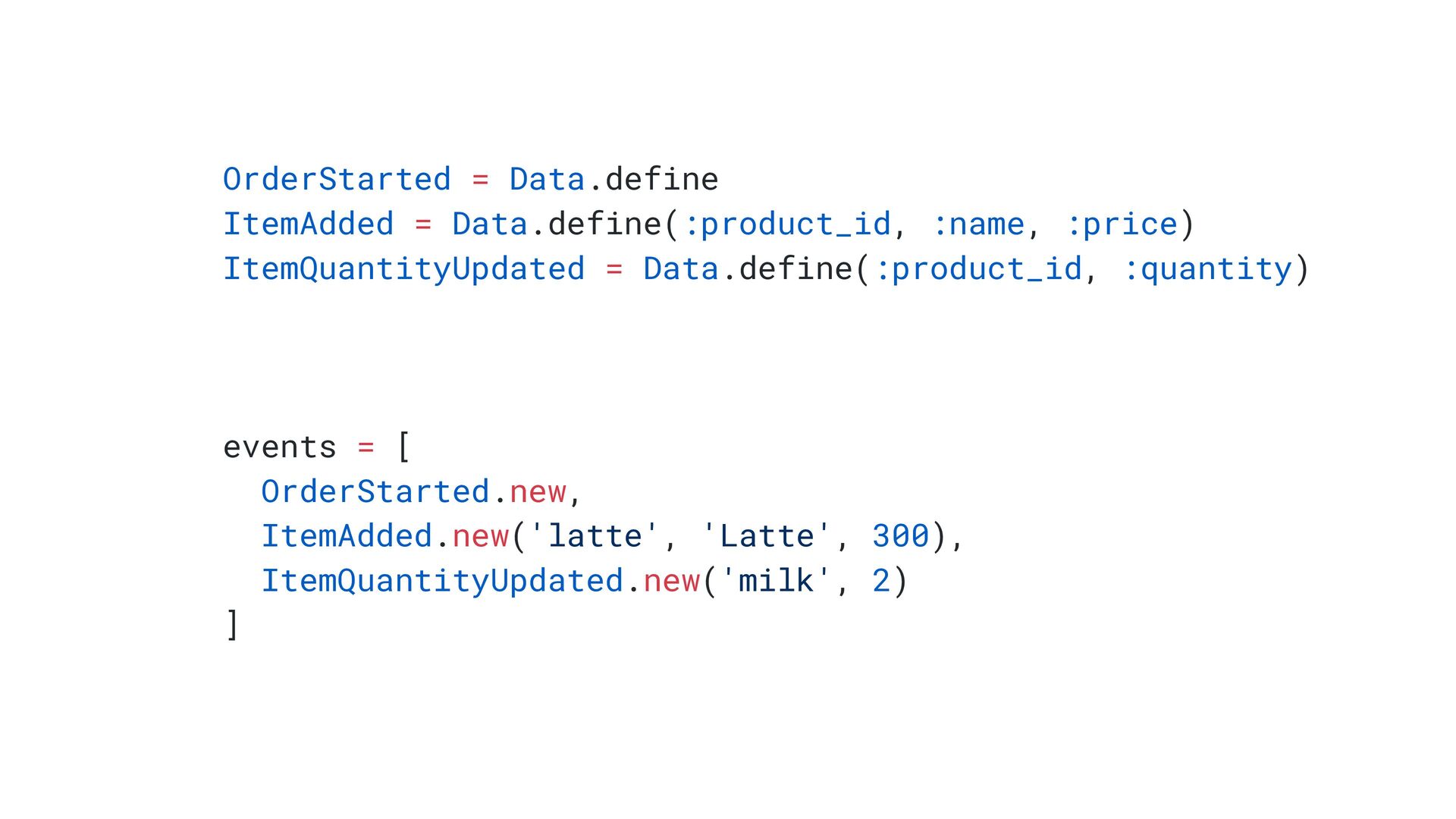

19. OrderStarted = Data.define ItemAdded = Data.define(:product_id, :name, :price) ItemQuantityUpdated = Data.define(:product_id, :quantity) events = [ OrderStarted.new, ItemAdded.new('latte', 'Latte', 300), ItemQuantityUpdated.new('milk', 2) ]

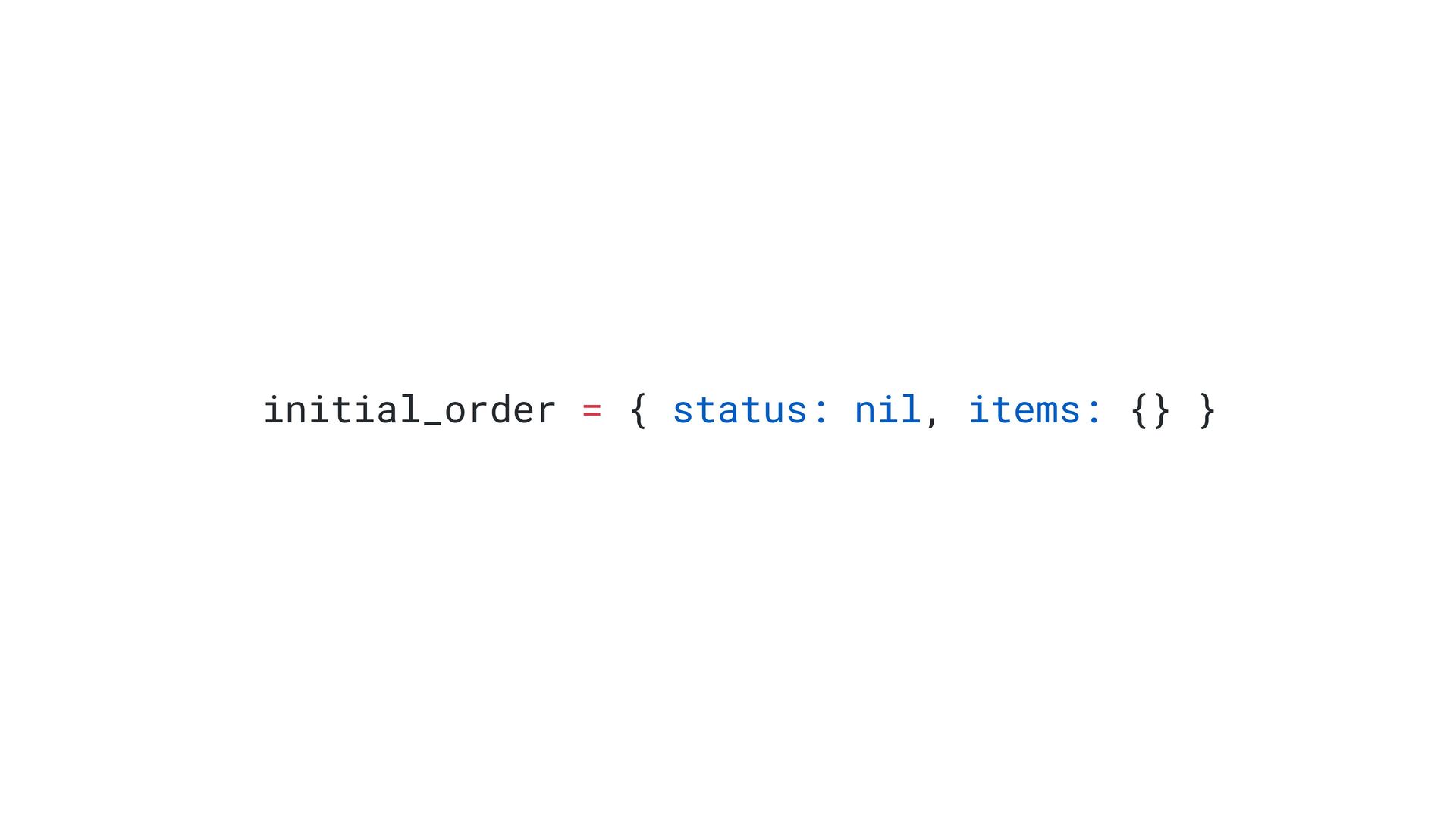

20. initial_order = { status: nil, items: {} }

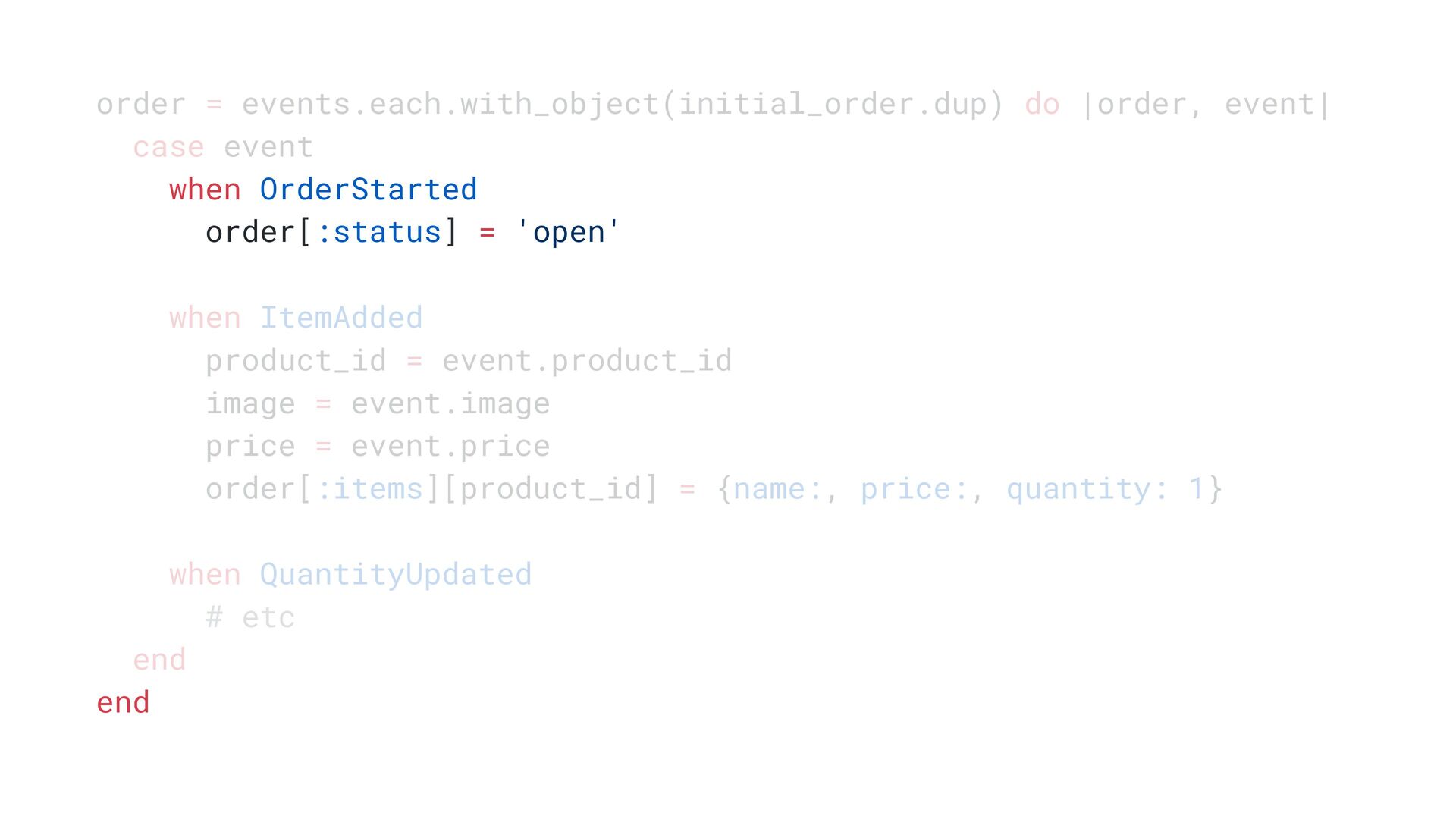

21. order = events.each.with_object(initial_order.dup) do |order, event| case event when OrderStarted order[:status] = 'open' when ItemAdded product_id = event.product_id image = event.image price = event.price order[:items][product_id] = {name:, price:, quantity: 1} when QuantityUpdated # etc end end

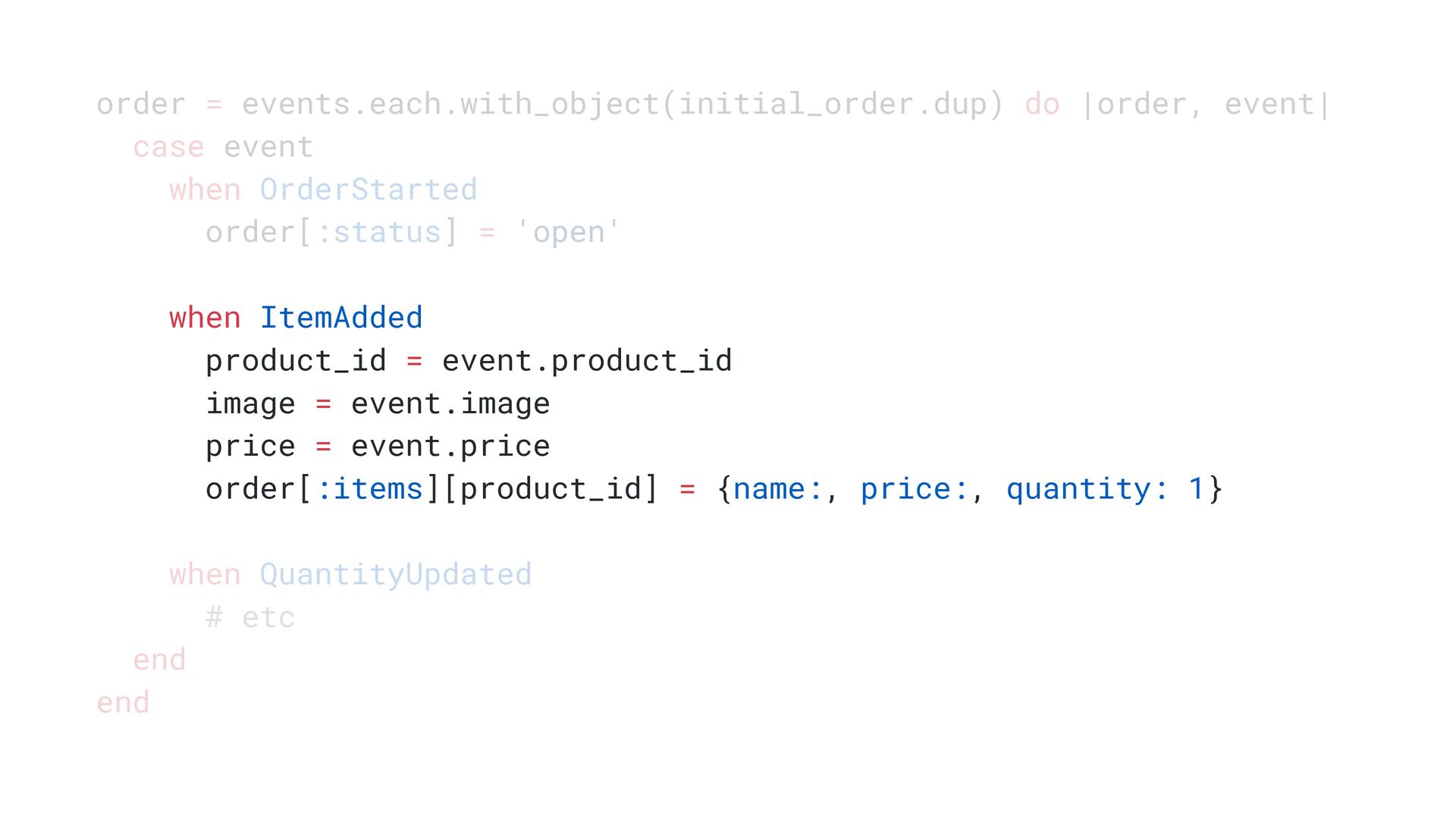

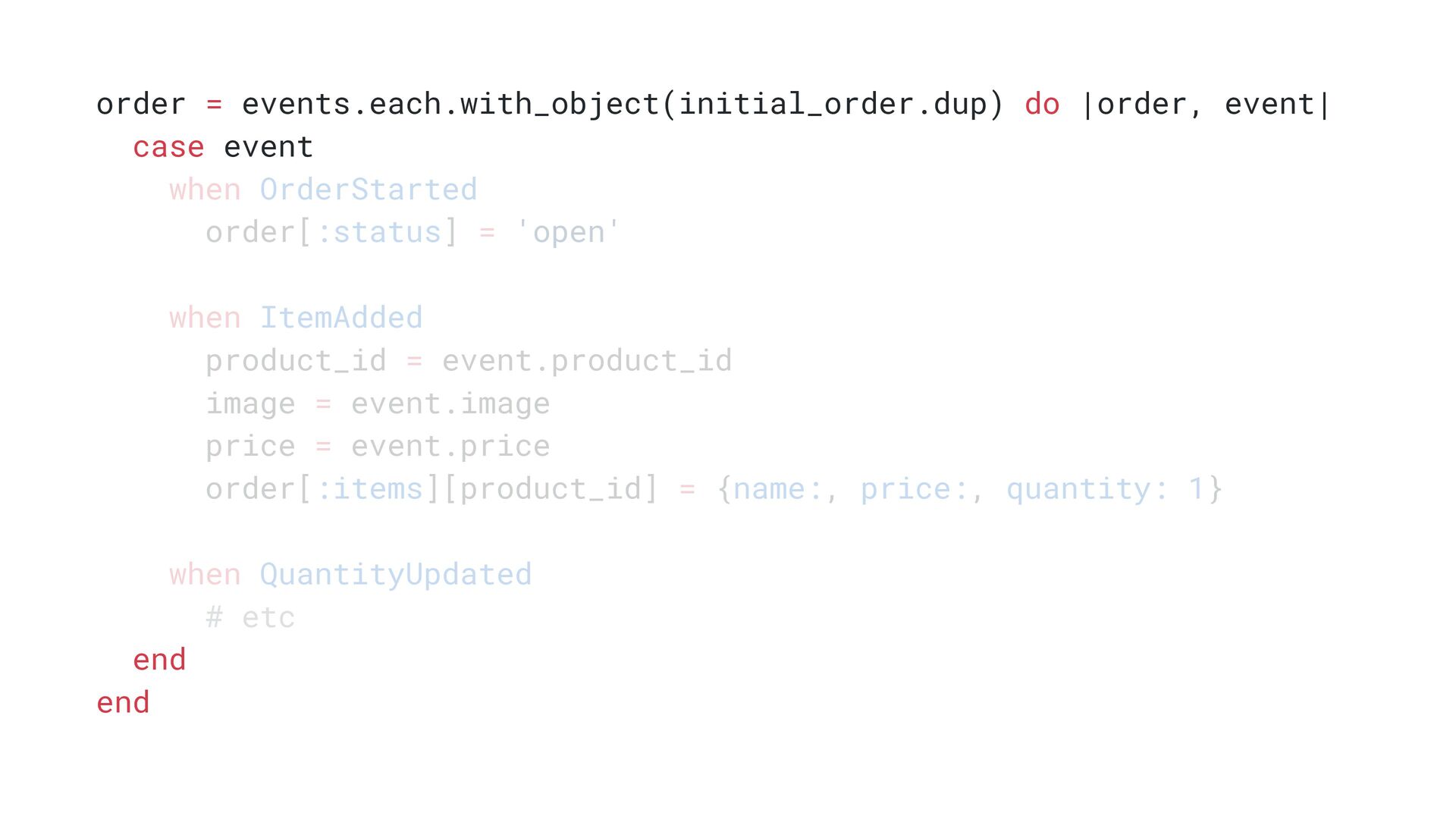

22. order = events.each.with_object(initial_order.dup) do |order, event| case event when OrderStarted order[:status] = 'open' when ItemAdded product_id = event.product_id image = event.image price = event.price order[:items][product_id] = {name:, price:, quantity: 1} when QuantityUpdated # etc end end
23. order = events.each.with_object(initial_order.dup) do |order, event| case event when OrderStarted order[:status] = 'open' when ItemAdded product_id = event.product_id image = event.image price = event.price order[:items][product_id] = {name:, price:, quantity: 1} when QuantityUpdated # etc end end

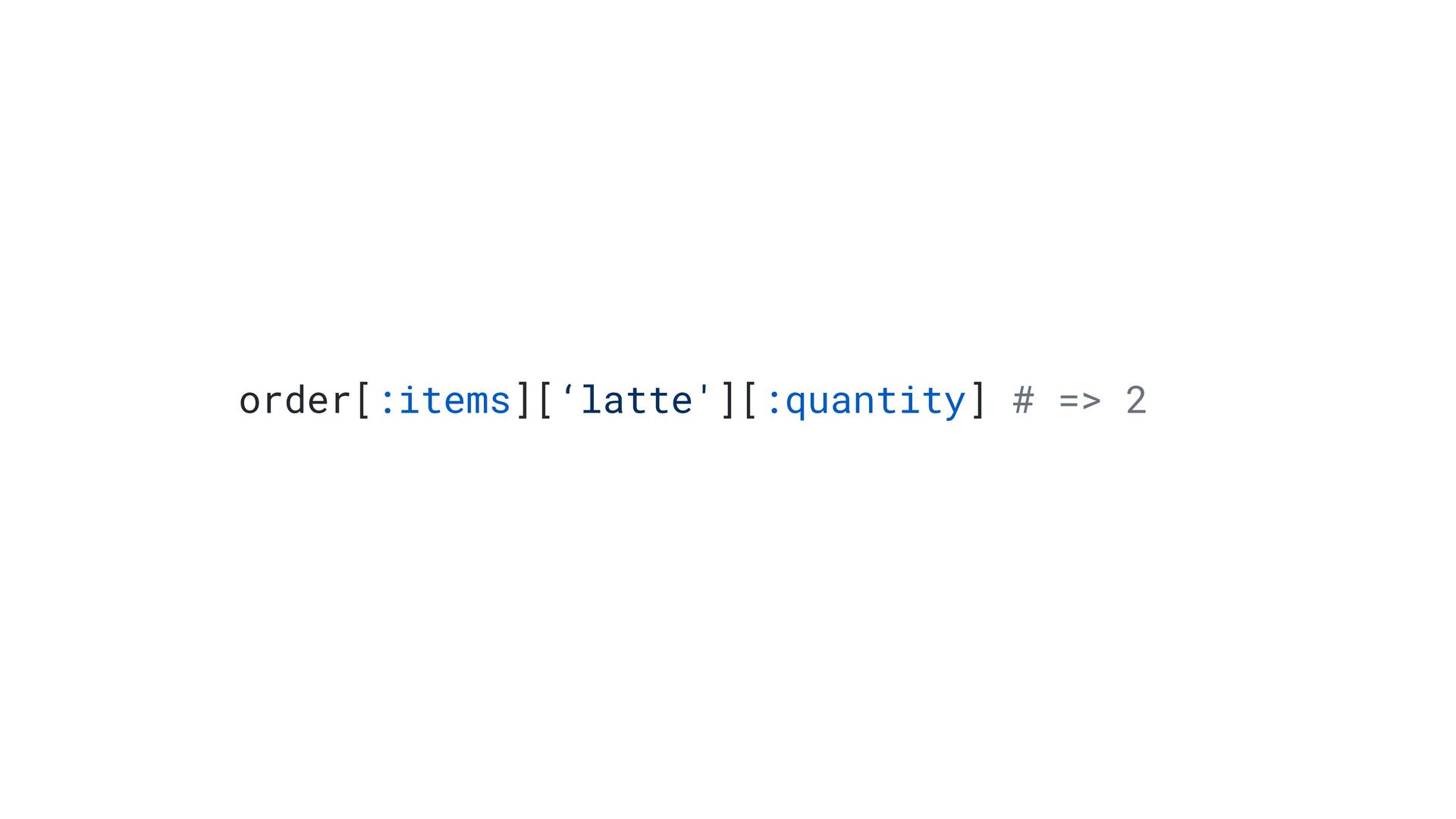

24. order[:items][‘latte'][:quantity] # => 2

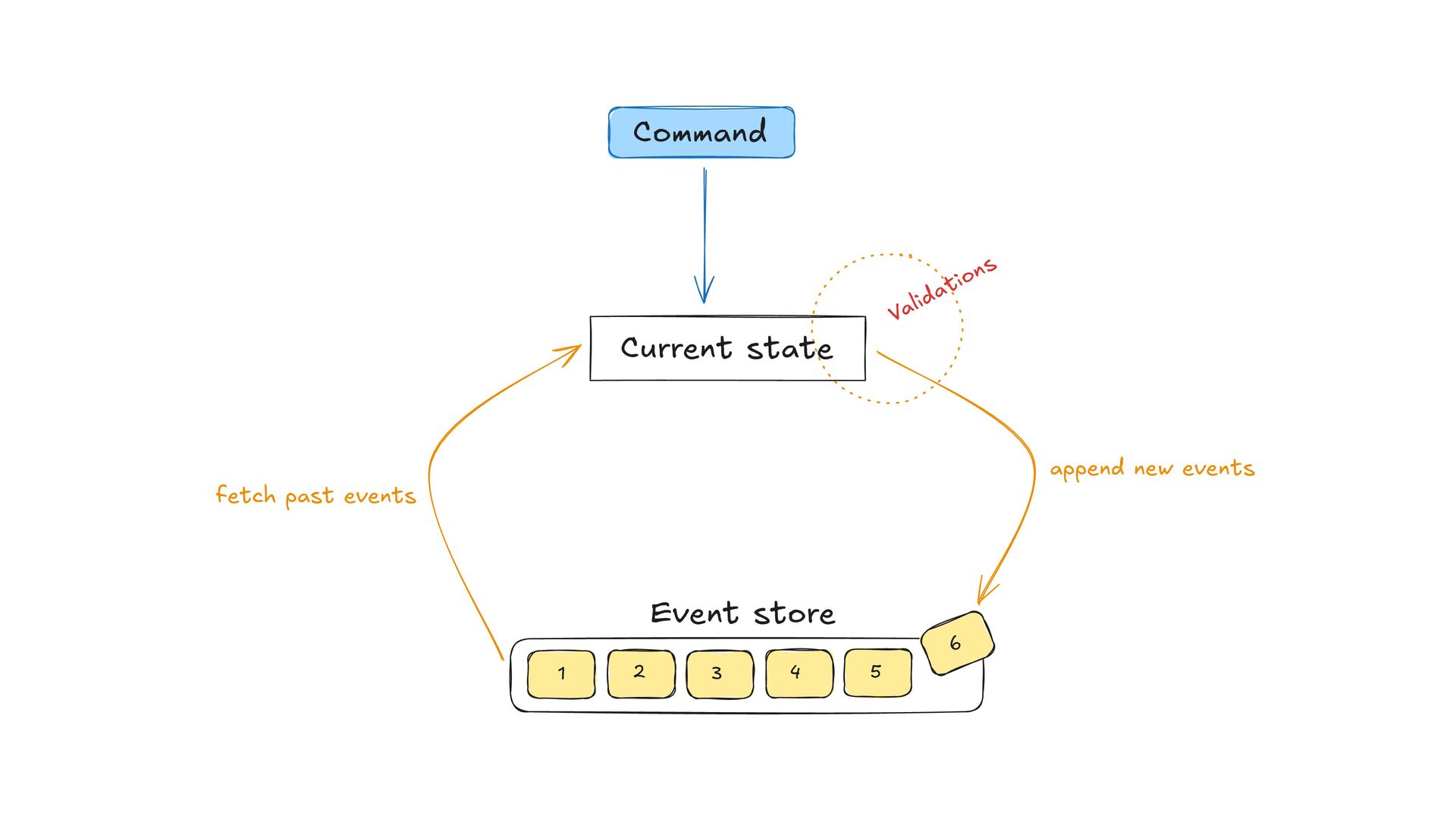

25. Current state Event store 1 2 3 4 5 6 Validations Command fetch past events append new events

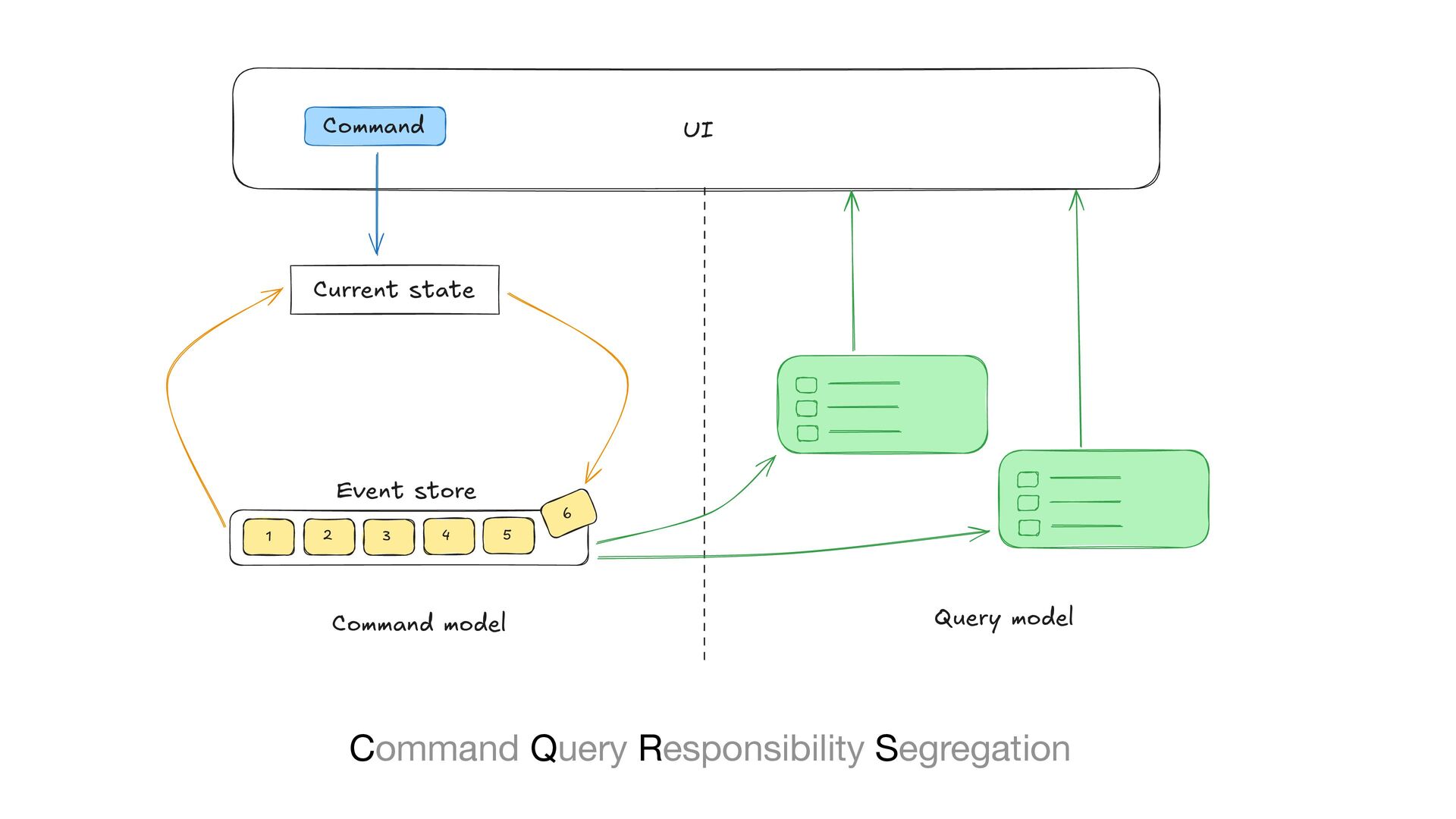

27. Current state Event store 1 2 3 4 5 6 Command Command model Query model UI Command Query Responsibility Segregation
28. Back to timelines

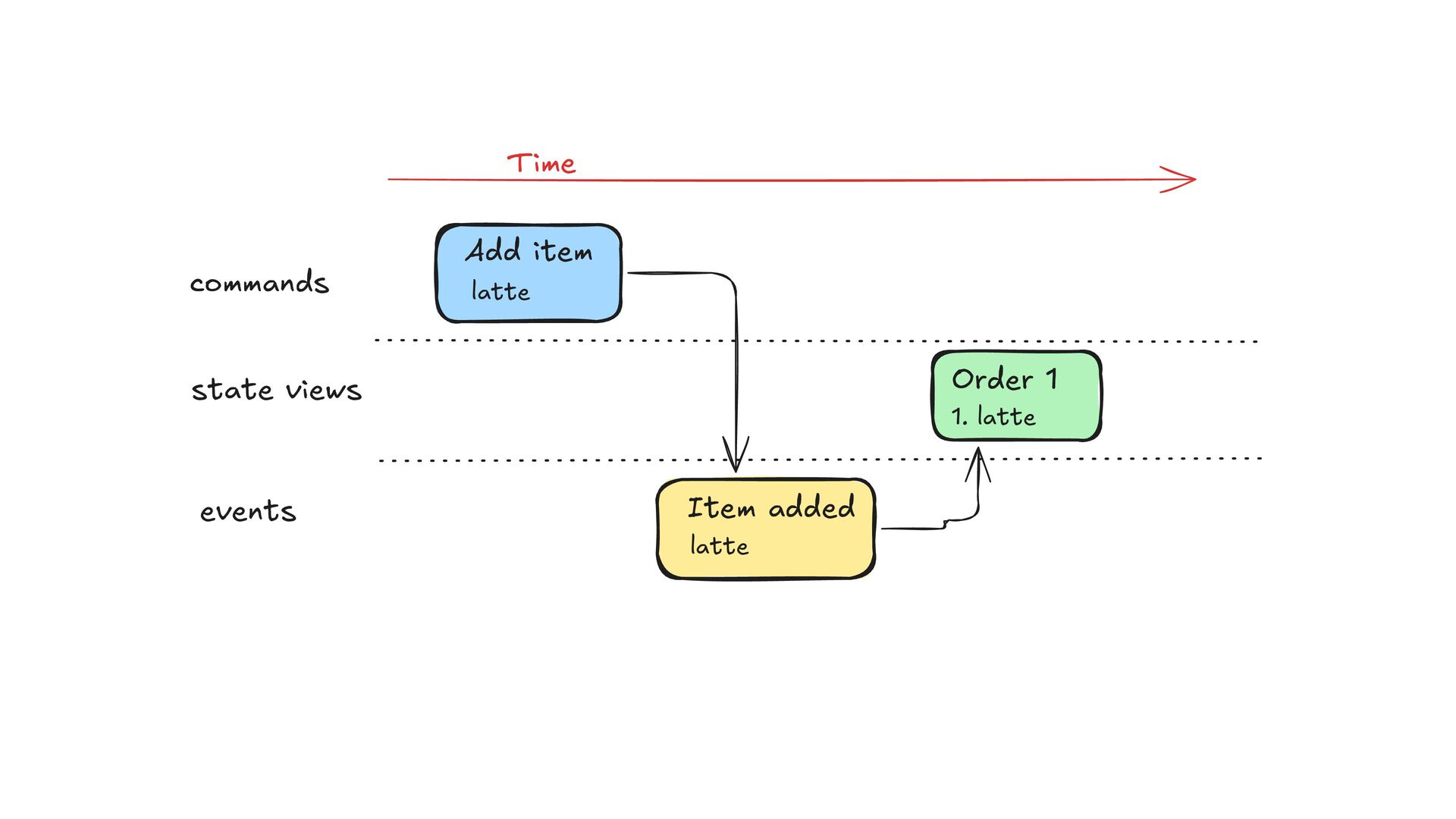

29. Add item Item added commands state views events Time Order 1 1. latte latte latte
30. An implementation (WIP) github.com/ismasan/sourced

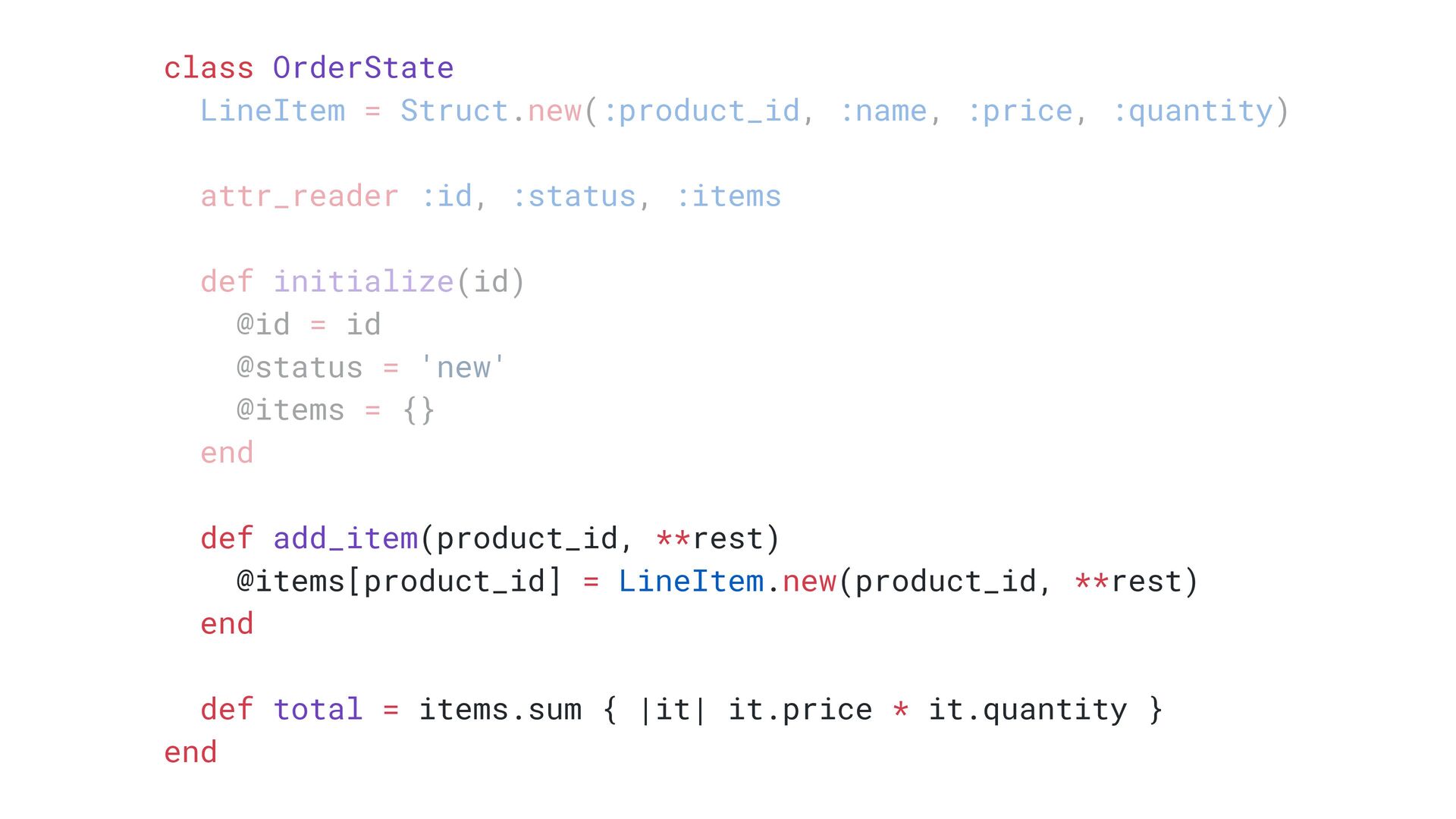

31. class OrderState LineItem = Struct.new(:product_id, :name, :price, :quantity) attr_reader :id, :status, :items def initialize(id) @id = id @status = 'new' @items = {} end def add_item(product_id, **rest) @items[product_id] = LineItem.new(product_id, **rest) end def total = items.sum { |it| it.price * it.quantity } end

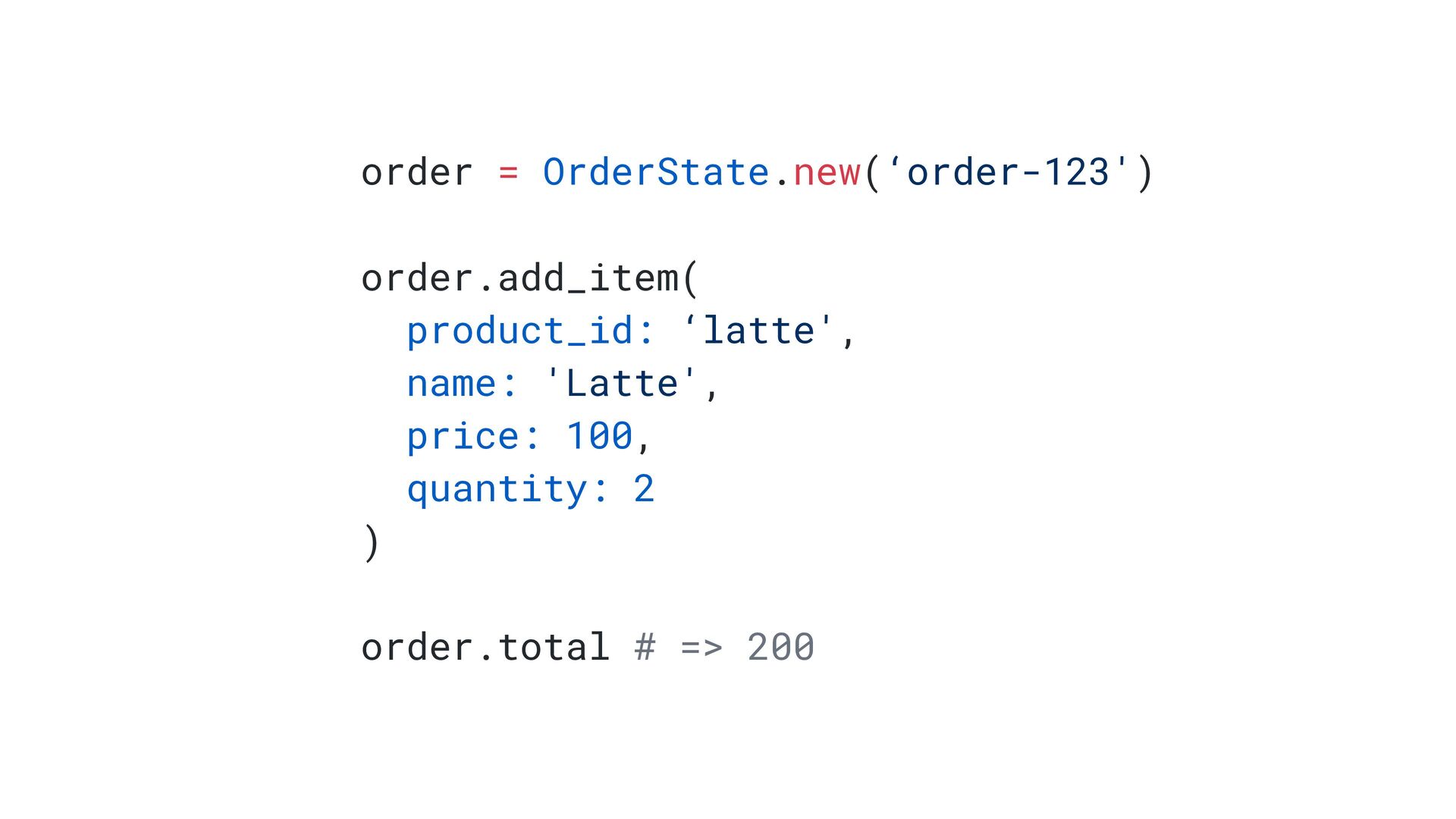

32. order = OrderState.new(‘order-123') order.add_item( product_id: ‘latte', name: 'Latte', price: 100, quantity: 2 ) order.total # => 200

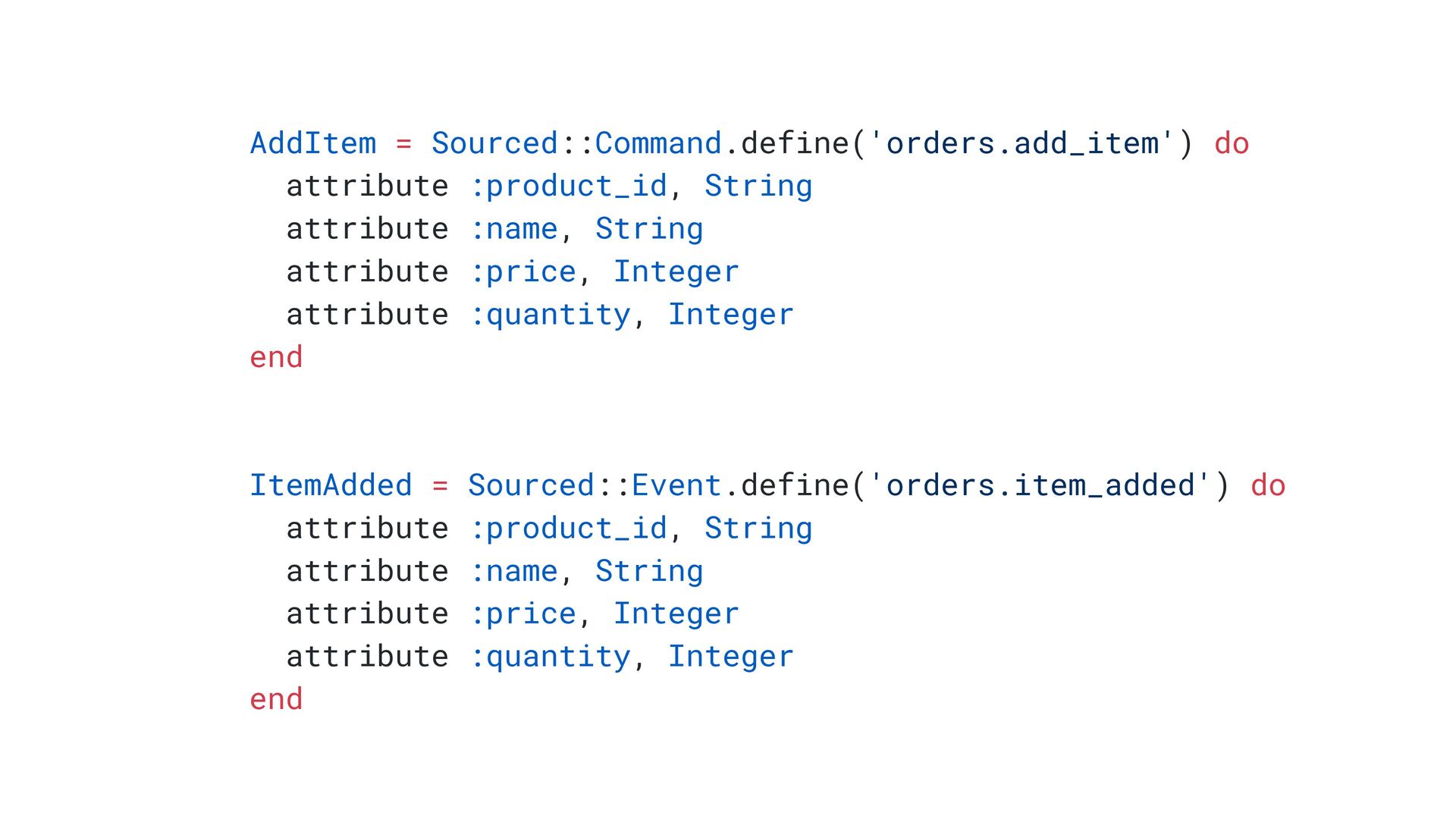

33. AddItem = Sourced::Command.define('orders.add_item') do attribute :product_id, String attribute :name, String attribute :price, Integer attribute :quantity, Integer end ItemAdded = Sourced::Event.define('orders.item_added') do attribute :product_id, String attribute :name, String attribute :price, Integer attribute :quantity, Integer end

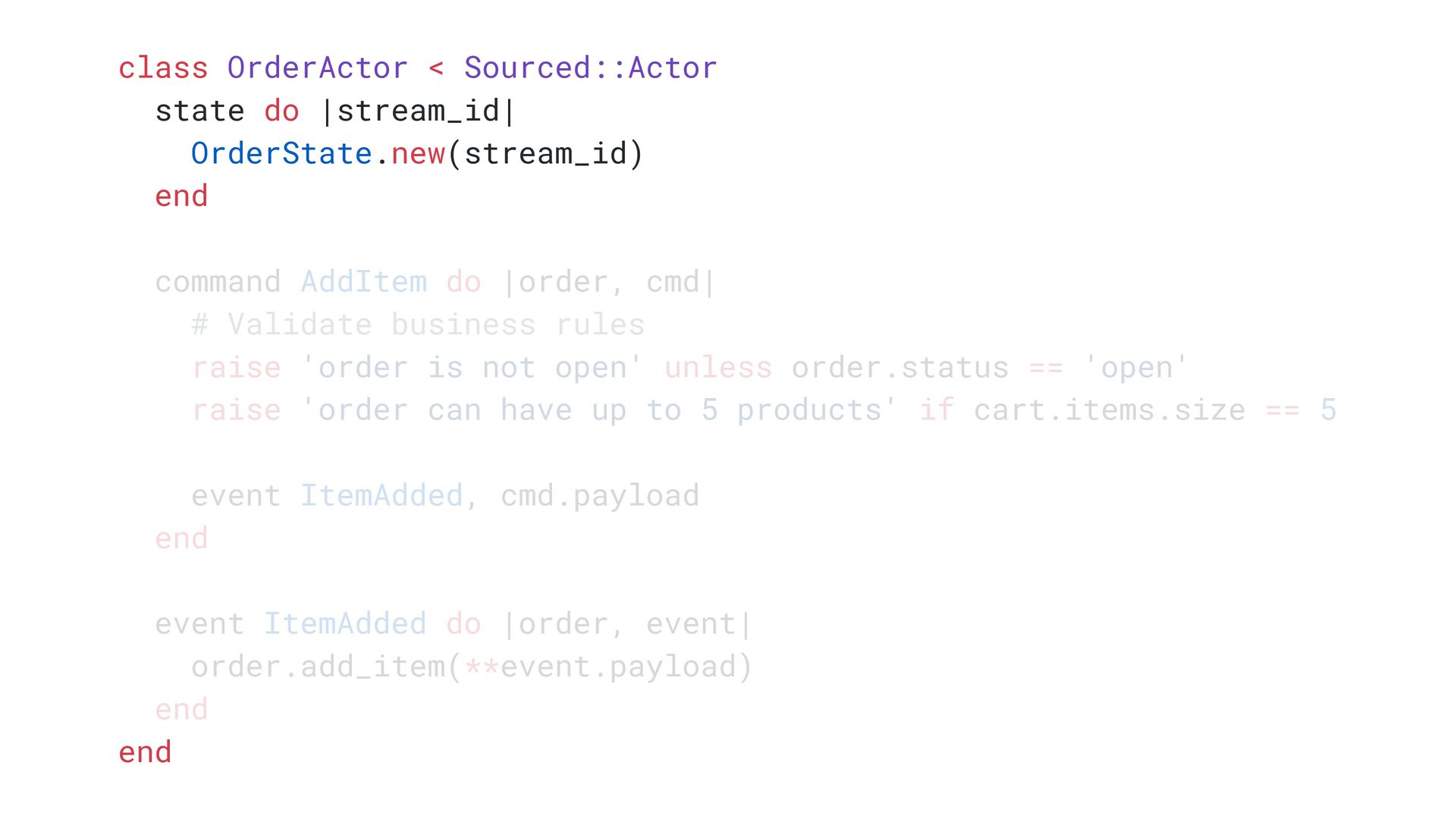

34. class OrderActor < Sourced::Actor state do |stream_id| OrderState.new(stream_id) end command AddItem do |order, cmd| # Validate business rules raise 'order is not open' unless order.status == 'open' raise 'order can have up to 5 products' if cart.items.size == 5 event ItemAdded, cmd.payload end event ItemAdded do |order, event| order.add_item(**event.payload) end end

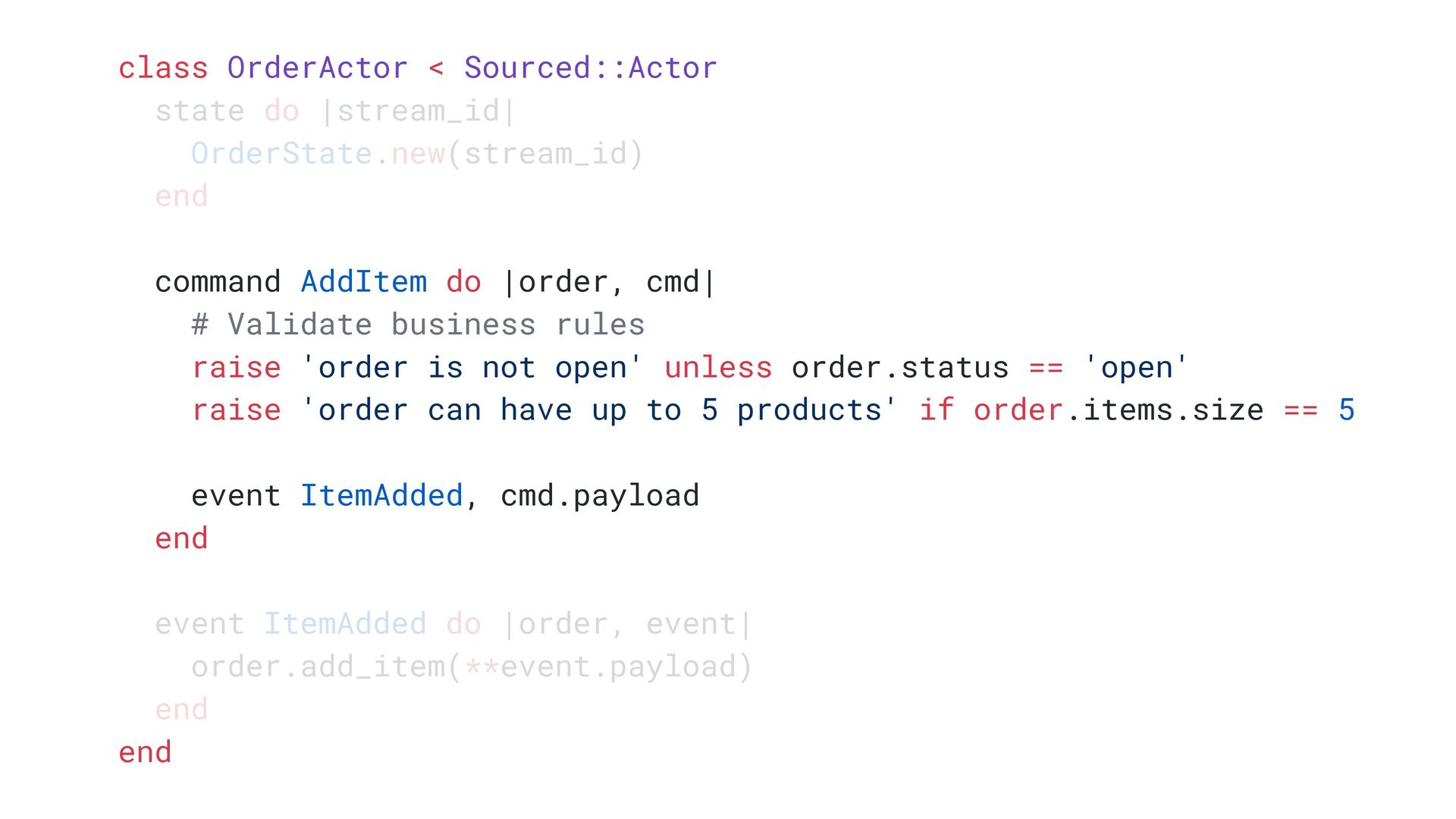

35. class OrderActor < Sourced::Actor state do |stream_id| OrderState.new(stream_id) end command AddItem do |order, cmd| # Validate business rules raise 'order is not open' unless order.status == 'open' raise 'order can have up to 5 products' if order.items.size == 5 event ItemAdded, cmd.payload end event ItemAdded do |order, event| order.add_item(**event.payload) end end

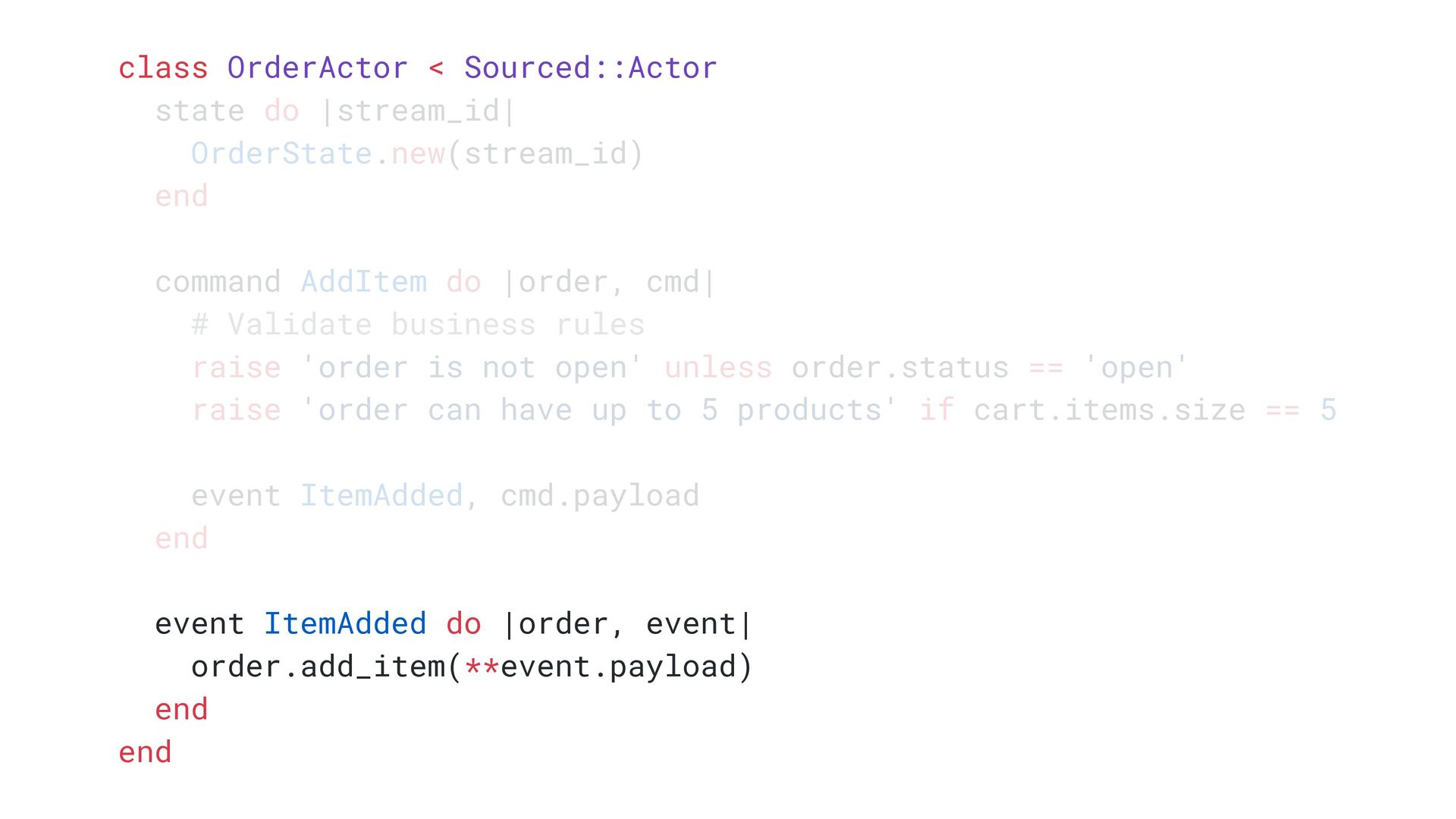

36. class OrderActor < Sourced::Actor state do |stream_id| OrderState.new(stream_id) end command AddItem do |order, cmd| # Validate business rules raise 'order is not open' unless order.status == 'open' raise 'order can have up to 5 products' if cart.items.size == 5 event ItemAdded, cmd.payload end event ItemAdded do |order, event| order.add_item(**event.payload) end end

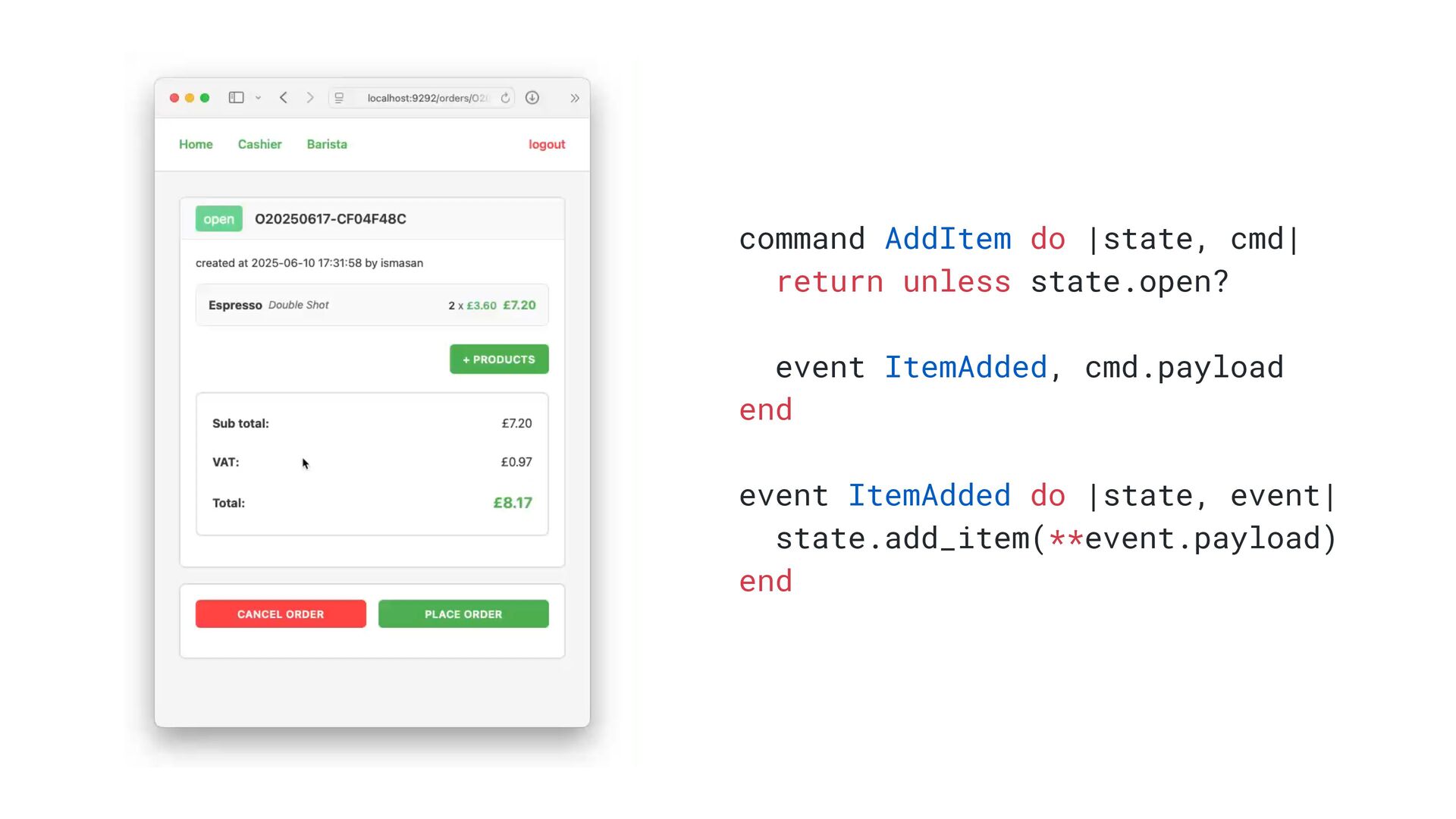

37. command AddItem do |state, cmd| return unless state.open? event ItemAdded, cmd.payload end event ItemAdded do |state, event| state.add_item(**event.payload) end
38. Work fl ows

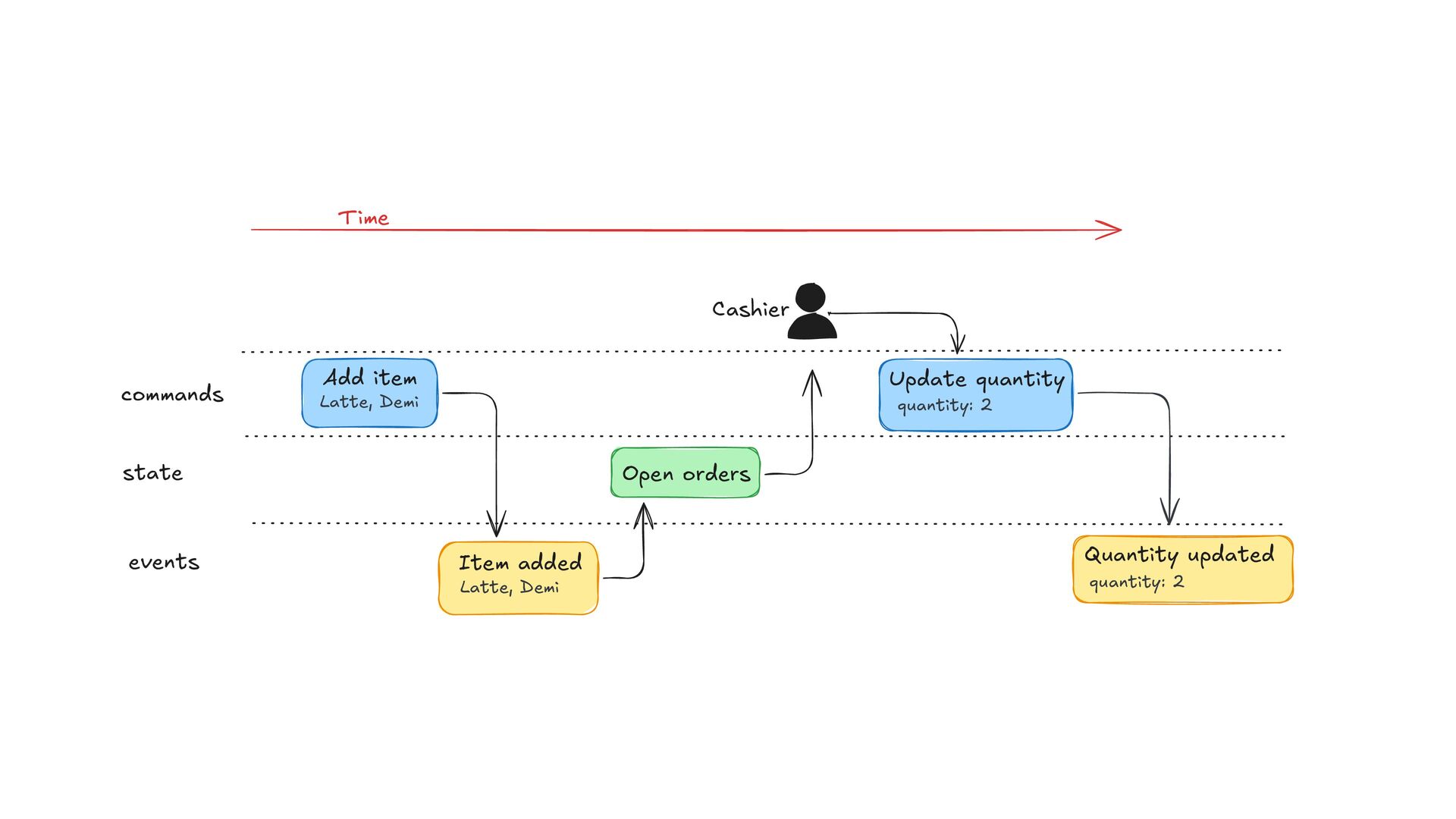

39. Add item Item added Open orders commands state events Time Update quantity Quantity updated Cashier Latte, Demi Latte, Demi quantity: 2 quantity: 2

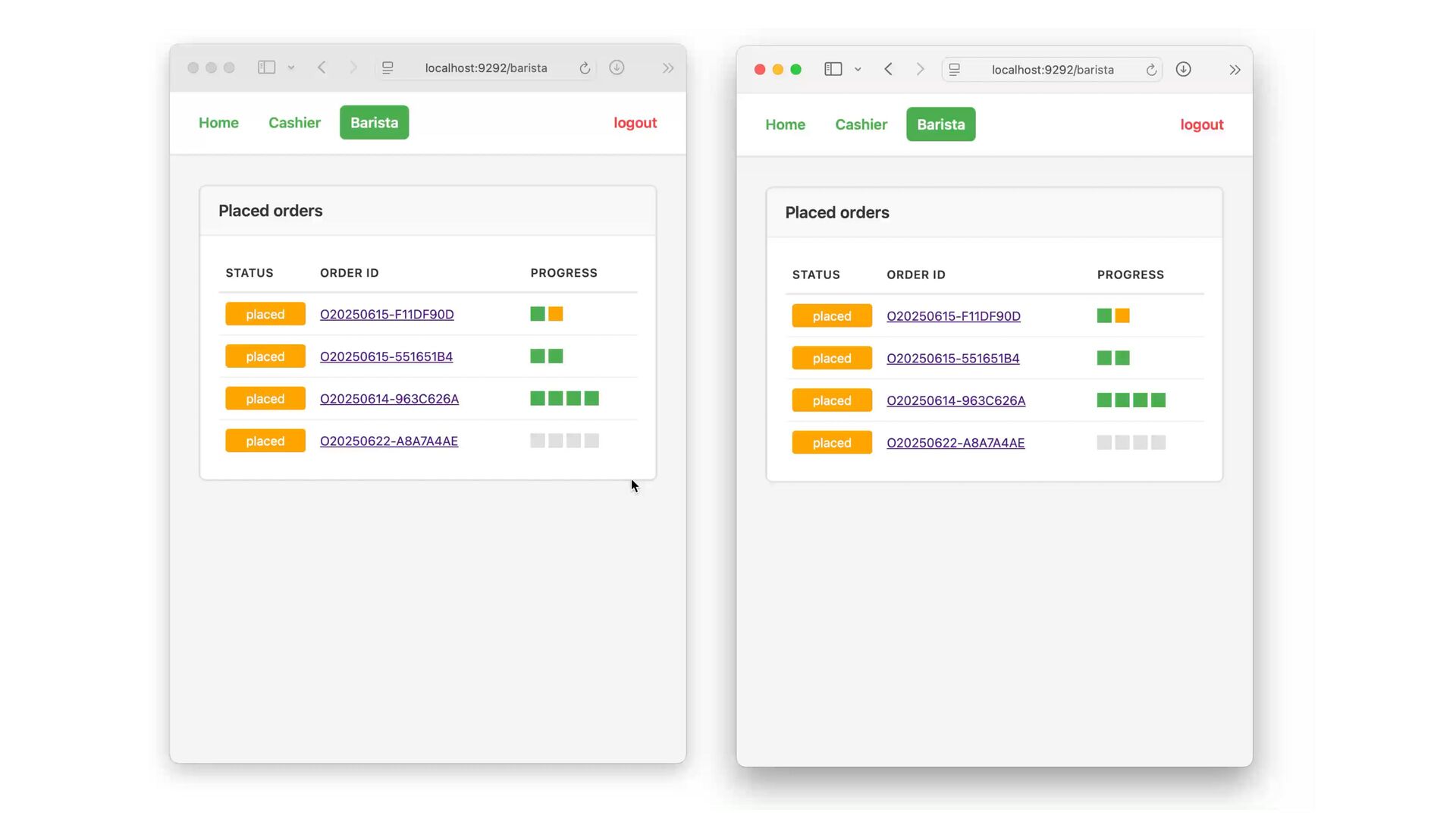

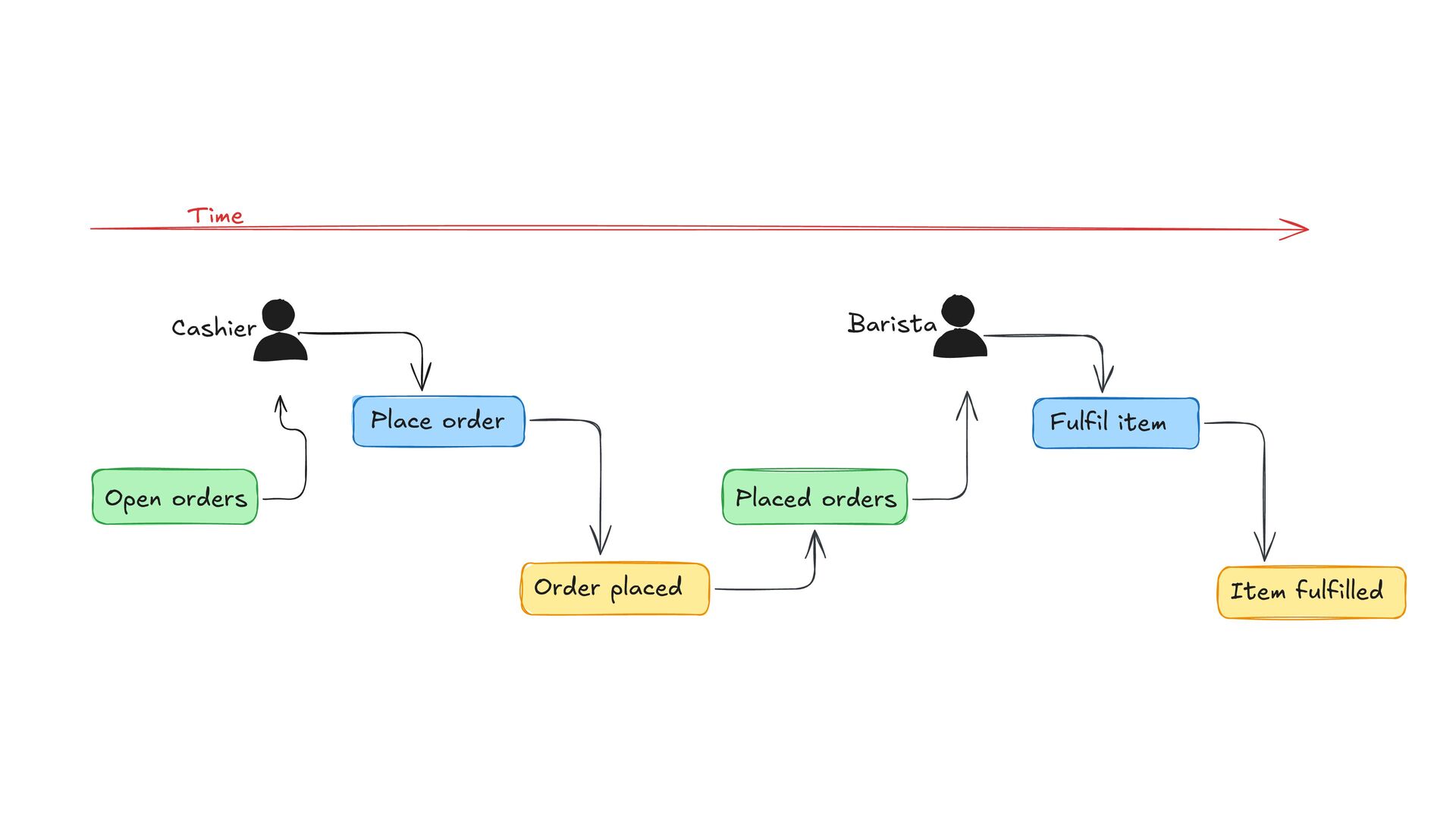

40. Barista Open orders Time Place order Order placed Cashier Placed orders Fulfil item Item fulfilled

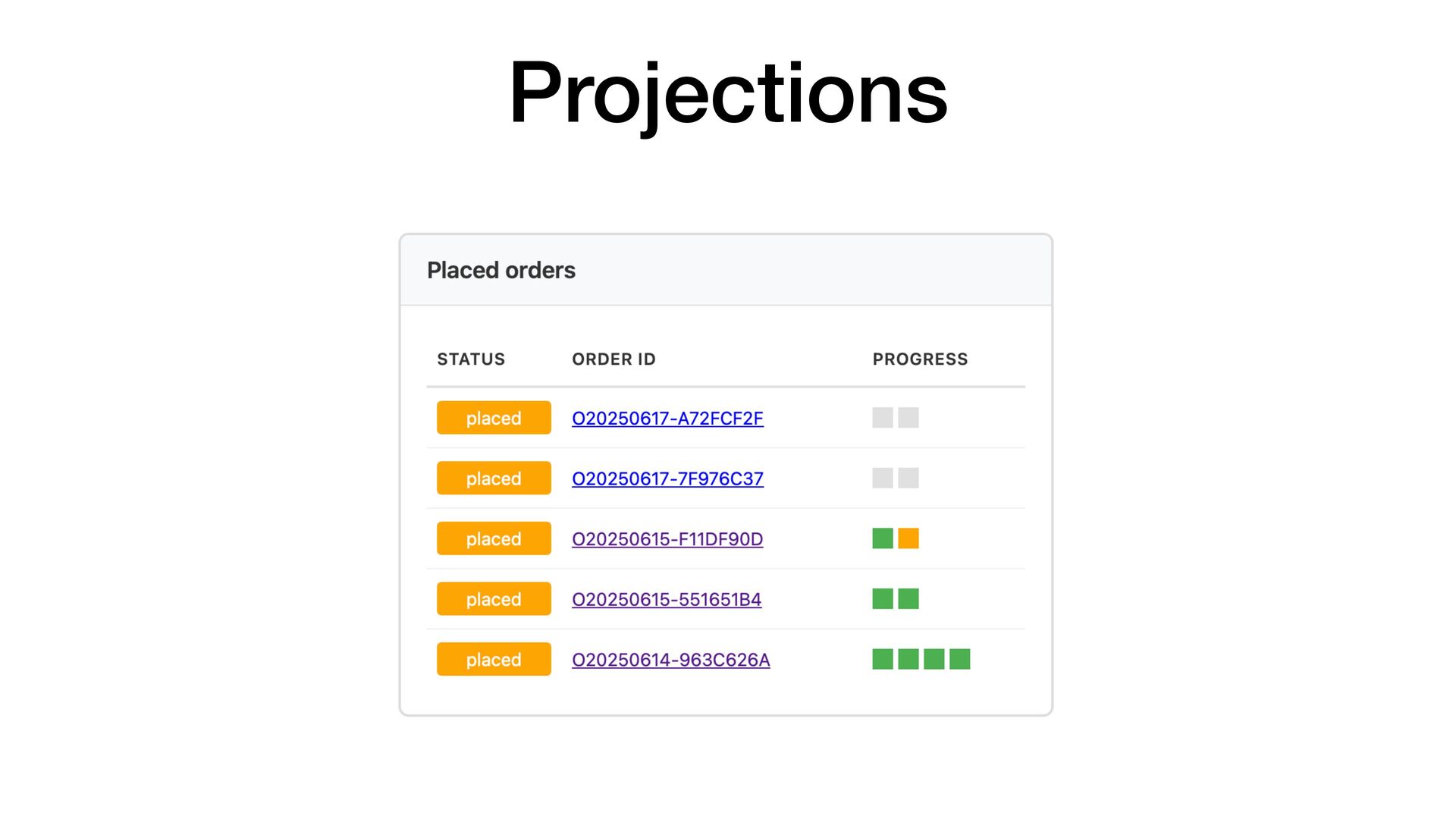

42. Projections

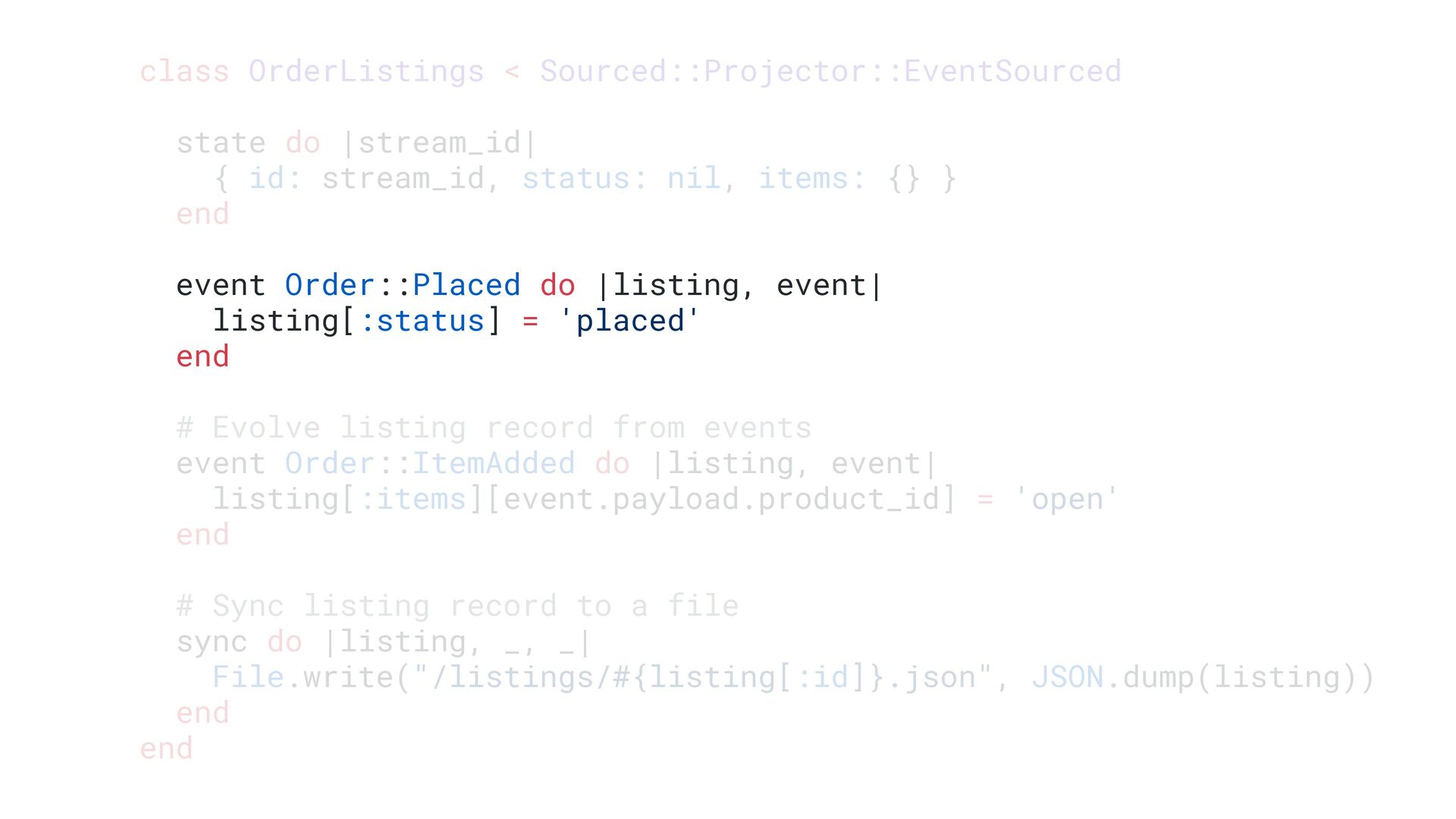

43. class OrderListings < Sourced::Projector::EventSourced state do |stream_id| { id: stream_id, status: nil, items: {} } end event Order::Placed do |listing, event| listing[:status] = 'placed' end # Evolve listing record from events event Order::ItemAdded do |listing, event| listing[:items][event.payload.product_id] = 'open' end # Sync listing record to a file sync do |listing, _, _| File.write("/listings/#{listing[:id]}.json", JSON.dump(listing)) end end

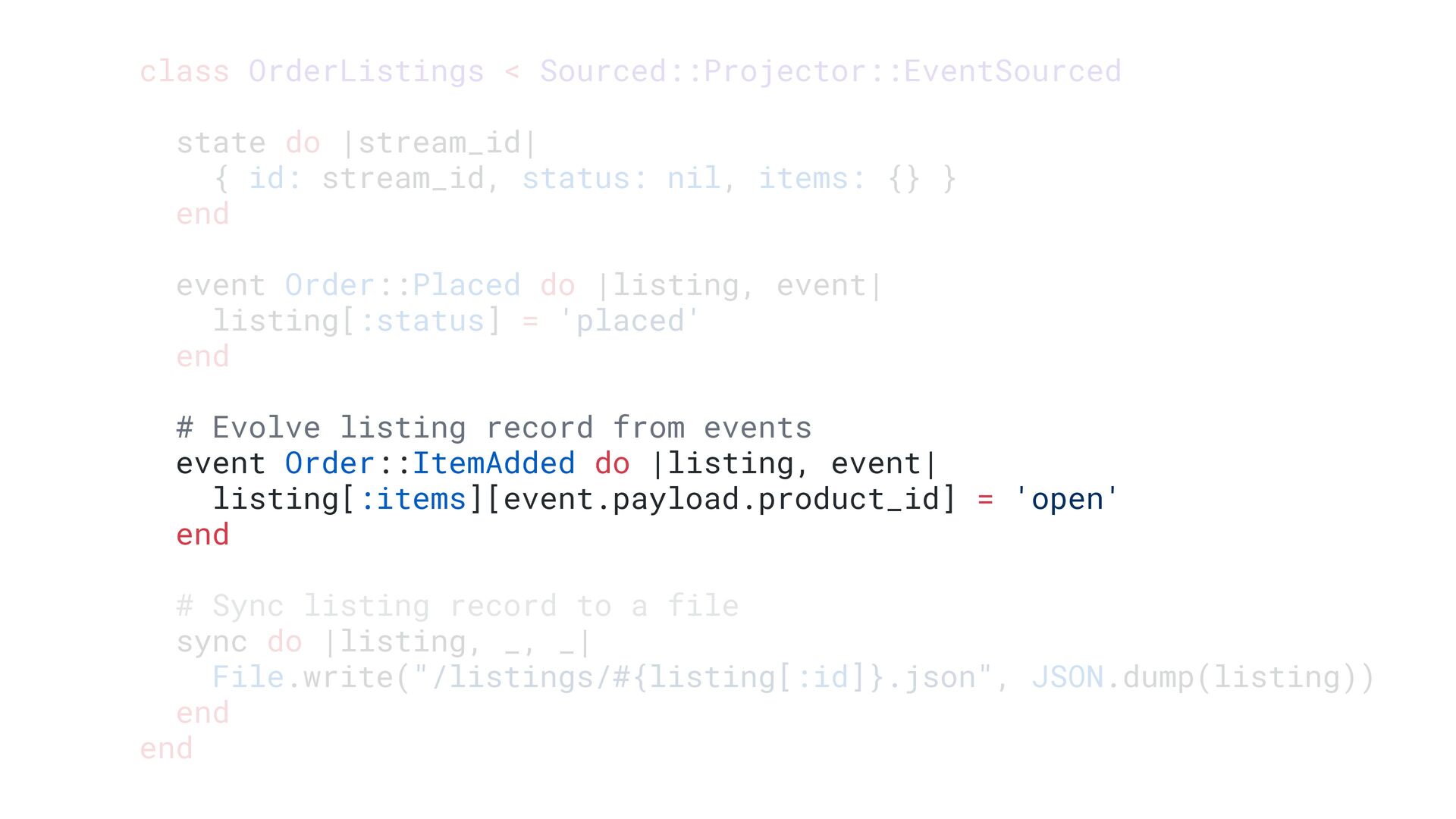

44. class OrderListings < Sourced::Projector::EventSourced state do |stream_id| { id: stream_id, status: nil, items: {} } end event Order::Placed do |listing, event| listing[:status] = 'placed' end # Evolve listing record from events event Order::ItemAdded do |listing, event| listing[:items][event.payload.product_id] = 'open' end # Sync listing record to a file sync do |listing, _, _| File.write("/listings/#{listing[:id]}.json", JSON.dump(listing)) end end
45. class OrderListings < Sourced::Projector::EventSourced state do |stream_id| { id: stream_id, status: nil, items: {} } end event Order::Placed do |listing, event| listing[:status] = 'placed' end # Evolve listing record from events event Order::ItemAdded do |listing, event| listing[:items][event.payload.product_id] = 'open' end # Sync listing record to a file sync do |listing, _, _| File.write("/listings/#{listing[:id]}.json", JSON.dump(listing)) end end

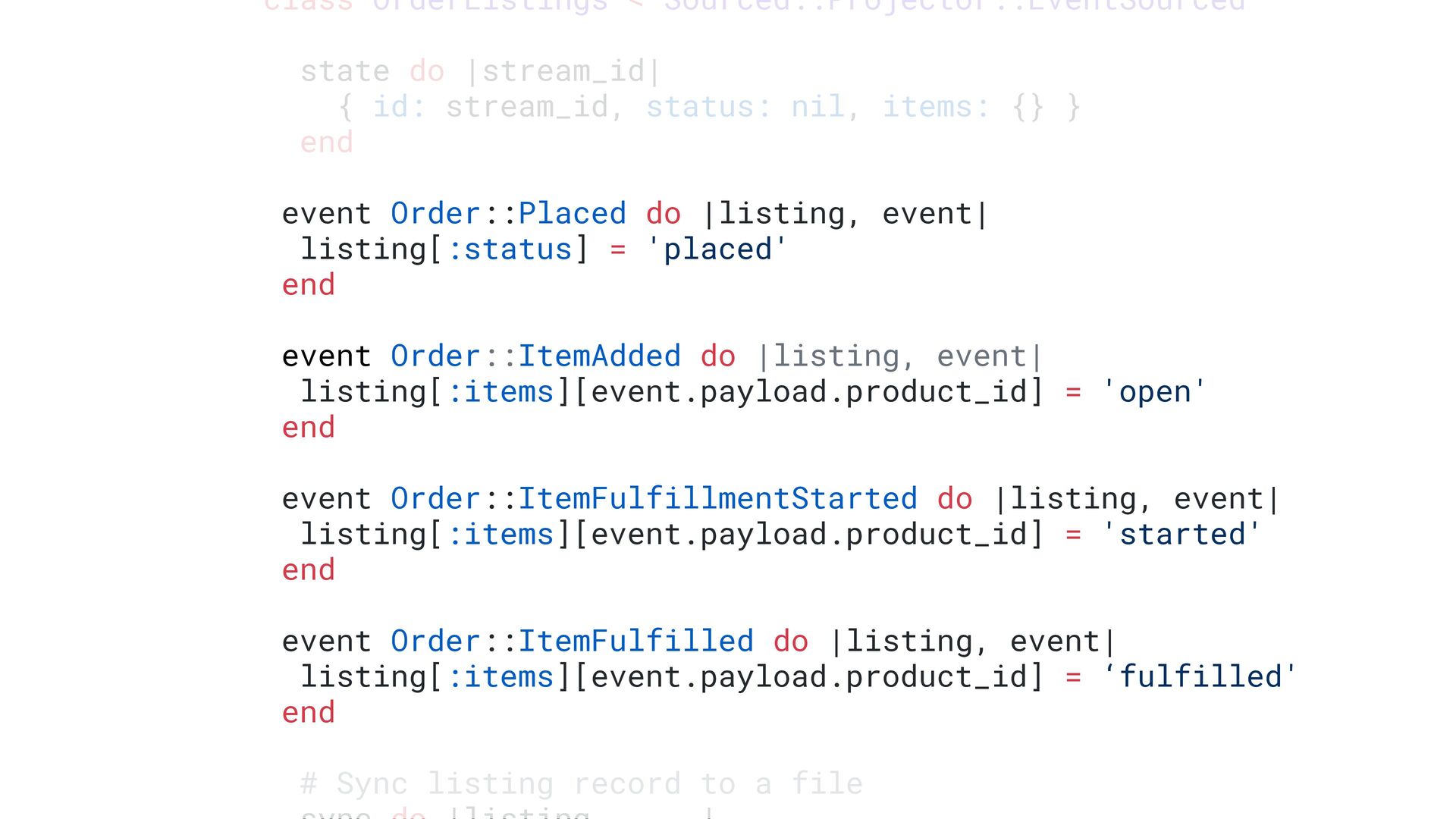

46. class OrderListings < Sourced::Projector::EventSourced state do |stream_id| { id: stream_id, status: nil, items: {} } end event Order::Placed do |listing, event| listing[:status] = 'placed' end event Order::ItemAdded do |listing, event| listing[:items][event.payload.product_id] = 'open' end event Order::ItemFulfillmentStarted do |listing, event| listing[:items][event.payload.product_id] = 'started' end event Order::ItemFulfilled do |listing, event| listing[:items][event.payload.product_id] = ‘fulfilled' end # Sync listing record to a file

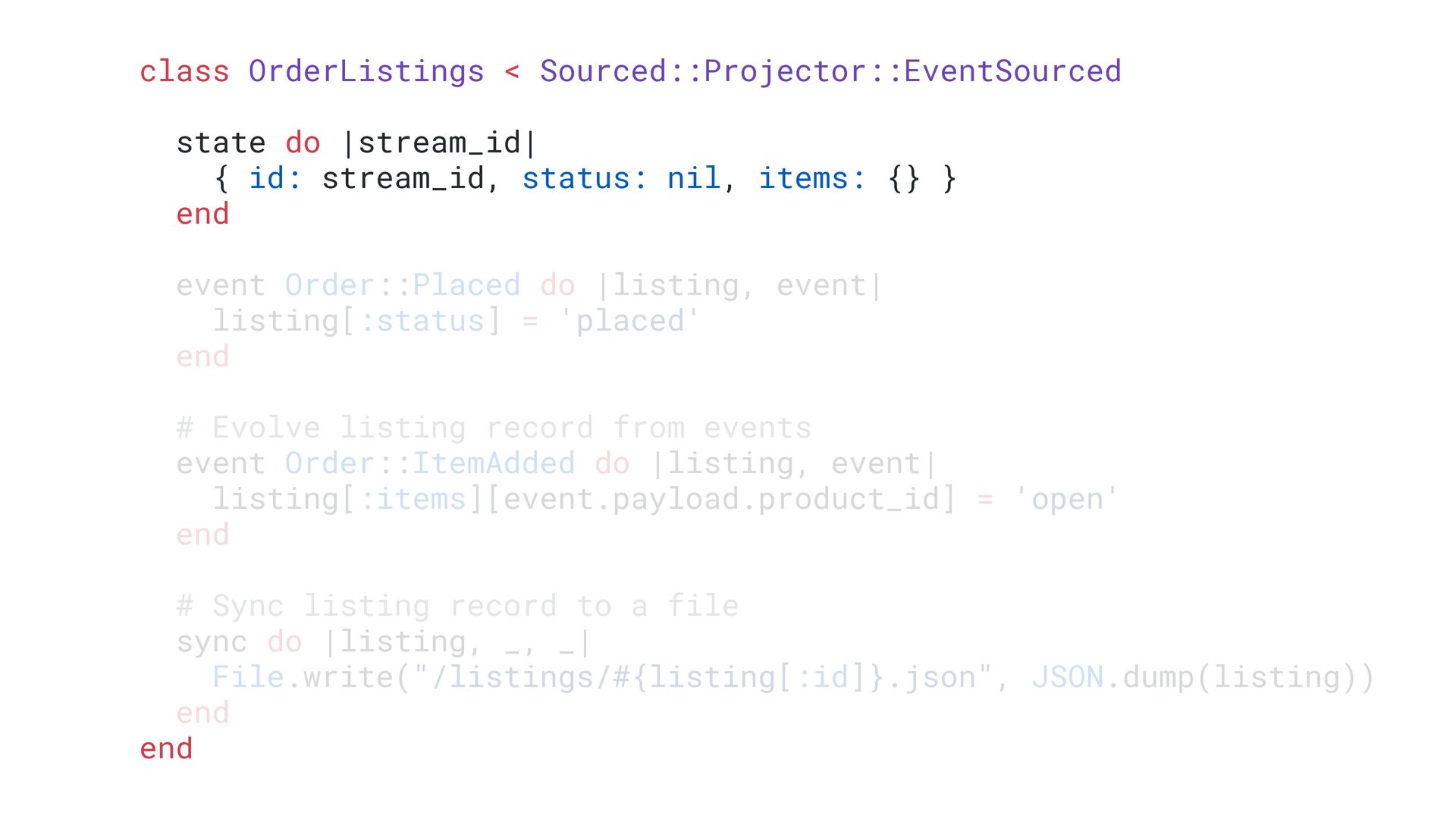

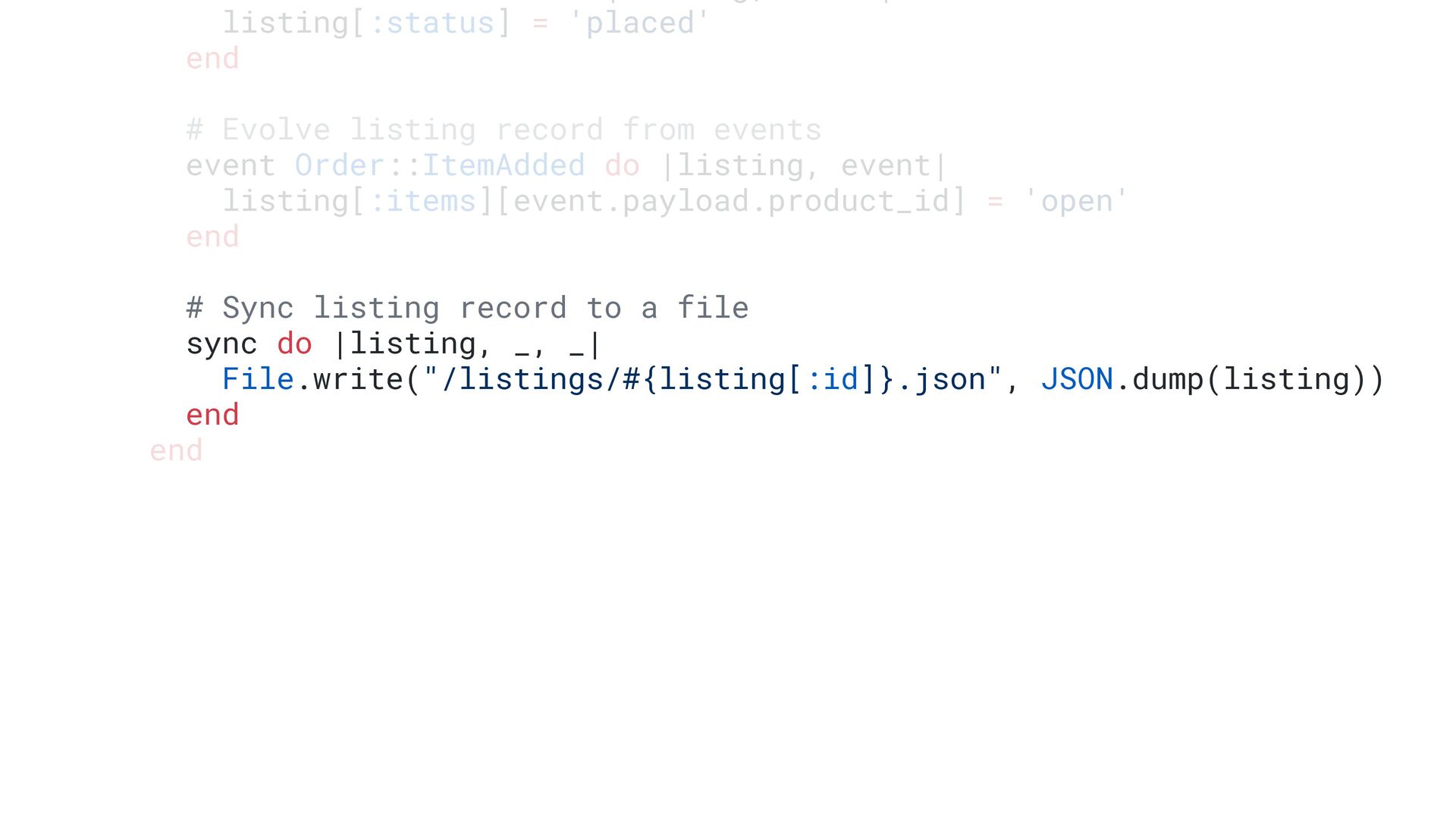

47. listing[:status] = 'placed' end # Evolve listing record from events event Order::ItemAdded do |listing, event| listing[:items][event.payload.product_id] = 'open' end # Sync listing record to a file sync do |listing, _, _| File.write("/listings/#{listing[:id]}.json", JSON.dump(listing)) end end
48. Concurrent work fl ows

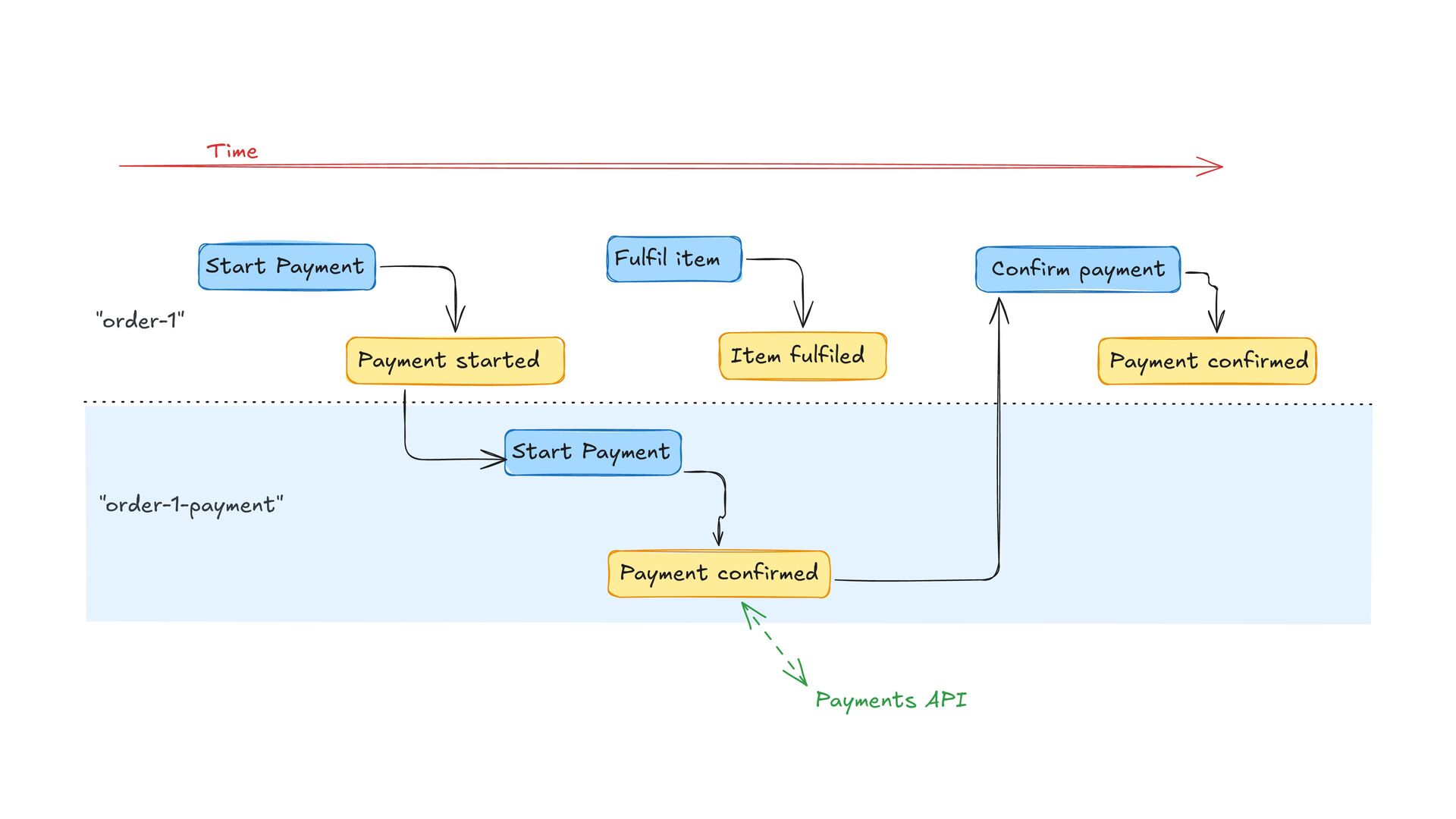

49. Start Payment Payment confirmed "order-1" "order-1-payment" Confirm payment Payment confirmed Time Payment started Start Payment Payments API Fulfil item Item fulfiled

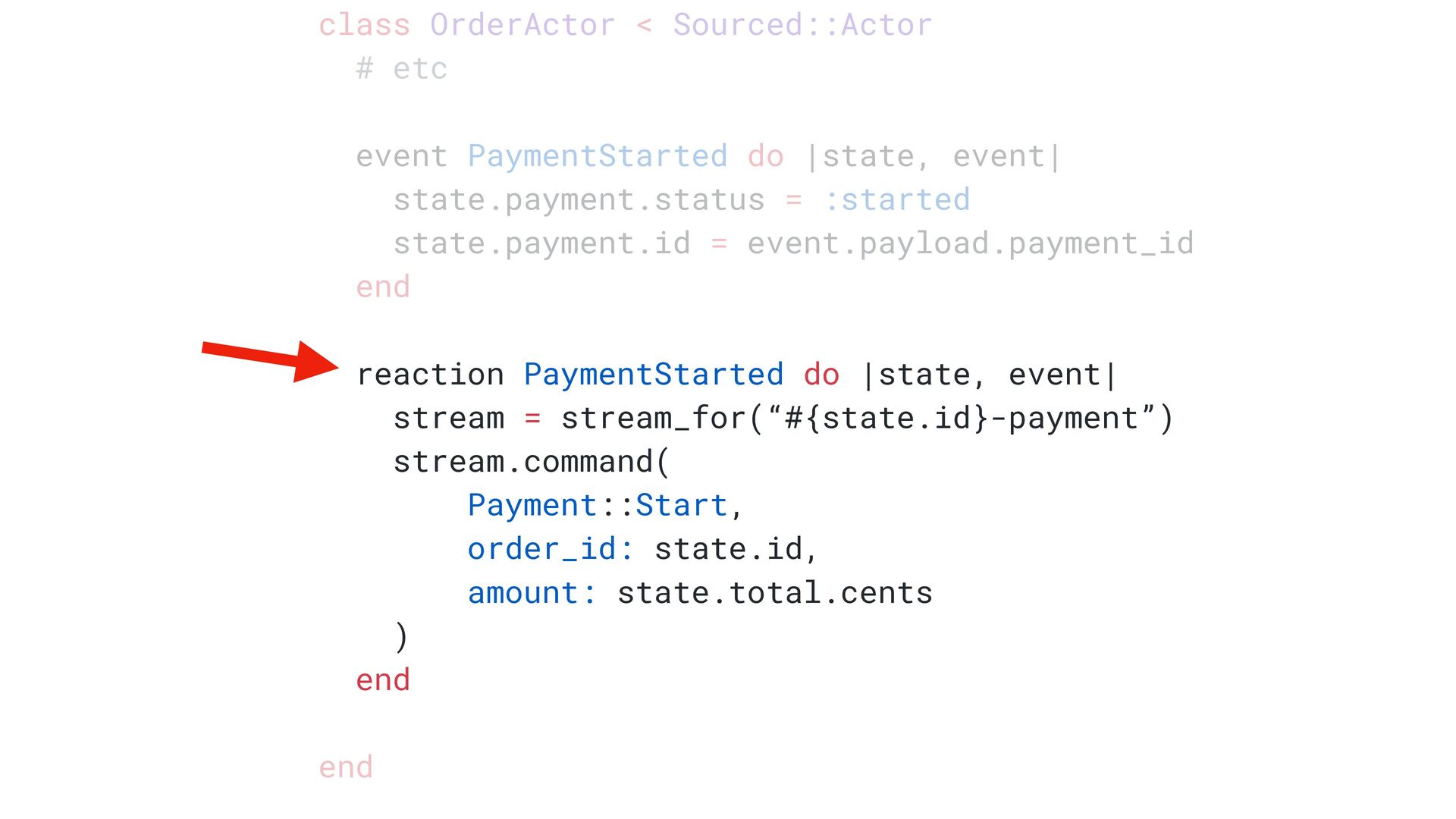

50. class OrderActor < Sourced::Actor # etc event PaymentStarted do |state, event| state.payment.status = :started state.payment.id = event.payload.payment_id end reaction PaymentStarted do |state, event| stream = stream_for(“#{state.id}-payment”) stream.command( Payment::Start, order_id: state.id, amount: state.total.cents ) end end

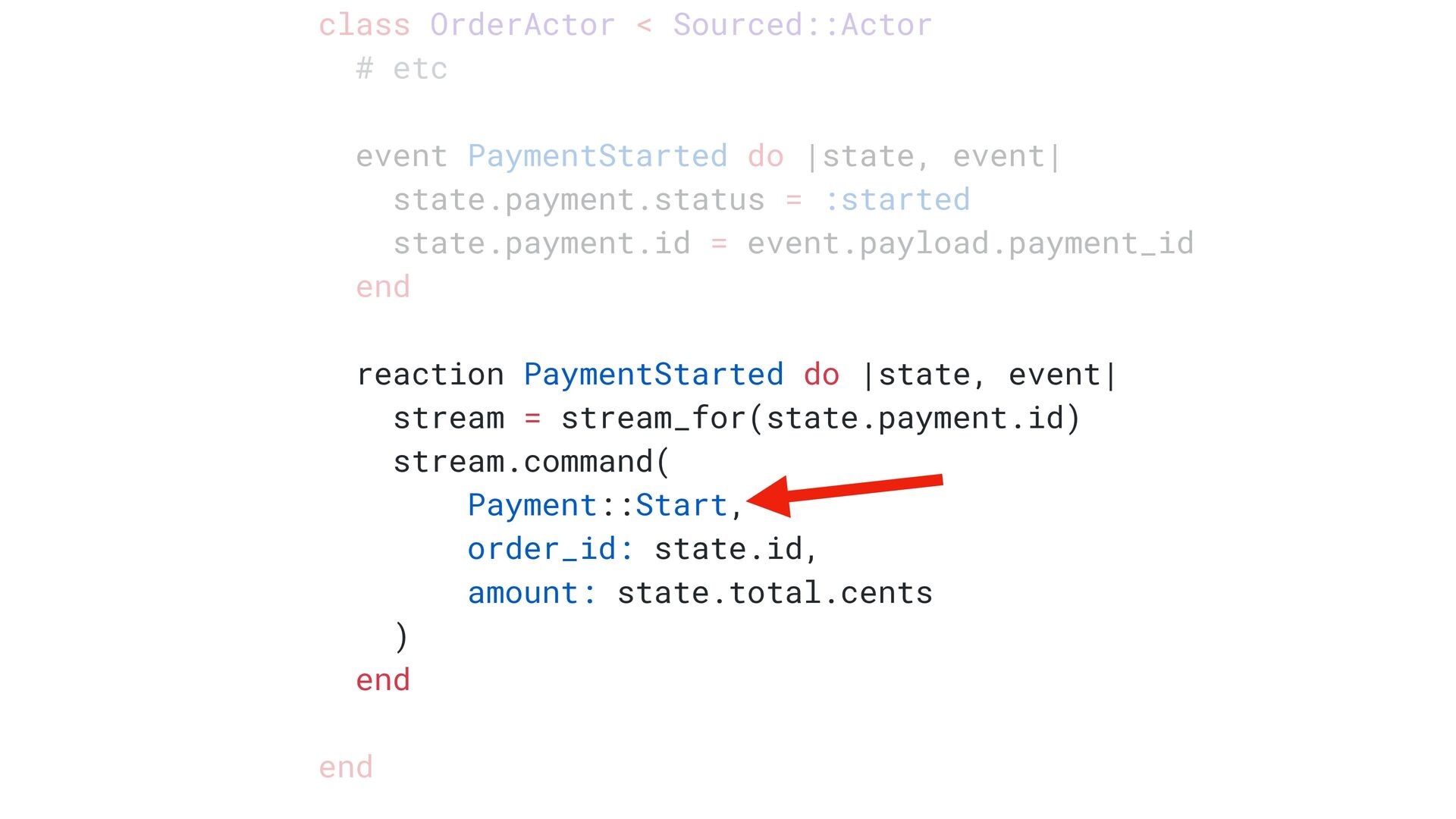

51. class OrderActor < Sourced::Actor # etc event PaymentStarted do |state, event| state.payment.status = :started state.payment.id = event.payload.payment_id end reaction PaymentStarted do |state, event| stream = stream_for(state.payment.id) stream.command( Payment::Start, order_id: state.id, amount: state.total.cents ) end end

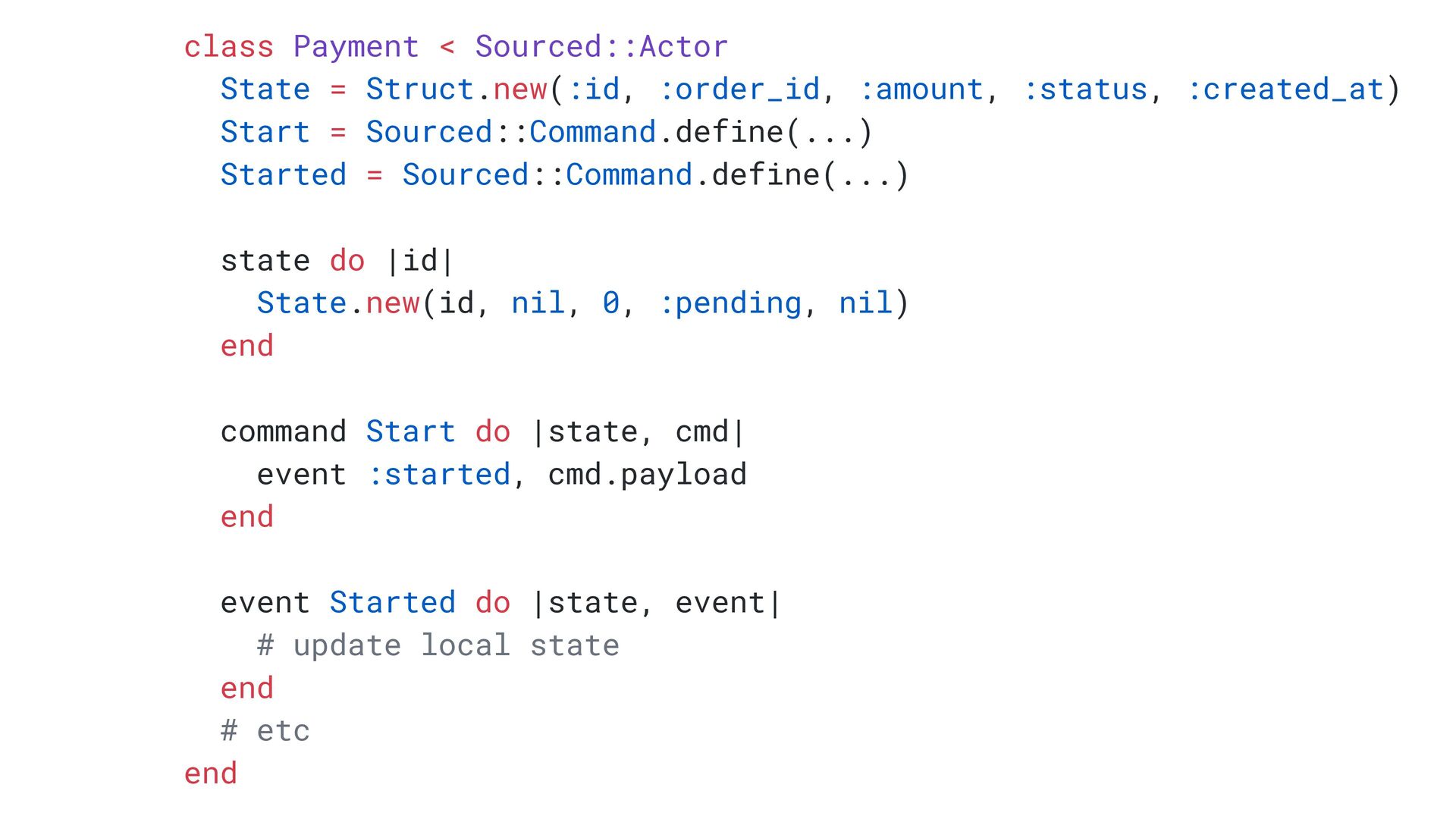

52. class Payment < Sourced::Actor State = Struct.new(:id, :order_id, :amount, :status, :created_at) Start = Sourced::Command.define(...) Started = Sourced::Command.define(...) state do |id| State.new(id, nil, 0, :pending, nil) end command Start do |state, cmd| event :started, cmd.payload end event Started do |state, event| # update local state end # etc end

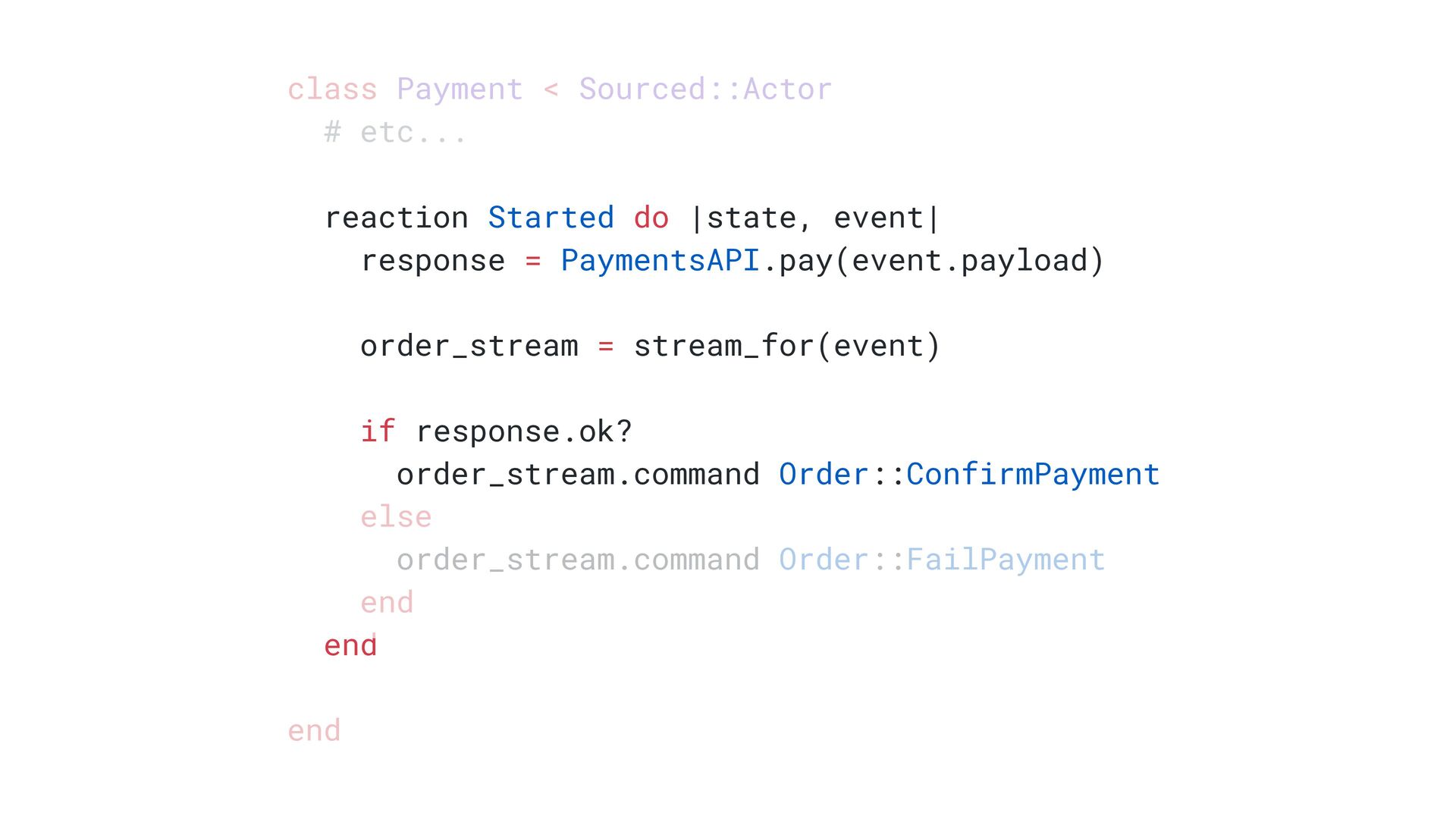

53. class Payment < Sourced::Actor # etc... reaction Started do |state, event| response = PaymentsAPI.pay(event.payload) order_stream = stream_for(event) if response.ok? order_stream.command Order::ConfirmPayment else order_stream.command Order::FailPayment end end end

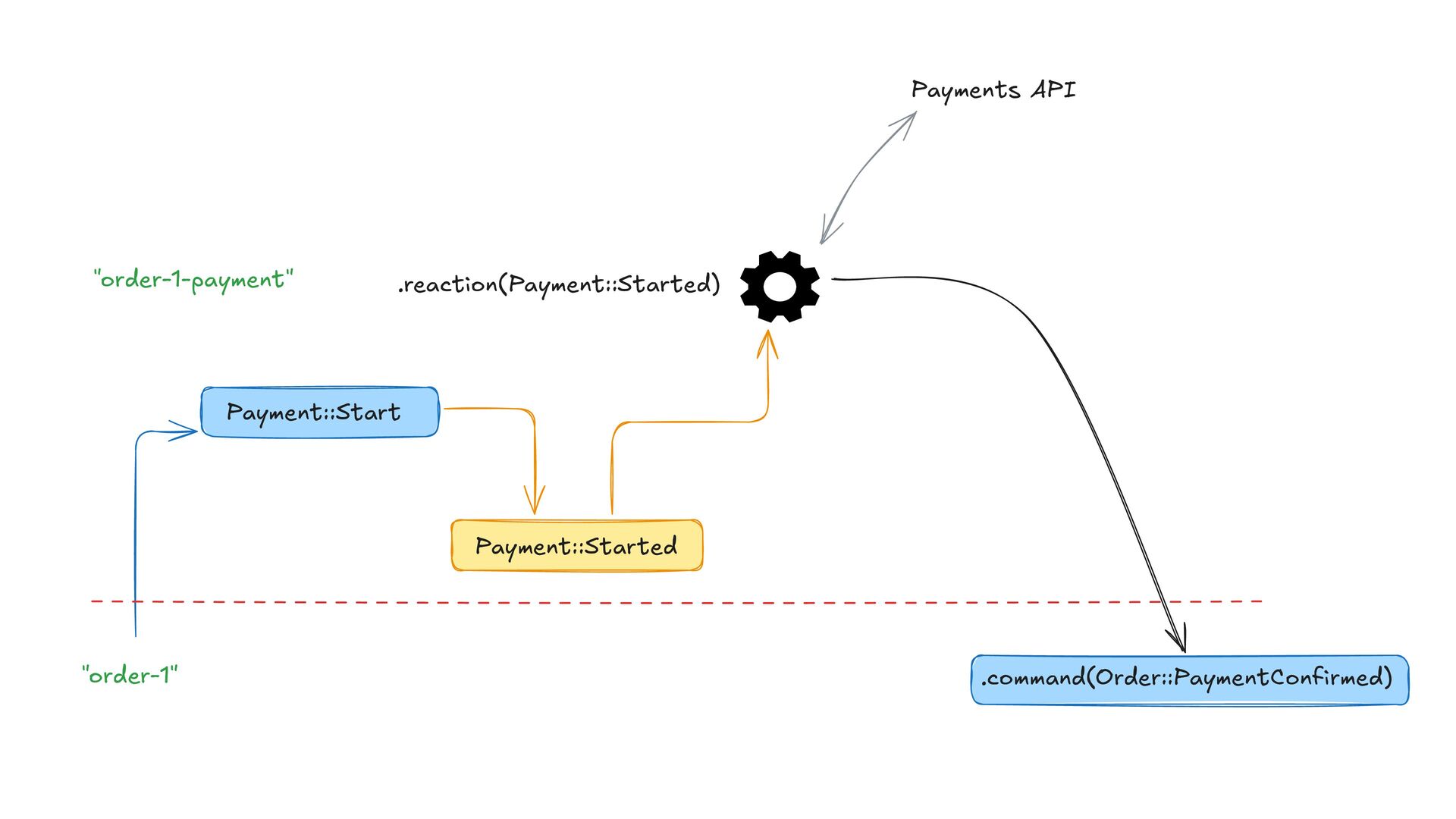

54. Payment::Start Payment::Started .reaction(Payment::Started) .command(Order::PaymentConfirmed) "order-1-payment" Payments API "order-1"

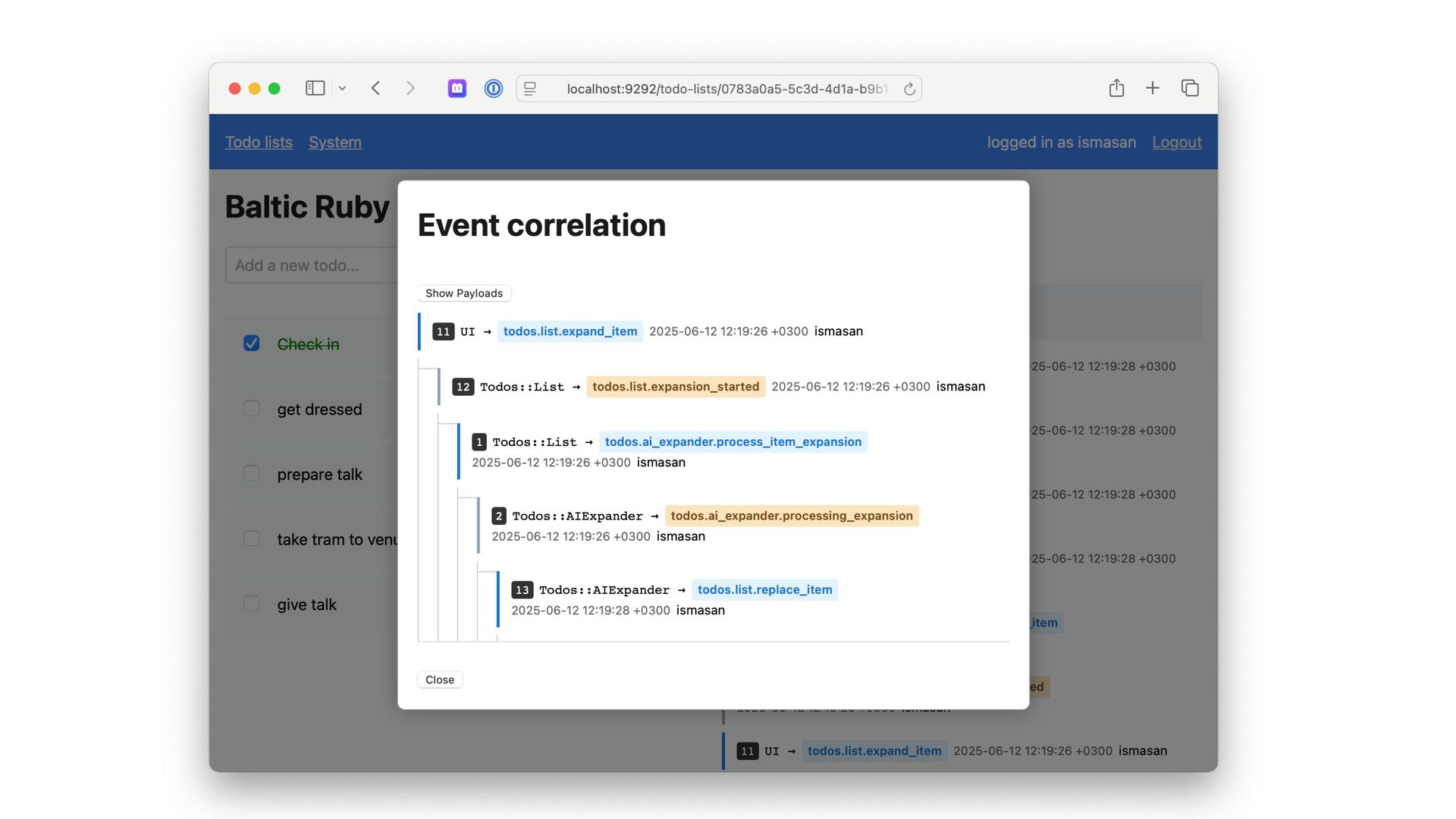

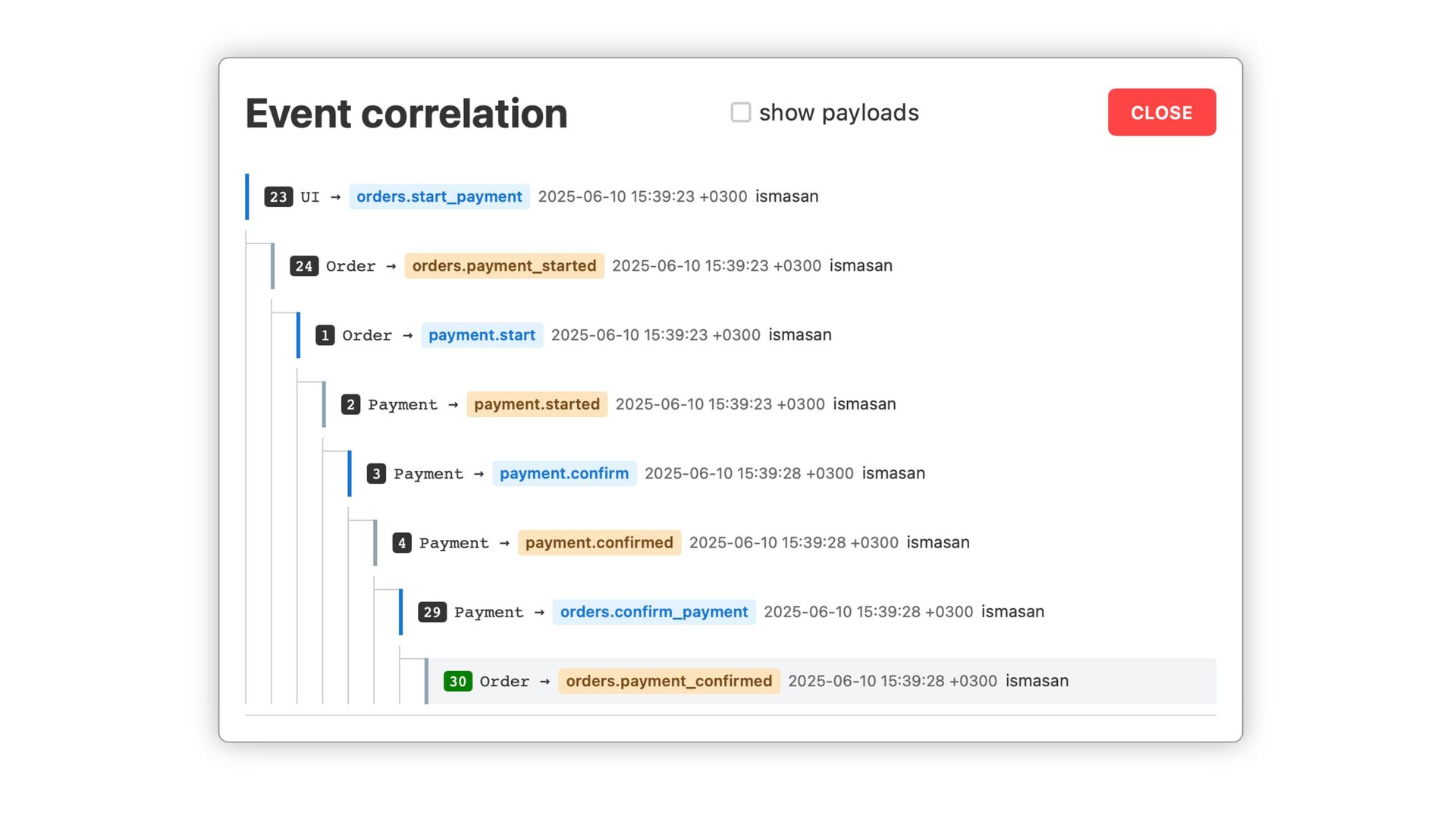

56. Event correlation

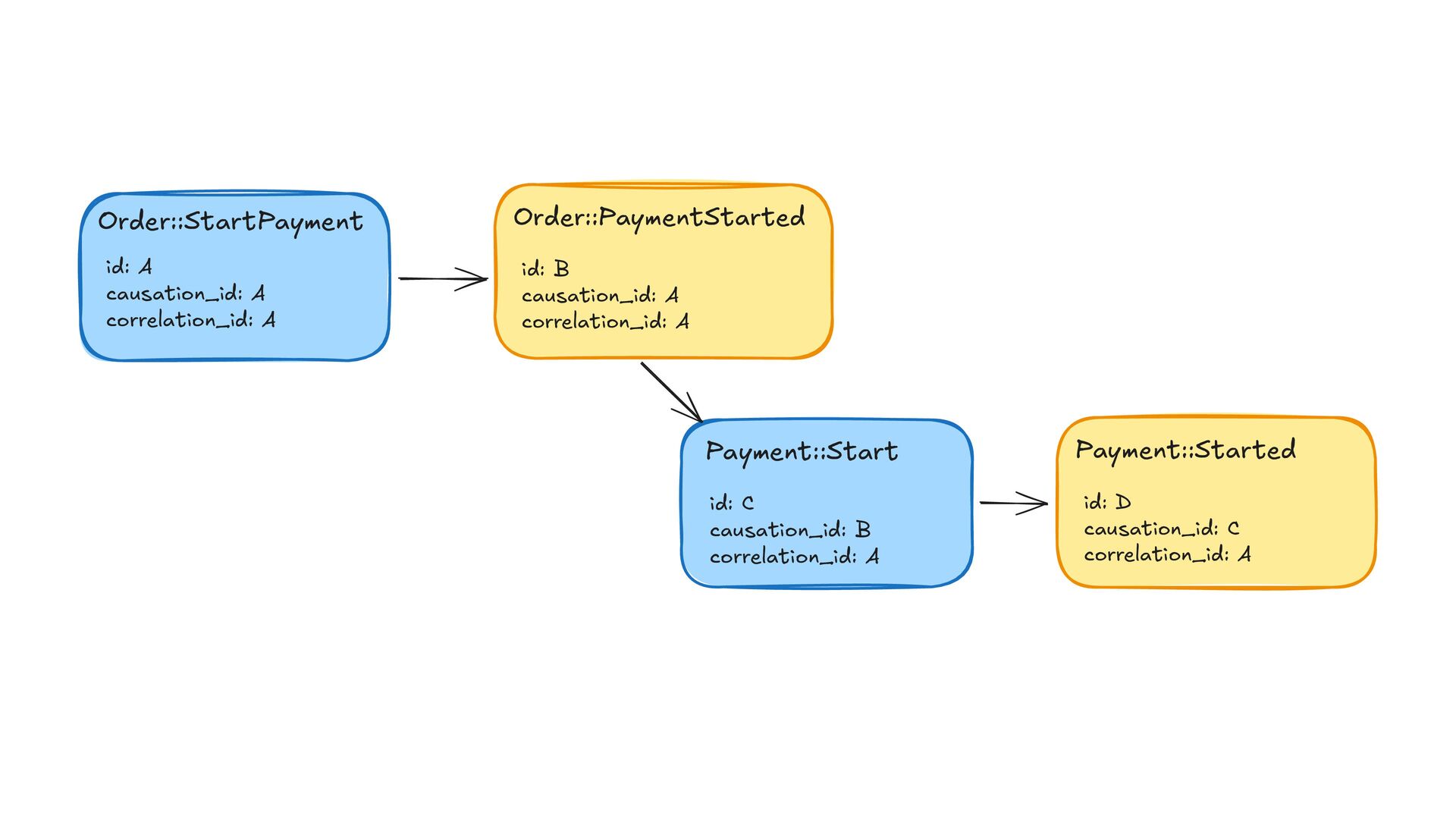

57. Order::PaymentStarted Order::StartPayment id: A causation_id: A correlation_id: A id: B causation_id: A correlation_id: A Payment::Start id: C causation_id: B correlation_id: A Payment::Started id: D causation_id: C correlation_id: A
59. Automation

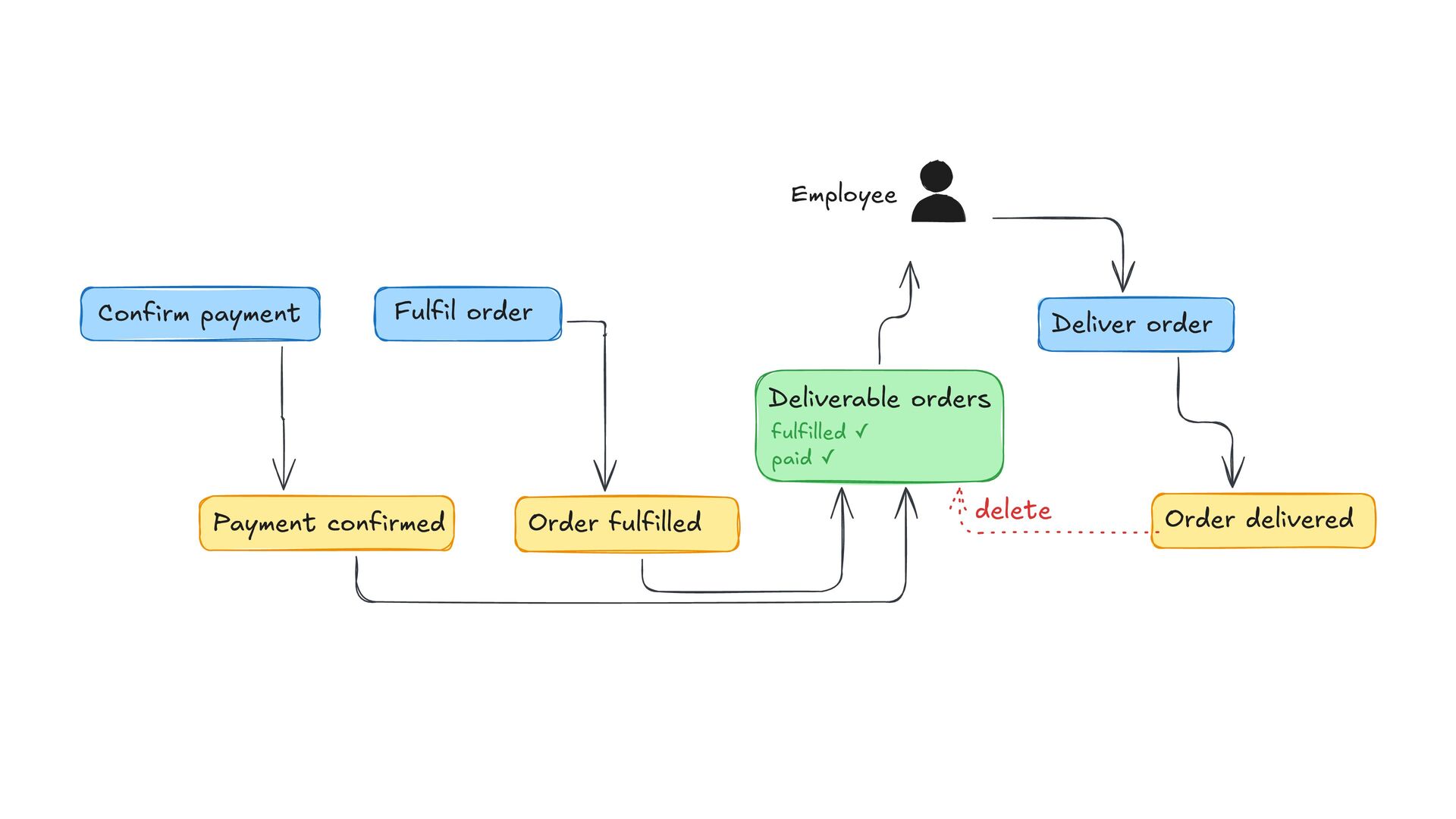

60. Confirm payment Payment confirmed Order fulfilled Deliverable orders Deliver order Order delivered fulfilled ✓ paid ✓ delete Fulfil order Employee

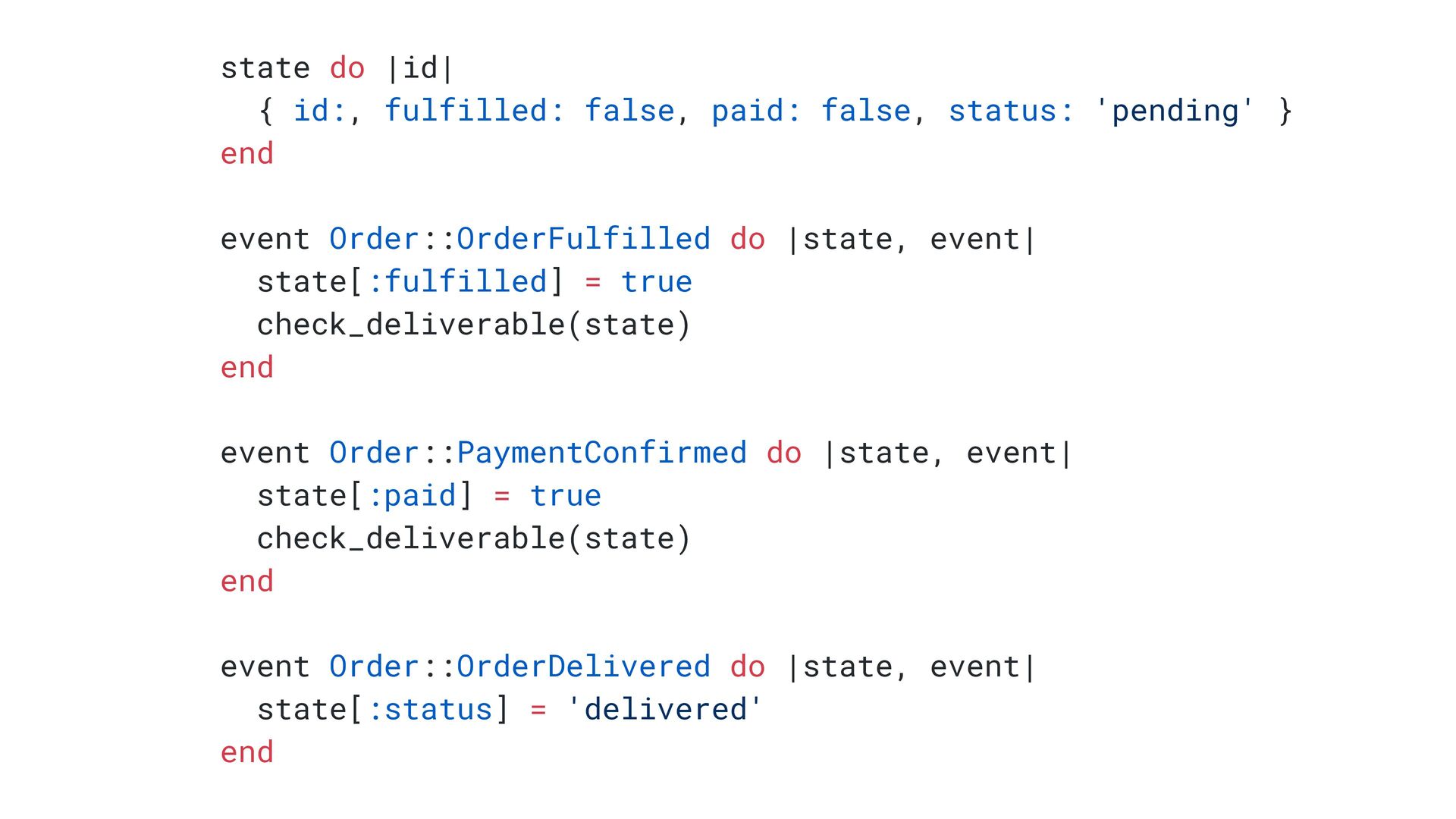

61. state do |id| { id:, fulfilled: false, paid: false, status: 'pending' } end event Order::OrderFulfilled do |state, event| state[:fulfilled] = true check_deliverable(state) end event Order::PaymentConfirmed do |state, event| state[:paid] = true check_deliverable(state) end event Order::OrderDelivered do |state, event| state[:status] = 'delivered' end

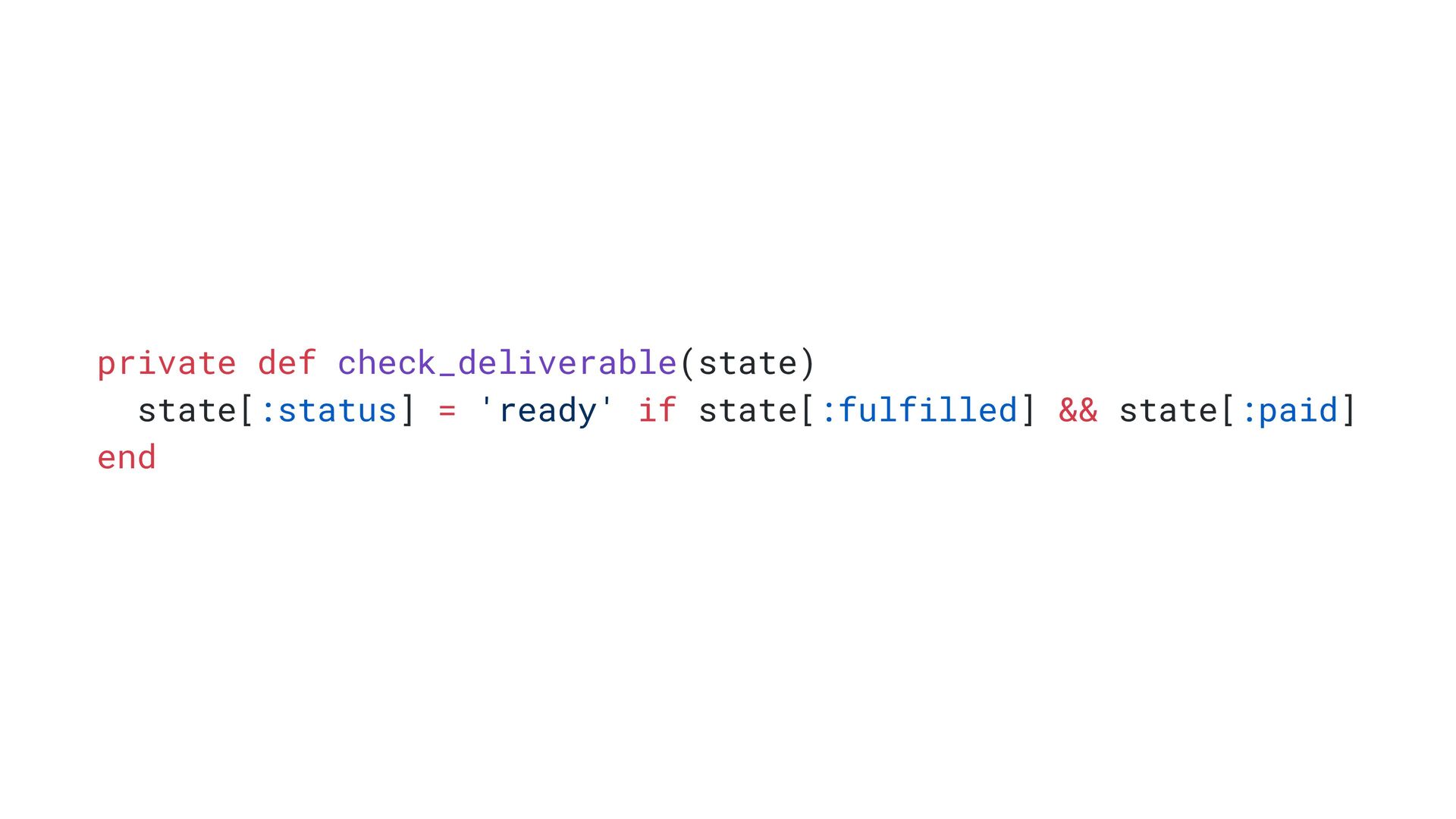

62. private def check_deliverable(state) state[:status] = 'ready' if state[:fulfilled] && state[:paid] end

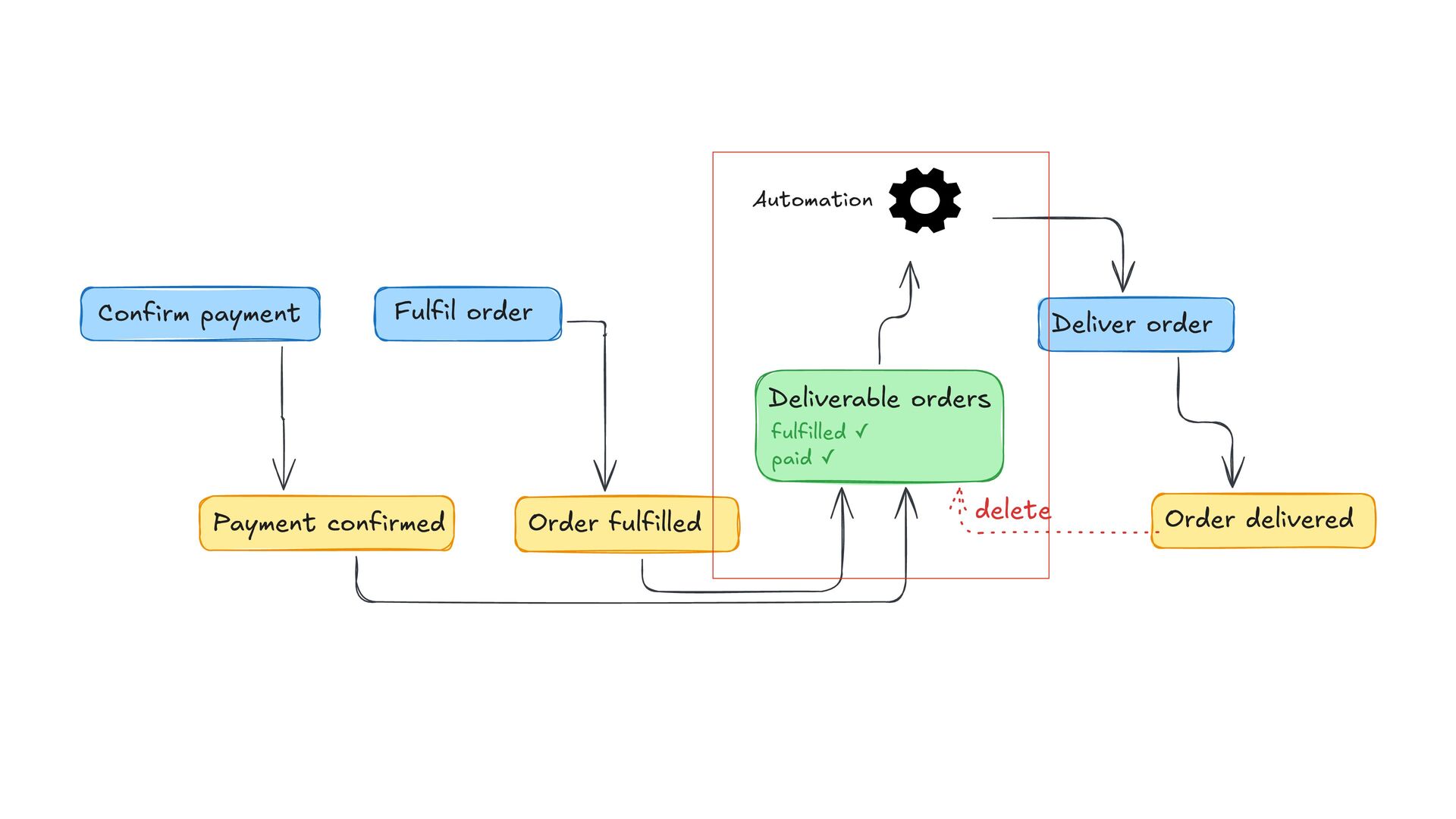

64. Confirm payment Payment confirmed Order fulfilled Deliverable orders Deliver order Order delivered fulfilled ✓ paid ✓ delete Fulfil order Automation

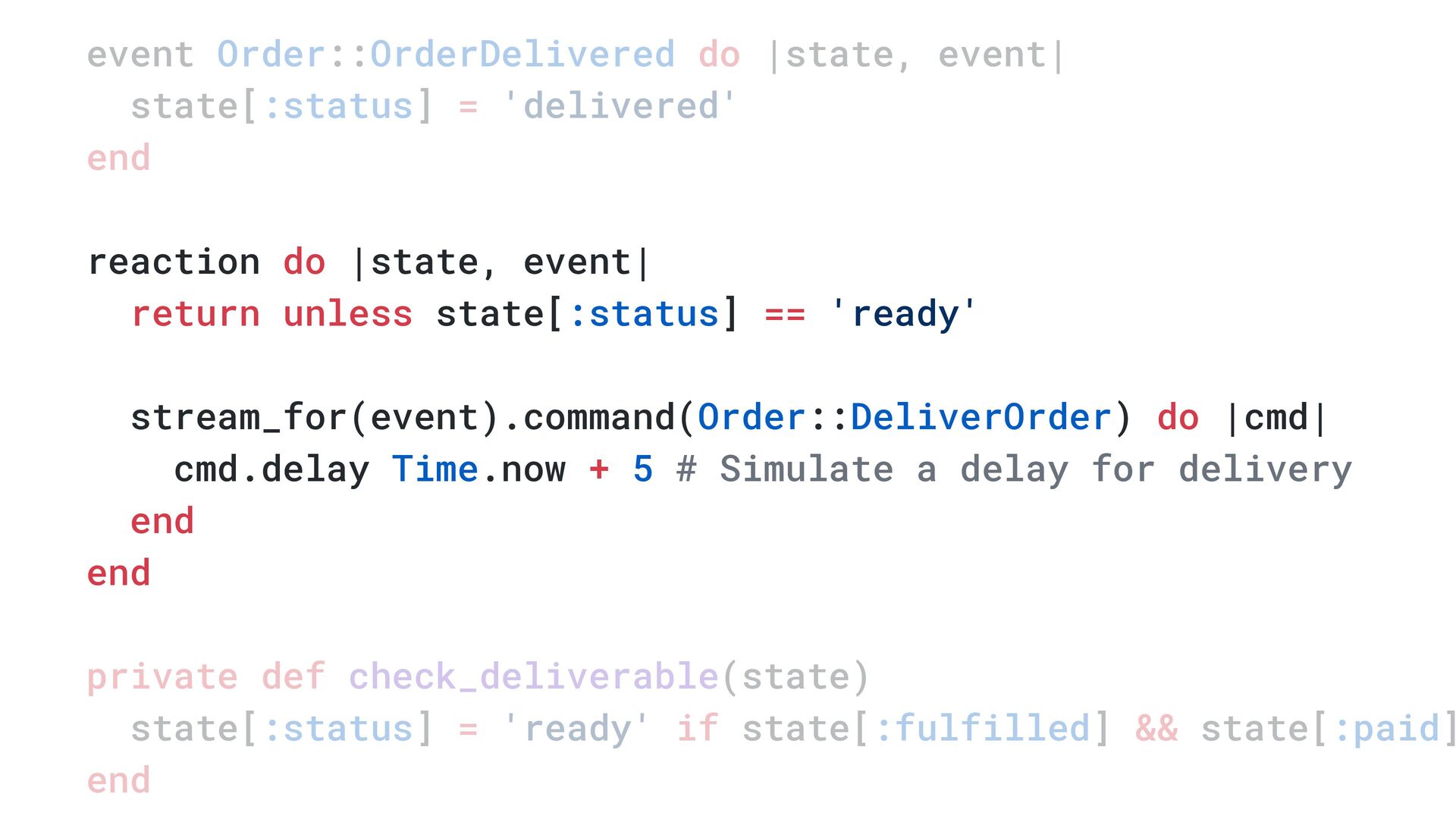

65. event Order::OrderDelivered do |state, event| state[:status] = 'delivered' end reaction do |state, event| return unless state[:status] == 'ready' stream_for(event).command(Order::DeliverOrder) do |cmd| cmd.delay Time.now + 5 # Simulate a delay for delivery end end private def check_deliverable(state) state[:status] = 'ready' if state[:fulfilled] && state[:paid] end

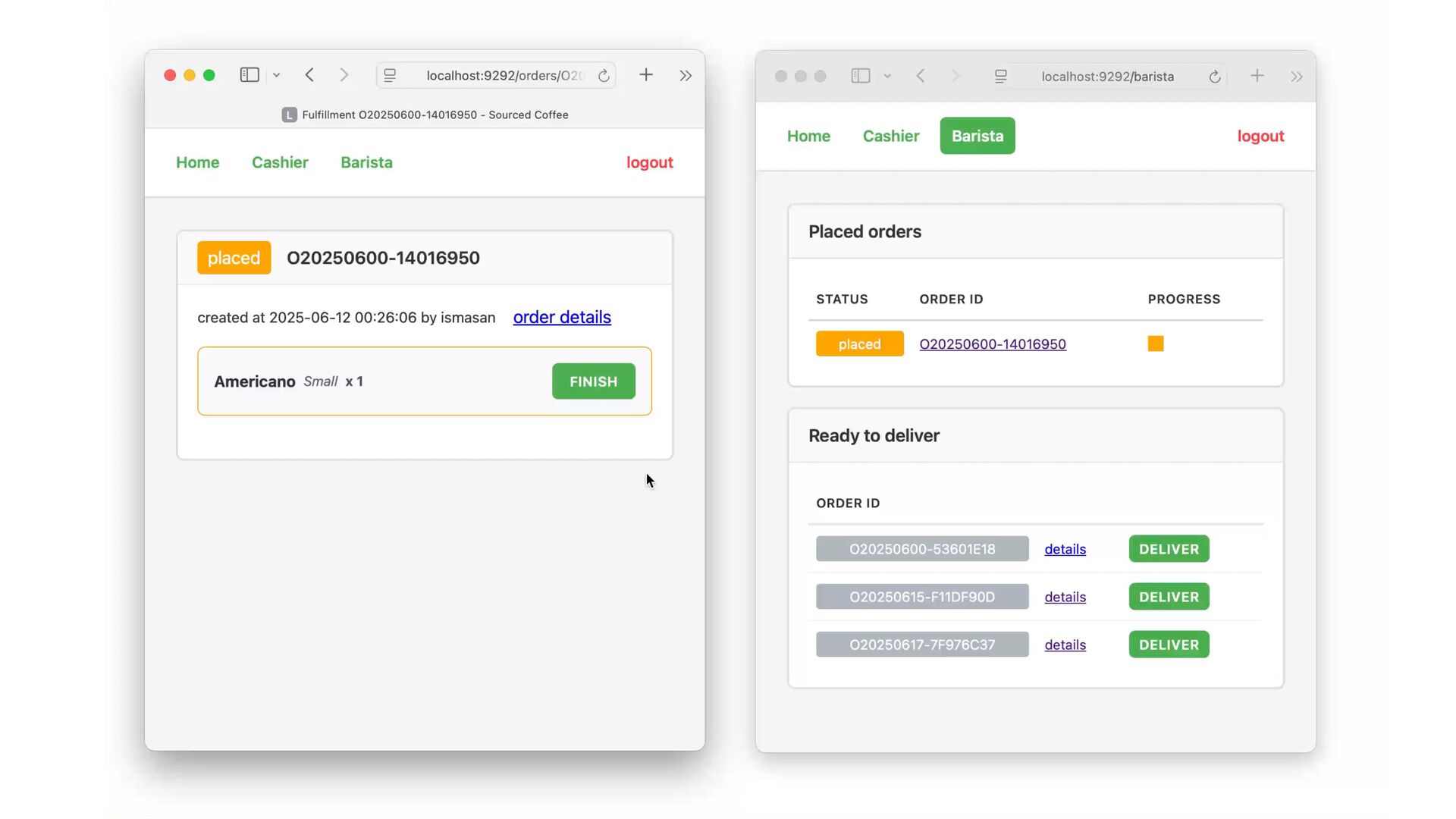

67. Reactive UI

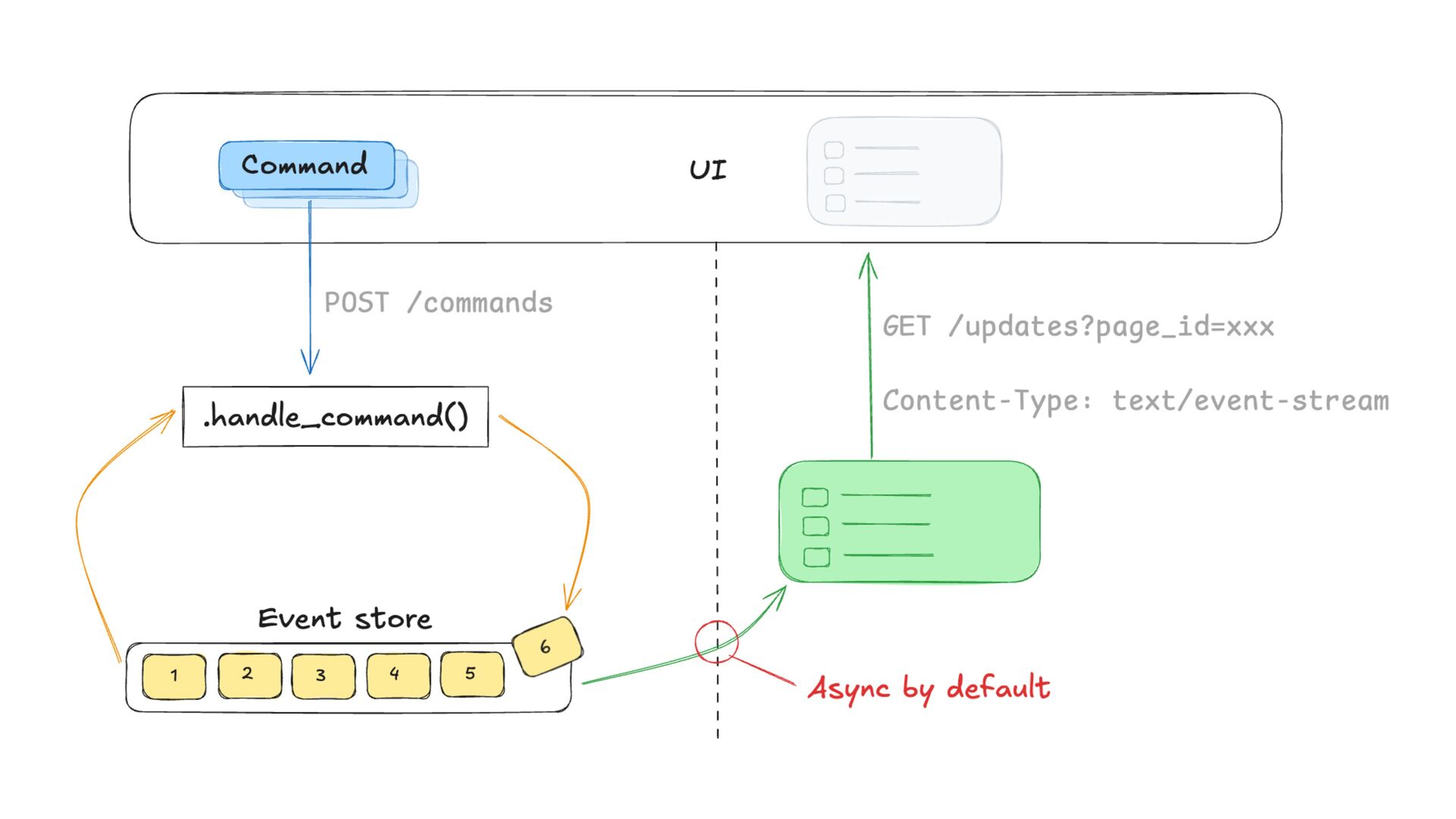

68. Reactive UI

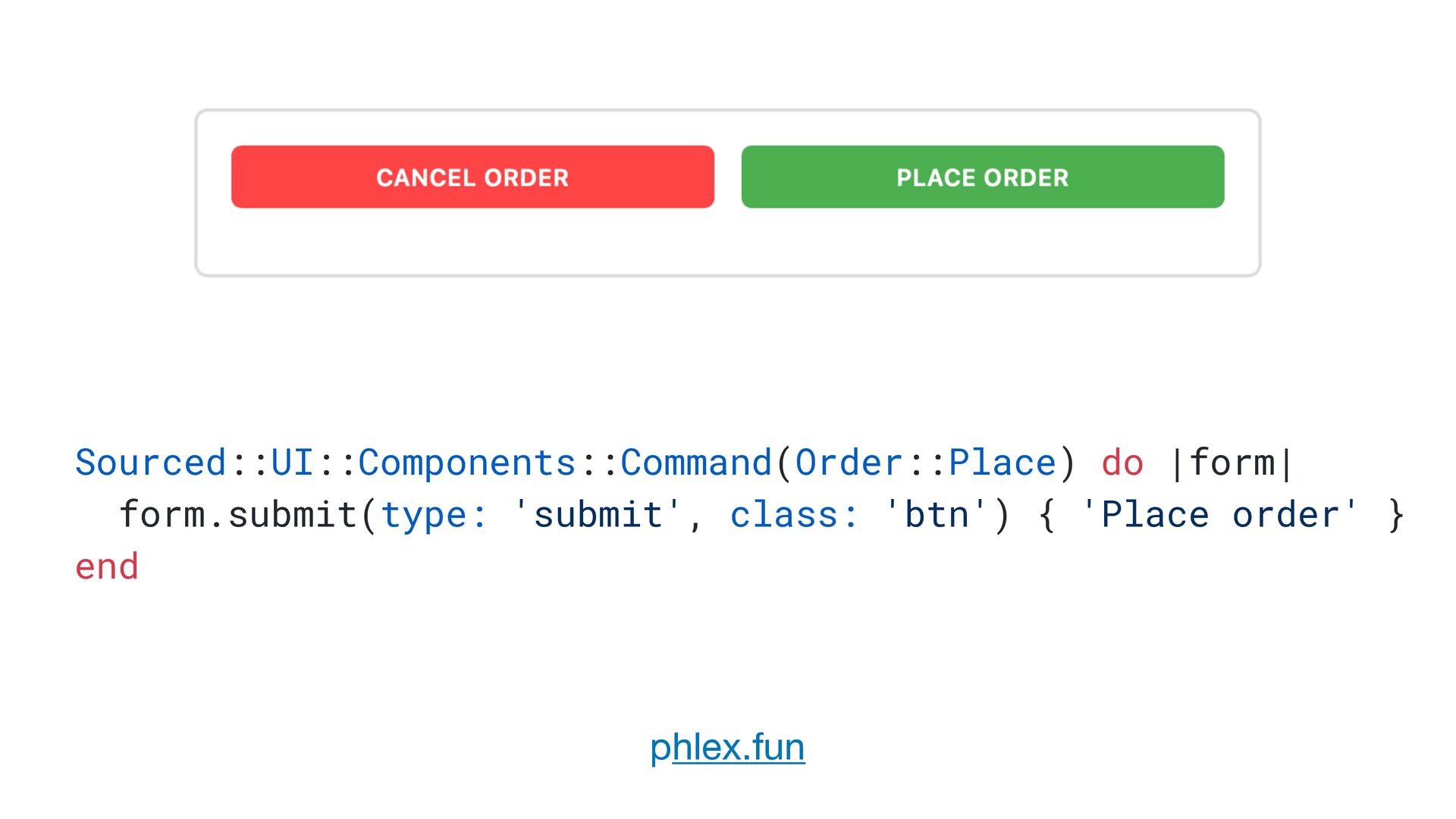

69. Sourced::UI::Components::Command(Order::Place) do |form| form.submit(type: 'submit', class: 'btn') { 'Place order' } end phlex.fun

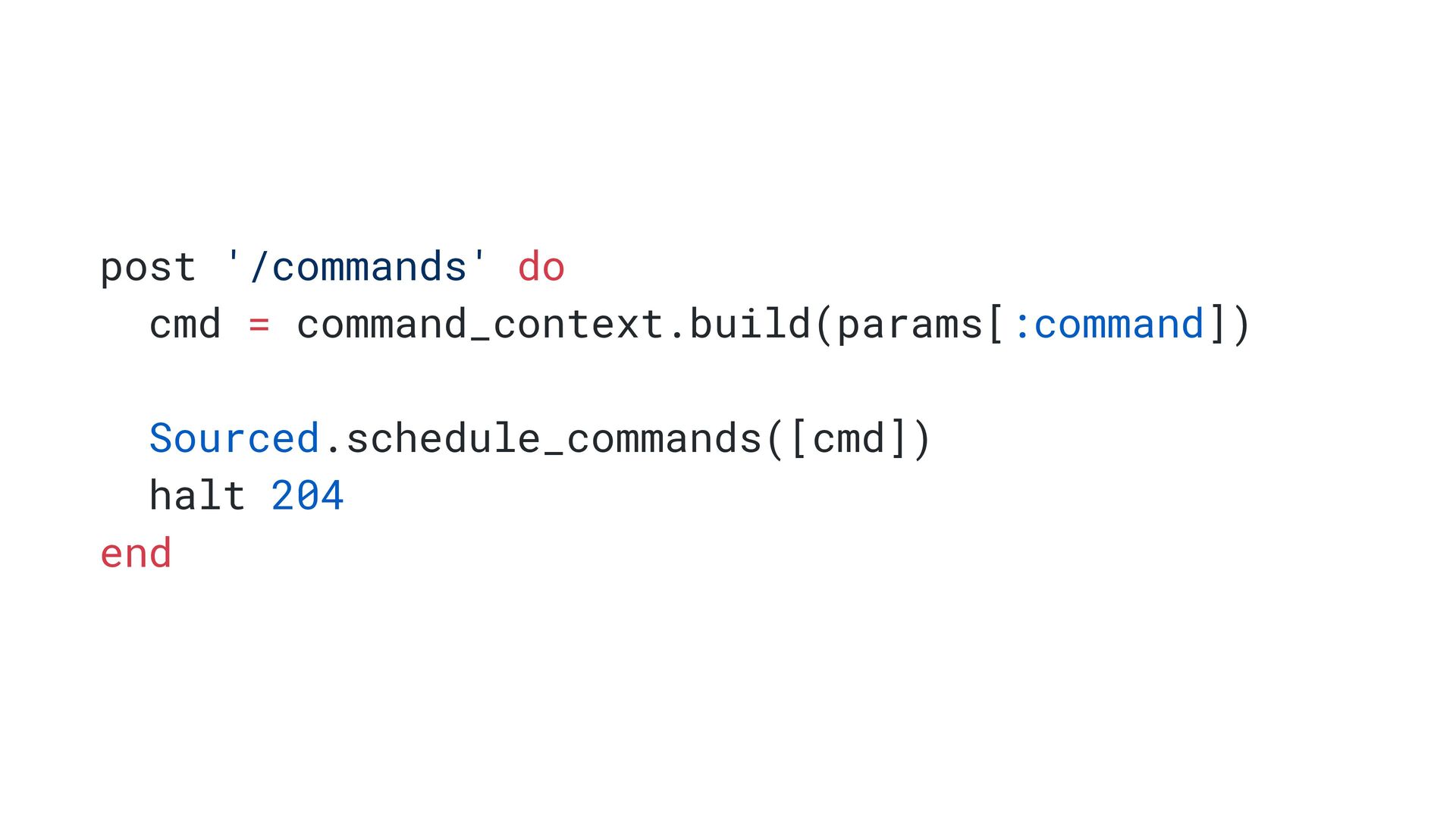

70. post '/commands' do cmd = command_context.build(params[:command]) Sourced.schedule_commands([cmd]) halt 204 end

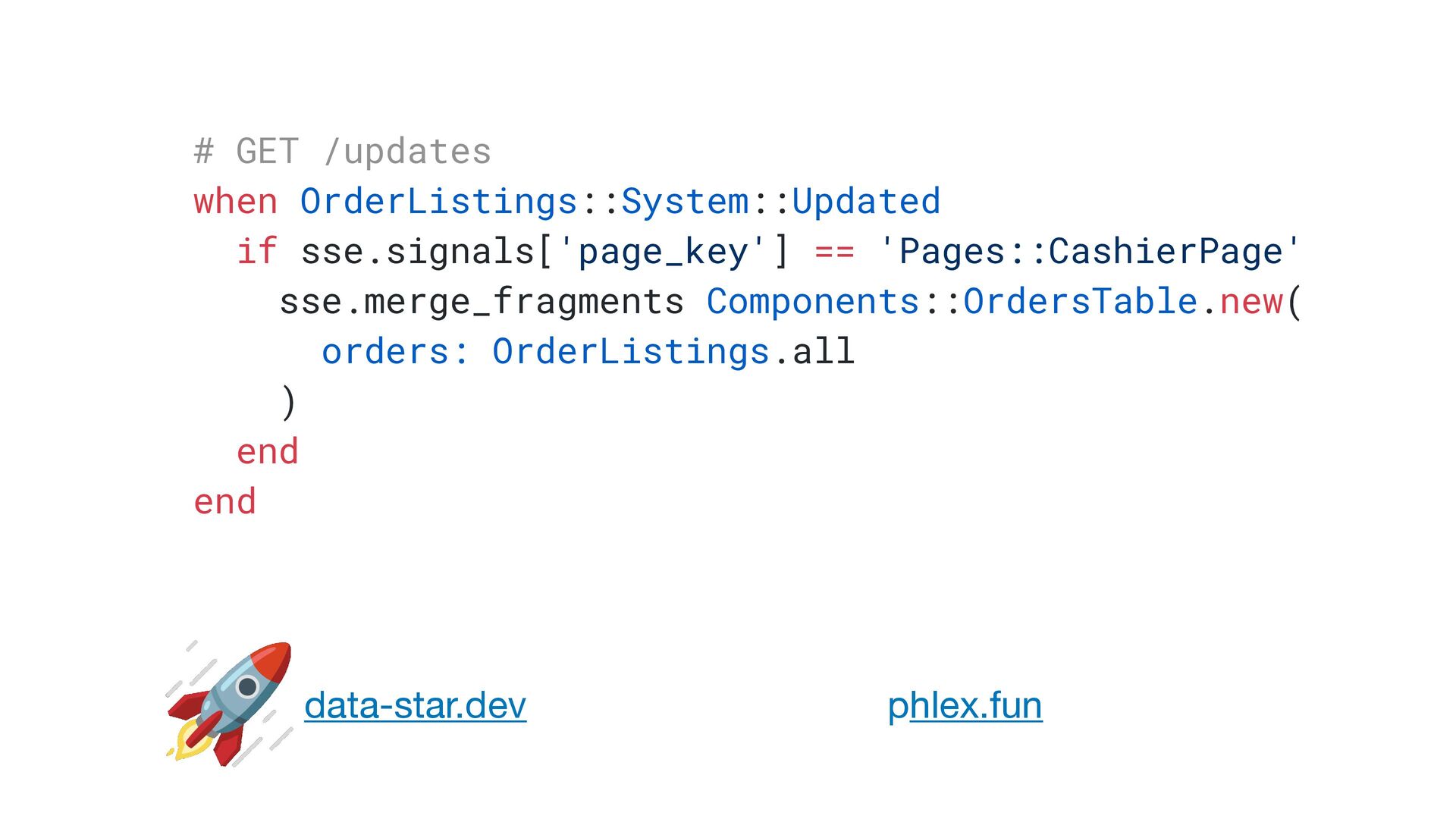

71. # GET /updates when OrderListings::System::Updated if sse.signals['page_key'] == 'Pages::CashierPage' sse.merge_fragments Components::OrdersTable.new( orders: OrderListings.all ) end end data-star.dev phlex.fun

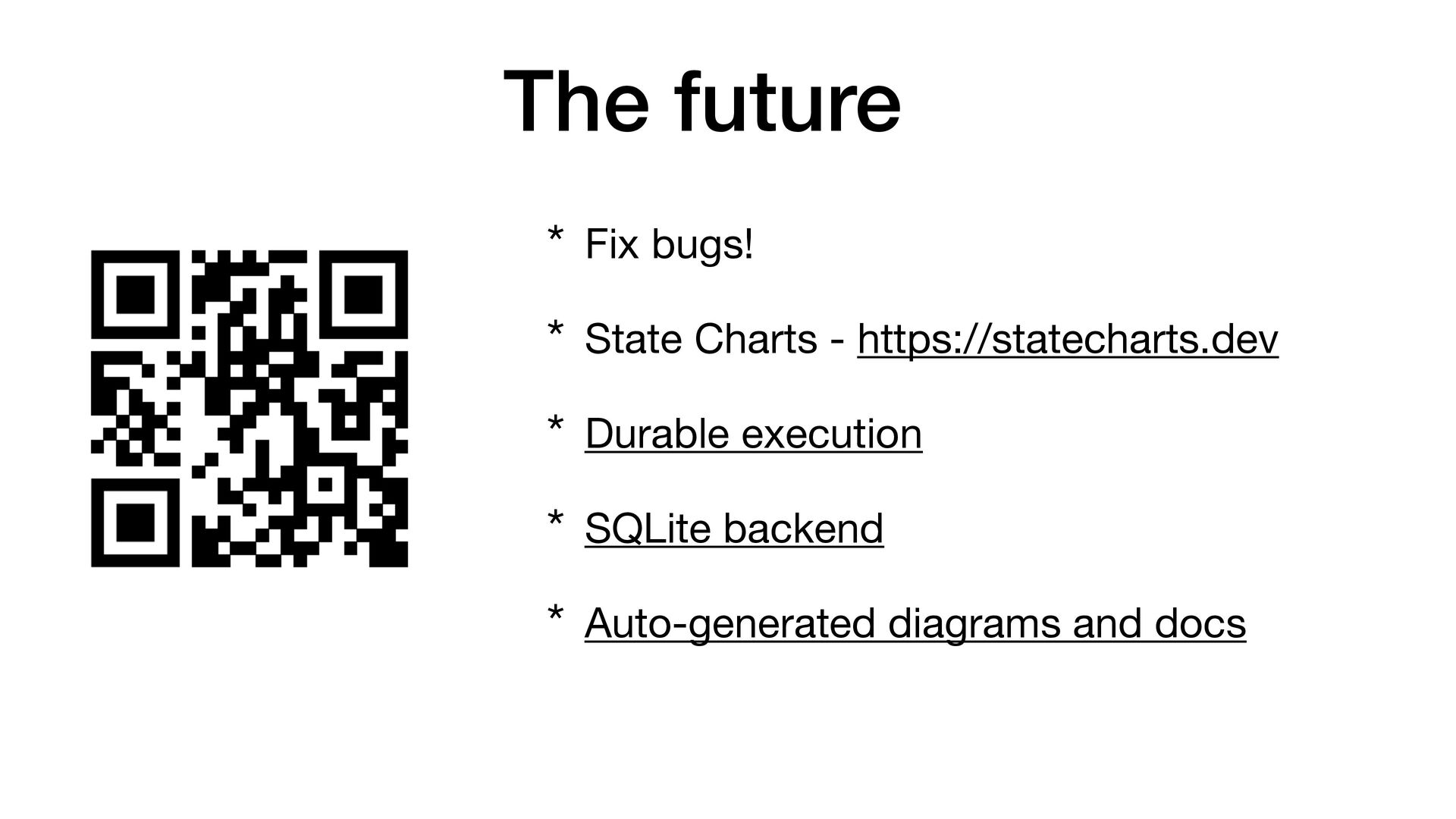

72. The future * Fix bugs! * State Charts - https://statecharts.dev * Durable execution * SQLite backend * Auto-generated diagrams and docs
73. Extras

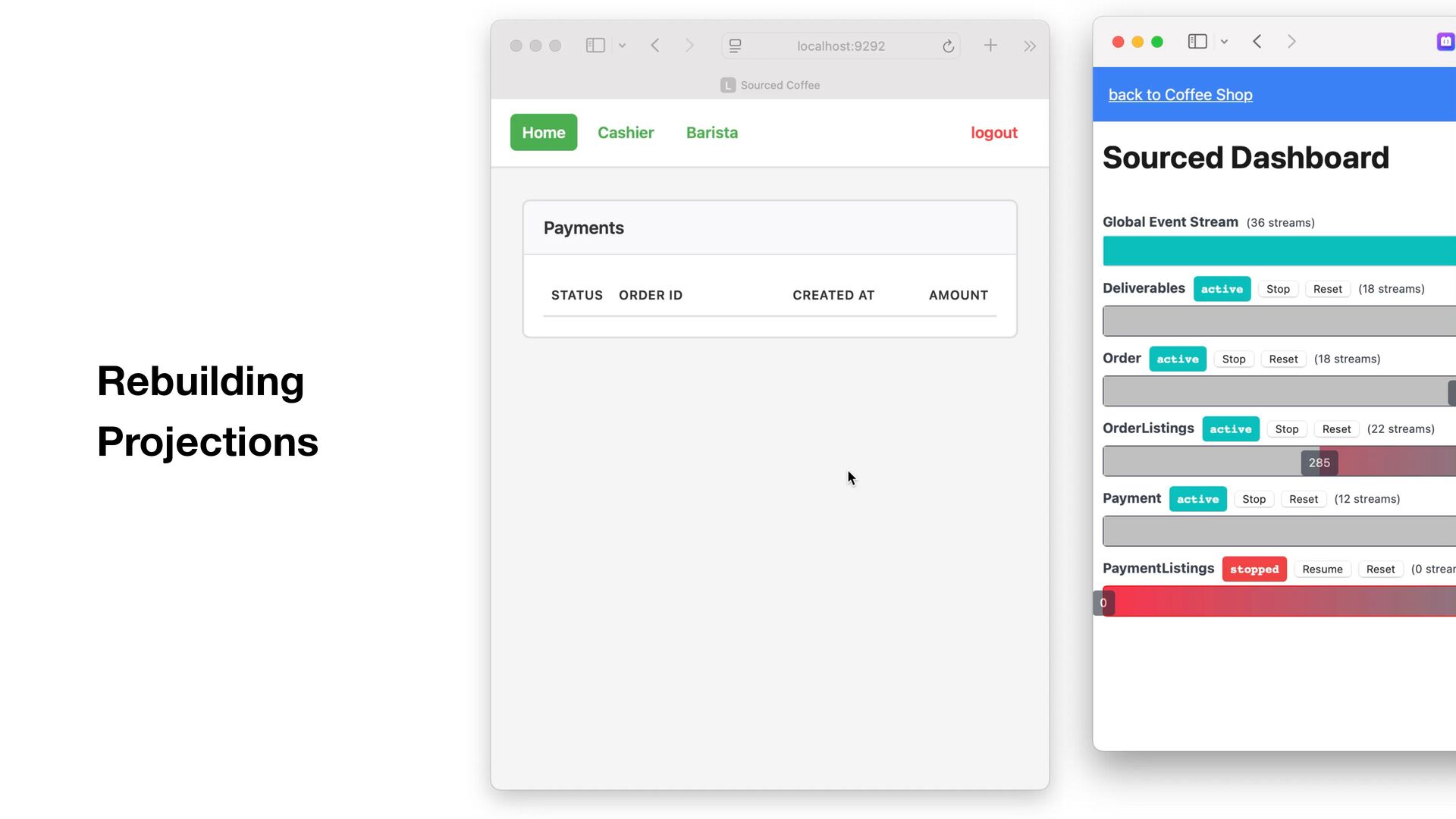

74. Rebuilding
 Projections

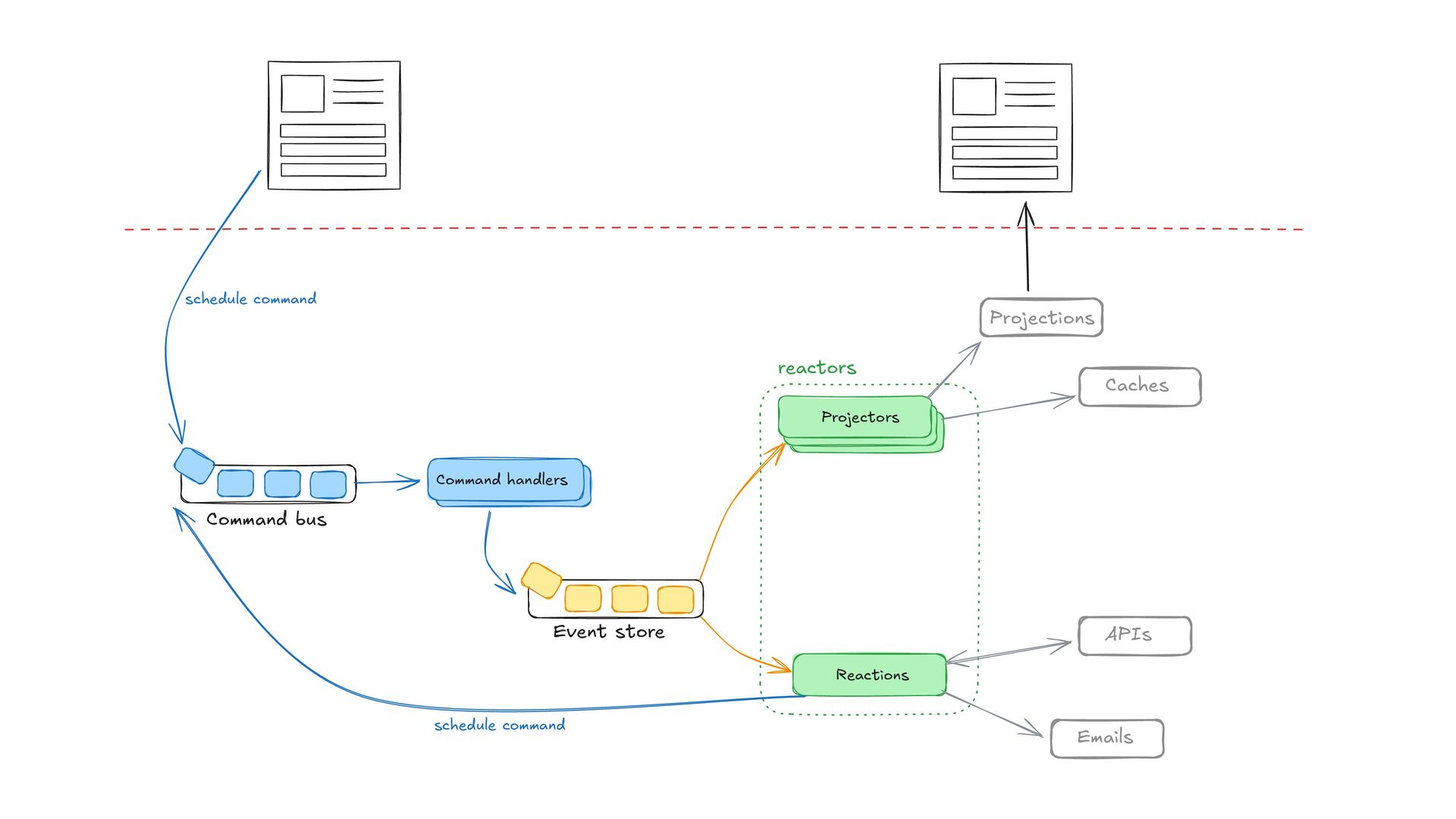

78. Command handlers Event store Command bus Reactions Projectors reactors Emails APIs Projections Caches schedule command schedule command

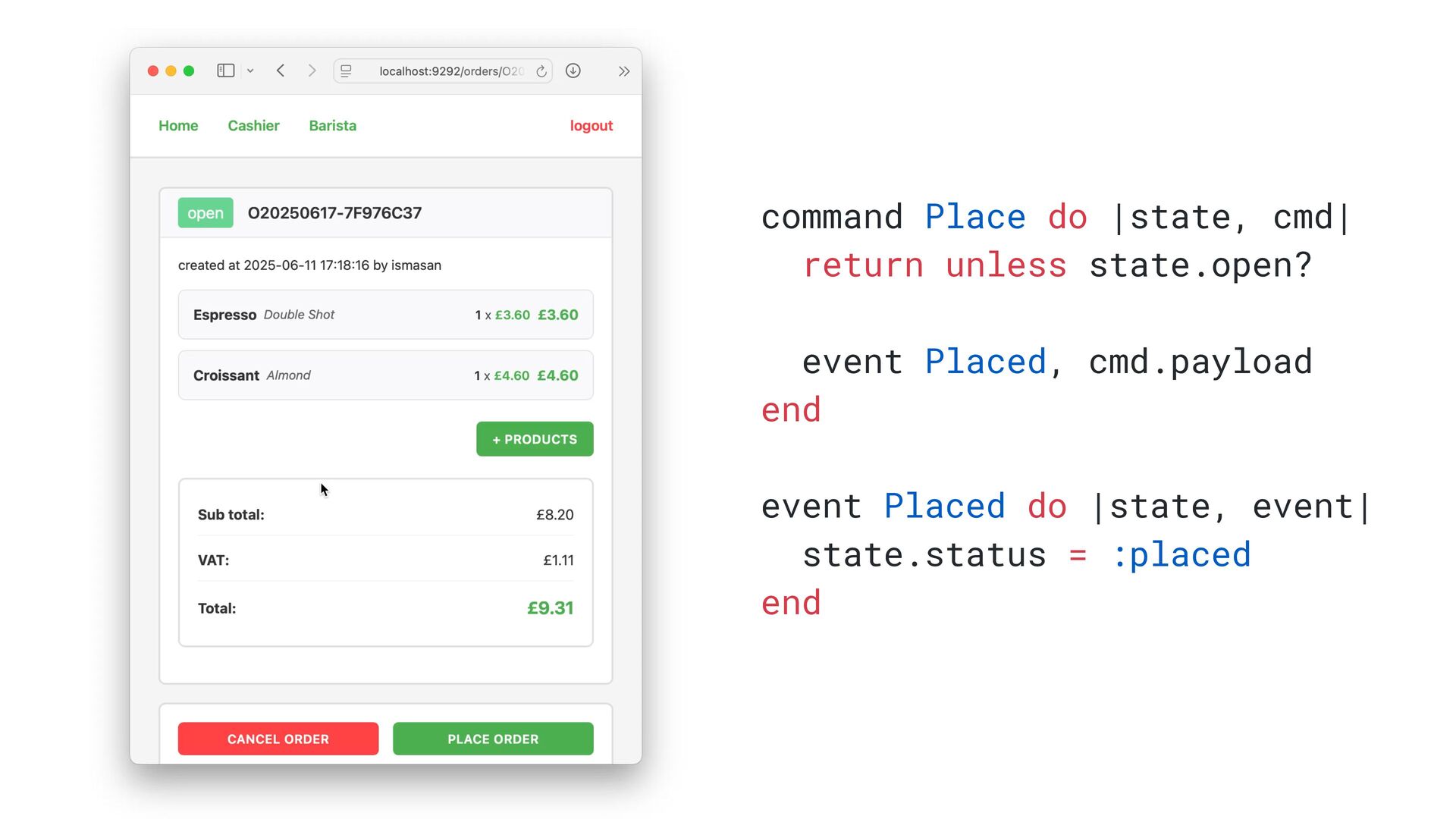

79. command Place do |state, cmd| return unless state.open? event Placed, cmd.payload end event Placed do |state, event| state.status = :placed end
