1. NG-SOC in Taiwan The realities , the difficulties and the future Senior Technical Consultant Jack Chou

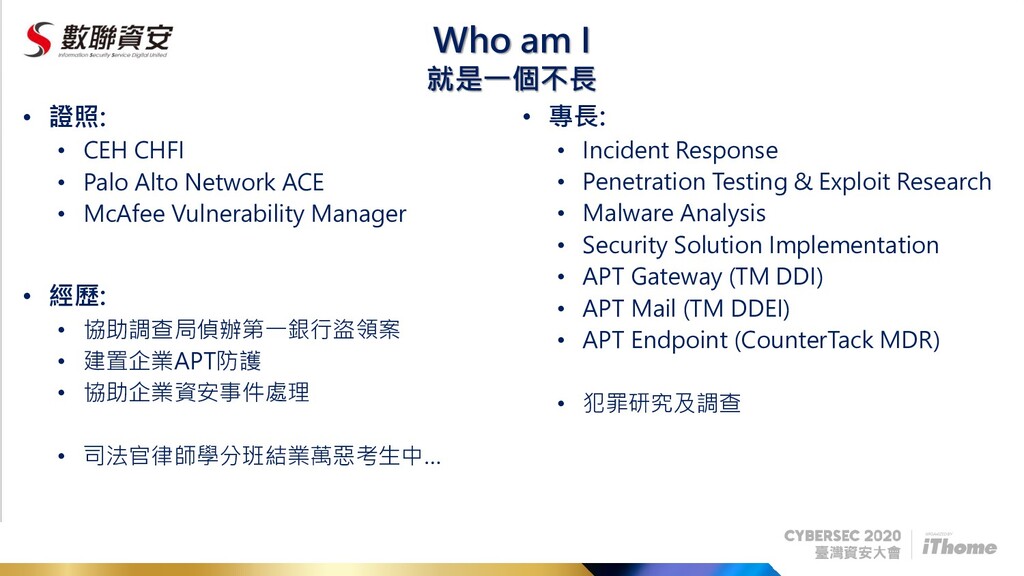

2. Who am I • 證照: • CEH CHFI • Palo Alto Network ACE • McAfee Vulnerability Manager • 經歷: • 協助調查局偵辦第一銀行盜領案 • 建置企業APT防護 • 協助企業資安事件處理 • 司法官律師學分班結業萬惡考生中… 就是一個不長 • 專長: • Incident Response • Penetration Testing & Exploit Research • Malware Analysis • Security Solution Implementation • APT Gateway (TM DDI) • APT Mail (TM DDEI) • APT Endpoint (CounterTack MDR) • 犯罪研究及調查
3. • What is NG-SOC? • The Realities (罪) • The Difficulties (苦) • The Future (未來) Agenda
4. 新一代SOC-OODA(1) • 增加監控可視性 • EDR / EPP • 減少人為疏失及人力 • SOAR 大人物(Tactics Techniques and Procedures) http://correlatedsecurity.com/an-ooda-driven-soc- strategy-using-siem-soar-edr/
5. 新一代SOC-OODA(2) 包山包海的CTI http://correlatedsecurity.com/why-cyber-threat- intelligence-informed-security-operations-is-important/
6. Taiwan SOC Security Operation Center 客戶的期望是甚麼???
7. 罪 在台灣從事資安工作本身就有很多原罪…

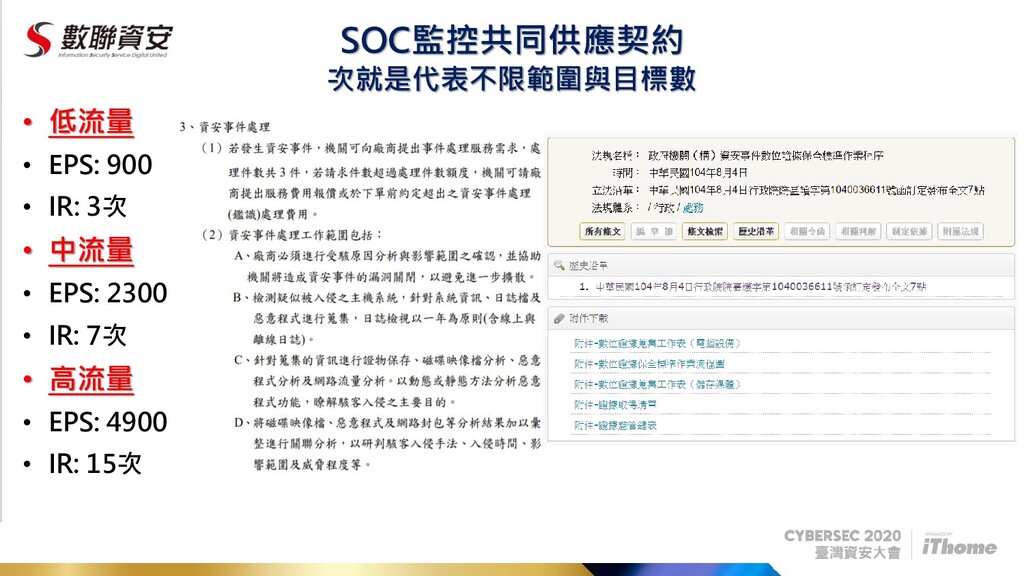

8. SOC監控共同供應契約 • 低流量 • EPS: 900 • IR: 3次 • 中流量 • EPS: 2300 • IR: 7次 • 高流量 • EPS: 4900 • IR: 15次 次就是代表不限範圍與目標數
9. 我們都是萬能的資安從業人員… 客戶還有您的老闆對我們的高度期待… https://sansorg.egnyte.com/dl/K0PbjzWWau/
10. 台灣的威脅情資 • 保留 資通安全情資分享辦法
11. 苦 身為一個SOC商在苦也要盡力滿足客戶的高度期望…
12. SOC&IR如何找未知??? • 搜尋使用近期CVE 且攻擊三家客戶以上… • 甚麼!!! • 是 大規模預謀攻擊!!! KPI用CTI • 但依然不及友商一年二十幾萬次的情資 回饋分享…
13. Offensive OSINT Attack Surface Management
14. Attack Surface Management Asset Discovery • APIs & Web Services • Web Applications & Websites • Domains & SSL Certificates • Critical Network Services • IoT & Connected Objects • Public Code Repositories • SaaS & PaaS Systems • Public Cloud & CDN • Mobile Apps • Databases 來源及方法例舉 Dark Web Monitoring • Leaked/Stolen Credentials • Pastebin Mentions • Exposed Documents • Leaked Source Code • Breached IT Systems & IoC • Phishing Websites & Pages • Fake Accounts in Social Networks • Unsolicited Vulnerability Reports • Trademark Infringements • Squatted Domain Names
15. Hunting Leaked & Misconfig • 使用VTgrep 語法搜尋客戶相關資料外洩 或樣本，發現可能洩漏的帳號密碼 • https://buckets.grayhatwarfare.com API
16. Potential squatting • https://www.immuniweb.com/radar / • https://dnstwist.it/ (phishing domain scanner) • 廠牌名稱+客戶域名+IT常用關鍵字 (update、admin、365、windows、 Microsoft…等) • Example: • symantecupdates.info • kaspernsky.com • windowsupdate.microsoft.365filtering. com

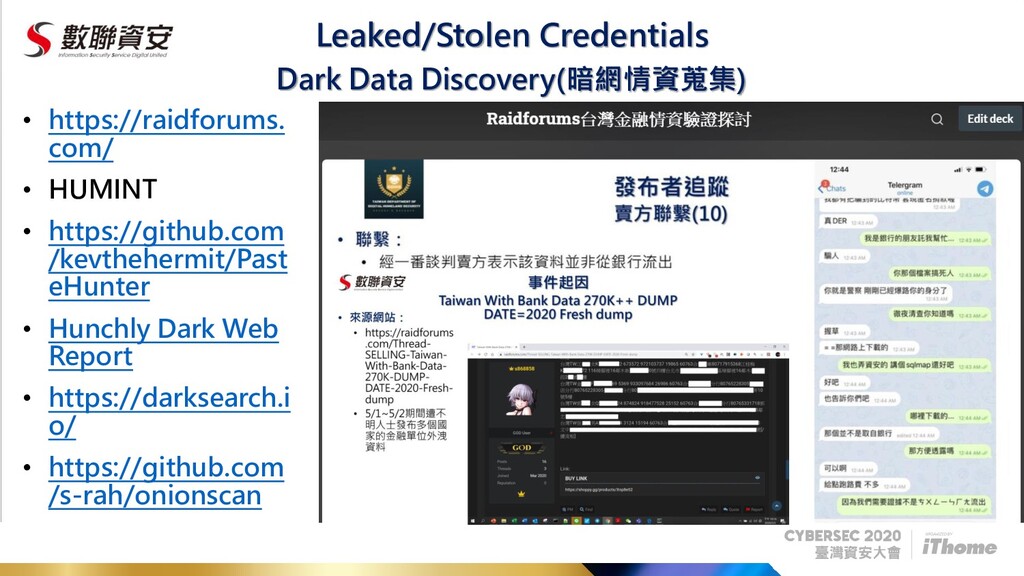

17. Leaked/Stolen Credentials • https://raidforums. com/ • HUMINT • https://github.com /kevthehermit/Past eHunter • Hunchly Dark Web Report • https://darksearch.i o/ • https://github.com /s-rah/onionscan Dark Data Discovery(暗網情資蒐集)
18. Defensive OSINT 攻擊者視角

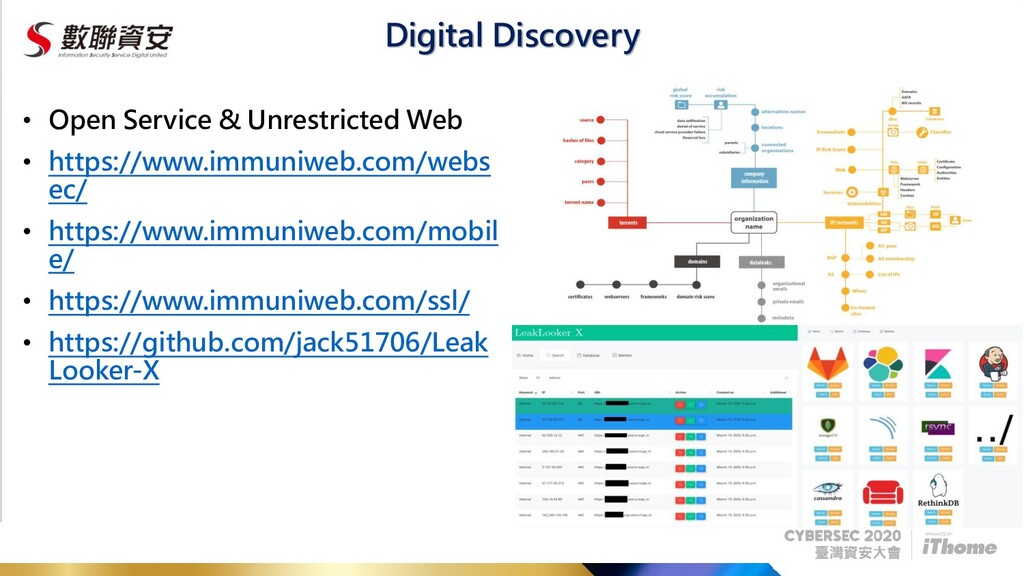

19. Digital Discovery • Open Service & Unrestricted Web • https://www.immuniweb.com/webs ec/ • https://www.immuniweb.com/mobil e/ • https://www.immuniweb.com/ssl/ • https://github.com/jack51706/Leak Looker-X
20. Outbound Hunting • https://blog.binaryedge.io/2019/07/08/guest-post-panda- banker/ • https://www.fireeye.com/blog/threat- research/2020/07/scandalous-external-detection-using- network-scan-data-and-automation.html • https://app.binaryedge.io/services/query?filter=MALWARE • https://www.shodan.io/search?query=category%3Amalwar e • https://blog.fox-it.com/2019/02/26/identifying-cobalt- strike-team-servers-in-the-wild/ • https://censys.io/blog/hunting-mirai • https://censys.io/blog/tracking-roamingmantis-mobile- banking-threat • https://censys.io/blog/hunting-for-threats-coinhive- cryptocurrency-miner • https://censys.io/blog/finding-hacked-web-servers • Infiltrate C&C • Backdoor Reversing 連線 metadata
21. Intelligence-Driven Incident Response and Threat Hunting 問世間 情資是何物…
22. Pivot and Threat Attribution Sample • Unique Strings • Network Communication/Encryption Algorithm • Code / Strings Reuse • Metadata(filename, description, version, title, author name) • Mutexes • Behavior Make Enrichment Great Again Infrastructure • Passive DNS • TLS certificate tracking • Correlation through metadata (web server version, hosting provider, HTTP headers, Whois …) • Search of domain names/IP addresses on public sandboxes results • HTTP static content tracking • Network flow https://github.com/threatresearch-issdu/ITHOME2020

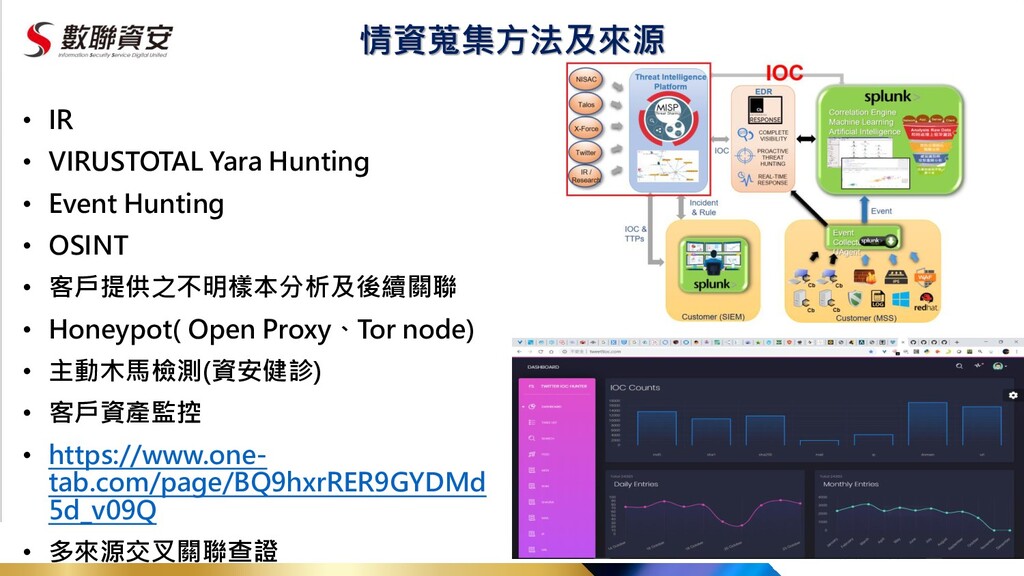

23. 情資蒐集方法及來源 • IR • VIRUSTOTAL Yara Hunting • Event Hunting • OSINT • 客戶提供之不明樣本分析及後續關聯 • Honeypot( Open Proxy、Tor node) • 主動木馬檢測(資安健診) • 客戶資產監控 • https://www.one- tab.com/page/BQ9hxrRER9GYDMd 5d_v09Q • 多來源交叉關聯查證
24. CTI Lifecycle Pivot Enrichment Attribution HTTP_PlugX_Trojan _CnC 185.161.209.234 185.161.209.234 追蹤與分析 VT Hunting & Crowdstrike Enrichment Deliver & Response IPS Detection VT similar-to: VT code- similar-to: CTI platform IP / DN Block Sample(175+) AV Block  https://www.carbonblac k.com/2020/02/20/threa t-analysis-active-c2- discovery-using- protocol-emulation- part2-winnti-4-0/  該IP經追蹤後可關聯到 VMWARE提出的威脅情資 報告  該入侵源頭標記為 Winnti4.0  該文章可取得樣本共19隻 VT: tag:winnti Infra enrichment
25. Attack Surface Management • https://cyberint.com/solutions/ • https://www.immuniweb.com/ • https://www.riskiq.com/illuminate- platform/ Commercial
26. Human-Intelligence Network Anomaly Detection 工人智慧
27. SOC&IR如何找未知 • TM DDI Rule: • Executable requested from root directory of web server 設備 RULE
28. AI Network Anomaly Detection • 圖論權重可視化 • 協定流量統計分析 • 攻擊途徑階段統計分析 • 資產屬性統計分析 • Network artifact metadata ExtraHop & DarkTrace
29. SOC&IR如何找未知 • PASTEBIN • GITHUB • Vultr.com • 頻率 + 過濾資料比對 + Dest IP/DN 不在Alexa TOP 100M • DDNS 連線 metadata
30. SOC&IR如何找未知 • 偵測到駭客工具 (TM OfficeScan) (HKTL_DUMP*) • 偵測到駭客工具 (TM OfficeScan) (HKTL_PASS*) • 偵測到駭客工具 (SEP) (Hacktool) • 防毒不是沒用，只是要看怎麼用跟看 防毒 RULE
31. Endpoint Visibility and Response

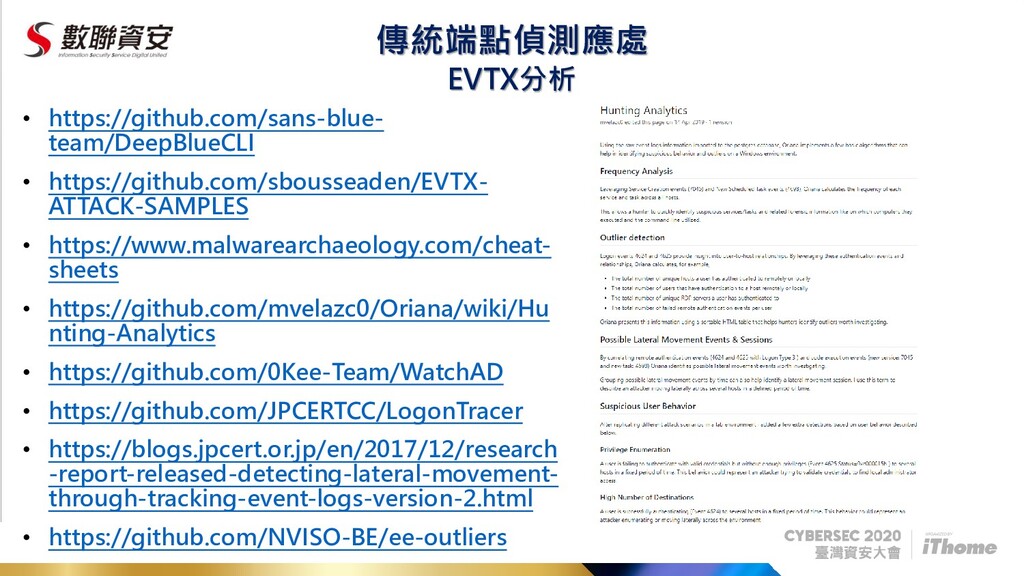

32. 傳統端點偵測應處 • https://github.com/sans-blue- team/DeepBlueCLI • https://github.com/sbousseaden/EVTX- ATTACK-SAMPLES • https://www.malwarearchaeology.com/cheat- sheets • https://github.com/mvelazc0/Oriana/wiki/Hu nting-Analytics • https://github.com/0Kee-Team/WatchAD • https://github.com/JPCERTCC/LogonTracer • https://blogs.jpcert.or.jp/en/2017/12/research -report-released-detecting-lateral-movement- through-tracking-event-logs-version-2.html • https://github.com/NVISO-BE/ee-outliers EVTX分析

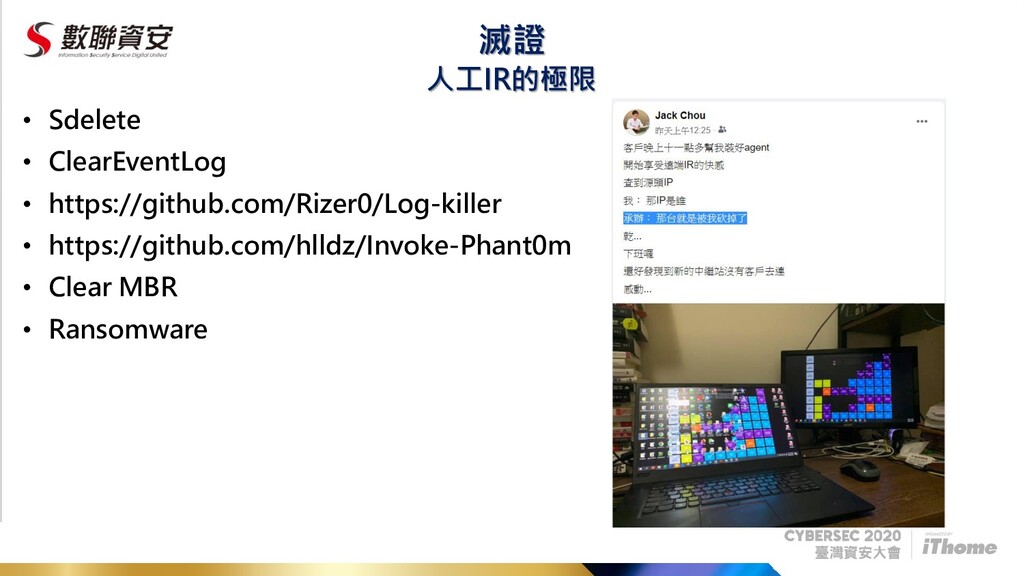

33. 滅證 • Sdelete • ClearEventLog • https://github.com/Rizer0/Log-killer • https://github.com/hlldz/Invoke-Phant0m • Clear MBR • Ransomware 人工IR的極限
34. 端點偵測應處 Hunting Hypothesis • Office 0 day • 產生 Powershell 執行緒 (Fileless) • 中繼站連線 (網路連線行為) • 以客制 Threat Hunting 規則，即時發現並進 行處置 • (process_name:winword.exe OR process_name:excel.exe OR process_name:powerpnt.exe) AND netconn_count:[1 TO *] AND childproc_name:powershell.exe • APT VPN Lateral Movement ERS20191125 • cb.urlver=1&q=file_desc:PacketiX EDR
35. 未來 如何在客戶高度期待下…
36. SOAR • Security Orchestration Use Case: Automating Threat Hunting • Playbook (436) • Detonate • Enrichment • Extract • Hunting • Investigation • Integration (569) • Automation (677) • Script (617) 如果有東西把前面講的一堆手工方法半自動化…

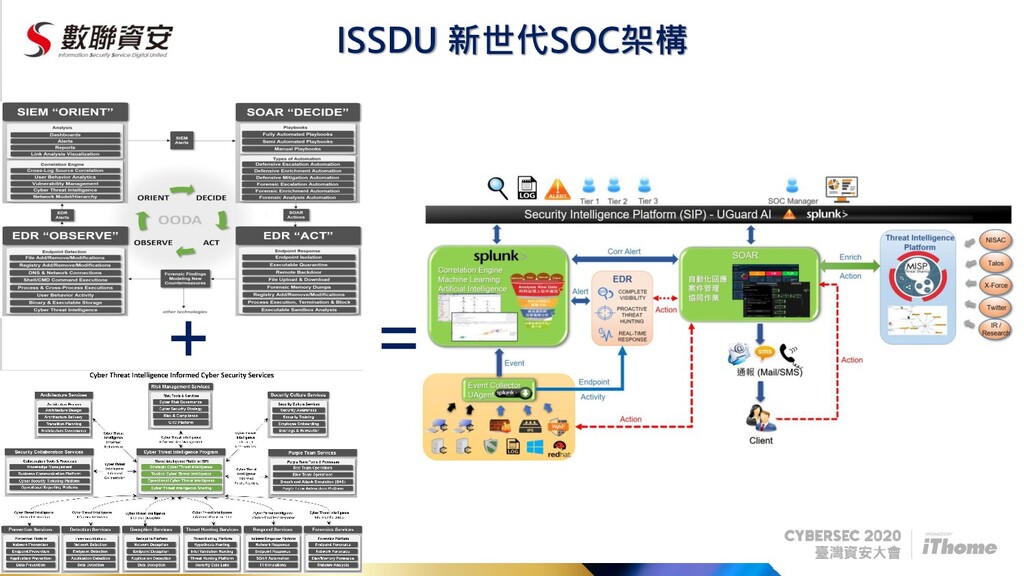

37. + ISSDU 新世代SOC架構 =
38. Thank You
