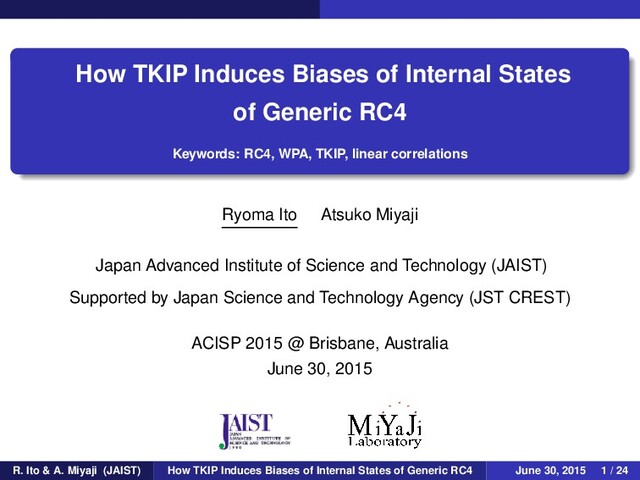

1. How TKIP Induces Biases of Internal States of Generic RC4 Keywords: RC4, WPA, TKIP, linear correlations Ryoma Ito Atsuko Miyaji Japan Advanced Institute of Science and Technology (JAIST) Supported by Japan Science and Technology Agency (JST CREST) ACISP 2015 @ Brisbane, Australia June 30, 2015 R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 1 / 24
2. Introduction Background RC4 stream cipher and WPA protocol RC4 stream cipher designed by Rivest in 1987 consists of two algorithms: KSA and PRGA WPA: Wi-Fi Protected Access one of the security protocol for IEEE 802.11 wireless network RC4 key generation procedure known as TKIP The first 3-byte RC4 keys, K[0], K[1] and K[2], are known (IV-related). R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 2 / 24
3. Introduction Motivations and Contributions Our motivation: make clear how TKIP induces biases of S Our previously discovered more than 150 linear correlations in [IM15] unknown internal state: Xr = a · Zr+1 + b · K[0] + c · K[1] + d · K[2] + e Xr ∈ {Sr [ir+1 ], Sr [jr+1 ], jr+1 , tr+1 }, r ∈ [0, 256], a, b, c, d ∈ {−1, 0, 1}, e ∈ {−3, −2, −1, 0, 1, 2, 3} Proved only 6 correlations theoretically: S0[i1] = K[0], K[0] − K[1] − 3 or K[0] − K[1] − 1; S255[i256] = K[0] or K[1]; Sr [ir+1] = K[0] + K[1] + 1. Our target: linear correlations remain unproven theoretically Theoretical proofs can make clear how TKIP induces biases. Reconstruct a key generation procedure with (known) IV keep or further enhance the security level of its original encryption. R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 3 / 24
4. Introduction Motivations and Contributions Our contributions: prove 10 theorems with significant biases Linear correlations RC4 WPA Remarks −K[0] − K[1] − 3 0.005336 0.008437 Theorem 1 S0[i1] K[0] + K[1] + K[2] + 3 0.001492 0.001491 Theorem 2 K[0] + K[1] + K[2] + 3 0.360357 0.361718 Theorem 3 −K[0] − K[1] + K[2] − 1 0.005305 0.008197 Theorem 4 K[0] − K[1] + K[2] − 3 0.005295 0.008163 Theorem 5 K[0] − K[1] + K[2] − 1 0.005290 0.008171 Theorem 5 S1[i2] K[0] − K[1] + K[2] + 1 0.005309 0.008171 Theorem 5 K[2] 0.004428 0.005571 Theorem 6 −K[0] − K[1] + K[2] − 2 0.003921 0.004574 Theorem 7 −K[0] − K[1] + K[2] 0.003919 0.005573 Theorem 7 −K[0] − K[1] + K[2] + 2 0.003912 0.004545 Theorem 7 −K[0] + K[1] + K[2] 0.003921 0.005501 Theorem 8 −K[1] + K[2] − 2 0.003911 0.005479 Theorem 9 −K[1] + K[2] + 3 0.003899 0.005476 Theorem 9 j2 K[0] − K[1] + K[2] 0.003918 0.005618 Theorem 10 Note: The probability of random association is 1 N (≈ 0.003906). R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 4 / 24
5. Outline of the Talk 1 Preliminary RC4 stream cipher and WPA protocol 2 Previous Analysis Biases in the initial state S0 [Roo95] Biases induced by TKIP [GMM+14] Our previous work: Biases based on linear equations [IM15] 3 Our Results Newly proved linear correlations Check the accuracy by experiments 4 Conclusion R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 5 / 24
6. Preliminary RC4 stream cipher and WPA protocol PRGA: Pseudo Random Generation Algorithm Algorithm 1 PRGA 1: r ← 0, i0 ← 0, j0 ← 0 2: loop 3: r ← r + 1 4: ir ← ir−1 + 1 5: jr ← jr−1 + Sr−1[ir ] 6: Swap(Sr−1[ir ], Sr−1[jr ]) 7: tr ← Sr [ir ] + Sr [jr ] 8: Output: Zr ← Sr [tr ] 9: end loop r, N: # of rounds, arrays in S (N = 256) Sr : S of PRGA in the r-th round ir , jr , tr : indices of Sr , Zr state transition diagram of PRGA R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 6 / 24
7. Preliminary RC4 stream cipher and WPA protocol TKIP: Temporal Key Integrity Protocol designed by the IEEE 802.11i task group and Wi-Fi Alliance a 16-byte RC4 key generation procedure avoid the known WEP attacks using (IV-related) K[1] = 255 [FMS01] The first 3-byte RC4 keys, K[0], K[1] and K[2], are generated by IV16 IV16: the last 16-bit IV K[0] = (IV16 >> 8) & 0xFF        Correlation K[1] = [(IV16 >> 8) | 0x20] & 0x7F K[2] = IV16 & 0xFF R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 7 / 24
8. Previous Analysis Biases in the initial state S0 Roos’ biases [Roo95] (proved in [PM07]) correlations between the RC4 key K and the initial state S0 Pr ( S0[y] = y(y + 1) 2 + y ∑ x=0 K[x] ) ≈ ( 1 − y N ) · ( 1 − 1 N )[ y(y+1) 2 +N] + 1 N Pretty high biases >> 1 N ≈ 0.003906 (the probability of random association) α0 = Pr(S0[0] = K[0]) ≈ 0.371                    induce linear correlations α1 = Pr(S0[1] = K[0] + K[1] + 1) ≈ 0.368 α2 = Pr(S0[2] = K[0] + K[1] + K[2] + 3) ≈ 0.365 α3 = · · · R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 8 / 24
9. Previous Analysis Biases induced by TKIP Distribution of K[0] + K[1] in TKIP [GMM+14] Pr(K[0] + K[1] = v) = 0 ⇔ v is odd; v ∈ [0, 31]; v ∈ [128, 159] induces biases of the initial state S0[1] R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 9 / 24
10. Previous Analysis Biases induced by TKIP Biases of S0 [1] [Man01, GMM+14] In 2001, Mantin showed biases of S0 (generic RC4) [Man01] Pr(S0[1] = v) =          1 N (( 1 − 1 N )v + ( 1 − ( 1 − 1 N )v )( 1 − 1 N )N−2 ) if v ≤ 1, 1 N (( 1 − 1 N )N−2 + ( 1 − 1 N )v ) if v > 1. In 2014, Sen Gupta et al. showed biases of S0 (WPA) [GMM+14] Pr(S0[1] = v) = α1 · Pr(K[0] + K[1] = v − 1) + (1 − α1) · (1 − Pr(K[0] + K[1] = v − 1)) · Pr(S0[1] = v)RC4 + (1−α1) N−1 · ∑ x v Pr(K[0] + K[1] = x − 1) · Pr(S0[1] = x)RC4 . Note: α1 = Pr(S0[1] = K[0] + K[1] + 1) is Roos’ bias. Distribution of K[0] + K[1] by TKIP induces biases of S0[1]. R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 10 / 24
11. Previous Analysis Our previous work Biases based on linear equations [IM15] Our previously discovered more than 150 linear correlations in [IM15] unknown internal state: Xr = a · Zr+1 + b · K[0] + c · K[1] + d · K[2] + e Xr ∈ {Sr [ir+1 ], Sr [jr+1 ], jr+1 , tr+1 }, r ∈ [0, 256], a, b, c, d ∈ {−1, 0, 1}, e ∈ {−3, −2, −1, 0, 1, 2, 3} Xr Linear correlations RC4 WPA K[0] 0.001445489 0 S0[i1] K[0] − K[1] − 3 0.005325263 0.008182569 K[0] − K[1] − 1 0.003898206 0.008182569 K[0] 0.138326988 0.138326988 S255[i256] K[1] 0.003893102 0.037105932 Sr [ir+1] K[0] + K[1] + 1 a sawtooth distribution Note: a sawtooth distribution is induced by distribution of K[0] + K[1] in TKIP Many correlations remain unproven theoretically. R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 11 / 24
12. Our Results Newly proved linear correlations Our previously discovered more than 150 linear correlations in [IM15] unknown internal state: Xr = a · Zr+1 + b · K[0] + c · K[1] + d · K[2] + e Xr ∈ {Sr [ir+1 ], Sr [jr+1 ], jr+1 , tr+1 }, r ∈ [0, 256], a, b, c, d ∈ {−1, 0, 1}, e ∈ {−3, −2, −1, 0, 1, 2, 3} R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 12 / 24
13. Our Results Newly proved linear correlations Theorems 1 and 2: Biases in S0 [i1 ] S0[i1] = −K[0] − K[1] − 3 occurs with the probability of about 2 N in WPA. (a double probability of random association) Theorem 1 Pr(S0[i1] = −K[0] − K[1] − 3) ≈          2 N α1 + 1 N ( 1 − 2 N ) (1 − α1) for RC4, 4 N α1 + 1 N ( 1 − 4 N ) (1 − α1) for WPA. Note: α1 = Pr(S0[1] = K[0] + K[1] + 1) is Roos’ bias. S0[i1] = K[0] + K[1] + K[2] + 3 occurs with the probability of about 0.00148 in both generic RC4 and WPA. (less than half of the probability of random association) Theorem 2 Pr(S0[i1] = K[0] + K[1] + K[2] + 3) ≈ 1 N ( 1 − 2 N )( 1 − 1 N )N−2 + 1 N2 ( 3 − 2 N ) R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 13 / 24
14. Our Results Newly proved linear correlations Theorem 3: Biases in S1 [i2 ] S1[i2] = K[0] + K[1] + K[2] + 3 occurs with the probability of about 0.361 in both generic RC4 and WPA. (pretty high probability) Theorem 3 Pr(S1[i2] = K[0] + K[1] + K[2] + 3) ≈ β · Pr(S0[1] = 2) + α2 · ( 1 − Pr(S0[1] = 2) ) Note: α2 = Pr(S0[2] = K[0] + K[1] + K[2] + 3) is Roos’ bias, β = Pr(S0[1] = K[0] + K[1] + K[2] + 3) Theorem 3 is induced by Roos’ bias, α2 = Pr(S0[2] = K[0] + K[1] + K[2] + 3) α2 = Pr(S0[2] = K[0] + K[1] + K[2] + 3) ≈ 0.365 R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 14 / 24
15. Our Results Newly proved linear correlations Proof of Theorem 3 - Step 1: Decompose to 2 paths Pr(S1[i2] = K[0] + K[1] + K[2] + 3) can be decomposed in 2 paths completely. Path 1: j1 = S0[1] = 2, Path 2: j1 = S0[1] 2 Note: β = Pr(S0[1] = K[0] + K[1] + K[2] + 3), α2 = Pr(S0[2] = K[0] + K[1] + K[2] + 3) R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 15 / 24
16. Our Results Newly proved linear correlations Proof of Theorem 3 - Step 2: Compute the probability Path 1: j1 = S0[1] = 2 Pr(S1[i2] = K[0] + K[1] + K[2] + 3 | Path 1) = β Path 2: j1 = S0[1] 2 Pr(S1[i2] = K[0] + K[1] + K[2] + 3 | Path 2) = α2 Pr(S1[i2] = K[0] + K[1] + K[2] + 3) = Pr(S1[2] = K[0] + K[1] + K[2] + 3 | Path 1) · Pr(Path 1) + Pr(S1[2] = K[0] + K[1] + K[2] + 3 | Path 2) · Pr(Path 2) ≈ β · Pr(S0[1] = 2) + α2 · ( 1 − Pr(S0[1] = 2) ) The probability of S0[1] = 2 is taken from Biases of S0[1] in generic RC4 [Man01] and WPA [GMM+14], respectively. Note: β = Pr(S0[1] = K[0] + K[1] + K[2] + 3), α2 = Pr(S0[2] = K[0] + K[1] + K[2] + 3) R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 16 / 24
17. Our Results Newly proved linear correlations Theorems 4-5: Biases in S1 [i2 ] 4 cases related to S1[i2] occur with the probability of about 2 N in WPA. (a double probability of random association) Theorem 4 Pr(S1[i2] = −K[0] − K[1] + K[2] − 1) ≈          2 N γ + 1 N ( 1 − 2 N ) (1 − γ) for RC4, 4 N γ + 1 N ( 1 − 4 N ) (1 − γ) for WPA. Note: γ = Pr(S1[i2] = K[0] + K[1] + K[2] + 3) (Theorem 3) Theorem 5 Pr(S1[i2] = K[0] − K[1] + K[2] + x) ≈          2 N γ + 1 N ( 1 − 2 N ) (1 − γ) for RC4, 4 N γ + 1 N ( 1 − 4 N ) (1 − γ) for WPA. Note: x ∈ −3, −1, 1 R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 17 / 24
18. Our Results Newly proved linear correlations Theorems 6-7: Biases in j2 8 cases related to j2 in WPA occur with higher probability than those in generic RC4. (influenced by the distribution of K[0] + K[1]) Theorem 6 Pr(j2 = K[2]) ≈          2 N α1 γ + 1 N ( 1 − 2 N ) (1 − α1 γ) for RC4, 4 N α1 γ + 1 N ( 1 − 4 N ) (1 − α1 γ) for WPA. Note: α1 = Pr(S0[1] = K[0] + K[1] + 1), γ = Pr(S1[i2] = K[0] + K[1] + K[2] + 3) (Theorem 3). Theorem 7 Pr(j2 = −K[0]−K[1]+K[2]+x) ≈                1 N α1 γ + 1 N ( 1 − 1 N ) (1 − α1 γ) for RC4, 2 N α1 γ + 1 N ( 1 − 2 N ) (1 − α1 γ) if x = −2, 2 for WPA, 4 N α1 γ + 1 N ( 1 − 4 N ) (1 − α1 γ) if x = 0 for WPA. Note: x ∈ −2, 0, 2 R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 18 / 24
19. Our Results Newly proved linear correlations Theorems 8-10: Biases in j2 Theorem 8 Pr(j2 = −K[0] + K[1] + K[2]) ≈          1 N α1 γ + 1 N ( 1 − 1 N ) (1 − α1 γ) for RC4, 4 N α1 γ + 1 N ( 1 − 4 N ) (1 − α1 γ) for WPA. Note: α1 = Pr(S0[1] = K[0] + K[1] + 1), γ = Pr(S1[i2] = K[0] + K[1] + K[2] + 3) (Theorem 3). Theorem 9 Pr(j2 = −K[1] + K[2] + x) ≈          1 N α1 γ + 1 N ( 1 − 1 N ) (1 − α1 γ) for RC4, 4 N α1 γ + 1 N ( 1 − 4 N ) (1 − α1 γ) for WPA. Note: x ∈ −2, 3 Theorem 10 Pr(j2 = K[0] − K[1] + K[2]) ≈          1 N α1 γ + 1 N ( 1 − 1 N ) (1 − α1 γ) for RC4, 4 N α1 γ + 1 N ( 1 − 4 N ) (1 − α1 γ) for WPA. R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 19 / 24
20. Our Results Check the accuracy by experiments: Theorems 1-7 percentage of relative error = |experimental value − theoretical value| experimental value × 100(%) Results Linear correlation (%) of RC4 (%) of WPA Theorem 1 S0[i1] = −K[0] − K[1] − 3 0.151 2.685 Theorem 2 S0[i1] = K[0] + K[1] + K[2] + 3 0.730 0.754 Theorem 3 S1[i2] = K[0] + K[1] + K[2] + 3 0.459 0.268 Theorem 4 S1[i2] = −K[0] − K[1] + K[2] − 1 0.052 0.720 S1[i2] = K[0] − K[1] + K[2] − 3 0.147 0.309 S1[i2] = K[0] − K[1] + K[2] − 1 0.260 0.386 Theorem 5 S1[i2] = K[0] − K[1] + K[2] + 1 0.126 0.425 Theorem 6 j2 = K[2] 0.658 2.571 j2 = −K[0] − K[1] + K[2] − 2 0.708 3.762 j2 = −K[0] − K[1] + K[2] 0.672 2.601 Theorem 7 j2 = −K[0] − K[1] + K[2] + 2 0.458 3.138 R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 20 / 24
21. Our Results Check the accuracy by experiments: Theorems 8-10 percentage of relative error = |experimental value − theoretical value| experimental value × 100(%) Results Linear correlation (%) of RC4 (%) of WPA Theorem 8 j2 = −K[0] + K[1] + K[2] 0.698 1.332 j2 = −K[1] + K[2] − 2 0.435 0.929 Theorem 9 j2 = −K[1] + K[2] + 3 0.126 0.930 Theorem 10 j2 = K[0] − K[1] + K[2] 0.635 3.377 generic RC4 Theoretical values closely reflect the experimental values. WPA Theoretical values in S0[i1] and j2 produce slightly big . R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 21 / 24
22. Conclusion Summary of this work Linear correlations including unknown internal states unknown internal state: Xr = a · Zr+1 + b · K[0] + c · K[1] + d · K[2] + e Xr ∈ {Sr [ir+1 ], Sr [jr+1 ], jr+1 , tr+1 }, r ∈ [0, 256], a, b, c, d ∈ {−1, 0, 1}, e ∈ {−3, −2, −1, 0, 1, 2, 3} Our contributions: proved 15 significant biases theoretically pretty high bias: Pr(S1[i2] = K[0] + K[1] + K[2] + 3) a double probability of random association: 5 cases related to S0[i1], S1[i2] Open problems apply linear correlations to the state recovery attacks reconstruct a key generation procedure with (known) IV R. Ito & A. Miyaji (JAIST) How TKIP Induces Biases of Internal States of Generic RC4 June 30, 2015 22 / 24
