1. CSC 5100 Modern Software Engineering Lecture 20. Model Context Protocol Dr. Javier Gonzalez-Sanchez javiergs@calpoly.edu www.javiergs.phd ffi o ce: 14 -227

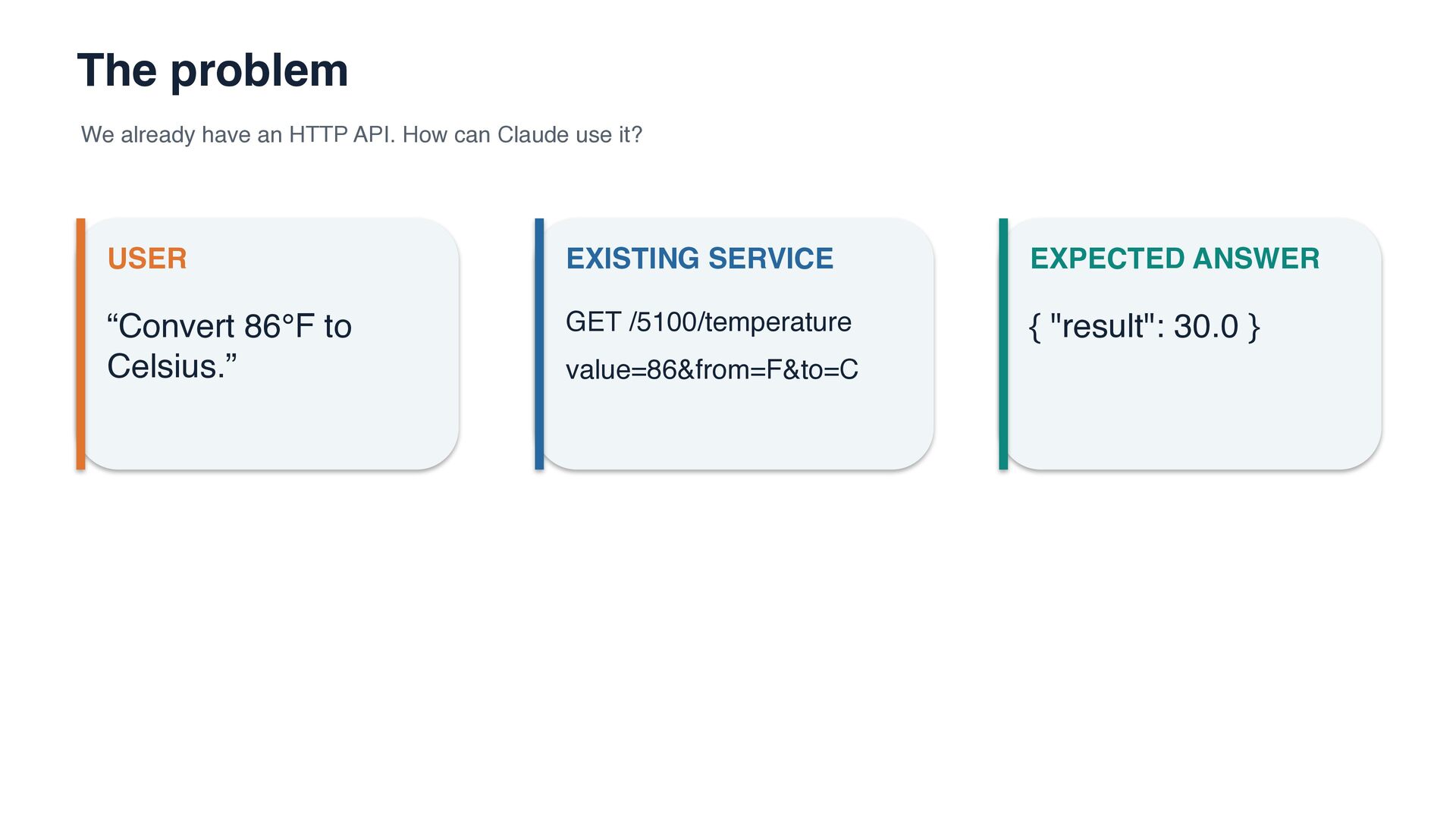

6. The problem We already have an HTTP API. How can Claude use it? USER EXISTING SERVICE EXPECTED ANSWER “Convert 86°F to Celsius.” GET /5100/temperature { "result": 30.0 } value=86&from=F&to=C

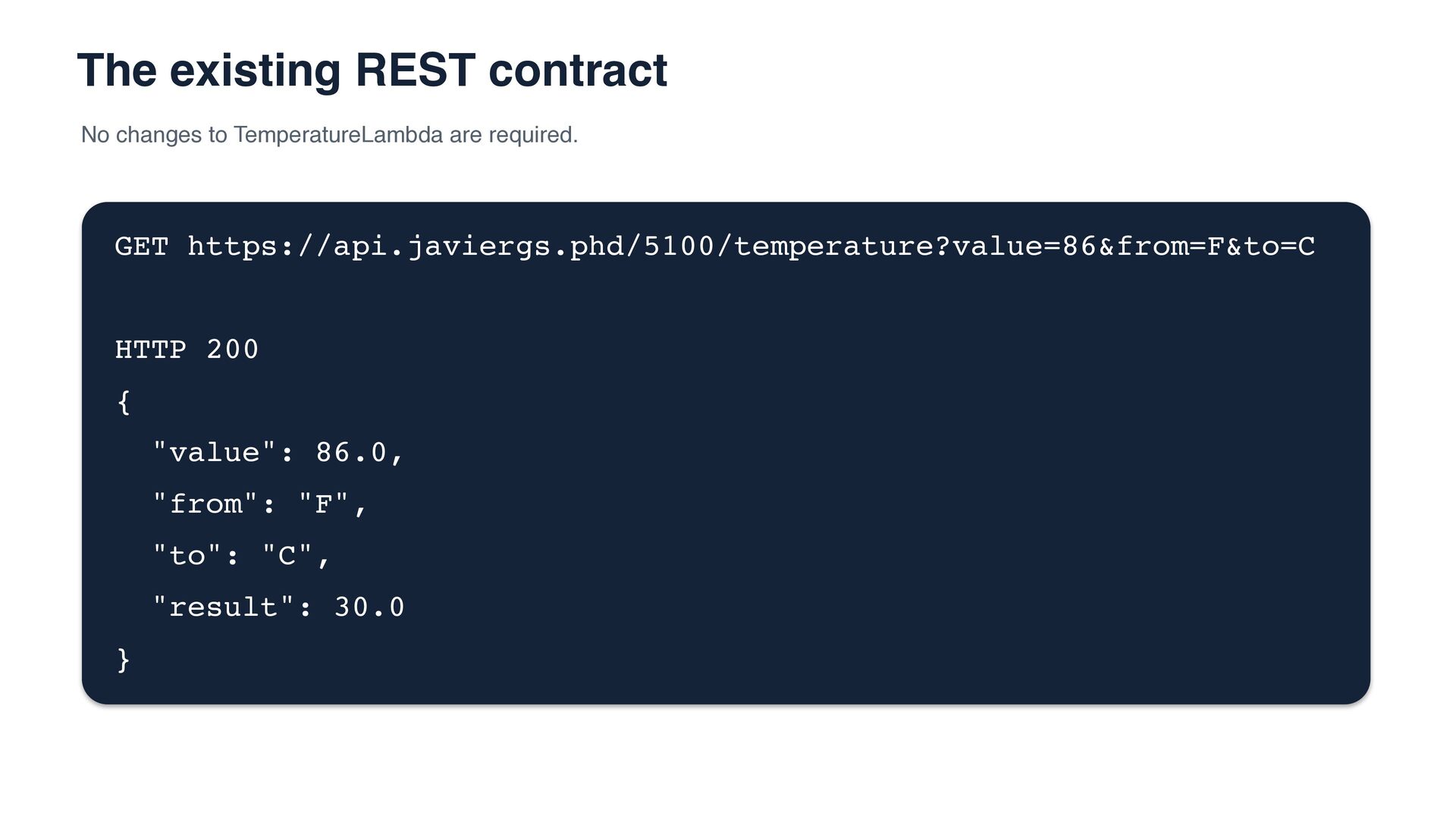

7. The existing REST contract No changes to TemperatureLambda are required. GET https://api.javiergs.phd/5100/temperature?value=86&from=F&to=C HTTP 200 { "value": 86.0, "from": "F", "to": "C", "result": 30.0 }

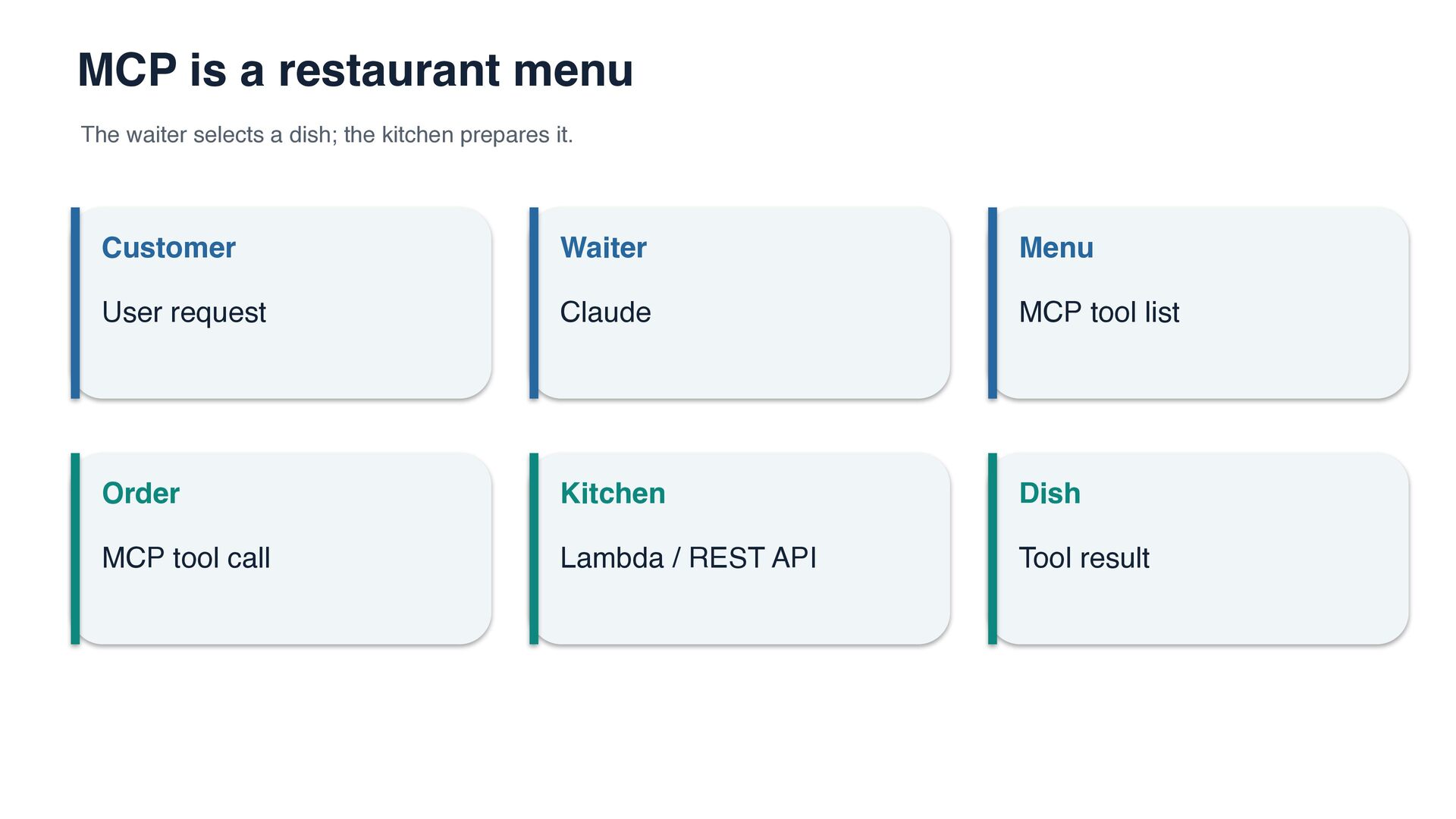

8. MCP is a restaurant menu The waiter selects a dish; the kitchen prepares it. Customer Waiter Menu User request Claude MCP tool list Order Kitchen Dish MCP tool call Lambda / REST API Tool result

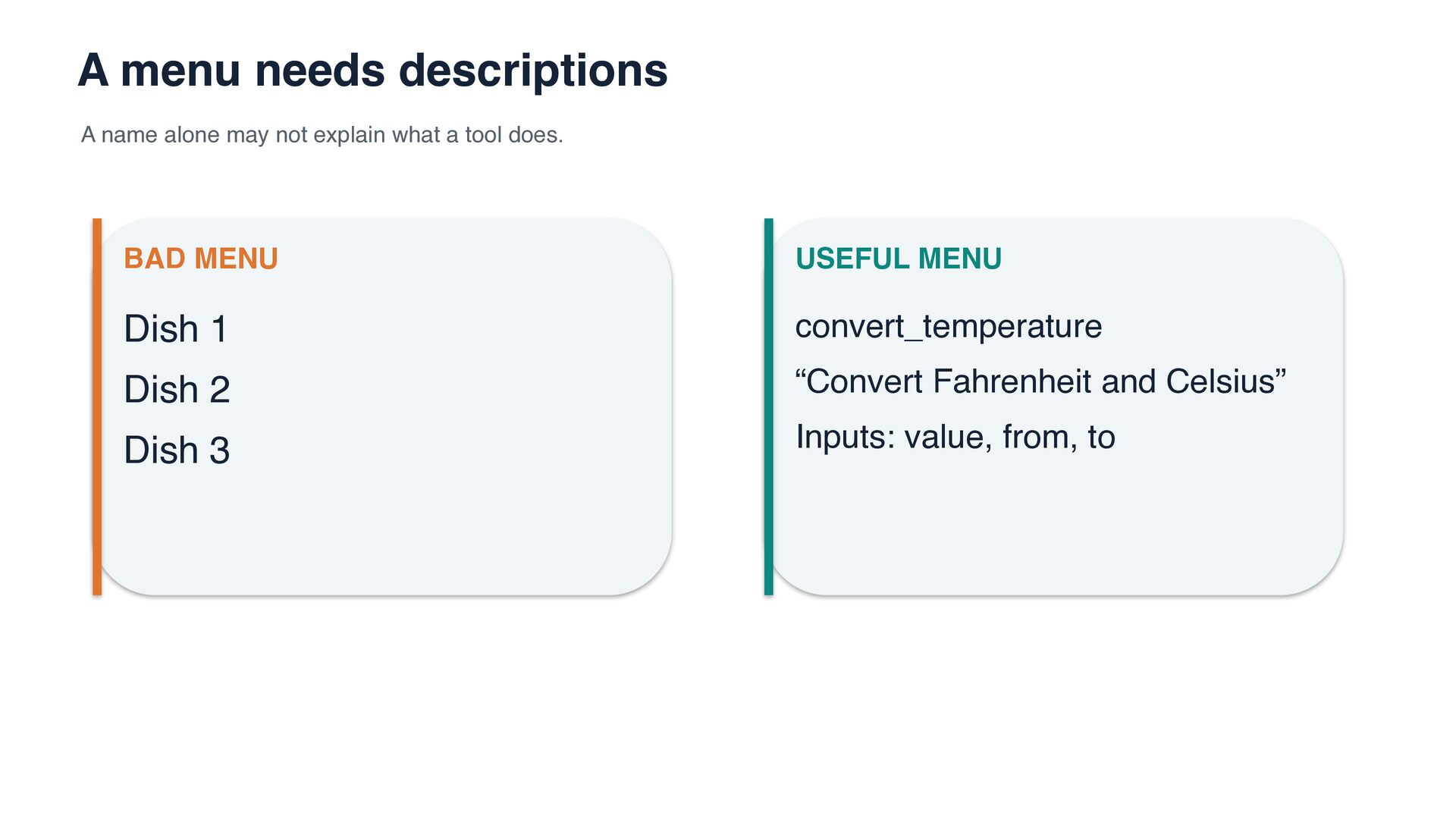

9. A menu needs descriptions A name alone may not explain what a tool does. BAD MENU USEFUL MENU Dish 1 convert_temperature Dish 2 “Convert Fahrenheit and Celsius” Dish 3 Inputs: value, from, to

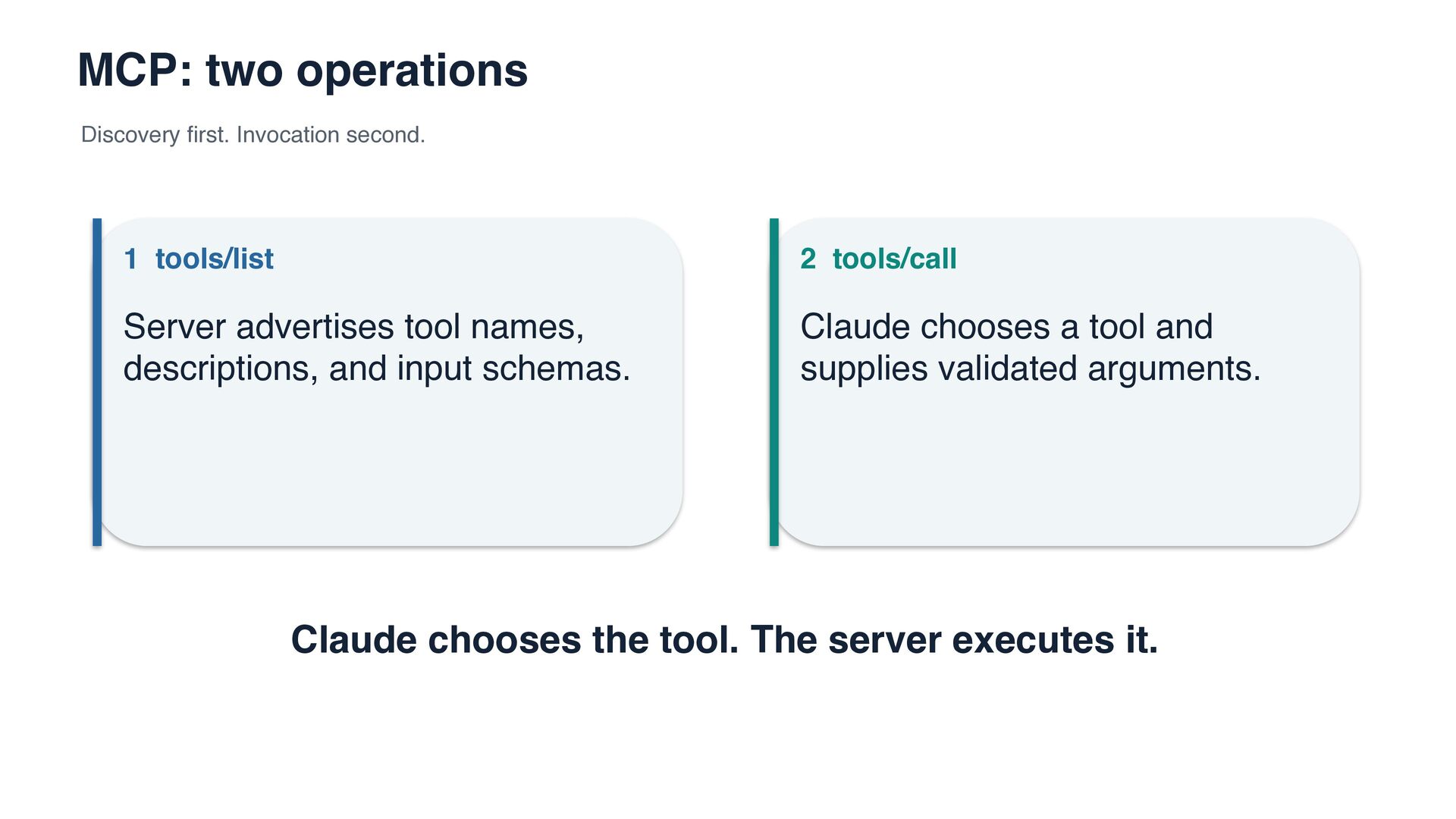

10. MCP: two operations Discovery first. Invocation second. 1 tools/list 2 tools/call Server advertises tool names, descriptions, and input schemas. Claude chooses a tool and supplies validated arguments. Claude chooses the tool. The server executes it.
11. MCP From Scratch Our very own MCP server

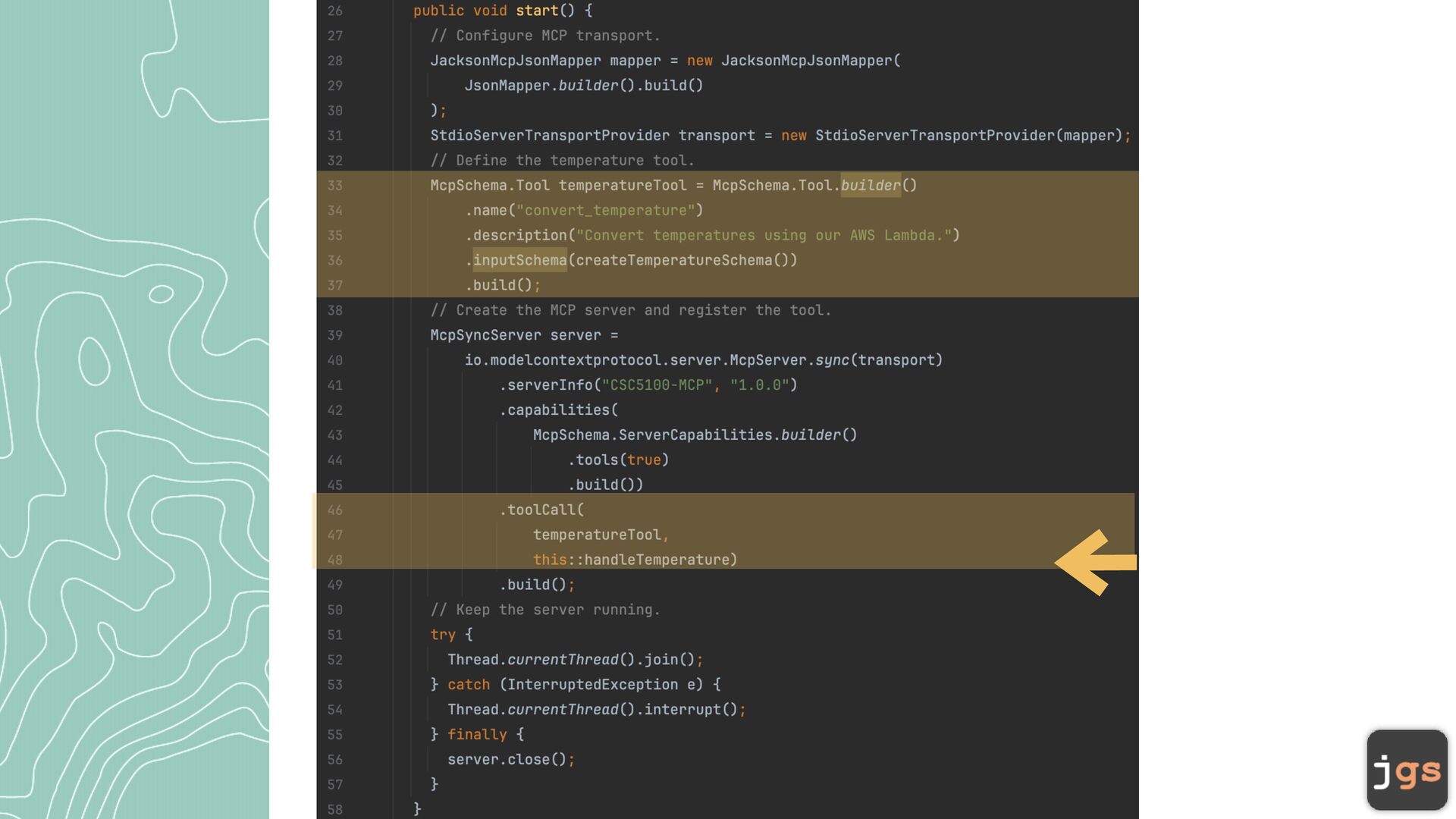

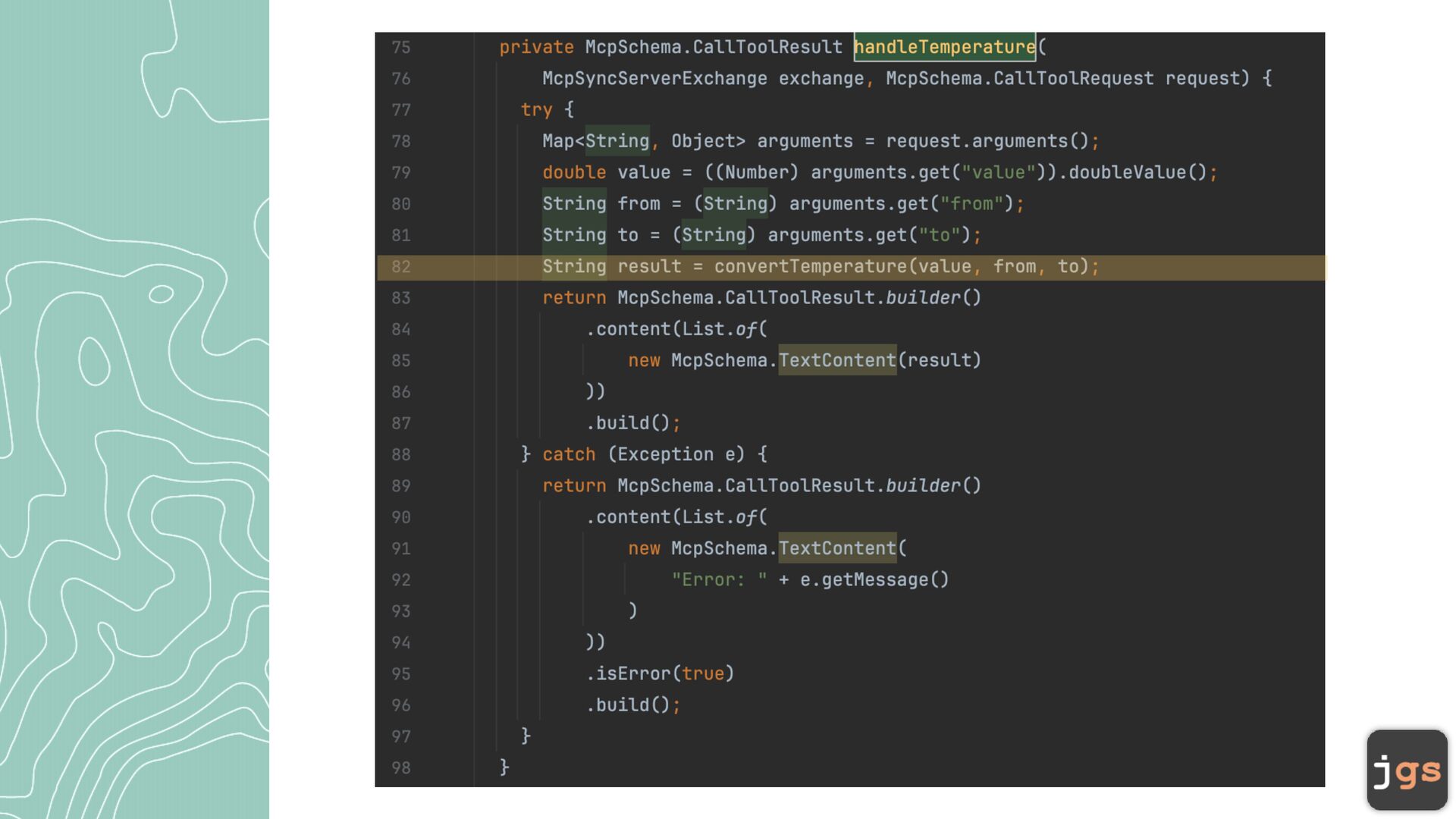

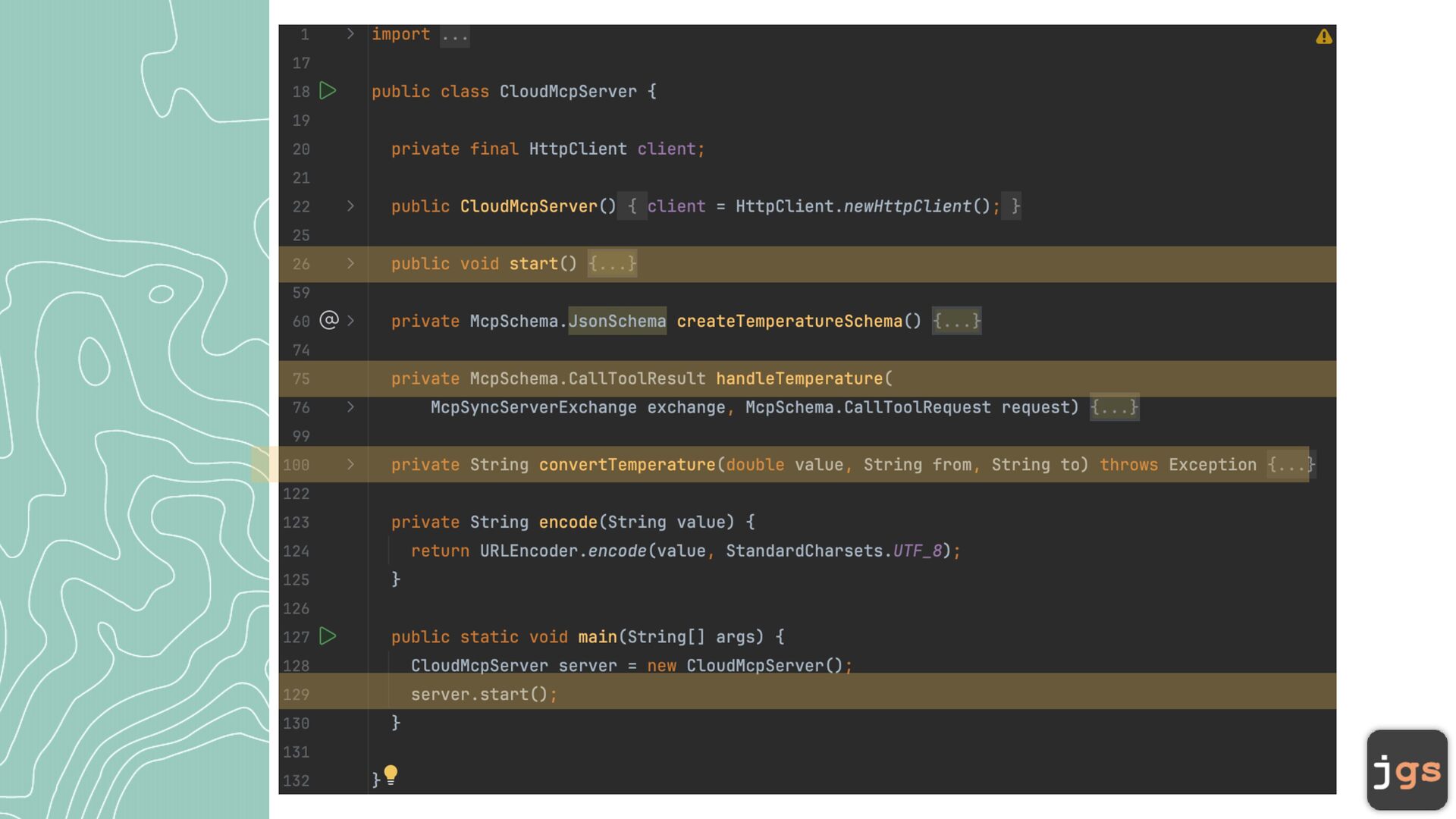

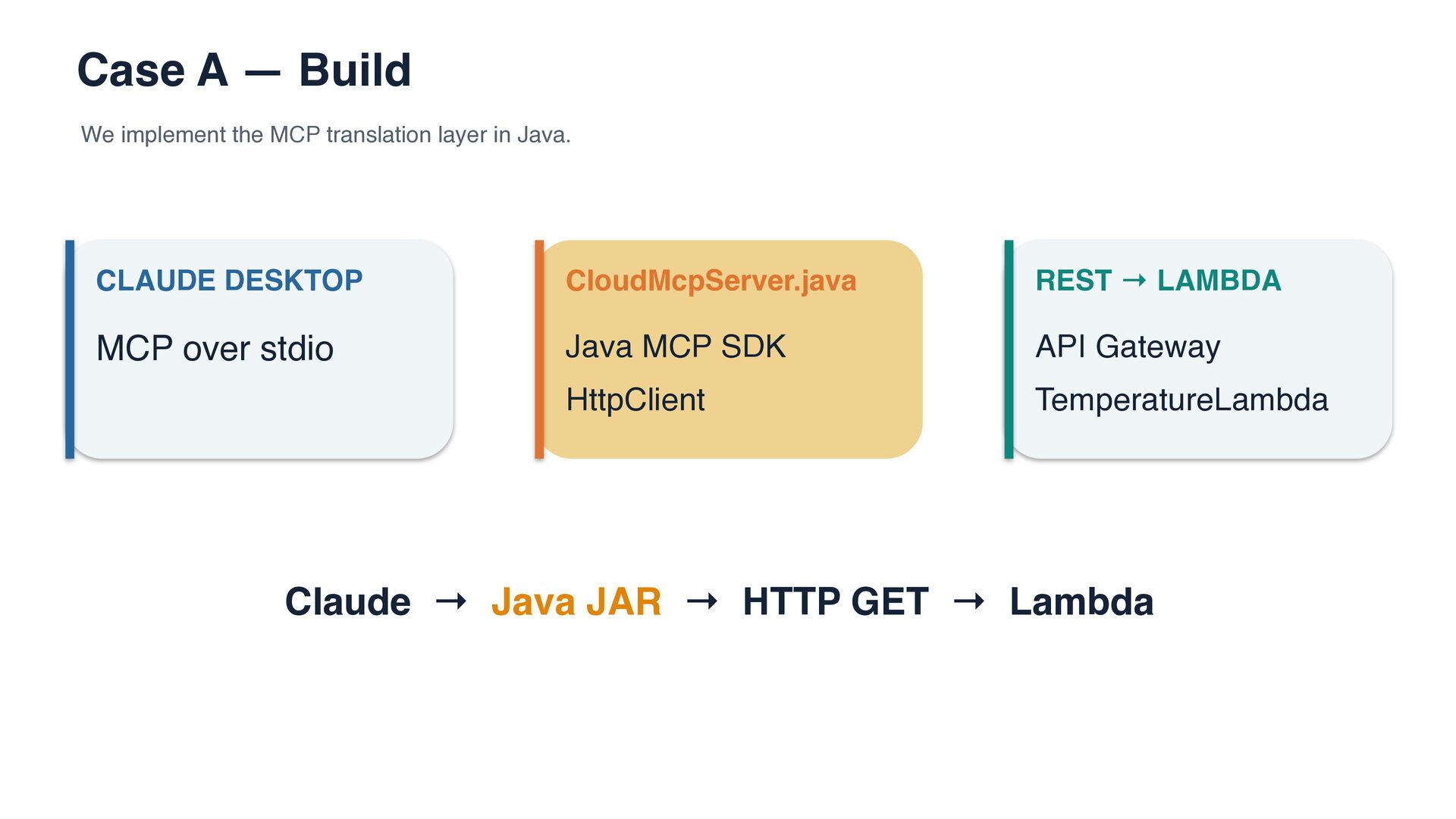

12. Case A — Build We implement the MCP translation layer in Java. CLAUDE DESKTOP CloudMcpServer.java REST → LAMBDA MCP over stdio Java MCP SDK API Gateway HttpClient TemperatureLambda Claude → Java JAR → HTTP GET → Lambda

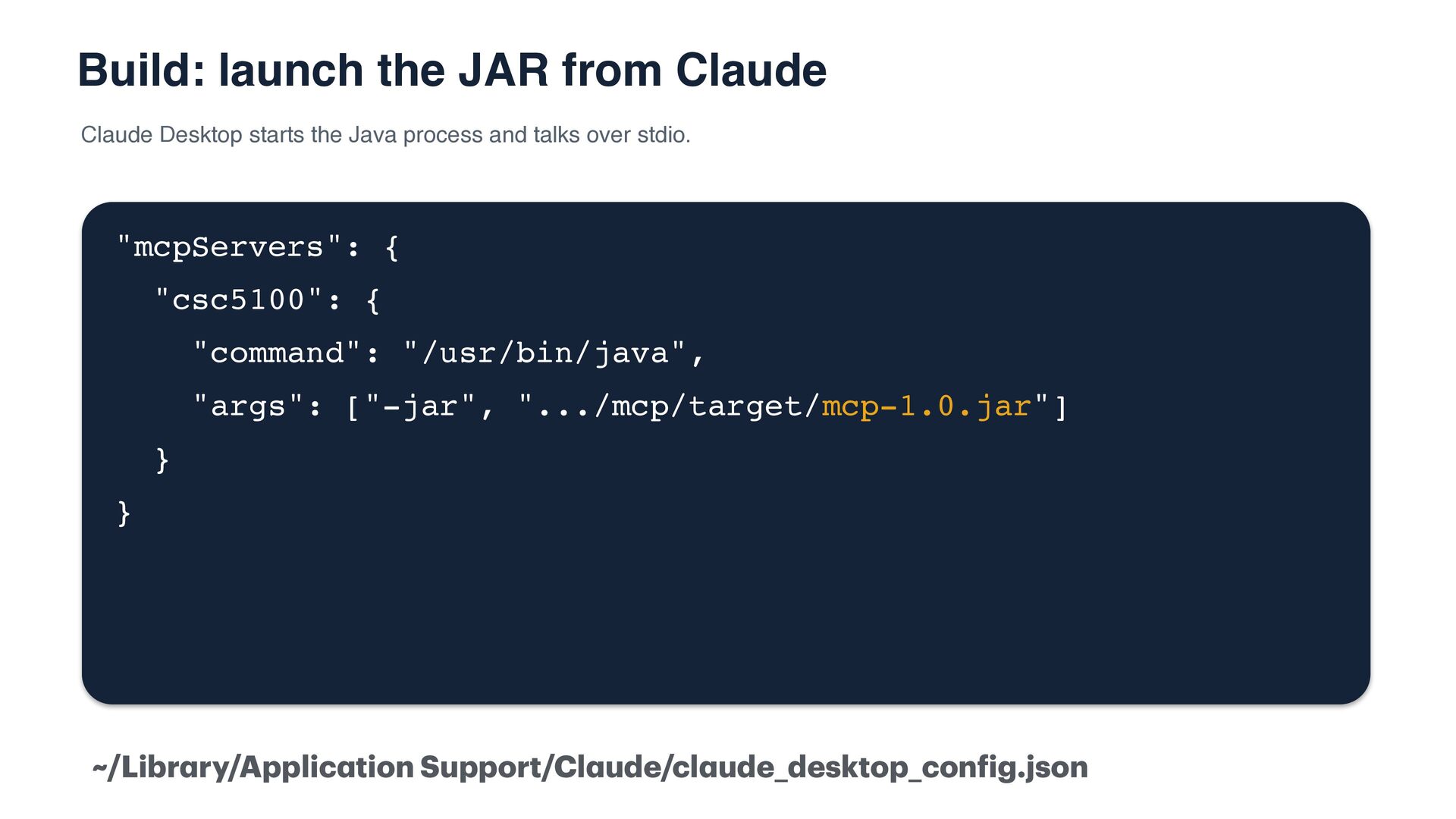

17. Build: launch the JAR from Claude Claude Desktop starts the Java process and talks over stdio. "mcpServers": { "csc5100": { "command": "/usr/bin/java", "args": ["-jar", ".../mcp/target/mcp-1.0.jar"] } } f a a a a ~/Libr ry/Applic tion Support/Cl ude/cl ude_desktop_con ig.json

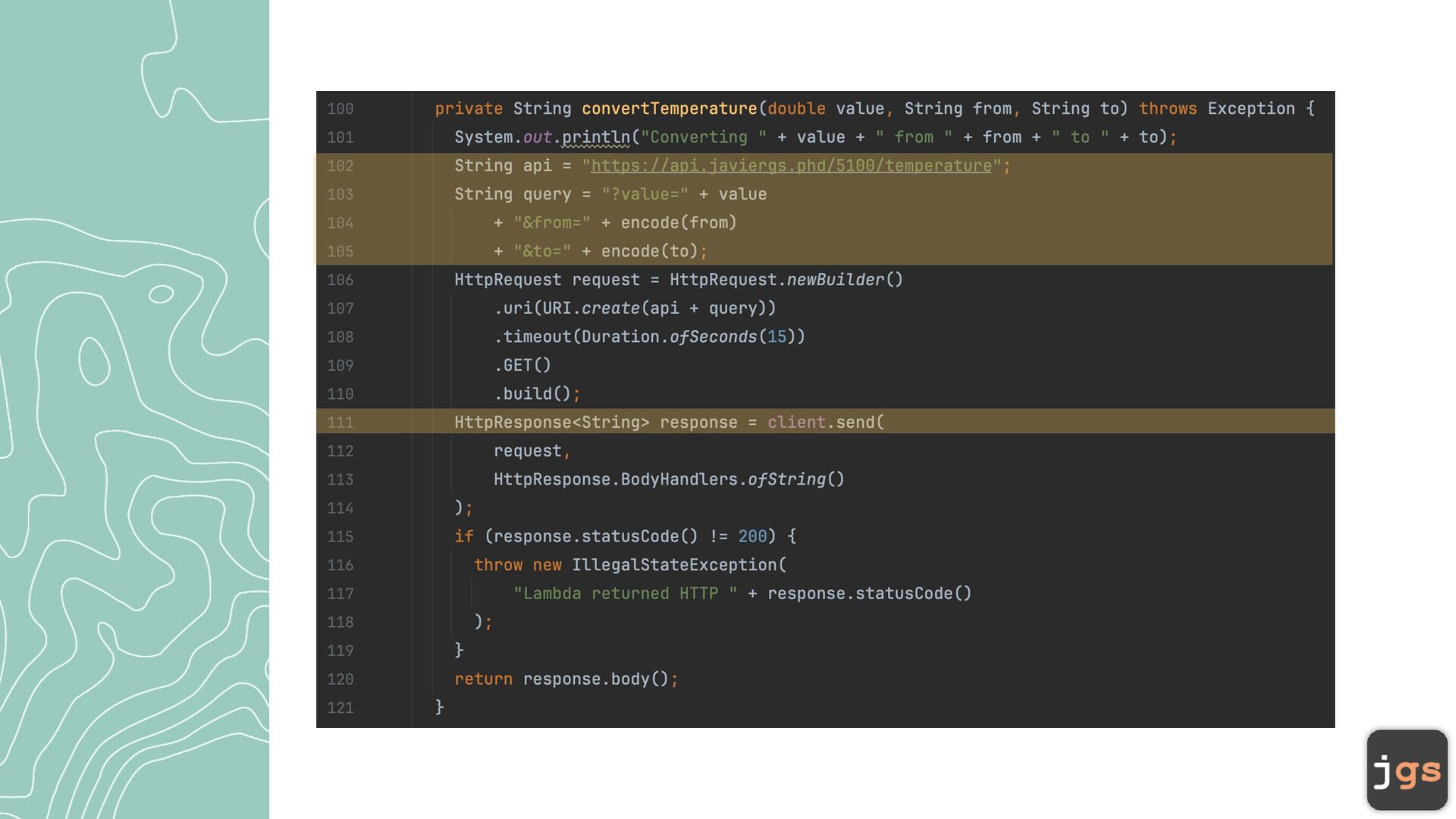

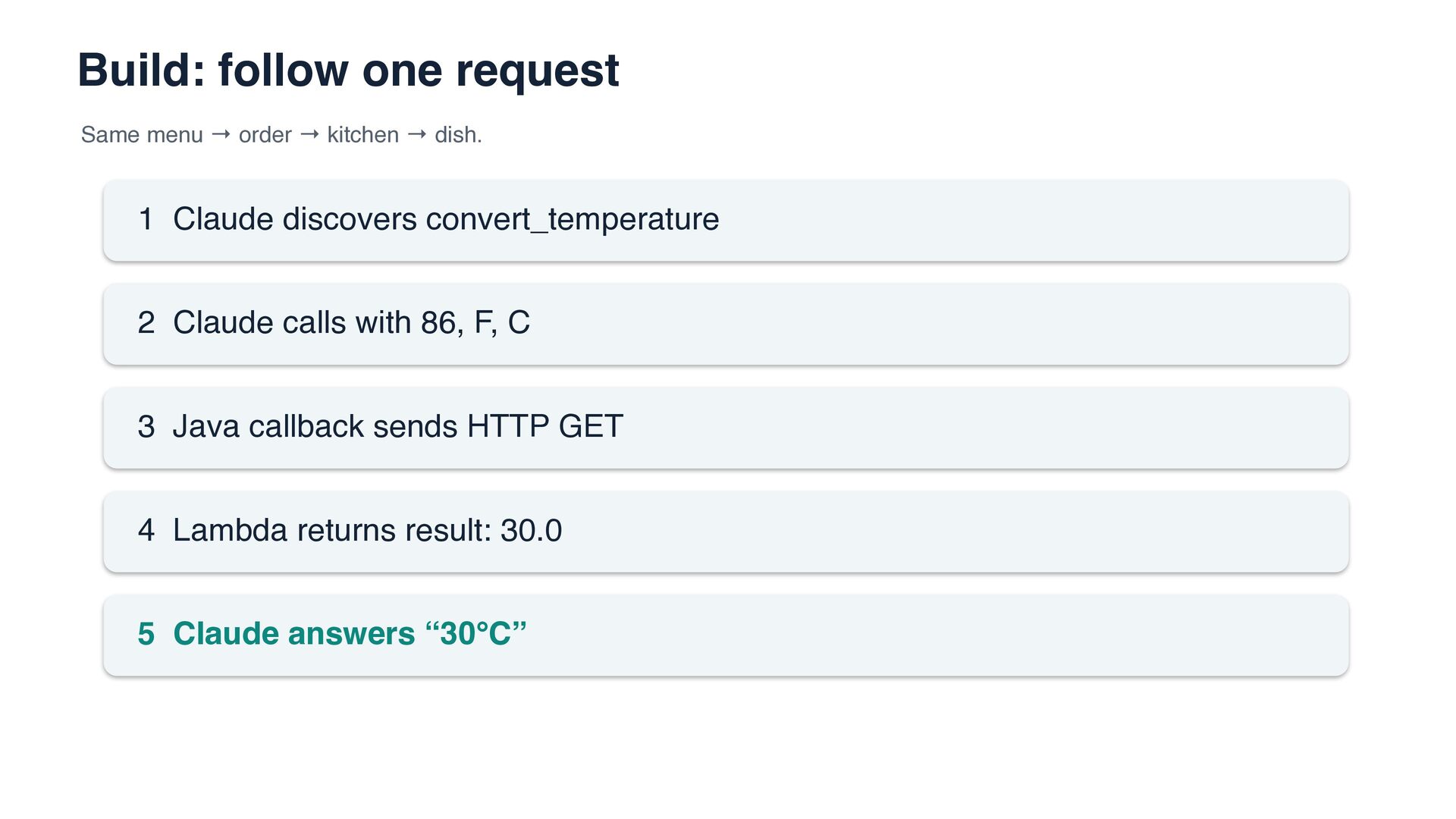

18. Build: follow one request Same menu → order → kitchen → dish. 1 Claude discovers convert_temperature 2 Claude calls with 86, F, C 3 Java callback sends HTTP GET 4 Lambda returns result: 30.0 5 Claude answers “30°C”

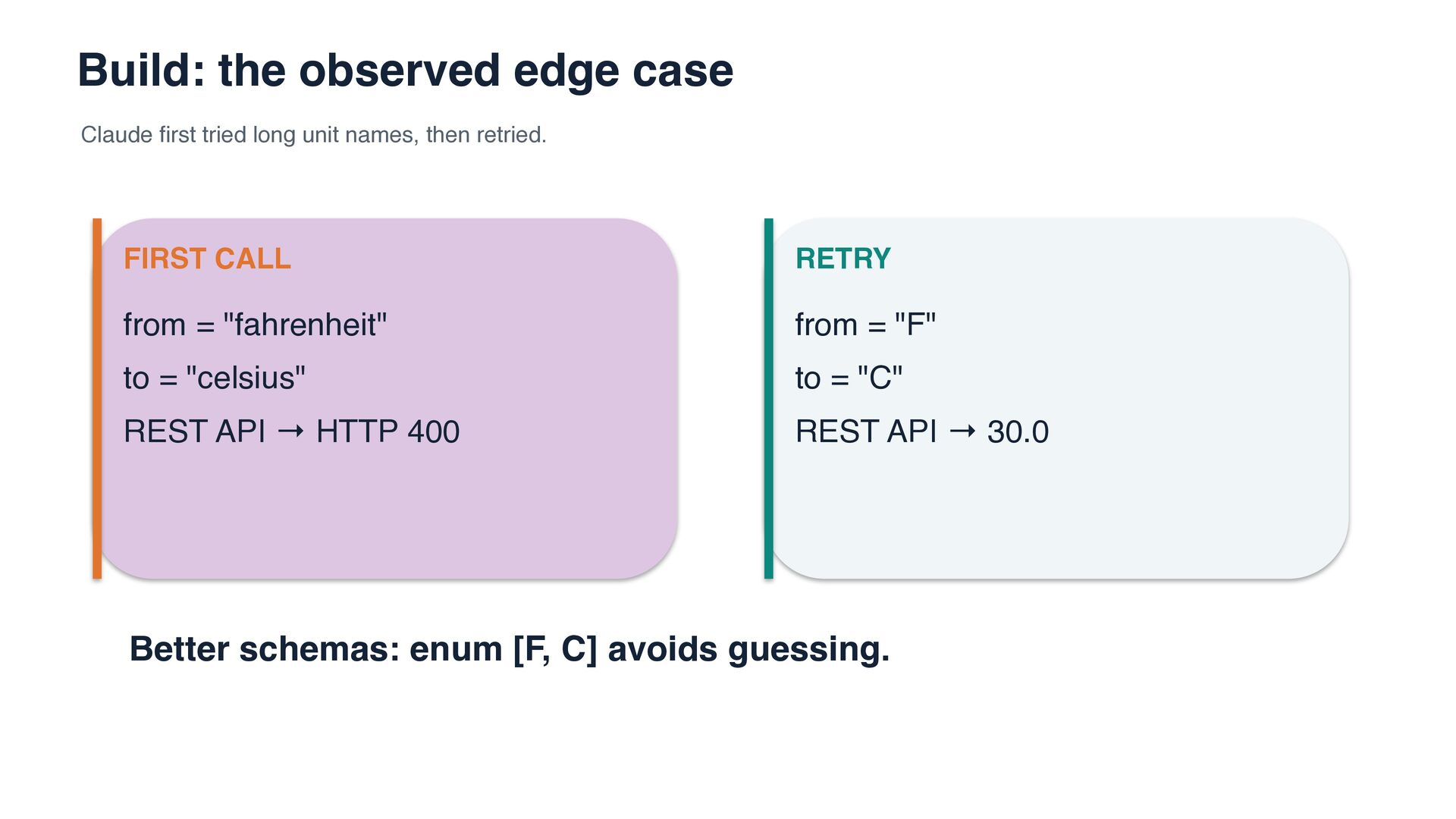

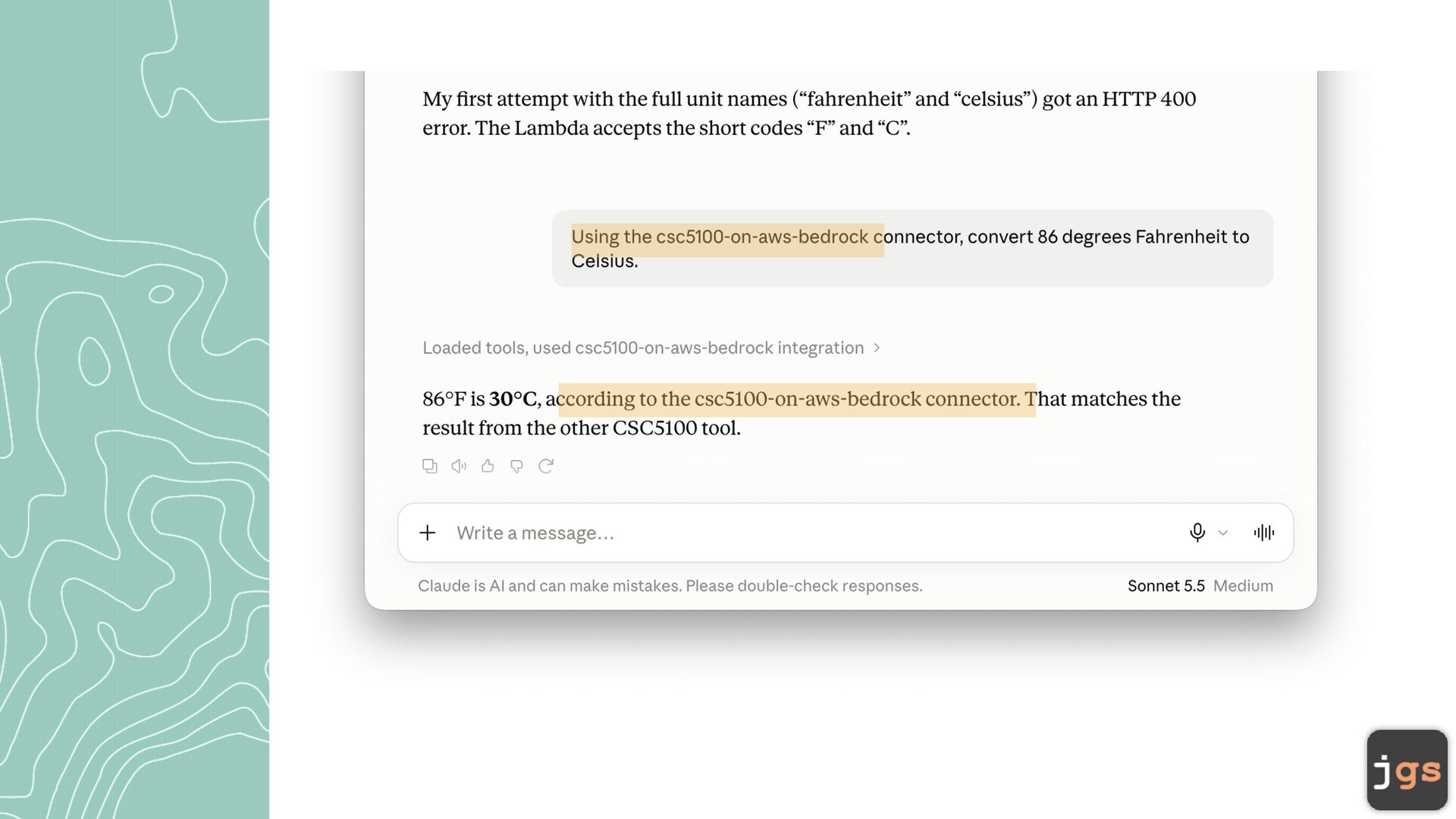

19. Build: the observed edge case Claude first tried long unit names, then retried. FIRST CALL RETRY from = "fahrenheit" from = "F" to = "celsius" to = "C" REST API → HTTP 400 REST API → 30.0 Better schemas: enum [F, C] avoids guessing.
20. To be continued...
21. Questions 21
