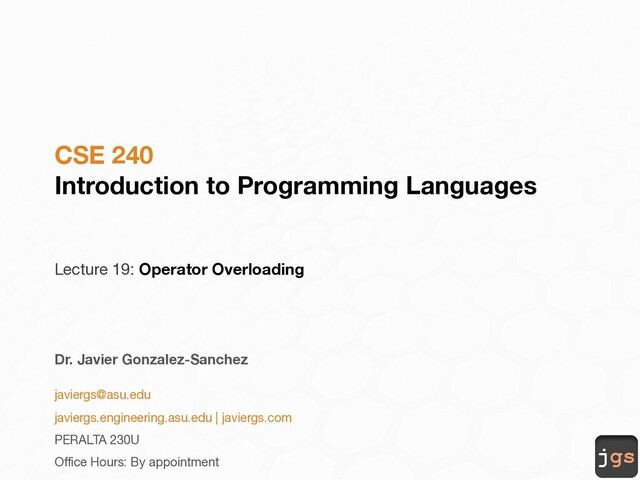

  1. jgs
    CSE 240
    Introduction to Programming Languages
    Lecture 19: Operator Overloading
    Dr. Javier Gonzalez-Sanchez
    [email protected]
    javiergs.engineering.asu.edu | javiergs.com
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 2
    jgs
    Announcements
    § Homework 4. (C++ Programming)
    § Quiz 4 (C++ Programming) – 45 minutes. Some open questions. A lot of
    constructors/destructors and pointers (use of new/delete)

    View Slide

  3. jgs
    One more thing about Inheritance

    View Slide

  4. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 4
    jgs
    Multiple Inheritance
    § A class can inherit members from more than one class;
    § The semantics of multiple inheritances is complex and error prone. It must be used
    with caution.
    § The diamond problem
    name and age
    needed only once

    View Slide

  5. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 5
    jgs
    Example
    #include
    using namespace std;
    class A {
    public:
    A() { cout << "A's constructor called" << endl; }
    };
    class B {
    public:
    B() { cout << "B's constructor called" << endl; }
    };
    class C: public B, public A { // Note the order
    public:
    C() { cout << "C's constructor called" << endl; }
    };
    int main() {
    C c;
    return 0;
    }

    View Slide

  6. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 6
    jgs
    Polymorphism
    A pointer to a derived class is type-compatible with a pointer to its base class.
    // pointers to base class
    #include
    using namespace std;
    class Figure {
    protected:
    int width, height;
    public:
    void set_values (int a, int b) {width=a; height=b;}
    int area () { return 0; }
    };
    class Rectangle: public Figure {
    public:
    int area() { return width*height;}
    };
    class Triangle: public Figure {
    public:
    int area() { return width*height/2; }
    };
    int main () {
    Rectangle rectangle;
    Triangle triangle;
    Figure * f1 = &rectangle;
    Figure * f2 = &triangle;
    f1->set_values (10,20);
    f2->set_values (30,40);
    cout << rectangle.area() << "\n";
    cout << triangle.area() << "\n";
    cout << f1->area() << '\n';
    cout << f2->area() << '\n';
    return 0;
    }

    View Slide

  7. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 7
    jgs
    Polymorphism
    A virtual member is a member function for which dynamic dispatch is facilitated.
    // pointers to base class
    #include
    using namespace std;
    class Figure {
    protected:
    int width, height;
    public:
    void set_values (int a, int b) {width=a; height=b;}
    virtual int area () { return 0; }
    };
    class Rectangle: public Figure {
    public:
    int area() { return width*height;}
    };
    class Triangle: public Figure {
    public:
    int area() { return width*height/2; }
    };
    int main () {
    Rectangle rectangle;
    Triangle triangle;
    Figure * f1 = &rectangle;
    Figure * f2 = &triangle;
    f1->set_values (10,20);
    f2->set_values (30,40);
    cout << rectangle.area() << "\n";
    cout << triangle.area() << "\n";
    cout << f1->area() << '\n';
    cout << f2->area() << '\n';
    return 0;
    }

    View Slide

  8. jgs
    And finally, Operator Overloading

    View Slide

  9. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 9
    jgs
    Function Overloading
    • Multiple functions can have the same name, but different parameter list in type or
    in number.
    • Destructor cannot be overloaded, because it does not have parameter
    void function(int v) {
    // code
    }
    void function(double v) {
    // code
    }

    View Slide

  10. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 10
    jgs
    Operator Overloading in C++
    Like function overloading, C++ allows user to define operator (built-in function)
    overloading.
    Why do we need operator overloading?
    • string1 = string2; instead of using strcpy(string1, string2);
    • string1 >= string2; instead of using strcmp(string1, string2);
    • rectangleArea(3, 5) < rectangleArea(2, 6)
    • time1(3, 23) + time2(5, 56), resulting in: time3(9, 19)
    • Increament a Date(year, month, day) object, what is the next date?

    View Slide

  11. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 11
    jgs
    Example 1
    int main() {
    Cylinder cylinder1, cylinder2, cylinder3;
    double volume = 0.0;
    // cylinder1 and cylinder2 initialization
    cylinder1.setRadius(5.0); cylinder1.setHeight(5.0);
    cylinder2.setRadius(4.0); cylinder2.setHeight(10.0);
    // get and print volumes of cylinder1 and cylinder2
    volume = cylinder1.getVolume();
    cout << "Volume of cylinder1 : " << volume << endl;
    volume = cylinder2.getVolume();
    cout << "Volume of cylinder2 : " << volume << endl;
    // Add two objects using overloaded operator +, and get and print volume
    cylinder3 = cylinder1 + cylinder2;
    volume = cylinder3.getVolume();
    cout << "Volume of cylinder3 : " << volume << endl;
    // Subtract two object as follows:
    cylinder3 = cylinder1 - cylinder2;
    // get and print volume of cylinder 3
    volume = cylinder3.getVolume();
    cout << "Volume of cylinder3 : " << volume << endl;
    if (cylinder1 > cylinder2) // using overloaded operator >
    cout << "cylinder1 volume is greater than cylinder2 volume" << endl;
    else cout << "cylinder1 volume is not greater than cylinder2 volume" << endl;
    return 0;
    }

    View Slide

  12. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 12
    jgs
    Example 1
    #include
    #include
    using namespace std;
    class Cylinder {
    private:
    double radius, height;
    public:
    double getVolume(void) {
    // M_PI defined in
    return M_PI * radius * radius * height;
    }
    void setRadius(double r) {
    radius = r;
    }
    void setHeight(int h) {
    height = h;
    }
    radius
    height

    View Slide

  13. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 13
    jgs
    Example 1
    // Overload + operator to add two Cylinder objects.
    Cylinder operator+(Cylinder &c) {
    Cylinder cylinder;
    cylinder.radius = this->radius + c.radius;
    cylinder.height = this->height + c.height;
    return cylinder;
    }
    // Overload - operator to subtract two Cylinder objects.
    Cylinder operator-(Cylinder &c) {
    Cylinder cylinder;
    cylinder.radius = this->radius - c.radius;
    cylinder.height = this->height - c.height;
    return cylinder;
    }
    // Overload - operator > (greater than of two Cylinder objects).
    bool operator>(Cylinder &c) {
    Cylinder cylinder; double vol0, vol1;
    vol0 = this->getVolume();
    vol1 = c.getVolume();
    if (vol0 > vol1) return true;
    else return false;
    }
    };

    View Slide

  14. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 14
    jgs
    Example 2
    int main() {
    Days day1(Mon), day2, day3;
    day2.setDay(Sat); day3.setDay(Sun);
    cout << "The days before ++ operations" << endl;
    day1.display(); day2.display(); day3.display();
    ++day1; ++day2; ++day3;
    cout << "The days after prefix ++ operations" << endl;
    day1.display();
    day2.display();
    day3.display();
    day1++; day2++; day3++;
    cout << "The days after postfix ++ operations" << endl;
    day1.display();
    day2.display();
    day3.display();
    return 0;
    }

    View Slide

  15. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 15
    jgs
    Example 2
    #include
    using namespace std;
    typedef enum { Sun = 0, Mon, Tue, Wed, Thu, Fri, Sat } DayType;
    class Days {
    private:
    DayType day;
    public:
    Days() { day = Sun; } // constructor without parameter
    Days(DayType d) { day = d; } // constructor with a parameter
    DayType getDay(void) { return day; }
    void setDay(DayType d) { if (d >= Sun && d <= Sat) this->day = d;}
    void display() {
    switch (day) {
    case Sun: cout << "Sun" << endl; break;
    case Mon: cout << "Mon" << endl; break;
    case Tue: cout << "Tue" << endl; break;
    case Wed: cout << "Wed" << endl; break;
    case Thu: cout << "Thu" << endl; break;
    case Fri: cout << "Fri" << endl; break;
    case Sat: cout << "Sat" << endl; break;
    default: cout << "Incorrect day" << endl;
    }
    }

    View Slide

  16. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 16
    jgs
    Example 2
    // Overload prefix ++ operator to add one to Days object: ++days.
    Days operator++() {
    Days days(day); // Save the original value
    switch (this->day) {
    case Sun: this->day = Mon; break;
    case Mon: this->day = Tue; break;
    case Tue: this->day = Wed; break;
    case Wed: this->day = Thu; break;
    case Thu: this->day = Fri; break;
    case Fri: this->day = Sat; break;
    case Sat: this->day = Sun; break;
    default: cout << "Incorrect day" << endl;
    }
    days.day = this->day;
    return days;
    }

    View Slide

  17. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 17
    jgs
    Example 2
    // Overload postfix ++ operator to add one to Days object: days++.
    Days operator++(int) { // This parameter indicates ++ follows a parameter
    Days days(day); // Save the original value
    switch (this->day) {
    case Sun: this->day = Mon; break;
    case Mon: this->day = Tue; break;
    case Tue: this->day = Wed; break;
    case Wed: this->day = Thu; break;
    case Thu: this->day = Fri; break;
    case Fri: this->day = Sat; break;
    case Sat: this->day = Sun; break;
    default: cout << "Incorrect day" << endl;
    } // The value in the this object has been changed.
    // days.day = this->day;
    return days; // return the value before the changes.
    }
    };

    View Slide

  18. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 18
    jgs
    Operator Overloading
    § can be
    overloaded
    § Cannot be
    overloaded
    + - * / % ^
    & | ~ ! , =
    < > <= >= ++ --
    << >> == != && ||
    += -= /= %= ^= &=
    |= *= <<= >>= [] ()
    -> ->* new new [] delete delete []
    :: .* . ?:

    View Slide

  19. jgs
    Test Yourselves

    View Slide

  20. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 20
    jgs
    Overloaded Functions vs. Virtual Functions
    • Multiple functions can have the same name, but different parameter list in type or in
    number.
    • Overloading can be applied to constructors and normal functions.
    • Overloading does not allow functions to have the same parameter list but different
    return type.
    • Virtual functions in the base class and derived class must have the same parameter
    list and return type.

    View Slide

  21. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 21
    jgs
    Overloaded Functions vs. Virtual Functions
    • Multiple functions can have the same name, but different parameter list in type or in
    number.
    • Overloading can be applied to constructors and normal functions.
    • Overloading does not allow functions to have the same parameter list but different
    return type.
    • Virtual functions in the base class and derived class must have the same parameter
    list and return type.
    void enqueue(int v) {
    if (rear < queue_size) buffer[rear++] = v;
    else if (compact()) buffer[rear++] = v;
    }
    void enqueue(double v) {
    if (rear < queue_size) buffer[rear++] = v;
    else if (compact()) buffer[rear++] = v;
    }
    virtual void display() {
    // different implementations in different classes
    }

    View Slide

  22. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 22
    jgs
    Quiz
    § Class Box (width, height, depth)
    § Merge Boxes (Box + Box)
    § Increase size (Box + 5) // add to all
    § Increase size ++Box or Box++
    § Divide (Box / Box) // return an integer

    View Slide

  23. Javier Gonzalez-Sanchez | CSE240 | Spring 2020 | 23
    jgs
    Questions

    View Slide

  24. jgs
    CSE 240 Introduction to Programming Languages
    Javier Gonzalez-Sanchez, Ph.D.
    [email protected]
    Fall 2021
    Copyright. These slides can only be used as study material for the class CSE240 at Arizona State University.
    They cannot be distributed or used for another purpose.
