CSE360 Tutorial 10

Introduction to Software Engineering
Practice
(202206)

Transcript

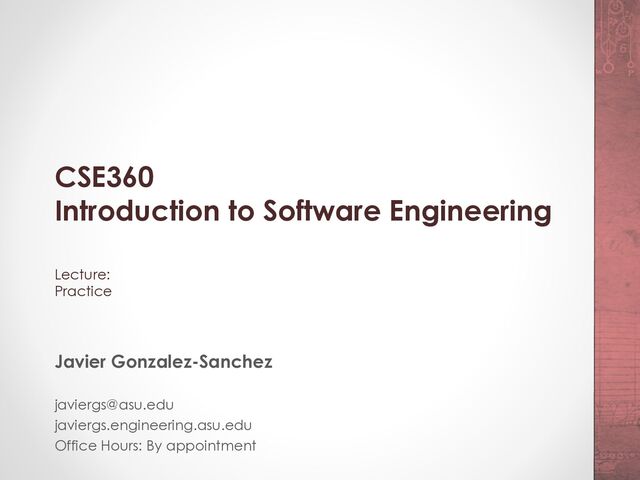

1. CSE360
   Introduction to Software Engineering
   Lecture:
   Practice
   Javier Gonzalez-Sanchez
   javiergs@asu.edu
   javiergs.engineering.asu.edu
   Office Hours: By appointment


   View Slide

2. Structural Complexity


   View Slide

3. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 3
   • Instability = Cout
   (Cin + Cout)
   Stable Abstraction Principle (SAP)


   View Slide

4. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 4
   Distance
   • Distance: how far a package is away from
   the Main Sequence
   • D = A + I – 1
   • Values -1 to 1
   • Absolute Distance |D|


   View Slide

5. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 5
   Example
   ITeamA
   = 6 / 0 + 6 = 1
   ATeamA
   = 0
   DTeamA
   = 0 + 1 – 1 = 0
   IJlabel
   = 0 / 4 + 0 = 0
   AJlabel
   = 0
   DJlabel
   = 0 + 0 – 1 = -1
   |Djlabel
   | = 1
   Pain Zone (just an example!)


   View Slide

6. Project


   View Slide

7. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 7
   Project – User create dots


   View Slide

8. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 8
   Project – User selects Cluster and clicks Run
   ✅


   View Slide

9. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 9
   Project – User selects Cluster and clicks Run
   ✅


   View Slide

10. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 10
    Project – User selects Line and clicks Run
    ✅


    View Slide

11. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 11
    Project – User selects Line and clicks Run
    ✅


    View Slide

12. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 12
    The SOLID Principles


    View Slide

13. Project
    Update


    View Slide

14. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 14
    Project – User selects Line and clicks Run


    View Slide

15. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 15


    View Slide

16. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 16
    Application


    View Slide

17. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 17
    BlackBoard


    View Slide

18. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 18
    HandlerCluster


    View Slide

19. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 19
    HandlerLine


    View Slide

20. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 20
    WorkPanel (Part 1 /2)


    View Slide

21. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 21
    WorkPanel (Part 2 / 2)


    View Slide

22. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 22
    Point


    View Slide

23. Javier Gonzalez-Sanchez | CSE360 | Summer 2018 | 23
    Line


    View Slide

24. CSE360 – Introduction to Software Engineering
    Javier Gonzalez-Sanchez
    javiergs@asu.edu
    Summer 2022
    Disclaimer. These slides can only be used as study material for the class CSE360 at ASU. They cannot be distributed or used for another purpose.
