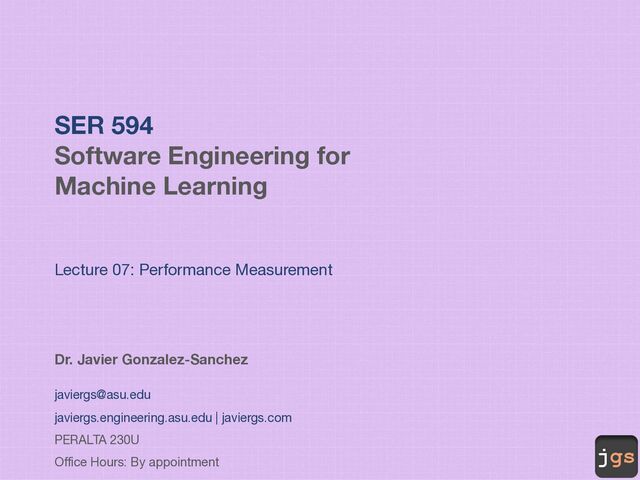

1. jgs
   SER 594
   Software Engineering for
   Machine Learning
   Lecture 07: Performance Measurement
   Dr. Javier Gonzalez-Sanchez
   javiergs@asu.edu
   javiergs.engineering.asu.edu | javiergs.com
   PERALTA 230U
   Office Hours: By appointment


   View Slide

2. jgs
   Previously …


   View Slide

3. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 3
   jgs
   ND4J Input


   View Slide

4. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 4
   jgs
   DL4J | Our Model


   View Slide

5. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 5
   jgs
   DL4J | Training


   View Slide

6. jgs
   Confusion Matrix


   View Slide

7. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 7
   jgs
   Definition
   A summary of prediction results on a classification problem


   View Slide

8. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 8
   jgs
   Definition
   A summary of prediction results on a classification problem
   TP FP
   FN TN
   positive 0
   negative 1
   positive
   0
   negative
   1


   View Slide

9. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 9
   jgs
   Definition
   TP FP
   FN TN
   positive 1
   negative 0
   positive
   1
   negative
   0
   FP
   Type 1 Error
   It is FALSE
   Computer said TRUE
   FP
   Type 2 Error
   It is TRUE
   Computer said FALSE


   View Slide

10. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 10
    jgs
    Definition
    What about not binary classifiers?
    e.g. emotion recognition
    TP FP
    FN TN
    positive
    😀
    😡
    .
    🙁
    negative
    positive
    😀 😡. 🙁
    negative
    FN TN
    FP
    TN
    TN


    View Slide

11. jgs
    Accuracy


    View Slide

12. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 12
    jgs
    Definition
    § overall measure of how much the model is correctly predicting on the entire
    set of data
    § Addition of the elements in the main diagonal divide by the sum of all the
    entries of the confusion matrix at the denominator.


    View Slide

13. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 13
    jgs
    Accuracy
    Accuracy = TP + TN / TP + TN + FP + FN
    TP FP
    FN TN
    positive 1
    negative 0
    positive
    1
    negative
    0


    View Slide

14. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 14
    jgs
    Definition
    positive
    negative
    TP FP
    FN TN
    positive negative
    FN X
    FP
    X
    TN
    Accuracy = TP + TN / TP + TN + FP + FN + X


    View Slide

15. jgs
    Precision and Recall


    View Slide

16. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 16
    jgs
    Accuracy
    /
    / How much we can trust the model when predict a Positive
    Precision = TP / TP + FP
    /
    / Measure the ability of the model to find all Positive units
    Recall = TP / TP + FN
    TP FP
    FN TN
    positive 1
    negative 0
    positive
    1
    negative
    0


    View Slide

17. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 17
    jgs
    Definition
    positive
    negative
    TP FP
    FN TN
    positive negative
    FN X
    FP
    X
    TN
    /
    / How much we can trust the model when predict a Positive
    Precision = TP / TP + FP
    /
    / Measure the ability of the model to find all Positive units
    Recall = TP / TP + FN


    View Slide

18. jgs
    F1-score


    View Slide

19. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 19
    jgs
    Definition
    § The harmonic mean of precision and recall.
    § Mixture of:
    How much we can trust the model when predict a Positive (Precision), and
    The ability of the model to find all Positive units (Recall)


    View Slide

20. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 20
    jgs
    Harmonic mean
    a = 7
    b = 3
    /
    / if same units (big)
    Arithmetic mean = 7+3 / 2 = 5
    /
    / if diverse units (small)
    Geometric mean = sqrt (7*3) = 4.58
    /
    / ratios of diverse units (smaller)
    Harmonic mean = pow (sqrt (7*3)) / (7+3 / 2) = 21 / 5 = 4.2


    View Slide

21. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 21
    jgs
    F1-score
    Precision = TP / TP + FP /
    / predicted
    Recall = TP / TP + FN /
    / real
    F1-score = 2 * Precision * Recall / Precision + Recall
    TP FP
    FN TN
    positive 1
    negative 0
    positive
    1
    negative
    0


    View Slide

22. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 22
    jgs
    Definition
    positive
    negative
    TP FP
    FN TN
    positive negative
    FN X
    FP
    X
    TN
    Precision = TP / TP + FP /
    / predicted
    Recall = TP / TP + FN /
    / real
    F1-score = 2 * Precision * Recall / Precision + Recall


    View Slide

23. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 23
    jgs
    Evaluation


    View Slide

24. jgs
    Assignment


    View Slide

25. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 25
    jgs
    Assignment
    Using our own implementation of a Neural Network (The code you analyzed
    before):
    § Can you create a method output that returns all outputs?
    It is OK can return a Java array.
    § Can you create a class Evaluation with its method eval?
    i.e., create a report similar to the one reviewed before


    View Slide

26. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 26
    jgs
    Questions


    View Slide

27. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 27
    jgs
    Reference
    § Deeplearning4j Suite Overview
    https://deeplearning4j.konduit.ai
    § Source Code
    https://github.com/javiergs/Medium/blob/main/
    NeuralNetwork/ExampleXORWithDL4J.java
