A 0.3% measurement of orbital decay in the 12.75-min WD+WD J0651+2844

Conference presentation, 20 min. July 2019: The Beginnings and Ends of Double White Dwarfs, Copenhagen, Denmark.

Transcript

1. http://jjherm.es
   @jotajotahermes
   J.J. Hermes

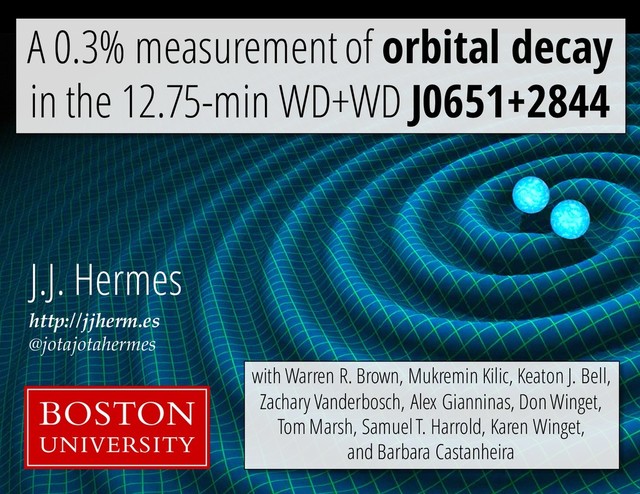

   A 0.3% measurement of orbital decay
   in the 12.75-min WD+WD J0651+2844
   with Warren R. Brown, Mukremin Kilic, Keaton J. Bell,
   Zachary Vanderbosch, Alex Gianninas, Don Winget,
   Tom Marsh, Samuel T. Harrold, Karen Winget,
   and Barbara Castanheira


   View Slide

2. JJ Hermes, Boston University | WD+WD | 2
   A syzygy (from the Ancient Greek σύζυγος,
   'yoked together') is a (roughly) straight-line
   configuration of three or more celestial bodies.
   @jotajotahermes


   View Slide

3. J0651+2844: The 12.75-min WD+WD Binary
   Average distance between the Earth and the Moon: 384,400 km
   M
   2
   = 0.51 M¤
   M
   1
   = 0.26 M¤
   JJ Hermes, Boston University | WD+WD | 3
   J0651+2844


   View Slide

4. J0651+2844: The 12.75-min WD+WD Binary
   JJ Hermes, Boston University | WD+WD | 4
   Brown et al. 2011,
   ApJ, 737, L23
   “We discovered that J0651 is a compact
   binary system when back-to-back
   spectra separated by six minutes showed a
   1300 km/s change in radial velocity.”


   View Slide

5. phase = 0
   • Eclipses detected on 01 April 2011 from the
   2.1m at McDonald Observatory
   J0651+2844: The 12.75-min WD+WD Binary
   Brown et al. 2011,
   ApJ, 737, L23
   JJ Hermes, Boston University | WD+WD | 5


   View Slide

6. Photo by Taylor Chonis
   Eclipses were detected on 1 April 2011 from the 2.1m telescope at
   McDonald Observatory on the first night of a 14-night run
   JJ Hermes, Boston University | WD+WD | 6
   John Kuehne


   View Slide

7. The Rock House fire
   started on 9 April 2011
   near Marfa, TX
   It eventually burned
   >310,000 acres
   (>1270 km2)
   Photos I took on 9 April 2011
   JJ Hermes, Boston University | WD+WD | 7


   View Slide

8. Photo by Don Winget on 11 April 2011
   JJ Hermes, Boston University | WD+WD | 8


   View Slide

9. We re-started monitoring the 12.75-min binary on 13 April 2011,
   the first photons collected at McDonald after the Rock House fire started.
   Photo by Frank Cianciolo on 17 April 2011
   JJ Hermes, Boston University | WD+WD | 9


   View Slide

10. Within 13 Months We Confirmed Orbital Decay
    JJ Hermes, Boston University | WD+WD | 10
    Hermes et al. 2012,
    ApJ, 757, L21
    In 2012:
    dPorb
    /dt = (-0.31 ± 0.09) ms/yr


    View Slide

11. O-C Diagrams Measure Tiny Period Changes
    Hermes 2013 JJ Hermes, Boston University | WD+WD | 11
    Imagine a leaky faucet, dripping exactly every 12 min, but sediment
    buildup is slowing the drip by 0.5 ms every year:
    Drip 1: 1 January 2014,
    at UT 00:00:00


    View Slide

12. O-C Diagrams Measure Tiny Period Changes
    Hermes 2013 JJ Hermes, Boston University | WD+WD | 12
    Imagine a leaky faucet, dripping exactly every 12 min, but sediment
    buildup is slowing the drip by 0.5 ms every year:
    Drip 1: 1 January 2014,
    at UT 00:00:00
    Drip 43801: 1 January 2015,
    at UT 00:00:11
    P0
    in 2014: 12 min (720 s)
    P in 2015: 12.00000833 min (720.0005 s)


    View Slide

13. Hermes et al. 2012,
    ApJ, 757, L21
    T
    eff,1
    = 16,700 ± 200 K
    M
    1
    = 0.261 ± 0.010 M¤
    K
    1
    = 617.9 ± 5.8 km s-1
    i = 86.3 ± 1.0 deg
    T
    eff,2
    = 10,370 ± 360 K
    M
    2
    = 0.509 ± 0.029 M¤
    Updated Spectroscopy of J0651+2844
    JJ Hermes, Boston University | WD+WD | 13
    6.5m MMT 10m Keck
    J0651+2844 is a
    single-lined binary


    View Slide

14. P
    spin,1
    > 6.7 min
    A Search for Primary Rotation in J0651+2844
    JJ Hermes, Boston University | WD+WD | 14
    Hermes et al. 2019,
    (nearly) submitted
    10m Keck
    We do not detect the
    Rossiter-McLaughlin
    effect around
    primary eclipses:


    View Slide

15. Updated Light Curve Modeling of J0651+2844
    JJ Hermes, Boston University | WD+WD | 15
    Hermes et al. 2019,
    (nearly) submitted
    best-fit model
    using lcurve
    R
    1
    = 0.03596
    ± 0.00091 R¤
    (implies M
    1
    =
    0.252 ± 0.010 M¤
    in line with
    0.261 M¤ from
    surface gravity)
    R
    2
    = 0.01319
    ± 0.00033 R¤
    i = 86.3 ± 1.0 deg
    d
    LC
    = 1050 ± 120 pc
    d
    Gaia
    = 1080+930 pc
    -400


    View Slide

16. We expect dPorb
    /dt = (-0.263 ± 0.020) ms/yr from GR (point masses) and
    observe (-0.28688 ± 0.00072) ms/yr!
    – a 0.3% measurement!
    Hermes et al. 2019,
    (nearly) submitted JJ Hermes, Boston University | WD+WD | 16
    χ2
    red
    = 0.962


    View Slide

17. We expect dPorb
    /dt = (-0.263 ± 0.020) ms/yr from GR (point masses) and
    observe (-0.2879 ± 0.0022) ms/yr!
    using a sine fit to half the orbital period (ellipsoidal variations)
    Hermes et al. 2019,
    (nearly) submitted JJ Hermes, Boston University | WD+WD | 17
    χ2
    red
    = 1.20


    View Slide

18. Hermes et al. 2019,
    (nearly) submitted
    JJ Hermes, Boston University | WD+WD | 18
    Expected dPorb
    /dt =
    (-0.263 ± 0.020) ms/yr from GR
    Observed dPorb
    /dt =
    (-0.28688 ± 0.00072) ms/yr!
    M
    tot
    = 0.770 ± 0.039 M¤
    L
    GW
    = 2.85 L¤
    L
    EM
    = 0.05 L¤
    Tides expected to
    increase dPorb
    /dt by 5%
    see Piro 2011, Benaquista 2011,
    Burkart et al. 2013, Fuller & Lai
    2013, Dall’Osso & Rossi 2014


    View Slide

19. Hermes et al. 2019,
    (nearly) submitted
    JJ Hermes, Boston University | WD+WD | 19
    t0
    = -0.50 ± 0.13 s
    from primary
    eclipse times
    t0
    = -0.14 ± 0.38 s
    from ellipsoidal
    variations
    Tidal bulge is aligned with
    syzygy to at least 0.4 s
    (0.05% of orbit)


    View Slide

20. J0651+2844: The 12.75-min WD+WD Binary
    • 8 years since discovery: dPorb
    /dt = (-0.28688 ± 0.00072) ms/y
    – The GW luminosity exceeds the EM luminosity by factor of >50!
    • This is 1.2σ consistent with pure GR: (-0.263 ± 0.020) ms/yr
    – This uncertainty is dominated by the uncertainty in M2
    • f
    orb
    = 2.6136734171(89) mHz, an exceptional LISA verification!
    • We will know dPorb
    /dt to 0.1% by 2021
    D. Berry, GSFC
    JJ Hermes, Boston University | WD+WD


    View Slide
