Security Threats, the Cloud, and Your Responsibilities - New York
Presented at the AWS Pop-up Loft in New York - Thanks for coming by and for the great discussion!
John Martinez
July 29, 2015
Transcript
40 slides
-

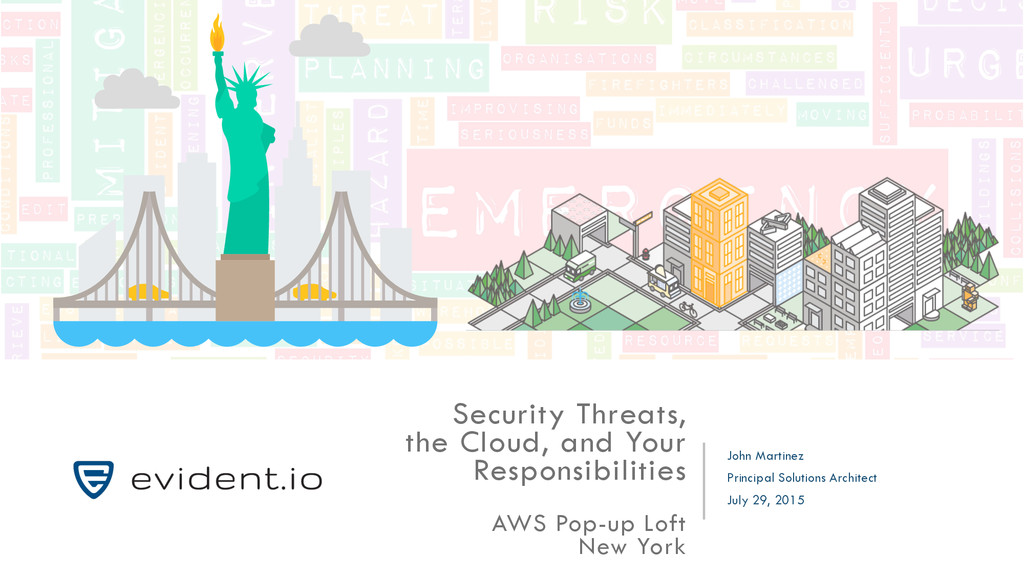

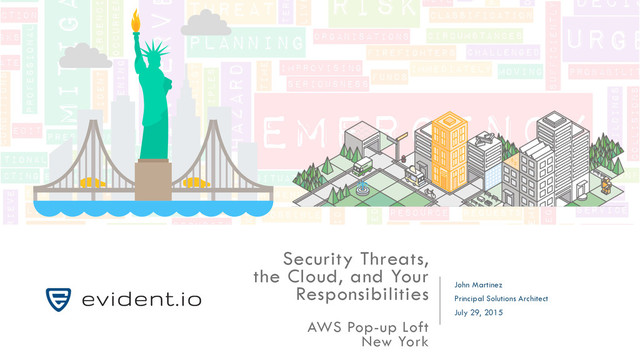

Security Threats, the Cloud, and Your Responsibilities AWS Pop-up Loft
New York John Martinez Principal Solutions Architect July 29, 2015 -
About Me ▪Been doing DevOps and Cloud stuff for ~5
years ▪Helped architect and build Creative Cloud @ Adobe ▪Cut my teeth on “the cloud” at Netflix ▪UNIX and Linux throat beard for >20 years ▪Have been involved in countless security and production incidents, most at 2:00 AM ▪I now talk to people about security for a living ▪I’ve never been to the Statue of Liberty (but correcting that tomorrow!) 2 -
Tonight’s Agenda ✓AWS Shared Security Responsibility ✓Incident Response on AWS
✓Anatomy of an Attack ✓Engaging AWS Support ✓Logging and Data on your side ✓Mitigation Techniques ✓A Practitioner’s Toolchest ✓Q&A 3 -
Shared Security Responsibility - AWS ▪AWS owns responsibility for all
things physical ▪They build the services and APIs you need to deploy and run your applications on AWS ▪They deliver to their customers the ability to create identity credentials to access AWS services and resources ▪They secure the hypervisor and the network below layer 7 6 -
Shared Security Responsibility - You ▪Creating and managing IAM entities
and their authentication tokens ▪Creating and managing IAM access policies ▪Creating and managing network access to EC2 instances and VPC networks ▪Deploying applications and creating virtual infrastructure ▪OS Patching and Maintenance ▪Monitoring activity and collecting data ▪Designing for failure 7 -
AWS Security Services - Identity ▪Identity and Access Management (IAM)
▪Secure Token Service (STS) ▪Directory Service 8 -
AWS Security Services - EC2 ▪EC2 Security Groups ▪EC2 Keypairs
(SSH) ▪VPC Subnet ACLs 10 -
AWS Security Services - Storage ▪S3 ACLs and Bucket Policies
▪S3 Lifecycle Rules ▪EBS Volume Encryption 12 -
Incident Response: Not very different ▪Have a plan ▪NOC and
SOC roles ▪Communication is key ▪Your AWS/Cloud guru may be your best ally if you don’t have an explicit “Cloud Security” Architect/Engineer 14 -
Incident Response: somewhat different ▪Your AWS/Cloud guru may be your
best ally if you don’t have an explicit “Cloud Security” Architect/Engineer ▪DevOps can play a major role ▪Engage AWS Support often and early (more on that later) ▪Come armed with data (also more on that later) ▪Download latest CSA Guidance, Domain 9 “Incident Response” https://cloudsecurityalliance.org/research/security-guidance/ 15 -
Triage the Incident Evaluate the situation ▪What’s going on right
now? ▪No time to freak out 16 -
Triage the Incident Stop the bleeding ▪Secure the site/isolate the
damage ▪May need to bring down the site temporarily 17 -
Triage the Incident Start the breathing ▪Get the business running
again ▪Restart services when you’re ready 18 -
Triage the Incident Treat for Shock ▪Make it better (so
it does not happen again) ▪Learn from your mistakes ▪Monitor continuously 20 -
Security Incident Checklist ✓Have both a plan and tools (and
have tested them) ✓Define what and when it happened ✓Define what and when it was not happening ✓Initial triage of the problem ✓The more detail you can collect, the better ✓Scale up - Scale out - Isolate the issue ✓Review CloudTrail Logs ✓Snapshot/dd effected resources ✓Open a support case with AWS early ✓Update Often 21 -
What does an attack in AWS look like? ▪More than
likely, you don’t even know it’s going on ▪Sometimes, an email from the AWS Security will come in that an attack is originating from one of your EC2 instances ▪Preventative tools like Evident.io can help reduce the amount of surprises ▪Dev accounts are just as important to secure as production 23 -
What does an attack in AWS look like? for EC2
▪Most common type of attack ▪EC2 IP address space is public https://ip-ranges.amazonaws.com/ip-ranges.json ▪Security Group rules are too open ▪Vulnerable applications ▪Vulnerable operating systems ▪Instances in unused regions (look for micros) ▪AutoScaling gone wild 24 -
What does an attack in AWS look like? for IAM
▪Exposed and compromised API Access Keys ▪New users/roles ▪Deleted users/roles ▪IAM policy changes ▪Root user locked out ▪AWS resources being created or deleted ▪Costs going up trough the roof 25 -

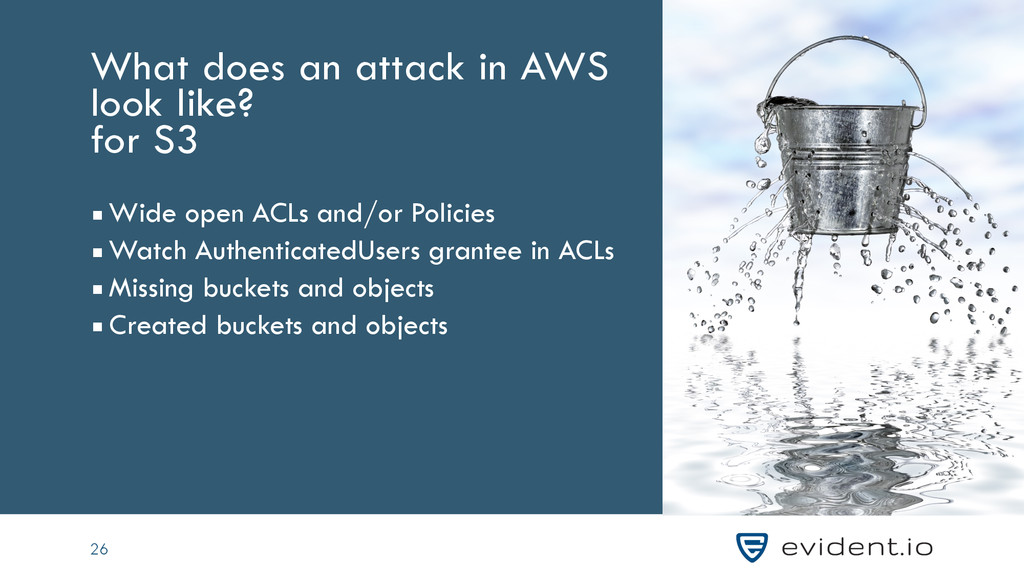

What does an attack in AWS look like? for S3
▪Wide open ACLs and/or Policies ▪Watch AuthenticatedUsers grantee in ACLs ▪Missing buckets and objects ▪Created buckets and objects 26 -
What Will AWS do WITH you? ▪Communicate via Support Ticket
▪Can provide you guidance on ▪Scaling up ▪Scaling out ▪Isolating the issue ▪May shift traffic to help ▪Can provide you forensic image for analysis in AWS 28 -
AWS Support is Part of YOUR Team ▪Always include AWS
Support in your incident response program ▪If you are an Enterprise Support customer, include your TAM ▪On occasion, an AWS Support person can be on your call ▪Always report abuse and security issues to AWS Support, their support center is bigger than yours! 29 -

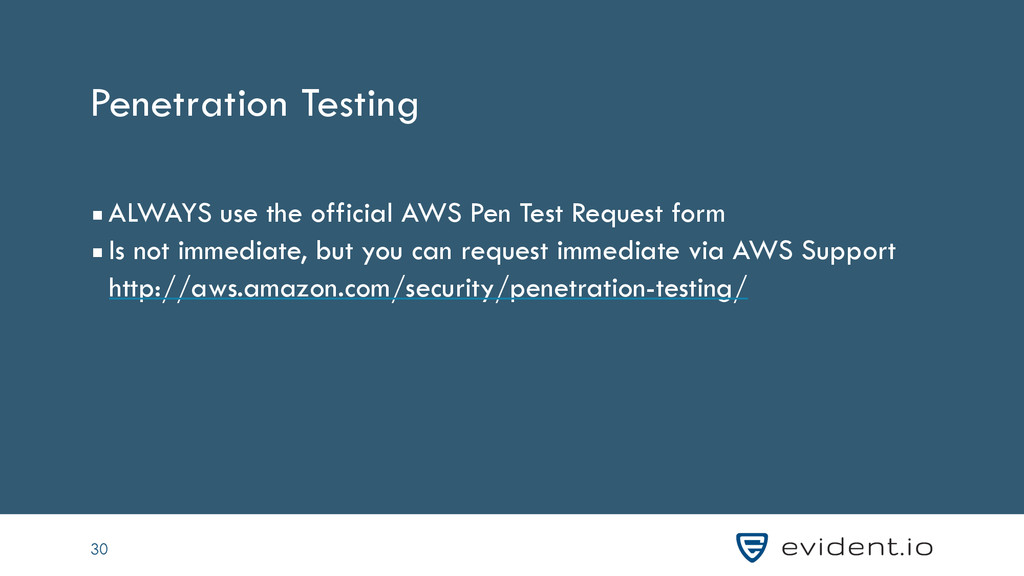

Penetration Testing ▪ALWAYS use the official AWS Pen Test Request
form ▪Is not immediate, but you can request immediate via AWS Support http://aws.amazon.com/security/penetration-testing/ 30 -
Come Prepared ▪The more data you have, the better ▪Make
sure you have data for ▪AWS infrastructure and resource state (Evident.io can help) ▪AWS Activity and events (CloudTrail) ▪OS and Application state (FIM) ▪S3 buckets (S3 Logs) ▪ELBs (ELB Logs) 32 -
CloudTrail FTW ▪CloudTrail provides a pretty comprehensive amount of data
for events on AWS resources ▪CloudTrail produces tons of data, be prepared to sift through it ▪Send CloudTrail data to a centralized bucket for easy consumption into log aggregation systems ▪AWS may request CloudTrail data during an incident ▪Protect your CloudTrail buckets as if they had customer sensitive PII 33 -
Forensic Images ▪A great way to determine root cause ▪Law
enforcement may want later ▪Create EBS snapshot or AMI from affected instance ▪Use an isolated VPC with no route to the internet to bring up and test 34 -

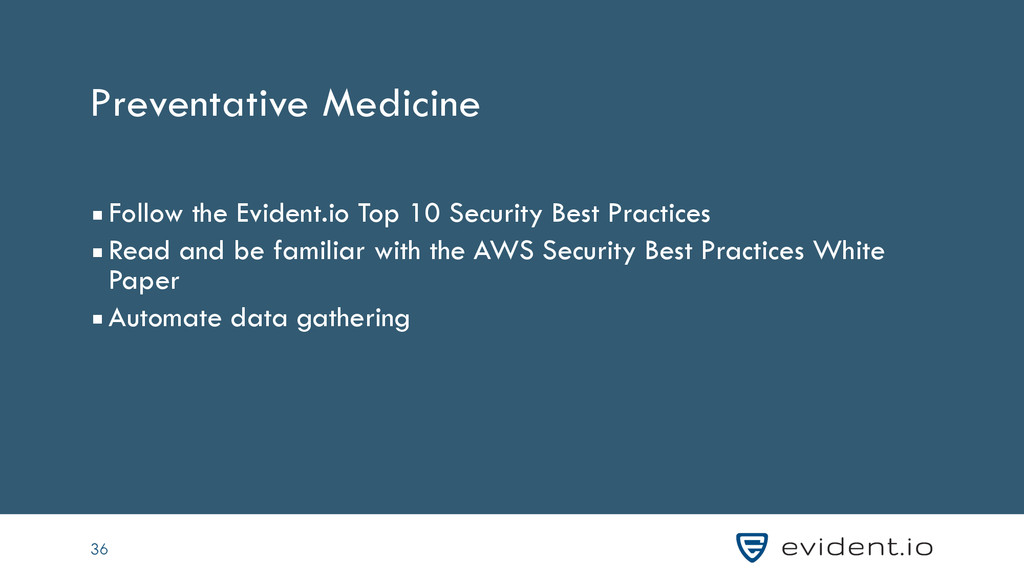

Preventative Medicine ▪Follow the Evident.io Top 10 Security Best Practices
▪Read and be familiar with the AWS Security Best Practices White Paper ▪Automate data gathering 36 -
Security + DevOps ▪Configuration Management can help get you to
the last known good state ▪Immutable AMIs are also helpful in restoring operating systems and applications ▪CloudFormation templates for infrastructure management ▪Test your CI/CD pipeline 37 -
Some tools that can help you ▪Evident.io (infrastructure) ▪AWS Trusted
Advisor (infrastructure) ▪Cloudability (cost) ▪Splunk (monitoring and logging) ▪AWS CloudWatch and CW Logs (monitoring and logging) ▪Qualys (app and vulnerability scanning) ▪nmap (network scanning) ▪Autopsy and SluethKit (forensics) ▪Kali Linux (pen testing) ▪…and many others… 39 -
Thank You AWS Pop-up Loft NY! [email protected] • [email protected] •
@johnmartinez • LinkedIn Andy De Mars (say hi Andy!): [email protected] 40 As a special thank you to those in attendance, one-year subscriptions signed up by August 30, 2015, get two months free
