Scaling Node.js Applications with Redis, RabbitMQ and cote.js

JSIST 2014
By : Armağan Amcalar
http://jsist.org

Transcript

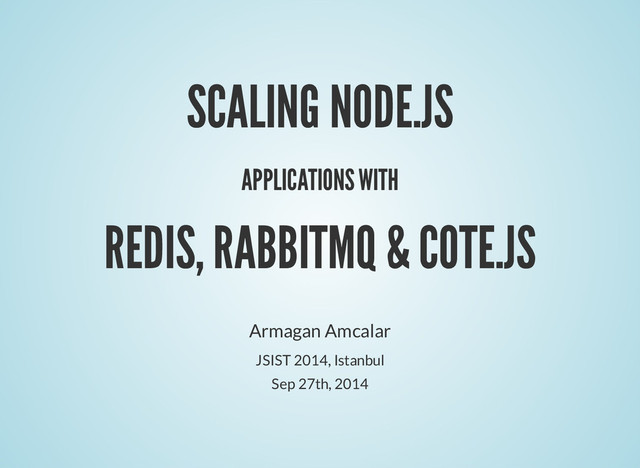

1. SCALING NODE.JS APPLICATIONS WITH REDIS, RABBITMQ & COTE.JS Armagan Amcalar JSIST 2014, Istanbul Sep 27th, 2014
2. WHO AM I? Armagan Amcalar Co-founder, Chief Software Architect dashersw Startup Kitchen AUTHORED ON GITHUB pedalboard.js tartJS geneJS cote semaver jira-bot HOBBY PROJECTS pedals.io trax.io
3. NODE.JS We love it. We develop all kinds of software with it. We love to daemonize it.
4. THE PROBLEM It doesn't scale well. Programming model encourages stateful app design Works great as single process Works OK as a cluster
5. WHAT'S NEXT? What if you need more computing power? How about horizontal scalability?
6. CURRENT SOLUTION NGINX NODE-HTTP-PROXY REVERSE PROXY
7. NGINX Easy to set up if you're familiar with nginx Hard to maintain Yet another technology dependency NODE-HTTP-PROXY Hard to set up even if you're familiar Hard to maintain Very low level
8. WE NEED A DIFFERENT SOLUTION. Because we have more problems We're not just building express apps We were programming the DOM, we need that flexibility
9. MORE PROBLEMS? Be fast with your API response Asynchronous processing (e.g., analytics) You may need to scale very dynamically Fault tolerance THE YEAR'S 2014, WHERE ARE THE EVENTS?
10. LET'S TAKE A BREAK. MONOLITHIC APPS VS SERVICE ORIENTED ARCHITECTURE & MICROSERVICES
11. MONOLITHIC APPLICATIONS Single code base One process to rule them all A bug anywhere crashes the whole system May consume lots of stale resources Hard to scale; needs even more stale resources Request–response flow is one huge piece Easy to manage
12. MICROSERVICES Separate code base Multi processes for each service A bug in a service crashes only that service Consumes minimal resources Scales well, needs minimal additional resources Supports event-driven architecture Request–response flow breakdown Hard to manage
13. EVENT-DRIVEN ARCHITECTURE PUB-SUB PATTERN OBSERVER PATTERN
14. PUB-SUB PATTERN Just like DOM events, what we're used to build. Instead of click events, you have custom events (e.g. in jQuery) Instead of DOM element interaction, you have daemon interaction
15. OBSERVER PATTERN First-of-its-kind event driven pattern You an object property, not an arbitrary event Like all your click handlers have to have the same name Limits possibilities
16. ENTER REDIS Originally a NoSQL database Key-value pair server with lots of great features like sets, etc. Pub-sub capability Supports events based on channels and patterns Very cool node.js library
17. A REDIS PUBSUB-BASED ARCHITECTURE redis d1 d4 d3 d2 publishes foo notifies of foo notifies of foo notifies of foo client request session storage logs API
18. EXAMPLE var redis = require('redis'), client = redis.createClient(6379, '127.0.0.1'); client.publish('request', JSON.stringify({ body: 'some cool request' })); var redis = require('redis'), logger = redis.createClient(6379, '127.0.0.1'); logger.subscribe('request'); logger.on('message', function(channel, message) { if (channel == 'request') console.log(JSON.parse(message)); }); Client Logger
19. QUICK DEMO
20. ENTER RABBITMQ A message broker for distributed applications Like redis pubsub, with heavy focus on additional features such as flexible message routing work queues, topics, etc. QoS management round robin load balancing message acks rate limiting unfriendly node.js library
21. WORK QUEUES REMOTE PROCEDURE CALLS
22. EXAMPLE WORK QUEUE var amqp = require('amqp'), connection = amqp.createConnection(), workId = 0; connection.on('ready', function() { connection.queue('work_queue', {autoDelete: false, durable: true}, function(queue) { setInterval(function() { connection.publish('work_queue', 'message #' + ++workId, { deliveryMode: 2 }); console.log('sent message #' + workId); }, 1000); }); }); var amqp = require('amqp'), connection = amqp.createConnection(); connection.on('ready', function () { connection.queue('work_queue', {autoDelete: false, durable: true}, function(queue) { queue.subscribe({ack: true, prefetchCount: 1}, function(msg) { var body = msg.data.toString('utf-8'); console.log("received", body); queue.shift(); // basic_ack equivalent }); }); });
23. QUICK DEMO
24. ENTER COTE.JS node.js framework for fault tolerant, distributed apps developed at Startup Kitchen partially funded by TUBITAK
25. COTE.JS FEATURES auto-discovery mesh network, peer-to-peer communication pubsub pattern requester/responder pattern client-side communication with websockets load balancing with different strategies daemon monitor
26. EXAMPLE ARCHITECTURE
27. EXAMPLE PUB-SUB IMPLEMENTATION var Publisher = require('cote').Publisher, publisher = new Publisher({ name: 'publisher', broadcasts: ['update'] }), workId = 0; publisher.on('ready', function() { setInterval(function() { console.log('emitting', ++workId); publisher.publish('update', workId); }, 3000); }); var Subscriber = require('cote').Subscriber, subscriber = new Subscriber({ name: 'subscriber' }); subscriber.on('update', function(message) { console.log('update', message); });
28. QUICK DEMO
29. CONCLUSION With Redis, RabbitMQ or cote.js we can; Apply sophisticated programming paradigms Scale nearly infinitely Have fault-tolerant systems
30. THANK YOU! CONTRIBUTE TO COTE.JS github.com/dashersw/cote LET'S KEEP IN TOUCH! Armagan Amcalar twitter: github: blog: armagan@amcalar.com @aamcalar dashersw arm.ag examples at https://github.com/dashersw/node-scale
