Object Relationship

Provide a simple method to draw the class relationship as "Clean Architecture" does.

Transcript

1. Object Relationship from “Clean Architecture”
2. Self-Introduction 現職偶爾刷存在感的丈夫、陪毛尼 玩的爸爸、剩餘時間拿來寫程式的 工程師 • Twitter: @marslin_dev • Facebook: marslin1220

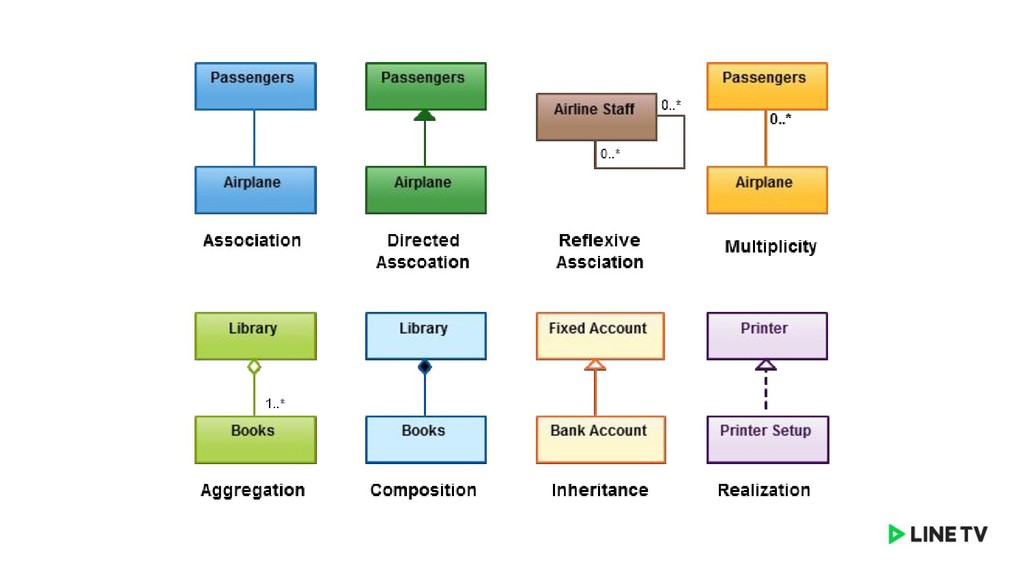

3. Relationship in UML

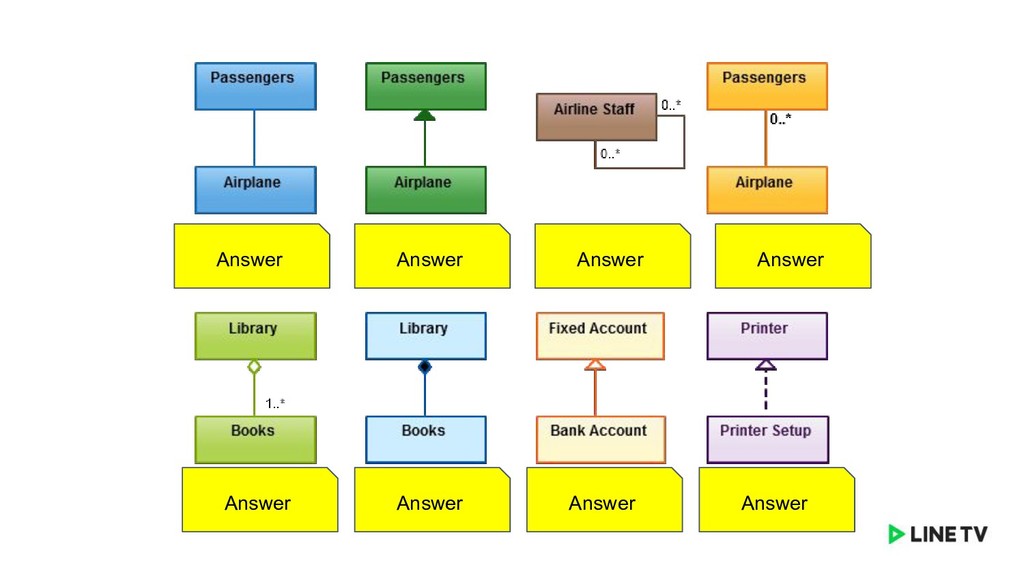

4. Answer Answer Answer Answer Answer Answer Answer Answer
6. Too Complicated to Remember
7. To Simplify

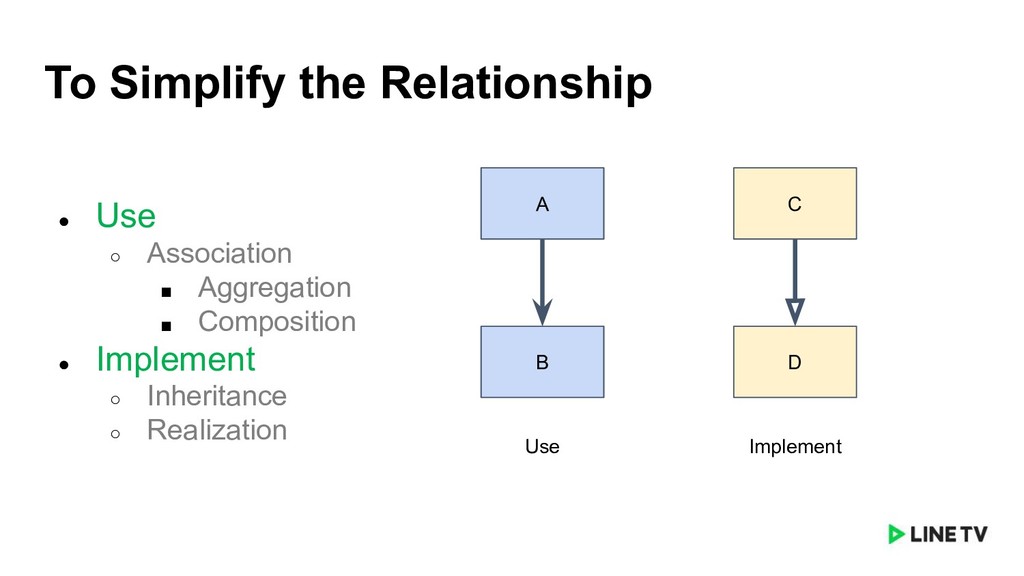

8. To Simplify the Relationship • Use ◦ Association ▪ Aggregation ▪ Composition • Implement ◦ Inheritance ◦ Realization A B Use C D Implement

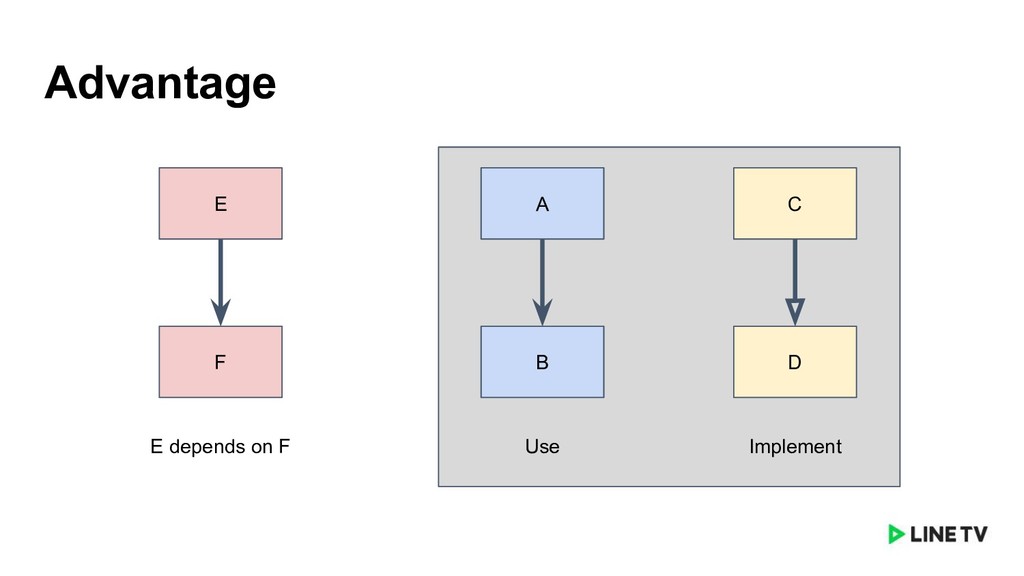

9. Advantage A B C D Use Implement E F E depends on F
10. Much Easier
11. Some Examples

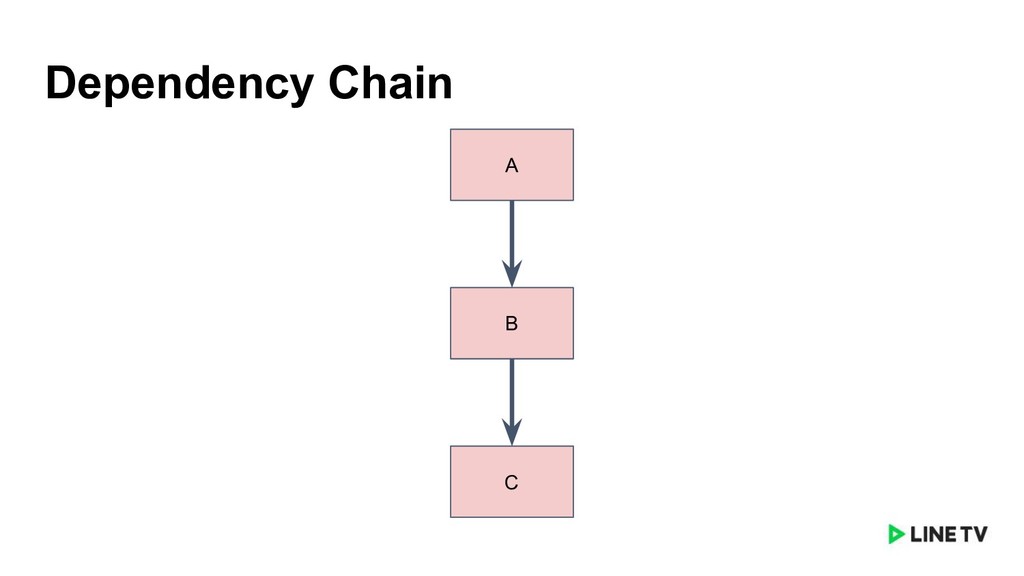

12. Dependency Chain A B C

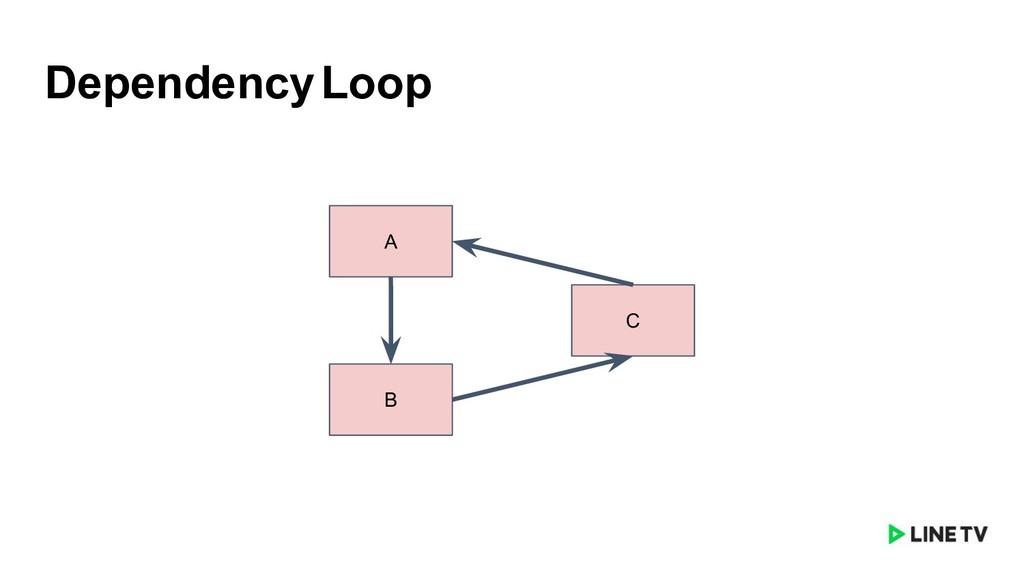

13. Dependency Loop A B C

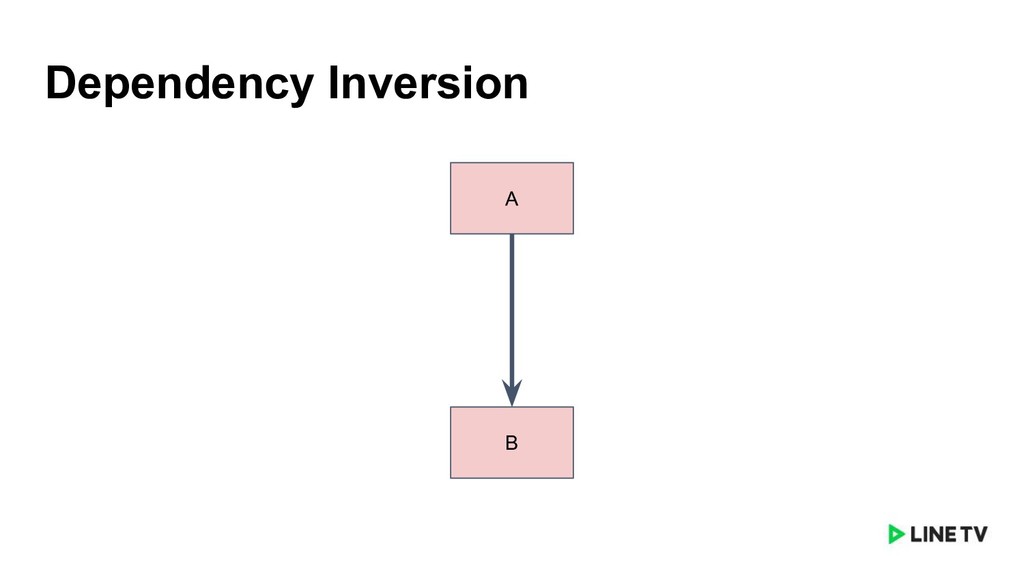

14. Dependency Inversion A B

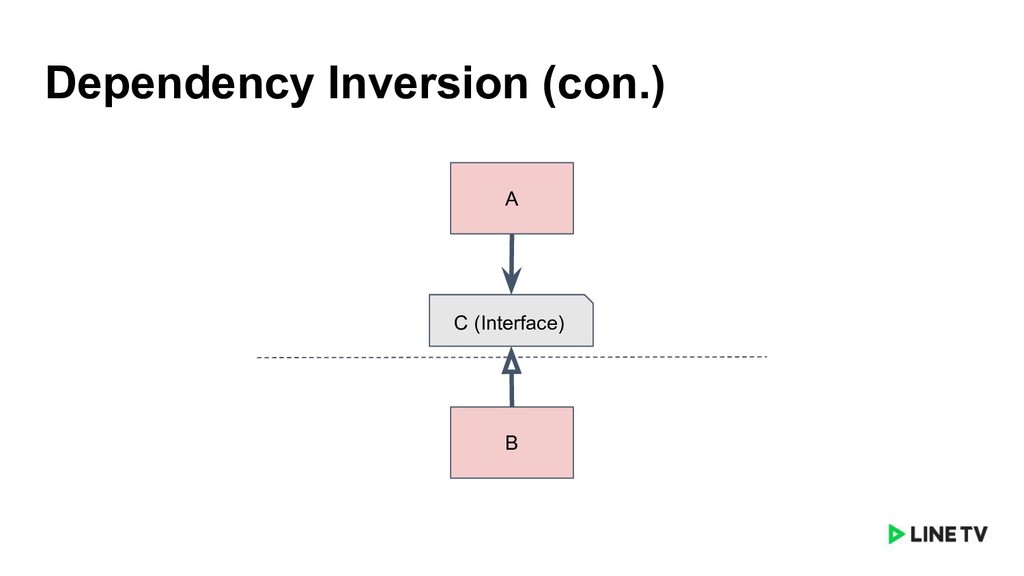

15. Dependency Inversion (con.) A B C (Interface)

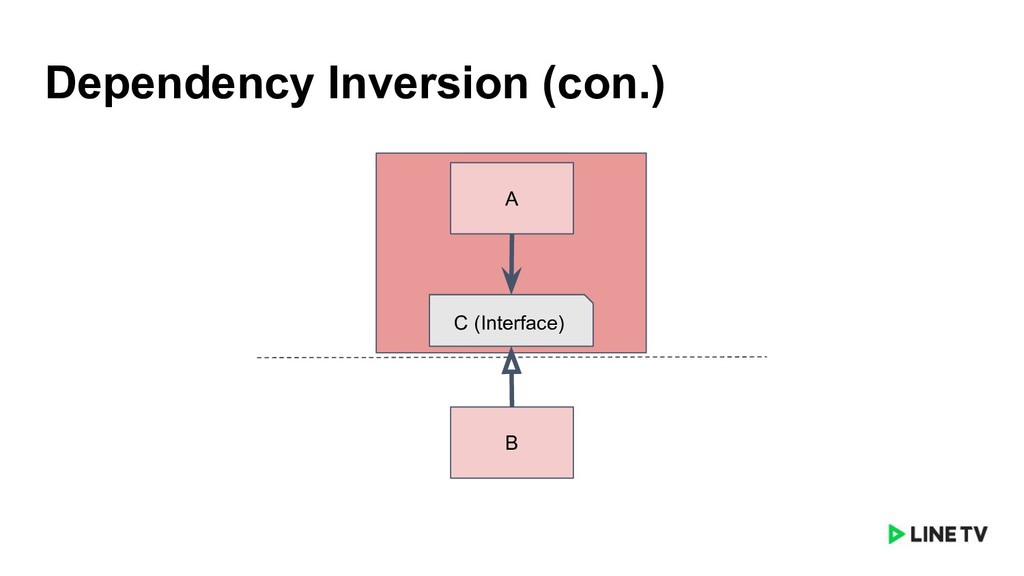

16. Dependency Inversion (con.) A B C (Interface)

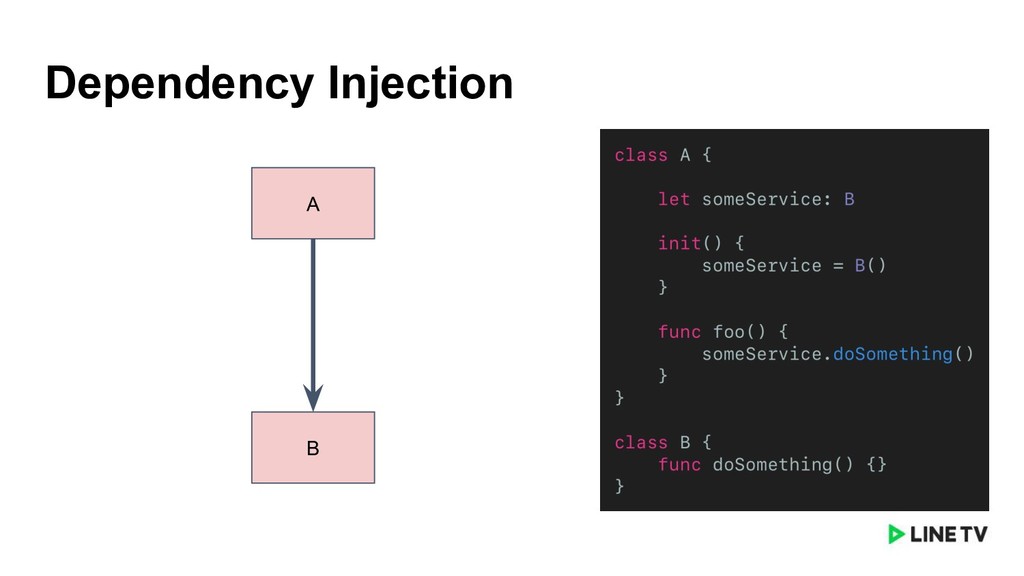

17. Dependency Injection A B

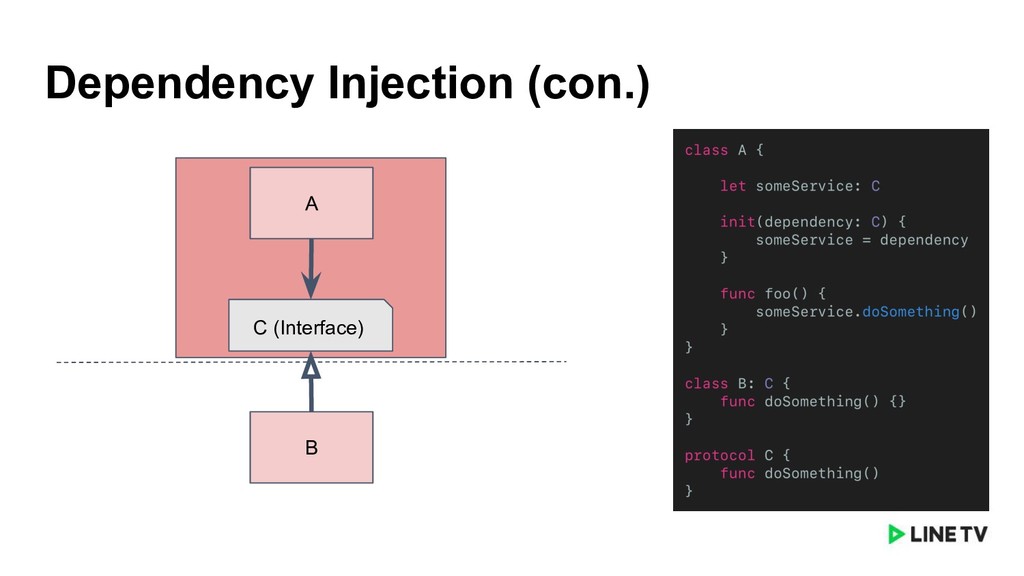

18. Dependency Injection (con.) A B C (Interface)
19. The Ways to Package Objects

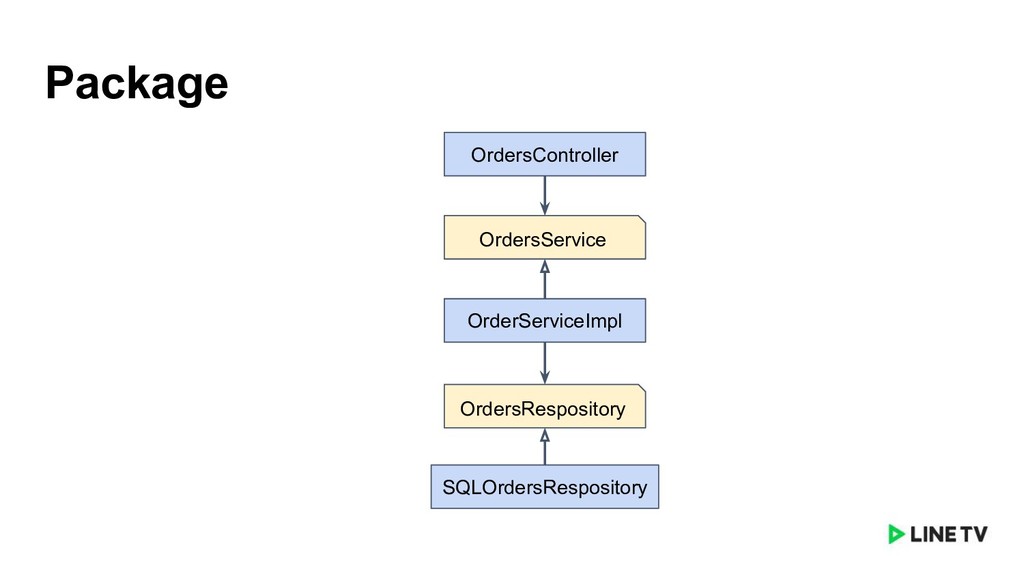

20. Package OrdersController OrderServiceImpl SQLOrdersRespository OrdersService OrdersRespository

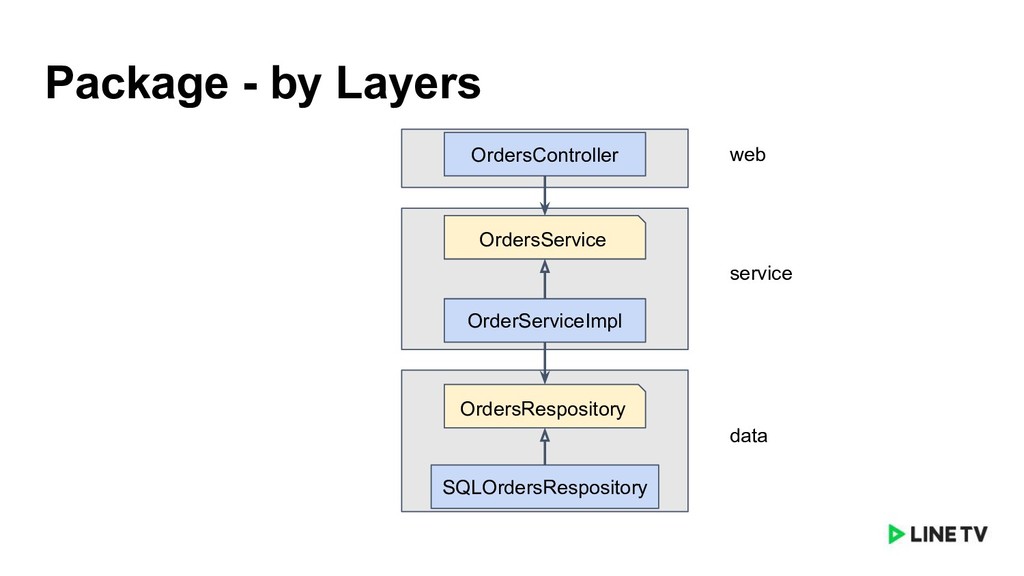

21. Package - by Layers web service data OrdersController OrderServiceImpl SQLOrdersRespository OrdersService OrdersRespository

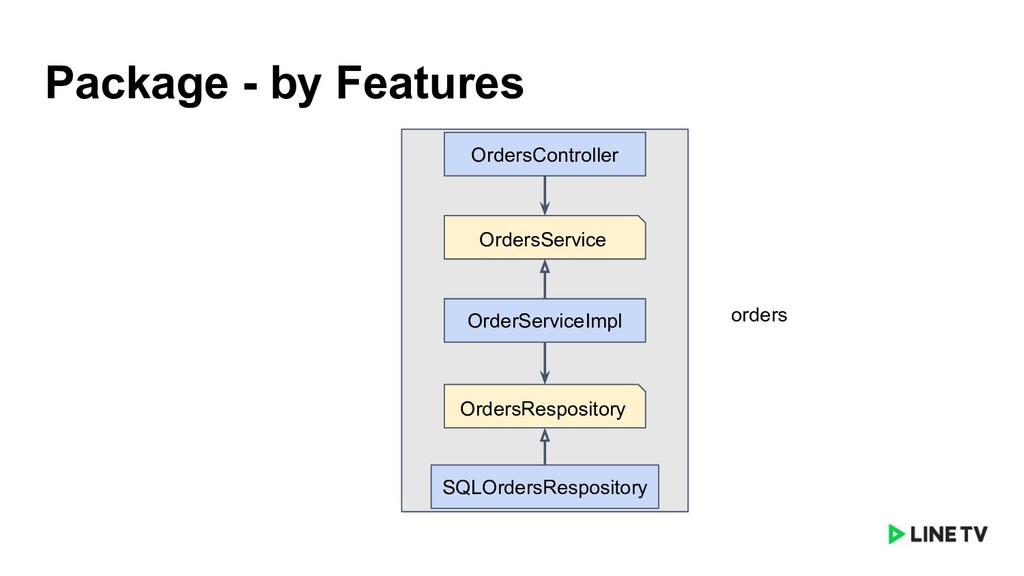

22. Package - by Features orders OrdersController OrderServiceImpl SQLOrdersRespository OrdersService OrdersRespository

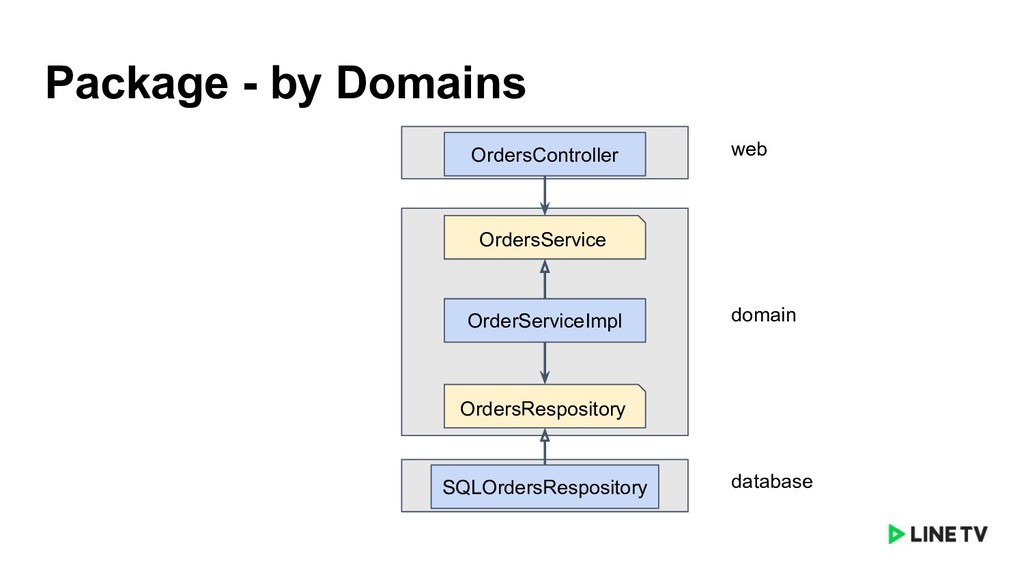

23. Package - by Domains domain web database OrdersController OrderServiceImpl SQLOrdersRespository OrdersService OrdersRespository

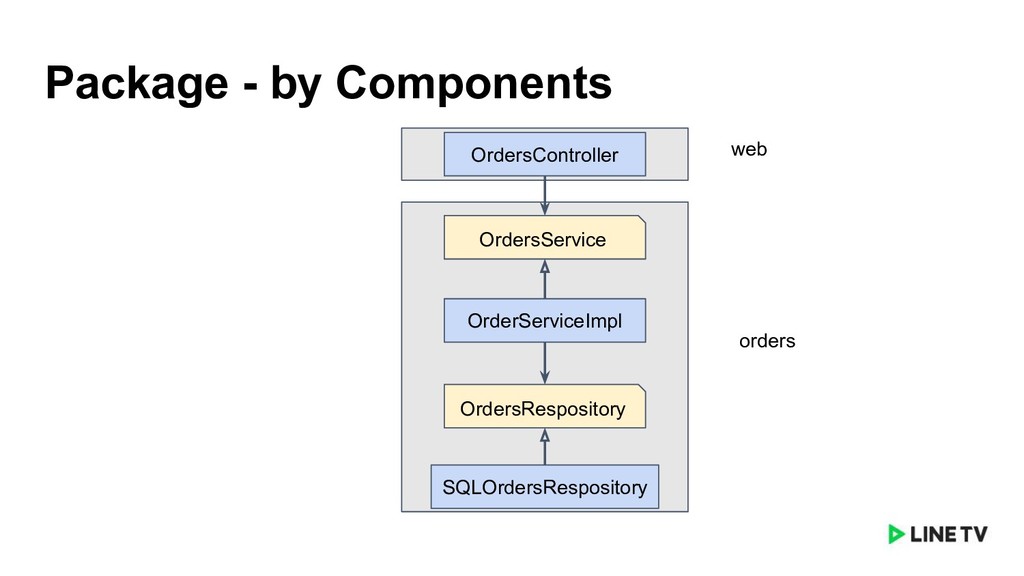

24. Package - by Components web orders OrdersController OrderServiceImpl SQLOrdersRespository OrdersService OrdersRespository
25. MVP v.s. MVVM https://medium.com/ios-os-x-development/ios-architecture- patterns-ecba4c38de52

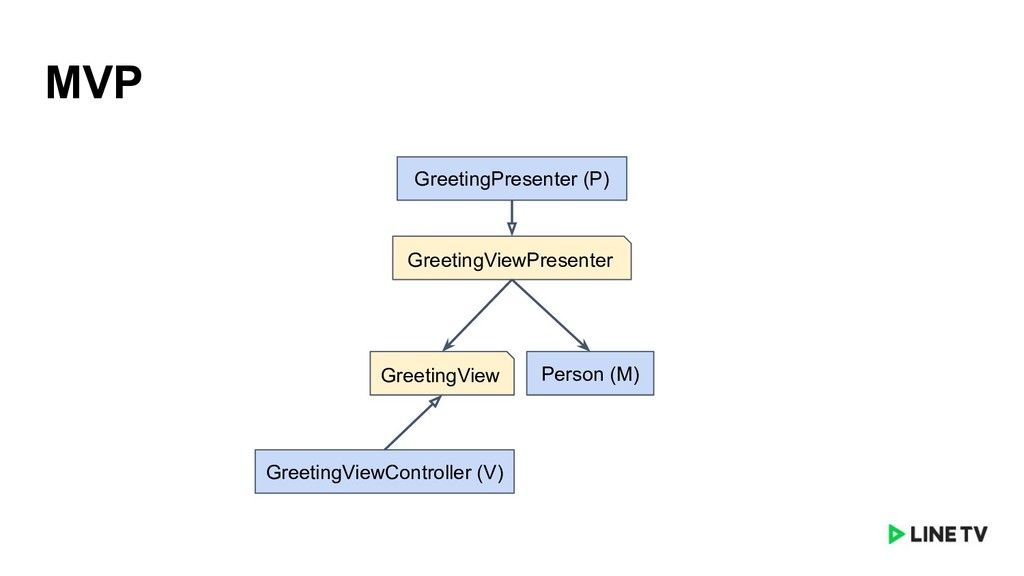

26. MVP Person (M) GreetingViewController (V) GreetingView GreetingViewPresenter GreetingPresenter (P)

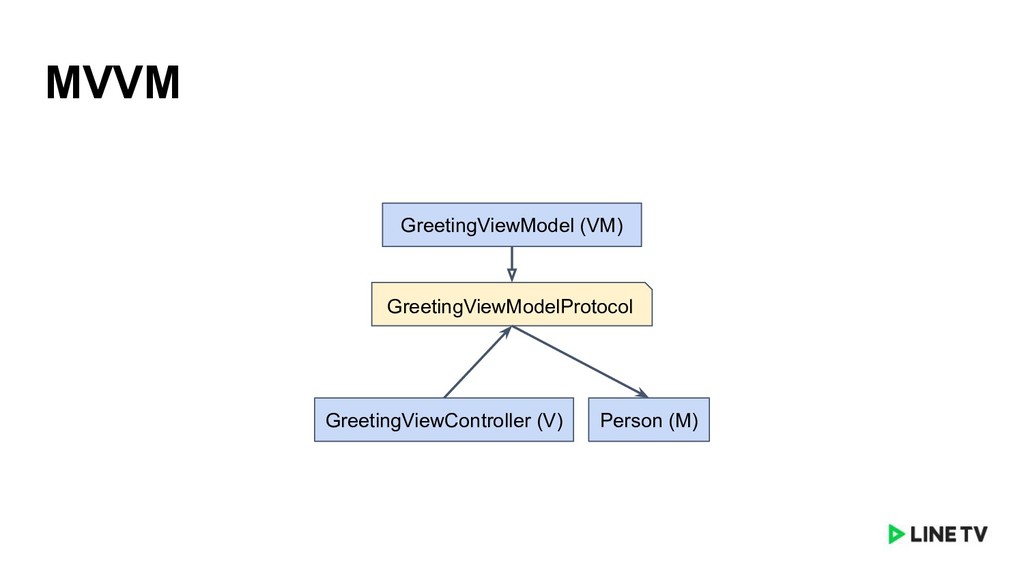

27. MVVM Person (M) GreetingViewController (V) GreetingViewModelProtocol GreetingViewModel (VM)

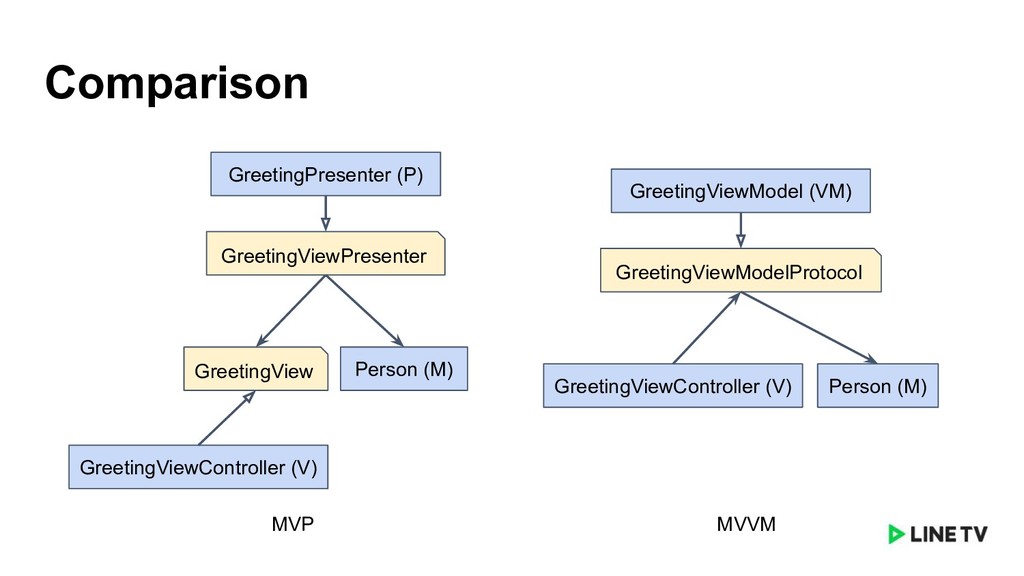

28. Comparison Person (M) GreetingViewController (V) GreetingViewModelProtocol GreetingViewModel (VM) MVVM Person (M) GreetingViewController (V) GreetingView GreetingViewPresenter GreetingPresenter (P) MVP

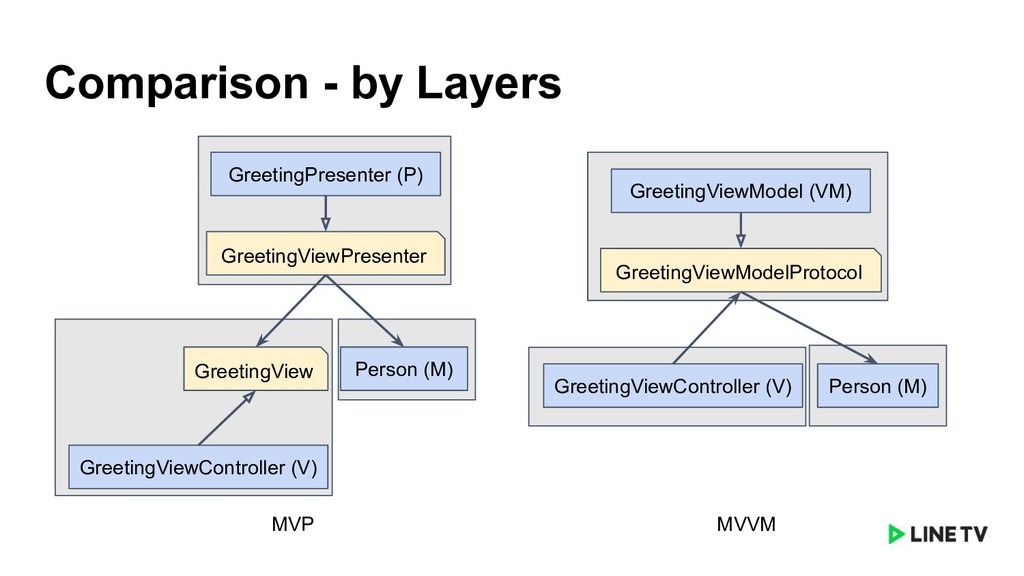

29. Comparison - by Layers Person (M) GreetingViewController (V) GreetingViewModelProtocol GreetingViewModel (VM) MVVM Person (M) GreetingViewController (V) GreetingView GreetingViewPresenter GreetingPresenter (P) MVP

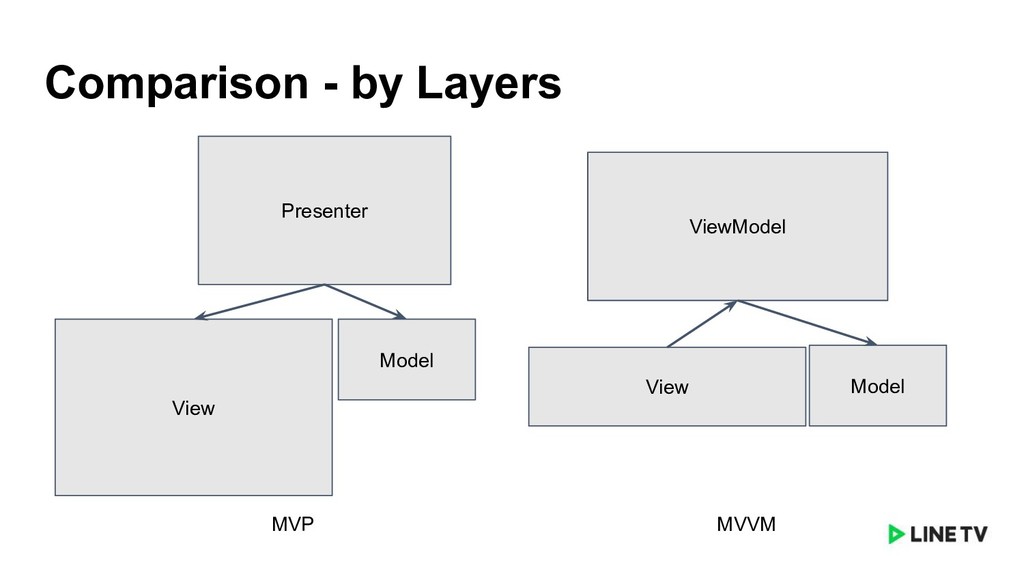

30. ViewModel View Model Model View Comparison - by Layers MVVM Presenter MVP

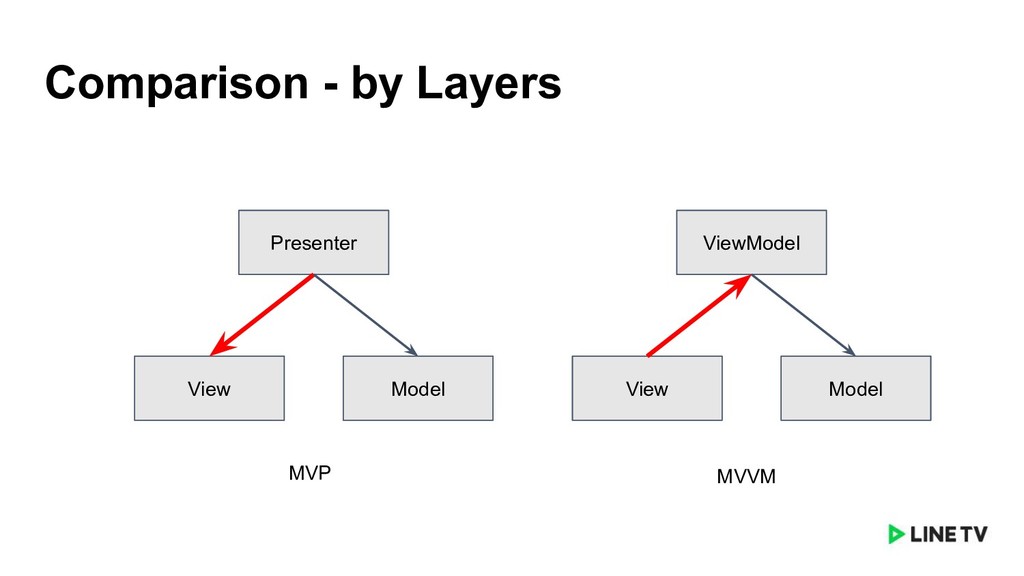

31. Comparison - by Layers MVVM MVP Presenter View Model ViewModel View Model

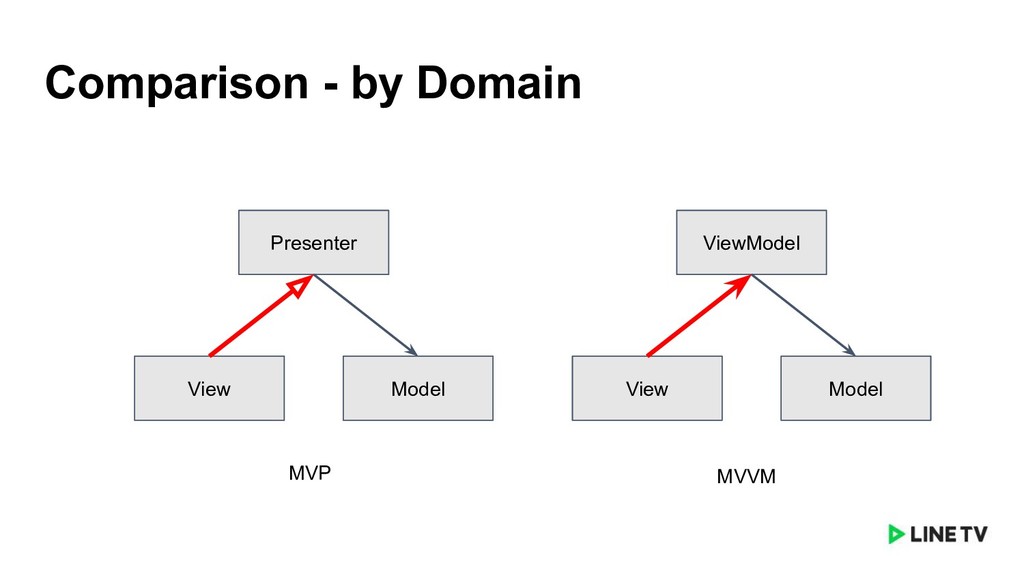

32. Comparison - by Domain MVVM MVP Presenter View Model ViewModel View Model

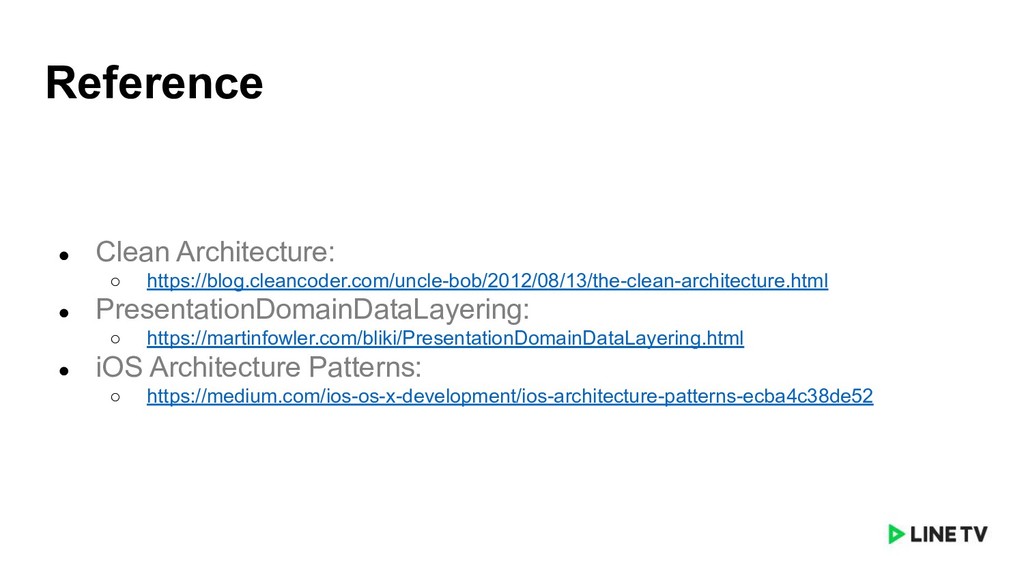

33. Reference • Clean Architecture: ◦ https://blog.cleancoder.com/uncle-bob/2012/08/13/the-clean-architecture.html • PresentationDomainDataLayering: ◦ https://martinfowler.com/bliki/PresentationDomainDataLayering.html • iOS Architecture Patterns: ◦ https://medium.com/ios-os-x-development/ios-architecture-patterns-ecba4c38de52
