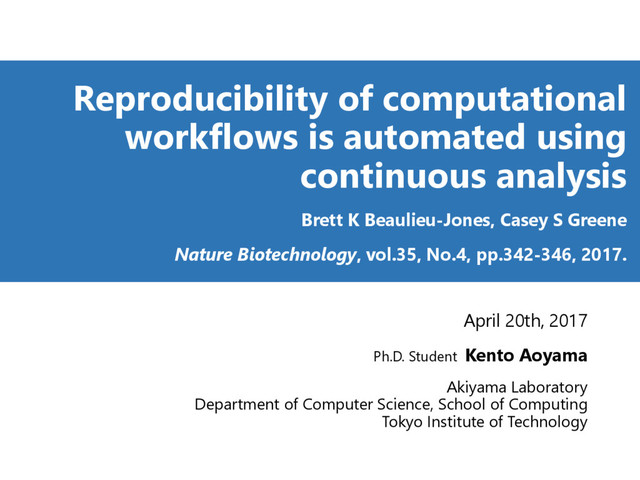

  1. Reproducibility of computational workflows is automated using continuous analysis Brett

    K Beaulieu-Jones, Casey S Greene Nature Biotechnology, vol.35, No.4, pp.342-346, 2017. April 20th, 2017 Ph.D. Student Kento Aoyama Akiyama Laboratory Department of Computer Science, School of Computing Tokyo Institute of Technology
  2. Nature Biotechnology • Top Scientific Journal in biological, biomedical, agricultural

    and environmental sciences • 2-year IF: 43.113 (2016) • e.g.) Nature, IF = 38.138 (2016) Source : http://www.nature.com/npg_/company_info/jour nal_metrics.html Journal Information 2 nature biotechnology, April 2017, vol.35 no.4
  3. Brett K Beaulieu-Jones1, Casey S Greene2 1. Genomics and Computational

    Biology Graduate Group, Perelman School of Medicine, University of Pennsylvania (Twitter: @beaulieujones) 2. Department of Systems Pharmacology and Translational Therapeutics, Perelman School of Medicine, University of Pennsylvania (Twitter: @GreeneScientist) Authors Information 3
  4. Target Problem Reproducibility of computational research Proposed Method Continuous Integration

    + Computational Research = Continuous Analysis Continuous Analysis can automatically verify the research reproducibility • Easy to reproduce, review, and cooperate What is the value of this research ? 4 [GitHub] https://greenelab.github.io/continuous_analysis/
  5. 1. Background 2. Result (Survey) 3. Proposed Method (Architecture) 4.

    Experiments 5. Discussion, Conclusion Outline 5
  6. Research reproducibility is crucial for science But 90% of researchers

    acknowledged reproducibility crisis[1] Background | Reproducibility Crisis 6 [1] Baker, M. 1,500 scientists lift the lid on reproducibility. Nature 533, 452–454 (2016).
  7. Reproducibility Problems • lack of details of experiment • data,

    parameters, code, etc. • lack of machine environment information • software versions, libraries, operating systems, etc. Computational research should be reproducible Background | Reproducibility Spectrum 7 Peng, R.D. Reproducible research in computational science. Science 334, 1226–1227 (2011).
  8. Background | Reproducibility in Biology 8 18 articles, published in

    Nature Genetics (2005, 2006) • can not reproduce (10 articles, 56%) • can reproduce with discrepancies (6 articles, 33%) Ioannidis, J.P.A. et al. “Repeatability of published microarray gene expression analyses”, Nat. Genet. 41, 149–155 (2009)
  9. Result (Survey) 9

  10. Survey of Differential Gene Expression Research • Probe information is

    necessary for reproduction • probe, is the oligonucleotides of certain sequences, is used to measure transcript expression levels BrainArray Custom CDF [1] • A popular source of probe set description files • [Dai, M. et al.] published and maintains • Version of Custom CDF can verify detailed information of probe set Authors analyzed the 200 articles, which cited [Dai, M. et al.][1]. Reproducibility on RNA-Analysis 10 [1] Dai, M. et al. Evolving gene/transcript definitions significantly alter the interpretation of GeneChip data. Nucleic Acids Res. 33, e175 (2005).
  11. Reporting of Custom CDF in articles 11 a) Most Recent

    100 articles 51% of articles do NOT showed version of Custom CDF b) Highest cited 100 articles 64% of articles do NOT showed version of Custom CDF cannot download (14 Nov. 2016)
  12. How different versions affect the analysis result To measure the

    effects, • download the different version of Custom CDFs • use the same data set • normal HeLa cells and HeLa cells in which TIA1 and TIAR (TIAL1) were knocked down Comparing the results • same source code • same data set • different versions of BrainArray Custom CDF (18, 19, 20) • different versions of software packages Effects on Analysis Result 12
  13. Figure 2a. differential gene expression analysis of HeLa cells 13

    Each version identified different number of significantly altered genes. • e.g.) 15 genes were identified as significant in v19, but not in version 18. … Analysis results are NOT reproducible without accurate version of software, dataset
  14. Figure 2b. container-based approaches 14 Using Docker[1] containers improves reproducibility

    • Docker can create “image” which contains software env. • Docker allows users to run the exact same apps in any env. Using Docker container enabled versions to be matched and produced same result. [1] https://www.docker.com
  15. • Docker is useful for reproducible workflow • same versions

    of software • same version of dataset • isolation from host OS software environment • Image tags is useful for management of software release and paper revisions. Supplementary Information • Docker (Container Virtualization) is attached at the end of this slide. Docker for reproducible workflow 15
  16. Proposed Method 16

  17. Resolving Reproducible Problem To avoid the problem of version of

    data & software • Docker can share the executable container which contains data & software But sometimes, we need to upgrade the software. Then, it is necessary to check the result. Automatic verification is needed. An automatic & verifiable software development approach Continuous Integration (CI) Continuous Analysis 17
  18. Continuous Integration (CI)[1] • is a software engineering practice for

    fast development • automatically build, run tests, and make analytics which triggered by version control system (e.g. git) About Continuous Integration 18 [1] Grady (1991). Object Oriented Design: With Applications. Benjamin Cummings. p. 209. ISBN 9780805300918. Retrieved 2014-08-18. [2] Travis CI, https://travis-ci.org/ e.g.) Travis CI[2] badge
  19. 1. Developer pushed commits to repository 2. Test script is

    executed automatically on CI service 3. Test result is generated automatically e.g.) Travis CI 19 e.g.) https://github.com/galaxyproject/galaxy
  20. e.g.) CI on Product Development 20 figure: https://developer.xamarin.com/guides/cross-platform/ci/intro_to_ci/ e.g.) Xamarin

    Test Cloud
  21. Docker provides environment reproducibility • same version of dataset •

    same version of software • easy to build the environment (Dockerfile) • easy to share the environment (Docker Hub) • Continuous Analysis can verify reproducibility of computational research • automatically tests the reproducibility • automatically updates results Continuous Analysis 21
  22. Fig.3 Continuous Analysis Workflow 22

  23. Workflow 23 1. Push source code changes 2. (Generate the

    base Docker image from Dockerfile) 3. Read parameters and commands from YAML files • Users can descript and execute any commands using YAML e.g.) pre-processing, data-analysis, etc. 4. Generate the outputs to another branch • result data, figures, logs (managed in VCS) 5. Update the latest Docker Image
  24. Drone • Continuous Integration Open Source Software • https://github.com/drone/drone •

    Easy to setup using Docker container • (almost same as other CI services) GitHub • Online Git Repository • BitBucket and GitLab are also available System Components 24
  25. .drone.yml Example Configuration https://greenelab.github.io/continuous_analysis/ https://github.com/greenelab/continuous_analysis/blob/master/.drone.yml Example of YAML file 25

    # choose the base docker image image: brettbj/continuous_analysis_base script: # run pre-process # run tests # perform analysis # publish results publish: docker: # docker details
  26. Introducing this system to their work • “Denoising Autoencoders for

    Phenotype Stratification (DAPS): Preprint Release” • http://doi.org/10.5281/zenodo.46165 They runs 2 example analyses: • a phylogenetic tree–building analysis • an RNA-seq differential expression analysis (detailed information is in Online Method) Experiments 26
  27. Experiments Result (Fig.4) 27 easy to compare the changed output

    figure
  28. • Continuous analysis provides a verifiable scientific software in fully

    specified environment • easy to get reproducible environment using Docker • environment have been automatically kept up-to-date • It allows reviewers, editors and readers to assess reproducibility without a large time commitment Discussion | Conclusion 28
  29. • It may be impractical to use it on large-computational

    analysis at every commit • Cloud computing environment can resolve it, but it requires auto-provisioning skills • It is possible to skip CI steps using registered phrase • It does not address reproducibility in the broader sense: • robustness of results to parameter settings • starting conditions • partitions in the data (these are not target of this research) Discussion | Limitations 29
  30. Linux Container • virtualizes the host resource as containers •

    Filesystem, hostname, IPC, PID, Network, User, etc. • can be used like Virtual Machines Linux Kernel Features • Containers are sharing same host kernel • namespace[1], chroot, cgroup, SELinux, etc. Container-based Virtualization 30 [1] E. W. Biederman. “Multiple instances of the global Linux namespaces.”, In Proceedings of the 2006 Ottawa Linux Symposium, 2006. Machine Linux Kernel Space Container Process Process Container Process Process
  31. Docker [1] • Most popular Linux Container management platform •

    Many useful components and services Linux Container Management Tools 31 [1] Solomon Hykes and others. “What is Docker?” - https://www.docker.com/what-docker [2] W. Bhimji, S. Canon, D. Jacobsen, L. Gerhardt, M. Mustafa, and J. Porter, “Shifter : Containers for HPC,” Cray User Group, pp. 1–12, 2016. [3] “Singularity” - http://singularity.lbl.gov/ [1] [2] [3]
  32. Easy container sharing – Docker Hub 32 Portability & Reproducibility

    • Easy to share the application environment via Docker Hub • Containers can be executed on other host machine Ubuntu Docker Engine Container App Bins/Libs Image App Bins/Libs Docker Hub Image App Bins/Libs Push Pull Dockerfile apt-get install … wget … … make CentOS Docker Engine Container App Bins/Libs Image App Bins/Libs Generate Share
  33. AUFS (Advanced multi layered unification filesystem) [1] • Docker default

    filesystem as AUFS • Layers can be reused in other container image • AUFS helps software Reproducibility Docker - Filesystem 33 [1] Advanced multi layered unification filesystem. http://aufs.sourceforge.net, 2014. Docker Container (image) f49eec89601e 129.5 MB ubuntu:16.04 (base image) 366a03547595 39.85 MB ef122501292c 3.6 MB e50c89716342 15.4 KB tag: beta tag: version-1.0 tag: version-1.0.2 tag: version-1.1 5aec9aa5462c 1.17 MB tag: latest 0d3cccd04bdb 1.07 MB
  34. Linux Container – Performance [1] 34 [1] W. Felter, A.

    Ferreira, R. Rajamony, and J. Rubio, “An updated performance comparison of virtual machines and Linux containers,” IEEE International Symposium on Performance Analysis of Systems and Software, pp.171-172, 2015. (IBM Research Report, RC25482 (AUS1407-001), 2014.) 0.96 1.00 0.98 0.78 0.83 0.99 0.82 0.98 0.00 0.20 0.40 0.60 0.80 1.00 PXZ [MB/s] Linpack [GFLOPS] Random Access [GUPS] Performance Ratio [based Native] Native Docker KVM KVM-tuned
