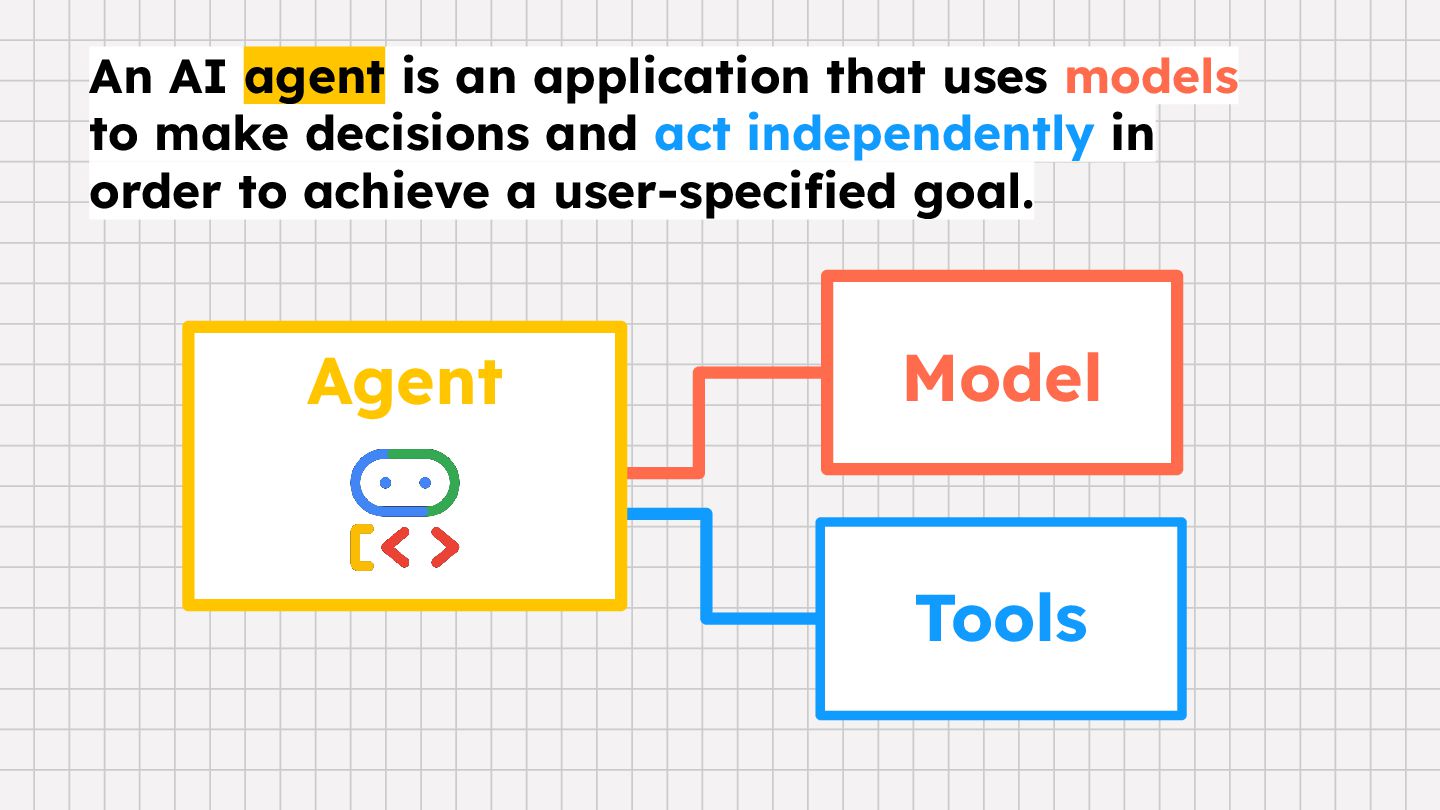

  1. Agent Tools Model An AI agent is an application that

    uses models to make decisions and act independently in order to achieve a user-specified goal.

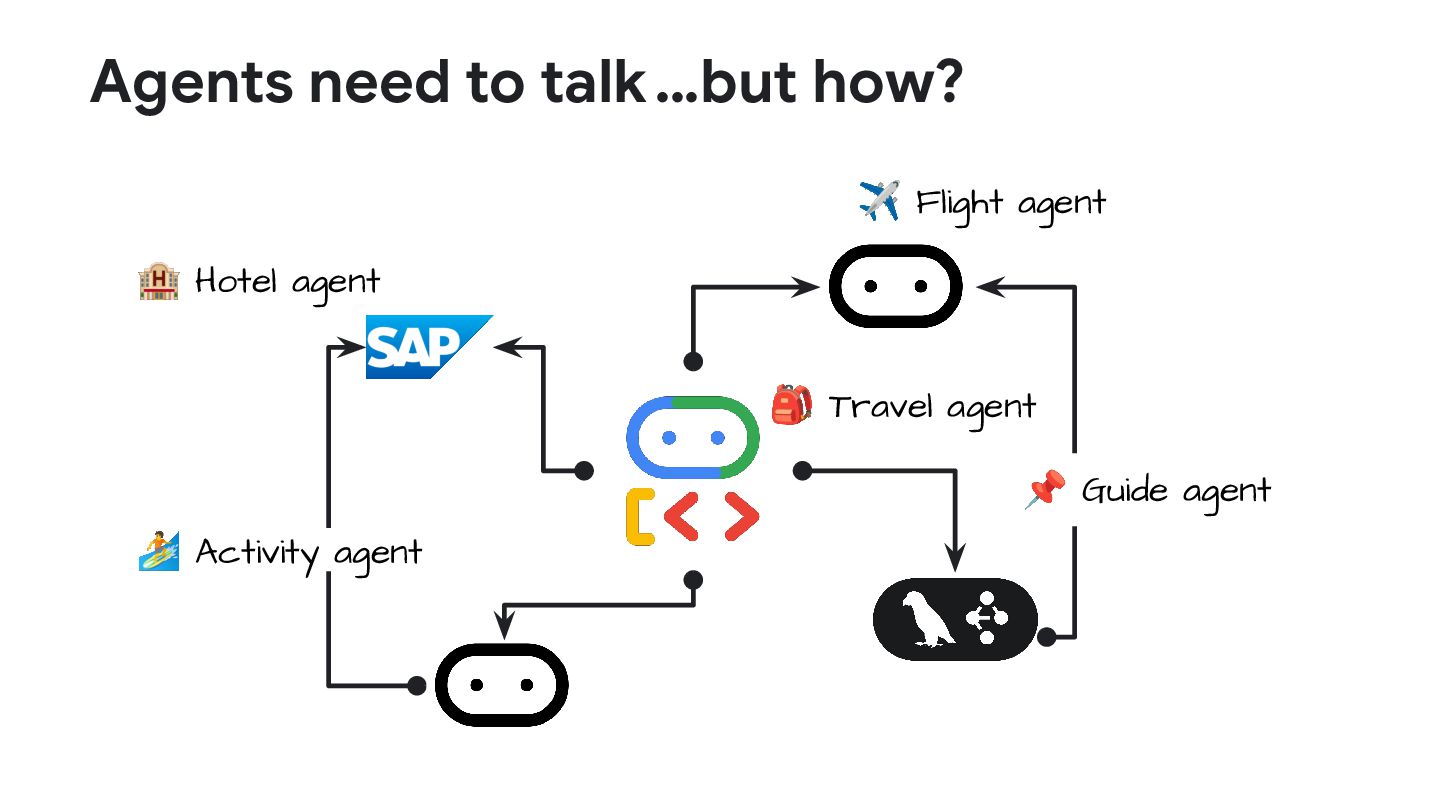

  2. Agents need to talk 🏨 Hotel agent ✈ Flight agent

    🎒 Travel agent 🏄 Activity agent 📌 Guide agent …but how?

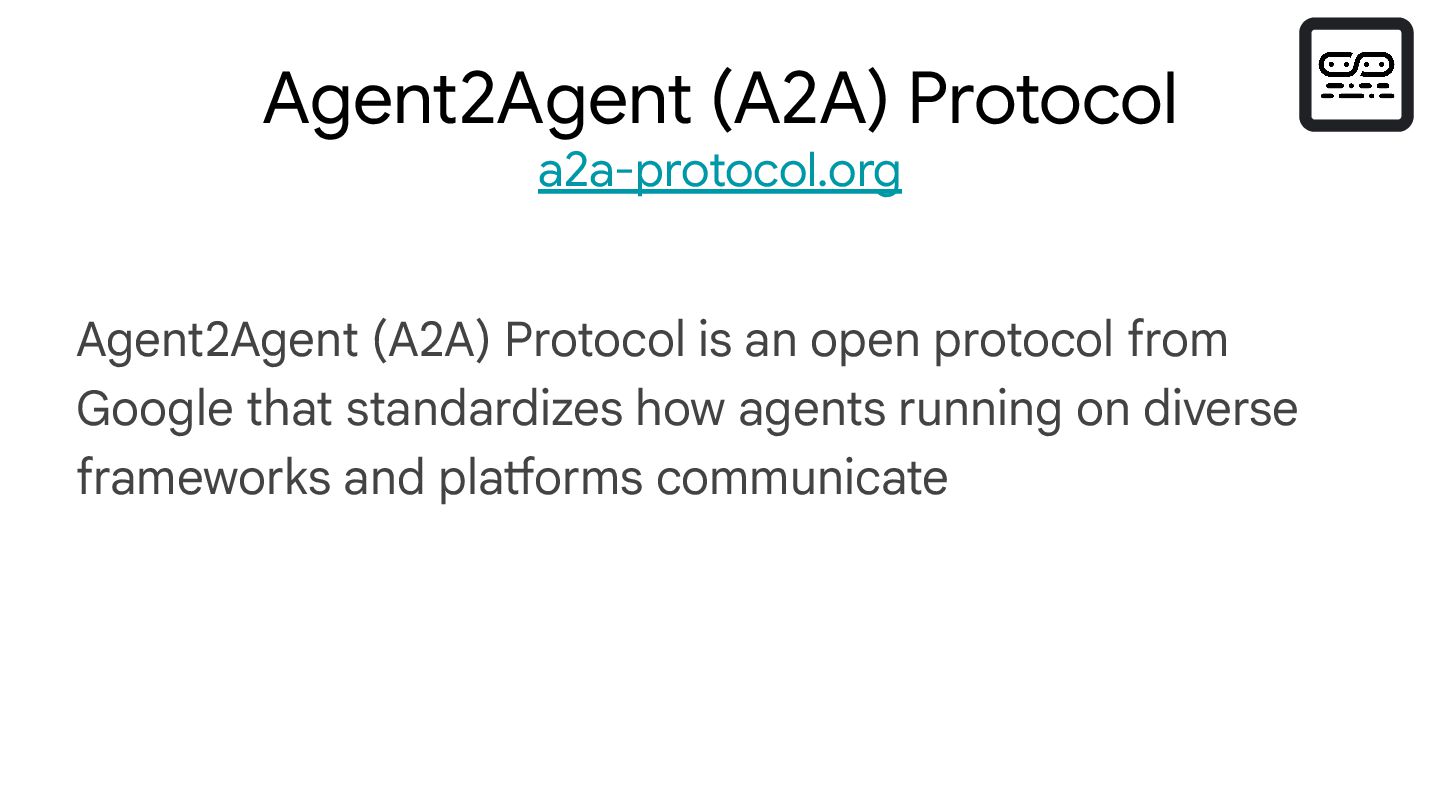

  3. Agent2Agent (A2A) Protocol is an open protocol from Google that

    standardizes how agents running on diverse frameworks and platforms communicate Agent2Agent (A2A) Protocol a2a-protocol.org

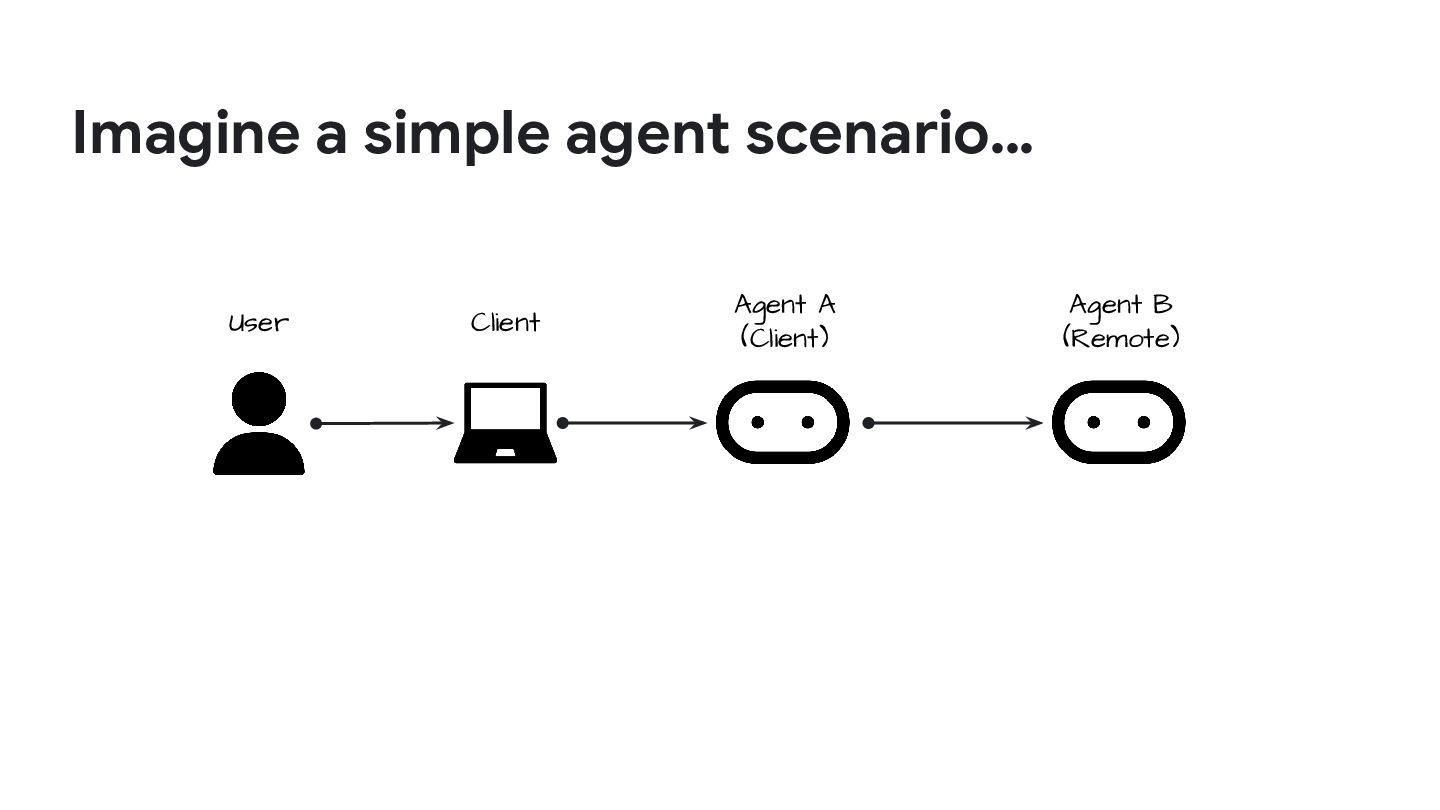

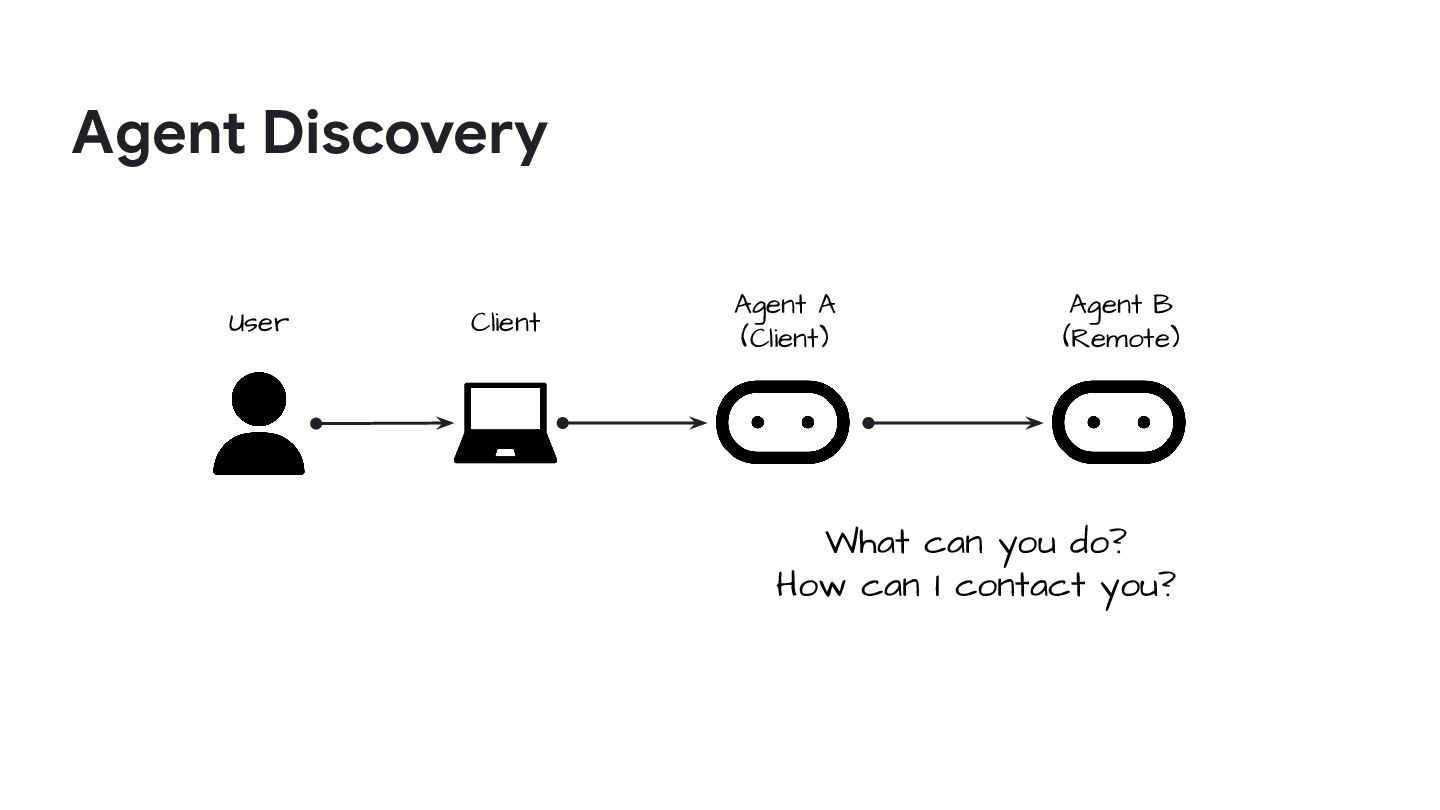

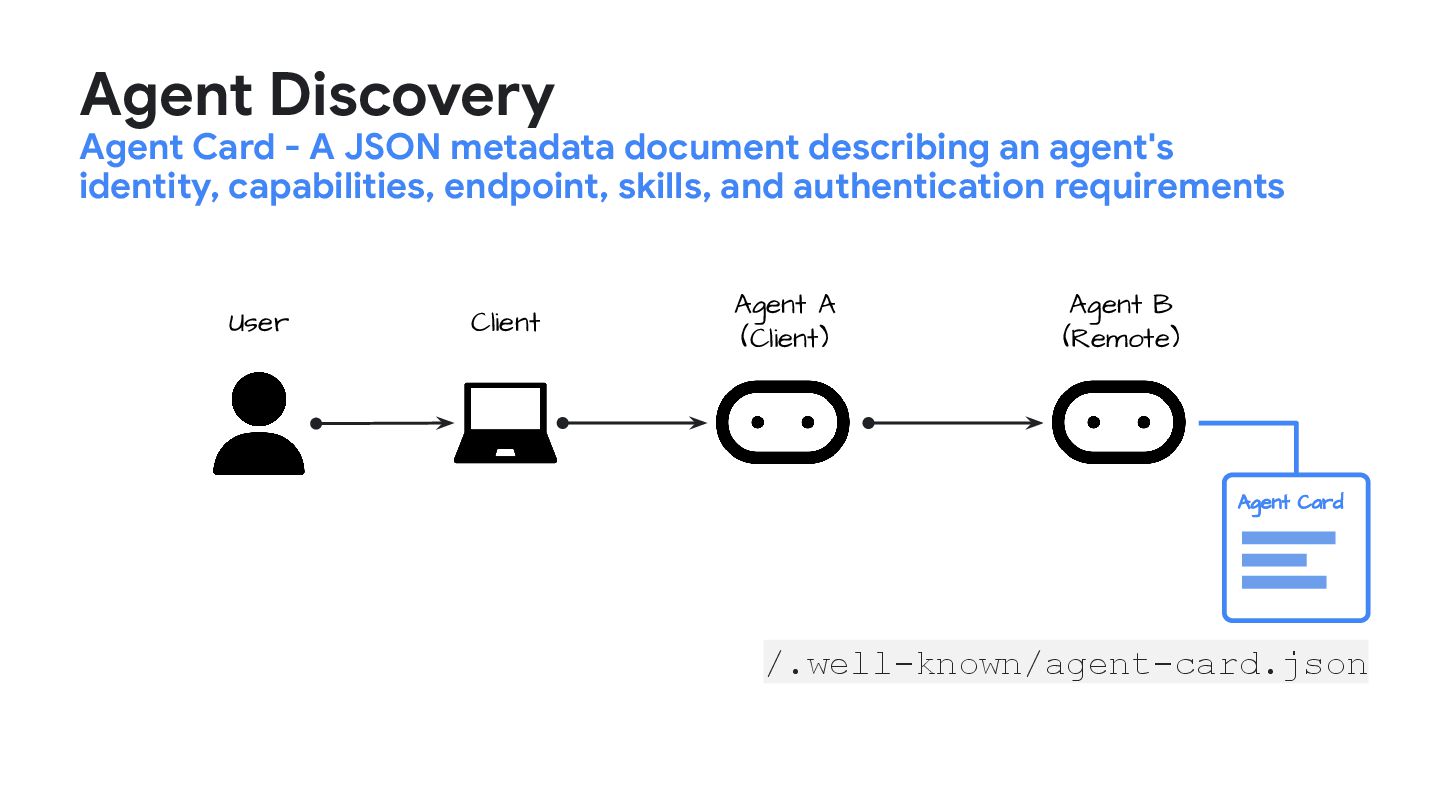

  4. Agent Discovery Client User Agent A (Client) Agent B (Remote)

    What can you do? How can I contact you?

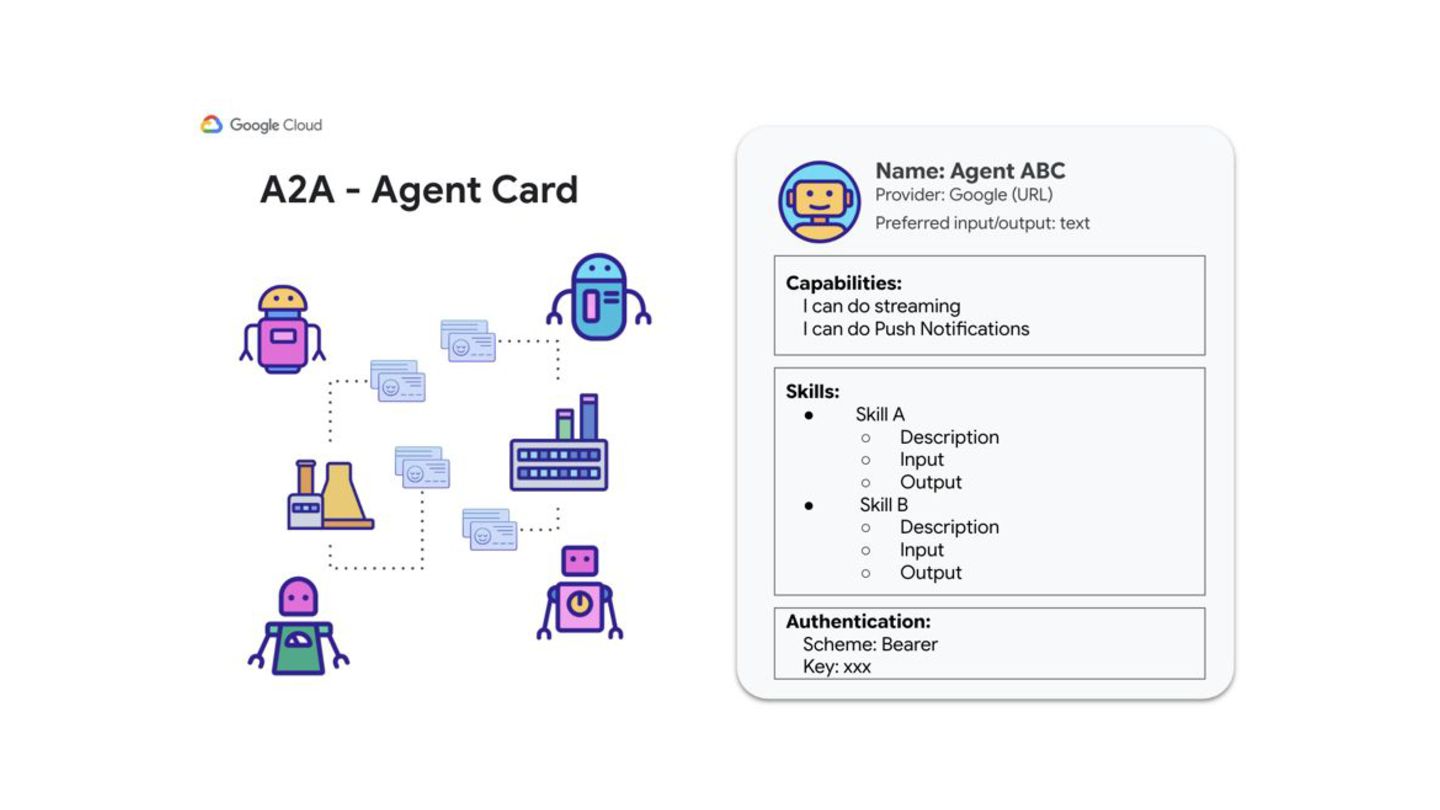

  5. Agent Card Client User Agent A (Client) Agent B (Remote)

    /.well-known/agent-card.json Agent Discovery Agent Card - A JSON metadata document describing an agent's identity, capabilities, endpoint, skills, and authentication requirements

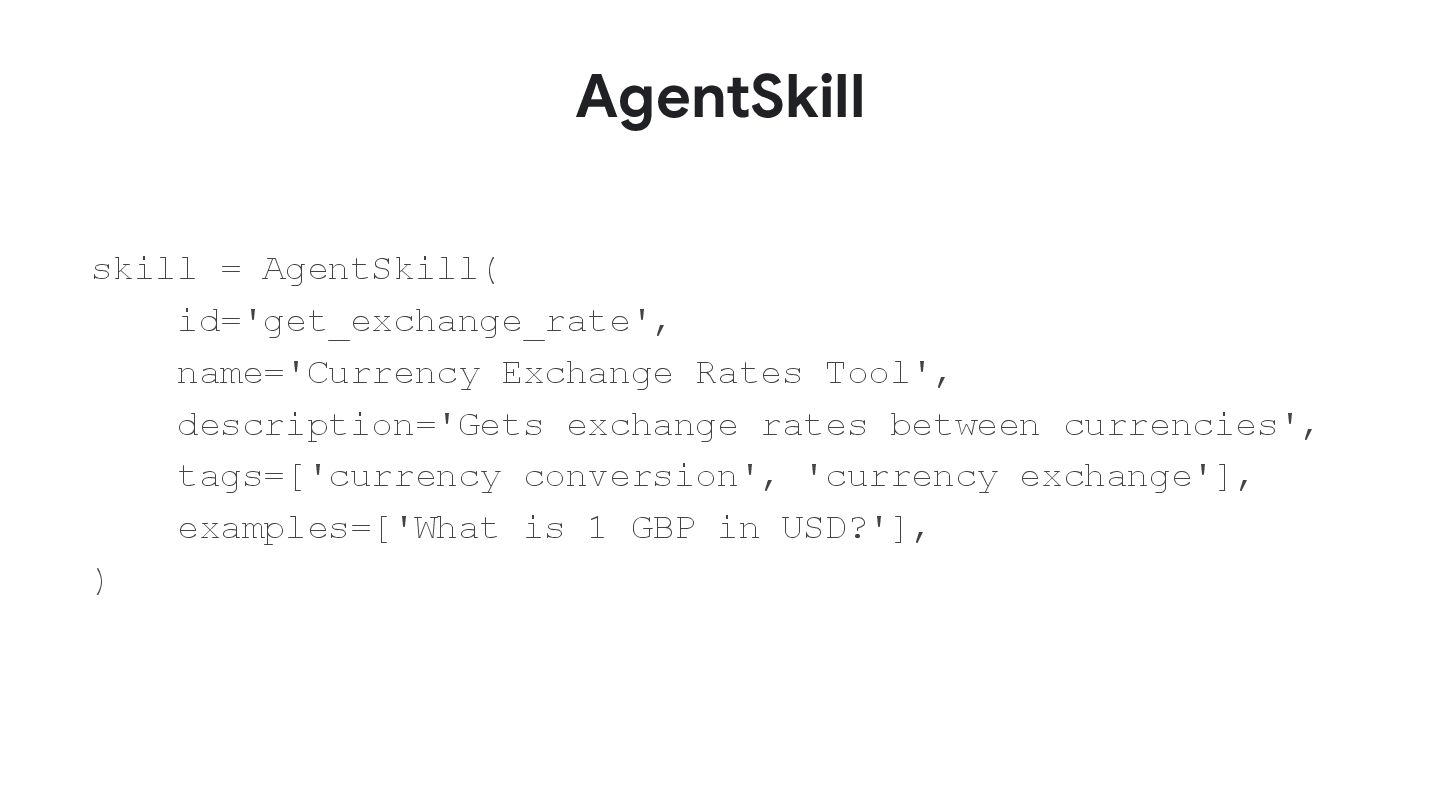

  6. AgentSkill skill = AgentSkill( id='get_exchange_rate', name='Currency Exchange Rates Tool', description='Gets

    exchange rates between currencies', tags=['currency conversion', 'currency exchange'], examples=['What is 1 GBP in USD?'], )

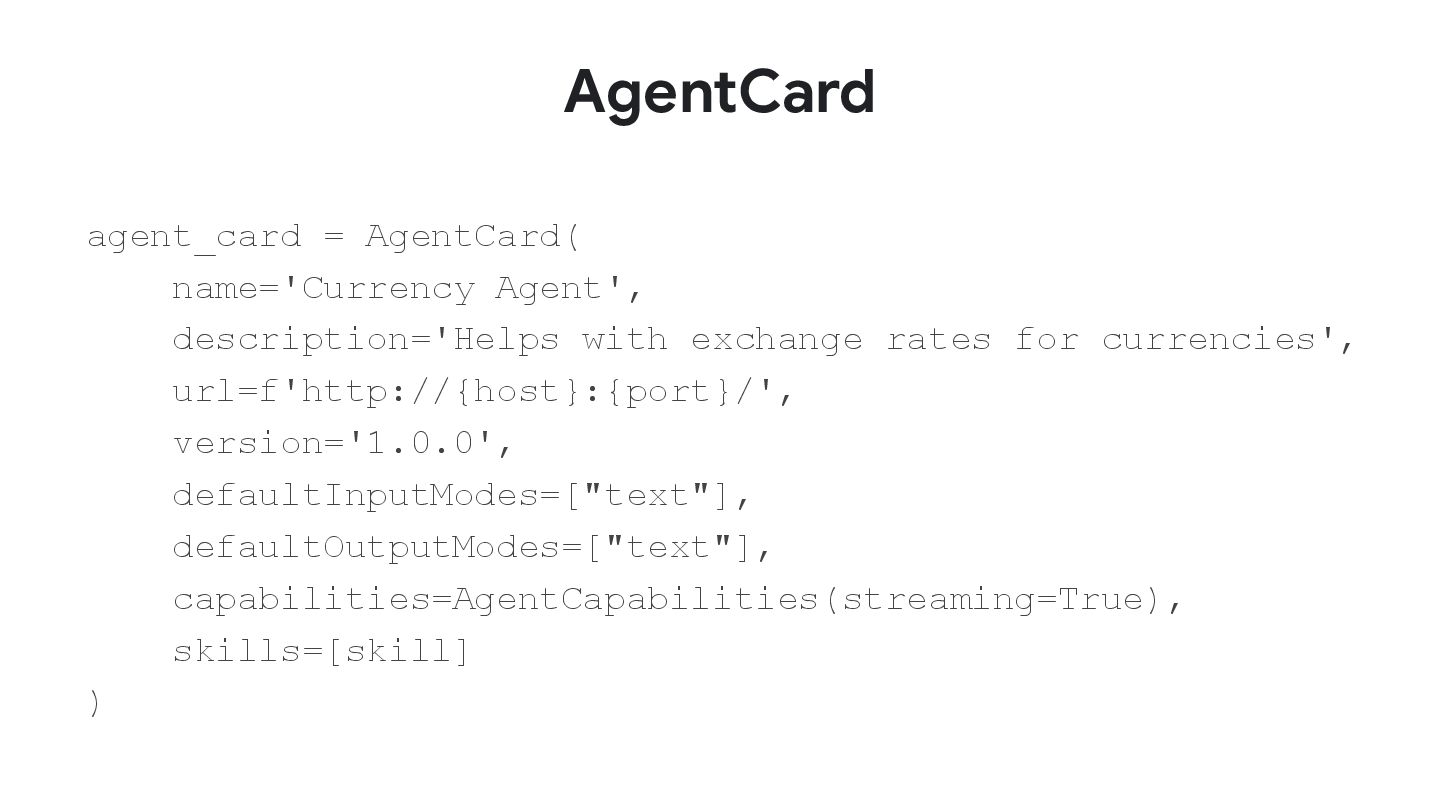

  7. AgentCard agent_card = AgentCard( name='Currency Agent', description='Helps with exchange rates

    for currencies', url=f'http://{host}:{port}/', version='1.0.0', defaultInputModes=["text"], defaultOutputModes=["text"], capabilities=AgentCapabilities(streaming=True), skills=[skill] )

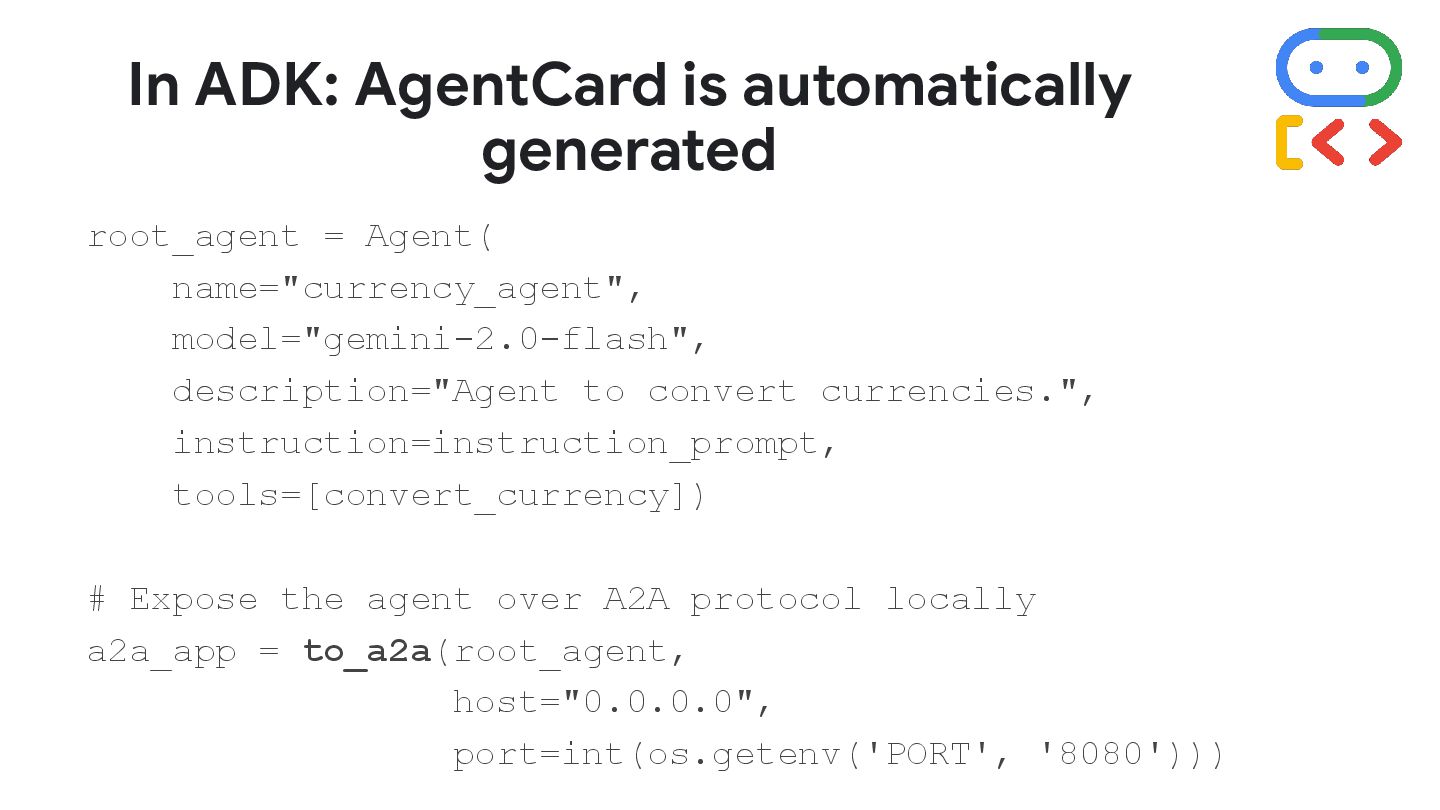

  8. In ADK: AgentCard is automatically generated root_agent = Agent( name="currency_agent",

    model="gemini-2.0-flash", description="Agent to convert currencies.", instruction=instruction_prompt, tools=[convert_currency]) # Expose the agent over A2A protocol locally a2a_app = to_a2a(root_agent, host="0.0.0.0", port=int(os.getenv('PORT', '8080')))

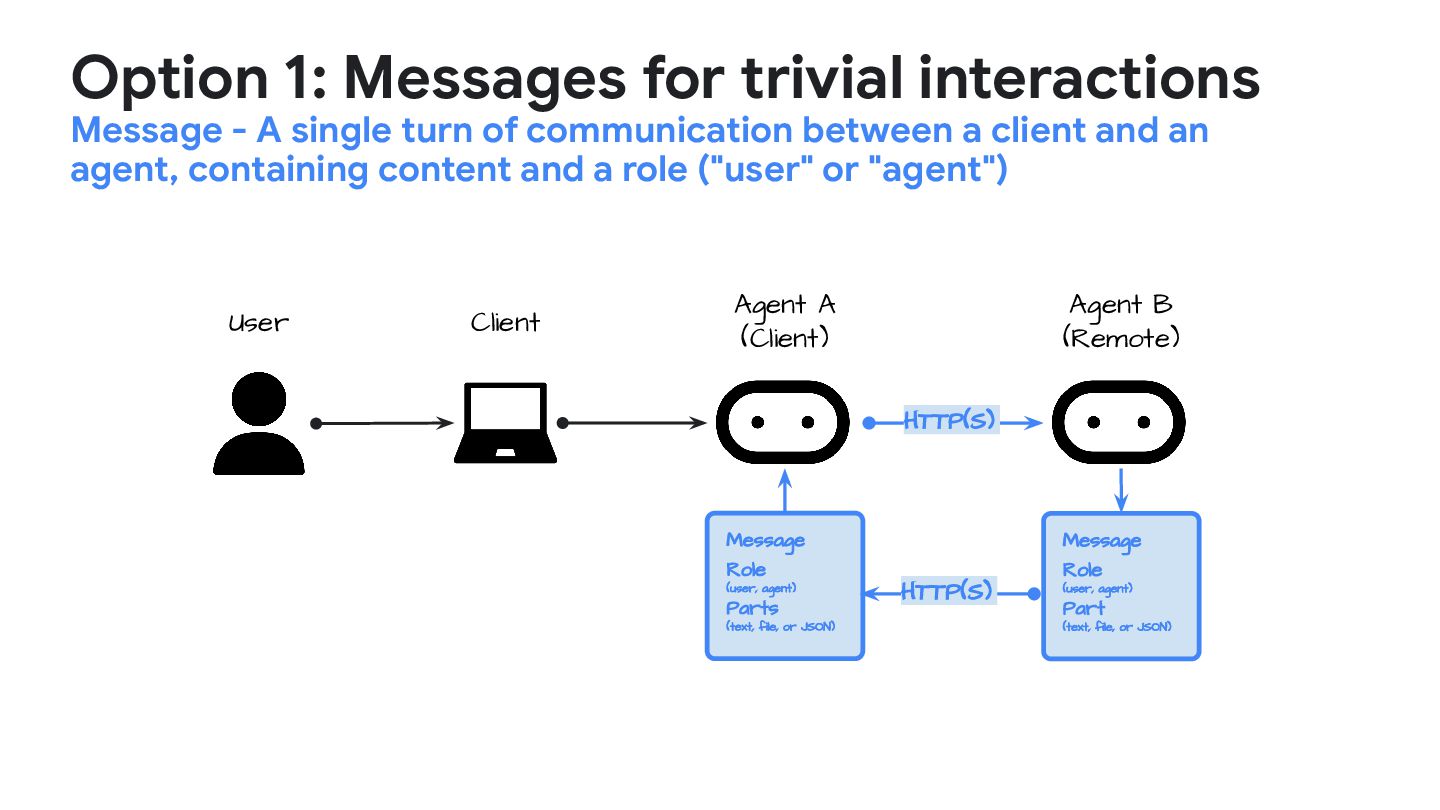

  9. Client User Agent A (Client) Agent B (Remote) HTTP(S) Message

    Role (user, agent) Parts (text, file, or JSON) Message Role (user, agent) Part (text, file, or JSON) HTTP(S) Option 1: Messages for trivial interactions Message - A single turn of communication between a client and an agent, containing content and a role ("user" or "agent")

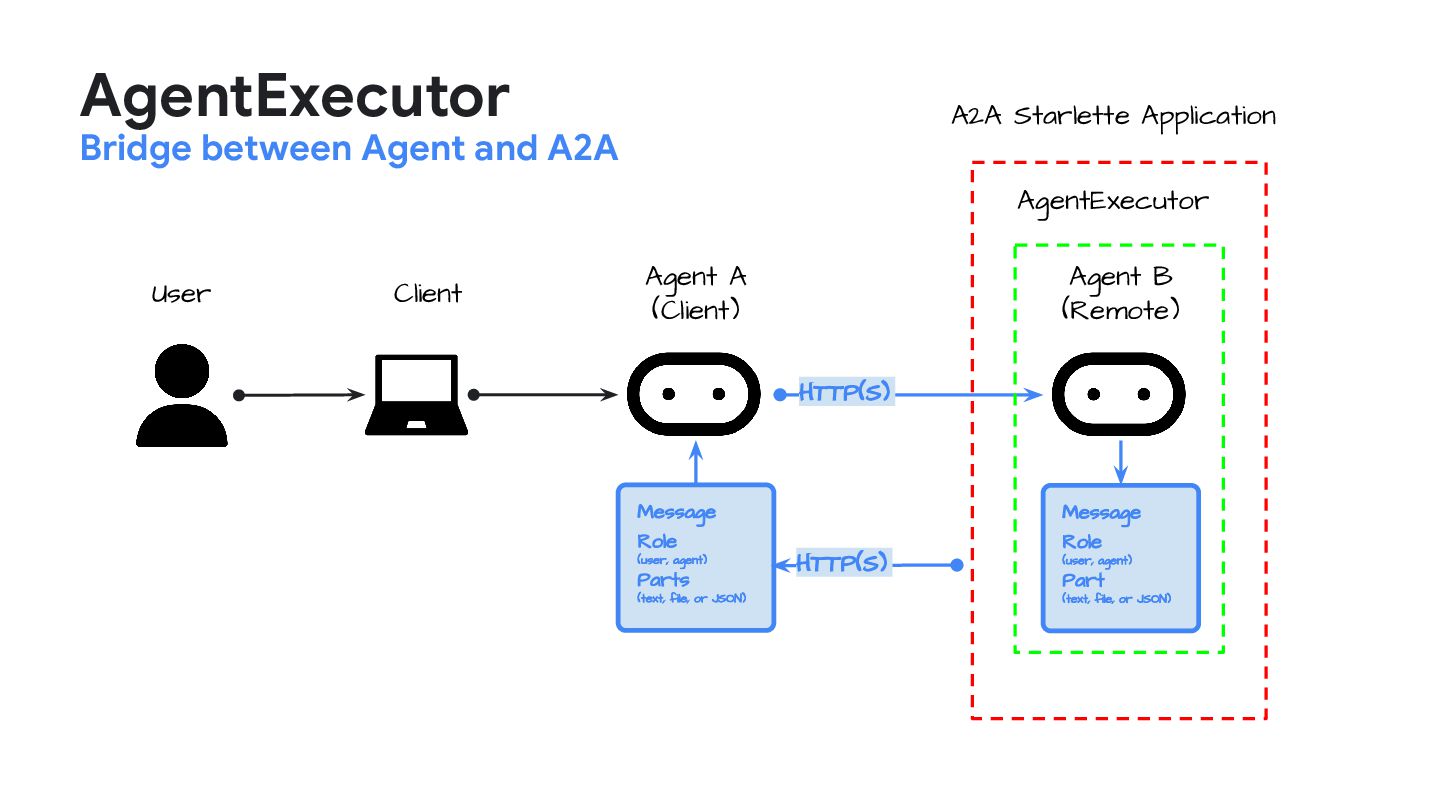

  10. AgentExecutor Bridge between Agent and A2A Client User Agent A

    (Client) Agent B (Remote) HTTP(S) Message Role (user, agent) Parts (text, file, or JSON) Message Role (user, agent) Part (text, file, or JSON) HTTP(S) AgentExecutor A2A Starlette Application

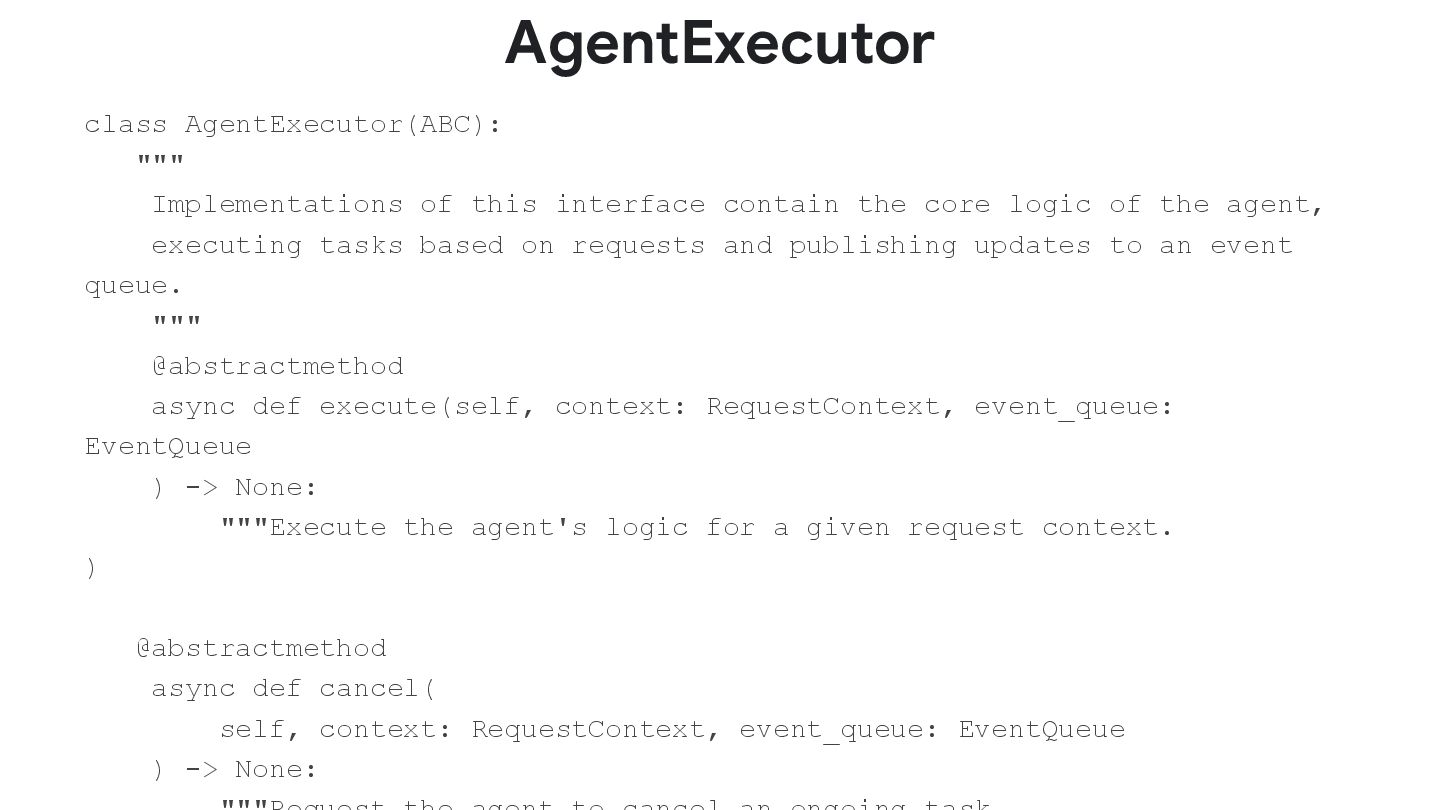

  11. AgentExecutor class AgentExecutor(ABC): """ Implementations of this interface contain the

    core logic of the agent, executing tasks based on requests and publishing updates to an event queue. """ @abstractmethod async def execute(self, context: RequestContext, event_queue: EventQueue ) -> None: """Execute the agent's logic for a given request context. ) @abstractmethod async def cancel( self, context: RequestContext, event_queue: EventQueue ) -> None:

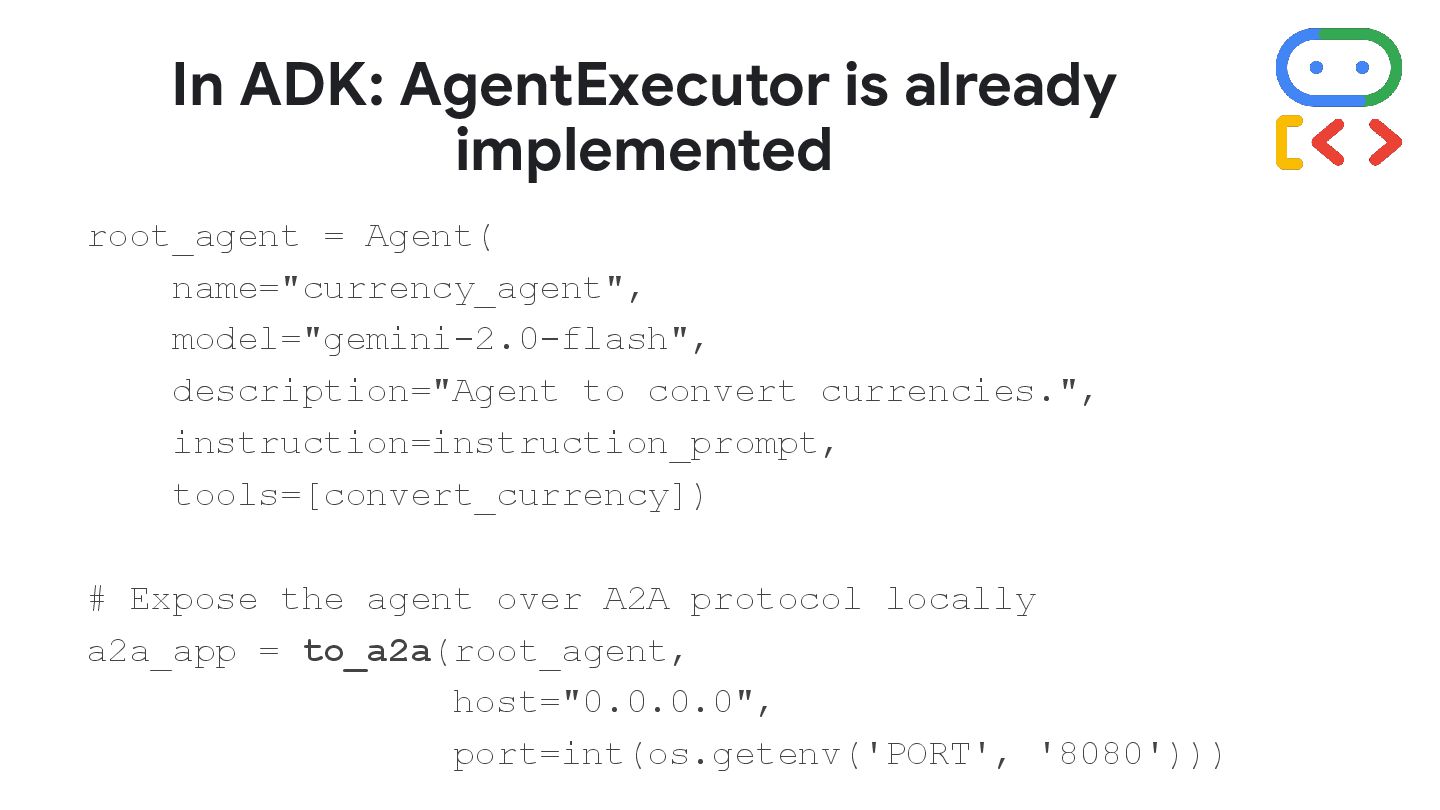

  12. In ADK: AgentExecutor is already implemented root_agent = Agent( name="currency_agent",

    model="gemini-2.0-flash", description="Agent to convert currencies.", instruction=instruction_prompt, tools=[convert_currency]) # Expose the agent over A2A protocol locally a2a_app = to_a2a(root_agent, host="0.0.0.0", port=int(os.getenv('PORT', '8080')))

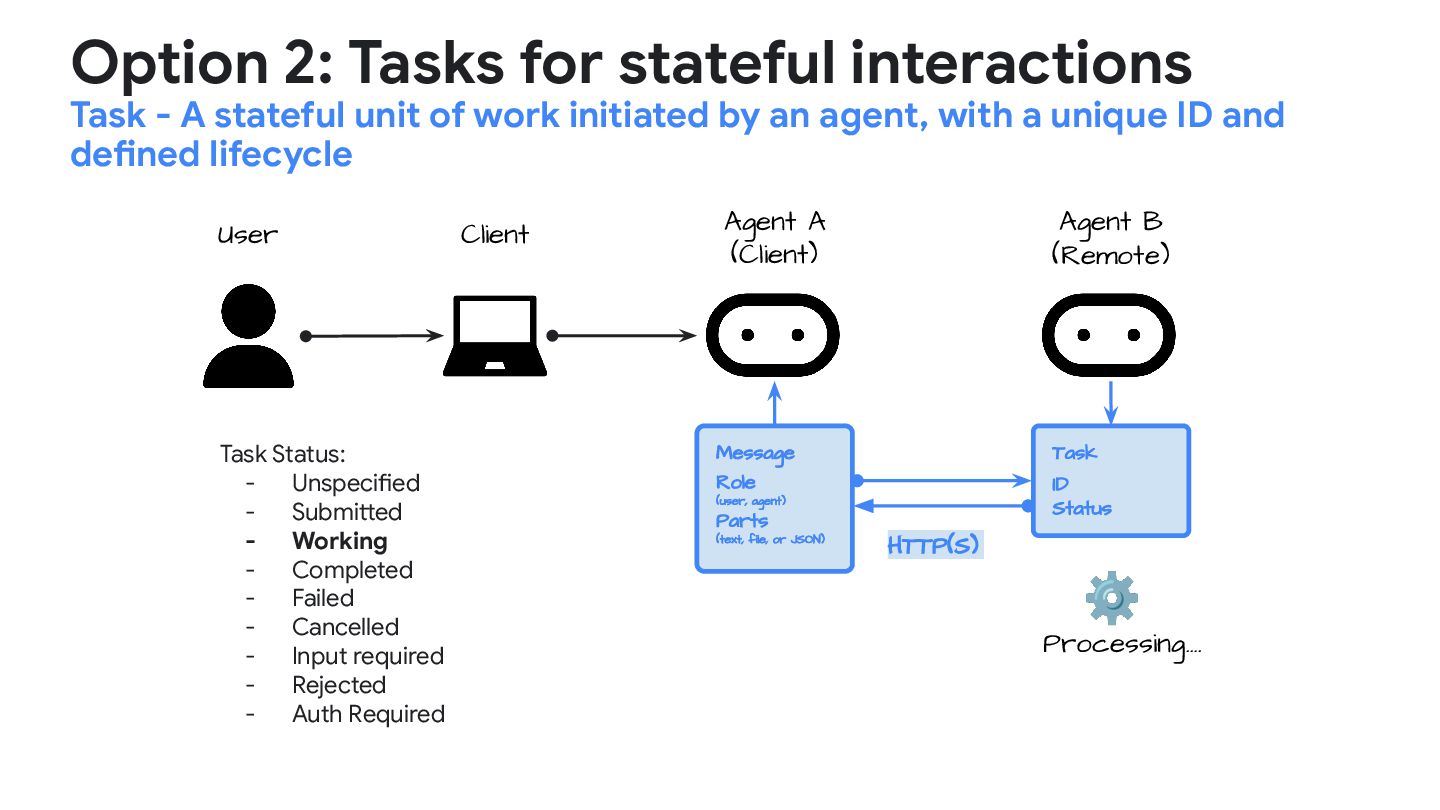

  13. Option 2: Tasks for stateful interactions Task - A stateful

    unit of work initiated by an agent, with a unique ID and defined lifecycle Client User Agent A (Client) Message Role (user, agent) Parts (text, file, or JSON) Task ID Status HTTP(S) Agent B (Remote) ⚙ Processing…. Task Status: - Unspecified - Submitted - Working - Completed - Failed - Cancelled - Input required - Rejected - Auth Required

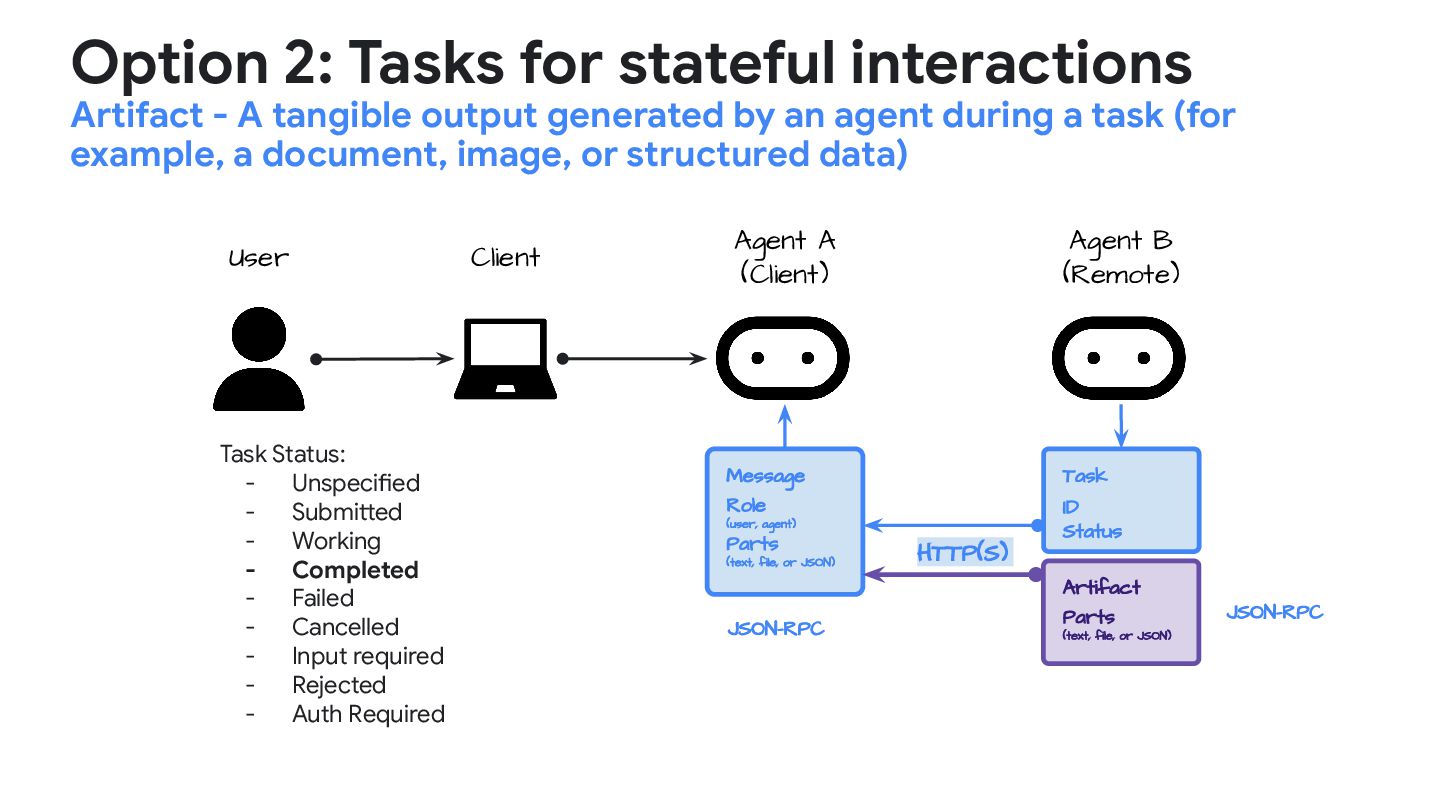

  14. Client User Agent A (Client) Agent B (Remote) Message Role

    (user, agent) Parts (text, file, or JSON) JSON-RPC Task ID Status HTTP(S) Artifact Parts (text, file, or JSON) JSON-RPC Option 2: Tasks for stateful interactions Artifact - A tangible output generated by an agent during a task (for example, a document, image, or structured data) Task Status: - Unspecified - Submitted - Working - Completed - Failed - Cancelled - Input required - Rejected - Auth Required

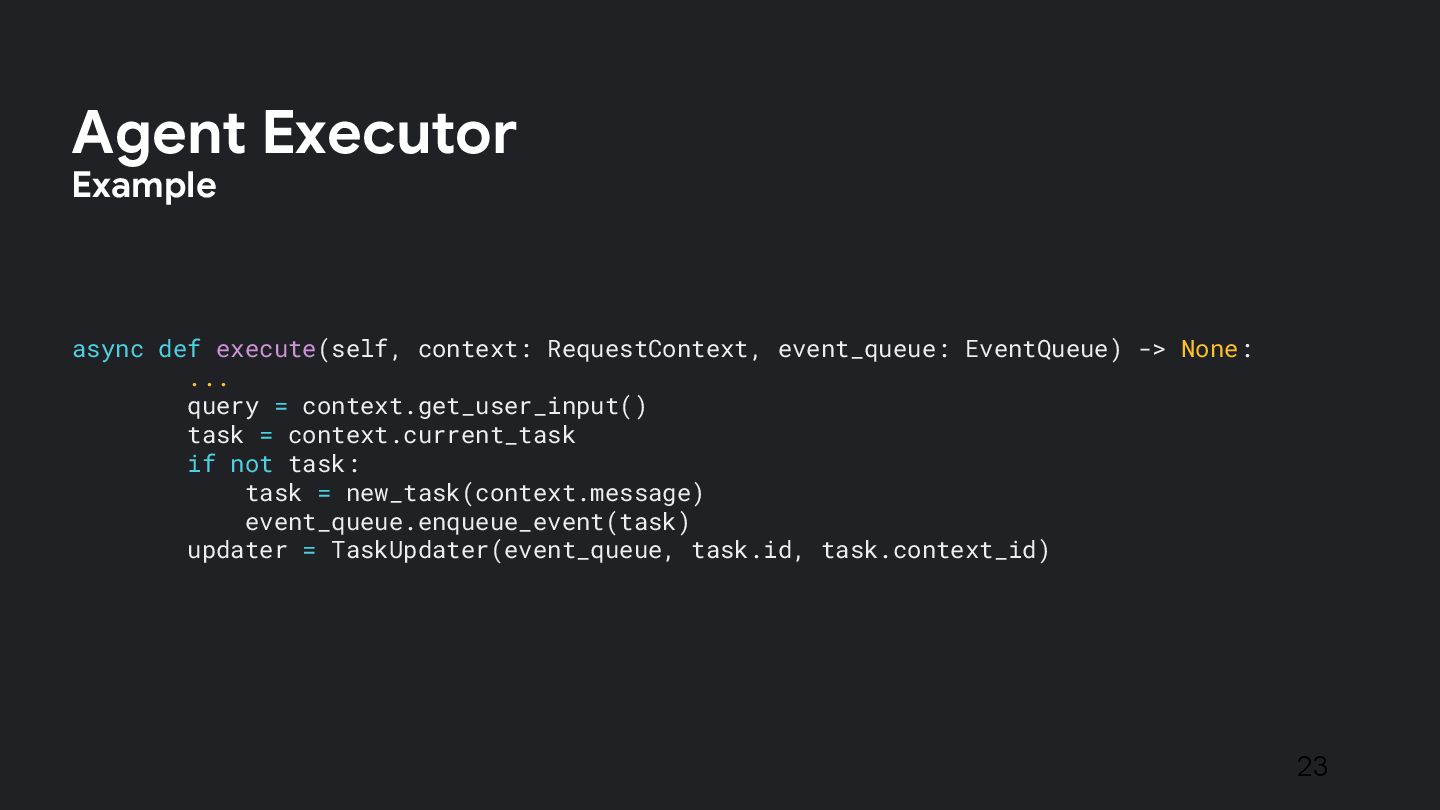

  15. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    query = context.get_user_input() task = context.current_task if not task: task = new_task(context.message) event_queue.enqueue_event(task) updater = TaskUpdater(event_queue, task.id, task.context_id) 23 Agent Executor Example

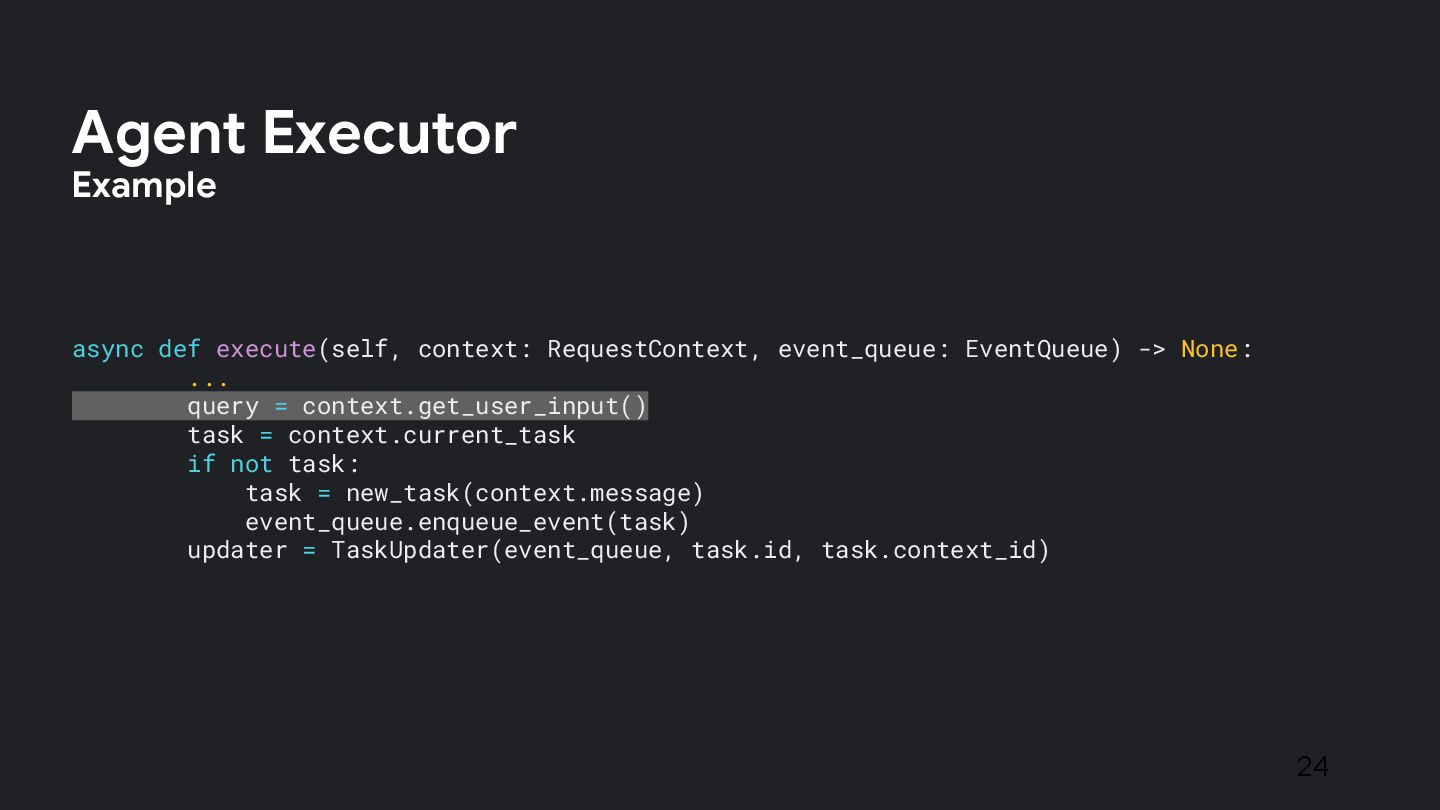

  16. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    query = context.get_user_input() task = context.current_task if not task: task = new_task(context.message) event_queue.enqueue_event(task) updater = TaskUpdater(event_queue, task.id, task.context_id) 24 Agent Executor Example

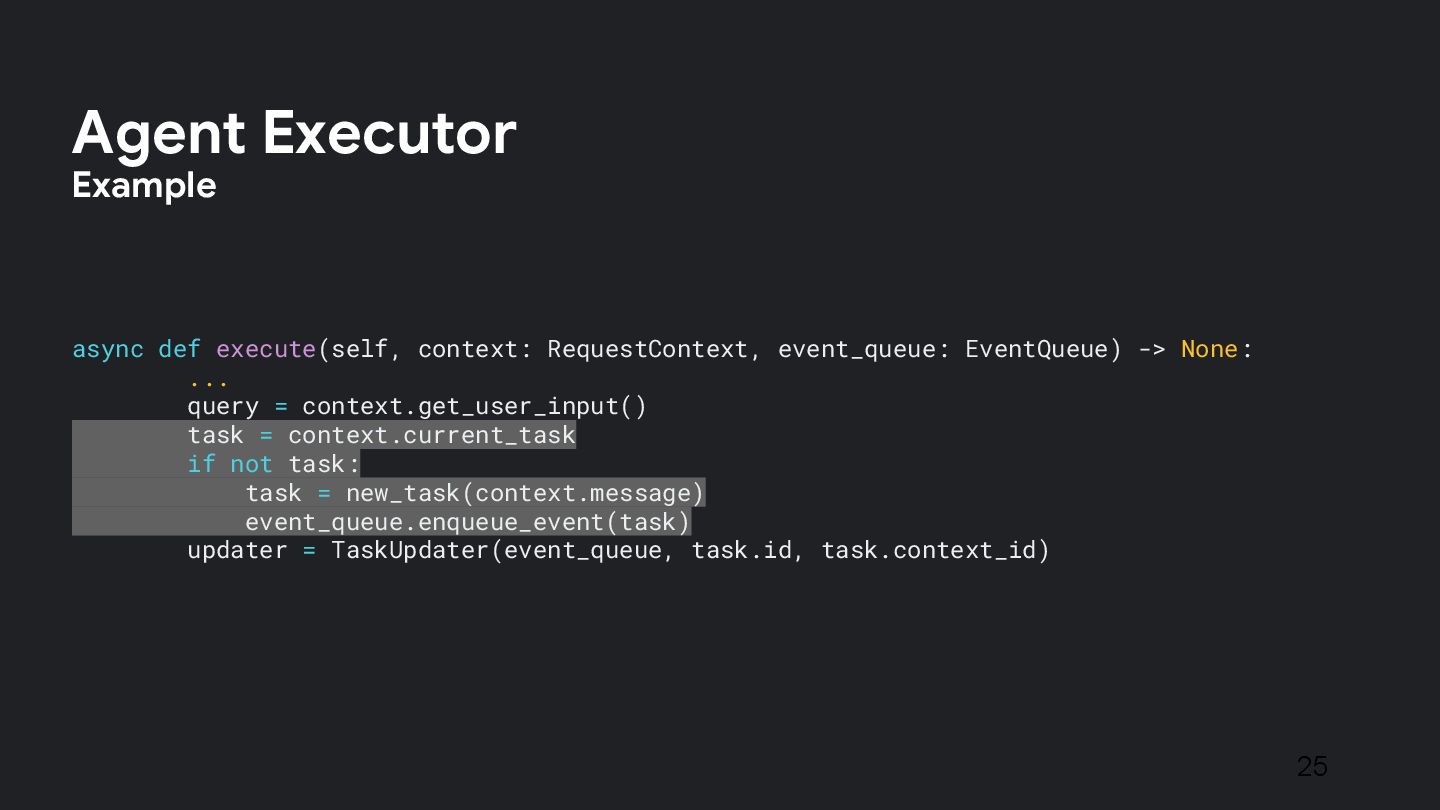

  17. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    query = context.get_user_input() task = context.current_task if not task: task = new_task(context.message) event_queue.enqueue_event(task) updater = TaskUpdater(event_queue, task.id, task.context_id) 25 Agent Executor Example

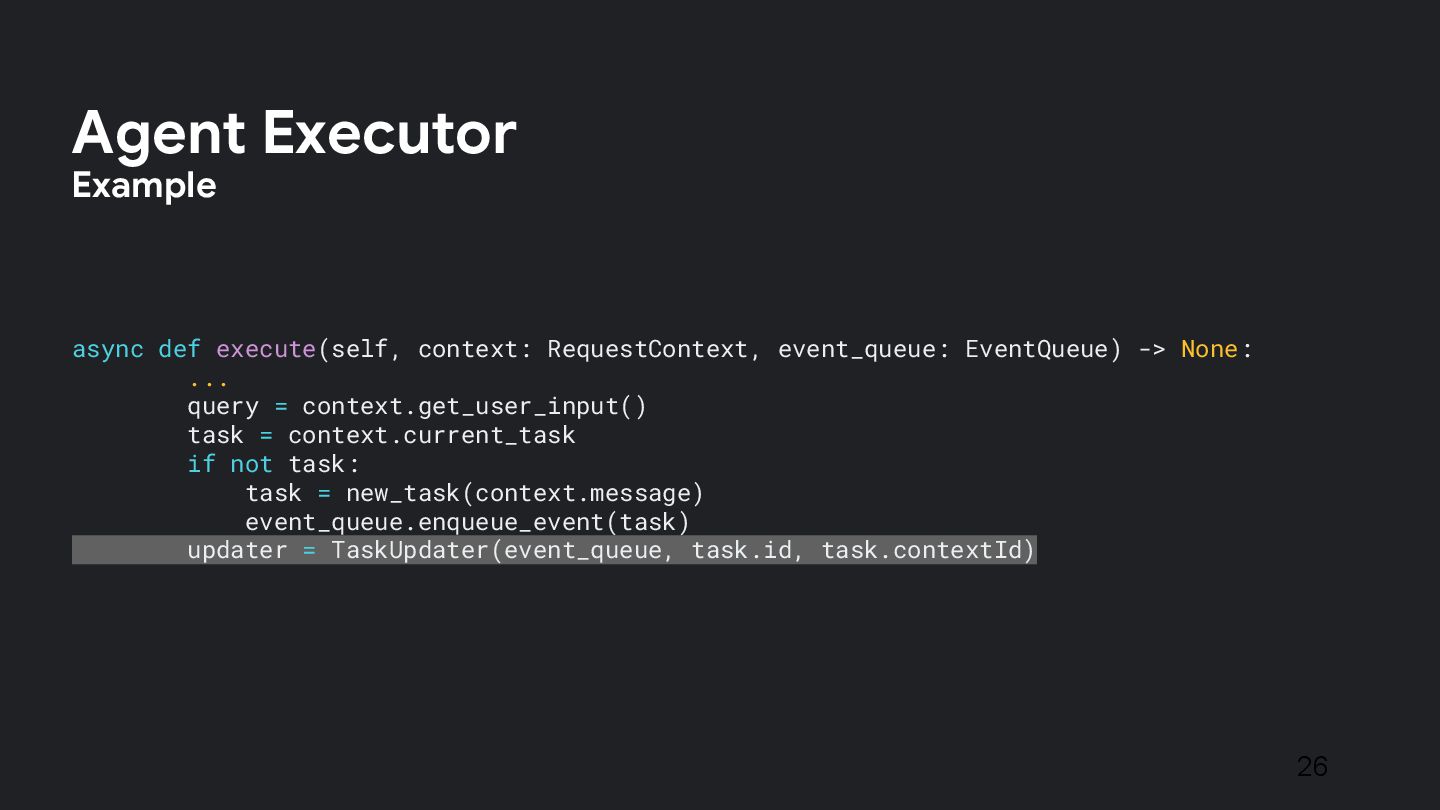

  18. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    query = context.get_user_input() task = context.current_task if not task: task = new_task(context.message) event_queue.enqueue_event(task) updater = TaskUpdater(event_queue, task.id, task.contextId) 26 Agent Executor Example

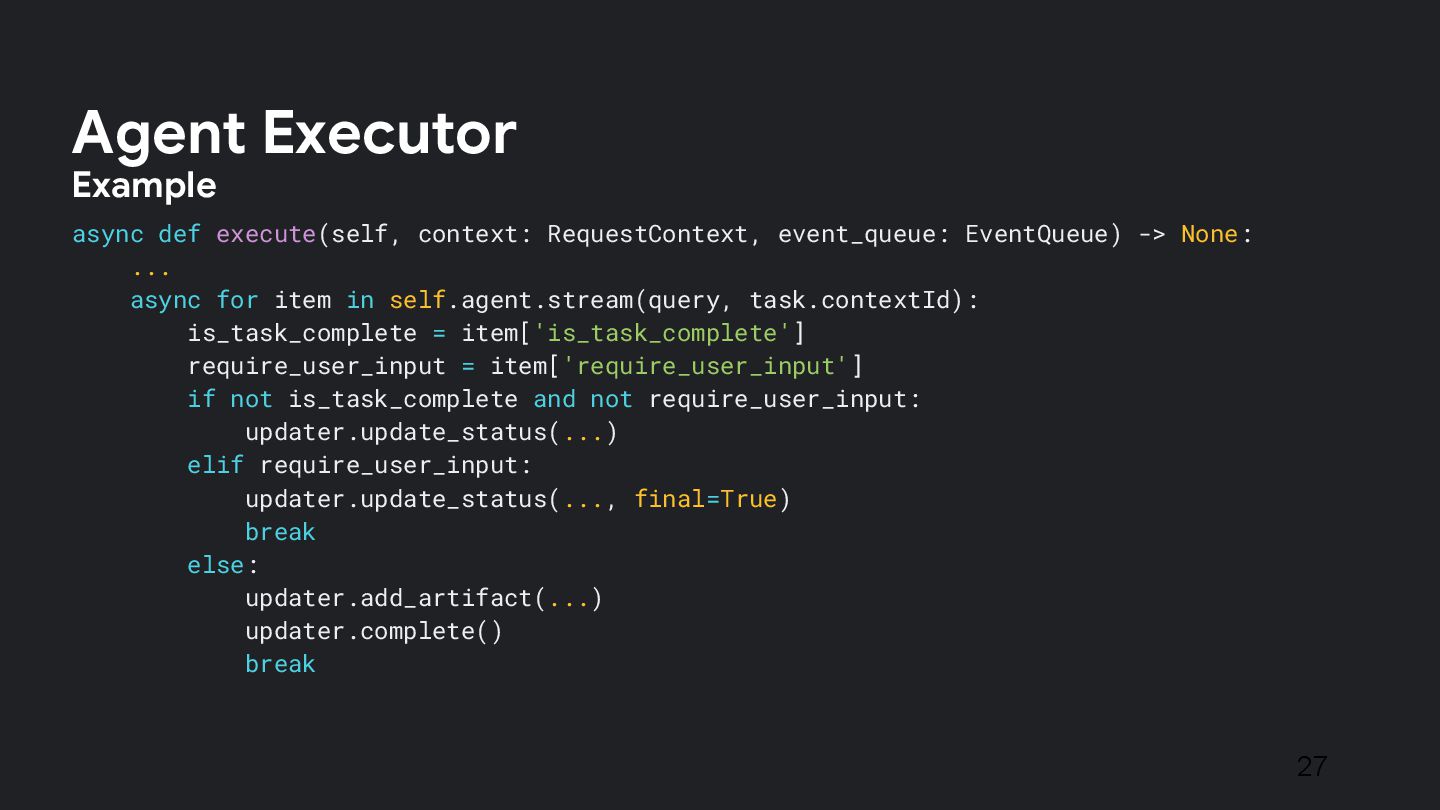

  19. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    async for item in self.agent.stream(query, task.contextId): is_task_complete = item['is_task_complete'] require_user_input = item['require_user_input'] if not is_task_complete and not require_user_input: updater.update_status(...) elif require_user_input: updater.update_status(..., final=True) break else: updater.add_artifact(...) updater.complete() break 27 Agent Executor Example

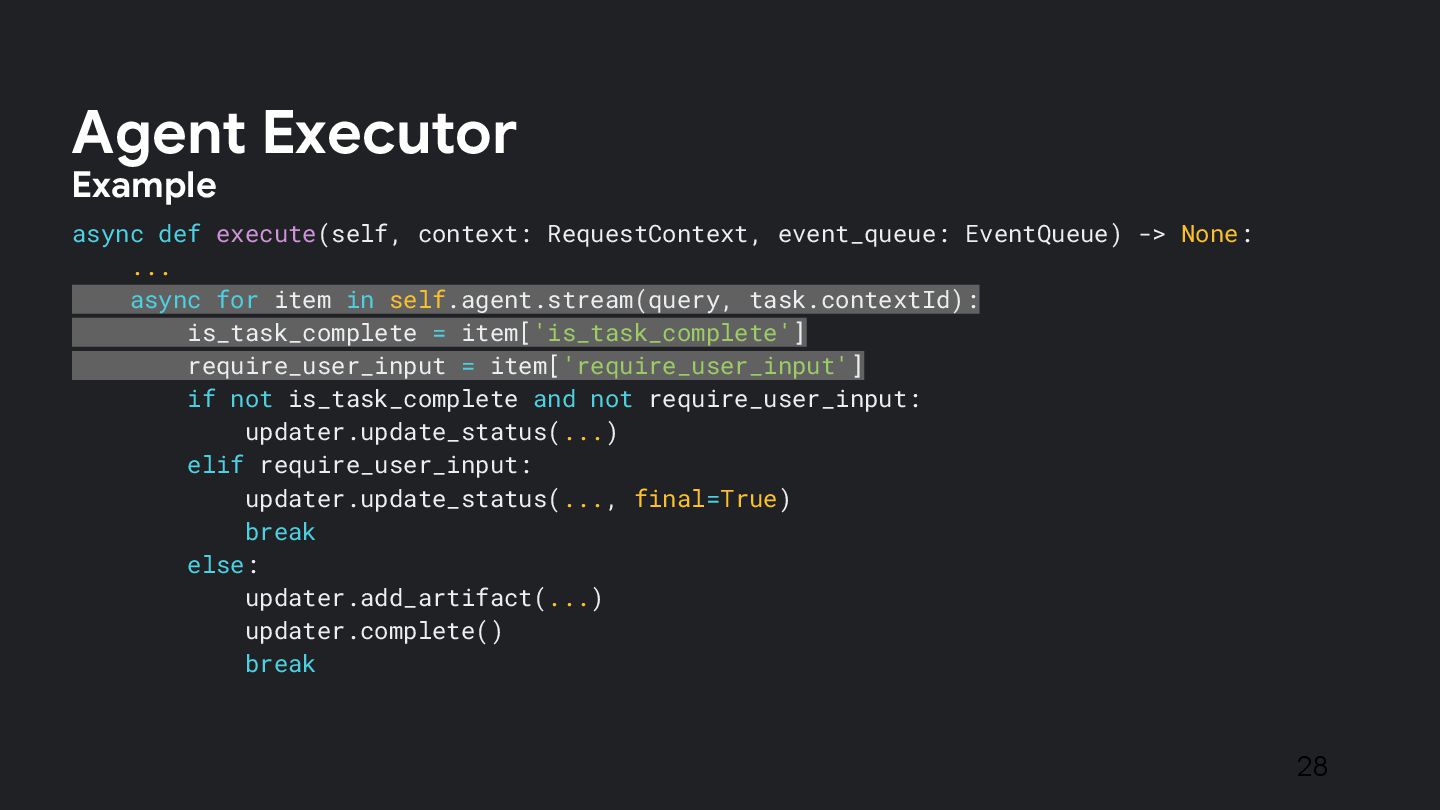

  20. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    async for item in self.agent.stream(query, task.contextId): is_task_complete = item['is_task_complete'] require_user_input = item['require_user_input'] if not is_task_complete and not require_user_input: updater.update_status(...) elif require_user_input: updater.update_status(..., final=True) break else: updater.add_artifact(...) updater.complete() break 28 Agent Executor Example

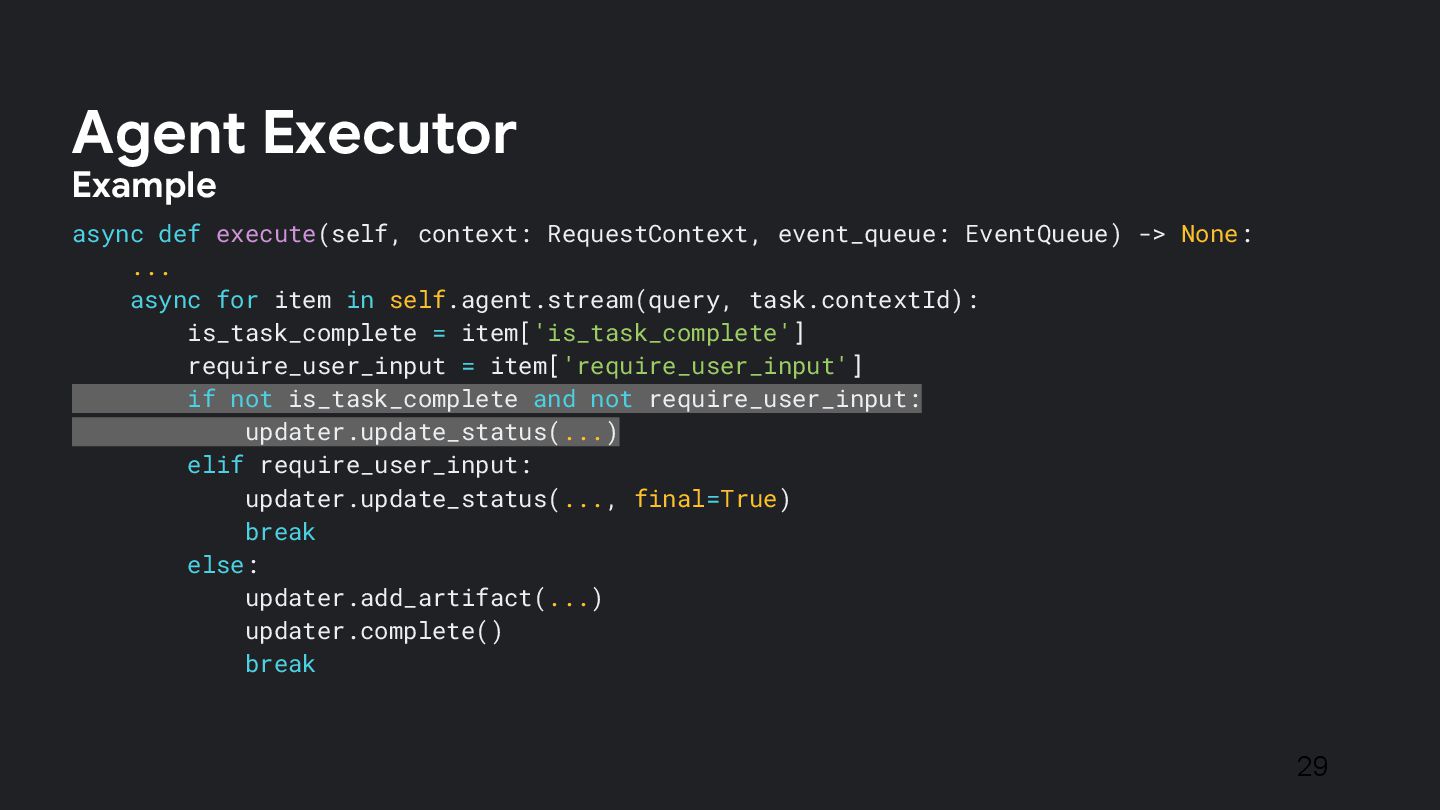

  21. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    async for item in self.agent.stream(query, task.contextId): is_task_complete = item['is_task_complete'] require_user_input = item['require_user_input'] if not is_task_complete and not require_user_input: updater.update_status(...) elif require_user_input: updater.update_status(..., final=True) break else: updater.add_artifact(...) updater.complete() break 29 Agent Executor Example

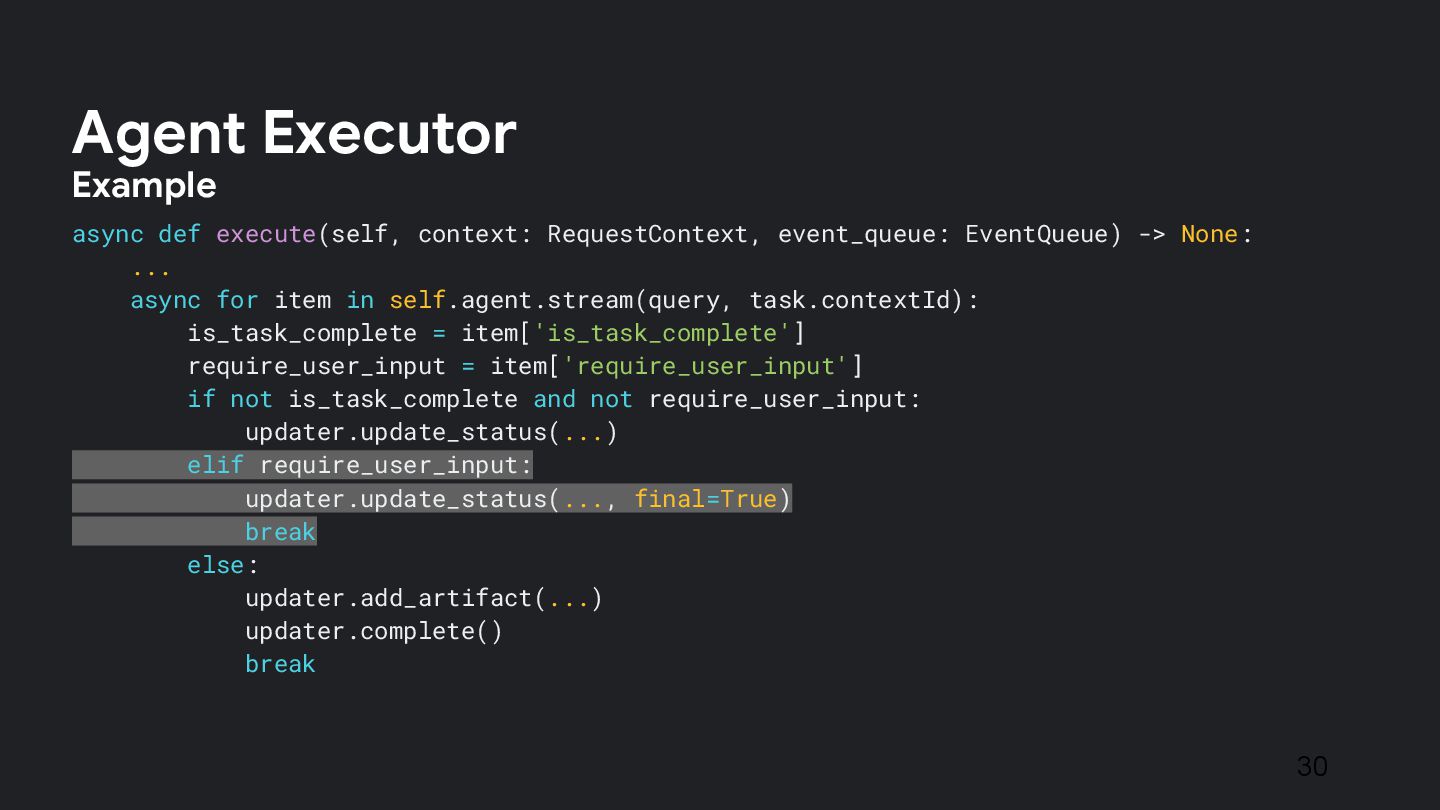

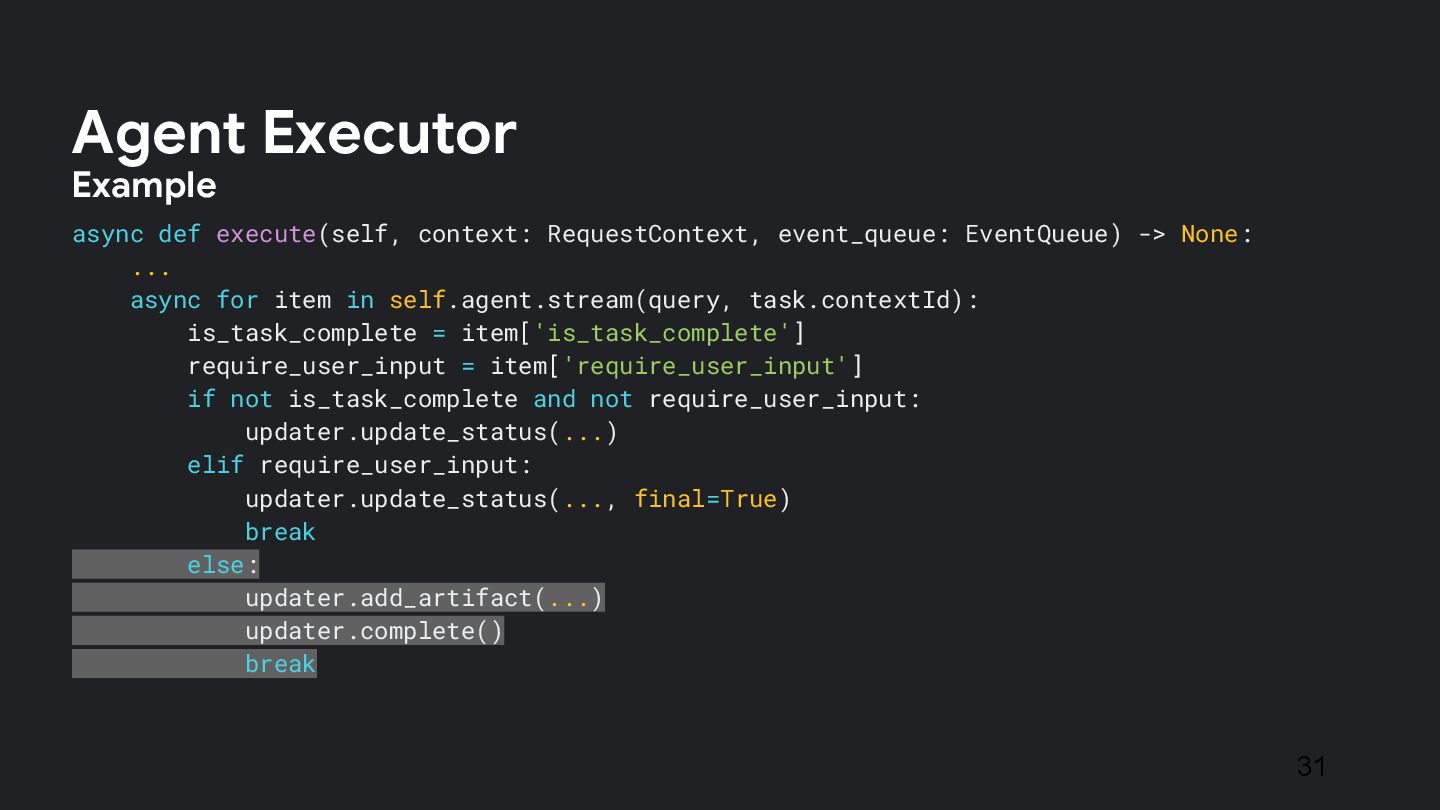

  22. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    async for item in self.agent.stream(query, task.contextId): is_task_complete = item['is_task_complete'] require_user_input = item['require_user_input'] if not is_task_complete and not require_user_input: updater.update_status(...) elif require_user_input: updater.update_status(..., final=True) break else: updater.add_artifact(...) updater.complete() break 30 Agent Executor Example
  23. async def execute(self, context: RequestContext, event_queue: EventQueue) -> None: ...

    async for item in self.agent.stream(query, task.contextId): is_task_complete = item['is_task_complete'] require_user_input = item['require_user_input'] if not is_task_complete and not require_user_input: updater.update_status(...) elif require_user_input: updater.update_status(..., final=True) break else: updater.add_artifact(...) updater.complete() break 31 Agent Executor Example

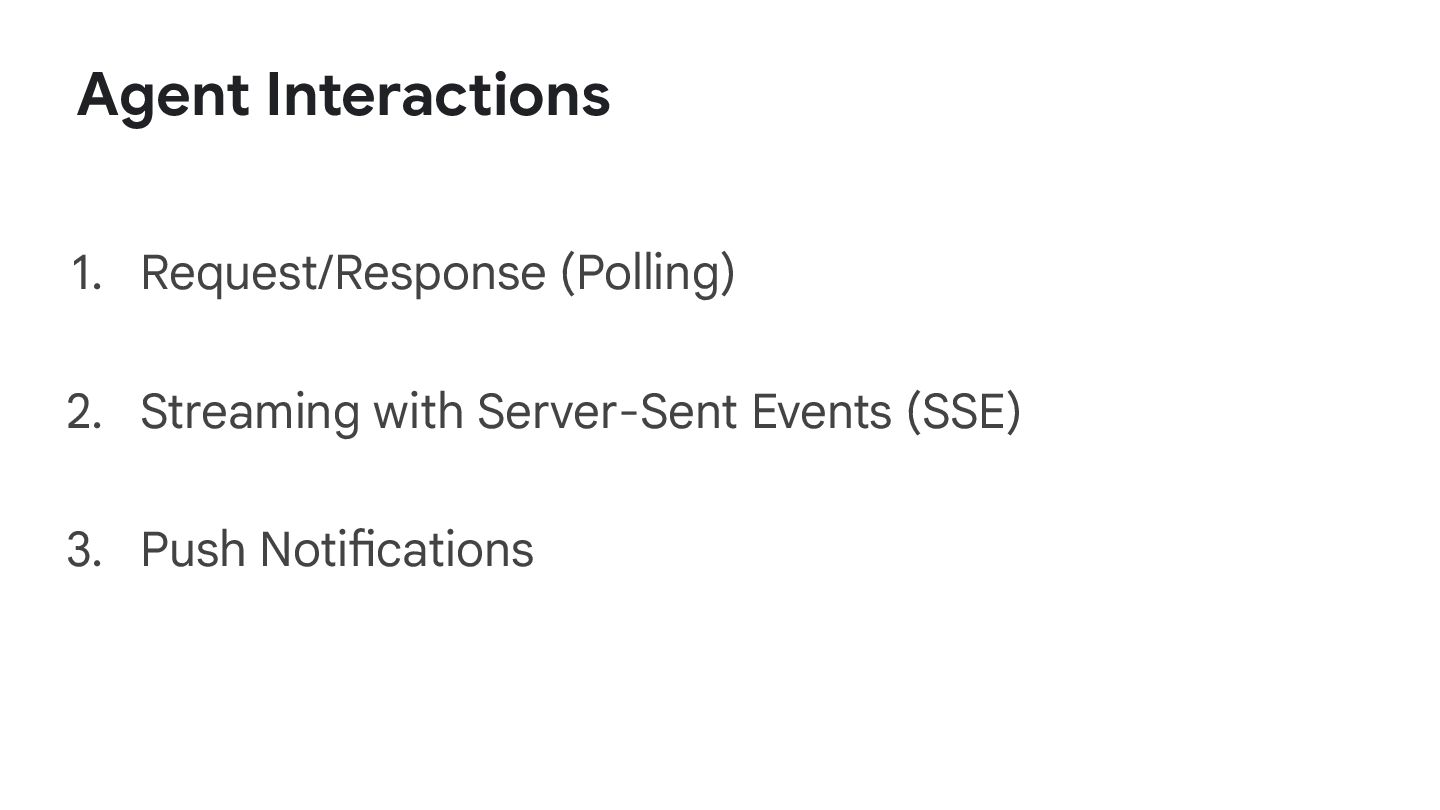

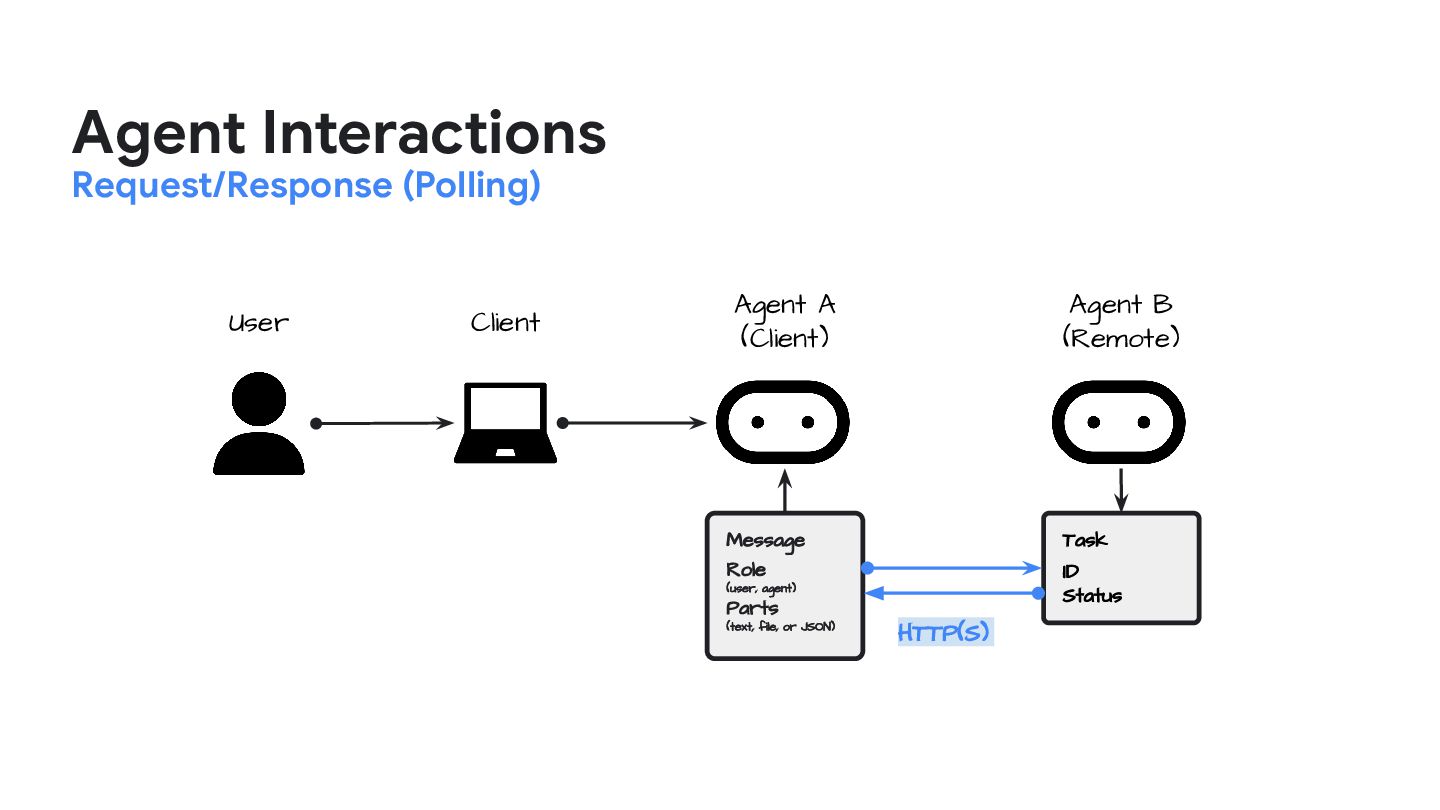

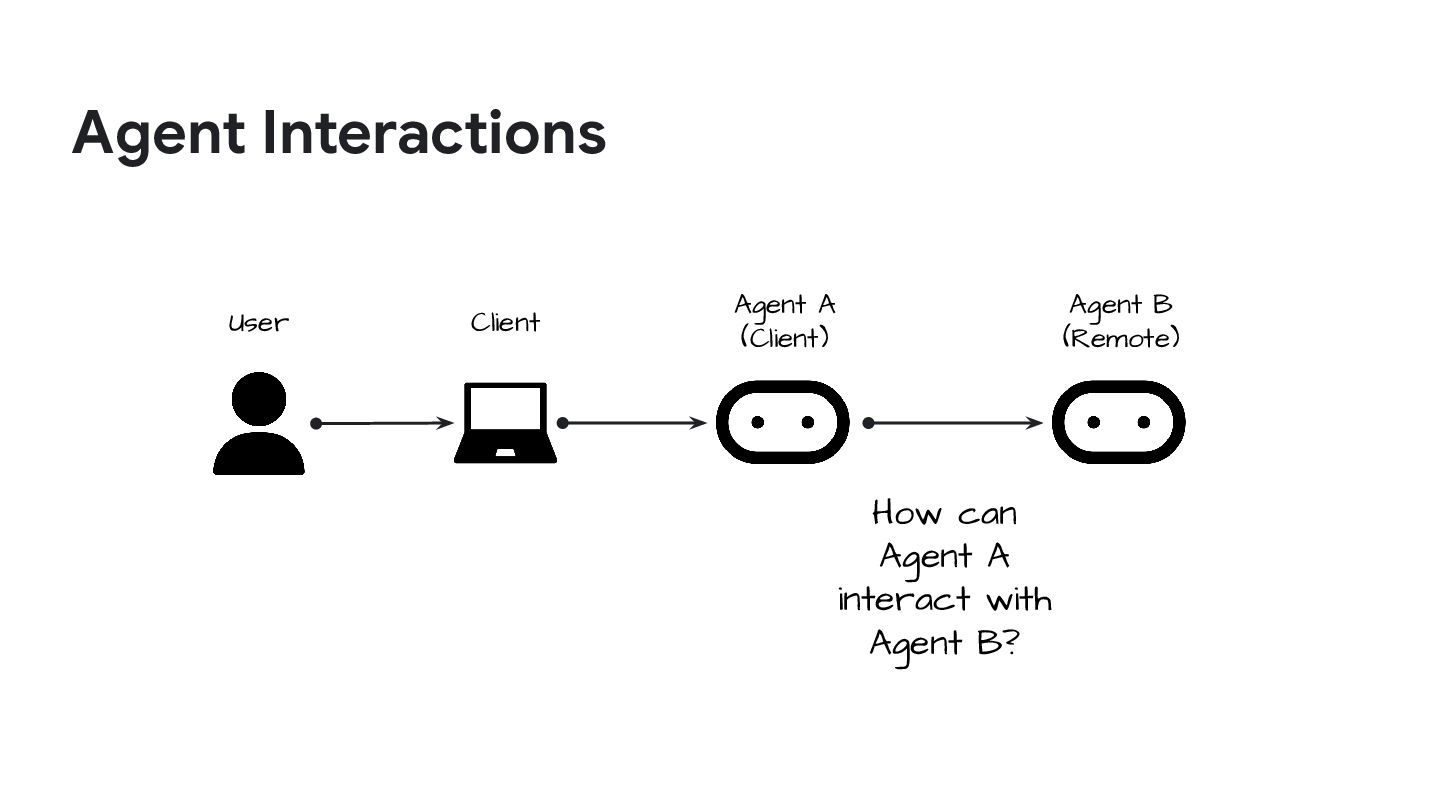

  24. Agent Interactions Request/Response (Polling) Client User Agent A (Client) Agent

    B (Remote) Message Role (user, agent) Parts (text, file, or JSON) Task ID Status HTTP(S)

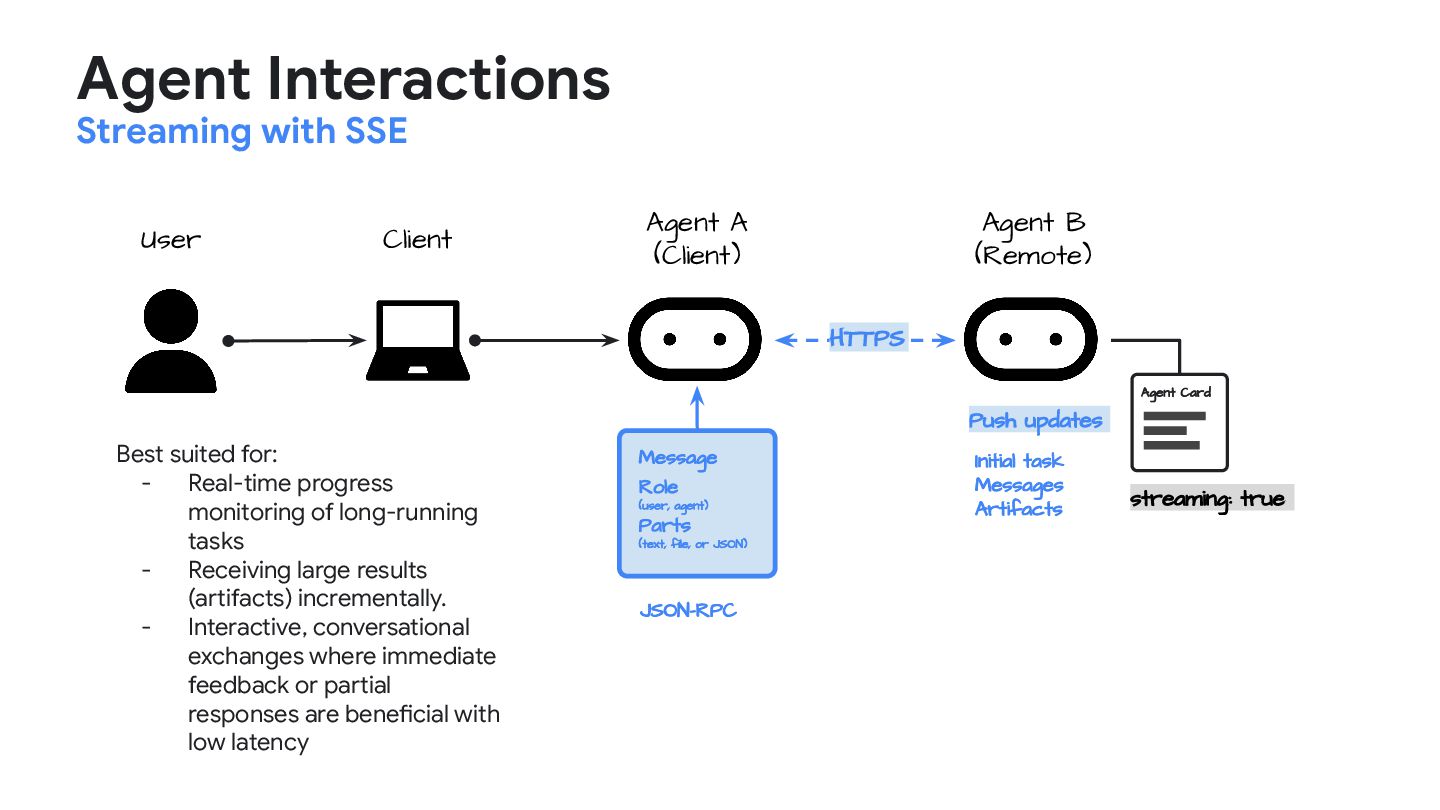

  25. Agent Interactions Streaming with SSE Client User Agent A (Client)

    Agent B (Remote) HTTPS Message Role (user, agent) Parts (text, file, or JSON) JSON-RPC Agent Card streaming: true Push updates Initial task Messages Artifacts Best suited for: - Real-time progress monitoring of long-running tasks - Receiving large results (artifacts) incrementally. - Interactive, conversational exchanges where immediate feedback or partial responses are beneficial with low latency

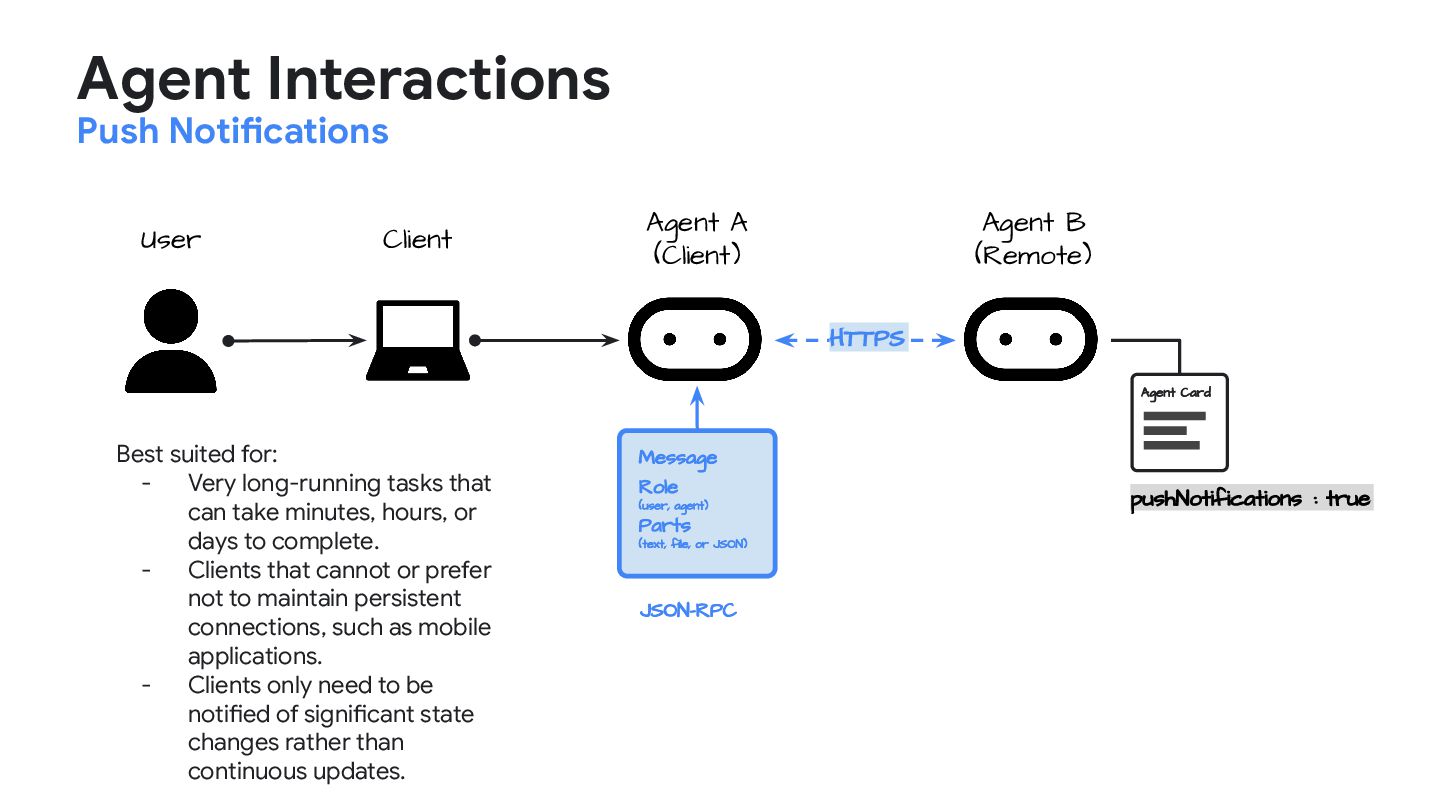

  26. Agent Interactions Push Notifications Client User Agent A (Client) Agent

    B (Remote) HTTPS Message Role (user, agent) Parts (text, file, or JSON) JSON-RPC Agent Card pushNotifications : true Best suited for: - Very long-running tasks that can take minutes, hours, or days to complete. - Clients that cannot or prefer not to maintain persistent connections, such as mobile applications. - Clients only need to be notified of significant state changes rather than continuous updates.

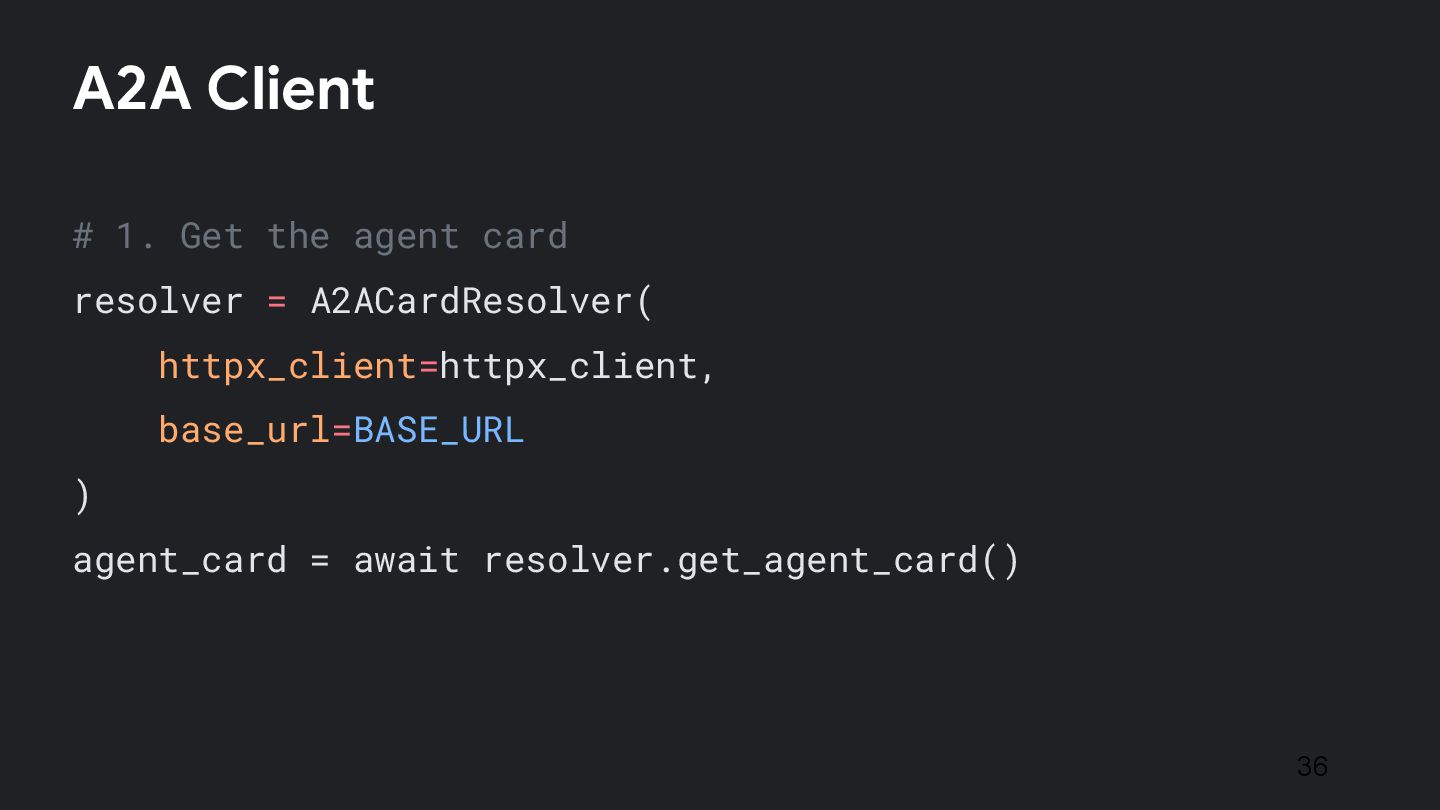

  27. # 1. Get the agent card resolver = A2ACardResolver( httpx_client=httpx_client,

    base_url=BASE_URL ) agent_card = await resolver.get_agent_card() A2A Client 36
  28. # 2. Create an A2A client to communicate with the

    agent using url from the agent card client = A2AClient( httpx_client=httpx_client, agent_card=agent_card ) 37 A2A Client

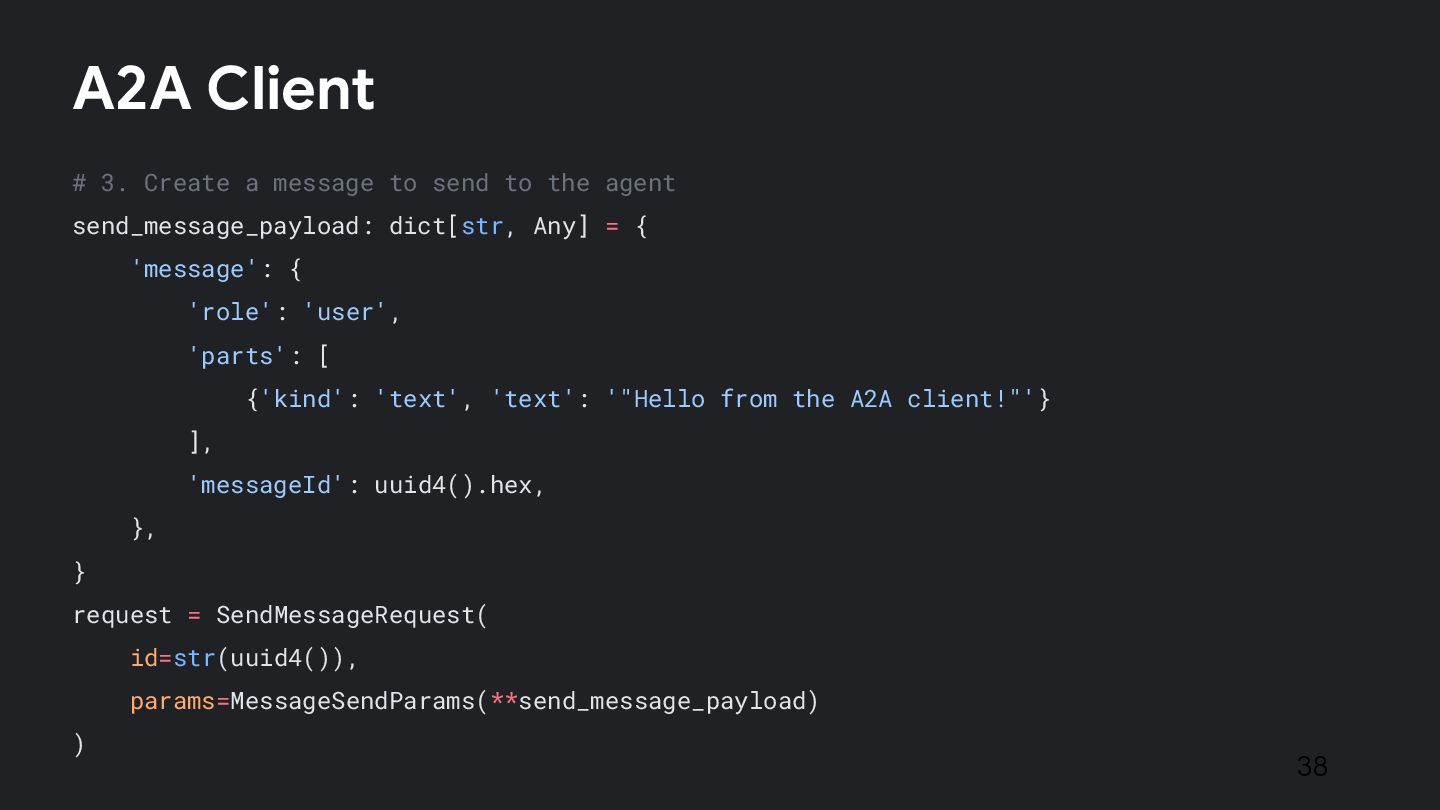

  29. # 3. Create a message to send to the agent

    send_message_payload: dict[str, Any] = { 'message': { 'role': 'user', 'parts': [ {'kind': 'text', 'text': '"Hello from the A2A client!"'} ], 'messageId': uuid4().hex, }, } request = SendMessageRequest( id=str(uuid4()), params=MessageSendParams(**send_message_payload) ) 38 A2A Client

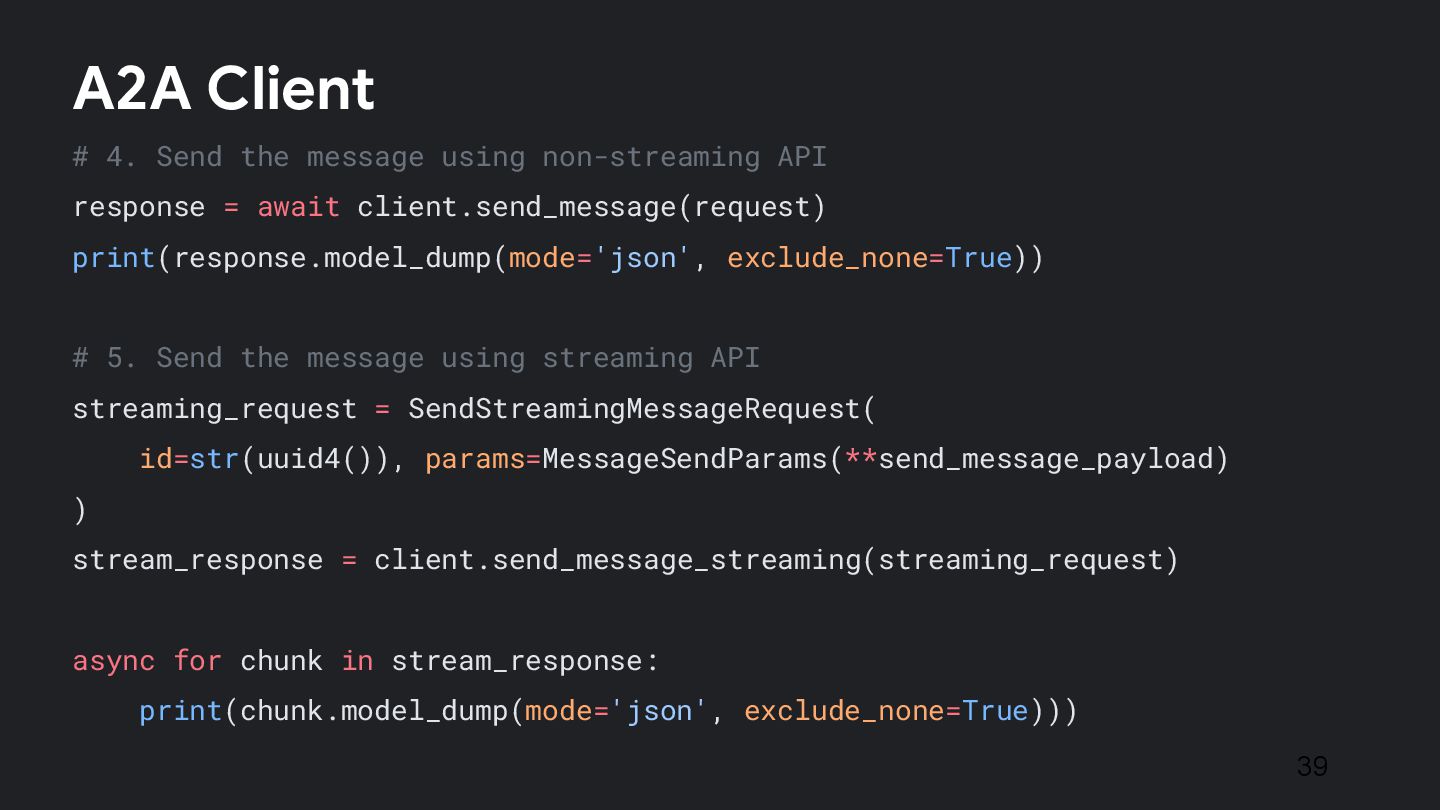

  30. # 4. Send the message using non-streaming API response =

    await client.send_message(request) print(response.model_dump(mode='json', exclude_none=True)) # 5. Send the message using streaming API streaming_request = SendStreamingMessageRequest( id=str(uuid4()), params=MessageSendParams(**send_message_payload) ) stream_response = client.send_message_streaming(streaming_request) async for chunk in stream_response: print(chunk.model_dump(mode='json', exclude_none=True))) 39 A2A Client

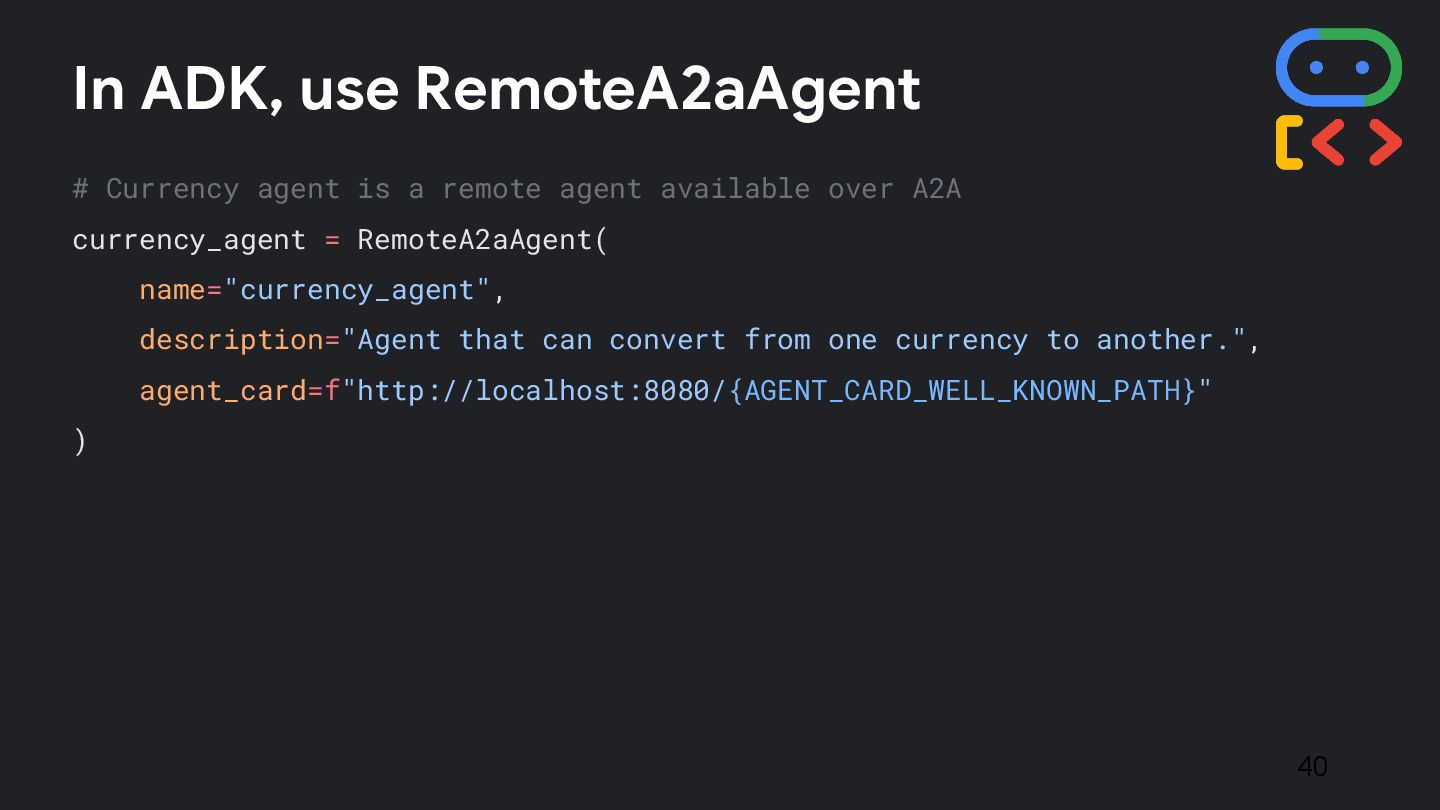

  31. # Currency agent is a remote agent available over A2A

    currency_agent = RemoteA2aAgent( name="currency_agent", description="Agent that can convert from one currency to another.", agent_card=f"http://localhost:8080/{AGENT_CARD_WELL_KNOWN_PATH}" ) 40 In ADK, use RemoteA2aAgent

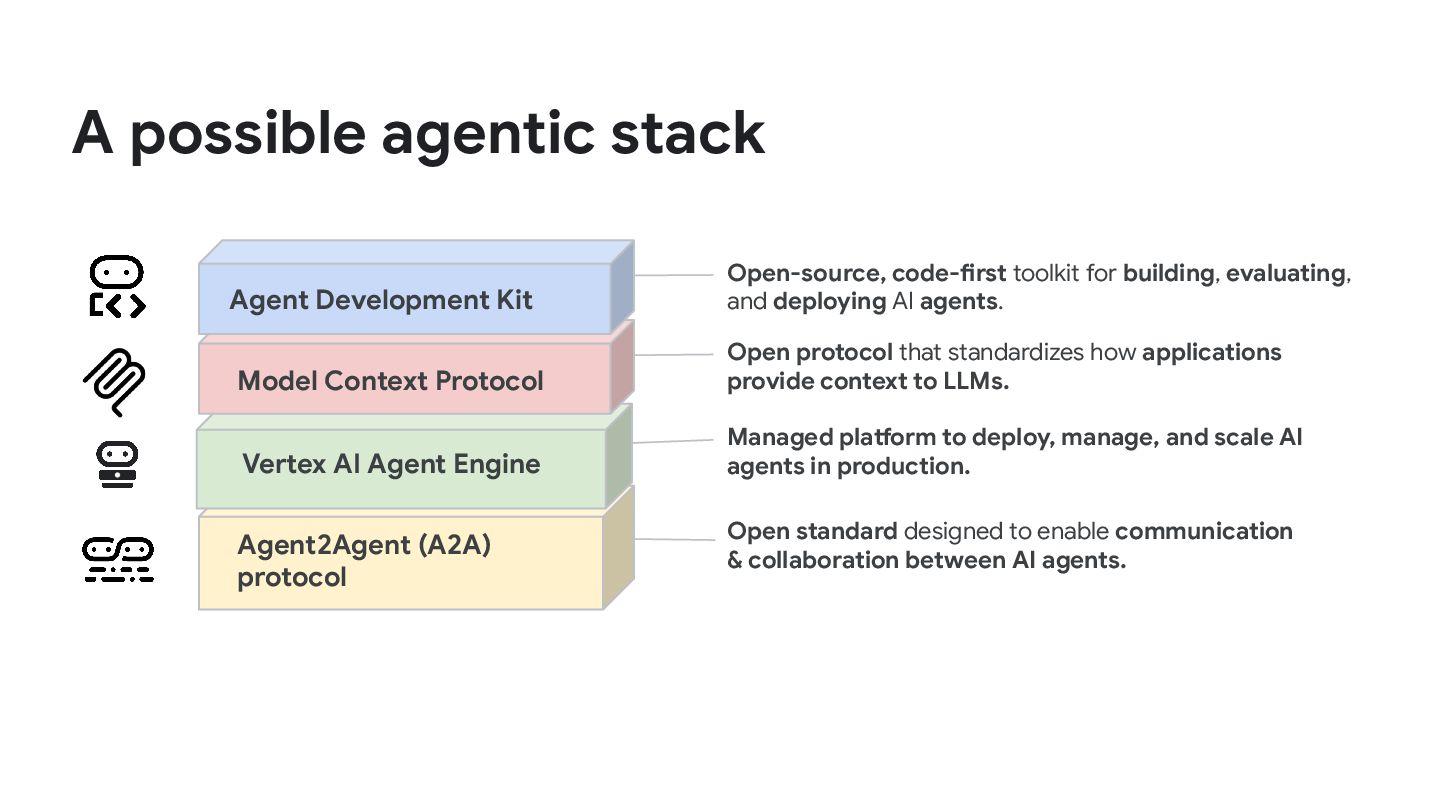

  32. A possible agentic stack Agent2Agent (A2A) protocol Open standard designed

    to enable communication & collaboration between AI agents. Vertex AI Agent Engine Managed platform to deploy, manage, and scale AI agents in production. Model Context Protocol Open protocol that standardizes how applications provide context to LLMs. Agent Development Kit Open-source, code-first toolkit for building, evaluating, and deploying AI agents.
  33. Thank you! Mete Atamel Developer Advocate at Google @meteatamel atamel.dev

    speakerdeck.com/meteatamel github.com/meteatamel/genai-beyond-basics/tree/main/samples/protocols/a2a
