Elephants in the Cloud

Elephants in the Cloud

Managing your own PostgreSQL servers is sometimes a burden your business does not want. In this talk we will provide an overview of some of the public cloud offerings available for hosted PostgreSQL and discuss a number of strategies for migrating your databases with a minimum of downtime.

F1e0e0c3c3196a63c9b17a2344fb6a61?s=128

Mike Fowler

October 26, 2017
Tweet

Transcript

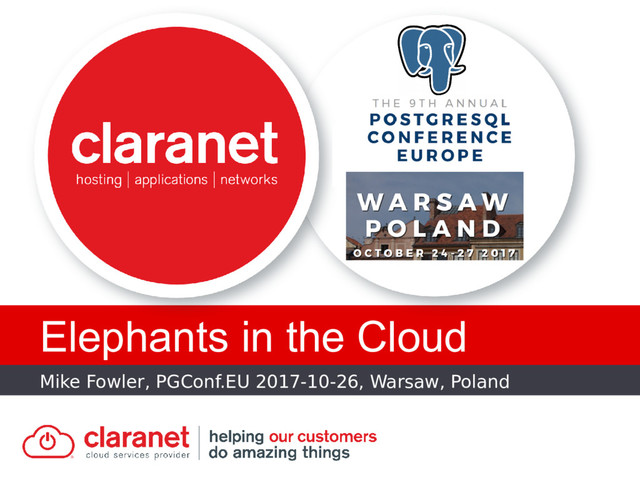

  1. Mike Fowler, PGConf.EU 2017-10-26, Warsaw, Poland Elephants in the Cloud

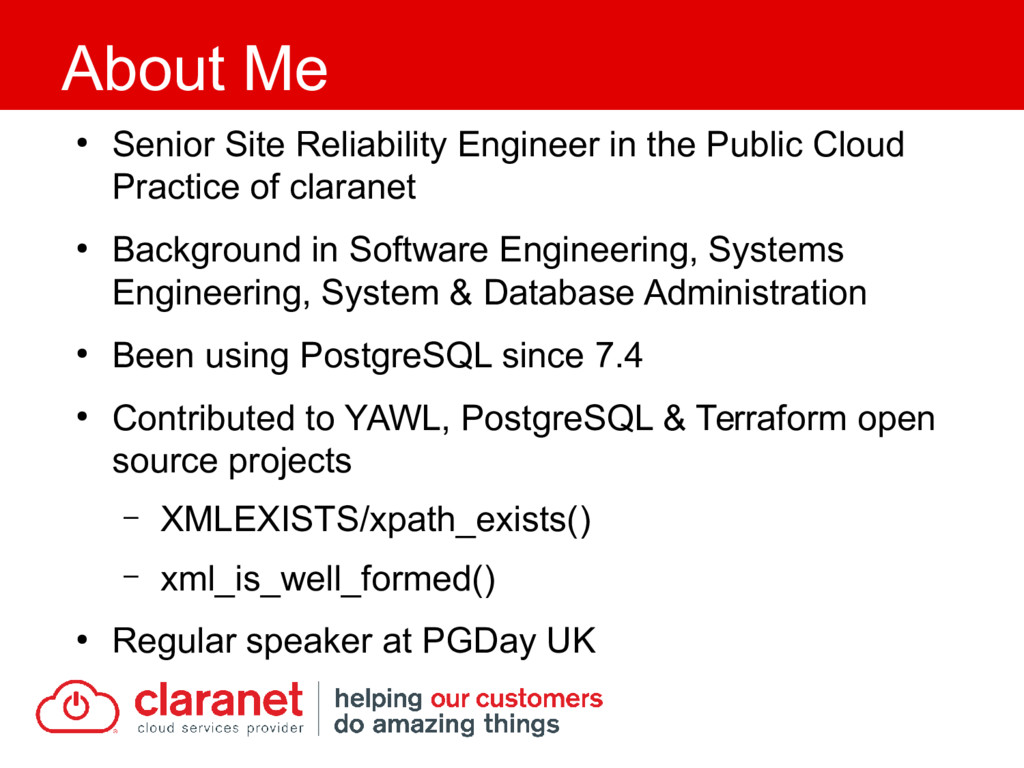

  2. • Senior Site Reliability Engineer in the Public Cloud Practice

    of claranet • Background in Software Engineering, Systems Engineering, System & Database Administration • Been using PostgreSQL since 7.4 • Contributed to YAWL, PostgreSQL & Terraform open source projects – XMLEXISTS/xpath_exists() – xml_is_well_formed() • Regular speaker at PGDay UK About Me
  3. • Hosted PostgreSQL • Overview of public cloud hosting options

    • Database migration strategies Overview
  4. • Your database somewhere else • A managed service –

    Some providers offer full DBA support – Cloud providers give only the infrastructure • Typically provisioned through an API or GUI – i.e. a self-service environment What is hosted PostgreSQL?

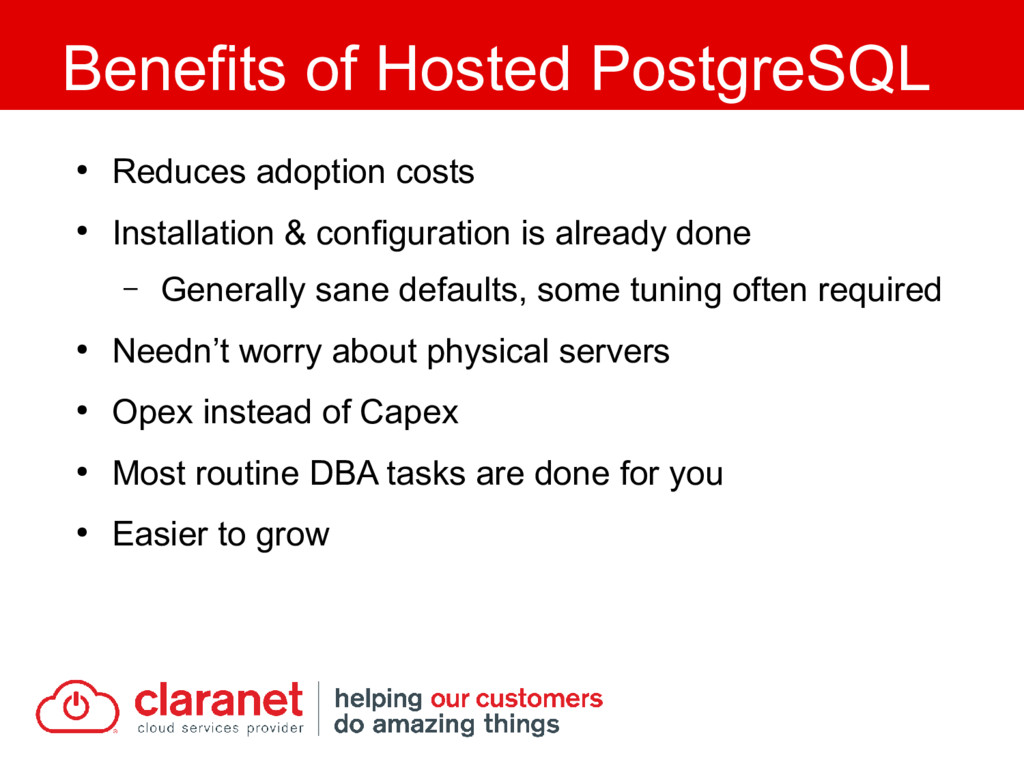

  5. • Reduces adoption costs • Installation & configuration is already

    done – Generally sane defaults, some tuning often required • Needn’t worry about physical servers • Opex instead of Capex • Most routine DBA tasks are done for you • Easier to grow Benefits of Hosted PostgreSQL
  6. • Less control • Latency • Some features are disabled

    • Migrating existing databases is hard • Potential for vendor lock-in • Resource limits Drawbacks of Hosted PostgreSQL
  7. • Automatic scaling • It will fix your slow queries/reports/application

    • You don’t need a DBA – They need to be planning for scale – They need to help address slowness Fallacies of Hosted PostgreSQL
  8. • We’ll look only at Public Cloud offerings • Current

    major offerings – Amazon Relation Database Service (RDS) – Amazon Aurora – Heroku • Future major offerings – Google Cloud SQL – Microsoft Azure Hosting Options
  9. • PostgreSQL 9.3.12 – 9.6.3 supported • Numerous instance types

    – Costs range from $0.018 to $7.96 per hour – Select from 1 vCPU up to 64 vCPUs, all 64-bit – Memory ranges from 1GB to 488GB • Flexible storage options – Choose between SSD or Provisioned IOPS – Up to 6TB with up to 30,000 IOPS Amazon RDS
  10. • High availability multi-availability zone option – Synchronous replica –

    Automatic failover (~2 minutes) • Up to 5 read-only replicas (asynchronous replication) • Configurable automatic backups with PITR • Monthly uptime percentage of 99.95 per instance – Allows for approximately 22 minutes downtime Amazon RDS
  11. • Became generally available yesterday (2017-10-25) • Currently available in

    3 US regions and Ireland • 6 instance types costing from $0.29 to $9.28 per hour • Compatible with PostgreSQL 9.6 • Up to 2x throughput of conventional PostgreSQL • Up to 16 read replicas with sub-10ms replica lag • Auto-growing filesystem up to 64TB – Filesystem is shared between 3 availability zones Amazon Aurora
  12. Amazon Aurora https://aws.amazon.com/blogs/aws/amazon-aurora-update-postgresql-compatibility/

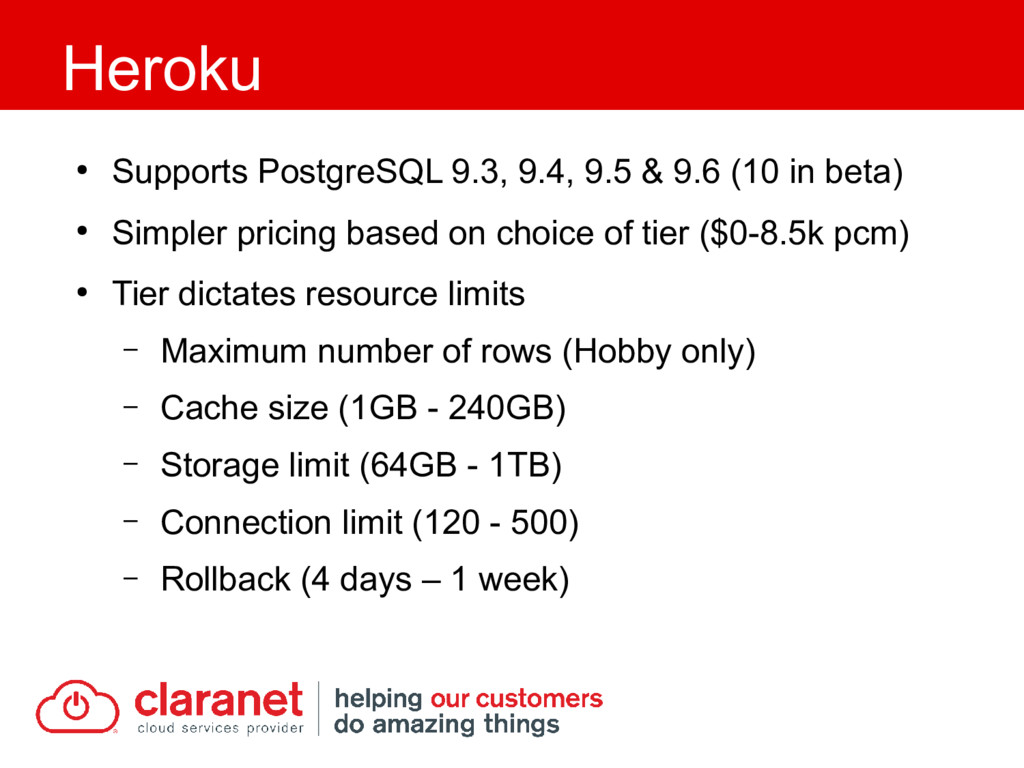

  13. • Supports PostgreSQL 9.3, 9.4, 9.5 & 9.6 (10 in

    beta) • Simpler pricing based on choice of tier ($0-8.5k pcm) • Tier dictates resource limits – Maximum number of rows (Hobby only) – Cache size (1GB - 240GB) – Storage limit (64GB - 1TB) – Connection limit (120 - 500) – Rollback (4 days – 1 week) Heroku
  14. • Fork & Follow • Some of your data may

    end up in the US – Logs (can be blocked at creation time) – Snapshots & Dataclips • Not possible to replicate out – No permission for Bucardo, Londiste & Slony – Remote slave is prohibited – Only way is dump & restore Heroku
  15. • Currently in Beta (no SLA) • Only supports PostgreSQL

    9.6 • No replication support • Posed to be a serious rival to RDS – Billing per minute – Automatic scaling of filesystem – Similar variety of instance types Google Cloud SQL
  16. • Currently in preview (no SLA) • Supports PostgreSQL 9.5

    & 9.6 • Replication is seamless – Automated failover – PITR • Selectable compute units – Roughly equates to maximum connections Microsoft Azure
  17. • At Rest (AES-256) – Enabled by default for Google

    & Azure – User enabled at create for Amazon (RDS/Aurora) – Only available in premium plans for Heroku • In transit (SSL) – Enforced on Heroku & Azure – Can be enforced on Google & Amazon • pgcrypto is available on all platforms Encryption

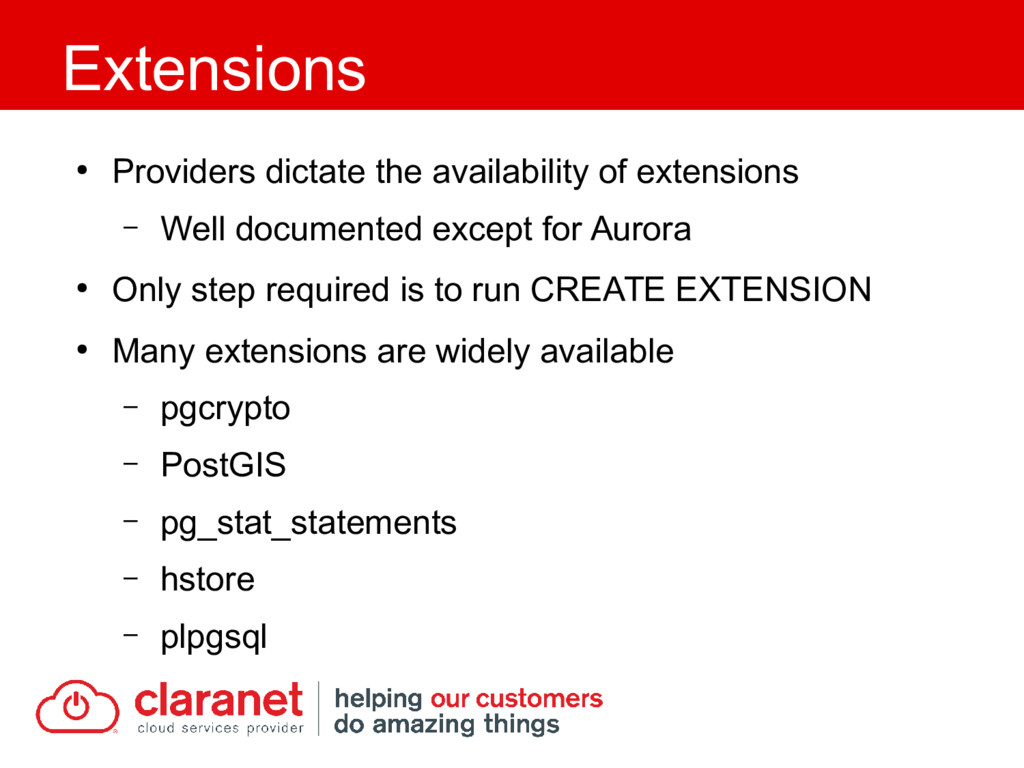

  18. • Providers dictate the availability of extensions – Well documented

    except for Aurora • Only step required is to run CREATE EXTENSION • Many extensions are widely available – pgcrypto – PostGIS – pg_stat_statements – hstore – plpgsql Extensions
  19. • Dump & Restore • Replication failover • Amazon’s Database

    Migration Service • PITR + Logical decoding Migration Strategies
  20. • Simplest strategy – Perceived as low risk for data

    loss – Less “moving parts” • Just a pg_dump & pg_restore • Downtime is function of database size Dump & Restore
  21. • Move historic data ahead of time – Opportunity to

    clear out unused data – Consider introducing partitions • Consider moving the dump closer to the target – e.g. Upload to EC2 instance in the same region as the RDS instance and run pg_restore from there • Over provision resources – Gives higher throughput during data load – Downscale once operational Strategies to Minimise Downtime
  22. • No one supports external masters! • Trigger based replication

    failover – Slony, Londiste & Bucardo • Can be used on most any version of PostgreSQL • Some restrictions apply – DDL is not supported – Rows must be uniquely identifiable Replication Failover
  23. • Presents some risk to production environment – Initial overhead

    of replicating each table • Gradually add tables to the configuration to spread the load – Per-transaction overhead • Write latency to remote slave • Heavy write workload could lead to high replication lag • This also works to replicate out of RDS but not Heroku Replication Failover

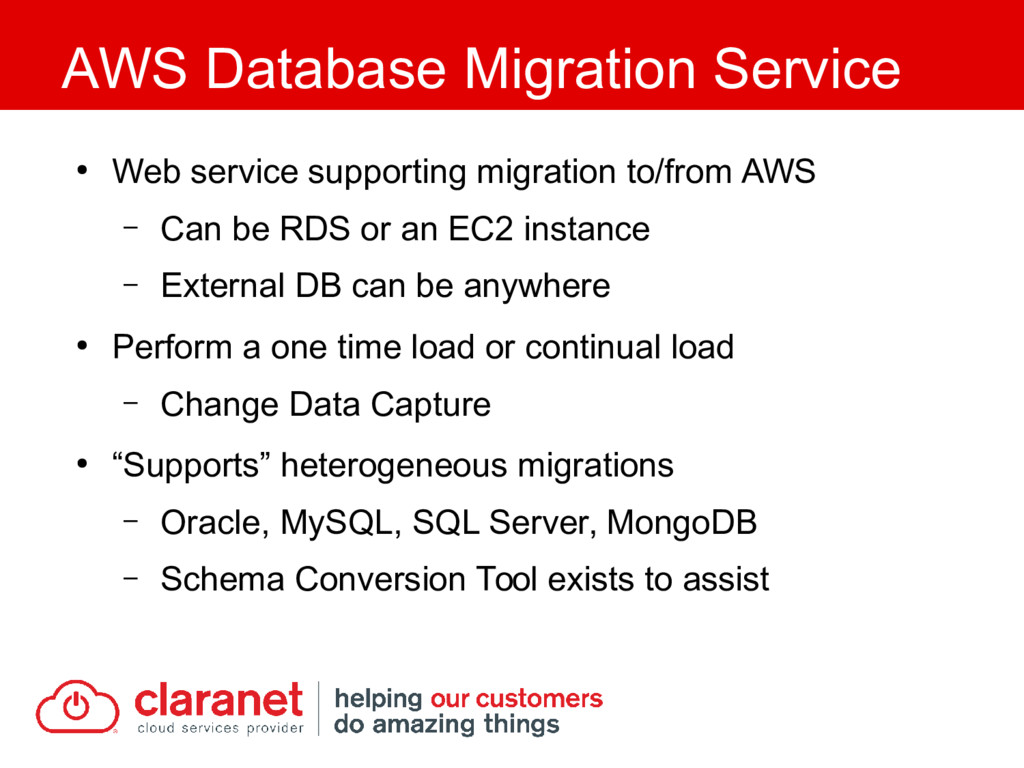

  24. • Web service supporting migration to/from AWS – Can be

    RDS or an EC2 instance – External DB can be anywhere • Perform a one time load or continual load – Change Data Capture • “Supports” heterogeneous migrations – Oracle, MySQL, SQL Server, MongoDB – Schema Conversion Tool exists to assist AWS Database Migration Service
  25. • PostgreSQL as a source database – User only needs

    to see all data • PostgreSQL as a streaming source database – Tables must have a primary key – Requires 9.4 with wal_level = logical – Must have room for a new replication slot – User must be a SUPERUSER AWS Database Migration Service
  26. • PostgreSQL as a target database – Import your schema

    using pg_dump – session_replication_role needs to be set to replica – Set target table preparation mode to DO_NOTHING • There are drawbacks of using DMS – Replication lag – Process is fiddly AWS Database Migration Service
  27. • Most involved approach, least downtime • Combines point-in-time recovery

    with the changes captured by logical decoding to create a replica • Need to be running at least PostgreSQL 9.4 with WAL level logical and have WAL archiving configured • DDL not supported, still need unique rows • Recommend barman for managing WAL http://www.pgbarman.org/ • Recommend decoder_raw as logical decoding plugin github.com/michaelpq/pg_plugins/tree/master/decoder_raw PITR & Logical decoding
  28. 1. Create a logical replication slot SELECT * FROM pg_create_logical_replication_slot

    ('logical_slot', 'decoder_raw'); 2. Note the transaction ID (catalog_xmin) SELECT catalog_xmin FROM pg_replication_slots WHERE slot_name = ‘logical_slot’; PITR & Logical decoding
  29. 3. Perform a barman backup $ barman backup master 4.

    Perform a barman PITR $ barman recover –target-xid (catalog_xmin - 1) master latest 5. Start database and verify correct recovery PITR & Logical decoding
  30. 5. Perform pg_dump on the readonly barman node 6. Restore

    to public cloud 7. Read output of logical decoding and write to cloud PITR & Logical decoding
  31. • Hosted PostgreSQL gives you high performance PostgreSQL without the

    hassle of hardware, maintenance and configuration • Opex instead of Capex • Consider the limitations of your intended platform • There are multiple options for migration Summary
  32. Questions? Please remember to leave feedback about my talk, other

    talks and the conference in general at https://2017.pgconf.eu/f Mike Fowler gh-mlfowler mlfowler mike dot fowler at claranet dot uk
  33. None
