Distributed tracing with OpenTracing and Jaeger

Distributed tracing solves problems of identifying performance bottlenecks in distributed system.
This presentation describes how Stream uses OpenTracing and Jaeger for distributed tracing in our system.

Build Scalable Newsfeeds & Activity Streams - https://getstream.io

Transcript

1. Distributed tracing with Jaeger and OpenTracing
2. Which requests are slow? Why? Lookup in Kibana: Lacks context, why was it slow? Grafana/Graphite: We know what operations were slow but can’t correlate them to any particular request • Unclear how to aggregate data • Lack of transparency and extensibility
3. Problem definition
4. • Understanding individual request behaviour - Look at a specific request, not just an aggregated view - Search by request ID • Identification of performance bottlenecks - Given a particular request data identify which operation was causing performance issues • Structured data access - View N slowest request - Search for a request on a particular shard/host or from a particular client
5. Distributed tracing to the rescue!

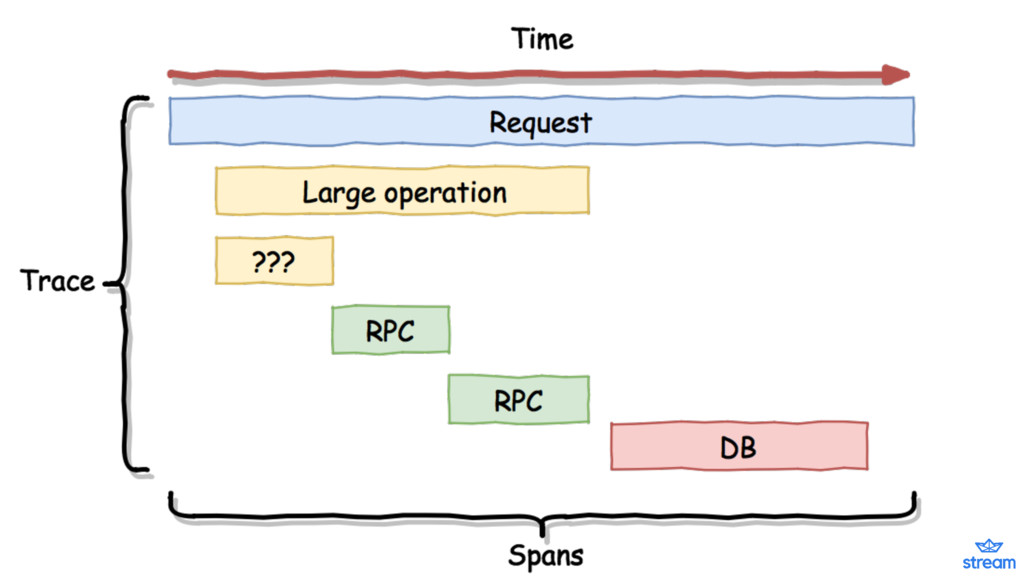

7. • Pass around unique ID (Trace ID) from service entry point to the end of execution • Build a DAG of related operations • Contextualise metadata

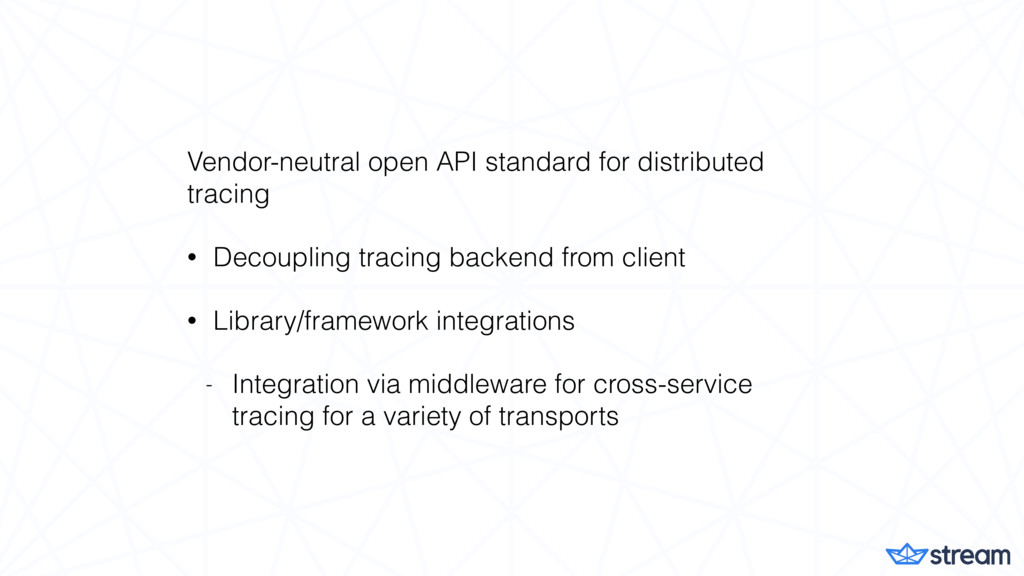

10. Vendor-neutral open API standard for distributed tracing • Decoupling tracing backend from client • Library/framework integrations - Integration via middleware for cross-service tracing for a variety of transports

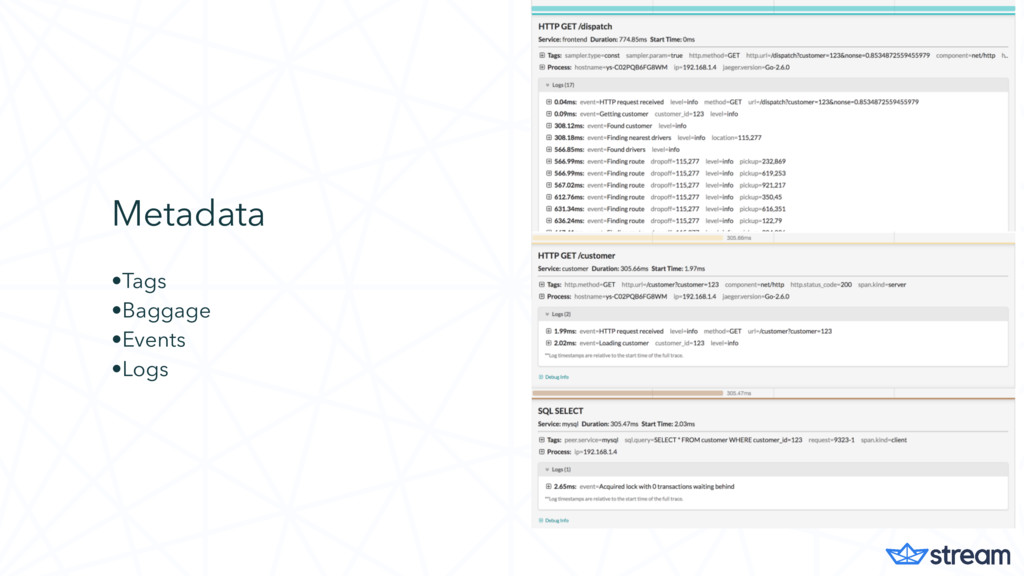

11. Metadata •Tags •Baggage •Events •Logs
12. How are we using OpenTracing

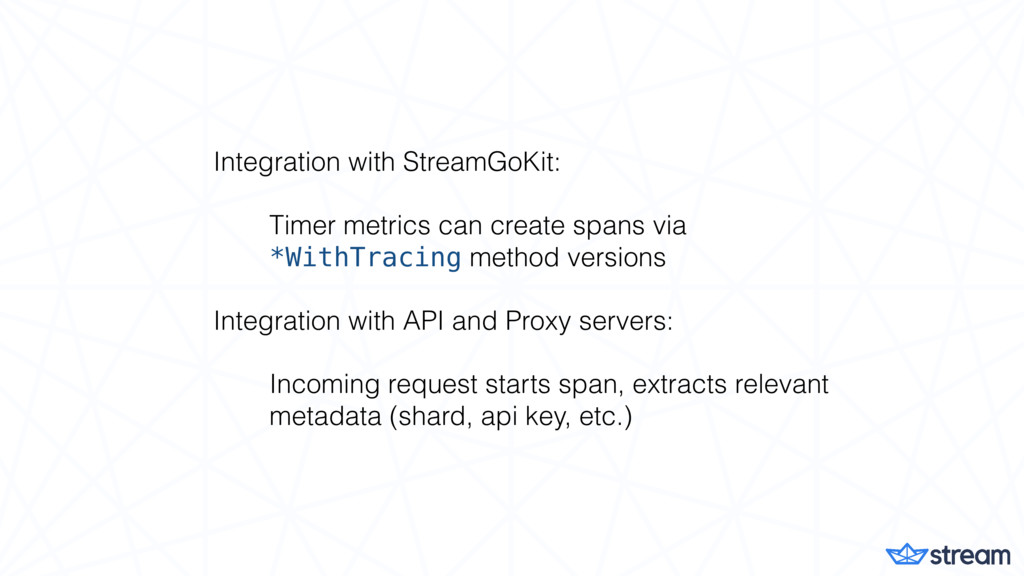

13. Integration with StreamGoKit: Timer metrics can create spans via *WithTracing method versions Integration with API and Proxy servers: Incoming request starts span, extracts relevant metadata (shard, api key, etc.)
14. Tracing span information passed in code via context.Context object Cross-service trace linking (Trace ID passed in HTTP headers/gRPC metadata) func myOperation(...) {
 timer, subcontext := metrics.StartWithTracing(context, "<operation>")
 defer timer.Stop()

 // timed operation

 subTimer, _ := metrics.StartWithTracing(subcontext, "<sub-operation>")
 // timed sub-operation
 subTimer.Stop()

 // timed operation continues
 }
15. Jaeger
16. • Distributed tracing system released as open source by Uber Technologies - v1.0 released Dec 2017 • Written in Go
17. Flexible pipeline • Agent - abstracts routing and discovery of collectors away from the client - allows for adaptive sampling rate to be implemented • Collector • UI for querying
18. Jaeger issues Authentication for agent collector communication Authentication for collector storage UI UI is barely usable
19. Our deployment now (WIP) • Collectors collocated with agents on service machines • Proxy, API, DB servers partially instrumented • ElasticSearch as storage
