WSO2 Presentation Layer

Transcript

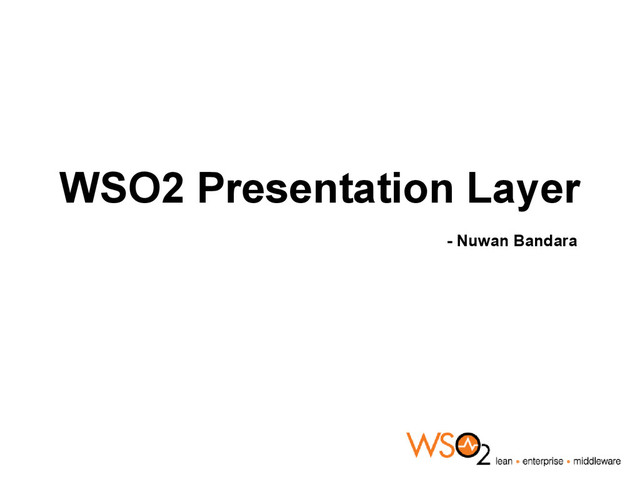

1. WSO2 Presentation Layer - Nuwan Bandara
2. What is the presentation layer ? • The place where data becomes information • Where all underneath complexities are given a meaning • The place where a first impressions in built
3. What it means to be the presentation layer of a middleware platform • A lot of data • A lot of data formats • Plenty of apis in various formats
4. JSP & Servlets • Is the common choice is java based platforms • Provides a solid platform to build UIs • Have a rich toolset
5. Carbon UI • In combination provides the UI for the underlying services layer • Modular • Separates the concerns • Plugable
6. Limitations of the current presentation platform • The pluggable UI components are in .jar archives • Not flexible for change • Have a strict convention and is limited to the management console UIs
7. Solution & Alternatives • Use a light weight frontend • No deployment hassle • Simply vi in the source • PHP ? Python ? JavaScript ?
8. Advantages of Javascript • One language across the board • Wide developer community adoption • A rich data format • Plenty of rich libraries for front end development
9. Javascript in the server • No mismatches of data back and forth • One language at the client and at the server • Share libraries between the client and the server • Any javascript developer can complete the entire job
10. • A runtime that process javascript at the server • easy of application development deployment lifecycle • A useful tool set perform basic server side functionalities • An extendable platform
11. How its been built • Based on Mozilla Rhino • Deployed as same as an exploded .war file
12. Hello World in Jaggery /helloworld.jag <% print('Hello World'); %>
13. Additional Helpers • Log • Require • <%= %> • get/post/put/del • Include • File • Database • etc
14. JSON /person.json { "person":{ "name":"nuwan", "tg":"development" } }
15. How JSON makes it all easy /data.jag <% var person = {"name":"nuwan", "company":"wso2"}; print(person); %> /display.html <script> $.get('data.jag', function(data) { alert('The name is : ' + data.name); }); </script>
16. Jaggery and APIs • Content negociation ◦ Can send the page or the data based on the requested content type • Natively support JSON (who's writing XML based apis anymore ;) ) • For this reason these APIs are inherently mobile friendly • No extra effort to write the API and then the application
17. Jaggery Editor • For now only support IntelliJ Idea • Full fledge web based IDE - Coming Soon with UES • Developer Studio Based IDE - Coming Soon
18. Jaggery Debugger
19. Questions ? Answers are at - http://jaggeryjs.org/documentation.jag :)
