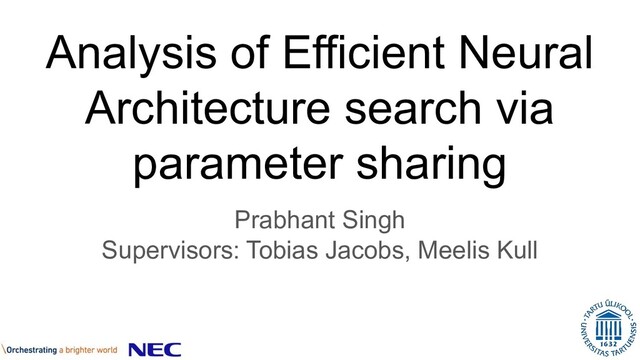

1. Analysis of Efficient Neural Architecture search via parameter sharing Prabhant Singh Supervisors: Tobias Jacobs, Meelis Kull
2. Motivation Story of this thesis - Apply transfer learning to ENAS to speed up the process - ENAS showed unexpected results - Thorough analysis of ENAS controller
3. Neural architecture search What’s Neural Architecture search? - Automating the design of neural networks Why we need Neural architecture search? - Reduce the cost of designing novel architectures - Faster design time
4. Neural architecture search Elements of Neural architecture search • Search space • Search strategy • Performance estimation strategy
5. Neural architecture search Elements of Neural architecture search • Search space • Search strategy • Performance estimation strategy
6. NAS Neural architecture search with reinforcement learning • Proposed by Google • First technique to match SOTA performance in CIFAR-10 and PTB • Agent samples architectures from search space • Evaluates architectures by training them from scratch • Expensive more than 24000 GPU hours required to find the architectures
7. ENAS • Proposed by Google • Uses similar controller as NAS • Uses weight sharing based performance estimation strategy for evaluation • Provides search space options as macro and micro • Comparable results to NAS with just 24 GPU hours
8. ENAS: Parameter Sharing
9. ENAS
11. Experiments • Transfer learning from CIFAR-10 to CIFAR-100 • Learning curve evaluation: Evaluating architectures sampled at initial epoch and final epoch of ENAS • Performance estimation strategy: Training 5 architectures sampled at epoch 155 from scratch
13. Results: Transfer learning CIFAR-100, Macro search space Sampled epoch Transfer applied Accuracy 310 NO 80.55 155 NO 80.33 100 NO 80.78 310 YES 80.35 155 YES 80.39 100 YES 80.19
14. Results: Learning curve evaluation Dataset Search space Sampled epoch Accuracy CIFAR-10 macro 1 96.69, 95.80, 95.71 CIFAR-10 macro 310 95.38, 95.81, 95.76 CIFAR-100 macro 1 80.75, 77.12, 80.55 CIFAR-100 macro 310 80.39, 80.07, 80.47 CIFAR-100 micro 1 79.59, 77.67 CIFAR-100 micro 310 80.50, 80.02
15. Results: Performance estimation strategy Sampled epoch: 155, CIFAR-100, Macro search space Validation accuracy Final accuracy 41.41 80.33 32.81 81.11 28.12 81.12 21.09 80.50 17.97 80.81
16. Conclusion • ENAS performance is mainly because of its sophisticated search space. • ENAS Search strategy is as good as random search. • ENAS performance estimation strategy is biased and overfit on the models with more shared weights. Future Work: • Applying same experimental methodology to DARTS, PENAS and NAO.
17. Thank you!
18. Neural architecture search as an RL problem - Agent: LSTM - Action space: Search space - Actions: Sampled architectures - Reward : input from performance estimation strategy For ENAS: At first step the controller receives an empty input.
