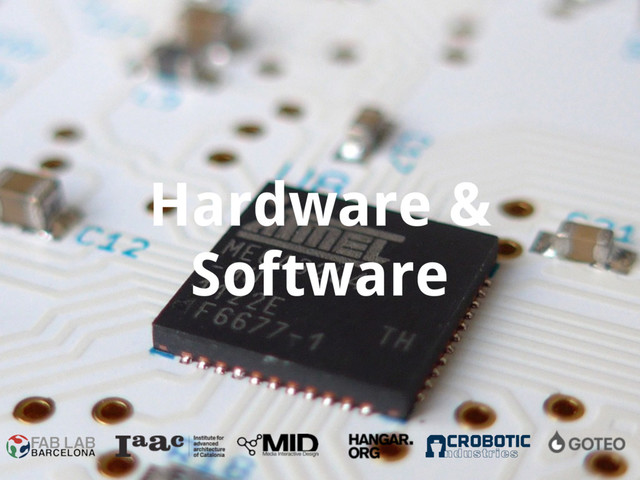

1. Hardware & Software
6. SCK 1.0
7. SCK 1.1
8. SCK Data Board
9. SCK Data Board
10. FEATURES NEXT SENSORS BOARD KITS LOGOS TEMPERATURE HUMIDITY LIGHT NOISE CO NO2 SOLAR PANEL Internet connectivity RTC Data time tracking Mini Usb connector &EŻIV]'LEVKIV Solar Panel Charger Micro SD card storage Arduino IDE compatible TM
11. www.github.com/fablabbcn
12. Partnership http://arduino.cc/en/ArduinoAtHeart/Products
13. SENSORS SYMBOLS TEMPERATURE HUMIDITY LIGHT NOISE CO NO2 SOLAR PANEL SCK Urban Shield
14. SCK Urban Shield SENSOR BOARD LIGHT SOUND HUMIDITY CO NO2 TEMPERATURE
15. docs.smartcitizen.me
16. Temperature ºC SHT21 Humidity % rel SHT21 Carbon Monoxide (CO) kOhm (ppm) MIC4514 Dioxide Nitrogen (NO2) kOhm (ppm) MIC4514 Noise dB Electret Mic Ambient light lux BH1730FVC
17. Accelerometer G ADXL345 Panel mV ADC Battery % ADC Net Units WiFly RN-131G
19. Temperature and Relative Humidity Lux (1 lm/m2) SHT21 http://www.sensirion.com/fileadmin/ user_upload/customers/sensirion/ Dokumente/Humidity/ Sensirion_Humidity_SHT21_Datasheet _V3.pdf
20. Carbon Monoxide (CO) and Dioxide Nitrogen (NO2) kOhm (PPM) MIC4514 http://files.manylabs.org/datasheets/ MICS-4514.pdf
21. Carbon Monoxide (CO) and Nitrogen Dioxide(NO2) Based on our own tests we consider 75KΩ to be the default R0 for the CO sensors and 10KΩ to be the default R0 for NO2. We can calculate ppm as RS/R0. Example: RS = 641KΩ will around 8.3 PPM http://www.aqmd.gov/docs/default-source/aq-spec/field-evaluations/smart- citizen-kit---field-evaluation.pdf?sfvrsn=2 PPM = RS/R0
22. Ambient light Lux (1 lm/m2) BH1730FVC http://rohmfs.rohm.com/en/products/ databook/datasheet/ic/sensor/light/ bh1730fvc-e.pdf
23. Noise (Sound Pressure) dB Electret Mic
24. https://vimeo.com/145620646
25. https://github.com/fablabbcn/Smart-Citizen-Kit
26. smartcitizen.me The Platform A complete data ecosystem
27. The Platform A complete data ecosystem
28. The Platform A complete data ecosystem
29. Examples http://codepen.io/anon/pen/NNoRmQ
30. NEXT SENSORS BOARD KITS LOGOS &EŻIV]'LEVKIV Solar Panel Charger Micro SD card storage Arduino IDE compatible METERING INDOOR EMF E-HEALTH AGRICULTURE Boards can be easily developed to match different need and environments A modular platform
31. Precalibrated CO and NO2 sensors add-on 250€ New pro Air Quality Sensors PM 2.5 and PM 10 sensors add-on 250€ Under development
32. http://making-sense.eu/ Coming Soon
