Experiences debugging memory bloat and high CPU consumption in python by Alexandre Hardy

This talk is targeted at python developers who develop long running services, which are susceptible to memory issues or unacceptable CPU usage (as determined by the developer or operations teams). We focus on debugging techniques that we have used in constrained environments (production like environments) where installation of additional software packages is not permitted, and techniques which we were able to use to debug a python process without restarting it (to avoid state loss).

Topics covered in the talk: 1. An example debugging session in which memory bloat is diagnosed. 2. An example debugging session in which high CPU usage is diagnosed. 3. Tools which can be used in debugging these issues, and their limitations. 4. Some thoughts about improving how we think about python, and assumptions made by python developers. 5. Projects we are (slowly) working on to help us debug python processes in production, or production like environments.

The audience should learn about some useful standard python libraries which can be used to debug memory and CPU usage related issues, and how they were effectively used to solve problems in an enterprise product. The audience will also be encouraged to think differently about python programming, and encouraged to think about what it means to select python (or any other programming language) for a given task.

Transcript

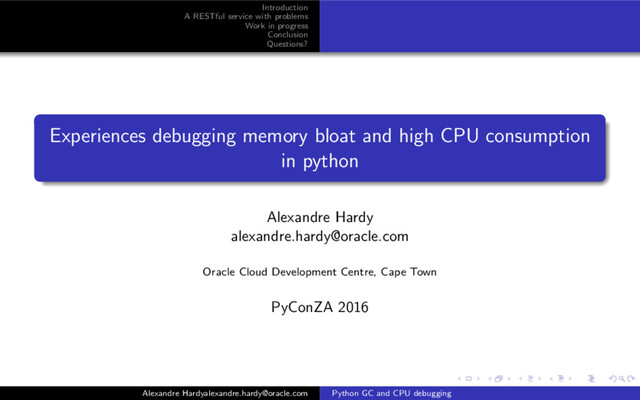

1. Introduction A RESTful service with problems Work in progress Conclusion Questions? Experiences debugging memory bloat and high CPU consumption in python Alexandre Hardy alexandre.hardy@oracle.com Oracle Cloud Development Centre, Cape Town PyConZA 2016 Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
2. Introduction A RESTful service with problems Work in progress Conclusion Questions? Table of Contents 1 Introduction 2 A RESTful service with problems 3 Work in progress 4 Conclusion 5 Questions? Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
3. Introduction A RESTful service with problems Work in progress Conclusion Questions? Introduction ... or what we will present Simplified debugging examples based on real debugging sessions. This is not production code, and serves only to instruct. I am not a python memory management expert, so there will be some hand waving and avoidance of detail. Mistakes are made on purpose (mostly). Debug memory leak. Debug memory fragmentation. Debug reference cycles. Debug high CPU (tight loop actually) issue. Lessons learned. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
4. Introduction A RESTful service with problems Work in progress Conclusion Questions? Why do we care? Originally we had a control plane co-existing with VMs. We want the memory for VMs. A large memory footprint can impact other operations (for example copying page tables when forking the process). The process can become slower due to the large memory footprint (cache coherence?). The Twisted HTTP server did not have a graceful shutdown. Requests were terminated abruptly. (So we don’t really want to kill the process to rectify the situation). Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
5. Introduction A RESTful service with problems Work in progress Conclusion Questions? Production (like) restrictions All packages must be vetted by a security team, and other organizational structures. Customer experience is paramount, service disruption for debugging is not acceptable. Our QA environments are setup with similar restrictions, since other teams are our customers, and we need to give them a production experience. Luckily in QA environments we are given more time to debug. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
6. Introduction A RESTful service with problems Work in progress Conclusion Questions? Frameworks used Python 2.7 (we want specific memory management behaviour for the demos) Twisted framework 16.0.0 (asynchronous IO etc). Twisted manhole. Python’s own libraries are used for debugging. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
7. Introduction A RESTful service with problems Work in progress Conclusion Questions? Table of Contents 1 Introduction 2 A RESTful service with problems 3 Work in progress 4 Conclusion 5 Questions? Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
8. Introduction A RESTful service with problems Work in progress Conclusion Questions? A RESTful service to tell us about PyConZA participants ... to the code! Get it at https://github.com/alexandrehardy/ahardy pyconza2016 gc1.py model.py ... let’s send a couple of 100 requests to the service. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
9. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debugging a memory leak ... using third party tools (Guppy) Guppy / heapy for computing heap deltas (https://pypi.python.org/pypi/guppy/) >>> from guppy import hpy; hp=hpy() >>> before = hp.heap() >>> after = hp.heap() >>> leak = after - before >>> leak Partition of a set of 48477 objects. Total size = 3265516 bytes. Index Count % Size % Cumulative % Kind (class / dict of class) 0 25773 53 1612820 49 1612820 49 str 1 11699 24 483960 15 2096780 64 tuple 2 174 0 241584 7 2338364 72 dict of module 3 3478 7 222592 7 2560956 78 types.CodeType 4 3296 7 184576 6 2745532 84 function 5 401 1 175112 5 2920644 89 dict of class 6 108 0 81888 3 3002532 92 dict (no owner) 7 114 0 79632 2 3082164 94 dict of type 8 117 0 51336 2 3133500 96 type 9 667 1 24012 1 3157512 97 __builtin__.wrapper_descriptor <76 more rows. Type e.g. ’_.more’ to view.> Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
10. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debugging a memory leak ... using third party tools (objgraph) Objgraph for graphing reference chains (https://pypi.python.org/pypi/objgraph) >>> # Forward references >>> import objgraph >>> x = [] >>> y = [x, [x], dict(x=x)] >>> objgraph.show_refs([y], filename=’sample-graph.png’) Graph written to ....dot (... nodes) Image generated as sample-graph.png >>> # Backward references >>> objgraph.show_backrefs([x], filename=’sample-backref-graph.png’) ... Graph written to ....dot (8 nodes) Image generated as sample-backref-graph.png Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
11. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debugging a memory leak I ... using the python gc module Python 2.6 / 2.7 uses reference counting with generational collection less frequently. First guess: reference is not zero, so not garbage collected. Introducing our own heap delta analysis module: debug.py Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
12. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debugging a memory leak II ... using the python gc module Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
13. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debugging a memory leak III ... using the python gc module Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
14. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debugging a memory leak IV ... using the python gc module Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
15. Introduction A RESTful service with problems Work in progress Conclusion Questions? Let’s find the leak ... Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
16. Introduction A RESTful service with problems Work in progress Conclusion Questions? And now fix the leak ... I model.py @@ -7,20 +7,13 @@ database = ’db’ table = ’table’ - _field_cache = {} def __init__(self): pass - @staticmethod - def get_fields(cls): - if cls not in DBModel._field_cache: - DBModel._field_cache[cls] = cls.get_fields() - return DBModel._field_cache[cls] - @classmethod def get(cls, identifier): result = cls() deferred = defer.Deferred() - fields = DBModel.get_fields(cls) + fields = cls.get_fields() for field in fields: @@ -33,5 +26,5 @@ Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
17. Introduction A RESTful service with problems Work in progress Conclusion Questions? And now fix the leak ... II def to_primitive(self): - fields = DBModel.get_fields(self.__class__) + fields = self.get_fields() primitive = {} for field in fields: @@ -41,5 +34,5 @@ class Attendee(DBModel): - database = ’pyconza’ + database = ’pyconza2016’ table = ’attendees’ fields = { Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
18. Introduction A RESTful service with problems Work in progress Conclusion Questions? The leak is now fixed, but ... I ... we’ve added something and the RSS is still high! gc2.py @@ -46,4 +46,20 @@ +@defer.inlineCallbacks +def audit(): + work = [] + i = 0 + while True: + i = i + 1 + work.append(’work %s’ % i) + deferred = defer.Deferred() + reactor.callLater(0.0001, deferred.callback, True) + yield deferred + + if len(work) > 10000: + # remove every second item + work = work[::2] + + if __name__ == ’__main__’: site = server.Site(Demo()) @@ -53,4 +69,5 @@ manhole.password = ’demo’ Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
19. Introduction A RESTful service with problems Work in progress Conclusion Questions? The leak is now fixed, but ... II ... we’ve added something and the RSS is still high! reactor.listenTCP(20000, manhole) + reactor.callLater(0, audit) print ’Running web server, pid=%s’ % os.getpid() open(’gc.pid’, ’w’).write(’%s’ % os.getpid()) Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
20. Introduction A RESTful service with problems Work in progress Conclusion Questions? Analyzing memory layout Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
21. Introduction A RESTful service with problems Work in progress Conclusion Questions? Analyzing memory layout I ... heat maps heatmap.py: Sort of. Visualize memory usage. Fragmentation. Let’s reduce fragmentation. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
22. Introduction A RESTful service with problems Work in progress Conclusion Questions? Analyzing memory layout ... where do the pointers come from? Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
23. Introduction A RESTful service with problems Work in progress Conclusion Questions? Reduce fragmentation ... I gc2.py @@ -25,16 +25,31 @@ return NewAttendee.get(registration_number) + def get_db_cursor(self): + # Pretend to be a cursor! + for registration in xrange(0, 1000): + yield self.get_attendee_from_db(registration) + @defer.inlineCallbacks def get_attendees(self): - attendees = [(yield self.get_attendee_from_db(registration)) for registration in xrange(0, 1000)] - defer.returnValue(attendees) + # Pretend to contact the database, need this to be a generator + yield True + defer.returnValue(self.get_db_cursor()) @defer.inlineCallbacks def render_list(self, request): db_results = yield self.get_attendees() - self.log(’Got results %s’ % len(db_results)) - results = [r.to_primitive() for r in db_results] - self.log(’Shipped results %s’ % len(results)) - request.write(json.dumps(results, indent=4)) + self.log(’Got results’) Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
24. Introduction A RESTful service with problems Work in progress Conclusion Questions? Reduce fragmentation ... II + request.write(’[\n’) + + # Get the first value. We should be checking for StopIteration here ... + first = yield db_results.next() + request.write(json.dumps(first.to_primitive(), indent=4)) + + for deferred_result in db_results: + result = yield deferred_result + request.write(’,\n%s’ % json.dumps(result.to_primitive(), indent=4)) + + request.write(’\n]\n’) + self.log(’Shipped results’) request.finish() self.log(’All done’) Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
25. Introduction A RESTful service with problems Work in progress Conclusion Questions? Affect of circular references Easier than you might think... (mro) Harder to reproduce than you might think (I took the easy way out ...) Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
26. Introduction A RESTful service with problems Work in progress Conclusion Questions? Third example I gc3.py @@ -1,2 +1,3 @@ +from copy import deepcopy import json import os @@ -11,4 +12,31 @@ +class Address(object): + def __init__(self, attendee): + self.attendee = attendee + + def __del__(self): + # Remove a reference to the parent + self.attendee = None + + +def AttendeeWithDiet(diet=[’none’, ’vegetarian’]): + class AttendeeWithDietClass(Attendee): + fields = dict(dietary_preference=[’none’, ’vegetarian’], **deepcopy(Attendee.fields)) + + def __init__(self): + self.address = Address(self) + + @classmethod Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
27. Introduction A RESTful service with problems Work in progress Conclusion Questions? Third example II + def get_fields(cls): + return AttendeeWithDietClass.fields + + def __del__(self): + # Remove the reference to the fields we have + self.address = None + + return AttendeeWithDietClass + + class Demo(resource.Resource): isLeaf = True @@ -21,7 +49,5 @@ def get_attendee_from_db(self, registration_number): - class NewAttendee(Attendee): - database = ’pyconza2016’ - return NewAttendee.get(registration_number) + return AttendeeWithDiet().get(registration_number) def get_db_cursor(self): @@ -62,17 +88,12 @@ @defer.inlineCallbacks -def audit(): - work = [] - i = 0 Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
28. Introduction A RESTful service with problems Work in progress Conclusion Questions? Third example III +def audit(rate): while True: - i = i + 1 - work.append(’work %s’ % i) + to_audit = [AttendeeWithDiet().get(i) for i in xrange(0, 1000)] deferred = defer.Deferred() - reactor.callLater(0.0001, deferred.callback, True) + reactor.callLater(rate, deferred.callback, True) yield deferred - - if len(work) > 10000: - # remove every second item - work = work[::2] + for entry in to_audit: + entry.done = True @@ -84,5 +105,5 @@ manhole.password = ’demo’ reactor.listenTCP(20000, manhole) - reactor.callLater(0, audit) + reactor.callLater(0, audit, 0.1) print ’Running web server, pid=%s’ % os.getpid() open(’gc.pid’, ’w’).write(’%s’ % os.getpid()) Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
29. Introduction A RESTful service with problems Work in progress Conclusion Questions? Finding circular references Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
30. Introduction A RESTful service with problems Work in progress Conclusion Questions? Tracing a python program ... because we can So what other modules does python provide that we can use for debugging? highcpu.py strace doesn’t offer too much information. trace.py - python can tell us exactly which functions are invoked. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
31. Introduction A RESTful service with problems Work in progress Conclusion Questions? Tight loop ... I highcpu.py @@ -1,2 +1,3 @@ +from copy import deepcopy import json import os @@ -9,4 +10,5 @@ from model import Attendee +from trace import install_trace_handler @@ -21,7 +23,5 @@ def get_attendee_from_db(self, registration_number): - class NewAttendee(Attendee): - database = ’pyconza2016’ - return NewAttendee.get(registration_number) + return Attendee.get(registration_number) def get_db_cursor(self): @@ -36,4 +36,7 @@ defer.returnValue(self.get_db_cursor()) + def include_result(self, result): + return False + Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
32. Introduction A RESTful service with problems Work in progress Conclusion Questions? Tight loop ... II @defer.inlineCallbacks def render_list(self, request): @@ -42,11 +45,16 @@ request.write(’[\n’) - # Get the first value. We should be checking for StopIteration here ... - first = yield db_results.next() - request.write(json.dumps(first.to_primitive(), indent=4)) - - for deferred_result in db_results: - result = yield deferred_result - request.write(’,\n%s’ % json.dumps(result.to_primitive(), indent=4)) + done = False + all_results = [] + next_item = yield db_results.next() + while not done: + if self.include_result(next_item): + all_results.append(next_item) + # Forgot to get a new value for next_item + # A loop without a function call won’t be picked up by tracing. + # Tracing only picks up function calls. + + for item in all_results: + request.write(json.dumps(item.to_primitive(), indent=4)) request.write(’\n]\n’) @@ -86,5 +94,6 @@ Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
33. Introduction A RESTful service with problems Work in progress Conclusion Questions? Tight loop ... III reactor.callLater(0, audit) print ’Running web server, pid=%s’ % os.getpid() - open(’gc.pid’, ’w’).write(’%s’ % os.getpid()) + open(’cpu.pid’, ’w’).write(’%s’ % os.getpid()) + install_trace_handler() reactor.run() print ’Stopped!’ Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
34. Introduction A RESTful service with problems Work in progress Conclusion Questions? Tracing a python program Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
35. Introduction A RESTful service with problems Work in progress Conclusion Questions? Table of Contents 1 Introduction 2 A RESTful service with problems 3 Work in progress 4 Conclusion 5 Questions? Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
36. Introduction A RESTful service with problems Work in progress Conclusion Questions? Debug tools in progress / complete Turn debug logging on (and off) without service restart. Turn the twisted manhole on (and off) without service restart. Turn on (and off) process tracing with an intermittent consumer (unix pipe). Python memory dump (for when all else fails) with analysis tools. ... all with security in mind. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
37. Introduction A RESTful service with problems Work in progress Conclusion Questions? Table of Contents 1 Introduction 2 A RESTful service with problems 3 Work in progress 4 Conclusion 5 Questions? Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
38. Introduction A RESTful service with problems Work in progress Conclusion Questions? Lessons learned You still have to understand memory management in garbage collected languages. Garbage collector implementations can be suprising. The advantage of garbage collection is that you can write a program quickly, with minimal concerns. The cost of garbage collection is that you no longer have an explicit way to control memory management. You sometimes have to convince the garbage collection to behave the way you want it to. A decent understanding is required of any programming language selected for a task. Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
39. Introduction A RESTful service with problems Work in progress Conclusion Questions? Table of Contents 1 Introduction 2 A RESTful service with problems 3 Work in progress 4 Conclusion 5 Questions? Alexandre Hardyalexandre.hardy@oracle.com Python GC and CPU debugging
