1. Mitigating Data Theft Attack in Android By: Rashmi Bhandari Software Developer @Visual Infosoft Pvt Ltd, Ahmedabad

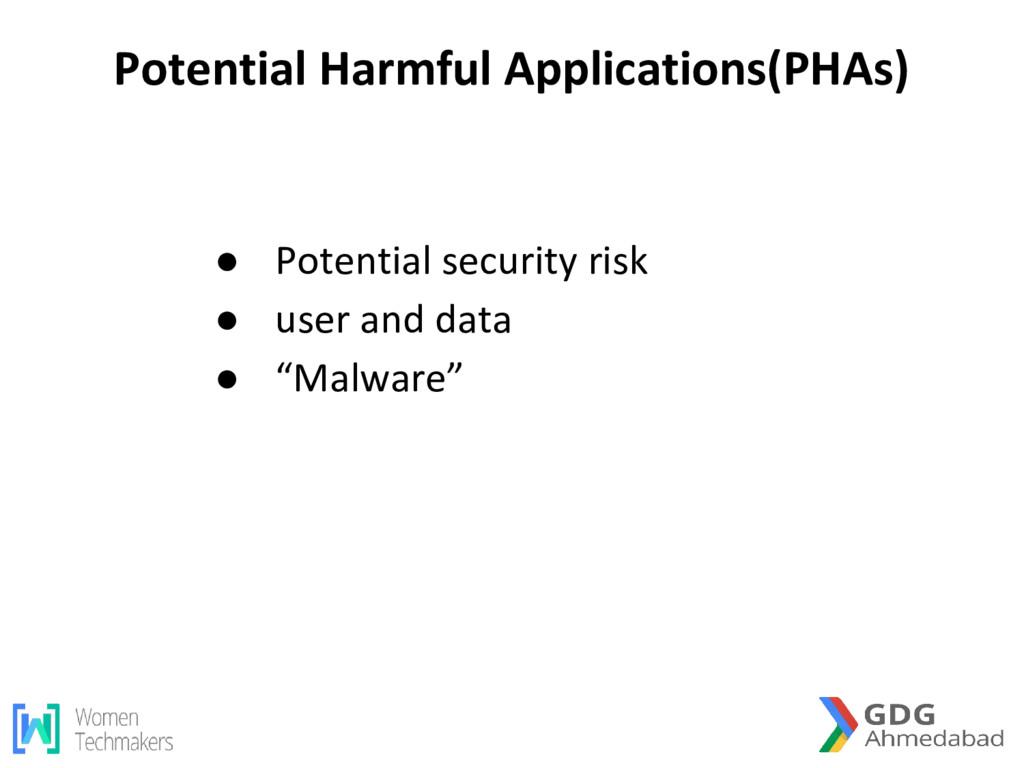

2. Potential Harmful Applications(PHAs) • Potential security risk • user and data • “Malware”

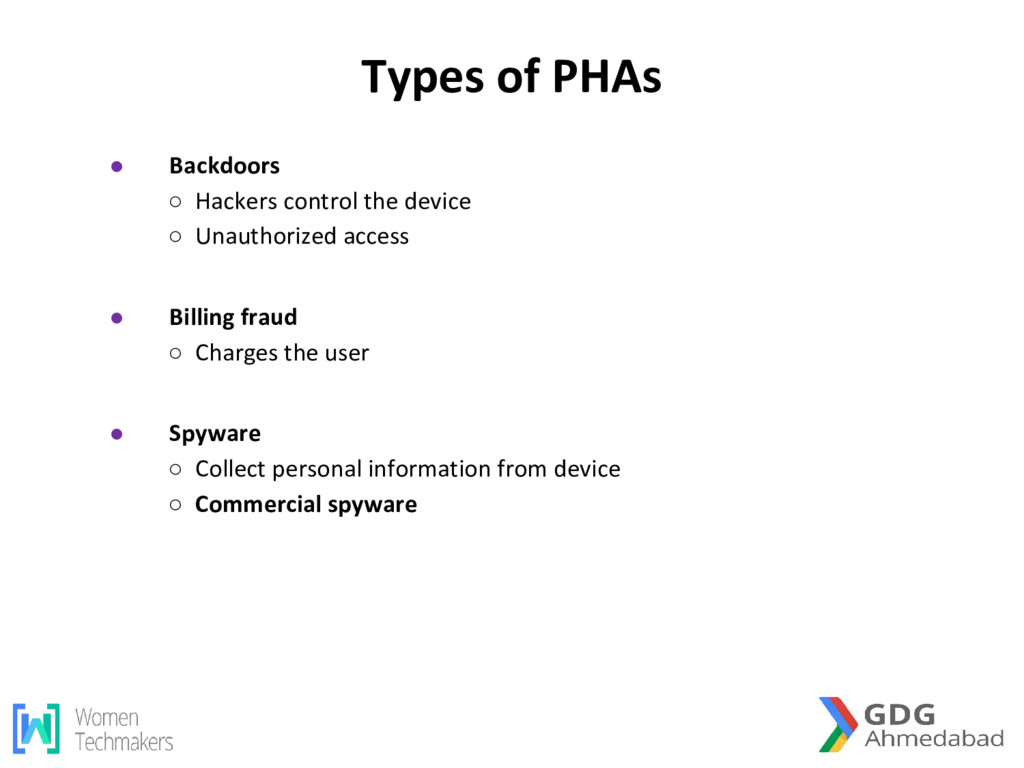

3. Types of PHAs • Backdoors ◦ Hackers control the device ◦ Unauthorized access • Billing fraud ◦ Charges the user • Spyware ◦ Collect personal information from device ◦ Commercial spyware

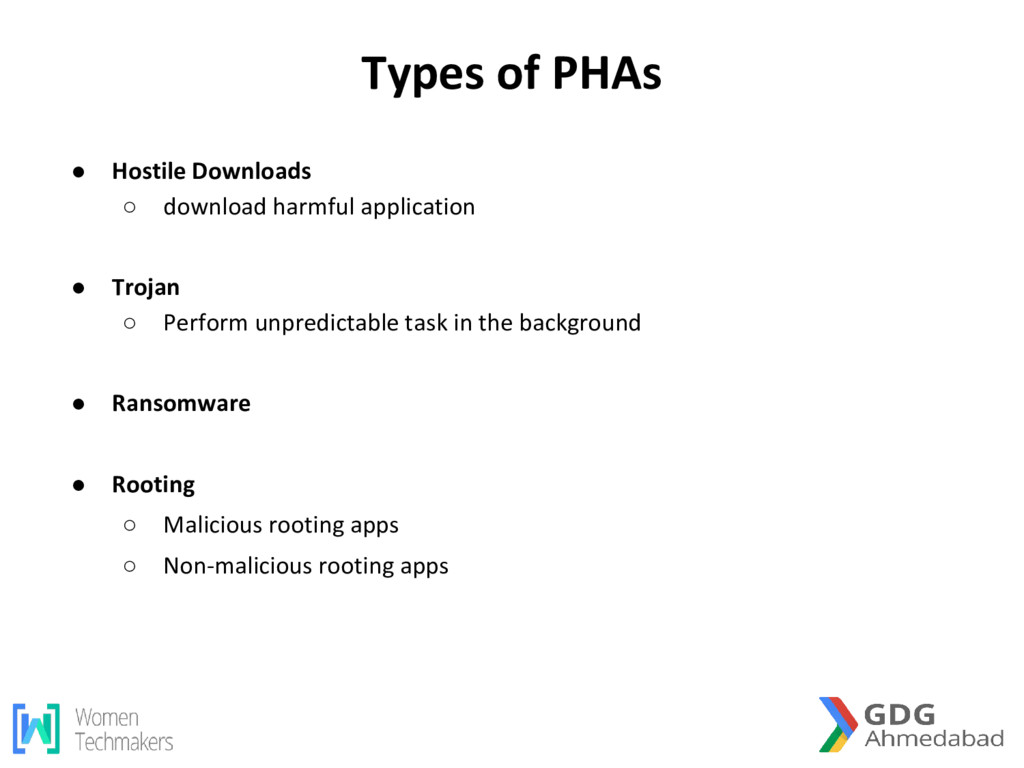

4. Types of PHAs • Hostile Downloads ◦ download harmful application • Trojan ◦ Perform unpredictable task in the background • Ransomware • Rooting ◦ Malicious rooting apps ◦ Non-malicious rooting apps

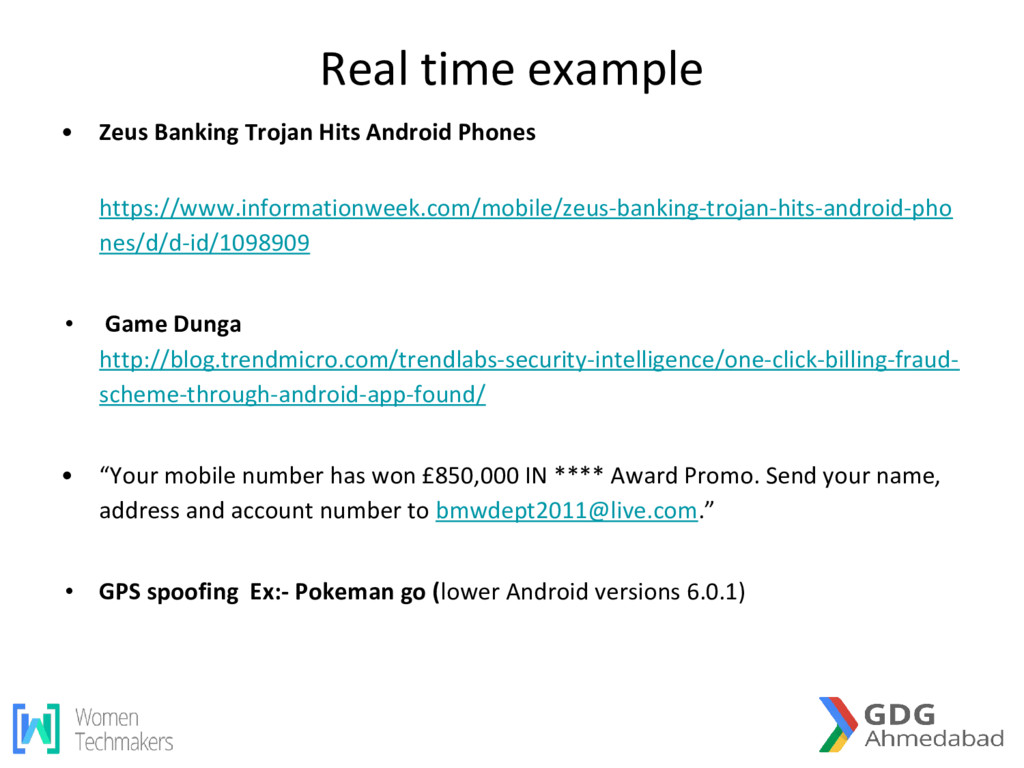

5. Real time example • Zeus Banking Trojan Hits Android Phones https://www.informationweek.com/mobile/zeus-banking-trojan-hits-android-pho nes/d/d-id/1098909 • Game Dunga http://blog.trendmicro.com/trendlabs-security-intelligence/one-click-billing-fraud- scheme-through-android-app-found/ • “Your mobile number has won £850,000 IN **** Award Promo. Send your name, address and account number to bmwdept2011@live.com.” • GPS spoofing Ex:- Pokeman go (lower Android versions 6.0.1)
6. How google fight with PHAs Chamois Popup ads,boosting app promotion by automatically installing other application in the background, subscribing users to premium services by sending text message and downloading plugins without their knowledge.

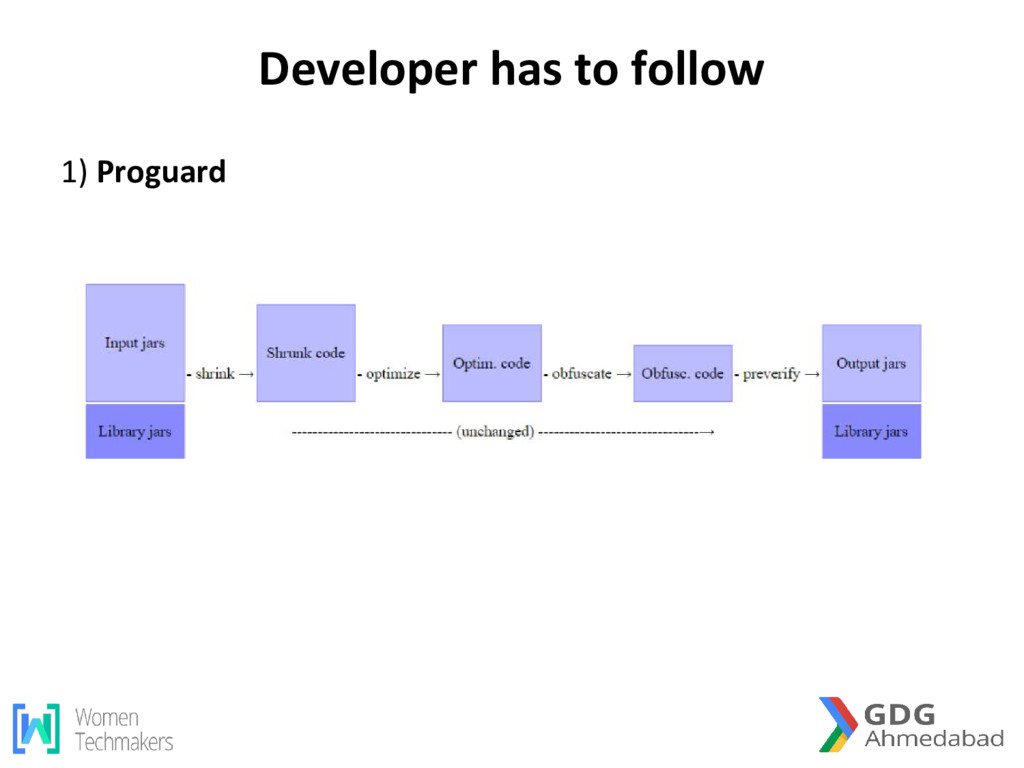

8. Developer has to follow 1) Proguard

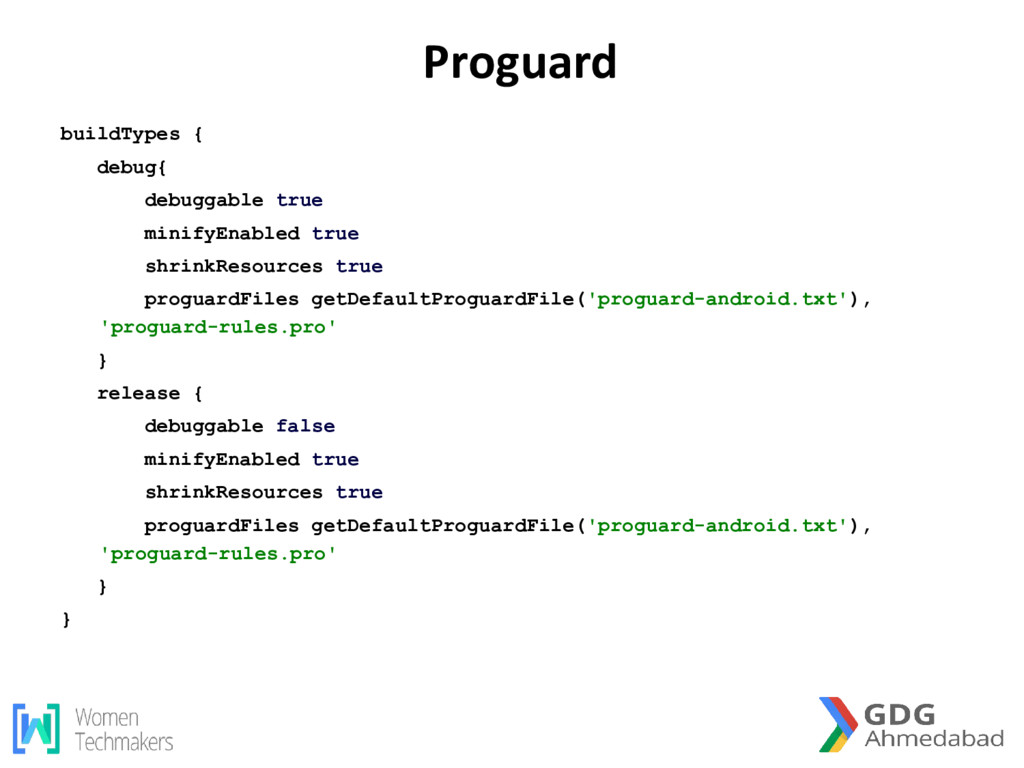

9. Proguard buildTypes { debug{ debuggable true minifyEnabled true shrinkResources true proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } release { debuggable false minifyEnabled true shrinkResources true proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } }

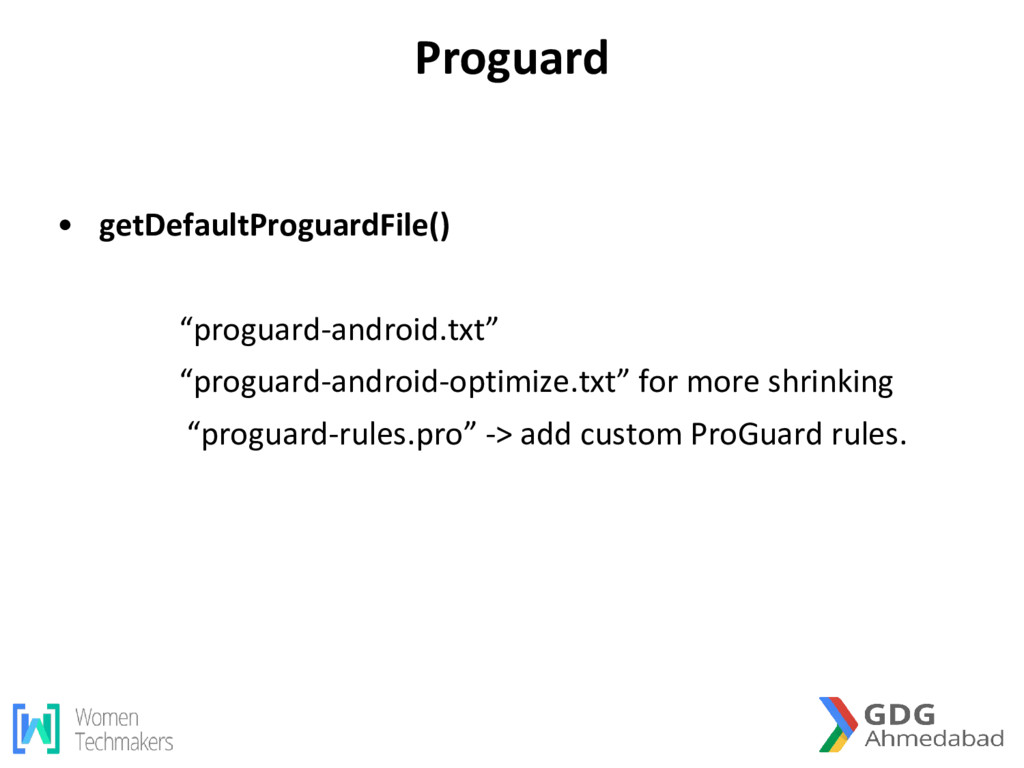

10. Proguard • getDefaultProguardFile() “proguard-android.txt” “proguard-android-optimize.txt” for more shrinking “proguard-rules.pro” -> add custom ProGuard rules.

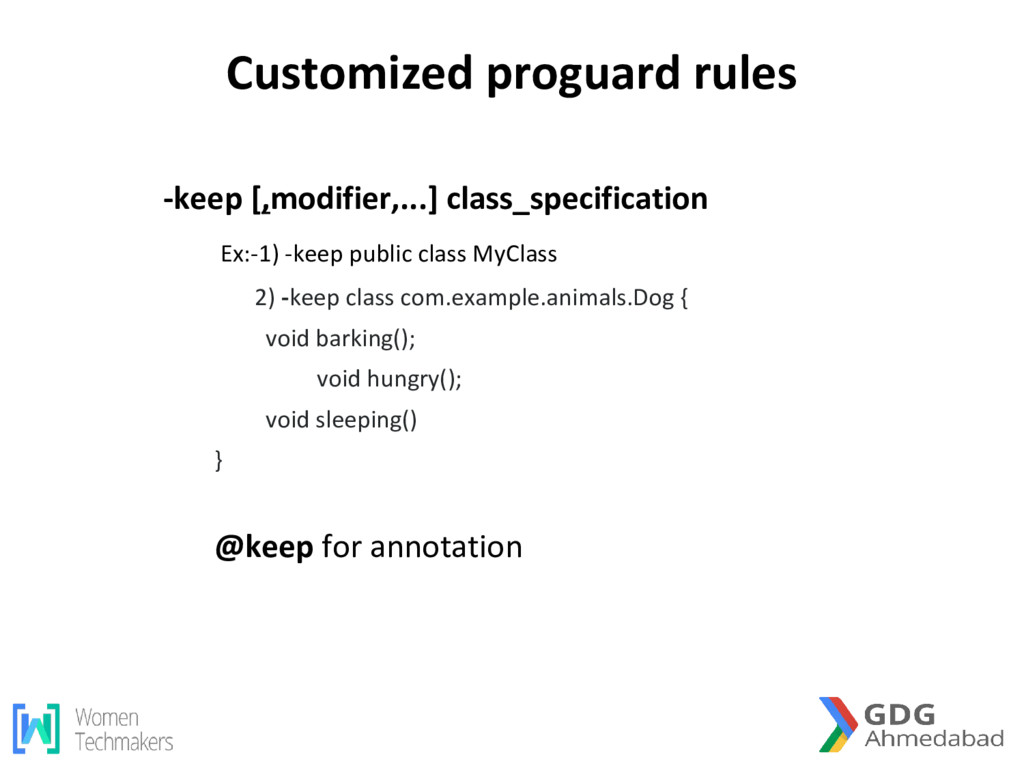

11. Customized proguard rules -keep [,modifier,...] class_specification Ex:-1) -keep public class MyClass 2) -keep class com.example.animals.Dog { void barking(); void hungry(); void sleeping() } @keep for annotation
12. LINT Security checks : • ExportedActivity: Checks for exported activities that do not require permissions. • ExportedContentProvider: Checks for exported content providers that do not require permissions • ExportedReceiver: Checks for exported receivers that do not require permissions • ExportedService: Checks for exported services that do not require permissions android:exported="true"

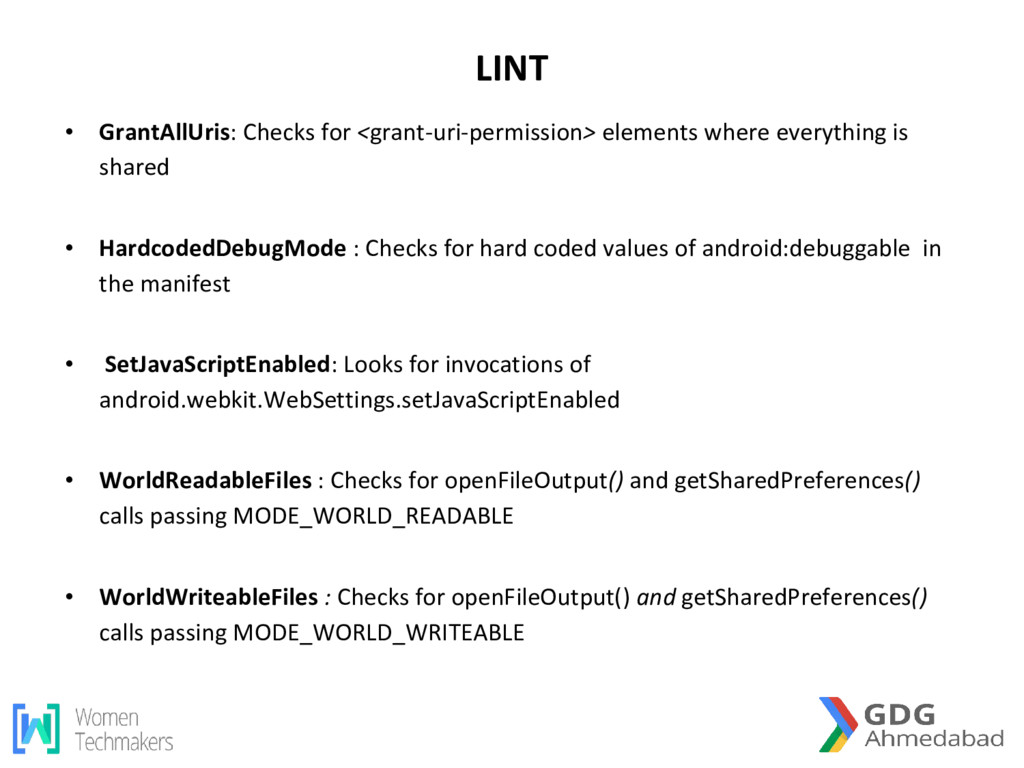

13. LINT • GrantAllUris: Checks for <grant-uri-permission> elements where everything is shared • HardcodedDebugMode : Checks for hard coded values of android:debuggable in the manifest • SetJavaScriptEnabled: Looks for invocations of android.webkit.WebSettings.setJavaScriptEnabled • WorldReadableFiles : Checks for openFileOutput() and getSharedPreferences() calls passing MODE_WORLD_READABLE • WorldWriteableFiles : Checks for openFileOutput() and getSharedPreferences() calls passing MODE_WORLD_WRITEABLE

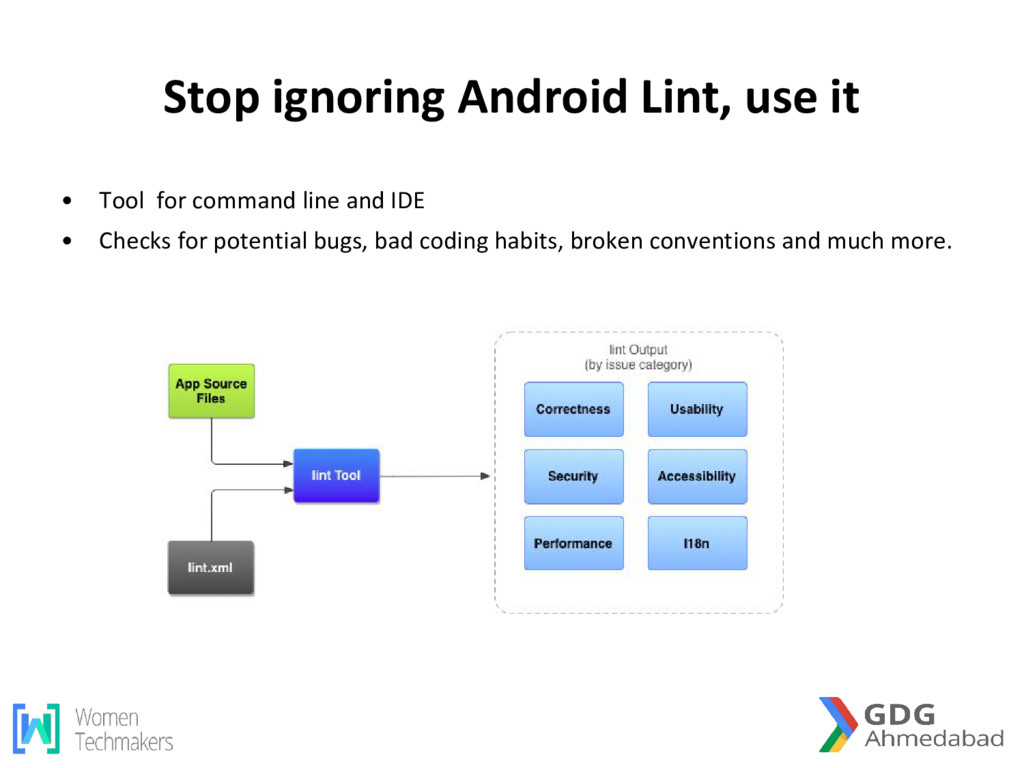

14. Stop ignoring Android Lint, use it • Tool for command line and IDE • Checks for potential bugs, bad coding habits, broken conventions and much more.

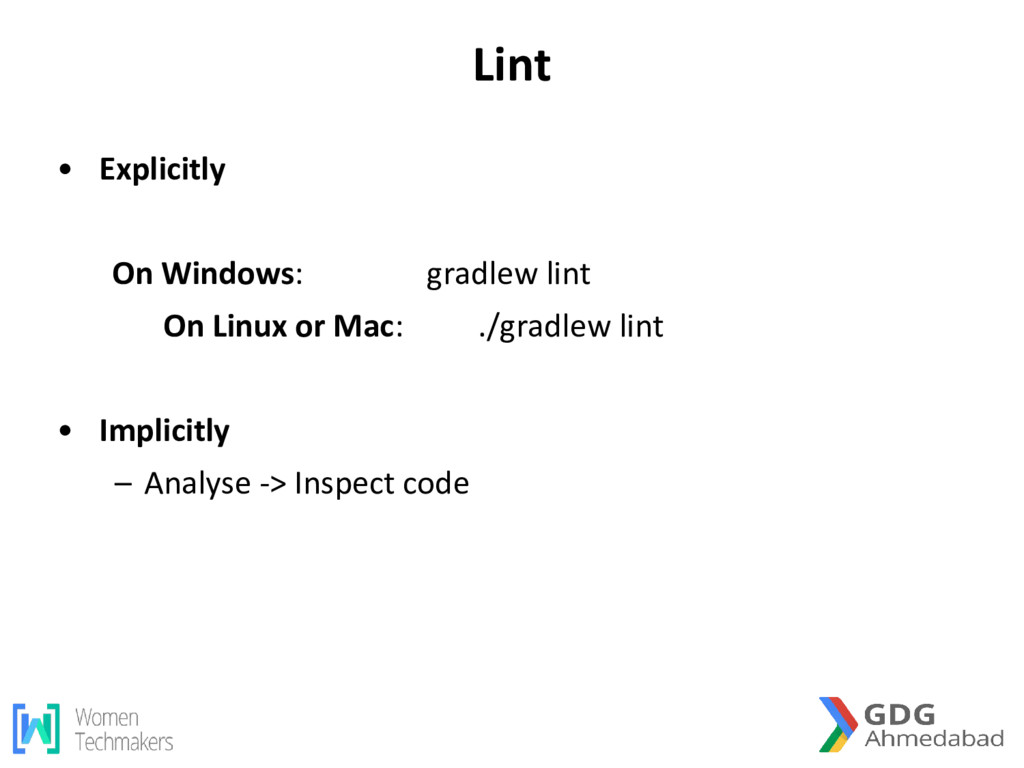

15. Lint • Explicitly On Windows: gradlew lint On Linux or Mac: ./gradlew lint • Implicitly – Analyse -> Inspect code

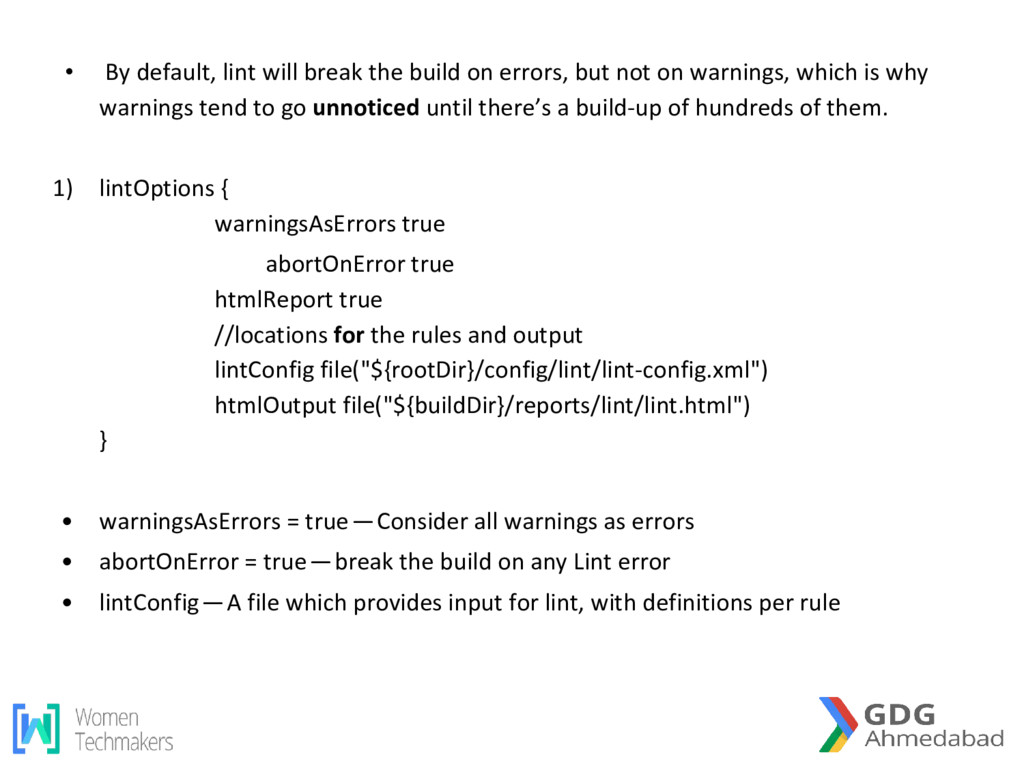

16. • By default, lint will break the build on errors, but not on warnings, which is why warnings tend to go unnoticed until there’s a build-up of hundreds of them. 1) lintOptions { warningsAsErrors true abortOnError true htmlReport true //locations for the rules and output lintConfig file("${rootDir}/config/lint/lint-config.xml") htmlOutput file("${buildDir}/reports/lint/lint.html") } • warningsAsErrors = true — Consider all warnings as errors • abortOnError = true — break the build on any Lint error • lintConfig — A file which provides input for lint, with definitions per rule

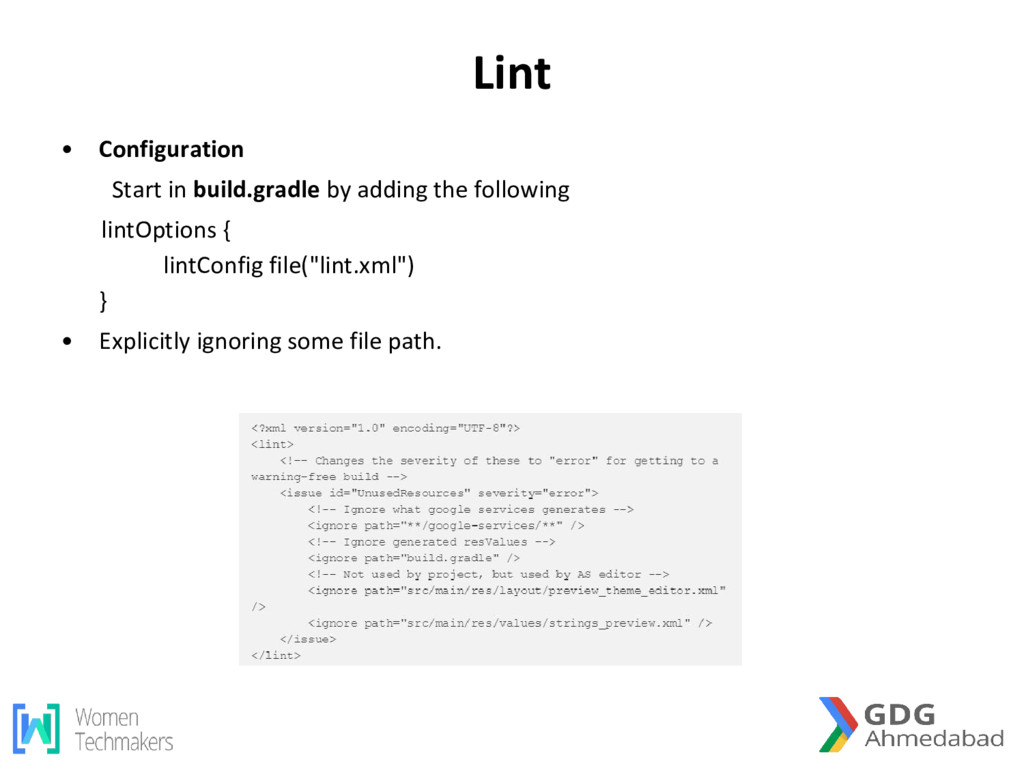

17. Lint • Configuration Start in build.gradle by adding the following lintOptions { lintConfig file("lint.xml") } • Explicitly ignoring some file path.

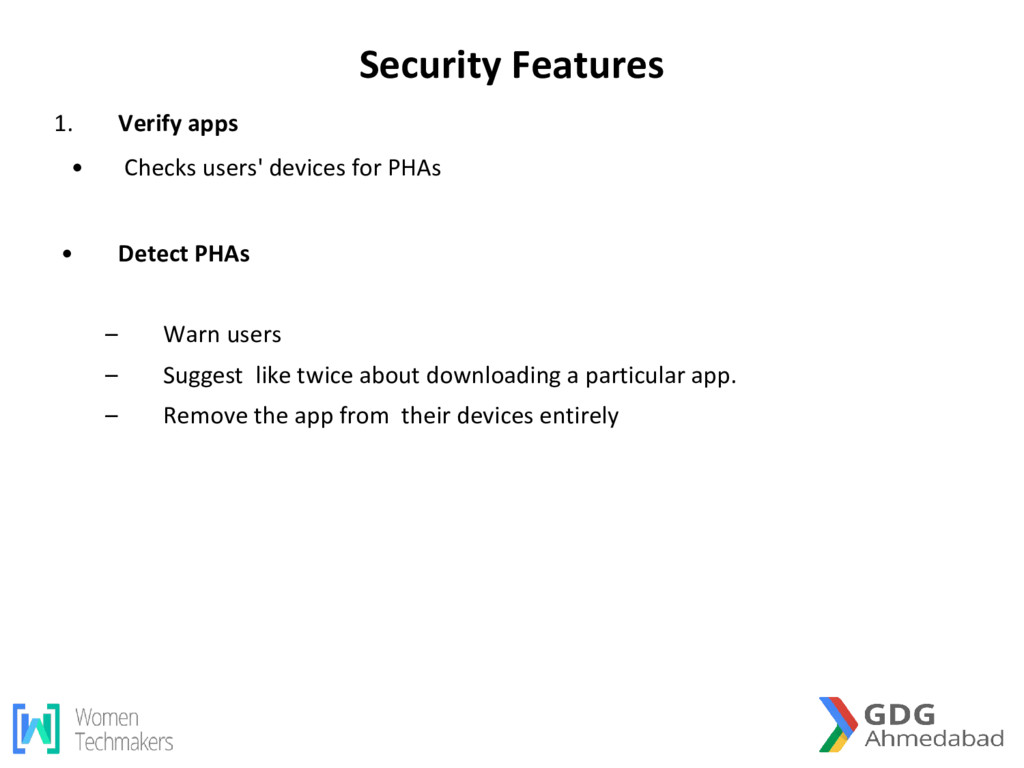

18. Security Features 1. Verify apps • Checks users' devices for PHAs • Detect PHAs – Warn users – Suggest like twice about downloading a particular app. – Remove the app from their devices entirely

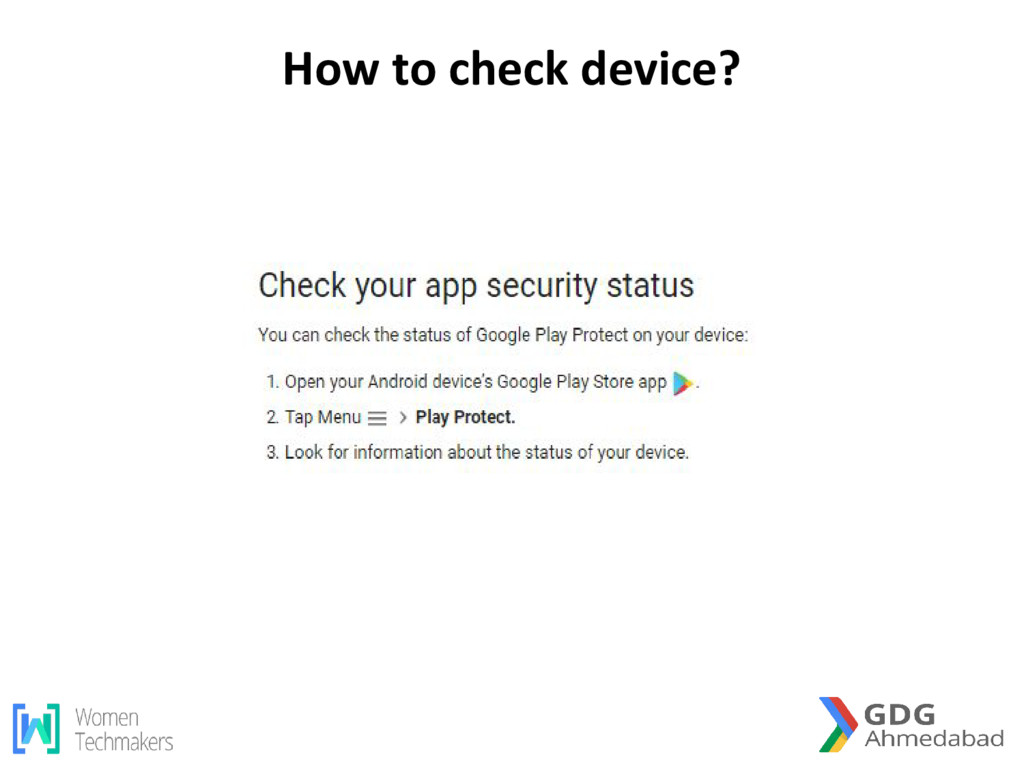

19. How to check device?
20. Safety nets

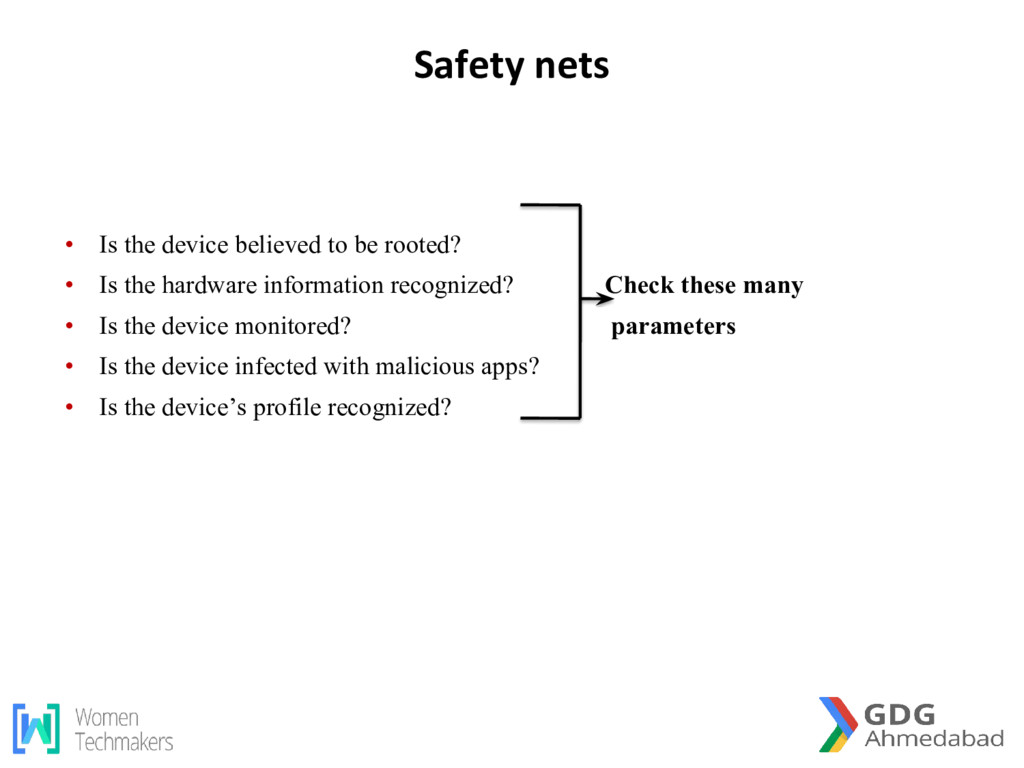

21. Safety nets • Is the device believed to be rooted? • Is the hardware information recognized? Check these many • Is the device monitored? parameters • Is the device infected with malicious apps? • Is the device’s profile recognized?

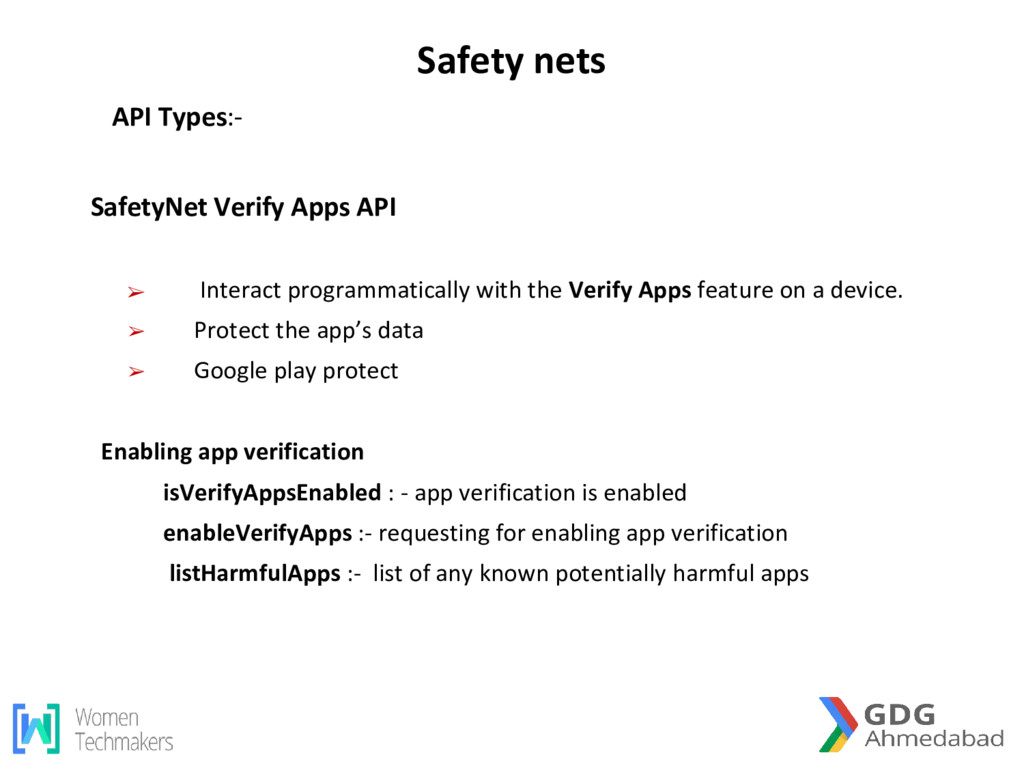

22. Safety nets API Types:- SafetyNet Verify Apps API ➢ Interact programmatically with the Verify Apps feature on a device. ➢ Protect the app’s data ➢ Google play protect Enabling app verification isVerifyAppsEnabled : - app verification is enabled enableVerifyApps :- requesting for enabling app verification listHarmfulApps :- list of any known potentially harmful apps

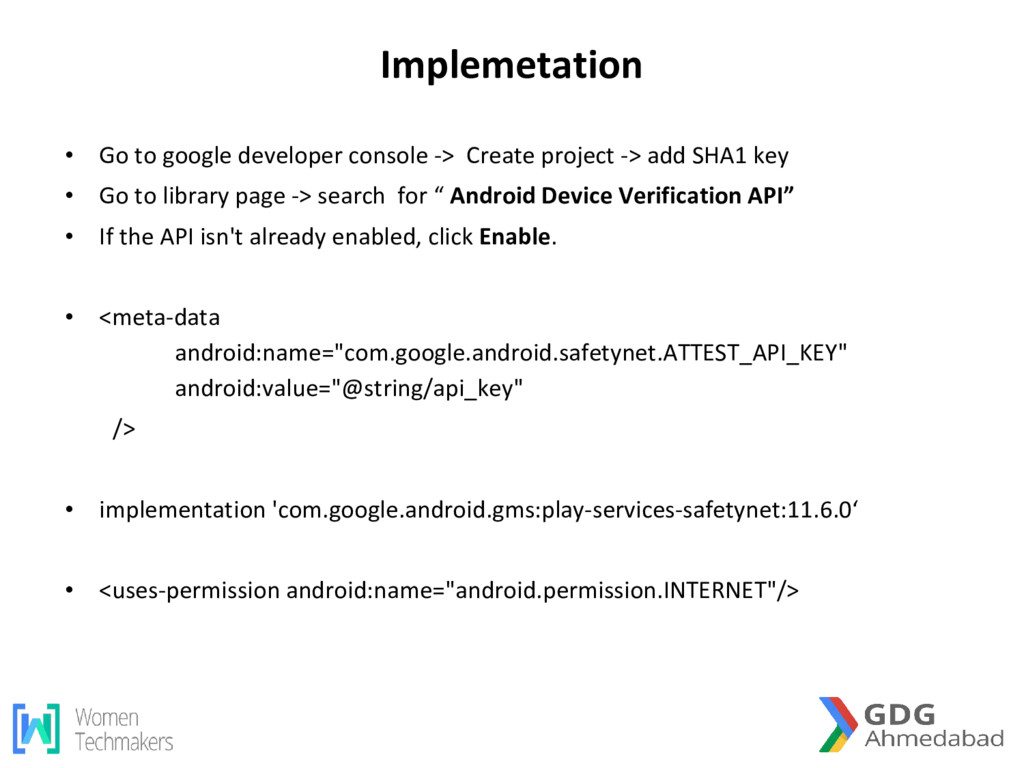

23. Implemetation • Go to google developer console -> Create project -> add SHA1 key • Go to library page -> search for “ Android Device Verification API” • If the API isn't already enabled, click Enable. • <meta-data android:name="com.google.android.safetynet.ATTEST_API_KEY" android:value="@string/api_key" /> • implementation 'com.google.android.gms:play-services-safetynet:11.6.0‘ • <uses-permission android:name="android.permission.INTERNET"/>

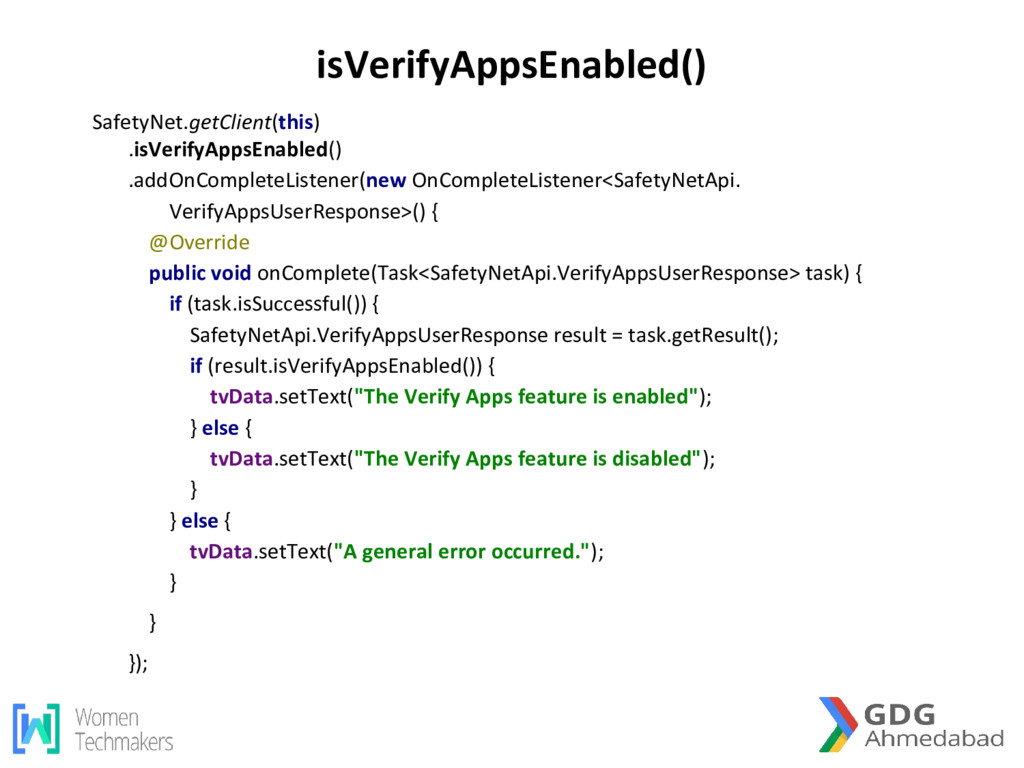

24. isVerifyAppsEnabled() SafetyNet.getClient(this) .isVerifyAppsEnabled() .addOnCompleteListener(new OnCompleteListener<SafetyNetApi. VerifyAppsUserResponse>() { @Override public void onComplete(Task<SafetyNetApi.VerifyAppsUserResponse> task) { if (task.isSuccessful()) { SafetyNetApi.VerifyAppsUserResponse result = task.getResult(); if (result.isVerifyAppsEnabled()) { tvData.setText("The Verify Apps feature is enabled"); } else { tvData.setText("The Verify Apps feature is disabled"); } } else { tvData.setText("A general error occurred."); } } });

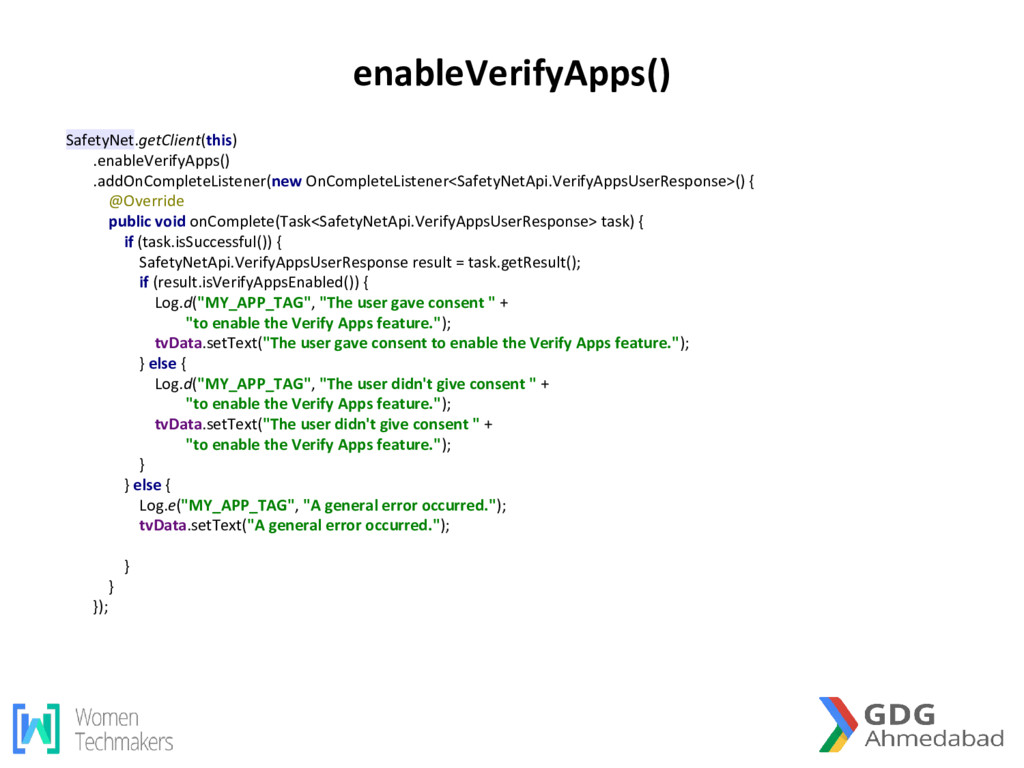

25. enableVerifyApps() SafetyNet.getClient(this) .enableVerifyApps() .addOnCompleteListener(new OnCompleteListener<SafetyNetApi.VerifyAppsUserResponse>() { @Override public void onComplete(Task<SafetyNetApi.VerifyAppsUserResponse> task) { if (task.isSuccessful()) { SafetyNetApi.VerifyAppsUserResponse result = task.getResult(); if (result.isVerifyAppsEnabled()) { Log.d("MY_APP_TAG", "The user gave consent " + "to enable the Verify Apps feature."); tvData.setText("The user gave consent to enable the Verify Apps feature."); } else { Log.d("MY_APP_TAG", "The user didn't give consent " + "to enable the Verify Apps feature."); tvData.setText("The user didn't give consent " + "to enable the Verify Apps feature."); } } else { Log.e("MY_APP_TAG", "A general error occurred."); tvData.setText("A general error occurred."); } } });

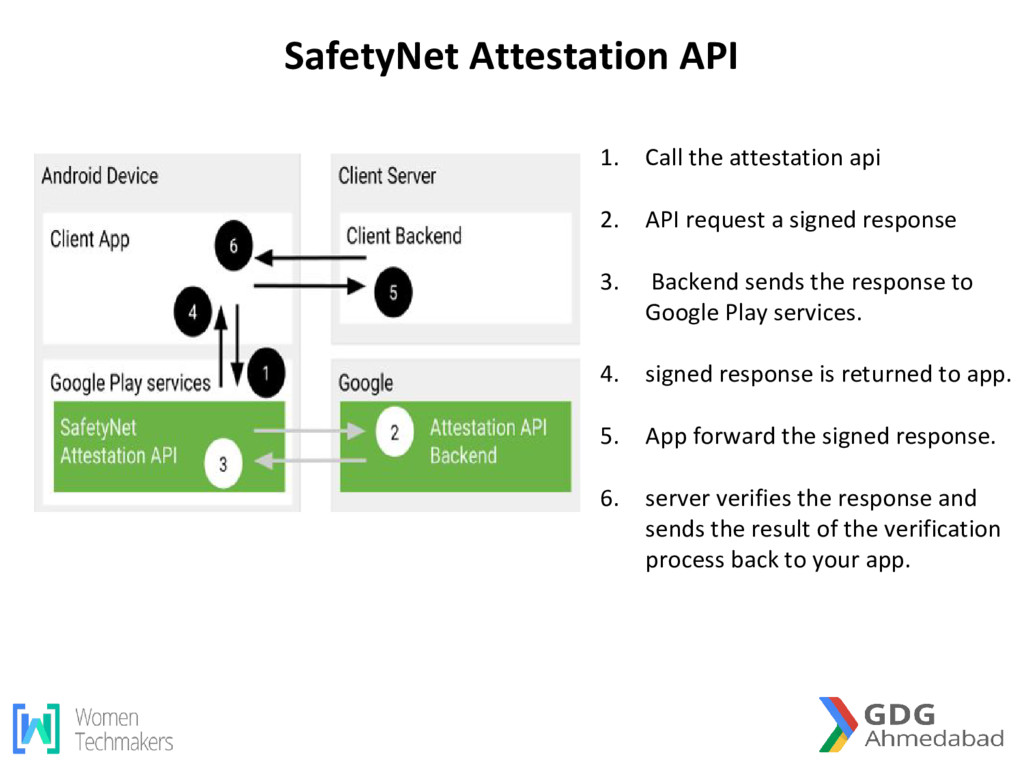

26. SafetyNet Attestation API 1. Call the attestation api 2. API request a signed response 3. Backend sends the response to Google Play services. 4. signed response is returned to app. 5. App forward the signed response. 6. server verifies the response and sends the result of the verification process back to your app.

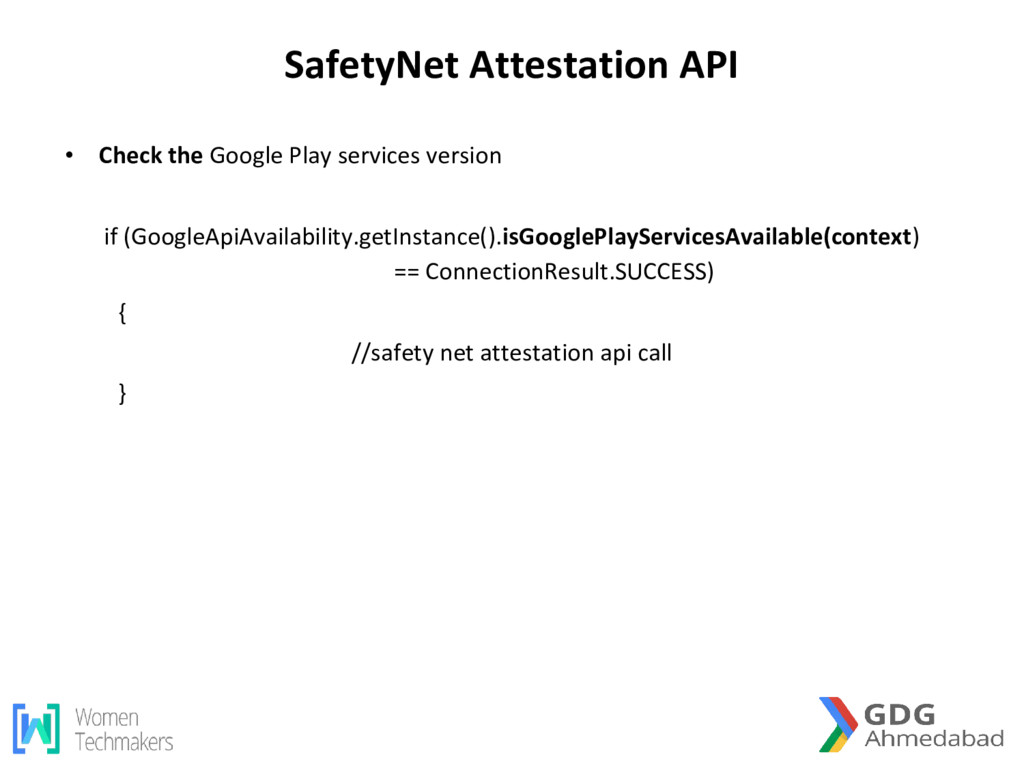

27. SafetyNet Attestation API • Check the Google Play services version if (GoogleApiAvailability.getInstance().isGooglePlayServicesAvailable(context) == ConnectionResult.SUCCESS) { //safety net attestation api call }

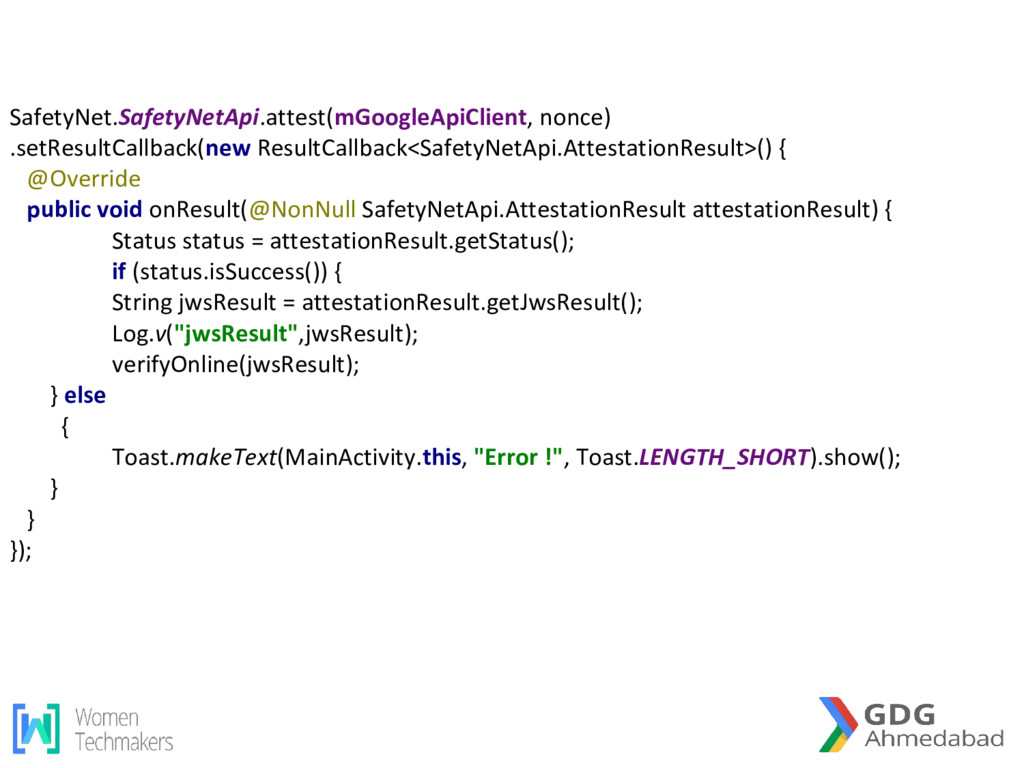

28. SafetyNet.SafetyNetApi.attest(mGoogleApiClient, nonce) .setResultCallback(new ResultCallback<SafetyNetApi.AttestationResult>() { @Override public void onResult(@NonNull SafetyNetApi.AttestationResult attestationResult) { Status status = attestationResult.getStatus(); if (status.isSuccess()) { String jwsResult = attestationResult.getJwsResult(); Log.v("jwsResult",jwsResult); verifyOnline(jwsResult); } else { Toast.makeText(MainActivity.this, "Error !", Toast.LENGTH_SHORT).show(); } } });

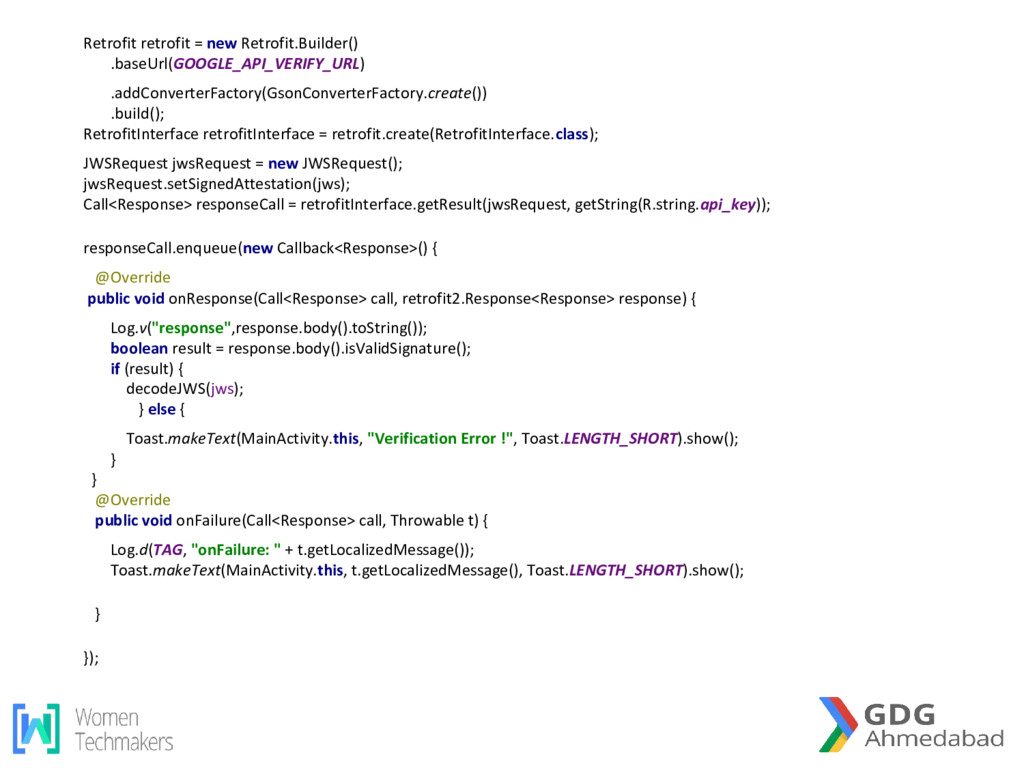

29. Retrofit retrofit = new Retrofit.Builder() .baseUrl(GOOGLE_API_VERIFY_URL) .addConverterFactory(GsonConverterFactory.create()) .build(); RetrofitInterface retrofitInterface = retrofit.create(RetrofitInterface.class); JWSRequest jwsRequest = new JWSRequest(); jwsRequest.setSignedAttestation(jws); Call<Response> responseCall = retrofitInterface.getResult(jwsRequest, getString(R.string.api_key)); responseCall.enqueue(new Callback<Response>() { @Override public void onResponse(Call<Response> call, retrofit2.Response<Response> response) { Log.v("response",response.body().toString()); boolean result = response.body().isValidSignature(); if (result) { decodeJWS(jws); } else { Toast.makeText(MainActivity.this, "Verification Error !", Toast.LENGTH_SHORT).show(); } } @Override public void onFailure(Call<Response> call, Throwable t) { Log.d(TAG, "onFailure: " + t.getLocalizedMessage()); Toast.makeText(MainActivity.this, t.getLocalizedMessage(), Toast.LENGTH_SHORT).show(); } });

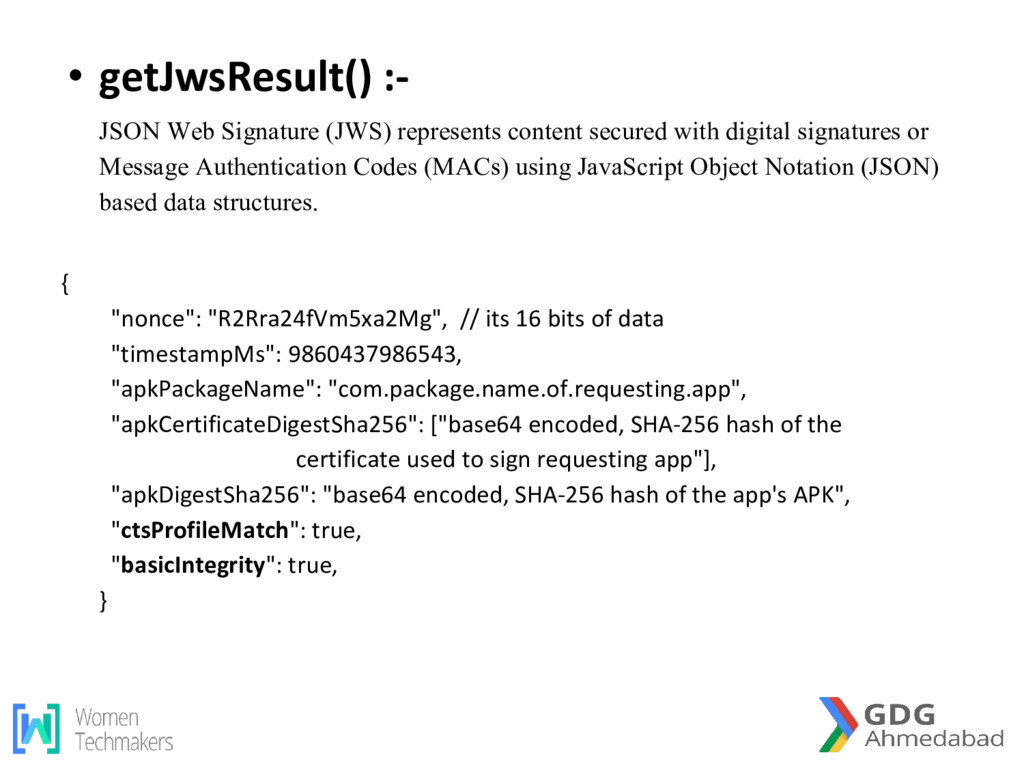

30. • getJwsResult() :- JSON Web Signature (JWS) represents content secured with digital signatures or Message Authentication Codes (MACs) using JavaScript Object Notation (JSON) based data structures. { "nonce": "R2Rra24fVm5xa2Mg", // its 16 bits of data "timestampMs": 9860437986543, "apkPackageName": "com.package.name.of.requesting.app", "apkCertificateDigestSha256": ["base64 encoded, SHA-256 hash of the certificate used to sign requesting app"], "apkDigestSha256": "base64 encoded, SHA-256 hash of the app's APK", "ctsProfileMatch": true, "basicIntegrity": true, }

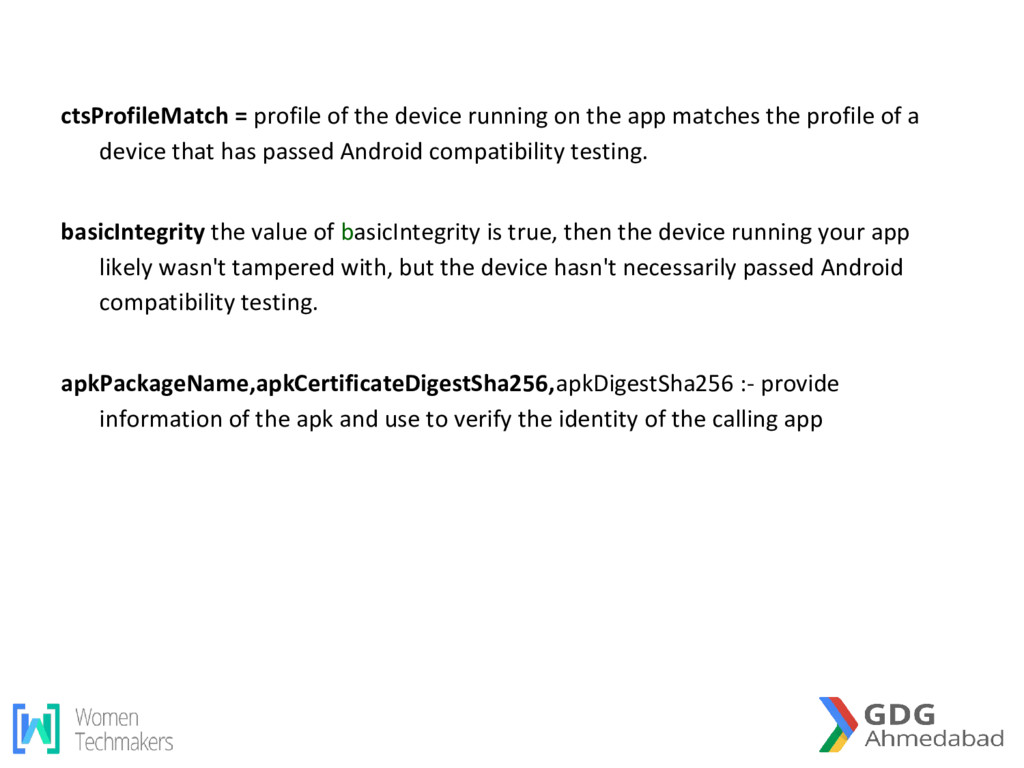

31. ctsProfileMatch = profile of the device running on the app matches the profile of a device that has passed Android compatibility testing. basicIntegrity the value of basicIntegrity is true, then the device running your app likely wasn't tampered with, but the device hasn't necessarily passed Android compatibility testing. apkPackageName,apkCertificateDigestSha256,apkDigestSha256 :- provide information of the apk and use to verify the identity of the calling app

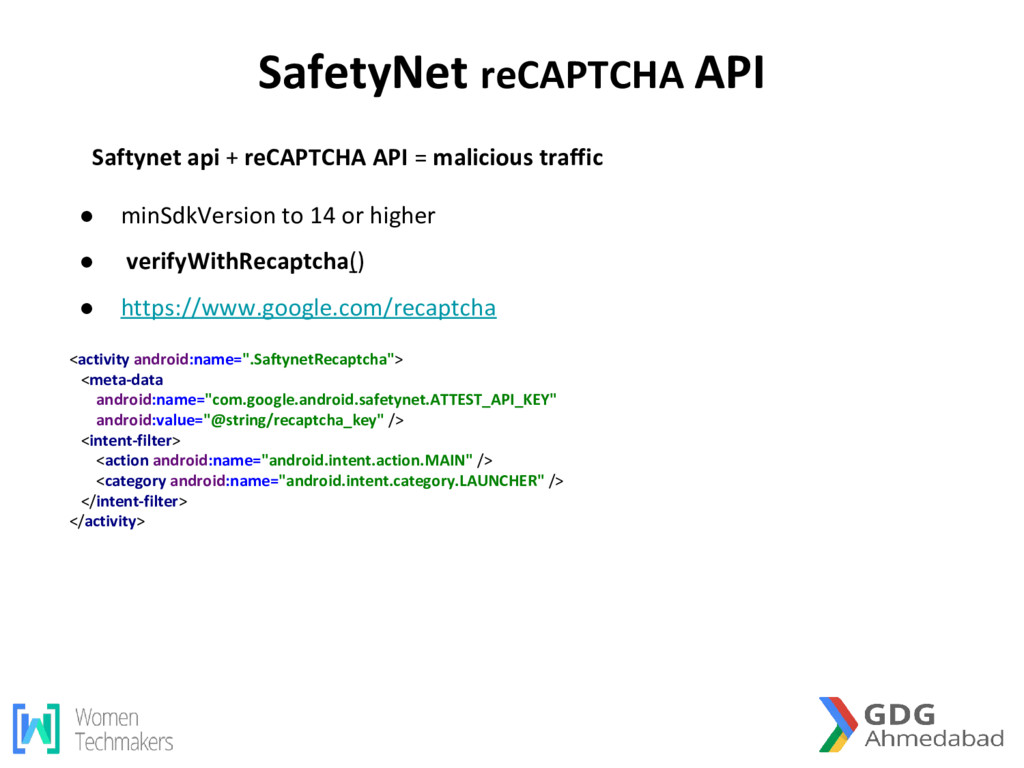

32. SafetyNet reCAPTCHA API Saftynet api + reCAPTCHA API = malicious traffic • minSdkVersion to 14 or higher • verifyWithRecaptcha() • https://www.google.com/recaptcha <activity android:name=".SaftynetRecaptcha"> <meta-data android:name="com.google.android.safetynet.ATTEST_API_KEY" android:value="@string/recaptcha_key" /> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity>

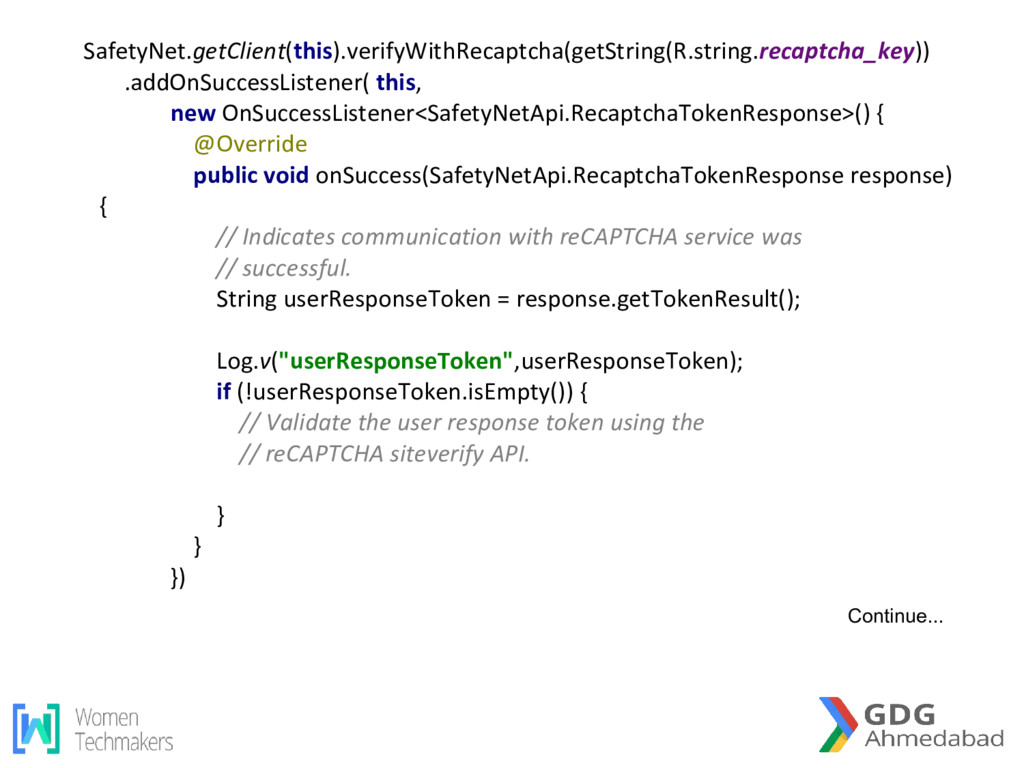

33. SafetyNet.getClient(this).verifyWithRecaptcha(getString(R.string.recaptcha_key)) .addOnSuccessListener( this, new OnSuccessListener<SafetyNetApi.RecaptchaTokenResponse>() { @Override public void onSuccess(SafetyNetApi.RecaptchaTokenResponse response) { // Indicates communication with reCAPTCHA service was // successful. String userResponseToken = response.getTokenResult(); Log.v("userResponseToken",userResponseToken); if (!userResponseToken.isEmpty()) { // Validate the user response token using the // reCAPTCHA siteverify API. } } }) Continue...

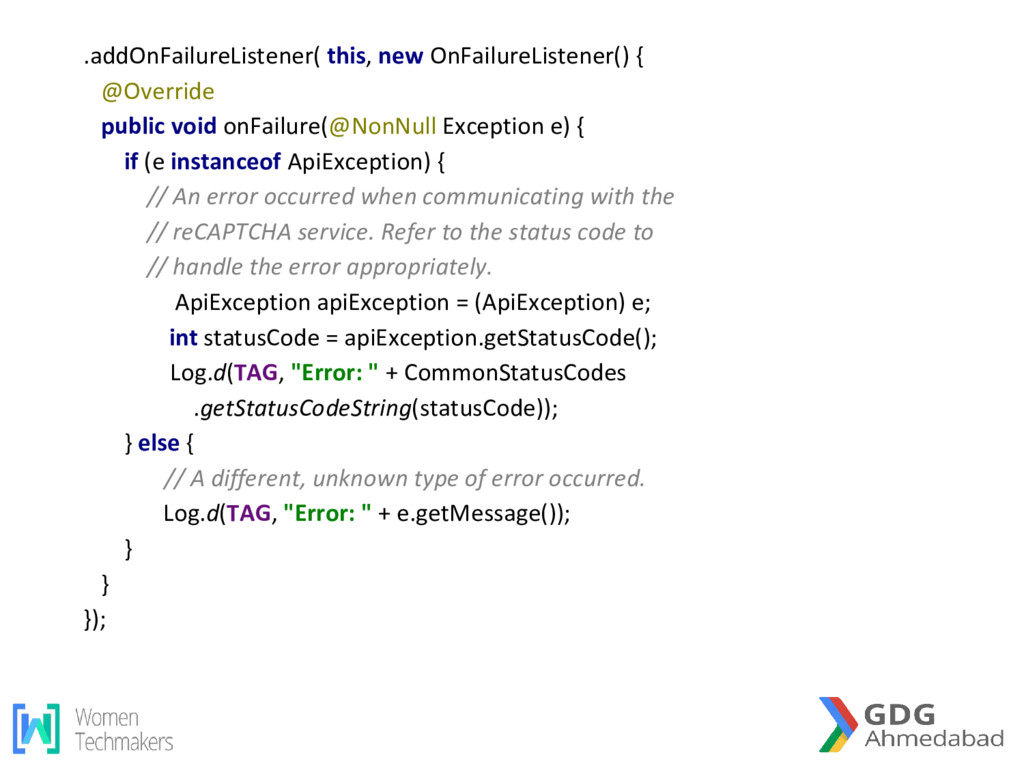

34. .addOnFailureListener( this, new OnFailureListener() { @Override public void onFailure(@NonNull Exception e) { if (e instanceof ApiException) { // An error occurred when communicating with the // reCAPTCHA service. Refer to the status code to // handle the error appropriately. ApiException apiException = (ApiException) e; int statusCode = apiException.getStatusCode(); Log.d(TAG, "Error: " + CommonStatusCodes .getStatusCodeString(statusCode)); } else { // A different, unknown type of error occurred. Log.d(TAG, "Error: " + e.getMessage()); } } });

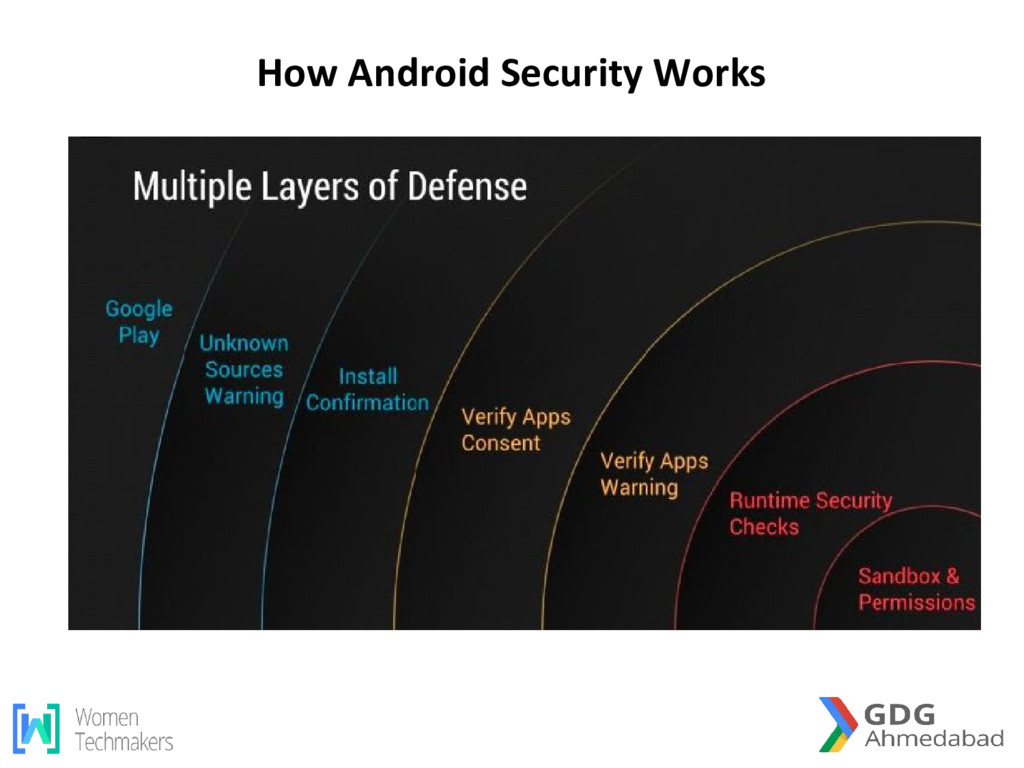

35. How Android Security Works

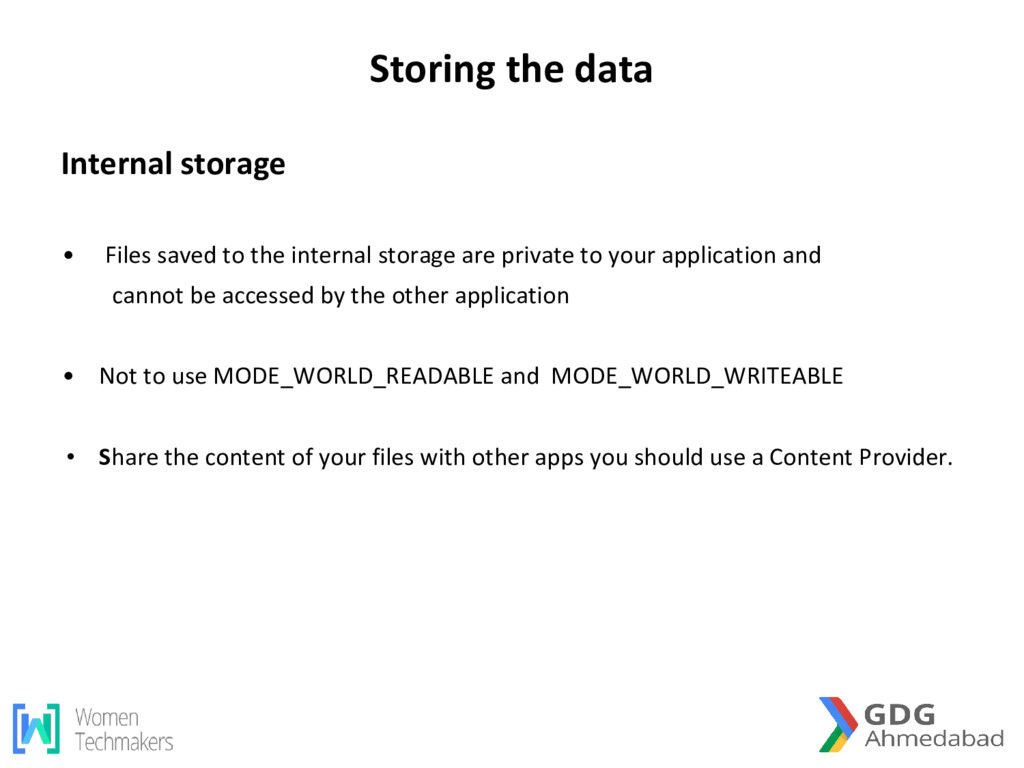

36. Storing the data Internal storage • Files saved to the internal storage are private to your application and cannot be accessed by the other application • Not to use MODE_WORLD_READABLE and MODE_WORLD_WRITEABLE • Share the content of your files with other apps you should use a Content Provider.

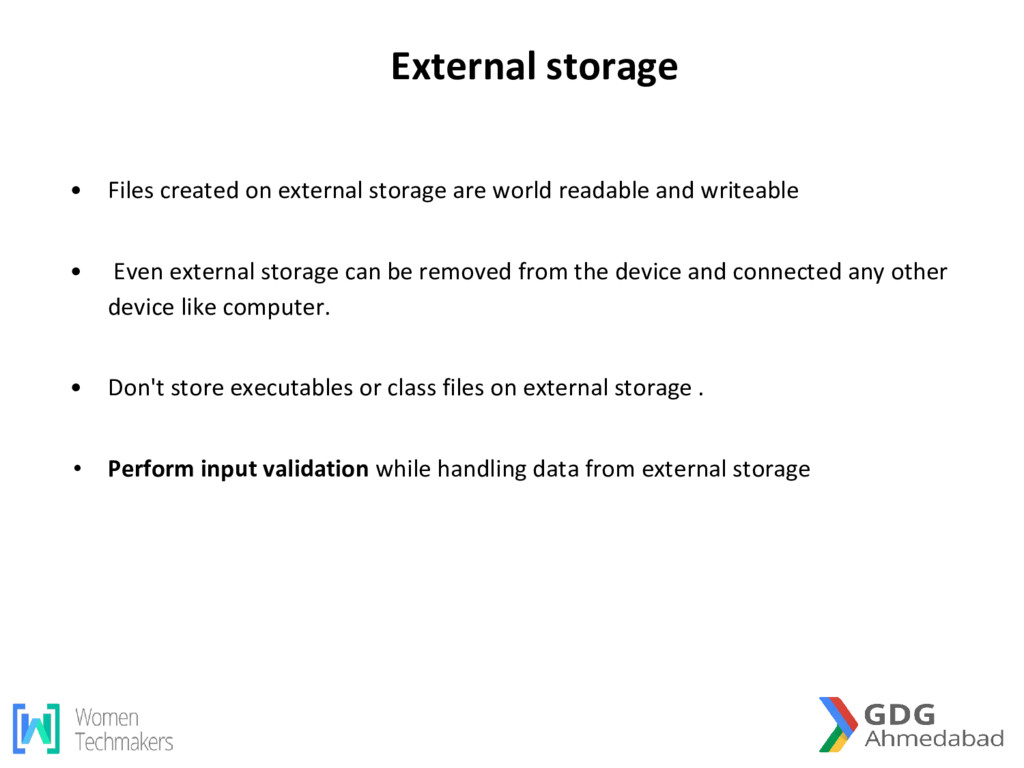

37. External storage • Files created on external storage are world readable and writeable • Even external storage can be removed from the device and connected any other device like computer. • Don't store executables or class files on external storage . • Perform input validation while handling data from external storage

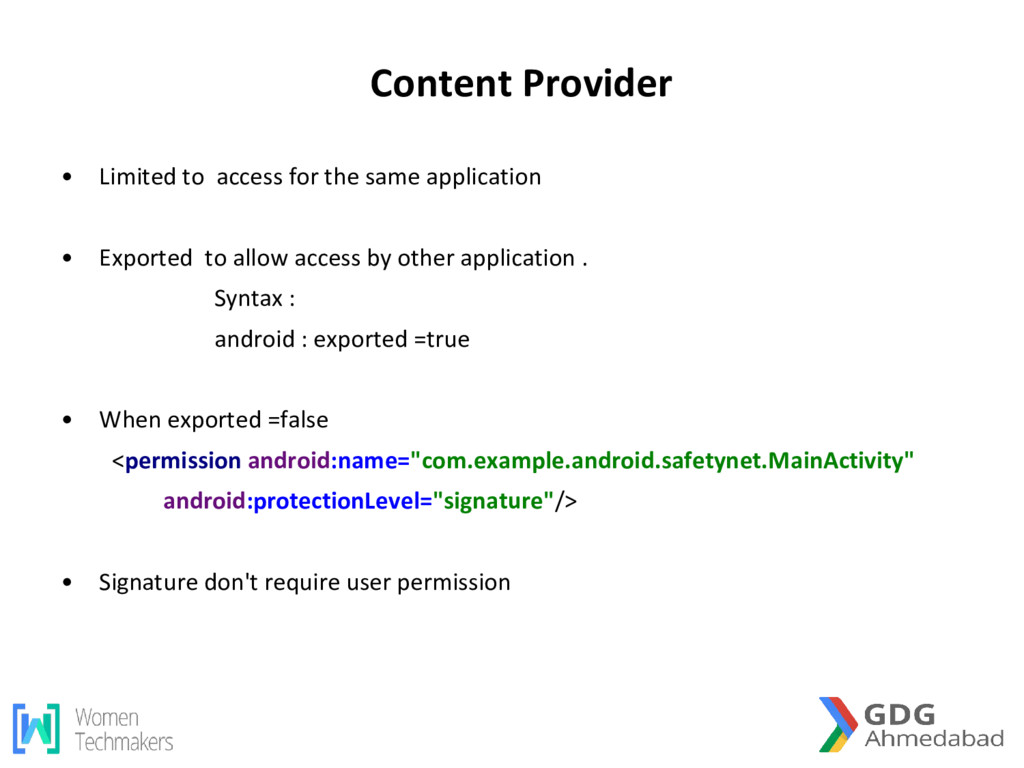

38. Content Provider • Limited to access for the same application • Exported to allow access by other application . Syntax : android : exported =true • When exported =false <permission android:name="com.example.android.safetynet.MainActivity" android:protectionLevel="signature"/> • Signature don't require user permission
39. Questions?
40. @bh_rashmi Thank You
