Terra: A solution for Developing WSN Applications

Transcript

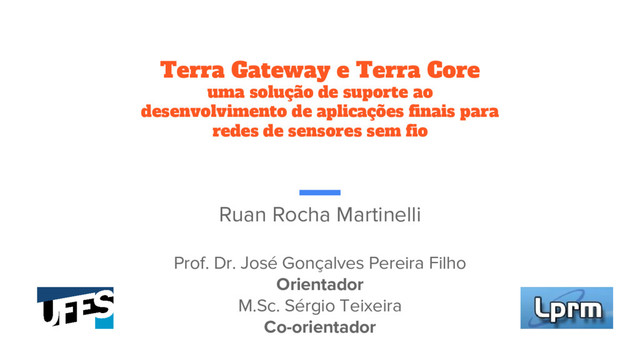

1. Terra Gateway e Terra Core
   uma solução de suporte ao
   desenvolvimento de aplicações finais para
   redes de sensores sem fio
   Ruan Rocha Martinelli
   Prof. Dr. José Gonçalves Pereira Filho
   Orientador
   M.Sc. Sérgio Teixeira
   Co-orientador


   View Slide

2. Wireless
   Sensor
   Networks


   View Slide

3. Wireless Sensor Networks


   View Slide

4. Wireless Sensor Networks
   24 billions
   of devices [1]
   US$ 1,7 trillions
   of growth [2]


   View Slide

5. 41%
   of companies prefer to use
   services via cloud
   computing [3]
   Wireless Sensor Networks


   View Slide

6. 41%
   of companies prefer to use
   services via cloud
   computing [3]
   Wireless Sensor Networks
   8,2%
   deficit of ICT professionals
   to work in IoT applications
   [4]


   View Slide

7. 12x
   market projected growth by
   2023 [5]
   Wireless Sensor Networks


   View Slide

8. Service-oriented
   Architectures
   (SOA)


   View Slide

9. service oriented architectures (SOA)
   L web services (WS)
   L REST
   L messaging
   Service-oriented Architectures


   View Slide

10. SOA: REST and RESTful services
    - resource-oriented;
    - request-response;
    - client-server;
    - language-independent.
    → GET /sensors/5 HTTP 1.1
    ← { “id”: 5, “manufacturer”: “SUN” }


    View Slide

11. SOA: Messaging and Publish/Subscribe
    - topic-based;
    - push technology;
    - client-server and
    machine-machine;
    - more coupled.


    View Slide

12. Motivation


    View Slide

13. Client
    Application
    WSN


    View Slide

14. Client
    Application
    WSN


    View Slide

15. Client
    Application
    WSN
    knowledge gap


    View Slide

16. Client
    Application
    WSN


    View Slide

17. Client
    Application
    WSN


    View Slide

18. Client
    Application
    WSN


    View Slide

19. Client
    Application
    WSN
    knows:
    ● HTTP
    ● user interface design
    ● high-level languages (java, ruby,
    python, etc)
    ● consume REST & real-time APIs


    View Slide

20. Client
    Application
    WSN
    needs to know:
    ● low-level protocols
    ● convert raw/unfriendly data
    ● manufacturer differences
    ● C/C++
    knows:
    ● HTTP
    ● user interface design
    ● high-level languages (java, ruby,
    python, etc)
    ● consume REST & real-time APIs


    View Slide

21. Client
    Application
    WSN
    needs to know:
    ● low-level protocols
    ● convert raw/unfriendly data
    ● manufacturer differences
    ● C/C++
    knows:
    ● HTTP
    ● user interface design
    ● high-level languages (java, ruby,
    python, etc)
    ● consume REST & real-time APIs


    View Slide

22. Client
    Application
    WSN
    knows:
    ● HTTP
    ● user interface design
    ● high-level languages (java, ruby,
    python, etc)
    ● consume REST & real-time APIs


    View Slide

23. Client
    Application
    WSN
    receive, convert, store and
    manage data from nodes


    View Slide

24. Client
    Application
    WSN
    receive, convert, store and
    manage data from nodes
    provide data from sensors via
    high level interfaces (REST
    and Real-time APIs)


    View Slide

25. Terra Platform:
    Gateway & Core


    View Slide

26. View Slide

27. View Slide

28. View Slide

29. View Slide

30. View Slide

31. View Slide

32. View Slide

33. View Slide

34. View Slide

35. View Slide

36. View Slide

37. View Slide

38. View Slide

39. View Slide

40. View Slide

41. Demo


    View Slide

42. 1 - simulação (3min)
    2 - terra gateway (1min)
    3 - terra core (1min30s)


    View Slide

43. View Slide

44. View Slide

45. View Slide

46. Conclusion


    View Slide

47. Conclusion
    ● it was possible to consume data from a WSN using existing communication
    interfaces and protocols;
    ● consuming the data from a WSN did not require specific technical knowledge
    about it;
    ● the average delay of a connection between a client application and the
    network was below 400ms, following ITU G.114’s recommendation;
    ● through the Terra Web application it was possible to demonstrate the use of
    real-time and REST APIs working together and meeting different purposes.


    View Slide
