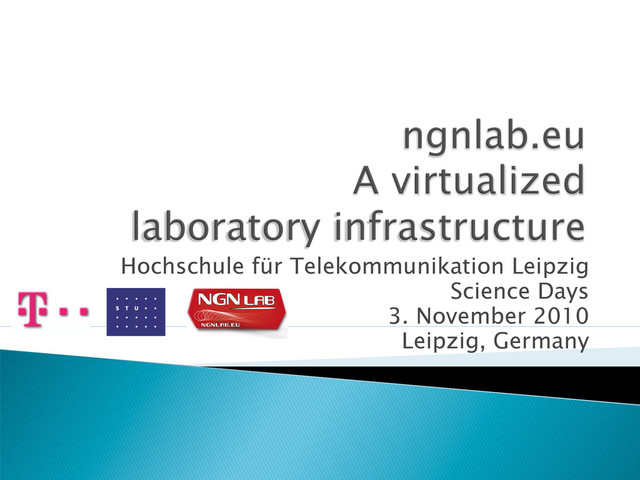

1. Hochschule für Telekommunikation Leipzig Science Days 3. November 2010 Leipzig, Germany
2. Facts }  Next generation communication infrastructure on STU Bratislava (shared deployment of faculties for electronics and informatics) }  Playground to implement results of research in the area of IP based services Vision }  Open and transparent server and service infrastructure }  Cost-efficient investment that offers high-end open communication environment An Example }  Presenting of how far we went already in the world of standard compliant and free software }  Showing that the use of open-source software in education can be tremendously supportive }  Shocking operators in what some pieces of hardware can do 2
3. }  Virtual laboratory, just with a wider distribution of the used infrastructure in the community }  More partners massively increase the efficiency of all ngnlab.eu members ◦  Re-use the existing deployment and know-how ◦  Distribute core components to simulate real multi- operator infrastructures (security, network parameter) ◦  Integrate and cross-test new applications }  1st step proofs feasibility: Long term successful STU+ST cooperation in ngnlab.eu project
4. }  Complete SIP based communication infrastructure ◦  Basic SIP services (registrar, proxy) ◦  NAT traversal, media relay ◦  Integrated voice mail system, conferencing engine ◦  Media gateway through VoIP trunk ◦  Presence service }  We can in fact become a small VoIP operator. 4
5. }  Complete IMS service infrastructure ◦  IMS core (P/I/S/E-CSCF), HSS ◦  Integrated presence management ◦  XDMS (ft. authorization, resource lists) ◦  SIP application server }  IMS integrated IPTV ◦  Three channels ◦  Network based video recorder (nPVR) ◦  IPTV messaging ◦  Broadcasts 5
6. Hardware }  A rack each site }  A couple of servers }  Some basic switches }  UPS 6 Courtesy of ScriS (www.flickr.com)
7. Software }  0 € 7
8. }  Everything running on STU servers is OSS ◦  Operating system ◦  Virtualization software ◦  SIP server, media server ◦  IMS core ◦  Application server ◦  IPTV solution 8
9. }  "the act of virtualizing" }  … to run a program in virtual storage }  … to simulate some effect or condition on a computer }  Virtual: defined in philosophy as "that which is not real" Courtesy of Wiktionary (www.wiktionary.com)
10. }  “Virtual laboratory” ◦  Deployment of physical infrastructure on two sites at the university in Bratislava and one site at Slovak Telekom, a.s. }  “Virtual servers” ◦  Each physical server hosts several virtual machines }  “Virtual networking” ◦  Virtual LANs to separate network traffic for security and research (monitoring) ◦  Not restricted to physical connections Date Author / Presentation title 10
11. }  FEI lab ◦  5 physical servers (all running GNU/Linux) ◦  1 management switch, 1 traffic switch (L3) }  FIIT lab ◦  4 physical server (all running GNU/Linux) ◦  Connected to university switch ◦  Routing, management etc. through Linux router }  ST lab ◦  2 physical server (VMWare ESX, Solaris) ◦  Shared NAS server
12. }  Several virtualization techniques are used ◦  Full virtualization –  ST: VMWare ESX Server 3.0.1 –  STU: Xen 3.2 (hardware-assisted virtualization, HVM) ◦  Paravirtualization –  STU lab: Xen 3.2 ◦  OS-level virtualization –  ST: Solaris 10 Containers }  Oracle VirtualBox and VMWare server used on notebooks to emulate several client instances
13. }  Distributed labs interconnected with OpenVPN ◦  Linux routers on STU and a dedicated virtual machine on ST run the software ◦  IPTables used to solve NAT problem }  Within each lab configured VLANs to separate traffic and enforce security policies ◦  Native VMWare ESX and Solaris 10 feature ◦  Xen servers use user mode enhancements for kernel
14. }  Traffic separation according ◦  Connection type –  Network traffic –  Management of physical and virtual machines ◦  Service –  Each service has own VLANs (VoIP, IMS, IPTV) ◦  Protocol –  Signaling: SIP, XMPP, Diameter –  Media: RTP, RTMP }  Easy enforcement of security policies and network traffic monitoring
15. Sig Med apt Monitoring Sig DB DB Router
