Apache Singa AI

This presentation gives an overview of the Apache Singa AI project. It explains Apache Singa in terms of it's architecture, distributed training and functionality.

Links for further information and connecting

http://www.amazon.com/Michael-Frampton/e/B00NIQDOOM/

https://nz.linkedin.com/pub/mike-frampton/20/630/385

https://open-source-systems.blogspot.com/

Transcript

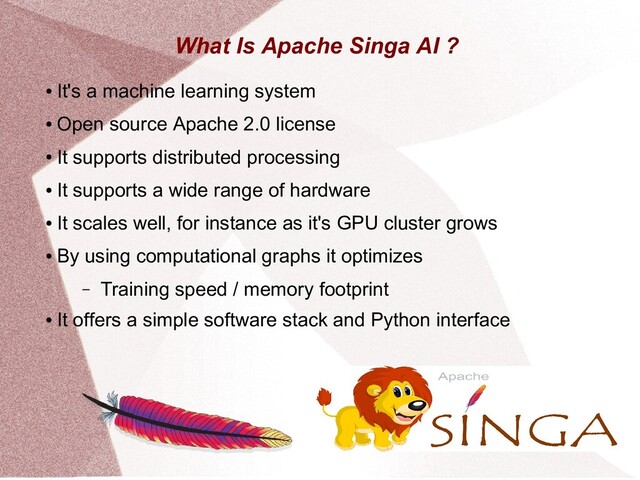

1. What Is Apache Singa AI ? • It's a machine learning system • Open source Apache 2.0 license • It supports distributed processing • It supports a wide range of hardware • It scales well, for instance as it's GPU cluster grows • By using computational graphs it optimizes – Training speed / memory footprint • It offers a simple software stack and Python interface
2. Singa Related Terms • Cuda • Tensor • ONNX • MPI • NCCL • Autograd • DAG • SWIG • OpenCL • SGD Parallel computing platform and API model created by Nvidia A generalized matrix possibly in multiple dimensions Open representation format for machine learning models Message passing interface NVIDIA collective communications library Provides automatic differentiation for all operations on Tensors Directed acyclic graph Simplified wrapper and interface generator A framework for writing programs for heterogeneous platforms Stochastic Gradient Descent
3. Singa Software Stack
4. Singa Software Stack • Divided into two levels • Python interface provides – Data structures – Algorithms for machine learning models • Backend – Data structures for deep learning models – Hardware abstractions for scheduling/executing operations – Communication components for distributed training
5. Singa Computational Graph (Clipped)
6. Singa Computational Graph • Consider Tensor's to be edges and operators to be nodes • A computational graph or DAG is formed • Singa uses this DAG to optimize / schedule – Execution of operations – Memory allocation/release • Define neural net with Singa Module API • Singa then automatically – Constructs computational graph – Optimizes graph for efficiency
7. Singa Computational Graph Optimization • Current graph optimizations include • Lazy allocation – Tensor/block memory allocated at first read • Automatic recycling – Automatic recycling of memory block – When read count hits zero – Except for blocks that are used outside the graph • Memory sharing – Allows sharing of memory among tensors – Optimization of memory operations
8. Singa Device • Device abstract represents a hardware device – Has memory and computing units – Schedules all tensor operations • Singa has three Device implementations – CudaGPU for a Nvidia GPU card - runs Cuda code – CppCPU for a CPU - runs Cpp code – OpenclGPU for a GPU card - runs OpenCL code
9. Singa Distributed Training
10. Singa Distributed Training • Data parallel training across multiple GPUs • Each process/worker runs GPU based training • Each process has an individual communication rank • Training data partitioned among the workers • Model is replicated on every worker, In each iteration – Workers read a mini-batch of data from its partition – Run the BackPropagation algorithm to compute the gradients – Which are averaged via all-reduce (provided by NCCL) – For weight update following SGD algorithms
11. Singa Distributed Training – All Reduce
12. Singa Distributed Training – All Reduce • NCCL all-reduce takes the training gradients from each GPU • Averages all the ranked gradients to produce • An averaged result which should match if • All training carried out on a single GPU • It should be noted that this type of distributed learning – Scales well and reduces processing time – But does not appear to be GPU failure tolerant – Does not provide GPU anonymity – i.e. We have to decide how many GPU's we use – It is not a sub system like Mesos – Distributing anonymous tasks to workers
