It’s Alive! Dynamic Components in Angular

The main use-case for using dynamic components is when we can decide only in run-time which component is loaded. They’re also the only solution when we want to embed Angular components in non-Angular ones. In many cases, replacing in-template components with dynamic ones is beneficial to performance and code quality. In this talk we’ll learn how to create and use dynamic components, and discuss several types of usages.

Transcript

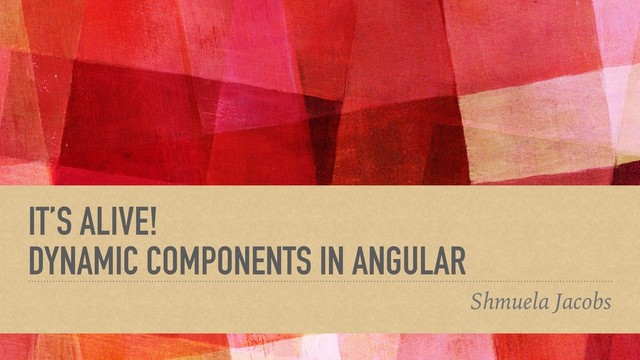

1. IT’S ALIVE! DYNAMIC COMPONENTS IN ANGULAR Shmuela Jacobs
2. Shmuela Jacobs Front-end Consultant & Trainer, GDE shmool @ShmuelaJ
3. DEMO
4. STATIC COMPONENTS
5. STATIC COMPONENTS ➤ Used in template ➤ Known in development time ➤ Fixed location ➤ Hard-coded <app-header></app-header> <div id="main"> <tabset> <tab title="Notes"> <app-note *ngFor="let note of notes" [text]="note.text" [date]="note.date" (update)="saveNote($event)"> </app-note> </tab> <tab> <app-dashboard></app-dashboard> </tab> </tabset>
6. STATIC COMPONENTS?
7. STATIC COMPONENTS <div *ngFor="let component of components"> <div ngSwitch="component.type"> <app-note *ngSwitchCase="note" [data]="component.data" (write)="update(component, $event)"> </app-note> <app-graph *ngSwitchCase="graph" [data]="component.data" (select)="update(component, $event)"> </app-graph> <app-bar-graph *ngSwitchCase="barGraph" [data]="component.data" (change)="update(component, $event)"> </app-bar-graph> <app-gauge *ngSwitchCase="gauge" [data]="component.data" (move)="update(component, $event)"> </app-gauge> <app-table *ngSwitchCase="table" [data]="component.data" (selectRow)="update(component, $event)"> </app-table> </div> </div>
8. IMAGINE... <div #vc></div>
9. DYNAMIC COMPONENTS
10. DYNAMIC COMPONENTS ➤ Added in run time ➤ Load the configuration from the server ➤ Lazy loaded <div #vc></div> @ViewChild('vc', { read: ViewContainerRef }) vc; constructor(private cfr: ComponentFactoryResolver){} this.components.forEach(component => { this.vc.create(this.cfr.resolveComponentFactory(component)) });
11. DYNAMIC COMPONENTS ➤ Dashboards
12. DYNAMIC COMPONENTS ➤ Dashboards ➤ Data-driven forms
13. DYNAMIC COMPONENTS ➤ Dashboards ➤ Data-driven forms ➤ Popups & Modals
14. DYNAMIC COMPONENTS ➤ Dashboards ➤ Data-driven forms ➤ Popups & Modals ➤ Content Management Systems ➤ Example: Angular.io
15. DYNAMIC COMPONENTS ➤ Dashboards ➤ Data-driven forms ➤ Popups & Modals ➤ Content Management Systems ➤ Example: Angular.io ➤ Embedded into foreign components ➤ Example: JointJS (Backbone) Juri Strumpflohner
 Use Dynamic Components to render HTML for 3rd party libraries
 https://juristr.com/blog/2017/11/dynamic-angular-components-for-rendering-html
16. DYNAMIC COMPONENTS ➤ Dashboards ➤ Data-driven forms ➤ Popups & Modals ➤ Content Management Systems ➤ Example: Angular.io ➤ Embedded into foreign components ➤ Example: JointJS (Backbone) ➤ Plugins ➤ Example: Wizer.Me Maxim NgWizard Koretskyi Modules are not what you think they are
17. COMPONENT INSTANTIATION NgModule Declarations compile SomeComponent SomeComponent Factory create SomeComponent View DOM Node Component Instance render <app-note *ngSwitchCase="note" [data]="component.data" (write)="update($event)"> </app-note>
18. COMPONENT INSTANTIATION NgModule Declarations Entry Components compile SomeComponent SomeComponent Factory create SomeComponent View DOM Node Component Instance render <app-root></app-root> this.vc.create( this.cfr.resolveComponentFactory(component)) }); SomeComponent Host Factory
19. DYNAMIC COMPONENTS ➤ Where is the component inserted? ➤ How is it instantiated? @Component({ template: `<div #vc></div>` }) export class HomeComponent { @ViewChild('vc', { read: ViewContainerRef }) vc; constructor( private injector: Injector, private cfr: ComponentFactoryResolver) {} addDynamicComponent() { const cmpFactory = this.cfr.resolveComponentFactory(NoteComponent); const componentRef = cmpFactory.create(this.injector); this.vc.insert(componentRef.hostView); }
20. DYNAMIC COMPONENTS ➤ Where is the component inserted? ➤ How is it instantiated? constructor( private cfr: ComponentFactoryResolver) {} addDynamicComponent() { const cmpFactory = this.cfr.resolveComponentFactory(NoteComponent); // const componentRef = cmpFactory.create(this.injector); // this.vc.insert(componentRef.hostView); this.vc.createComponent(cmpFactory); } @Component({ template: `<div #vc></div>` }) export class HomeComponent { @ViewChild('vc', { read: ViewContainerRef }) vc;
21. DYNAMIC COMPONENTS ➤ How to pass inputs? ➤ How to bind to outputs? ➤ Notice: Change detection works,
 but ngOnChanges will not be called (ngDoCheck will) componentRef.instance.data = this.getData(); componentRef.instance.event.subscribe(console.log)
22. DYNAMIC COMPONENTS ➤ It's still not 100% dynamic... const cmpFactory = this.cfr.resolveComponentFactory(NoteComponent);
23. DYNAMIC DYNAMIC COMPONENTS
24. PLUGIN COMPONENTS
25. PLUGIN COMPONENTS ➤ Unknown in compile time ➤ Lazy loaded modules constructor( private injector: Injector, private loader: NgModuleFactoryLoader) {} addPlugin() { this.loader.load('path/to/plugin/plugin.module#PluginModule') .then((factory) => { const module = factory.create(this.injector); const cfr = module.componentFactoryResolver; const cmpFactory = cfr.resolveComponentFactory(PluginComponent); this.vc.createComponent(cmpFactory); }); }
26. PLUGIN COMPONENTS ➤ Build a module separately with Angular CLI - angular.json "projects": { "ng-talks-demo": { ... "architect": { "build": { ... "options": { "lazyModules": [ "path/to/plugin/plugin.module" ], ...
27. PLUGIN COMPONENTS ➤ Unknown in compile time ➤ Lazy loaded modules constructor( private injector: Injector, private loader: NgModuleFactoryLoader) {} addPlugin() { this.loader.load('path/to/plugin/plugin.module#PluginModule') .then((factory) => { const module = factory.create(this.injector); const cfr = module.componentFactoryResolver; const cmpFactory = cfr.resolveComponentFactory(PluginComponent); this.vc.createComponent(cmpFactory); }); }
28. PLUGIN COMPONENTS ➤ Use providers! @NgModule({ declarations: [PluginComponent], entryComponents: [PluginComponent], providers: [ { provide: 'widgets', useValue: [ { name: 'plugin-cmp', component: PluginComponent } ], multi: true } ] }) export class PluginModule {}
29. PLUGIN COMPONENTS ➤ Unknown in compile time ➤ Lazy loaded modules constructor( private injector: Injector, private loader: NgModuleFactoryLoader) {} addPlugin() { this.loader.load('path/to/plugin/plugin.module#PluginModule') .then((factory) => { const module = factory.create(this.injector); const cfr = module.componentFactoryResolver; const widgets = module.injector.get('widgets'); const cmpFactory = cfr.resolveComponentFactory(widgets[0][0].component); this.vc.createComponent(cmpFactory); }); }
30. DYNAMIC PLUGIN COMPONENTS!
31. DYNAMIC COMPONENTS - MY RESOURCES ➤ Juri Strumpflohner
 Use Dynamic Components to render HTML for 3rd party libraries
 https://juristr.com/blog/2017/11/dynamic-angular-components-for-rendering-html ➤ Maxim NgWizard Koretskyi ➤ Modules are not what you think they are - UP NEXT! ➤ Here is what you need to know about dynamic components in Angular
 https://blog.angularindepth.com
 ➤ Manfred Steyer
 Angular Elements Dashboard
 https://github.com/manfredsteyer/angular-elements-dashboard
32. Thank You! Shmuela Jacobs shmuela@ng-girls.org shmool @ShmuelaJ ng-girls.org
