Heavy Duty Racks Catalogue for warehouse

This catalogue features our range of Heavy Duty Racks designed to handle industrial loads while maximizing warehouse space. Built with high-strength materials and automated manufacturing precision, these racks are perfect for factories, logistics hubs, retail storage, and more. Whether you're planning a new setup or upgrading your current system, our heavy-duty racking options offer strength, stability, and long-term value.

📥 View the complete range with technical specs and layout ideas.

🔗 Browse now: https://www.sigmastorage.com

Transcript

1. Edition 2025 www.sigmastorage.com Your Trusted Partner in Warehouse Storage Solutions

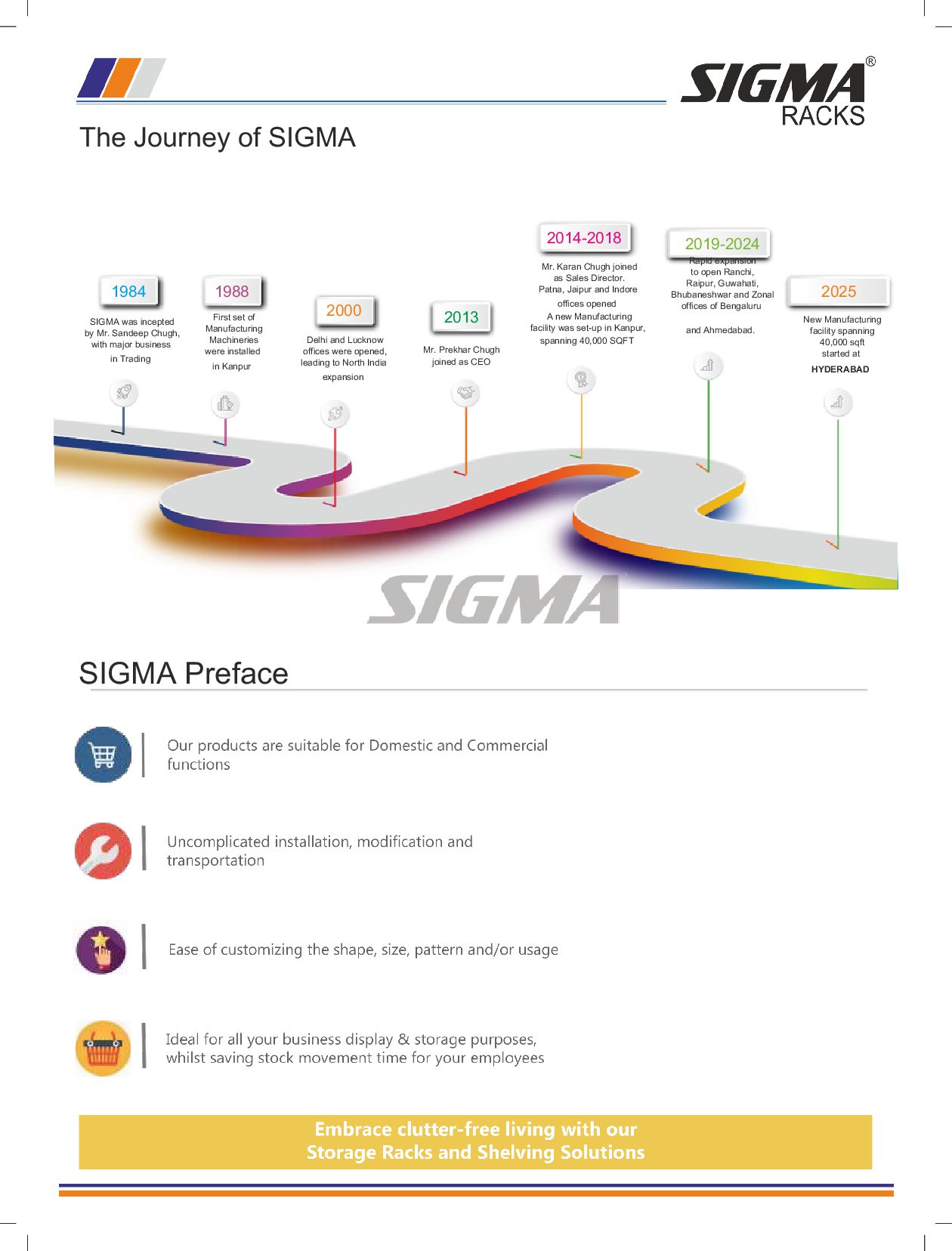

2. The Journey of SIGMA SIGMA Preface 1984 1988 2000 2013 2014-2018 2019-2024 Rapid expansion to open Ranchi, Raipur, Guwahati, Bhubaneshwar and Zonal offices of Bengaluru 2025 SIGMA was incepted by Mr. Sandeep Chugh, with major business in Trading First set of Manufacturing Machineries were installed in Kanpur Delhi and Lucknow offices were opened, leading to North India expansion Mr. Prekhar Chugh joined as CEO Mr. Karan Chugh joined as Sales Director. Patna, Jaipur and Indore offices opened A new Manufacturing facility was set-up in Kanpur, spanning 40,000 SQFT and Ahmedabad. New Manufacturing facility spanning 40,000 sqft started at HYDERABAD

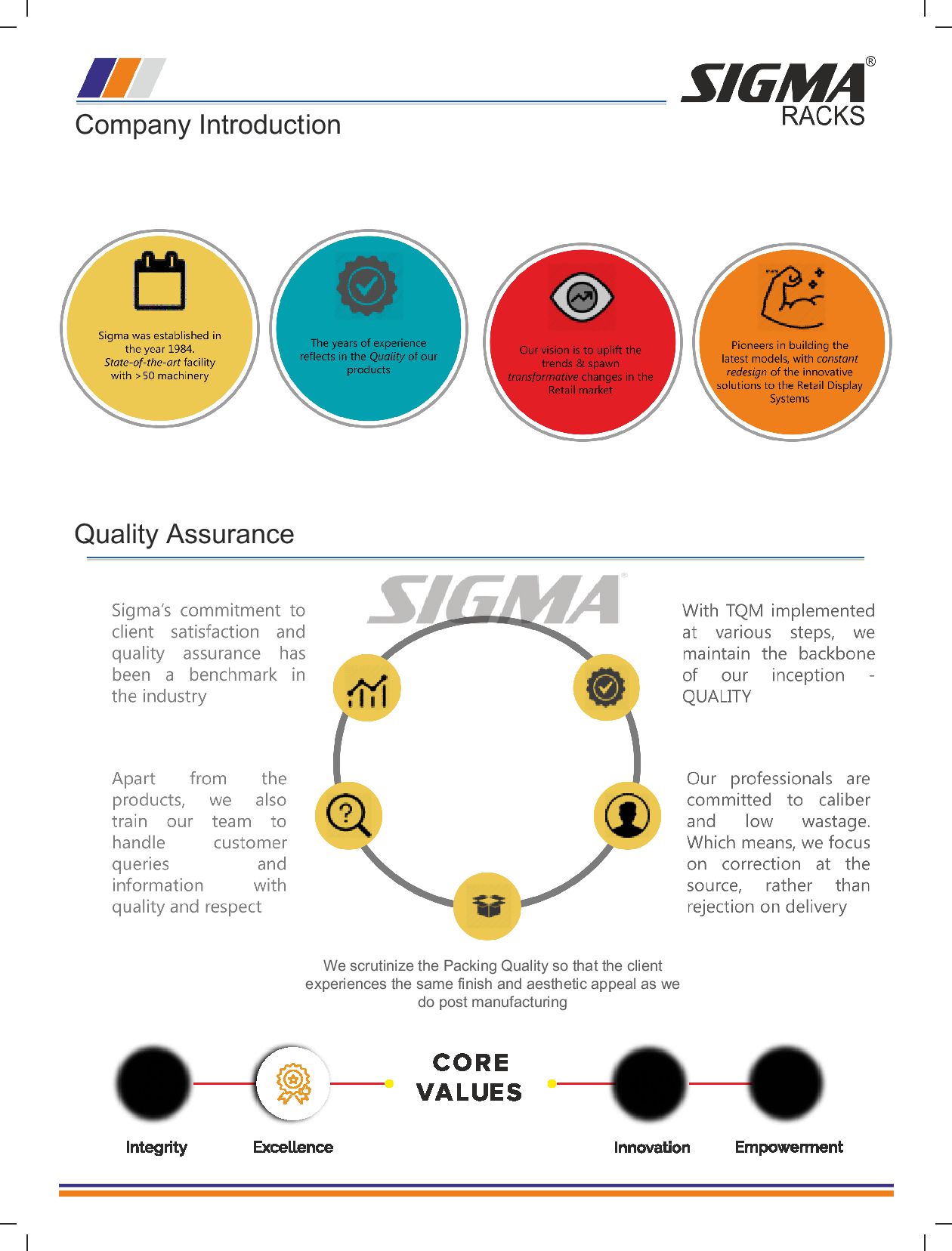

3. Quality Assurance Company Introduction We scrutinize the Packing Quality so that the client experiences the same finish and aesthetic appeal as we do post manufacturing

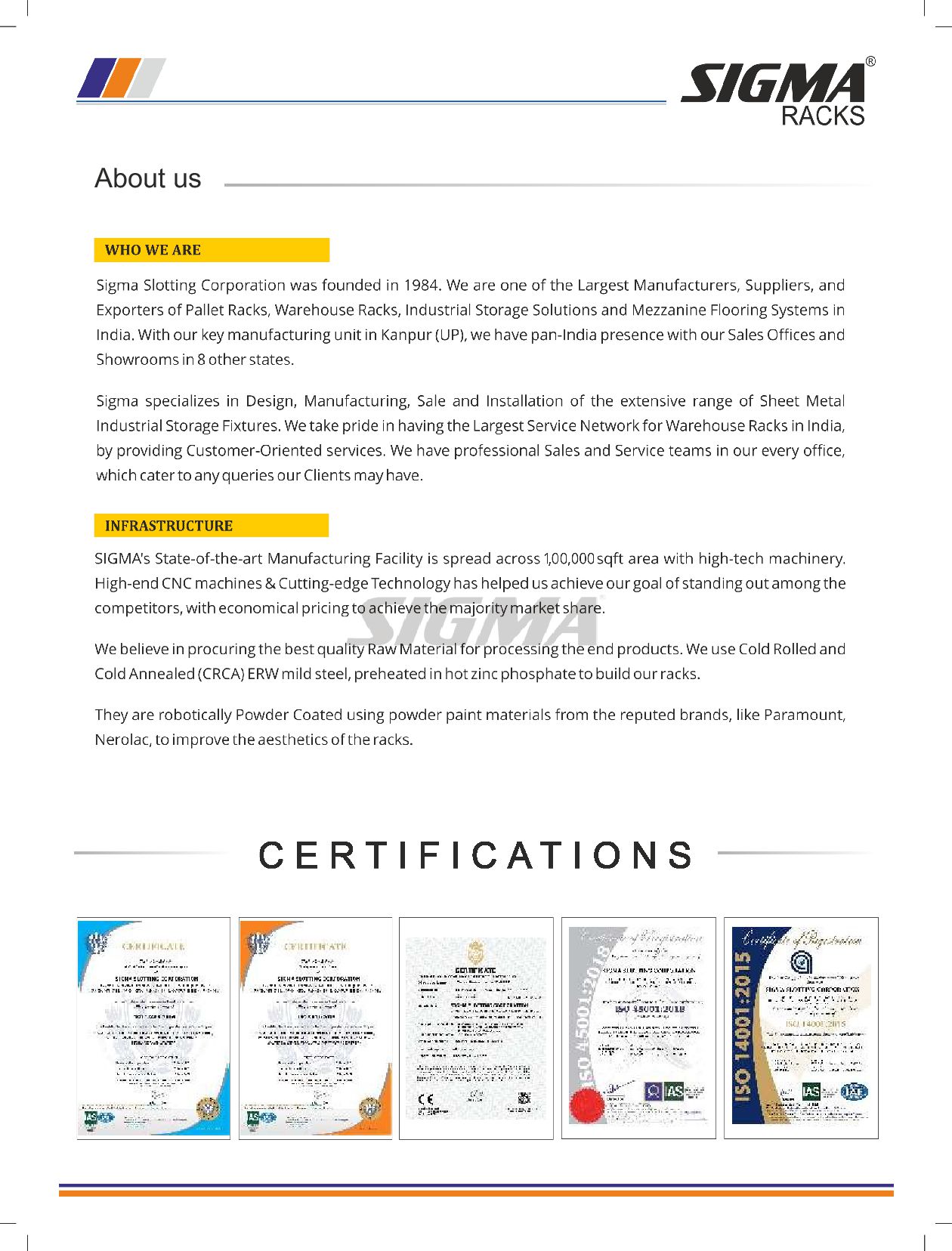

4. About us

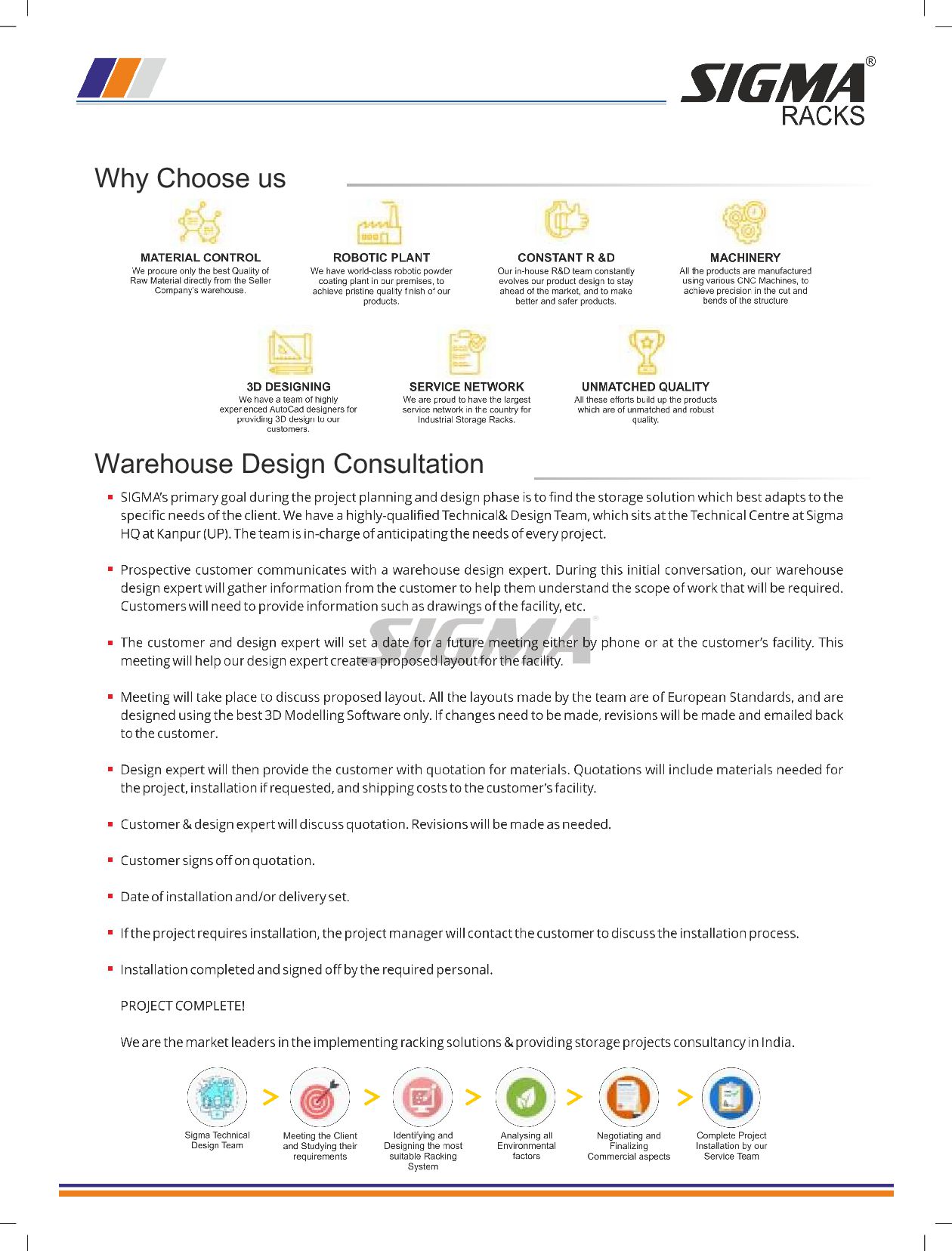

5. Why Choose us Warehouse Design Consultation

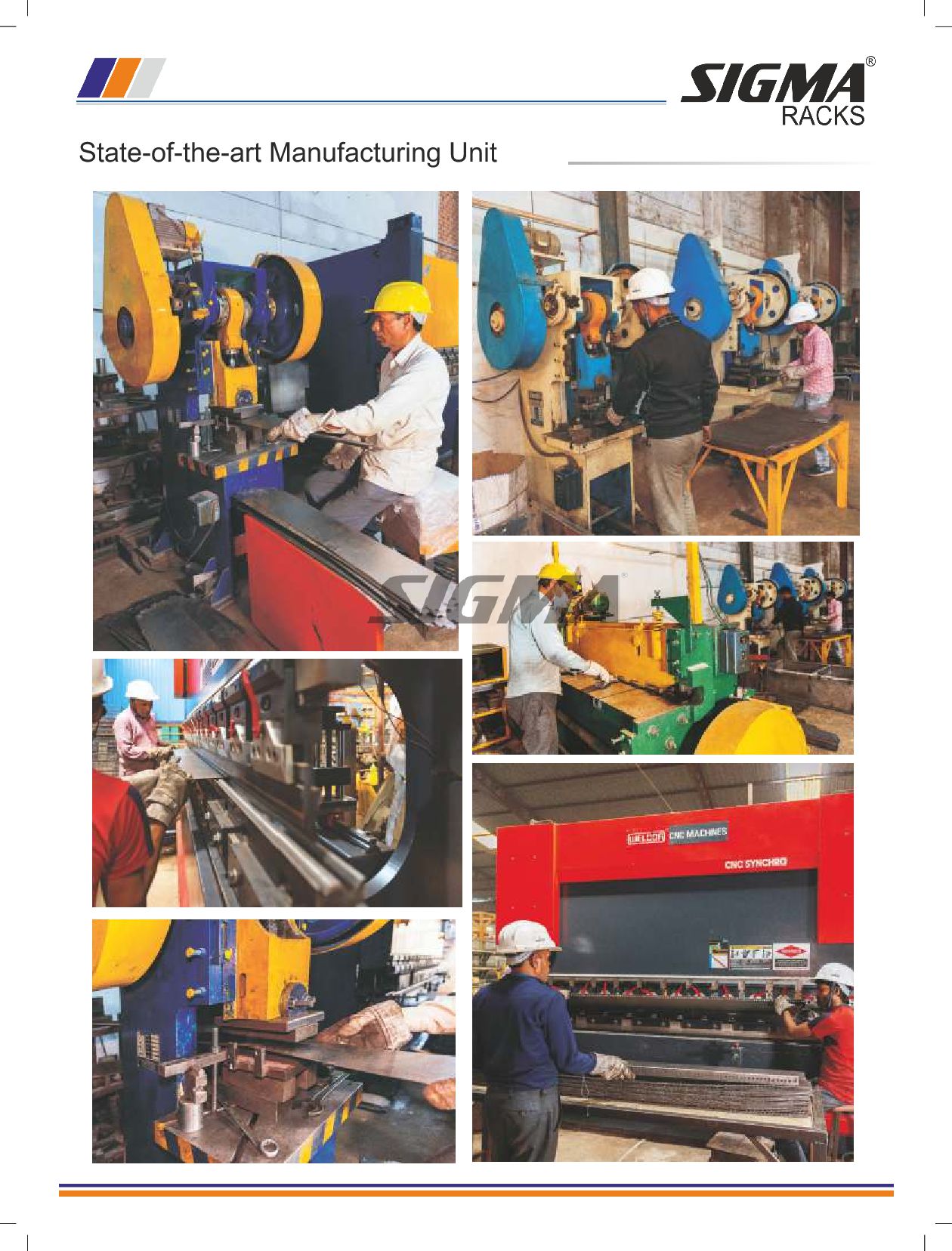

6. State-of-the-art Manufacturing Unit

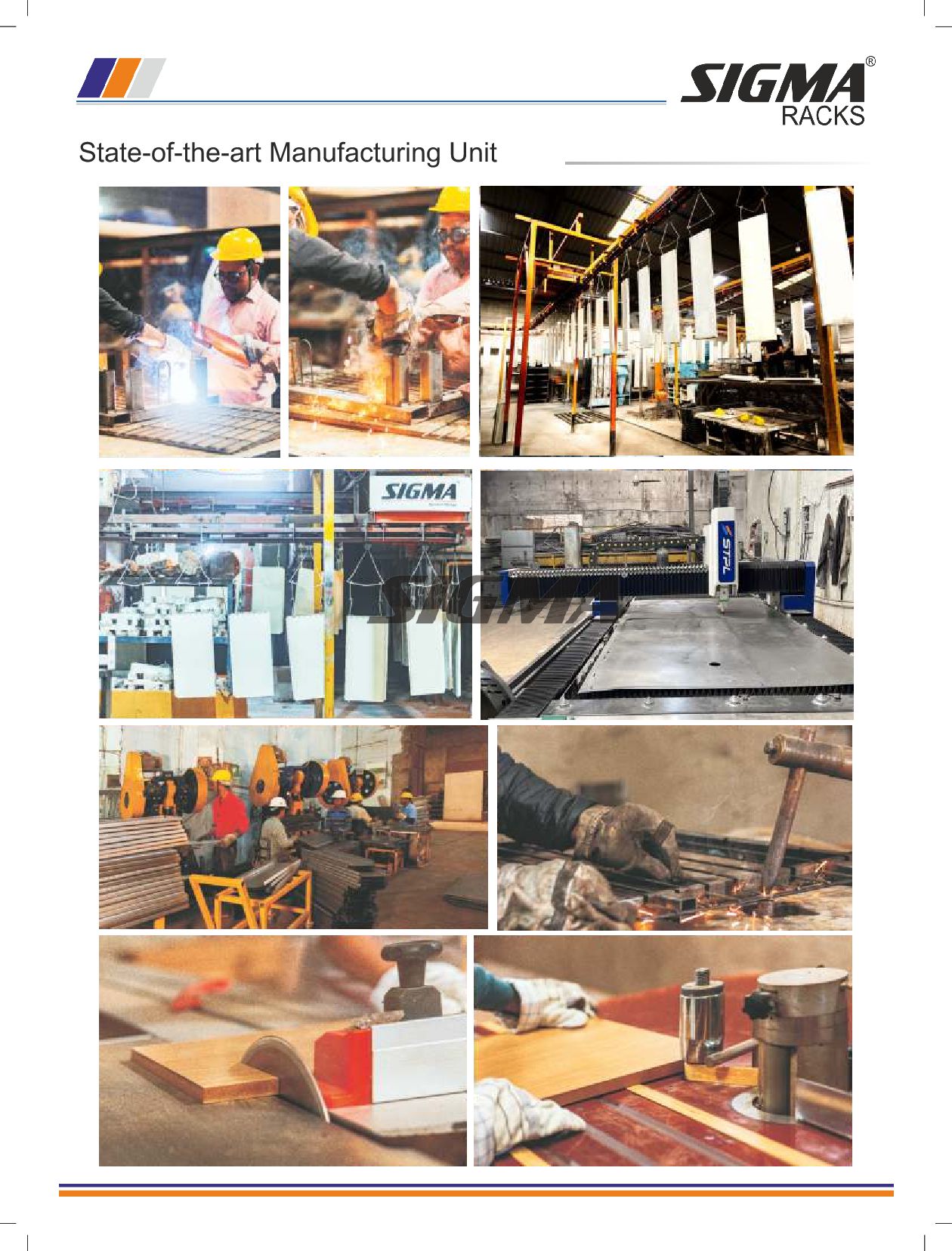

7. State-of-the-art Manufacturing Unit
8. Some of our Esteemed Clients
9. Some of our Esteemed Clients ----- Quick Commerce -----

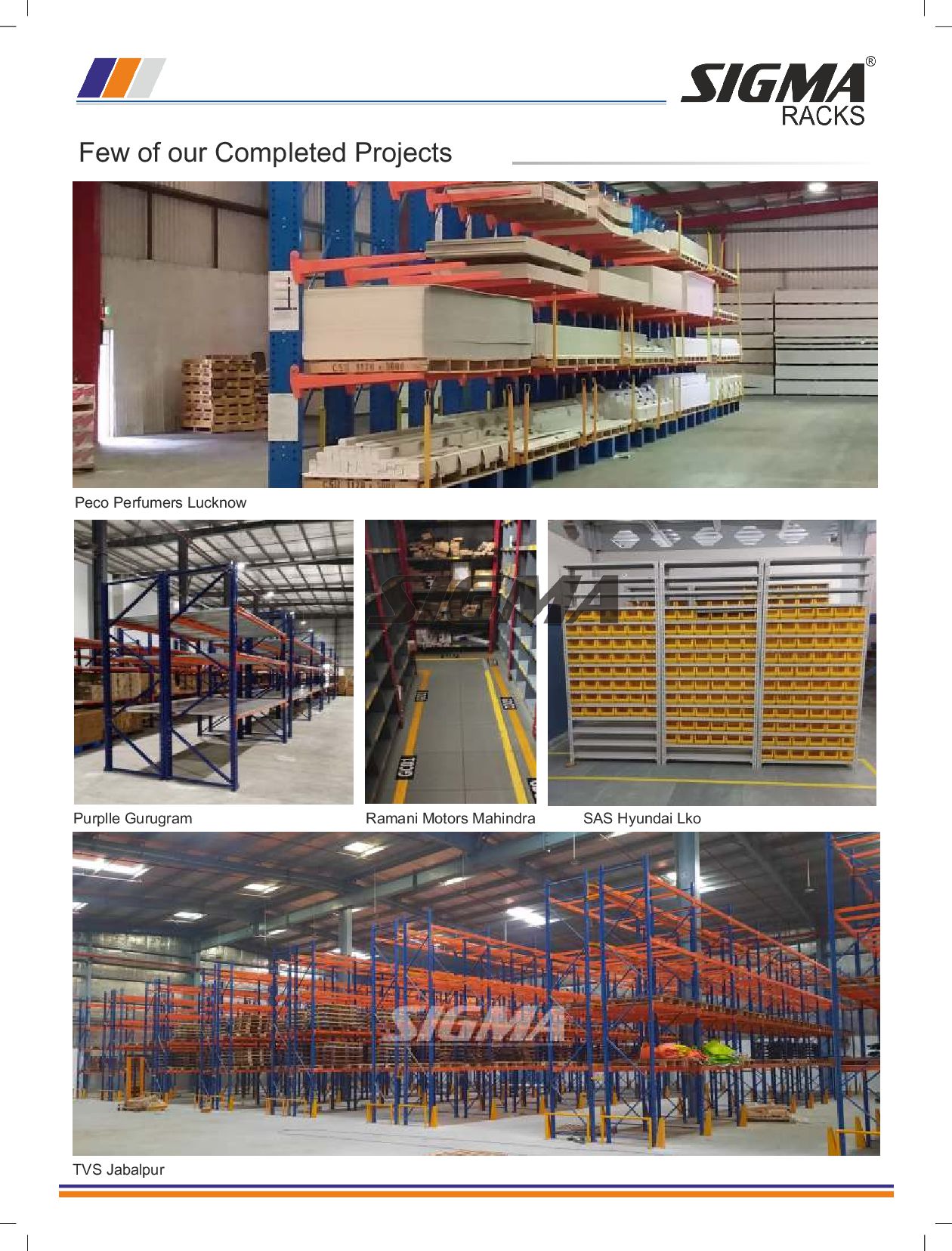

10. Few of our Completed Projects TVS Jabalpur Purplle Gurugram Peco Perfumers Lucknow Ramani Motors Mahindra SAS Hyundai Lko

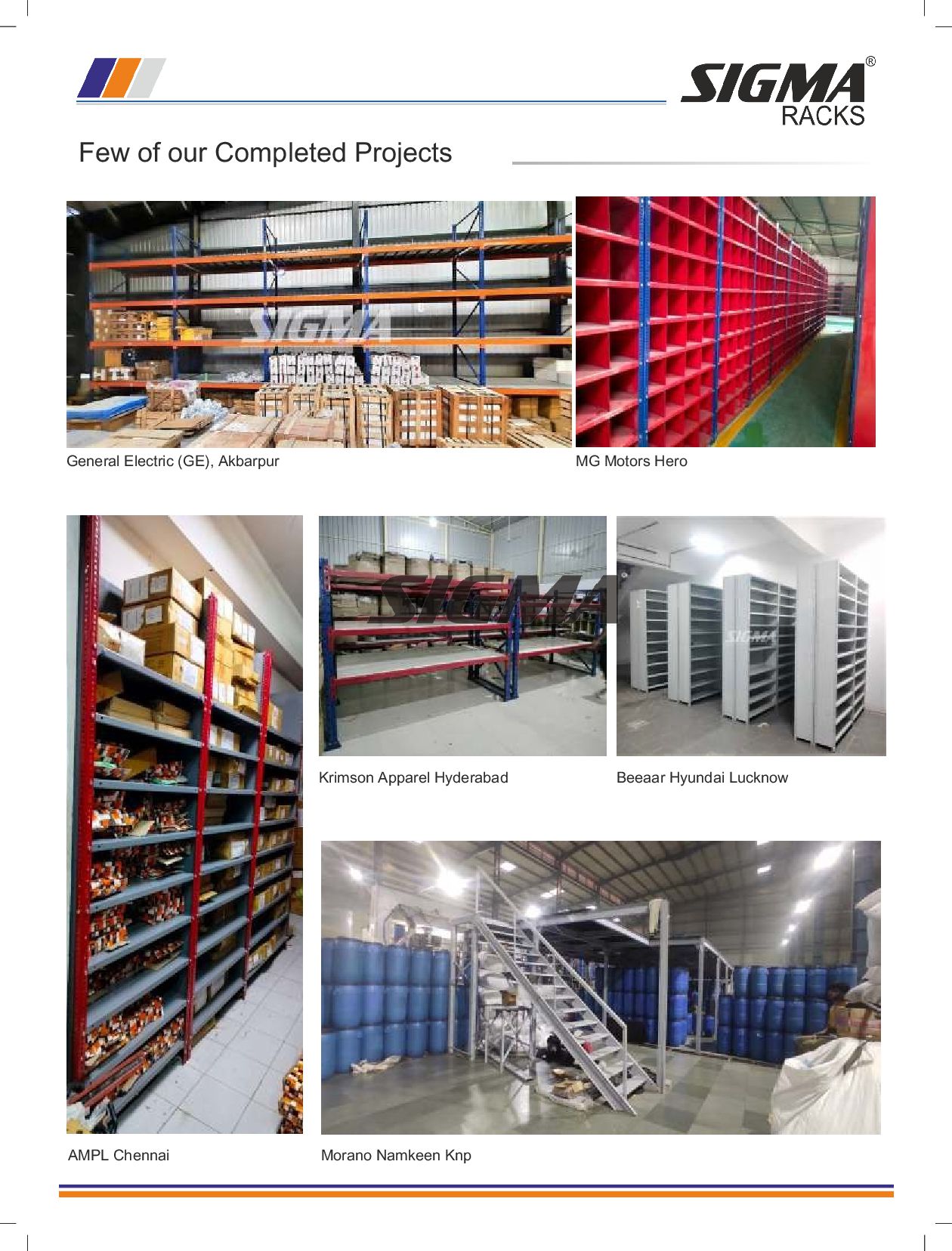

11. AMPL Chennai General Electric (GE), Akbarpur Morano Namkeen Knp Krimson Apparel Hyderabad MG Motors Hero Beeaar Hyundai Lucknow Few of our Completed Projects

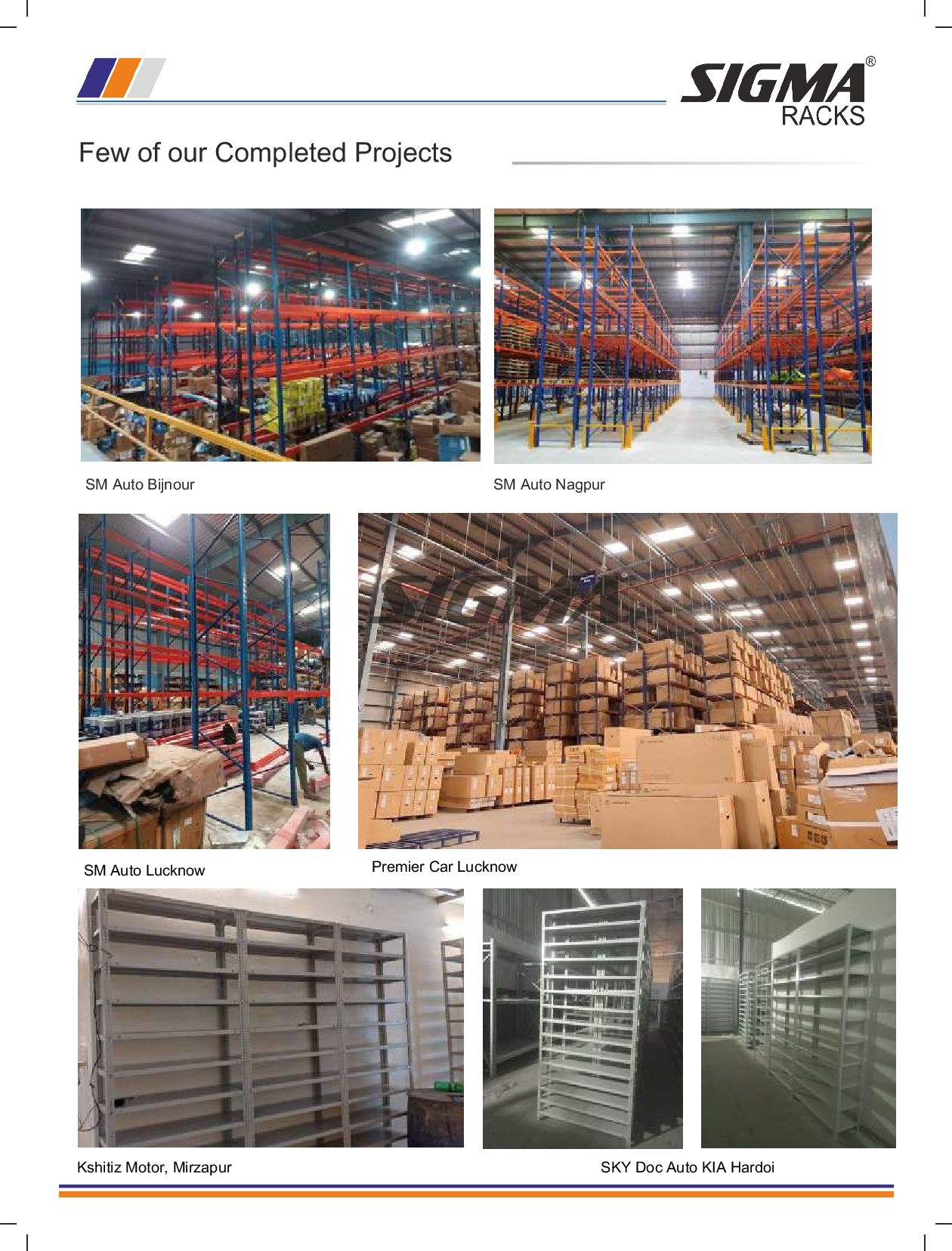

12. Few of our Completed Projects SM Auto Bijnour SM Auto Lucknow Kshitiz Motor, Mirzapur Premier Car Lucknow SM Auto Nagpur SKY Doc Auto KIA Hardoi

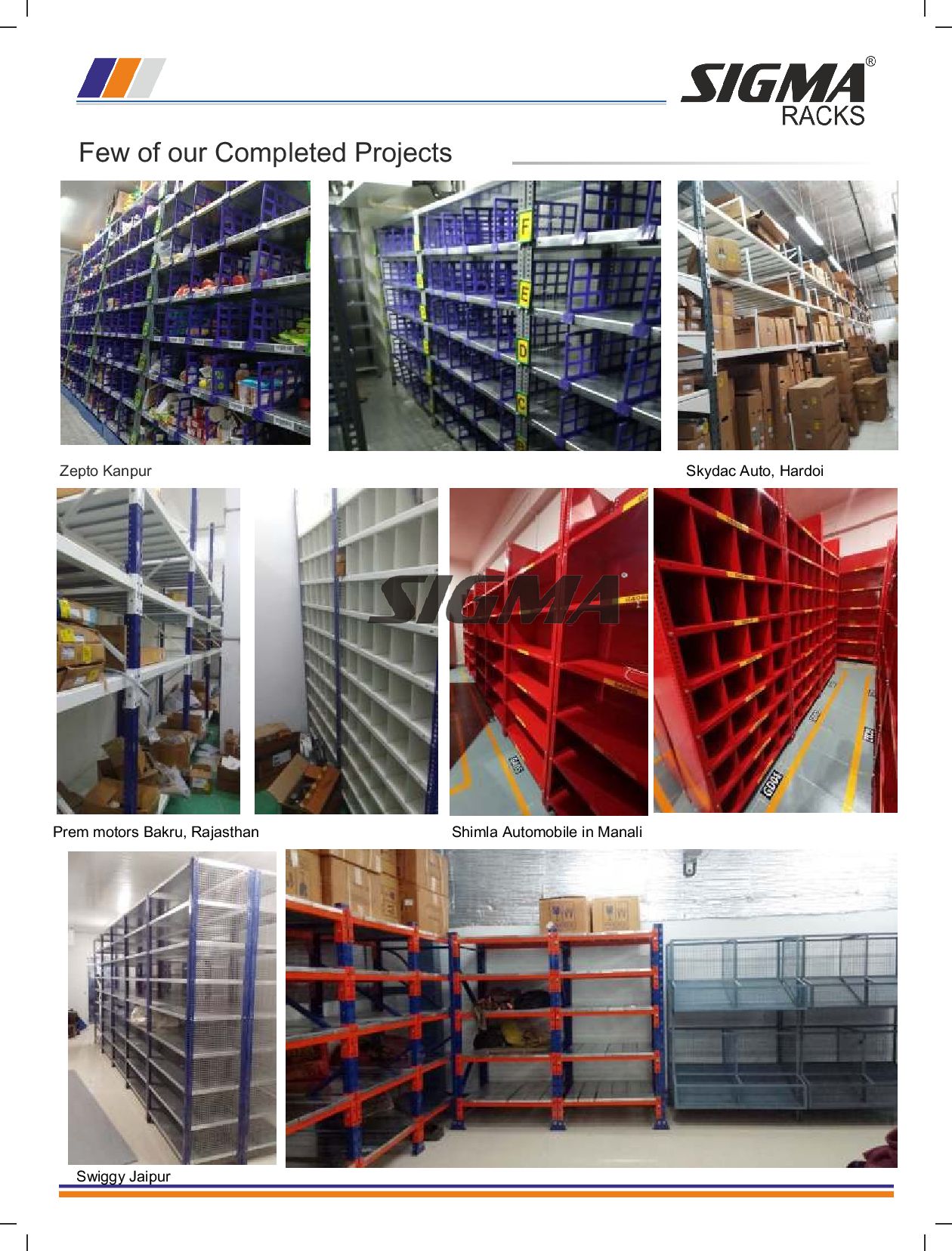

13. Few of our Completed Projects Zepto Kanpur Swiggy Jaipur Prem motors Bakru, Rajasthan Shimla Automobile in Manali Skydac Auto, Hardoi

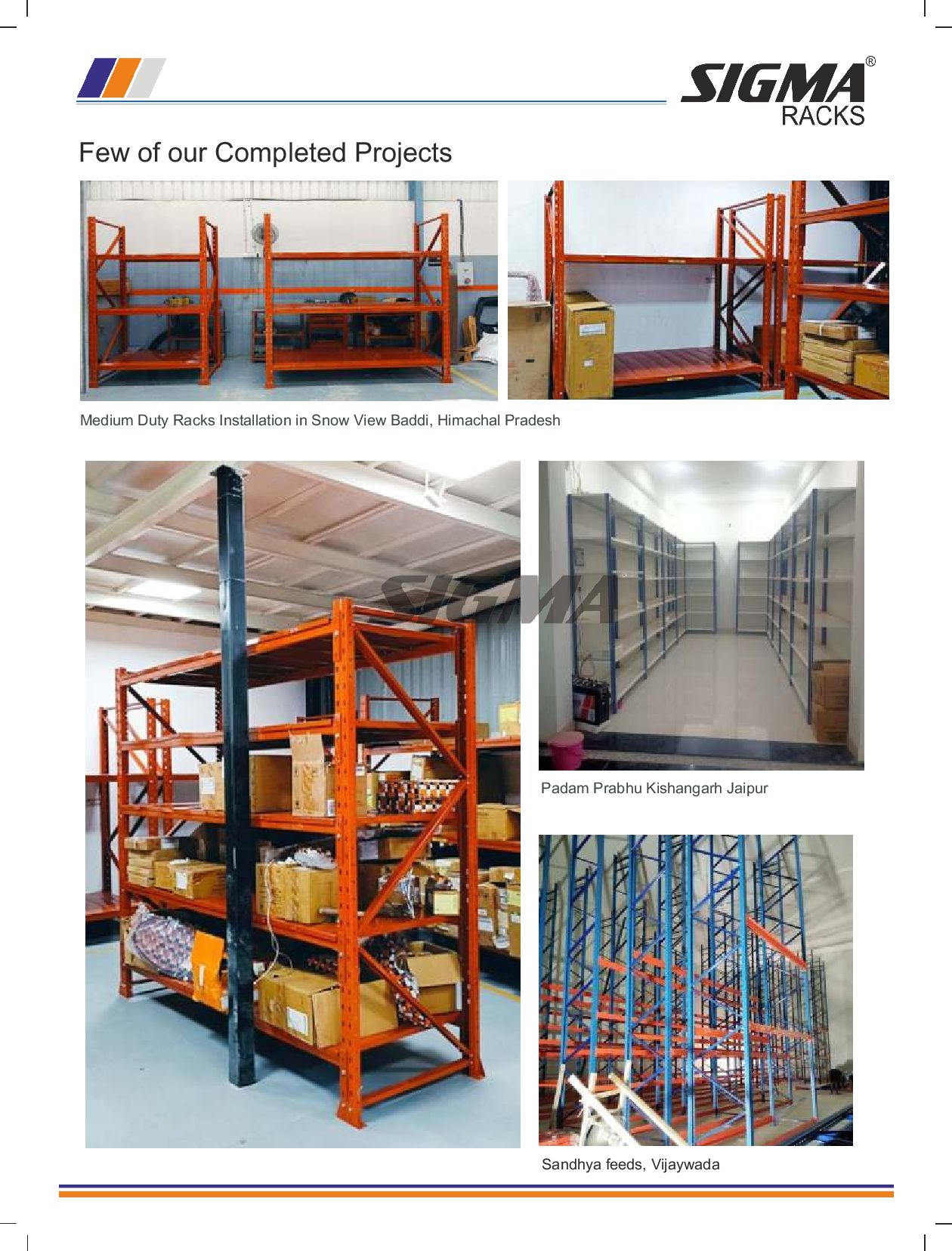

14. Few of our Completed Projects Medium Duty Racks Installation in Snow View Baddi, Himachal Pradesh Sandhya feeds, Vijaywada Padam Prabhu Kishangarh Jaipur

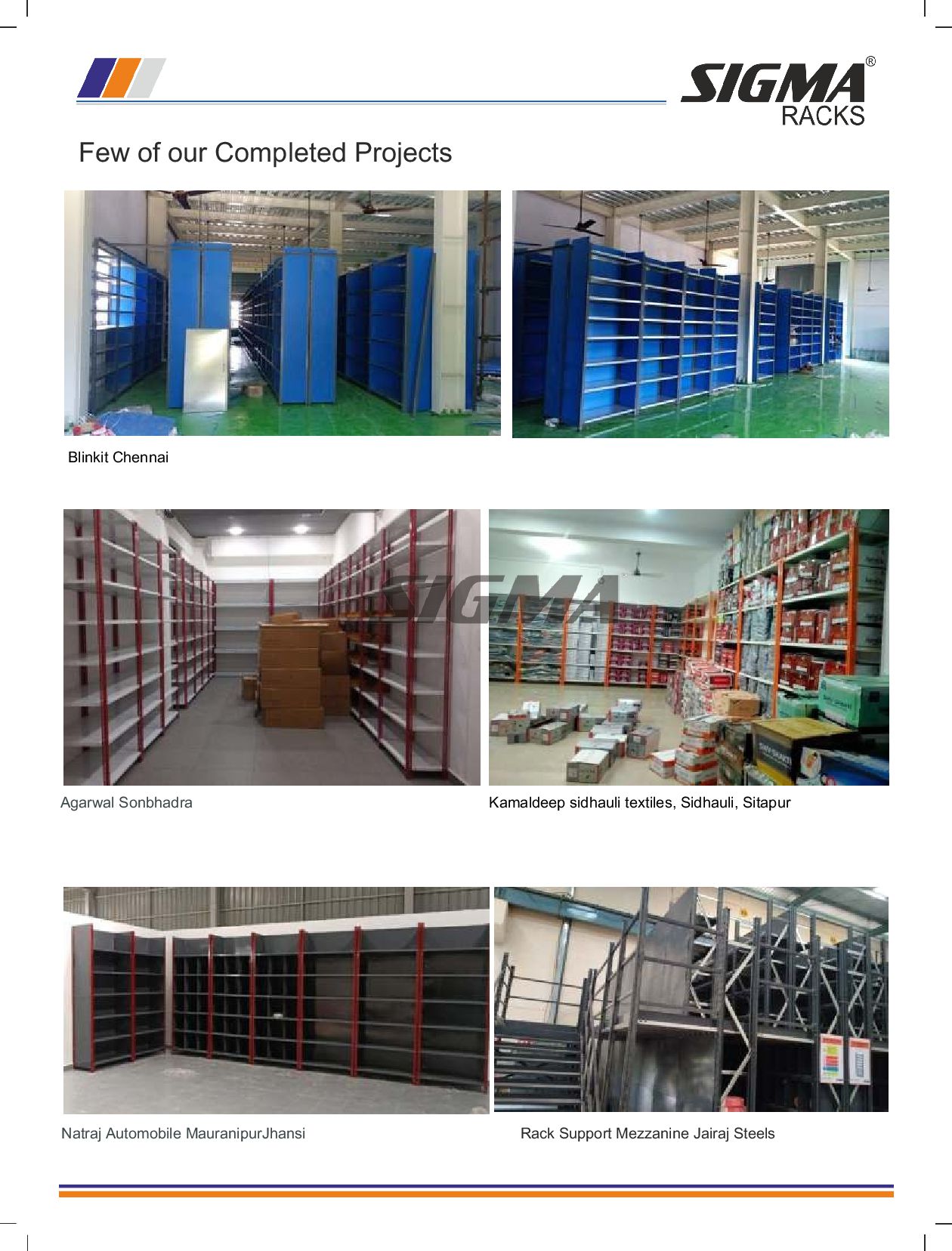

15. Few of our Completed Projects Blinkit Chennai Agarwal Sonbhadra Natraj Automobile MauranipurJhansi Rack Support Mezzanine Jairaj Steels Kamaldeep sidhauli textiles, Sidhauli, Sitapur

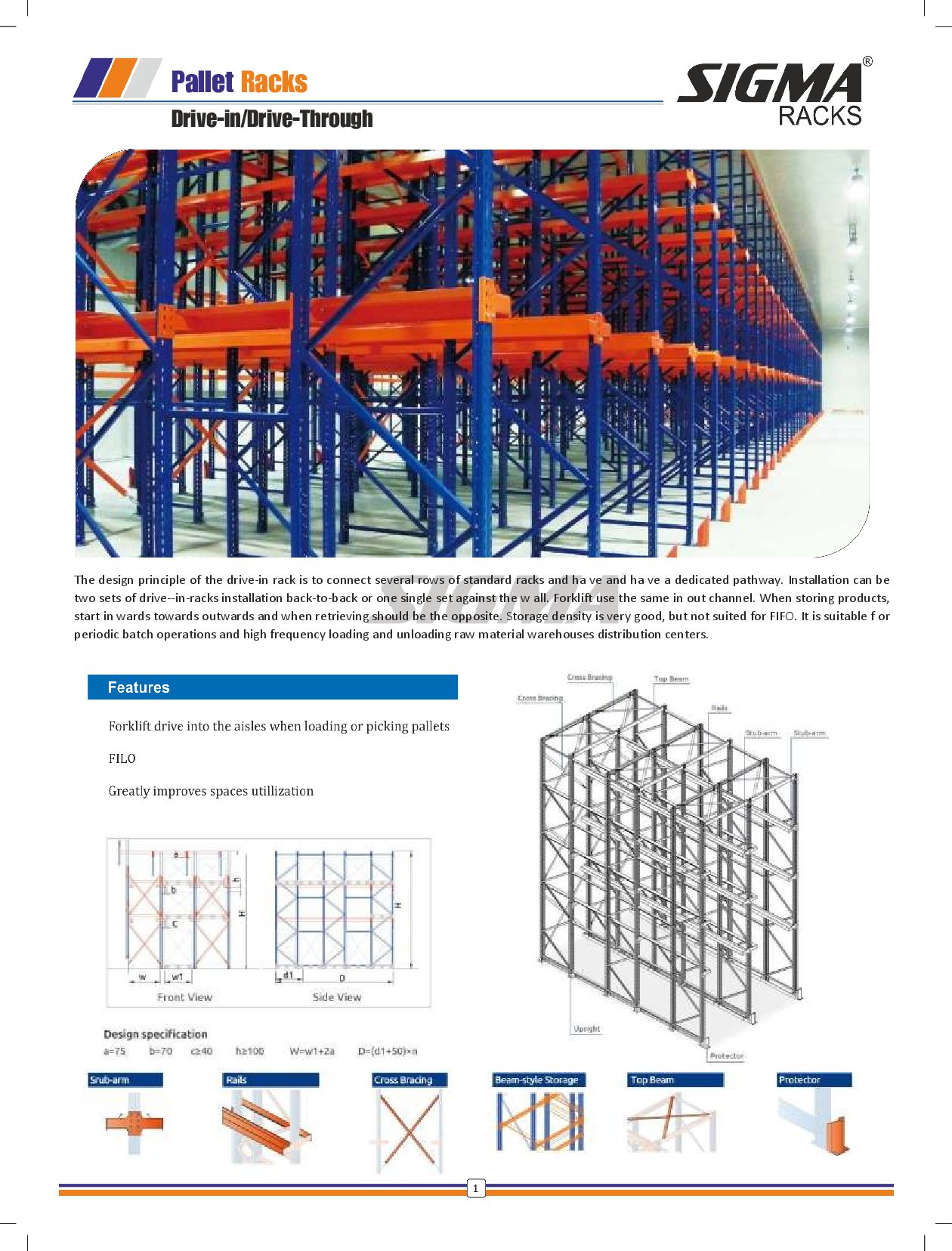

16. The design principle of the drive-in rack is to connect several rows of standard racks and ha ve and ha ve a dedicated pathway. Installation can be two sets of drive--in-racks installation back-to-back or one single set against the w all. Forklift use the same in out channel. When storing products, start in wards towards outwards and when retrieving should be the opposite. Storage density is very good, but not suited for FIFO. It is suitable f or periodic batch operations and high frequency loading and unloading raw material warehouses distribution centers. Pallet Racks Drive-in/Drive-Through 1

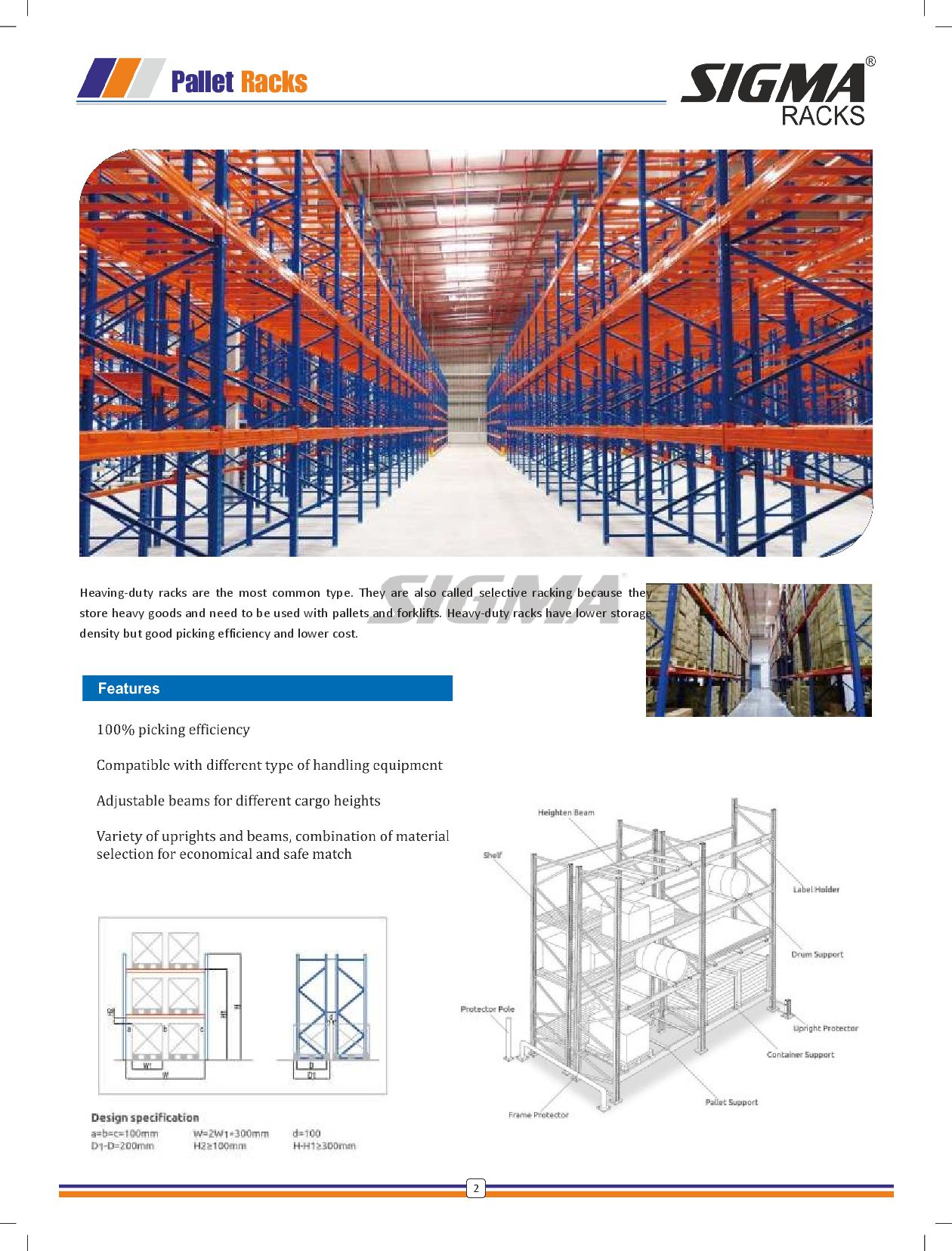

17. Heaving-duty racks are the most common type. They are also called selective racking because they store heavy goods and need to be used with pallets and forklifts. Heavy-duty racks have lower storage density but good picking efficiency and lower cost. Pallet Racks
18. Pallet Racks
19. Pallet Racks

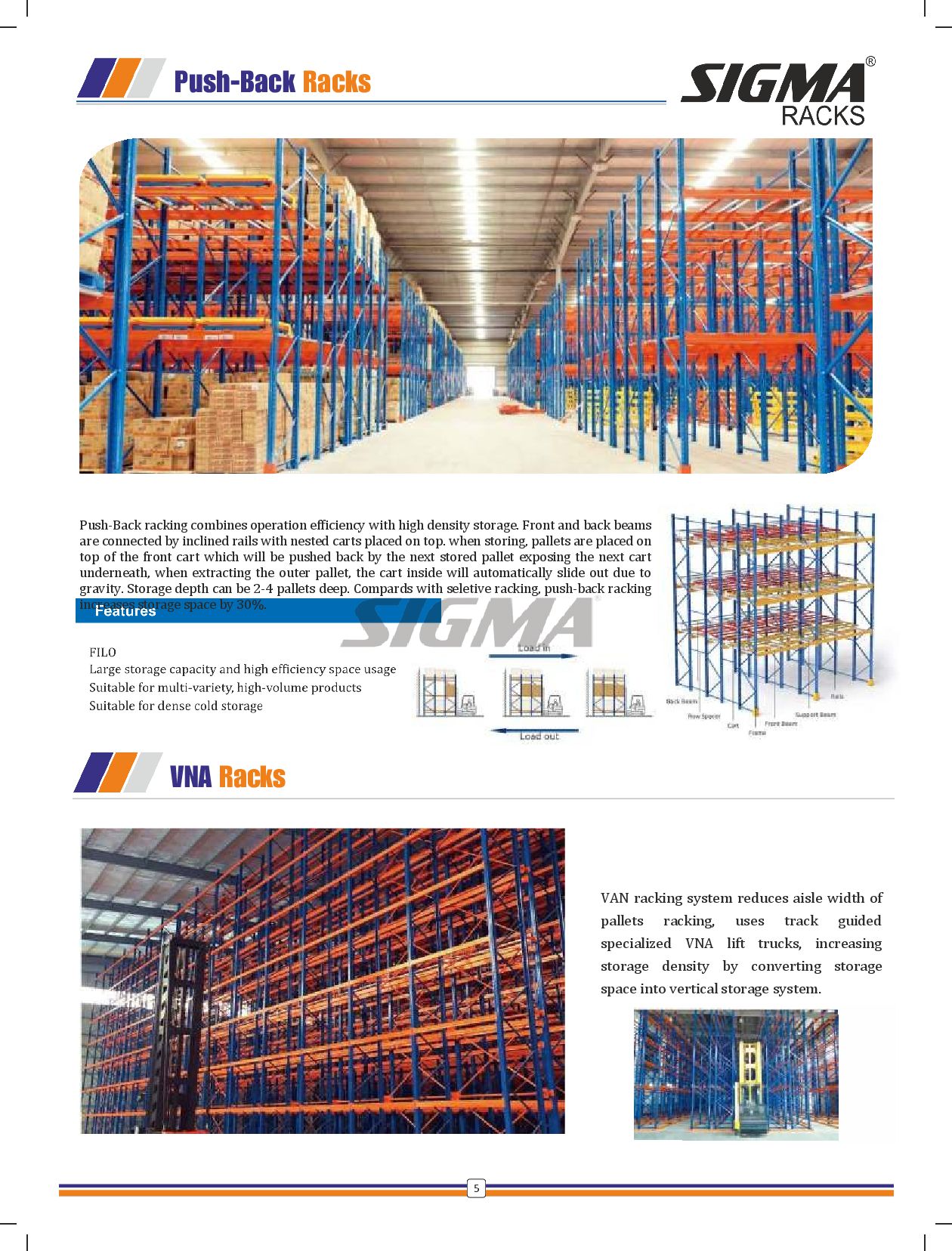

20. VNA Racks Push-Back Racks Push-Back racking combines operation efficiency with high density storage. Front and back beams are connected by inclined rails with nested carts placed on top. when storing, pallets are placed on top of the front cart which will be pushed back by the next stored pallet exposing the next cart underneath, when extracting the outer pallet, the cart inside will automatically slide out due to gravity. Storage depth can be 2-4 pallets deep. Compards with seletive racking, push-back racking increases storage space by 30%. VAN racking system reduces aisle width of pallets racking, uses track guided specialized VNA lift trucks, increasing storage density by converting storage space into vertical storage system.

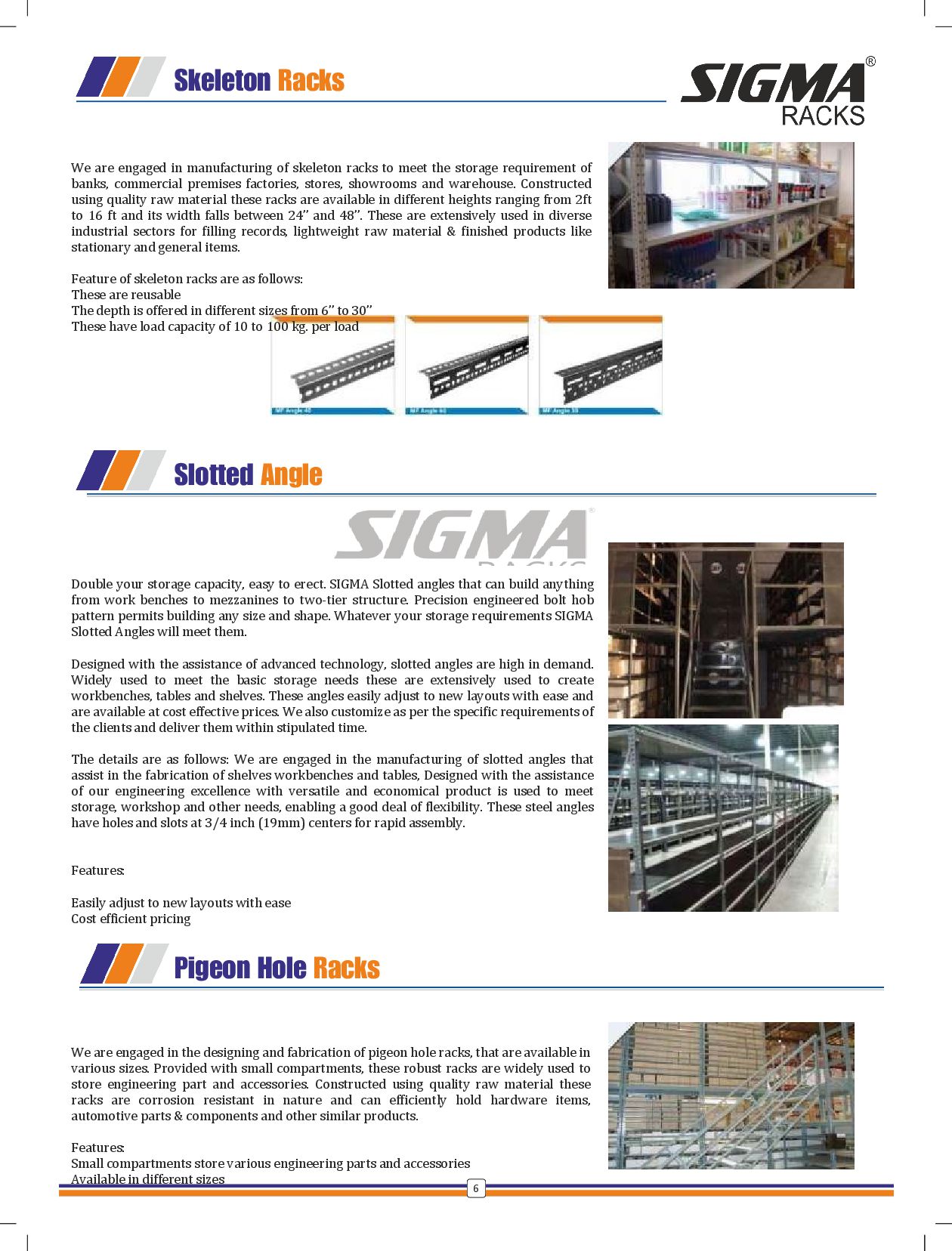

21. Features: Easily adjust to new layouts with ease Cost efficient pricing Feature of skeleton racks are as follows: These are reusable The depth is offered in different sizes from 6” to 30” These have load capacity of 10 to 100 kg. per load Features: Small compartments store various engineering parts and accessories Available in different sizes Double your storage capacity, easy to erect. SIGMA Slotted angles that can build anything from work benches to mezzanines to two-tier structure. Precision engineered bolt hob pattern permits building any size and shape. Whatever your storage requirements SIGMA Slotted Angles will meet them. We are engaged in manufacturing of skeleton racks to meet the storage requirement of banks, commercial premises factories, stores, showrooms and warehouse. Constructed using quality raw material these racks are available in different heights ranging from 2ft to 16 ft and its width falls between 24” and 48”. These are extensively used in diverse industrial sectors for filling records, lightweight raw material & finished products like stationary and general items. We are engaged in the designing and fabrication of pigeon hole racks, that are available in various sizes. Provided with small compartments, these robust racks are widely used to store engineering part and accessories. Constructed using quality raw material these racks are corrosion resistant in nature and can efficiently hold hardware items, automotive parts & components and other similar products. The details are as follows: We are engaged in the manufacturing of slotted angles that assist in the fabrication of shelves workbenches and tables, Designed with the assistance of our engineering excellence with versatile and economical product is used to meet storage, workshop and other needs, enabling a good deal of flexibility. These steel angles have holes and slots at 3/4 inch (19mm) centers for rapid assembly. Designed with the assistance of advanced technology, slotted angles are high in demand. Widely used to meet the basic storage needs these are extensively used to create workbenches, tables and shelves. These angles easily adjust to new layouts with ease and are available at cost effective prices. We also customize as per the specific requirements of the clients and deliver them within stipulated time. Slotted Angle Skeleton Racks Pigeon Hole Racks 6

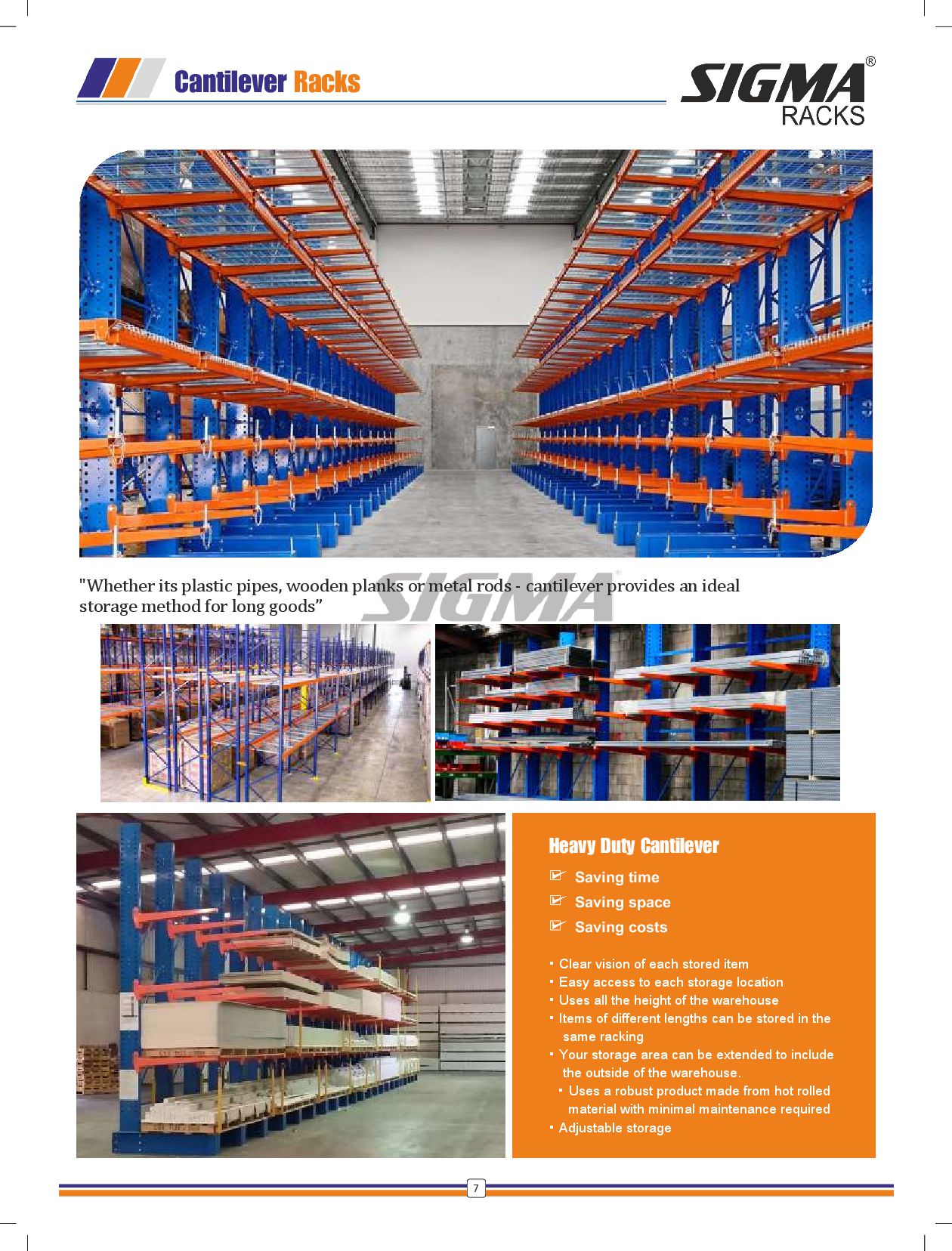

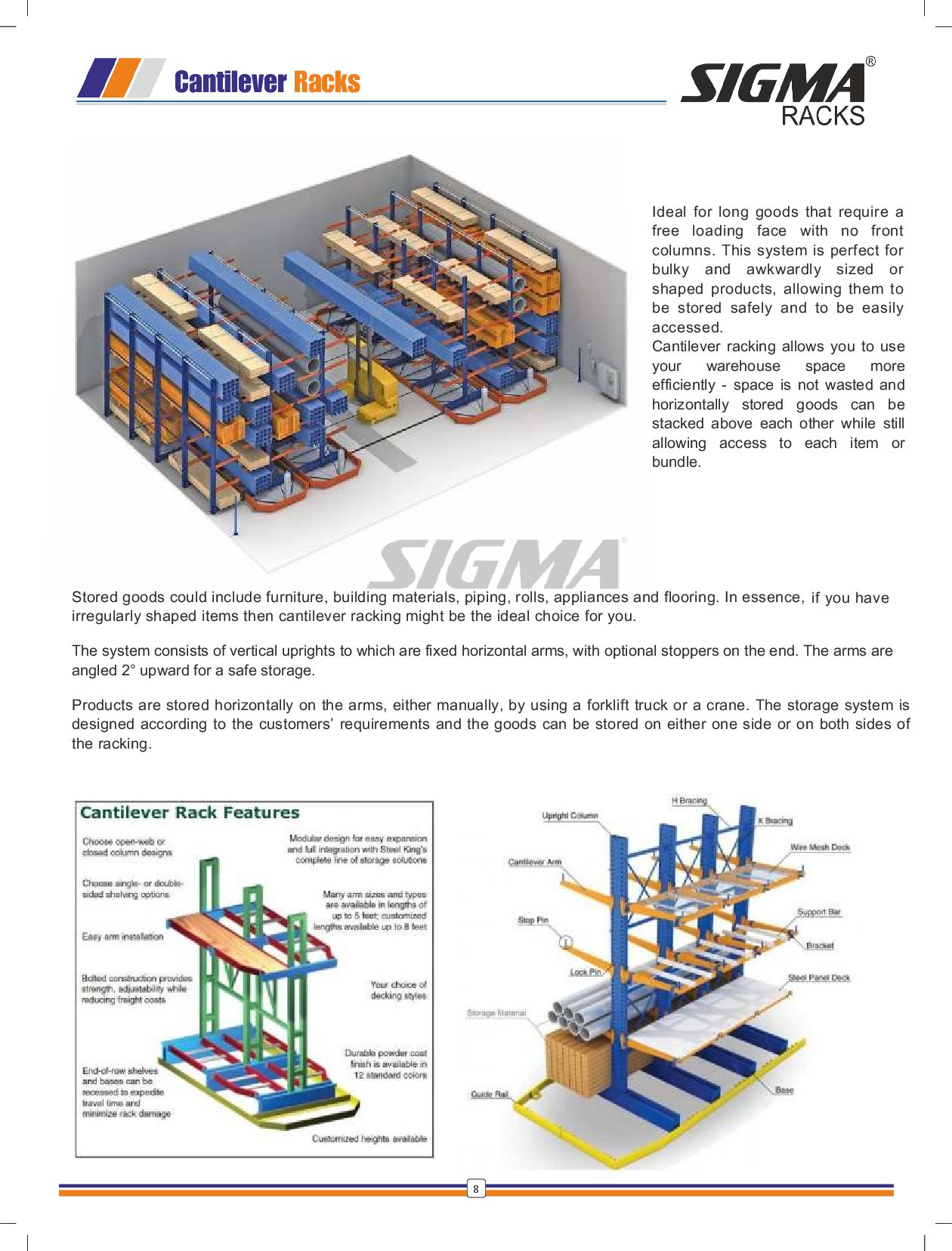

22. Cantilever Racks "Whether its plastic pipes, wooden planks or metal rods - cantilever provides an ideal storage method for long goods” Saving time Saving space Saving costs ▪ Clear vision of each stored item ▪ Easy access to each storage location ▪ Uses all the height of the warehouse ▪ Items of different lengths can be stored in the same racking ▪ Your storage area can be extended to include the outside of the warehouse. ▪ Uses a robust product made from hot rolled material with minimal maintenance required ▪ Adjustable storage Heavy Duty Cantilever 7
23. Cantilever Racks Stored goods could include furniture, building materials, piping, rolls, appliances and flooring. In essence, irregularly shaped items then cantilever racking might be the ideal choice for you. The system consists of vertical uprights to which are fixed horizontal arms, with optional stoppers on the end. The arms are angled 2° upward for a safe storage. if you have Products are stored horizontally on the arms, either manually, by using a forklift truck or a crane. The storage system is designed according to the customers’ requirements and the goods can be stored on either one side or on both sides of the racking. Ideal for long goods that require a free loading face with no front columns. This system is perfect for bulky and awkwardly sized or shaped products, allowing them to be stored safely and to be easily accessed. Cantilever racking allows you to use your warehouse space more efficiently - space is not wasted and horizontally stored goods can be stacked above each other while still allowing access to each item or bundle. 8

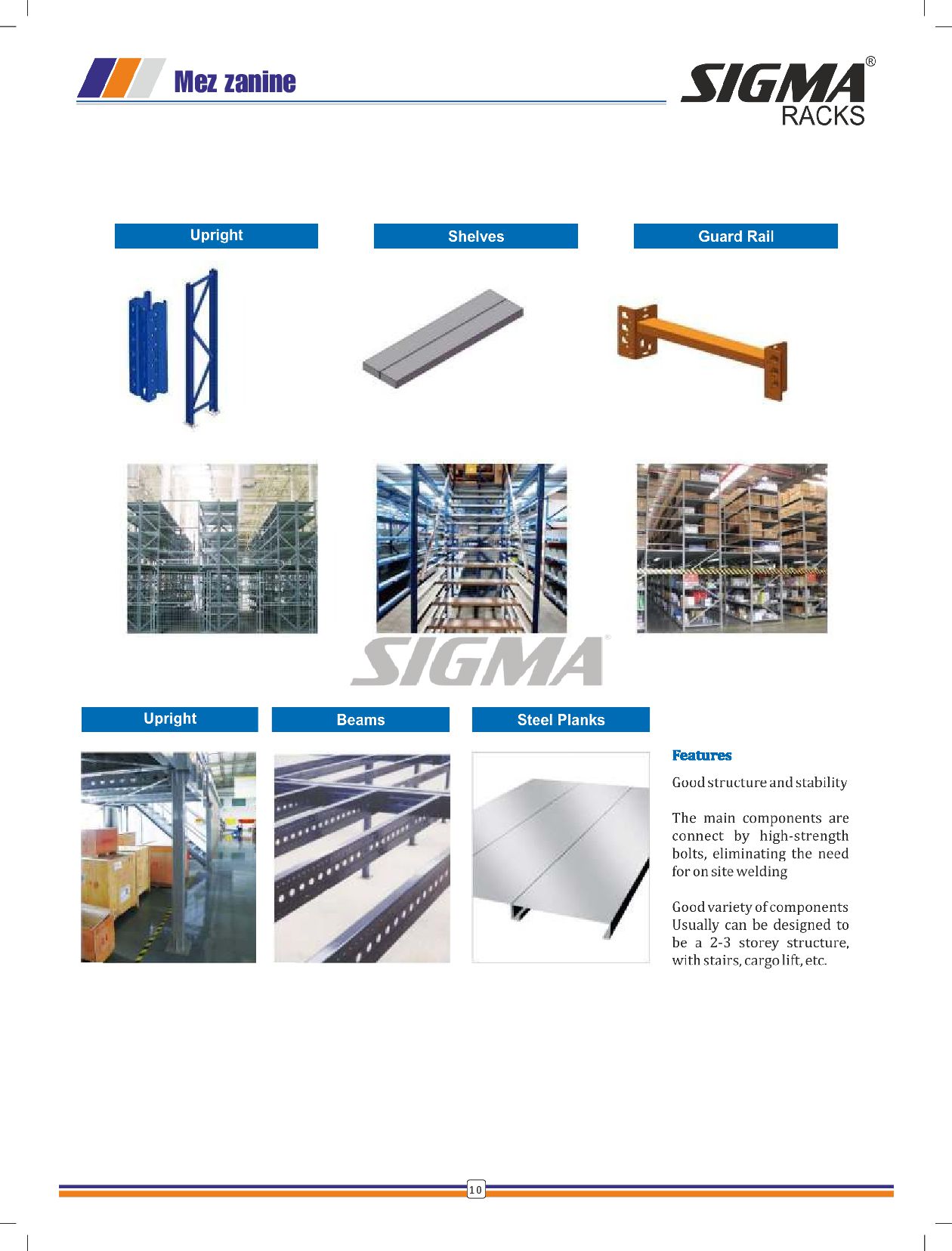

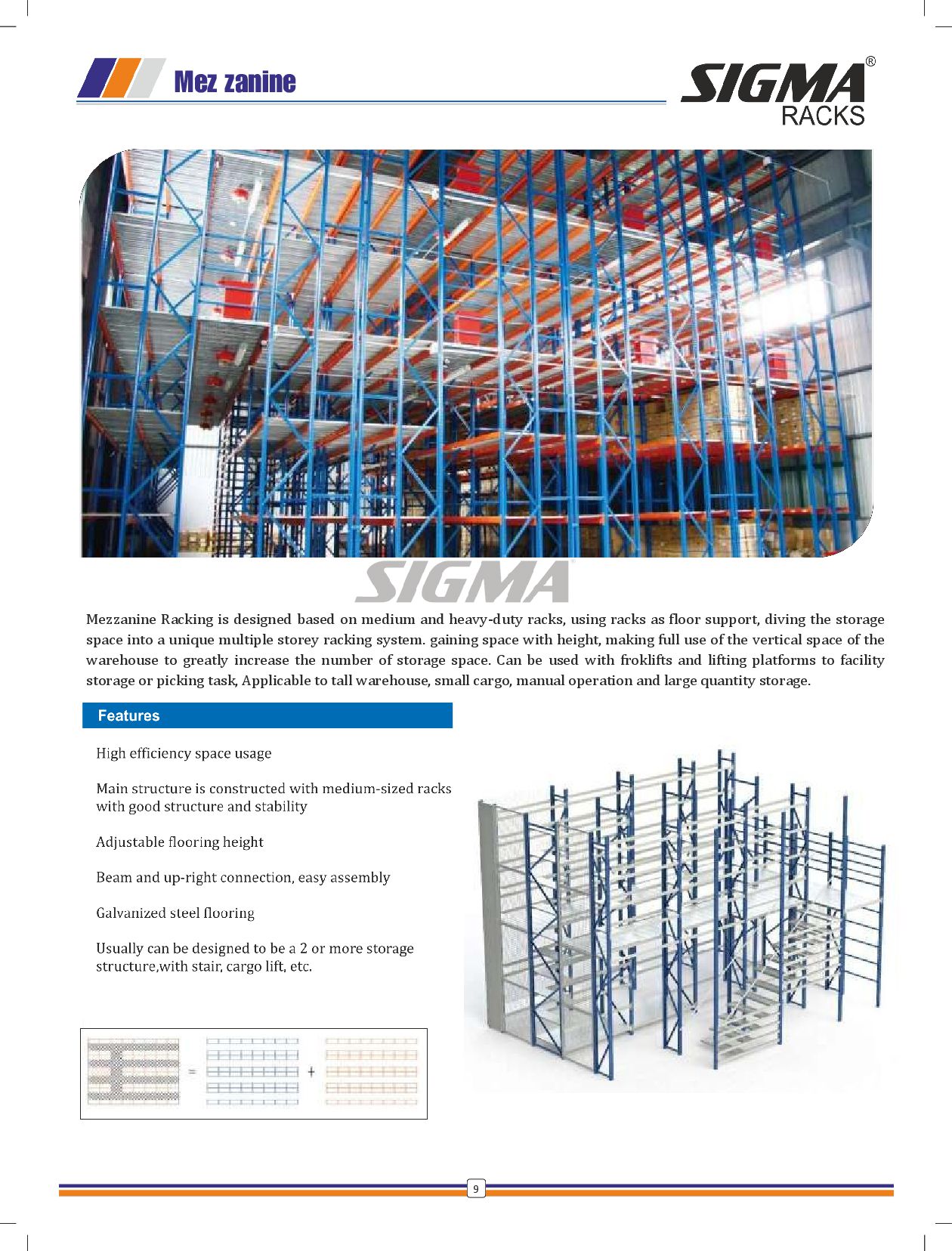

24. Mez zanine Mezzanine Racking is designed based on medium and heavy-duty racks, using racks as floor support, diving the storage space into a unique multiple storey racking system. gaining space with height, making full use of the vertical space of the warehouse to greatly increase the number of storage space. Can be used with froklifts and lifting platforms to facility storage or picking task, Applicable to tall warehouse, small cargo, manual operation and large quantity storage. 9
25. Mez zanine 10

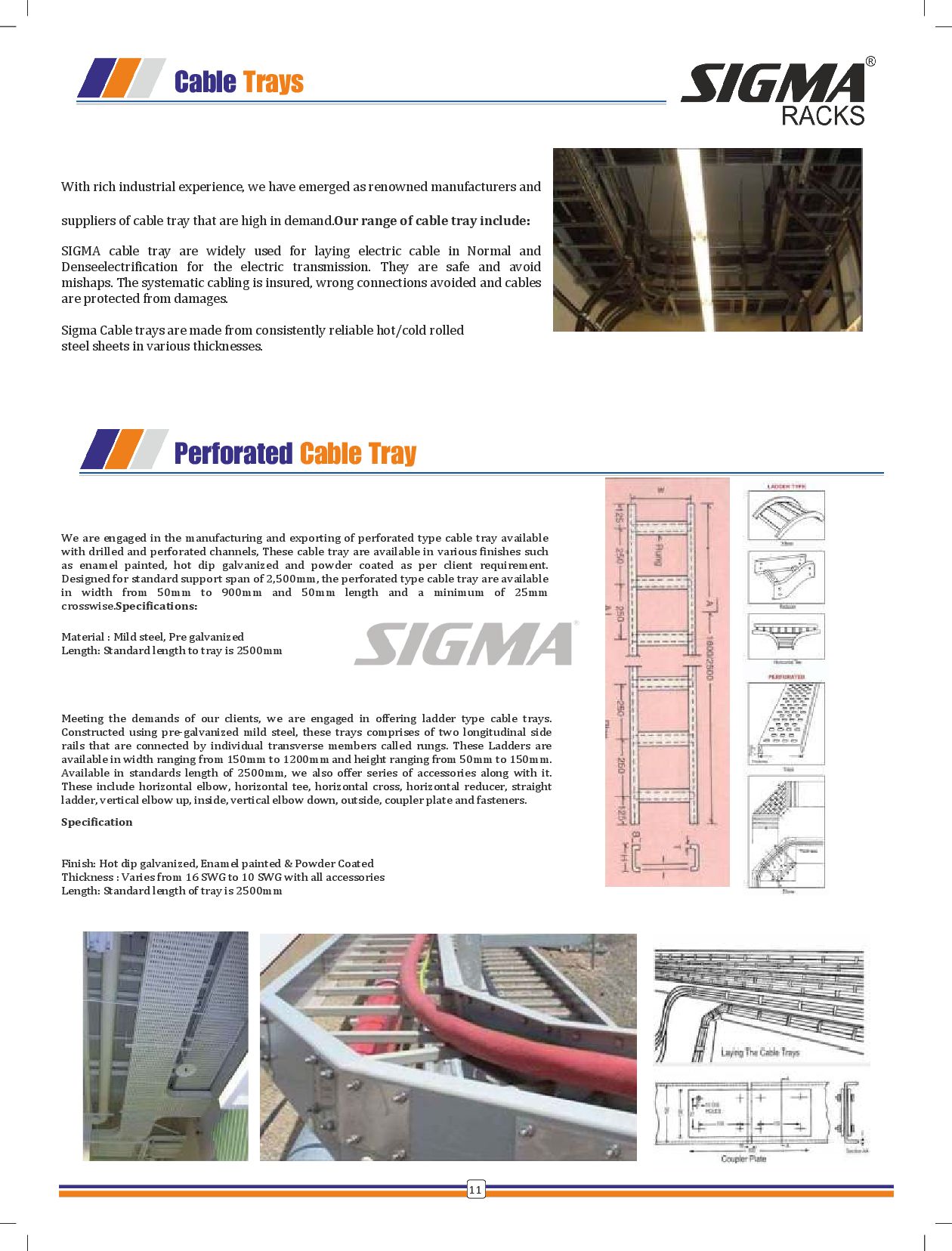

26. Cable Trays Perforated Cable Tray Material : Mild steel, Pre galvanized Length: Standard length to tray is 2500mm Finish: Hot dip galvanized, Enamel painted & Powder Coated Thickness : Varies from 16 SWG to 10 SWG with all accessories Length: Standard length of tray is 2500mm We are engaged in the manufacturing and exporting of perforated type cable tray available with drilled and perforated channels, These cable tray are available in various finishes such as enamel painted, hot dip galvanized and powder coated as per client requirement. Designed for standard support span of 2,500mm, the perforated type cable tray are available in width from 50mm to 900mm and 50mm length and a minimum of 25mm crosswise.Specifications: Meeting the demands of our clients, we are engaged in offering ladder type cable trays. Constructed using pre-galvanized mild steel, these trays comprises of two longitudinal side rails that are connected by individual transverse members called rungs. These Ladders are available in width ranging from 150mm to 1200mm and height ranging from 50mm to 150mm. Available in standards length of 2500mm, we also offer series of accessories along with it. These include horizontal elbow, horizontal tee, horizontal cross, horizontal reducer, straight ladder, vertical elbow up, inside, vertical elbow down, outside, coupler plate and fasteners. Specification Sigma Cable trays are made from consistently reliable hot/cold rolled steel sheets in various thicknesses. With rich industrial experience, we have emerged as renowned manufacturers and suppliers of cable tray that are high in demand.Our range of cable tray include: SIGMA cable tray are widely used for laying electric cable in Normal and Denseelectrification for the electric transmission. They are safe and avoid mishaps. The systematic cabling is insured, wrong connections avoided and cables are protected from damages. 11

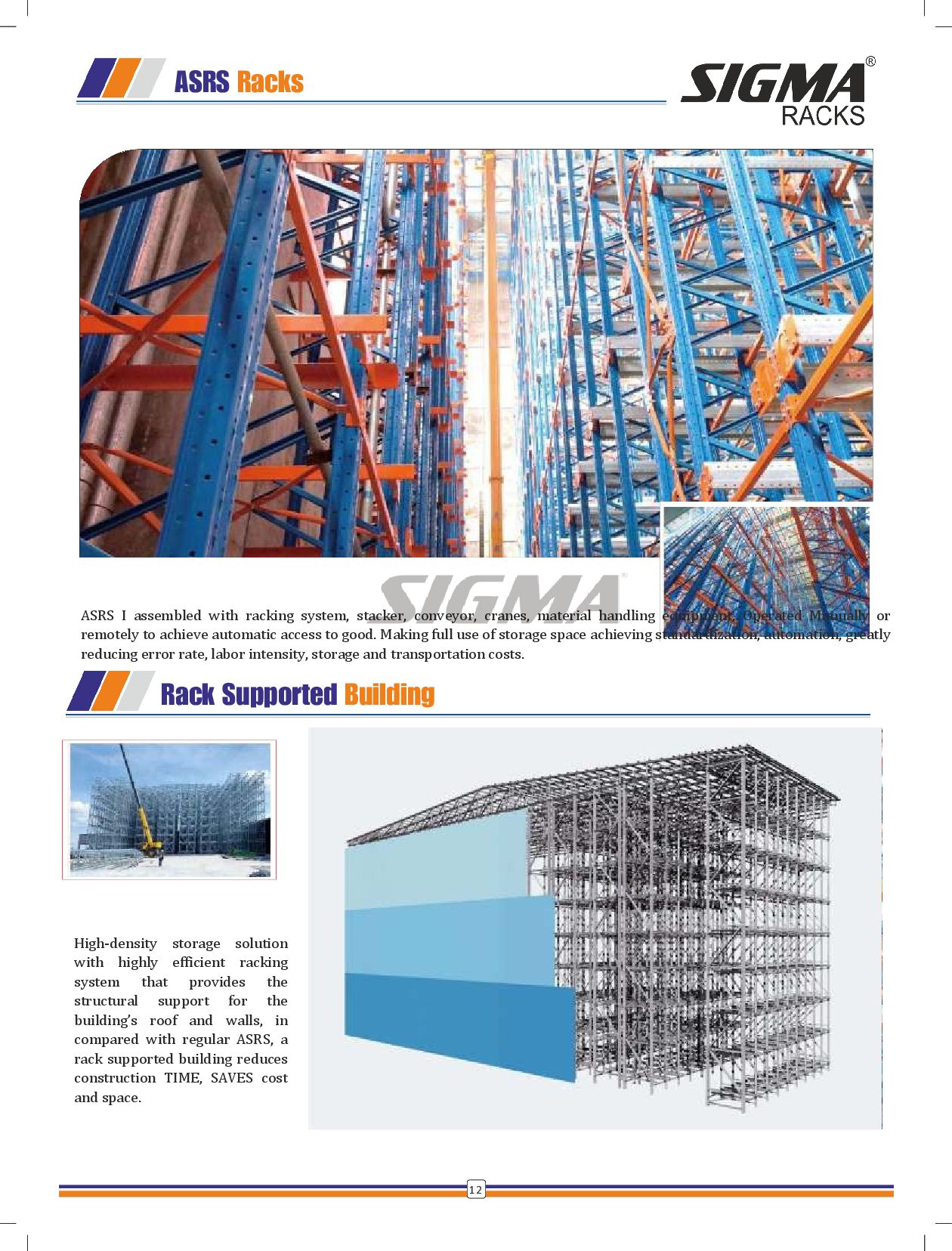

27. ASRS Racks Rack Supported Building High-density storage solution with highly efficient racking system that provides the structural support for the building’s roof and walls, in compared with regular ASRS, a rack supported building reduces construction TIME, SAVES cost and space. ASRS I assembled with racking system, stacker, conveyor, cranes, material handling equipment, Operated Manually or remotely to achieve automatic access to good. Making full use of storage space achieving standardization, automation, greatly reducing error rate, labor intensity, storage and transportation costs. 12

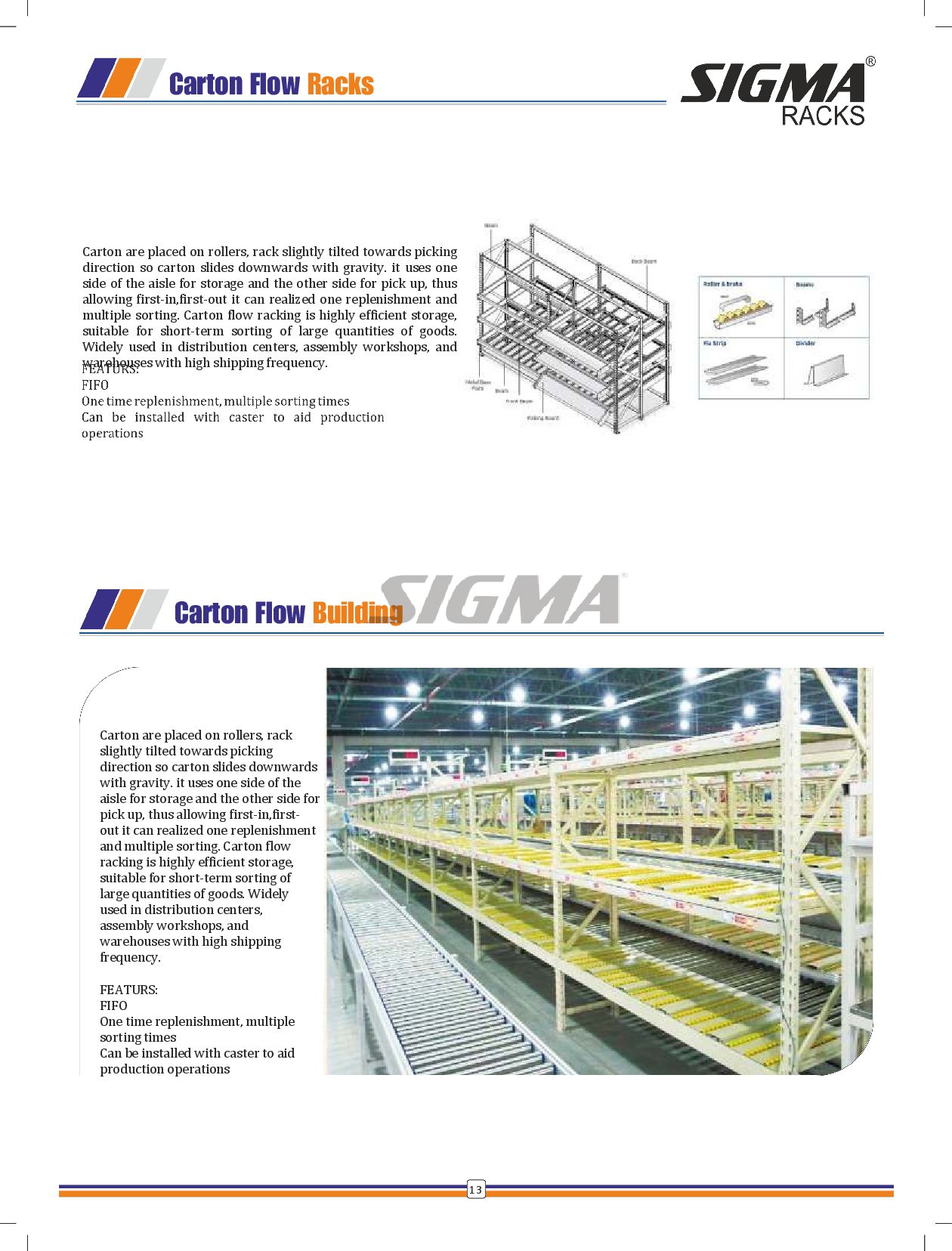

28. Carton Flow Racks Carton Flow Building FEATURS: FIFO One time replenishment, multiple sorting times Can be installed with caster to aid production operations Carton are placed on rollers, rack slightly tilted towards picking direction so carton slides downwards with gravity. it uses one side of the aisle for storage and the other side for pick up, thus allowing first-in,first- out it can realized one replenishment and multiple sorting. Carton flow racking is highly efficient storage, suitable for short-term sorting of large quantities of goods. Widely used in distribution centers, assembly workshops, and warehouses with high shipping frequency. Carton are placed on rollers, rack slightly tilted towards picking direction so carton slides downwards with gravity. it uses one side of the aisle for storage and the other side for pick up, thus allowing first-in,first-out it can realized one replenishment and multiple sorting. Carton flow racking is highly efficient storage, suitable for short-term sorting of large quantities of goods. Widely used in distribution centers, assembly workshops, and warehouses with high shipping frequency. 13

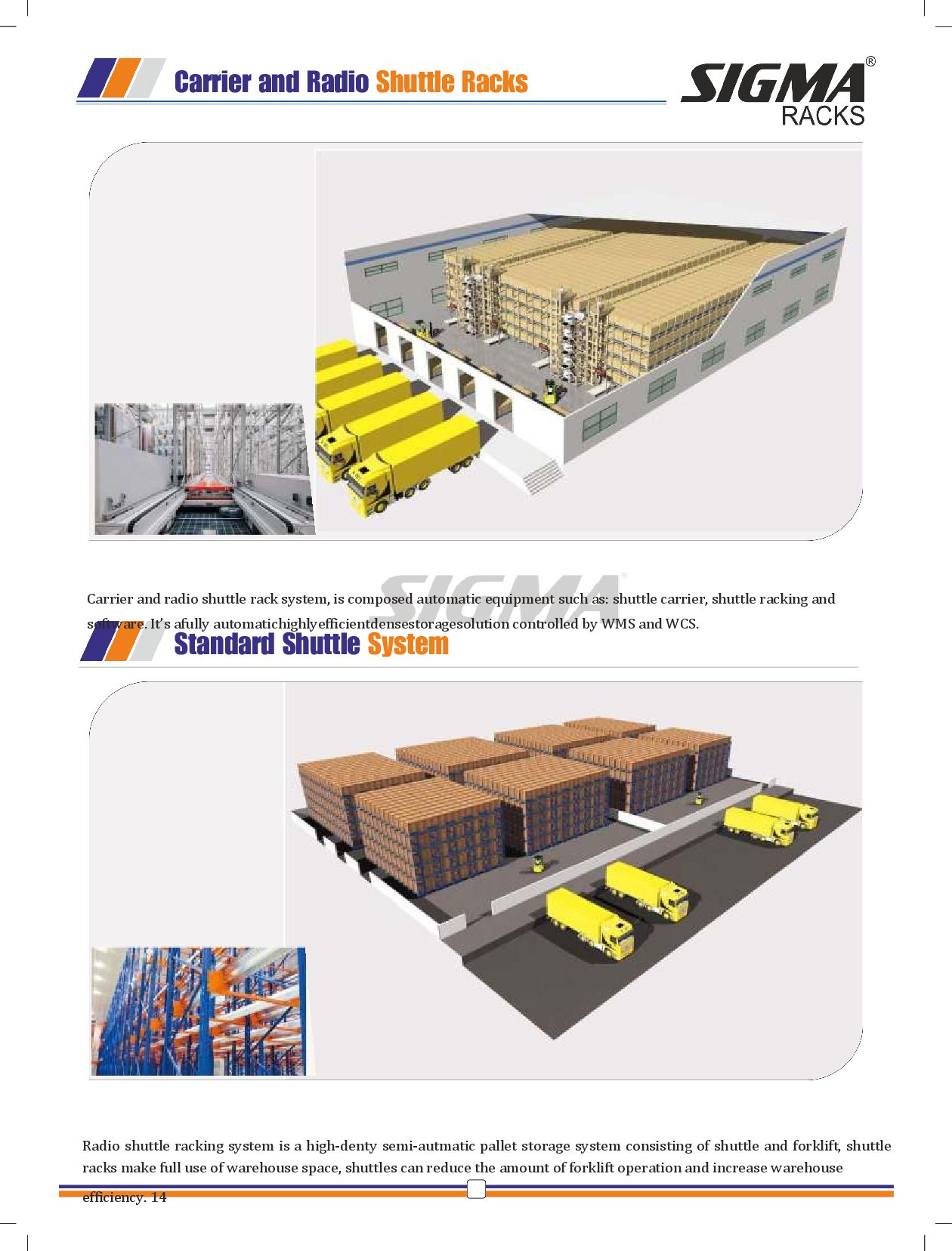

29. Standard Shuttle System Carrier and Radio Shuttle Racks Carrier and radio shuttle rack system, is composed automatic equipment such as: shuttle carrier, shuttle racking and software. It’s afully automatichighlyefficientdensestoragesolution controlled by WMS and WCS. Radio shuttle racking system is a high-denty semi-autmatic pallet storage system consisting of shuttle and forklift, shuttle racks make full use of warehouse space, shuttles can reduce the amount of forklift operation and increase warehouse efficiency. 14

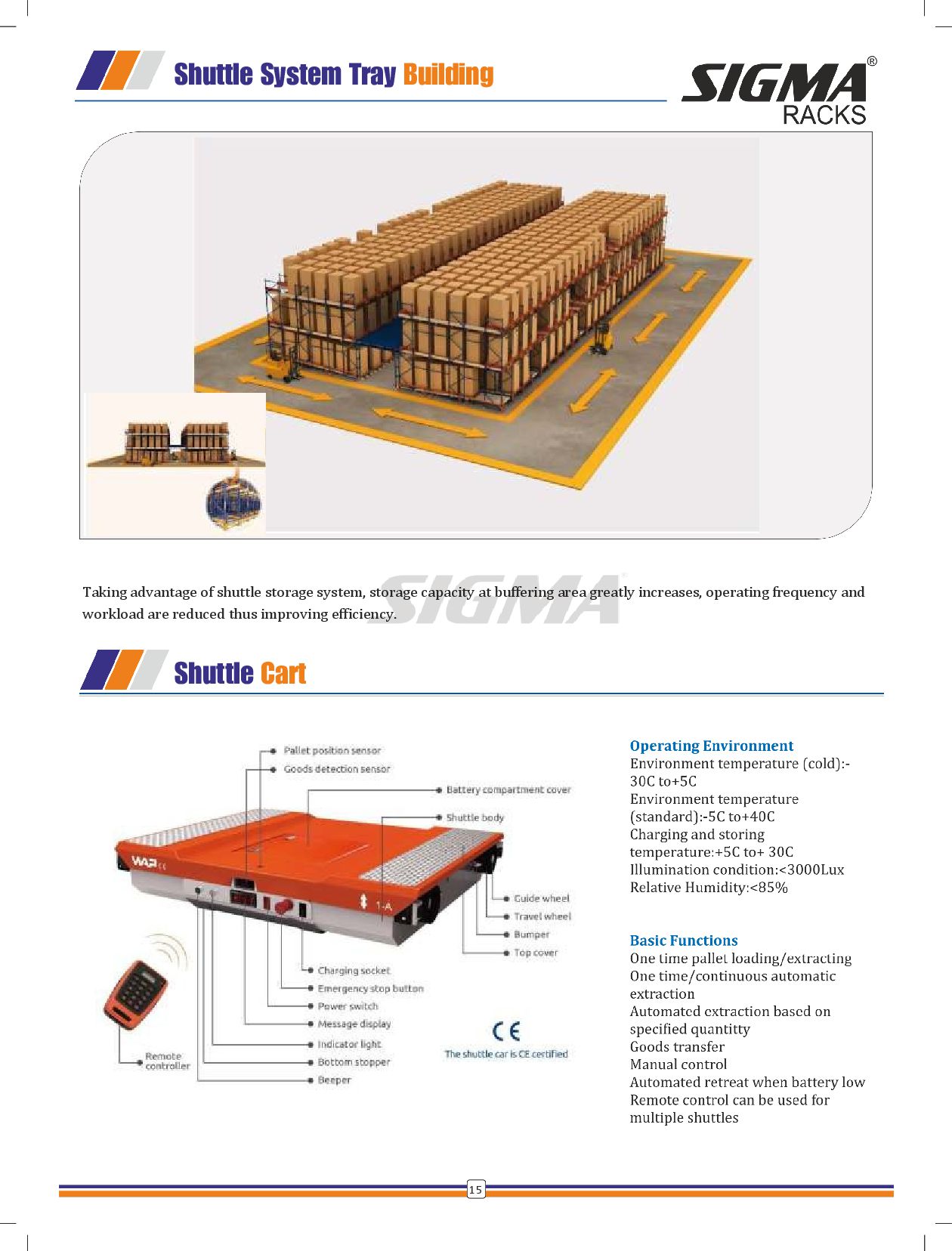

30. Shuttle Cart Shuttle System Tray Building Taking advantage of shuttle storage system, storage capacity at buffering area greatly increases, operating frequency and workload are reduced thus improving efficiency. 15

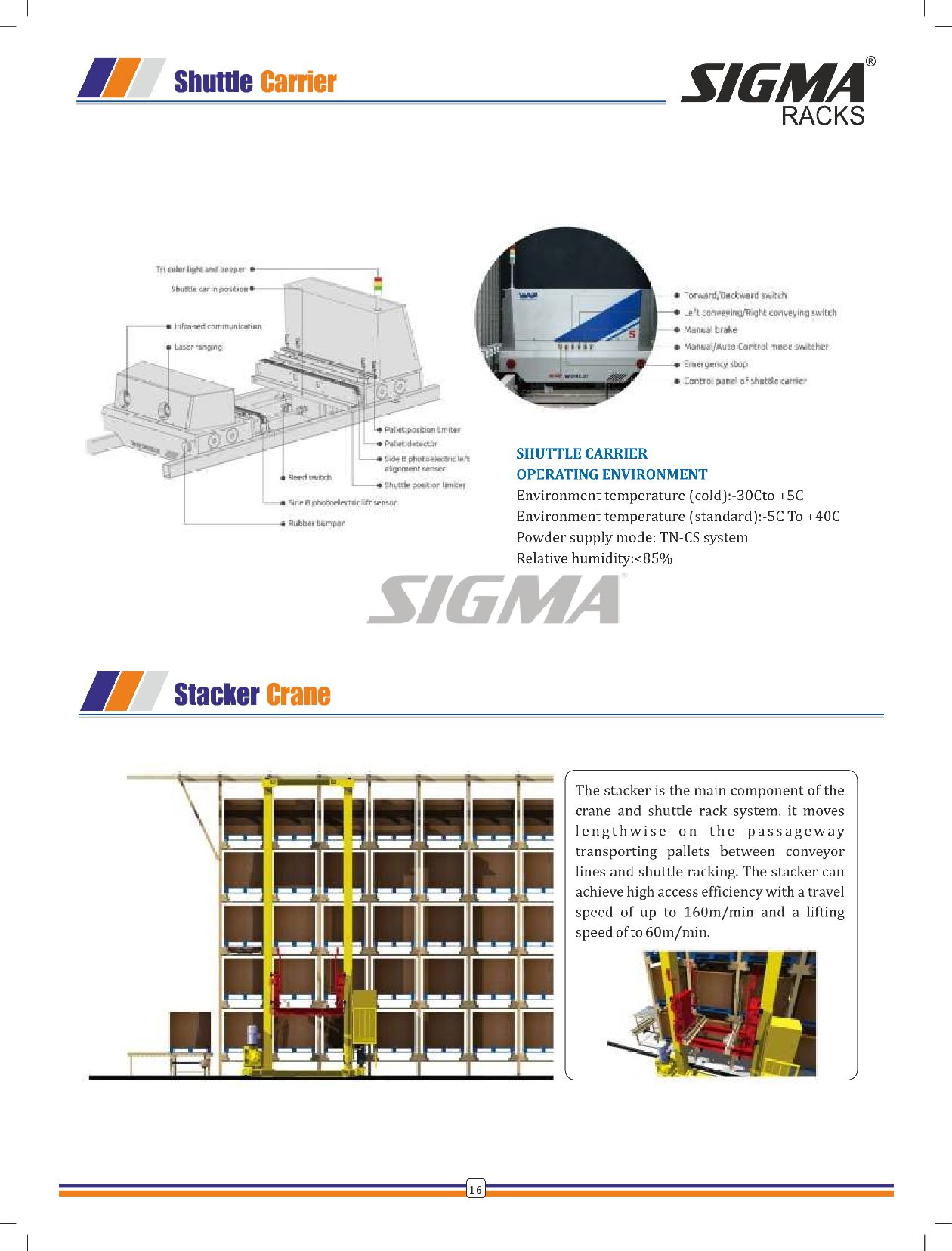

31. Stacker Crane Shuttle Carrier 16
