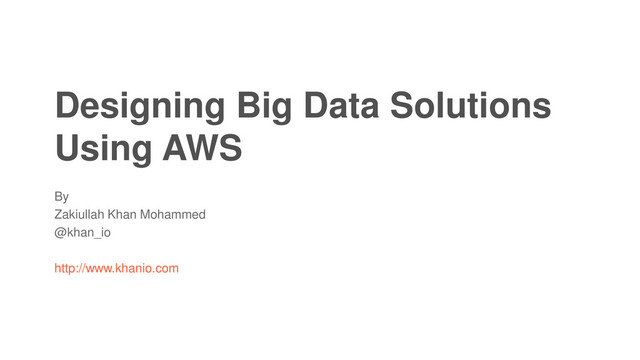

1. Designing Big Data Solutions Using AWS By Zakiullah Khan Mohammed @khan_io http://www.khanio.com
2. How many of are you using AWS already ? Survey Question 1 8/2/2013 @khan_io | http://www.khanio.com 2
3. How many of are using Hadoop at work ? Survey Question 2 8/2/2013 @khan_io | http://www.khanio.com 3
4. How many of are you already using Amazon EMR ? Survey Question 3 8/2/2013 @khan_io | http://www.khanio.com 4
5. Big Data Solution Requisites From Solution Architect’s PoV • Volume – Can it handle “large” data volumes ? • Variety – Can it handle data variety ? Structured, Semi-Structured, Poly-Structured, Unstructured ? • Value – At what cost can it deliver the required performance ? 8/2/2013 @khan_io | http://www.khanio.com 5
6. Optimal Big Data Solution Characteristics for right ROI Scalable & Reliable Operational Ease Cost Effective 8/2/2013 @khan_io | http://www.khanio.com 6
7. Amazon Web Services Quick Introduction A utility service that provides you technology resources managed by experts and available on demand. • Flexible • Cost-Effective • Scalable & Elastic • Secure • Experienced 8/2/2013 @khan_io | http://www.khanio.com 7
8. AWS Platform Overview Global Infrastructure • Regions • Availability Zones • Edge Location Foundation Services • Compute • Storage • Database • Networking Application Platform Services • Content Distribution • Application SVCS • Parallel Processing • Libraries & SDKs Management & Administration • Identity & Access • Web Interface • Monitoring • Deployment & Automation 8/2/2013 @khan_io | http://www.khanio.com 8
9. AWS Platform In Scope Global Infrastructure • Regions • Availability Zones • Edge Location Foundation Services • Compute • Storage • Database • Networking Application Platform Services • Content Distribution • Application SVCS • Parallel Processing • Libraries & SDKs Management & Administration • Identity & Access • Web Interface • Monitoring • Deployment & Automation 8/2/2013 @khan_io | http://www.khanio.com 9
10. Regions & Availability Zones Customer Decides Where Apps & Data reside 8/2/2013 @khan_io | http://www.khanio.com 10 Note: The Actual number of availability zones may vary. US East (VA) US West (CA) US West (OR) Asia Pacific (Tokyo) Asia Pacific (Singapore ) Asia Pacific (Sydney) EU (Ireland) South America (Sao Paulo) Availability Zone A Availability Zone B Availability Zone C Availability Zone C Availability Zone A Availability Zone B Availability Zone A Availability Zone B Availability Zone C Availability Zone A Availability Zone B Availability Zone C Availability Zone A Availability Zone B Availability Zone A Availability Zone B Availability Zone A Availability Zone B Availability Zone C Availability Zone A Availability Zone B
11. Compute Decide kind & quantity of computational power needed ? 8/2/2013 @khan_io | http://www.khanio.com 11 Note: The Actual number of availability zones may vary. Amazon Elastic Compute Cloud (EC2) Instance (On-Demand, Reserved & Spot) Instances Amazon Machine Image (AMI)
12. Amazon EC2 Instance Types 8/2/2013 @khan_io | http://www.khanio.com 12 • EC2 Instance = Virtual Server • Available in 16 compute capacities • EC2 instance types are On-Demand, Reserved and Spot • Amazon Machine Image (AMI) is a building block of EC2 instances
13. Storage Where will we store the data ? 8/2/2013 @khan_io | http://www.khanio.com 13 Note: The Actual number of availability zones may vary. Amazon Simple Storage Service (S3) Amazon Elastic Block Store (EBS) Amazon Glacier
14. Amazon S3 Universal Object Store 8/2/2013 @khan_io | http://www.khanio.com 14 • A “Bucket” is equivalent to “folder” • Objects form 1B - 5TB, no bucket size limit • Highly available, scalable, reliable, fast and inexpensive Bucket Bucket with Objects Object
15. Amazon EBS Storage for EC2 8/2/2013 @khan_io | http://www.khanio.com 15 • EBS Volume = Virtual Disk • Storage volume for EC2 instances – create, attach, backup, restore & delete • Can use to create RAID configuration for an EC2 instance Volume Snapshot
16. Data Portability How do you get large volume data into AWS Infra ? 8/2/2013 @khan_io | http://www.khanio.com 16 • AWS Direct Connect – Dedicated low latency bandwidth • AWS Import/Export – Physical media shipping • Queuing – Highly scalable event buffering (CEP) • Amazon Storage Gateway – Sync local storage to the cloud
17. Parallel Processing Distributed Job Processing 8/2/2013 @khan_io | http://www.khanio.com 17 Amazon Elastic Map Reduce Cluster HDFS Cluster
18. Amazon EMR Managed Hadoop Infrastructure 8/2/2013 @khan_io | http://www.khanio.com 18 • Reduces complexity of Hadoop management – node provisioning, customization and shutdown • Run Hive, Pig, Java and Streaming programs • Provides tight integration with AWS Services – Optimized for Amazon S3 – EC2 integration with automatic provisioning on node failure – Cluster Monitoring using Amazon CloudWatch
19. Amazon EMR Internals Instance Groups 8/2/2013 @khan_io | http://www.khanio.com 19 • Master Instance Group • Core Instance Group • Task Instance Group EMR Cluster Master Instance Group Core Instance Group Task Instance Group
20. Master Instance Group Instance Groups 8/2/2013 @khan_io | http://www.khanio.com 20 • Manages the job flow: coordinates the distribution of the MapReduce executable and subsets of raw data to the Core Instance Group and Task Instance Group • Master Node run both NameNode and JobTracker daemons EMR Cluster Master Instance Group Core Instance Group Task Instance Group
21. Core Instance Group Instance Groups 8/2/2013 @khan_io | http://www.khanio.com 21 • Collection of Core Nodes of a Job Flow • Core Node – an EC2 instance that runs Map & Reduce Tasks and stores data using HDFS • Core Nodes run both DataNodes and TaskTracker daemons. EMR Cluster Master Instance Group Core Instance Group Task Instance Group
22. Task Instance Group Instance Groups 8/2/2013 @khan_io | http://www.khanio.com 22 • Collection of Task Nodes in a Job Flow • Non Persistent in nature • Can be added or removed on-demand at any stage of job lifecycle EMR Cluster Master Instance Group Core Instance Group Task Instance Group
23. Amazon EMR Job Flow Execution Lifecycle 8/2/2013 @khan_io | http://www.khanio.com 23 Create Job Flow • Cluster created (Master, Core & Task Instance Groups) Run Job Step 1 • Processing Step (Execute scripts such has java, python, hive, pig etc..) Run Job Step 2 • Chained Step (Execute subsequent script using data from previous step) …. Run Job Step N • Chained Step (Cascaded Steps pipeline) End Job Flow • Cluster Terminated
24. Running Hive Job (interactive & batch mode) on Amazon EMR Demo 8/2/2013 @khan_io | http://www.khanio.com 24
25. Interactive Query using Hive Solution Design 8/2/2013 @khan_io | http://www.khanio.com 25 Amazon EMR Input S3 Bucket Output S3 Bucket User
26. Data Corpus As cluster gets rolled… Impressions s3://elasticmapreduce/samples/hive-ads/tables/impressions/ dt=$time/$hostname-$time.log { requestBeginTime: "19191901901", requestEndTime: "19089012890", browserCookie: "xFHJK21AS6HLASLHAS", userCookie: "ajhlasH6JASLHbas8", searchPhrase: "digital cameras“, adId: "jalhdahu789asashja", impresssionId: "hjakhlasuhiouasd897asdh", referrer: "http://cooking.com/recipe?id=10231", hostname: "ec2-12-12-12-12.ec2.amazonaws.com", modelId: "asdjhklasd7812hjkasdhl", processId: "12901", threadId: "112121", timers: { requestTime: "1910121", modelLookup: "1129101" }, counters: { heapSpace: "1010120912012" } } Clicks s3://elasticmapreduce/samples/hive-ads/tables/clicks/ dt=$time/$hostname-$time.log { requestBeginTime: "19191901901", requestEndTime: "19089012890", browserCookie: "xFHJK21AS6HLASLHAS", userCookie: "ajhlasH6JASLHbas8", adId: "jalhdahu789asashja", impresssionId: "hjakhlasuhiouasd897asdh", clickId: "ashda8ah8asdp1uahipsd", referrer: "http://recipes.com/", directedTo: "http://cooking.com/" } 8/2/2013 @khan_io | http://www.khanio.com 26
27. Data Flow within Cluster Moving Parts 8/2/2013 @khan_io | http://www.khanio.com 27 S3 Bucket Master Instance Group Core Instance Group Task Instance Group
28. Automated Batch Query using Hive Solution Design 8/2/2013 @khan_io | http://www.khanio.com 28 Amazon EMR Input S3 Bucket Output S3 Bucket AWS Data Pipeline
29. Time & Cost Savings A Solution Architect’s Tip Scenario 1 Scenario 2 8/2/2013 @khan_io | http://www.khanio.com 29 EMR Cluster Availability Zone Duration: 14 Hours Total Cost: 4 * 14 * 0.50 = $28 Duration: 7 Hours Total Cost: 4 * 7 * 0.50 = $14 5 * 7 * 0.25 = $8.75 $14 + $8.75 = $22.75 Time Savings : 50% & Cost Savings: 22%
30. Other Considerations More SA’s Tips 8/2/2013 @khan_io | http://www.khanio.com 30 • Use VPC for low latency within inter EMR clusters in a particular AZ. • Use CloudWatch to monitor metrics and scale based on cluster performances. • Use HDFS to store intermediate results, and S3 for job inputs/outputs, 200 transactions per second cap on S3.
