Debuggers in depth

1. How computers run programs: how program counters, stack pointers and the call stack work
2. How processes can be controlled: We will talk about Linux, but all OSes have some way of allowing that
3. How the compiled binary maps back to the original source: symbols
4. How goroutines differ from threads: A debugger's point of view

Transcript

1. Sourya Vatsyayan Debuggers: Under the Hood

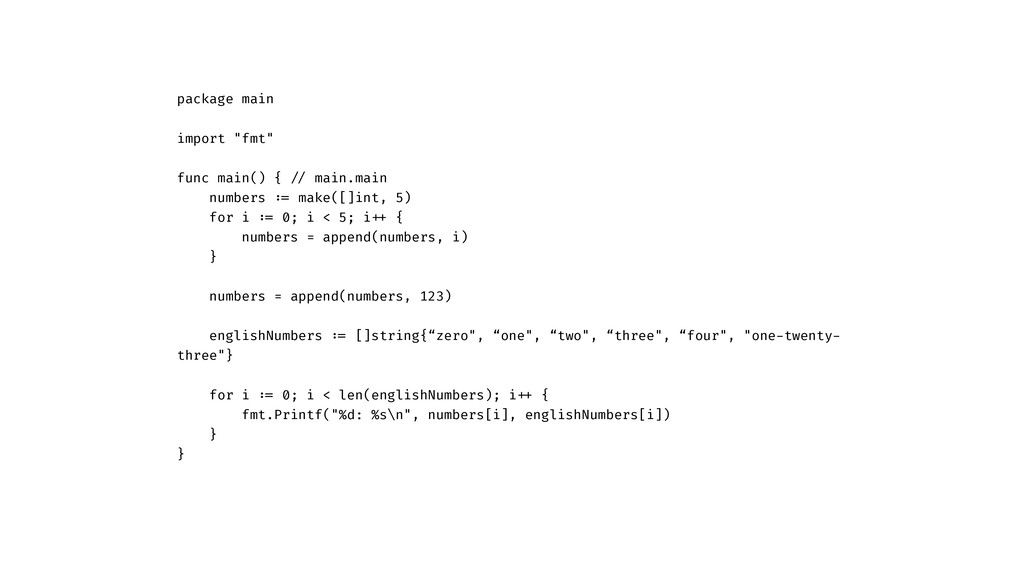

3. package main import "fmt" func main() { !// main.main numbers !:= make([]int, 5) for i !:= 0; i < 5; i!++ { numbers = append(numbers, i) } numbers = append(numbers, 123) englishNumbers !:= []string{“zero", “one", “two", “three", “four", "one-twenty- three"} for i !:= 0; i < len(englishNumbers); i!++ { fmt.Printf("%d: %s\n", numbers[i], englishNumbers[i]) } }

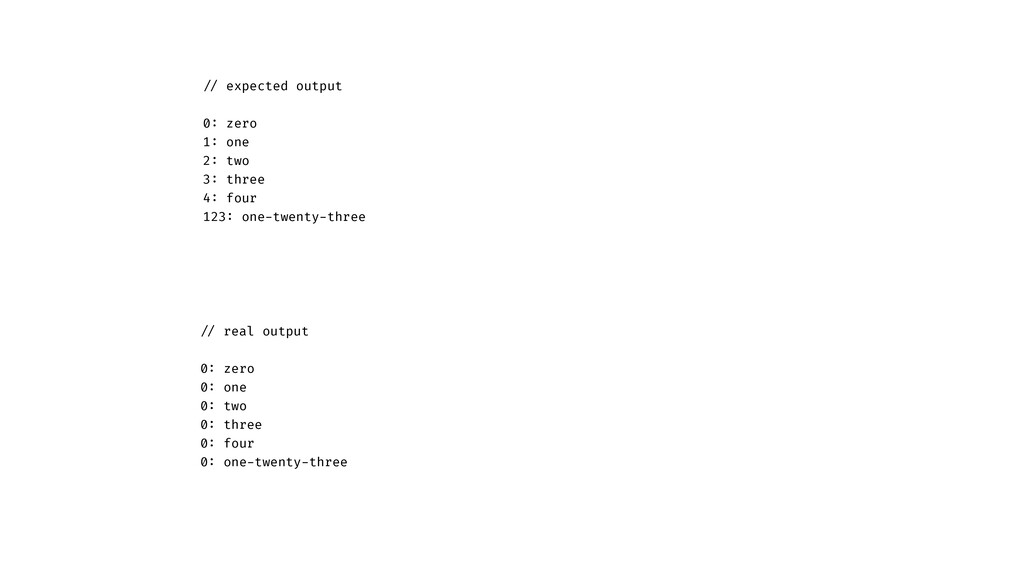

4. !// expected output 0: zero 1: one 2: two 3: three 4: four 123: one-twenty-three !// real output 0: zero 0: one 0: two 0: three 0: four 0: one-twenty-three

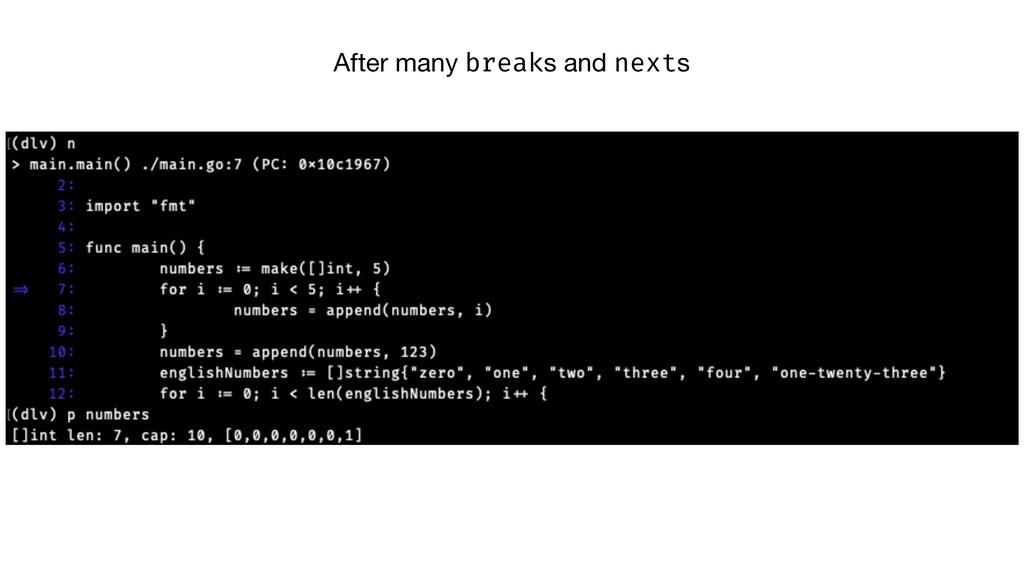

5. After many breaks and nexts

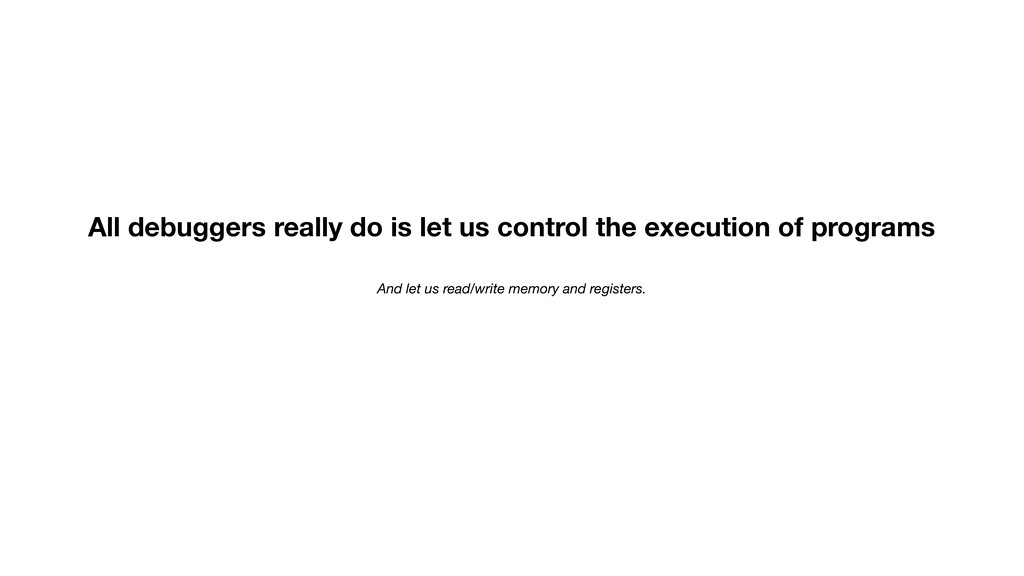

6. All debuggers really do is let us control the execution of programs And let us read/write memory and registers.
7. Computers have CPUs -> Registers - Program Counter - Stack pointer - Base pointer - Stack frame

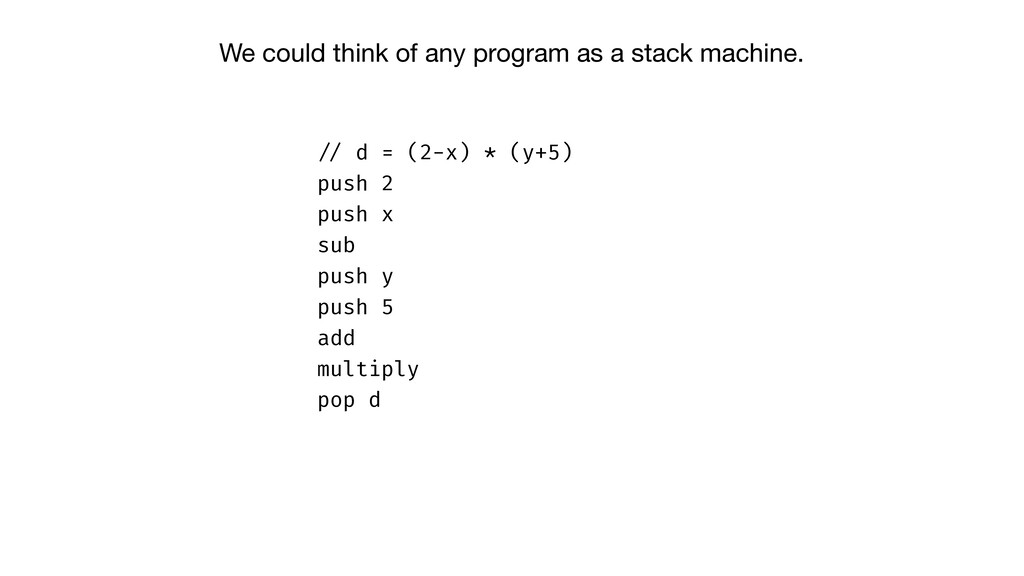

8. We could think of any program as a stack machine. !// d = (2-x) * (y+5)
 push 2
 push x
 sub
 push y
 push 5
 add
 multiply
 pop d

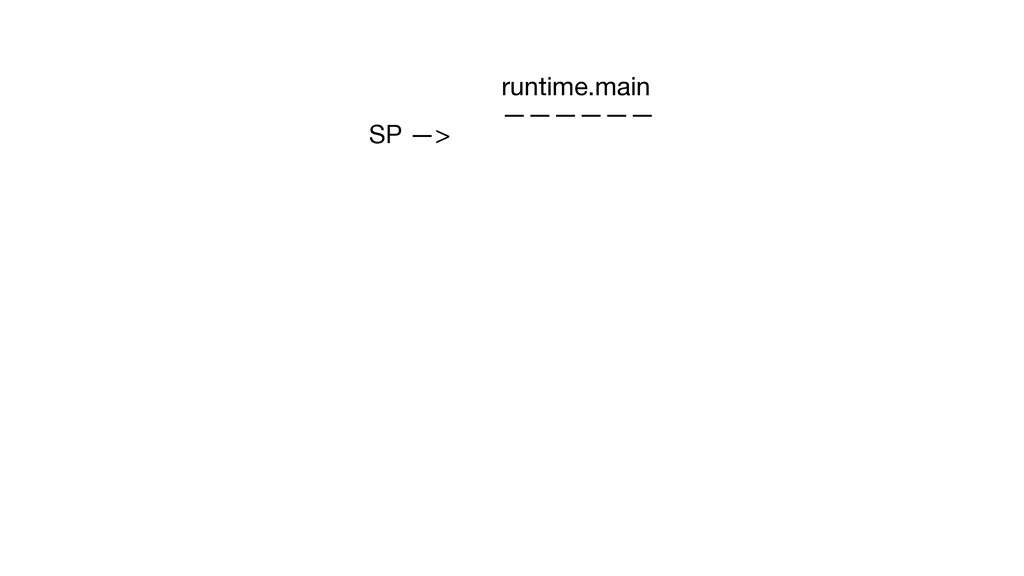

9. runtime.main
 ——————
 SP —>

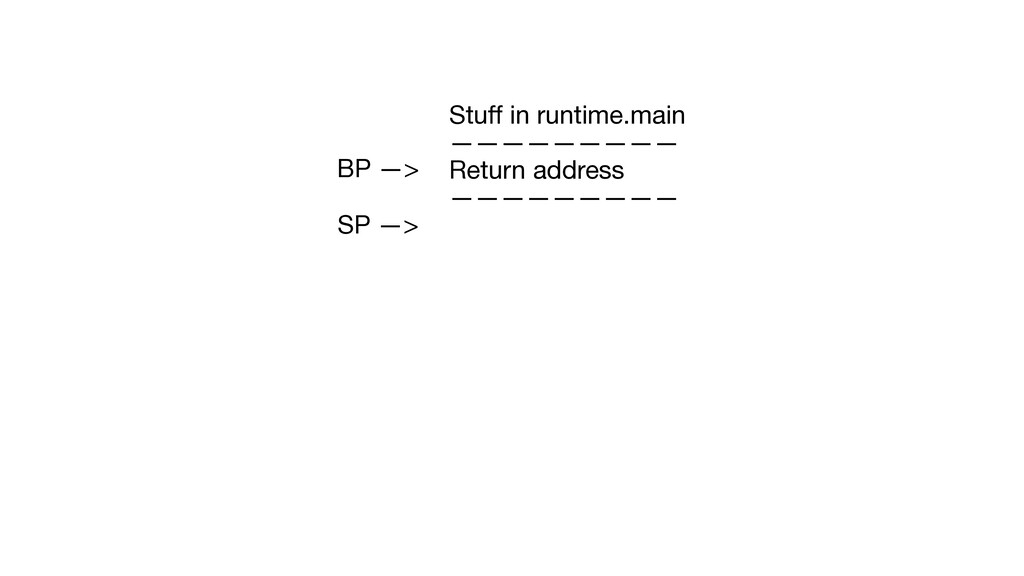

10. Stuff in runtime.main
 —————————
 Return address
 ————————— BP —> SP —>

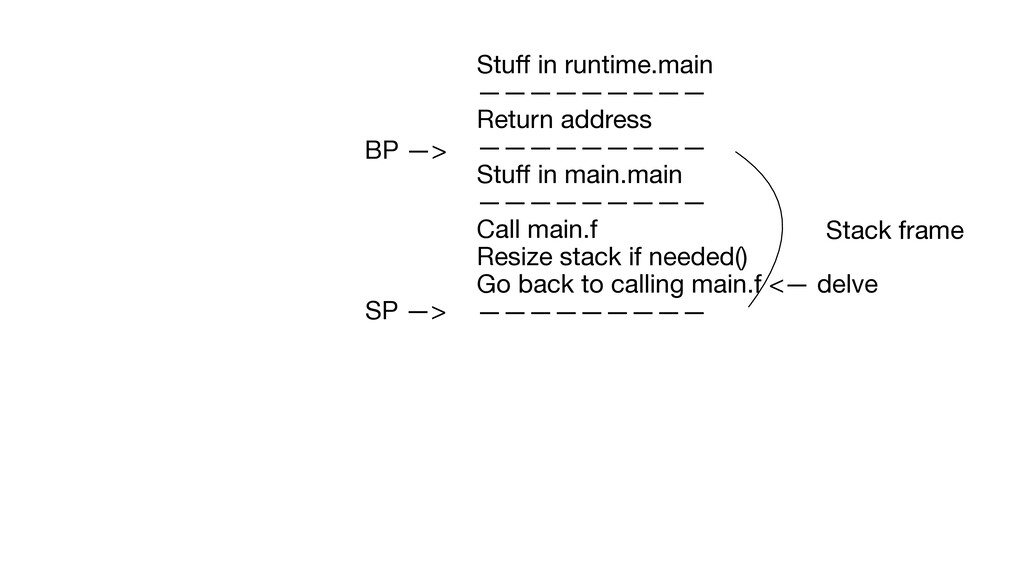

11. Stuff in runtime.main
 —————————
 Return address
 —————————
 Stuff in main.main
 —————————
 Call main.f
 Resize stack if needed()
 Go back to calling main.f <— delve
 —————————
 BP —> SP —> Stack frame
12. Goroutines do not lie hanging by a thread

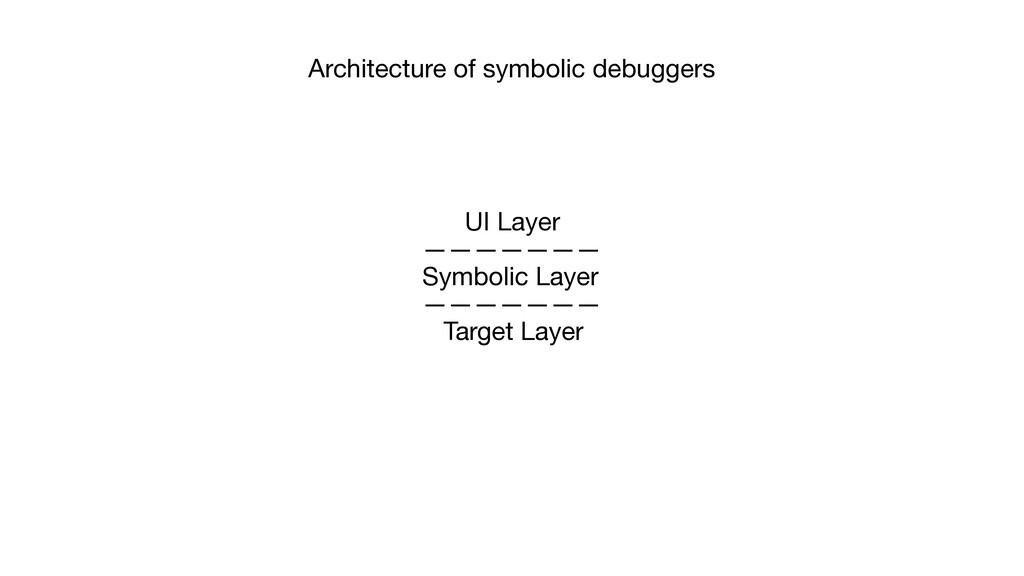

13. Architecture of symbolic debuggers UI Layer
 ———————
 Symbolic Layer
 ———————
 Target Layer

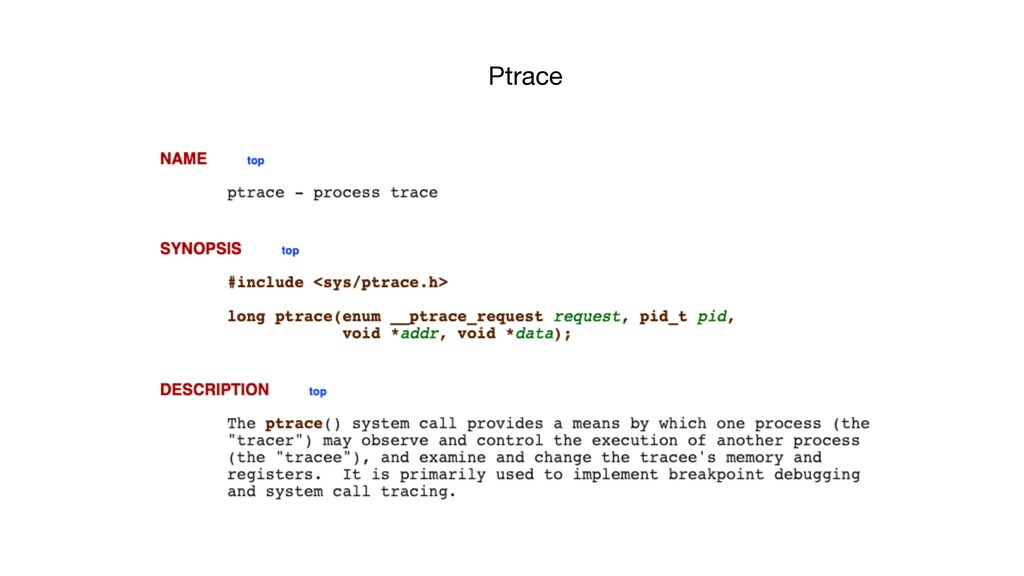

14. Ptrace

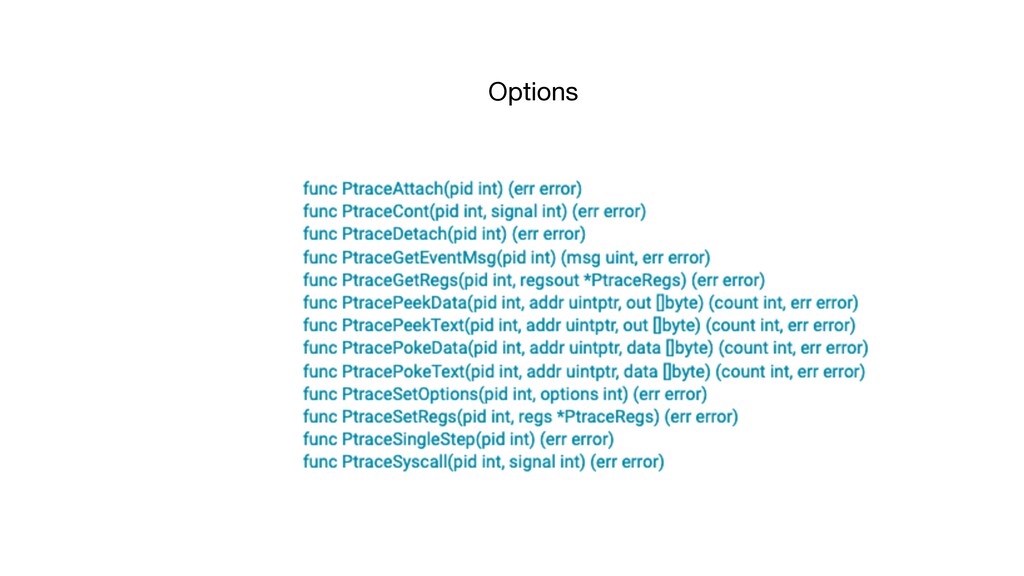

15. Options

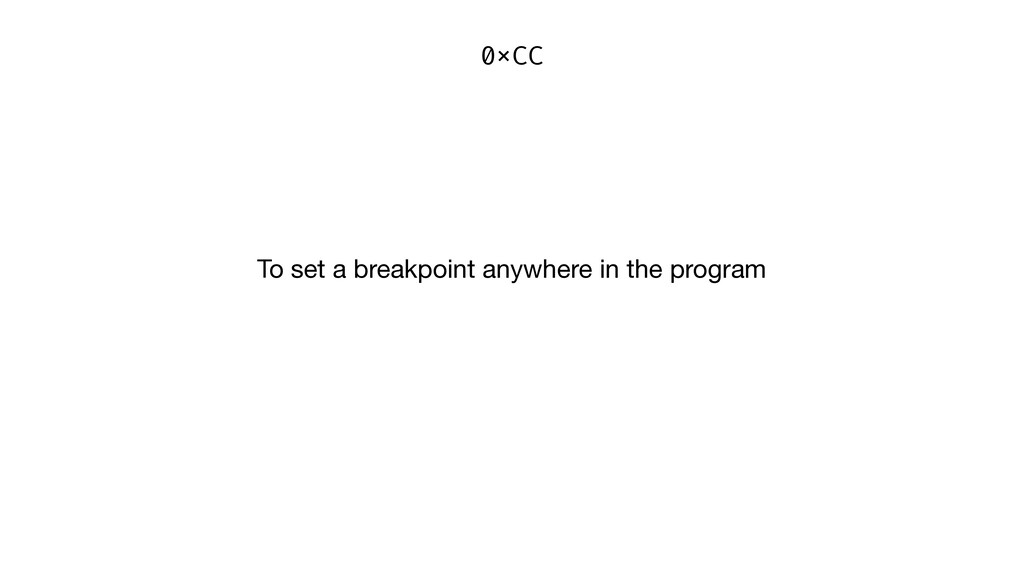

16. 0xCC To set a breakpoint anywhere in the program

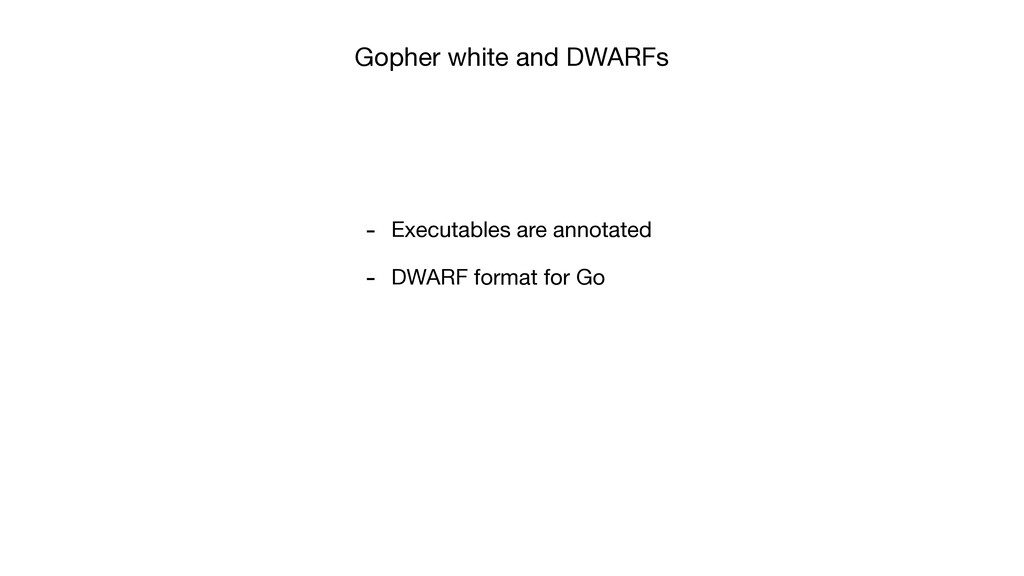

17. Gopher white and DWARFs - Executables are annotated - DWARF format for Go

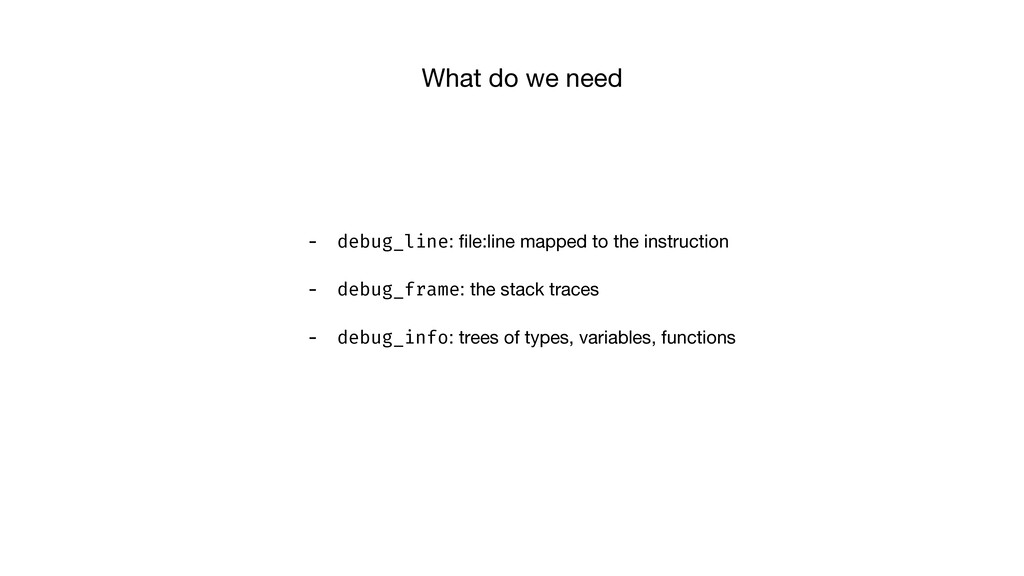

18. - debug_line: file:line mapped to the instruction - debug_frame: the stack traces - debug_info: trees of types, variables, functions What do we need

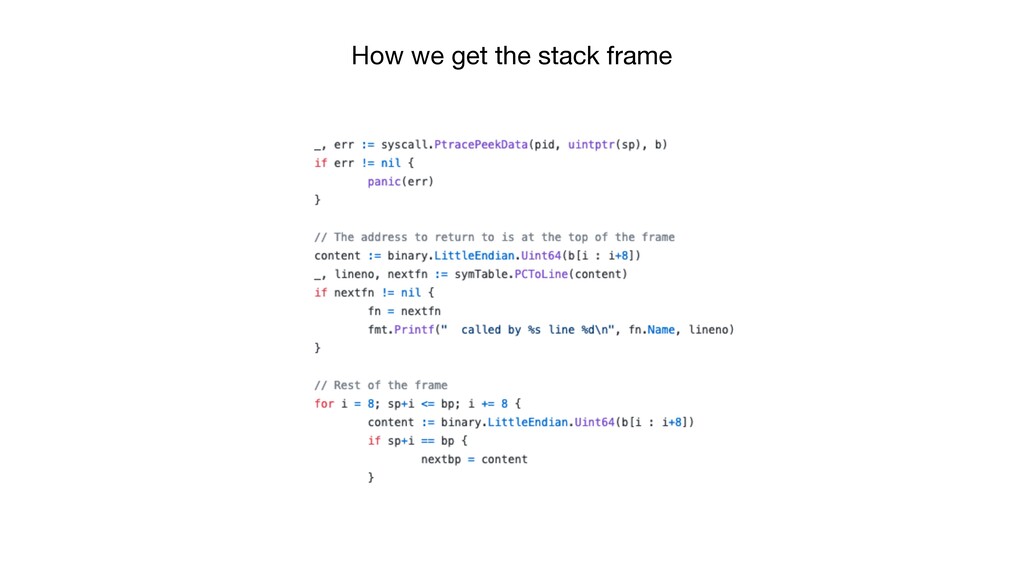

19. How we get the stack frame

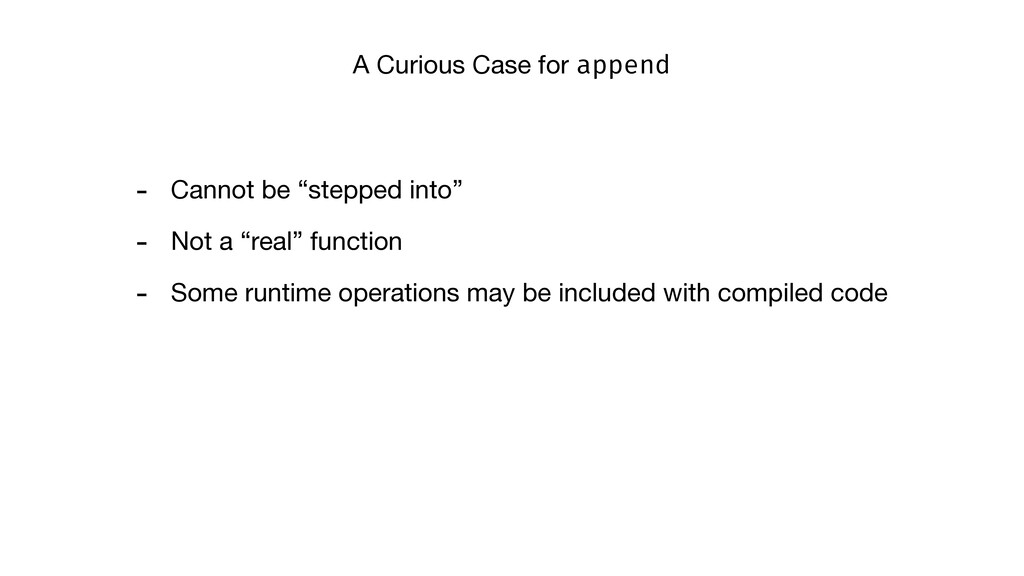

20. A Curious Case for append - Cannot be “stepped into” - Not a “real” function - Some runtime operations may be included with compiled code

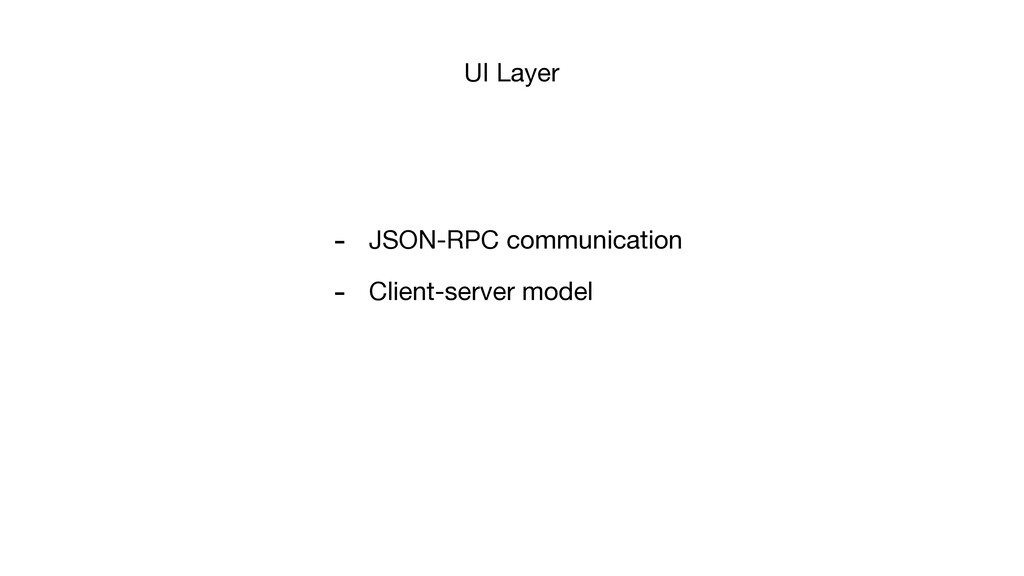

21. UI Layer - JSON-RPC communication - Client-server model

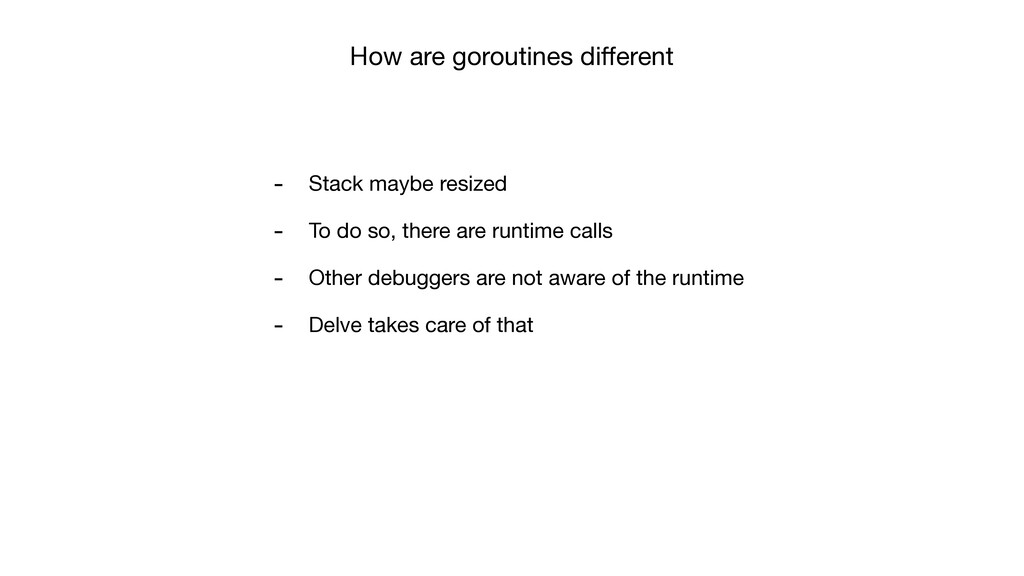

22. How are goroutines different - Stack maybe resized - To do so, there are runtime calls - Other debuggers are not aware of the runtime - Delve takes care of that
23. References https://www.youtube.com/watch?v=ZrpkrMKYvqQ https://github.com/go-delve/delve https://www.youtube.com/watch?v=IKnTr7Zms1k
24. That’s all folks! https://twitter.com/__sourya__ https://souryavatsyayan.com
